Ax63Z
User Guide
CONTENTS
1. Warningsandoperationnotes.................................3
2. Unpacking...............................................................5
3. Installation..........................................................6
4. ConnectingtotheSRX-ProServer.........................21
5. Advanced Camera Setup......................................29
6. Specifications.......................................................44
Please read this guide carefully before you install the dome camera. Keep this guide for future reference.

2
i3-TRNG-CAMS-Ax63Z.indd Rev. 160929
Ax63Z-series User Guide
COPYRIGHT ©2013 by i3 International, Inc. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including but not limited to, photocopying,
recording, or by any information storage or retrieval system, without the prior
written permission of the copyright owner and the publisher.
Annexxus is a registered trademark of i3 International Inc.
Disclaimer
This quick start guide is provided as is, without warranty of any kind, expressed or
implied, including but not limited to performance, merchantability, or fitness for any
particular purpose. Neither i3 International Inc. nor its dealers or distributors shall be
liable to any person or entity with respect to any liability, loss, or damage, caused or
alleged to have been caused directly or indirectly by this information.
Furthermore, i3 International Inc. reserves the right to revise this publication, and to
make changes to the content at any time, without notice.
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Address:
i3 International Inc.
780 Birchmount Road, Unit 16
Scarborough, ON M1K 5H4
Canada
Contact us:
Tech Support: 1.877.877.7241
Email. [email protected]
Web Site: www.i3international.com
Table of Contents
1. Warnings and operation notes
2. Product Overview
3. Unpacking
4. Installation
5. Configuration
6. Advanced Camera Setup
7. Specifications

3Rev. 160929i3-TRNG-CAMS-Ax63Z.indd
1. Warnings and operation notes
Please read this guide carefully before you install the dome camera.
Keep this guide for future reference.
Thank you for purchasing i3 Ax63Z High-Speed Network Dome camera.
If the system needs to be modified or repaired, contact a certified i3 International
Dealer/Installer. When serviced by an unauthorized technician, the system
warranty will be voided. Should you have any problems or questions regarding our
products, contact your local i3 International Dealer/Installer.
1.1 Precautions
Installation and serving should be performed only by qualified and
experienced technicians to conform to all local codes and to maintain
your warranty.
When installing your Ax63Z camera be sure to avoid:
• excessive heat, such as direct sunlight or heating appliances
• contaminants such as dust and smoke
• strong magnetic fields
• sources of powerful electromagnetic radiation such as radios or TV transmitters
• moisture and humidity
• areas with mechanical vibrations
• fluorescent lamps or objects that reflect light
• unstable light sources as this may cause flickering
• temperatures below -40° Celsius or -40° Fahrenheit and above 50° Celsius or
122° Fahrenheit.
WARNING! The use of CSA certified/ UL Listed Class 2 power
adapter is required to ensure compliance.
WARNING! To reduce the risk of fire or electric shock, do not
expose the product to rain or moisture.

4
i3-TRNG-CAMS-Ax63Z.indd Rev. 160929
1.2 Power Supply
Ensure the supplied voltage meets the power consumption requirements of this
camera before powering the camera on.
Ax63Z power consumption requirement: Indoor - PoE+ (IEEE 802.3at) or AC24V;
Low temperature outdoor: AC24V only. PoE+ power is supported in indoor
installations only. For the most reliable PoE please use i3 switches S81, S243, or
S242.
Caution: Some switches may have compatibility issues with the PoE requiring the
camera to use the AC24V power.
Maximum power consumption for outdoor installations with heater on: 36W
Incorrect voltage may cause irreparable damage to the video camera and will
effectively void the camera warranty.
1.3 Cleaning
• For maximum optical clarity, the camera or lens must remain clean. Use a soft,
dry cloth to remove finger prints and dust from the dome cover.
• Use a blower to remove dust from the lens.
• Clean the body with a soft, dry cloth. If it is very dirty, use a cloth dampened
with a small quantity of neutral detergent, then wipe dry.
• Do not use volatile solvents such as alcohol, benzene, or thinners, as they may
damage the surface finish.
1.4 Servicing
To avoid electrical shock and to preserve the product warranty, DO NOT disassemble
the camera. Refer servicing to qualified personnel only.
Please Note: Scan the QR code below or visit www.i3international.com to view and
download the full User Manual for this camera. Also available for download is the
AnnexxusConfigurationTool or ACT program used to locate and configure your
cameras with your SRX-Pro software. This program is already installed in SRX-Pro
v3.3.3.69 and higher. Please contact our Technical Support team if you have any
questions or concerns regarding camera installation or you require software services
or support. Technical support can be reached by email at:
[email protected] or by phone toll free 1.877.877.7241.
QR Code to Complete
User Manual / ACT

5Rev. 160929i3-TRNG-CAMS-Ax63Z.indd
2. Unpacking
Before you begin, read this guide carefully before you install the
camera. Keep this guide for future reference.
Check that the items received match those listed on the order form and packing
slip. The dome camera packing box includes, in addition to the camera and a Quick
Installation Guide:
1. Blind set screw (1/4-20UNC,12mm) x1
2. Hex driver (Allen key) x1
3. Torx driver (Torx key) x1
4. RJ45 Female / Female Coupler x1
5. CD (Documentation, Annexxus Finder) x1
Parts illustrated above are not to scale. If any parts are missing or damaged, contact
the dealer you purchased the camera from.
123
4

6
i3-TRNG-CAMS-Ax63Z.indd Rev. 160929
3. Installation
Use the appropriate brackets and equipment to mount the camera. After installing
the camera, your network camera should be accessed from your local network.

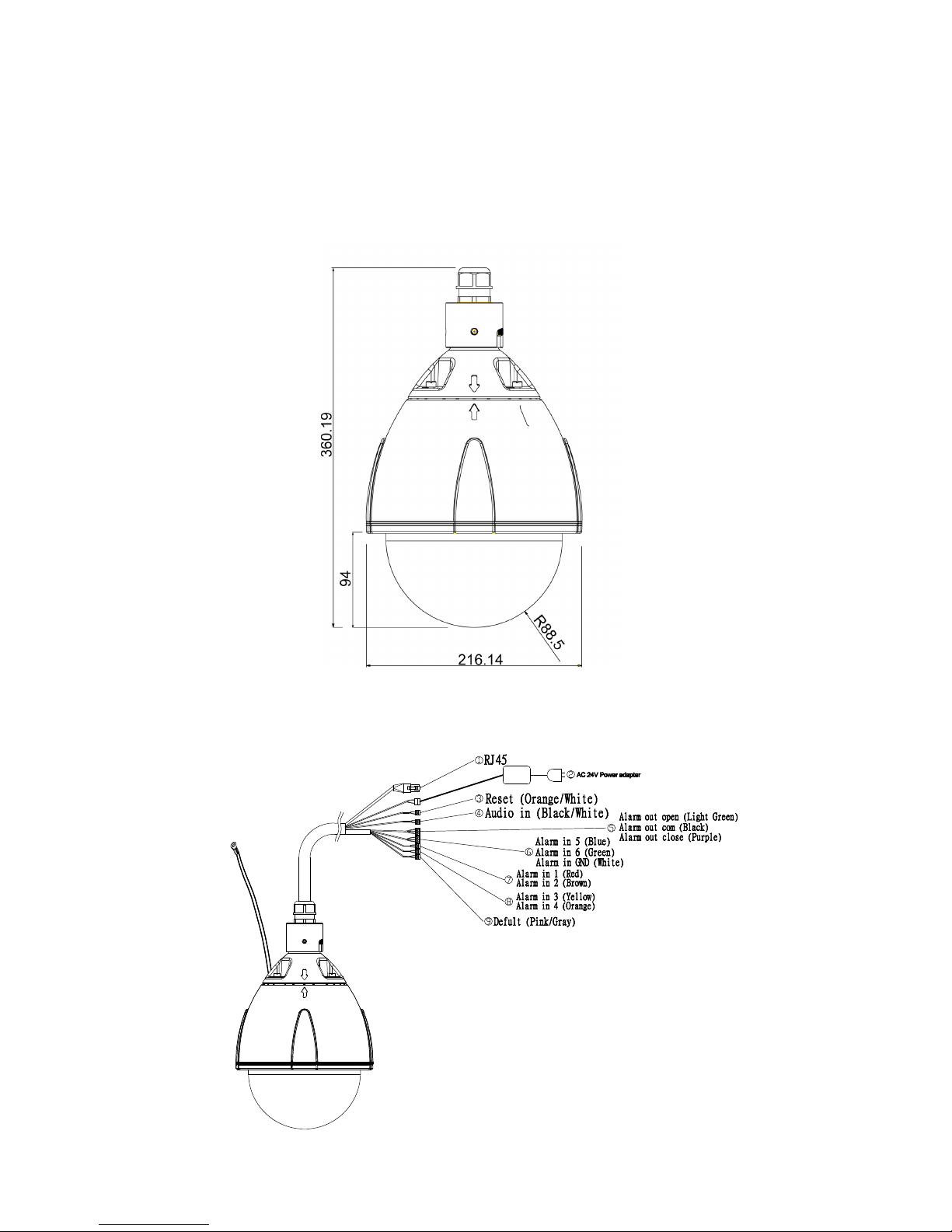

3.1 Dimensions
3.2. Camera Parts and Definitions

7Rev. 160929i3-TRNG-CAMS-Ax63Z.indd
3.3 Installation Intructions
1. Remove the dome cover.
2. Remove the EPE.
3. Using a soft lint-free cloth, wipe the dome cover clean and remove fingerprints.
4. Attach the camera housing.
5. Turn on the camera.

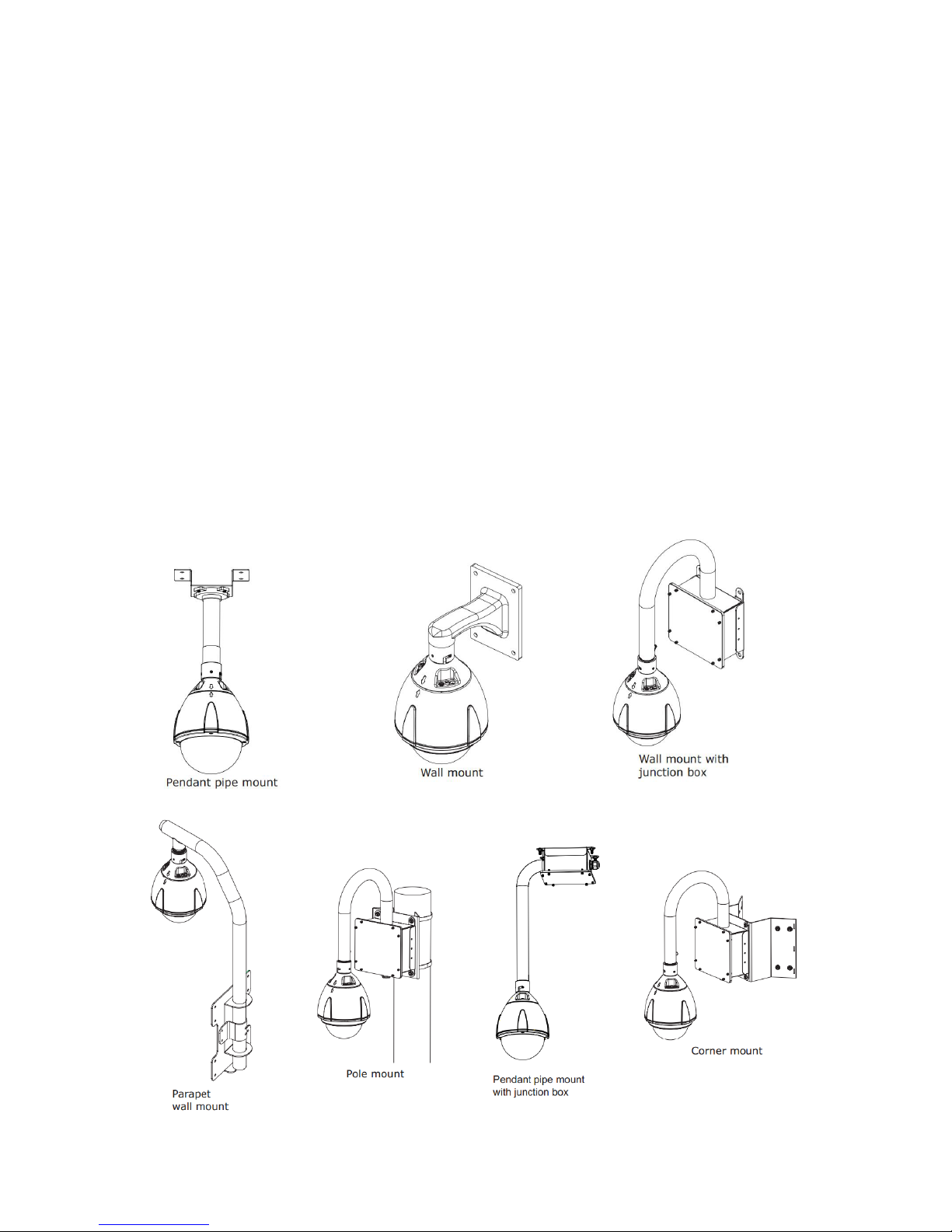

6. Mount the camera. See the following sections on mounting for further instruc-
tions. The camera supports several mounting methods. Select an appropriate
method according to your location and purchase required mounting brackets or
accessories. Currently the camera supports pendant pipe mount, wall mount,
wall mount with junction box, parapet wall mount, pole mount, pendant pipe-
mount with junction and corner mount.
7. Connect the camera to a power source. Use AC24V power source for indoor
or outdoor installations; use PoE+ via an Ethernet cable for indoor applications
only.
8. Connect the control inputs to terminals GND, Alarm in, Alarm out, Audio in,
Default and Reset.
9. Connect the camera either to a network device or your DVR.
Safety Wire Main signal connector

8
i3-TRNG-CAMS-Ax63Z.indd Rev. 160929
Note:
• When using water sealant, the entire portion of the spiral tooth for the connec-
tor ring must be applied with the sealant. This will prevent rain water leaking
through the connection.
• Make sure any drilled holes are of correct size to ensure proper installation.
• When drilling the hole, make sure the wall thickness is greater than 50mm in
order to maintain its structural integrity.
Warning:
• When using in an outdoor environment, the safety cable must be connected to
the main unit and wall mount bracket. This will avoid personal hazards if the
unit falls from its installation.When installing the main unit, please secure the
safety cable to one of the four screw holes on the nearby support frame.
• Make sure there are no damaged parts during assembly.
• Remove the connector ring from the speed dome and replace with the connec-
tor ring that comes with the support, if applicable.

9Rev. 160929i3-TRNG-CAMS-Ax63Z.indd

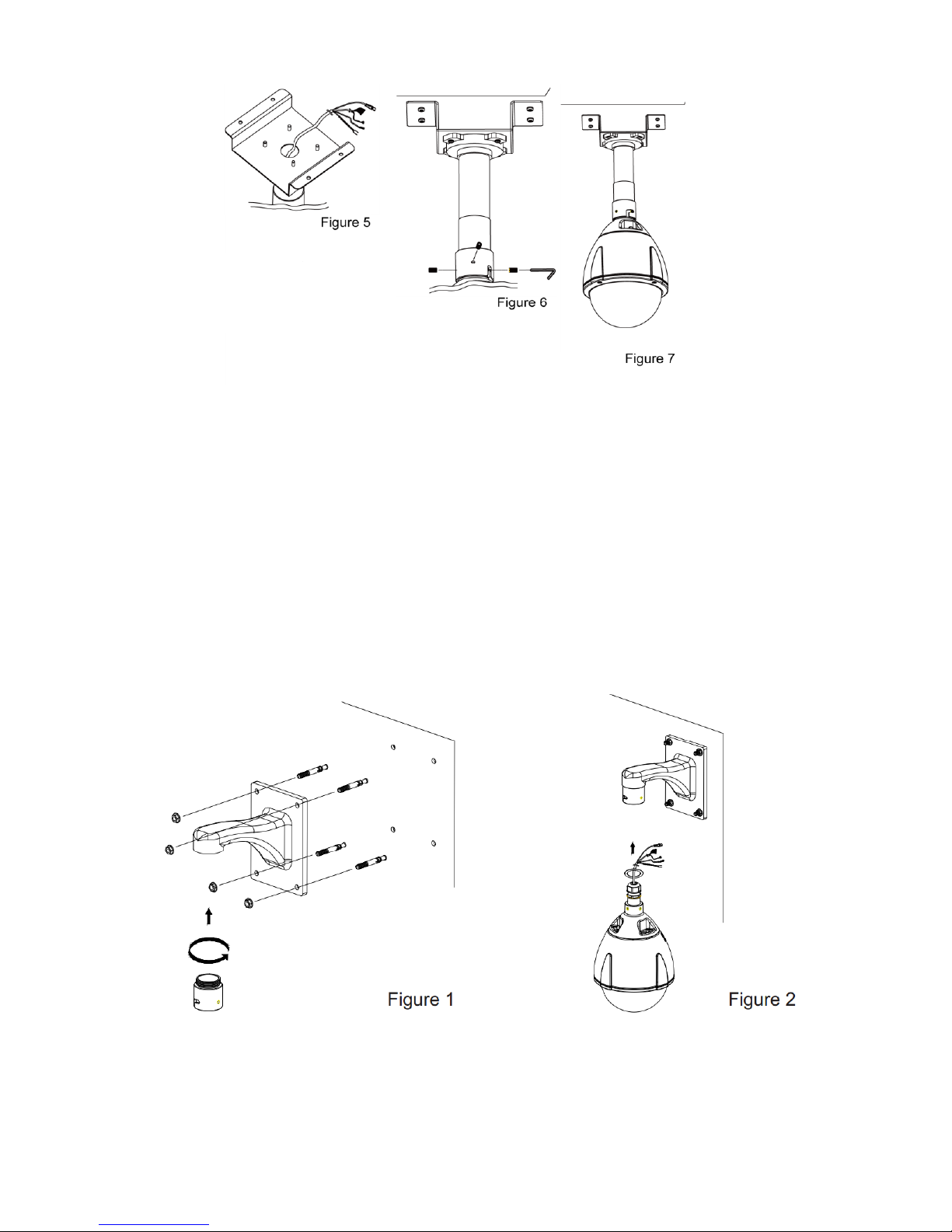

3.3.1. Pendant Pipe Mount
1. Remove the ceiling support frame and attach the connector ring to the alumi-
num tube in clockwise direction.
2. Mark the ceiling with regards to the 4 mount holes on the ceiling support frame.
3. Drill 4 holes of diameter of 6mm, depth 20mm.
4. Hammer the 4 wall screws into the holes.
5. Secure the entire ceiling support frame to the screw mounts (Figure 1).
6. Fasten the connector ring to the wall hang support (Figure 2).
7. Thread the cabling of the main unit through the short aluminum tube and push
the cables out from the bottom (Figure 4, 5).
8. Pull out the cables and connect the main unit to the connector ring in the clock-
wise direction. Use hex driver to secure the set screw to the connector ring and
fasten the safety cable to the tube (Figure 6).
9. This completes the mounting (Figure 7).

10
i3-TRNG-CAMS-Ax63Z.indd Rev. 160929
3.3.2 Wall Mount
1. Remove the secure plate and drill 4 holes on the wall matching the mount holes
on the plate. Diameter 3/8” (9.5mm), depth 1/1/2” (40mm).
2. Hammer 4 screw mounts into the holes and then secure the plate.
3. Fasten the connector ring to the wall hang support in the clockwise direction
(Figure 2).

11 Rev. 160929i3-TRNG-CAMS-Ax63Z.indd
4. Thread the cabling of the main unit through the short aluminum tube and push
the cables out from the bottom.
5. Pull out the cables and connect the main unit to the connector ring in the clock-
wise direction. Use hex driver to secure the set screw to the connector ring and
fasten the safety cable to the tube (Figure 3).
6. This completes the mounting (Figure 4).

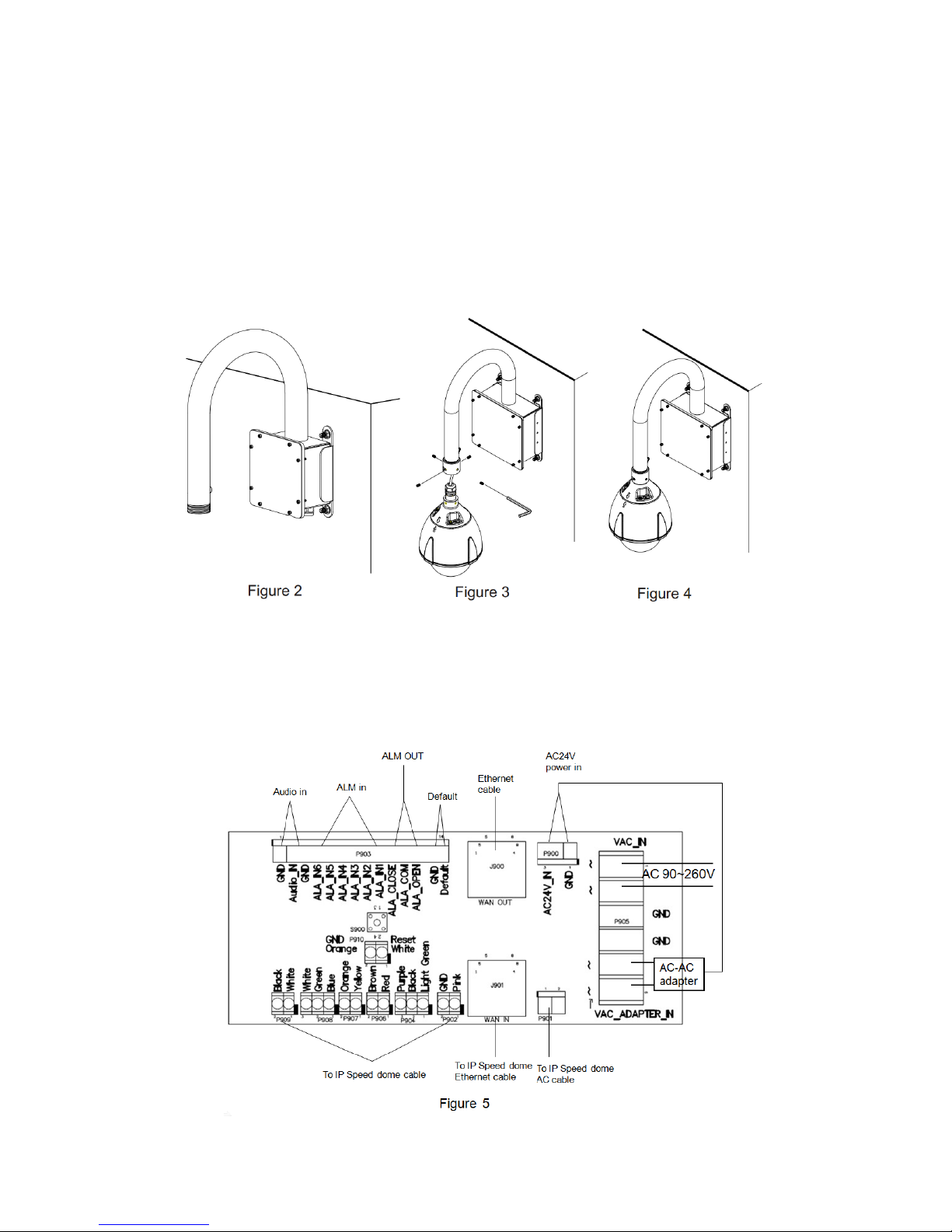

3.3.3 Wall Mount With Power Box
1. Attach the mounting holes guide onto the wall.
2. Drill 4 holes on the wall matching the mount holes on the plate. Diameter 3/8”
(9.5mm), depth 1/1/2” (40mm) (Figure 1).

12
i3-TRNG-CAMS-Ax63Z.indd Rev. 160929
3. Hammer 4 screw mounts into the holes.
4. Secure the water-proof box to the U tube with a hex driver (Figure 2).
5. Loosen the security screws of the lid with a hex driver (leave the single lower
right screw in) (Figure 4).
6. Fasten the connector ring to the U tube and use a hex driver to secure the set
screws to the connector ring. Thread the cabling of the main unit through the U
tube and push the cables out to the bottom of the water-proof box. Pull out the
cables and connect them to the PCB board (Figure 3).
7. After all cables are connected, please make sure the cables are properly fitted to
avoid water leaks (Figure 5).
8. Return the lid to position and securely fasten the security screws.

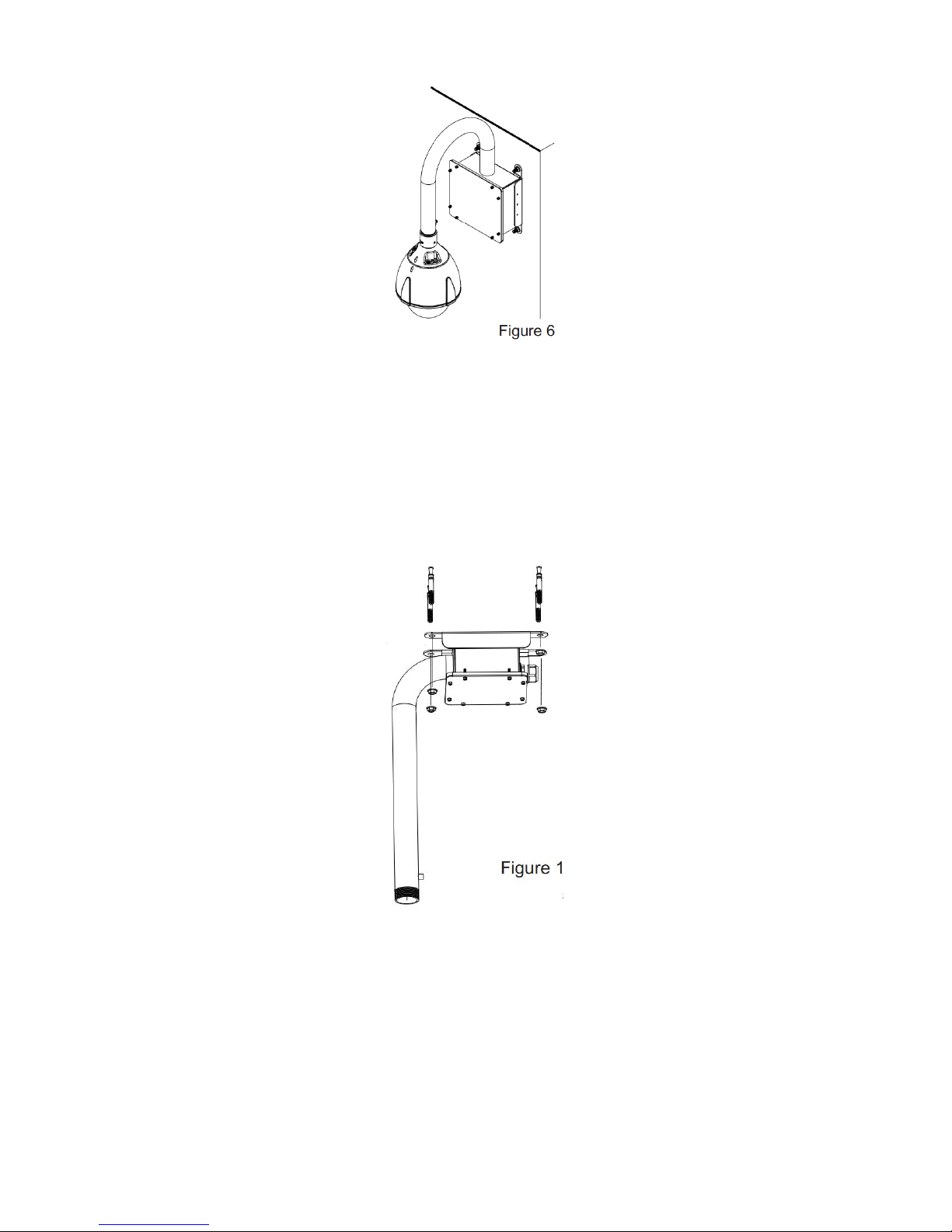

9. This completes the mounting (Figure 6).

13 Rev. 160929i3-TRNG-CAMS-Ax63Z.indd
3.3.4 Pendant Pipe Mount With Power Box
1. Attach the mounting holes guide onto the wall.
2. Drill 4 holes on the wall matching the mount holes on the plate. Diameter of
3/8” (9.5mm), depth 1/1/2” (40mm) (Figure 1).
3. Hammer 4 screw mounts into the holes. Secure the water-proof box to the L
tube with a hex driver (Figure 2). Loosen the security screws of the lid with a
hex driver (leave the single lower right screw in) (Figure 4).

14
i3-TRNG-CAMS-Ax63Z.indd Rev. 160929
4. Fasten the connector ring to the L tube and use a hex driver to secure the set
screws to the connector ring. Thread the cabling of the main unit through the L
tube and push the cables out to the bottom of the water-proof box. Pull out the
cables and connect them to the PCB board (Figure 3).
5. After all cables are connected, please make sure the cables are properly fitted to
avoid water leaks (Figure 5).
6. Return the lid to position and securely fasten the security screws.
7. This completes the mounting (Figure 6).

15 Rev. 160929i3-TRNG-CAMS-Ax63Z.indd
3.3.5 Parapet Wall Mount
1. Remove the secure plate and drill 8 holes on the wall matching the mount holes
on the plate. Diameter of 3/8” (9.5mm), depth 1/1/2” (40mm) (Figure 1).

16
i3-TRNG-CAMS-Ax63Z.indd Rev. 160929

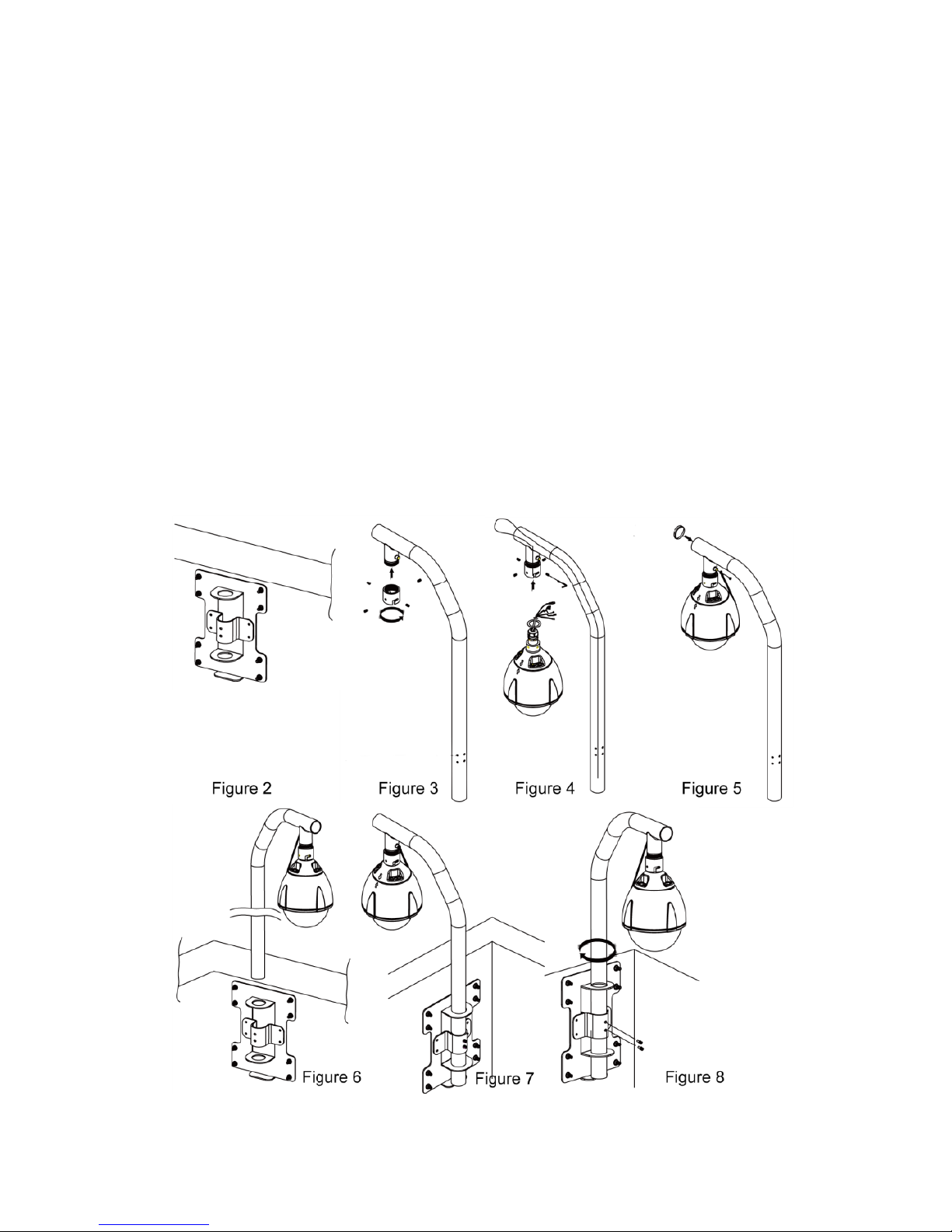

2. Hammer 8 screw mounts into the holes and then secure the plate (Figure 2).
3. Fasten the connector ring to the L tube in the clockwise direction (Figure 3).
4. Thread the cabling of the main unit through the short aluminum tube and push
the cables out from the bottom (Figure 4).
5. Pull out the cables and connect the main unit to the connector ring in the clock-
wise direction (Figure 4).
6. Use hex driver to secure the set screw to the connector ring and fasten the
safety cable to the tube (Figure 5).
7. Insert the entire tube (including the main unit) into the hole fitting on the secure
plate (Figure 6).
8. Rotate the tube clockwise until 180° with the secure plate, and then fasten the
screws (Figure 7).
9. This completes the mounting (Figure 8).

17 Rev. 160929i3-TRNG-CAMS-Ax63Z.indd
3.3.6 Pole Mount
1. Thread the metal strap through the rectangular holes on the corner support
(Figure 1).
2. Use a Philips screwdriver to tighten the metal strap, and then line up the holes
on the water-proof box to the holes on the support. Use a hex driver to secure
in a clockwise direction (Figure 2).
3. This completes the mounting (Figure 3).

18
i3-TRNG-CAMS-Ax63Z.indd Rev. 160929
3.3.7 Corner Mount
1. Drill 4 holes on the wall of diameter of 3/8” (9.5mm), depth 1-1/2” (40mm)
2. Hammer screw mounts into the drilled holes (Figure 1).
3. Line up the holes on the water-proof box to the holes on the support, and use a
hex driver to secure in the clockwise direction (Figure 2).
4. This completes the mounting (Figure 3).

19 Rev. 160929i3-TRNG-CAMS-Ax63Z.indd
3.3.8 Extension Pole
1. Remove the extension pole and connector ring.
2. Secure the connector ring to the original connection unit in the clockwise direc-
tion (Figure 1).
3. Secure the extension pole to the connector ring and use a hex driver to secure
the set screws in place (Figure 2).
4. This completes the mounting.

20
i3-TRNG-CAMS-Ax63Z.indd Rev. 160929
3.3.9 Sun Shield
1. Remove the sun shade.
2. Place the sun shade over the main unit from above (Figure 1).
3. Use a hex driver to secure the screw to the connector ring clockwise (Figure 2).
4. This completes the mounting (Figure 3).
