1. Warnings and operation notes
Please read this guide carefully before you install the camera.
Keep this guide for future reference.

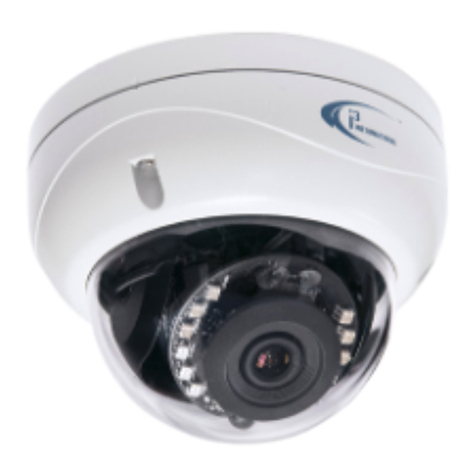

Thank you for purchasing an i3 Ax47R/67R-series IR Outdoor Dome Camera.
If the system needs to be modified or repaired, contact a certified i3 International
Dealer/Installer. When serviced by unauthorized technician, the system warranty will
be voided. Should you have any problems or questions regarding our products, contact
your local i3 International Dealer/Installer.
WARNING! To reduce the risk of fire or electric shock, do not
expose the product to rain or moisture.
Camera’s default IP address is 192.0.0.16
Camera’s default Subnet mask address is 255.255.255.0.
Default camera User Name: i3admin and default Password: i3admin
1.1 Precautions
Installation and servicing should be performed only by qualified and
experienced technicians to conform to all local codes and to maintain your
warranty.
When installing your Ax47R/67R camera, be sure to avoid:
• excessive heat, such as direct sunlight or heating appliances
• contaminants such as dust and smoke
• strong magnetic fields
• sources of powerful electromagnetic radiation such as radios or TV transmitters
• moisture and humidity
• areas with mechanical vibrations
• fluorescent lamps or objects that reflect light
• unstable light sources as this may cause flickering
• temperatures below -20°C (-4°F) and above 50°C (122°F)

4
i3-TRNG-CAMS-Ax47R_67R-UM.indd Rev. 171109
1.2 Power
This camera supports PoE power only. IEEE 802.3af Class 3, max load of 8.5W.
Incorrect voltage may cause irreparable damage to the video camera and will
effectively void the camera warranty. For PoE power, insert the RJ45 cable into
the RJ45 jack on the camera’s cable. Connect the other end of the RJ45 cable to
a compatible PoE switch/hub/router. Use the included RJ45 waterproof connector
assembly for outdoor installations.
1.3 Cleaning
• For maximum optical clarity, the camera or lens must remain clean. Use a soft, dry
cloth to remove finger prints and dust from the dome cover.
• Use a blower to remove dust from the lens.
• Clean the body with a soft, dry cloth. If it is very dirty, use a cloth dampened with a
small quantity of neutral detergent, then wipe dry.
• Do not use volatile solvents such as alcohol, benzene, or thinners, as they may
damage the surface finish.
1.4 Servicing
To avoid electrical shock and to preserve the product warranty, DO NOT disassemble
the camera. Refer servicing to qualified personnel only.
1.5 Routine Maintenance
• The dome bubble is an optical part. Use a soft and dry cloth to remove any
fingerprints and dust.
• Clean the camera housing with a soft and dry cloth. For more stubborn marks, use
a cloth dampened with a small quantity of neutral detergent, then wipe dry.
• CAUTION: Do not use volatile solvents such as alcohol, benzene or
thinners, as they may damage the surface finish.

5Rev. 171109i3-TRNG-CAMS-Ax47R_67R-UM.indd
2. Unpacking
Ensure that the items received match those listed on the order form and the packing
slip. In addition to this manual and a fully assembled camera, the dome camera
packing box includes:
1. Drill Template sticker x1
2. Torx key x1
3. Plastic Anchor x3
4. Round Head Screw (Tapping type) x3
5. Desiccant (attach to the inside of the Inner Liner) x1
6. 3-ft network cable x1
If any parts are missing or damaged, contact the dealer you purchased the camera
from.
*Note: Based on installation location and surface type, supplied screws and anchors
may not be adequate. Mounting hardware is site-specific and may need to be supplied
by the installer.
2.1 Accessories (not to scale)
1 2 3 4 5
6
3-Ø4.5 holes
(for plastic anchor)
Cable hole
Cable hole
Logo Direction

6
i3-TRNG-CAMS-Ax47R_67R-UM.indd Rev. 171109
3. Dimensions & Parts Identification
This dome camera is suitable for both indoor and outdoor installation in commercial
and residential environment. With 3-axis mount support, it provides flexible installation
on a ceiling or wall, even on an angle. The dome camera is a fully integrated enclosure
with camera and lens.
50.5 mm
110.97 mm
82 mm
3
4
2
1
5
6
8
7
9
11
10
12
13
14
1
1

7Rev. 171109i3-TRNG-CAMS-Ax47R_67R-UM.indd
1. Mounting holes (x3)
2. Dome bubble housing / Dome cover
3. Screws securing the dome bubble housing to camera module (x3, silver)
4. Lexan bubble
5. Screws attaching camera module to the camera base (x4, black)
6. Tilt bracket with two locking screws. Loosen the screws and tilt to adjust
lens angle.
7. Inner liner / Shroud. Attach the desiccant to the inside of the Inner Liner, without
obstructing the lens movement.
8. IR board
9. Camera Lens Assembly. Pan to adjust lens angle.
10. Lens base. Rotate to adjust lens angle.
11. Camera lens.
12. RJ45 Ethernet PoE Port with waterproof RJ45 connector assembly.
Insert an Ethernet cable into the port for network connection as well as PoE (Power
over Ethernet) capability. To maintain water-resistant rating in outdoor installations,
make sure to use the included waterproof RJ45 Connector assembly.
13. Reset/Default button. Press for 1 second to reboot the camera. Press for 6 seconds
to restore camera settings to factory defaults.
14. MicroSD Card slot for on-camera video storage. (MicroSD card sold separately).
4. Installation
Ax47R/67R camera series can be wall, surface, or T-bar ceiling mounted without
additional mounting accessories/brackets.
Start by marking out and preparing the mounting surface. Attach the supplied mounting
template to the mounting surface. Use the appropriate brackets and equipment
to mount the camera. Depending on the type of installation, additional mounting
accessories may need to be purchased.
After installing the camera, your network camera must be accessible from your local
network (LAN).
Optional Mounting Accessories:
• Ax61BB (Back Box 3/4” & 1/2” NPT). Use for Horizontal wall mount, pendant
mount, pole or corner mount.
• DB60 (Goose Neck Wall Bracket 3/4” NTP). Together with the optional DB60CPM
bracket, DB60 goose neck bracket has the capability of being corner or pole-
mounted.
• DB60CPM (Corner / Pole Mount bracket for DB60)
Important. Please Read:
• It is the installer’s responsibility to ensure that the mounting surface is
suitable for the chosen installation method.
• Based on installation location and surface type, supplied screws and anchors
may not be adequate.
• Mounting hardware is site-specific and may need to be supplied by the installer.

8
i3-TRNG-CAMS-Ax47R_67R-UM.indd Rev. 171109
4.2 Applying the Desiccant
Apply the desiccant to the inside of the Inner liner (Shroud). Make sure it does not
interfere with the movement of the lens assembly.
4.1 Disassembling the Camera
Before mounting and adjusting the camera, follow these steps to disassemble the
camera.
1. Use the provided security Torx key to
loosen three screws securing the dome
bubble housing to camera module. Do
not completely remove the screws from
the dome bubble.
2. Gently pull the dome bubble downwards
and set aside.

9Rev. 171109i3-TRNG-CAMS-Ax47R_67R-UM.indd
4.3 3-Axis lens position adjustment
Pan Adjustment
Rotate the lens base (max 360°) until satisfied with the field of view.
Note: Over-rotation past 360° will cause internal cables to become damaged,
disconnected, or twisted.
Horizontal Rotation
Firmly grasp the camera lens assembly and rotate counter-clockwise / clockwise (max
350°) until satisfied with the field of view.
Note: Over-rotation past 350° will cause internal cables to become damaged,
disconnected, or twisted.
Tilt Adjustment
Tilt the camera lens until satisfied with the field of view.
Once the desired view has been achieved, replace the camera liner until it snaps into
place.
20°~90°
0°~350° (±175°)
0°~360°
Pan Adjustment
Horizontal Rotation
Tilt Adjustment

10
i3-TRNG-CAMS-Ax47R_67R-UM.indd Rev. 171109
4.4 Surface Mounting
This installation method is suitable for both indoor and outdoor applications.
1. Attach the supplied Drill Template to the
mounting surface.
2. Drill 3 (three) 4.5 mm (0.2”) holes at the
marked template positions on the mounting
surface.
3. Insert the supplied screw anchors into the
holes on mounting surface.
4. Based on installation requirements, you
may route the cable through the cut-
out opening on the side of the camera’s
mounting base. In that case, no additional
openings are required on the mounting
surface. Alternatively, drill a 13mm (0.5”)
circular opening in the mounting surface,
corresponding to the “Cable hole” of the
drill template. See section 4.4 fore more
info.
5. Disassemble the camera by removing the
dome bubble. Use the provided security
Torx key to loosen three silver screws
securing the dome bubble to the camera’s
mounting base. Do not completely remove
the screws from the bubble. Lift the dome
bubble off and set aside.
6. Route the camera cabling according to
installation requirements, then use a
Phillips screwdriver to secure the camera
module to the mounting surface with the
provided mounting screws, if suitable.
7. Connect the wiring.
8. Adjust the lens angle by rotating and panning the camera lens base. Do not over-
rotate the camera lens beyond the stop point to avoid damage to the camera. See
section 4.1 for more info.
Tip: For the ease of setup, lift off the camera liner while adjusting the lens position.
Once the desired view has been achieved, replace the camera liner until it snaps
into place.
9. Replace the camera dome bubble housing on top of the camera module.
10. Use the supplied Torx bit to re-tighten 3 silver screws securing the dome bubble
housing to the camera module.
11. Remember to use sealant to maintain IP67 rating in outdoor installations.

11 Rev. 171109i3-TRNG-CAMS-Ax47R_67R-UM.indd
4.5 Mounting w/ Ax61BB Back Box (optional)
The Ax61BB is an optional extension back box for cable management and surface
mounting. Ax61BB back box is also needed for pendant or horizontal wall mount
installations (additional mounting accessories required). Ax61BB back box is compatible
with i3’s optional DB60 (Goose Neck Wall Bracket). EMT 3/4” Pipe can be used in
combination with Ax61BB for pendant mounting.
Pendant Mount
EMT Pipe 3/4”
(Optional)
Ax61BB
Back Box
(Optional)
DB60 Goose Neck
Wall Bracket
(Optional)
Add Sealant
Alignment
marks
Align holes
Ax47R/67R
Camera
Ax47R/67R
Lexan dome
bubble
1. Install the Ax61BB for surface
mount, pendant mount, or Horizontal
wall mount as required.
2. When installing, position the 1/2”
thread to the rear or, when surface
mounting indoor - to the top. When
installing outdoors, position thread
downwards to aid in weather-
proofing.
3. If surface mounting, note that the
Ax61BB back box has 6 (six) 90%
pre-drilled hole locations. Complete
drilling of at least two of these holes
for a secure installation.
4. Place the connector in line with the
center wall and rotate the retaining
clip to prevent the connector from
dropping out. This will aid when
rotating the camera base housing
to guide the cable and find the
mounting holes.
5. Mounting holes for the Ax47R/67R
cameras are identified with a
triangle on the lip of the Ax61BB
back box.
6. Use the provided security Torx key
to loosen three screws securing
the Lexan (Dome) Bubble housing
to the camera’s mounting base. Do
not completely remove the screws
from the dome bubble. Lift the dome
bubble off and set aside.
Always add silicon to the threads
and use screws with the ‘O’ ring
(not supplied) to maintain the
IP67 rating.

12
i3-TRNG-CAMS-Ax47R_67R-UM.indd Rev. 171109
1/2” thread
7. Secure the camera module to the
Ax61BB back box with three screws
(not provided with the camera).
8. Pull the camera cable through the
opening in the Ax61BB housing. Feed
the CAT5/6 cable through the supplied
waterproof RJ45 connector assembly
before crimping and plugging in.
9. Connect all wiring.
10. Adjust the lens angle by rotating and
panning the camera lens base. Do not
over-rotate the camera lens beyond
the stop point to avoid damage to the
camera. See Section 4.1 for more info.
Tip: For the ease of setup, lift off the
camera liner while adjusting the lens position. Once the desired view has been
achieved, replace the camera liner until it snaps into place.
11. Replace the camera dome housing on top of the camera module.
12. Use the supplied Torx bit to re-tighten 3 silver screws securing the dome bubble
housing to the camera module.
Retaining
clip
4.6 Camera Wiring Options
Based on installation requirements, you may route the cable through the cut-out open-
ing on the side of the camera’s mounting base (Option A) or through the pre-drilled
opening in the surface (Option B). For Option B, drill a 13mm (0.5”) circular opening in
the mounting surface, corresponding to the “Cable hole” of the drill template.
Option A Option B

13 Rev. 171109i3-TRNG-CAMS-Ax47R_67R-UM.indd
5. Connecting to the SRX-Pro Server
5.1 Camera Connection Options
5.2 Hardware/Software Requirements
The following requirements must be met to achieve a successful network connection
with the Ax47R/67R-series IP camera.
SRX-Pro Server:
• i3 SRX-Pro Version 3.3.3 or higher
• Latest GiPi adapter is installed. GiPi adapters can be downloaded from i3 FTP
website. (Please contact i3 Technical Support for more information.)
• Windows 7 Pro or 7e
• Internet Explorer Version 8.0 or later, or latest-available Firefox
IE8 and IE9 Limitations: No Logs setup page.
• CPU: Intel Pentium Core 2 or higher
• Memory: 1GB or more
• VGA card - supporting Direct X 9.0 or above
Power Supply
Your camera requires PoE power supply. Use a RJ45 network connector to connect the
camera to your computer or hub switch.
Note: Camera damages resulted from improper power application are NOT covered by
the camera warranty.
Switch
A Gigabit Switch is required to monitor two or more cameras from the same
SRX-Pro Server.
i3 SRX-Pro
Server
Crossover direct connection
LAN
i3 SRX-Pro
Server
Via Gigabit Switch
Connection Option 1 (Single camera)
Connection Option 2 (Multiple cameras)

14
i3-TRNG-CAMS-Ax47R_67R-UM.indd Rev. 171109
5.4 Configuring Internet Explorer for Video Display
Your Internet Explorer (v.10.0 or higher) must first be configured in order to properly
display video stream from your Annexxus camera.
Follow these instructions to configure your Internet Explorer browser.
Enable Cookies
1. In Internet Explorer window, click Tools -> Internet Options
2. Open Privacy tab, move the slider to “Low” or “Accept All Cookies”
3. Click Apply. Do not close the Internet Options window.
Adjust Internet Security Settings
4. Open Security tab in the Internet Options window
5. If the camera operates inside of the Intranet, click the Intranet icon;
If the camera operates outside of the Intranet, click the Internet icon.
6. Click Custom Level. Security Settings - Internet Zone window will be displayed.
7. Scroll down to the ActiveX controls and plug-ins radio buttons and configure
as follows:
»Automatic prompting for ActiveX controls -> Enable
»Download signed ActiveX controls -> Prompt (recommended)
»Download unsigned ActiveX controls -> Prompt
»Initialize and script ActiveX not marked as safe for scripting -> Prompt
»Run ActiveX controls and plug-ins -> Enable
»Script ActiveX controls marked safe for scripting -> Enable
8. Click OK to save the Internet Security Settings
9. Close all Microsoft Internet Explorer Windows and open a new IE window. This will
allow the new settings to take effect.
5.5 Changing Camera’s Default IP
To connect your Annexxus camera to your SRX-Pro Server, follow these instructions:
1. Close SRX-Pro Server software by pressing Alt+Shift+Ctrl+F4.
2. Write down the IP address of the onboard NIC (LAN) (or of NIC1 if your SRX-Pro
Server has two onboard NIC cards).
3. Connect your camera to i3 Server ( See Section 5.7 for more info) .
Camera’s default IP address is 192.0.0.16
Camera’s default Subnet mask address is 255.255.255.0.
Login: i3admin / PW: i3admin
5.3 RTSP Stream Information
Camera’s RTSP stream URL information is as follows:
Stream 1>> rtsp://192.0.0.16:554/stream1
Stream 2>> rtsp://192.0.0.16:554/stream2
Stream 3>> rtsp://192.0.0.16:554/stream3

15 Rev. 171109i3-TRNG-CAMS-Ax47R_67R-UM.indd
4. Turn on your Annexxus camera.
5. Launch the CD that came with your Annexxus camera and double-click
“AnnexxusCongurationTool.msi” le to install Annexxus Conguration Tool
(ACT) application. ACT application discovers all Annexxus cameras connected to
your network.
6. Follow the ACT installation instructions until the application has been successfully
installed on your SRX-Pro Server.
7. Double-click i3 Annexxus Conguration Tool icon on the Desktop to launch
the ACT application. Accept the ACT license agreement.
8. ANNEXXUS Conguration Tool window will display a list of active network
cameras.
9. Select the desired
Annexxus camera in
the list (left-click).
10. In the Device(s)
Communication
area, enter the new
IP Range (address)
and Subnet Mask of
the camera. The new
camera IP address
must match the IP
range of your SRX-Pro
LAN or NIC1 card
(see Step 2).
E.g. If your SRX-Pro
Server’s IP address is
192.138.10.122, change your Annexxus camera’s IP address to 192.138.10.XXX.
Remember: Annexxus Cameras cannot share an IP address, each camera requires
its own unique IP address.
11. Make sure the Default Account
checkbox is checked off.
12. Click Update. Then click Yes in the
conrmation window.
13. Wait a few moments for a successful conrmation message.
14. Repeat Steps 9-13 for all detected Annexxus cameras in the ACT application OR
Select multiple cameras (Ctrl + left-click) and enter IP range to assign IP addresses
sequentially to the selected cameras.

16
i3-TRNG-CAMS-Ax47R_67R-UM.indd Rev. 171109
5.6 Viewing Camera in IE browser
Once the IP address of the Annexxus camera(s) has been changed, make sure you can
connect to the camera(s) through Internet Explorer.
1. Launch Internet Explorer by double-clicking the IE icon next to the desired camera
in the ACT . The password window will be displayed.
2. Enter the default camera User Name: i3admin and Password: i3admin.
3. Annexxus camera interface will be displayed in the Internet Explorer window.
4. If you have not connected to an Annexxus camera via IE before, you will see the
following ActiveX download message.
Note: If you do not have VC++ 2008 Redistributable installed on your unit, you
must do that first. Once VC++ 2008 has been downloaded and installed, click on
the ActiveX plug-in link in the Download message.
5. Click Run or Save in the download confirmation message at the bottom of the
screen.
6. Launch the downloaded WebComponents.msi file, close your IE browser window
and follow the installation instructions. Click Finish to close the final installation
screen. This step must only be done once.
7. Repeat Step 1 to launch Internet Explorer for your Annexxus camera again. The
camera’s live video stream will now be seen in the Live View screen.
If you do not see the camera image on the screen, call i3 International tech
support for troubleshooting tips: 1.877.877.7241.

17 Rev. 171109i3-TRNG-CAMS-Ax47R_67R-UM.indd
5.7 Adding your IP Camera to your SRX-Pro Server
1. Make sure that the latest version of GiPi adapter is installed on your SRX-Pro
Server. Once the latest GiPi adapter has been installed, restart i3 SRX-Pro Server.
Download the most recent GiPi from http://i3international.com/download.
2. Log In and go to the Setup > IP Camera tab.
3. Click the Search & Add button to display connected Annexxus
cameras on the network.
4. Select the desired camera in the list and click Select.
5. In the Select IP Camera window he default camera User Name: i3admin and
Password: i3admin and click Add. Selected camera will be added to the IP
Camera list.

18
i3-TRNG-CAMS-Ax47R_67R-UM.indd Rev. 171109
6. Assign the IP camera to the SRX-Pro video channel in the Ch. In. column.
7. Click the Save button in the bottom right-hand corner to save settings.
8. Your Annexxus camera is now connected to SRX-Pro Server and is ready to record.
You may change resolution and frame rate for the Annexxus camera in the IP
Camera tab menu or you may choose to configure the camera’s advanced settings
through the IE browser. ( See Section 6.0 for more info) .
6. Advanced Camera Setup via IE
1. To access Annexxus camera’s Advanced Setup, go to Setup > IP Camera tab,
select the camera in the list of added IP cameras and click the Web Setup button.
2. Enter the default camera User Name: i3admin and Password: i3admin.
3. If you have not connected to an Annexxus camera via IE before, see Sections 5.4
and 5.6 for more info .
Remember to configure the video Channel’s recording schedule under
SRX-Pro Schedule tab.

19 Rev. 171109i3-TRNG-CAMS-Ax47R_67R-UM.indd
6.1 Main Screen
Use Brightness, Contrast, Saturation, Hue and Sharpness sliders on the Main screen to
modify camera’s live video stream appearance. Click Save to save new settings or click
Default to return video adjustments to factory settings.
Live Mode. Click to view camera’s live video.
Search Mode. Shown only when SD card is plugged in (sold separately).
Click to search, preview and download video clips recorded on the SD card.
Unavailable to “User” type accounts.
Setup Mode. Click to view and configure camera’s settings. Unavailable to
“User” type accounts.
Logout. Click to log out of the current account or to switch accounts.
Click OK in the confirmation message. Enter your credentials in the Login
window to log back in.
Full Screen. Click to hide the menu panels. Press Esc to exit Full Screen
mode.
Save Snapshot. Click to save a JPG or PNG snapshot of live video to a
local folder. In Save As window, select JPG or PNG file type, select the folder
and click Save. Unavailable to “User” type accounts.
Save AVI. Click to start live AVI backup recording to a local folder. In Save
As window, select the folder and click Save. Click the same button again on
the Main Screen to stop recording and end the AVI file. Unavailable to “User”
type accounts.

20
i3-TRNG-CAMS-Ax47R_67R-UM.indd Rev. 171109
6.2 Basic Setup
Click the Setup button to access Annexxus camera Setup features.
You may switch to the Advanced Setup mode at any time by clicking the
Advance Setup button in the bottom left-hand corner. To switch back to the Basic
Setup, click the Basic Setup button.
Configure the camera’s Primary and Secondary video streams in Basic Setup.
After making any setting adjustments, click the Save button.
Stream 1 - Primary Streaming:
• Video Codec: Set the compression mode to H264 (recommended) or MJPEG.
• Resolution: Set the primary stream resolution of the recorded video to:
QXGA (2048×1536) - Ax67R only, Full HD (1920×1080) - Ax67R only, Quad VGA
(1280×960), HD (1280×720), SVGA (800×600)
• Frame Rate: Set the frame rate for the primary stream recording. Available frame
rate settings: 1, 3, 7.5, 10, 15, 30 fps or choose Custom and enter frame rate.
• VBR Max bit rate / CBR bit rate (for H264): Set the video bit rate between
64-20000 kbit/s. Default value is dependent on the Resolution and Frame Rate.
• H264 GOP (I-Frame Interval): Provide a value from 1-60. The default value will
follow the Frame Rate.
• H264 Rate Control Mode: (for H264 codec): VBR (Variable Bit Rate) or CBR
(Constant Bit Rate).
»VBR (Variable Bit Rate) (recommended): This setting will produce a variable
bit rate video stream, however the video quality will remain constant resulting
