i3 International C-AX401D1M User manual

C-AX401D1M
Network Camera User Guide
WARNING:
Before attempting to connect or operate this product, read these instructions carefully.
Save this manual for future use.
To avoid electrical shock and to preserve the product warranty, DO NOT disassemble the camera.
Refer servicing to qualified personnel only.
CONTENTS
PRECAUTIONS
NOTES OF USE
MOUNTING INSTALLTION
NETWORKING
SPECIFICATIONS
1
2
4
6
8

PRECAUTIONS
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause
harmful interference, in which case users will be required to correct the
interference at their own expense.
FCC Caution:
To ensure continued compliance, use only shielded interface cables
when connecting to computer or peripheral devices. Any changes
or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
The serial number of this product may be found on top of the unit. It is
recommended that you note the serial number of this unit in the space
provided and retain this book as a permanent record of your purchase to
aid identication in the event of theft.
Model No.
Serial No.
Date of Purchase:
1

NOTES OF USE
Power Supply
Ensure the supplied voltage meets the power consumption requirements of this
camera before powering the camera on. Incorrect voltage may cause irreparable
damage to the video camera and will effectively void the camera warranty
Operating or storage location
Avoid shooting very bright objects (such as light ttings) for an extended pe-
riod. Avoid operating or storing the unit in the following locations:
• Extremely hot or cold places (operating temperature: -10oC to +50oC)
•Close to sources of strong magnetism
• Close to sources of powerful electromagnetic radiation, such as
radios or TV transmitters
•Close to humid or excessively dusty places
•Where exposed to mechanical vibrations
• Close to uorescent lamps or objects reecting light
• Under unstable light sources (may cause ickering)
Transportation
When transporting the camera, repack it as originally packed at the
factory, or in materials equal in quality.
Cleaning
• For maximum optical clarity, the dome cover must remain clean. Use
a soft, dry cloth to remove nger prints or dust from the dome cover.
•Use a blower to remove dust from the lens.
•Clean the body with a soft, dry cloth. If it is very dirty, use a cloth
dampened with a small quantity of neutral detergent, then wipe dry.
•Do not use volatile solvents such as alcohol, benzene, or thinners,
as they may damage the surface nishes.
Servicing
To avoid electrical shock and to preserve the product warranty, DO NOT
disassemble the camera. Refer servicing to qualied personnel only.
2

NOTES OF USE
Network Connector
Alarm In(Red:In/Orange:GND)
Audio In(White)
Power(White:-/Black:+)
Alarm Out(Yellow:Out/Black:GND)
Audio Out(Black)
TV / IP Select Reboot Button
Horizontal ADJ Ring
Tu rn t he r ing to adjust th e
horizontal angle of image.
Tilt ADJ Screws
Turn the screws to adjust the lens
tilt angle.
Pan ADJ Bracket
Turn t he b racket t o adjust
the lens pan angle.
MON (Monitor Out)
When i nstalling the camera, it
is a vailable to c heck t he i mage
with monitor out wire.
Connector 24V AC 12V DC
Black wire 24V ACP ositive
White wire 24V ACN egative
Composite video
output for adjustment
Power 24V AC 12V DC
Lens angle adjustment Horizontal angle adjustment
Lens tilt angle adjustment
Included in the box

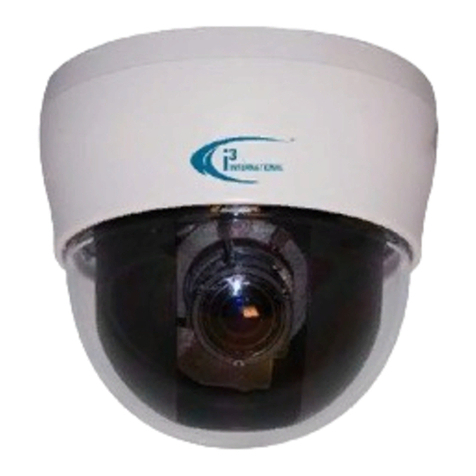

1. Camera (C-AxD1M)
2. Guide Pattern for mounting
3. Quick start guide
4. BNC connector with attached cable
5. 4x screws and 4x plugs for mounting
6. Software CD
Feature & Functions
Default Button SD card slot
Reset Button
3

MOUNTING INSTALLATION
Step 3:
Loosen the locking
screw. To remove the
cover, rotate the cover
counter clockwise.
Step 4:
Mount the camera to
the ceiling/wall
Step 1:
Adhere the guide pattern to the
installation surface. Drill one big
and three small holes, using the
template as a guide.
Step 2:
Feed the power cable, LAN cable
and other cables through the hole.
Ceiling/Wall Mount Installation
Screw
4

MOUNTING INSTALLATION
Step 6:
Align the notch with position
“P”. Rotate the cover clockwise
to lock the cover to the base.
Tighten the locking screw.
Step 7:
Turn on the Power
The camera has no main
power switch or button. To turn
the power on, insert the plug
of the power cord into a power
outlet. Turn the power on after
you have installed the camera.
Important
Check if the ceiling structure and material have a sufcient strength before installing
the camera onto a ceiling. If the amounting strength is inadequate, the camera will fall,
potentially causing an injury or a camera failure. The screws supplied as accessories
do not provide an adequate strength with some ceiling materials. For example, special
anchors are needed if the ceiling material is gypsum boards. Please consult the
building architects regarding ceiling structure and strength.
Step 5:
Adjust the view angle
Ceiling/Wall Mount Installation (Continued)
Monitor out
5

NETWORKING
Connecting to a camera using a network
1. Connect the camera to a PoE (Power over Ethernet) enabled switch or
router using a RJ45 Cat5 or Cat6 connection cable.
1.1. Connect the users computer to the PoE switch or router.
OR
1. Connect the camera to a personal computer or a switch or router using
a RJ45 Cat5 or Cat6 connection cable.
1.1. Connect a properly grounded 24Volt AC power source to the camera.
Operating or storage location
2. Use the Annexxus Finder located on this CD to nd the Camera’s IP
address (default is 192.0.0.64)
3. Open an internet browser and type the IP Address of the camera into
the address bar. Hit enter.
6

NETWORKING
4. If you cannot connect try the following:
4.1. Wait. sometimes the router or switch will take a few seconds to
refresh the routing table
4.2. Go to control panel, network connections, and properties of the LAN
or WAN the camera is connected to. Under the Internet Protocol
(TCP/IP) properties, change the 2nd section of the IP to match the
same as your camera EG IP: 192.0.0.90 Camera: 192.0.0.64
4.3. Check the connection. Ensure all cables are properly connected.
5. Login to the camera using the proper username and password
5.1. Default Username: admin
5.2. Default Password: 1234
Network connections
7

SPECIFICATIONS
The specifications are subjects to be change without notice
Camera
Synch System Internal
Image Sensor 1/3" progressive transfer CCD
Number of Effective Pixels Full scanning mode: 1280 (H) x 960 (V)
Lens f=2.7~9mm, F1.2
Frame rate SVGA 1280x960 @ 15fps
VGA 640x480, QVGA 320x240 @ 30 fps
Motion detection Yes
Image Compression Method MJPEG / MPEG4
White Balance 2500K~10000K
Angle of view 30.4~101.0 (H) X 23.0~75.0 (V)
Gamma correction 0.45
Software
Web Browser IE 6.0 or above, Netscape 7.0 or above
Password Protection Multiple password for user to login
Pan/Tilt/Zoom
Angle control (3-AXIS) Yes
Panning range 350°
Tilting range 146°
Environment
Weight 550g (1.21 lb)
Operating Temperature -10ºC~50ºC (14ºF~122ºF)
Storage Temperature -20ºC~60ºC (-4ºF~140ºF)
Dimensions Ø140mm x 130mm (Cover: Ø95mm)
Electrical
Audio Two-way mono audio; Full-duplex
Alarm Yes, 1 x Alarm in, 1 x Alarm out
SD card slot Yes
Power Requirement DC12V/AC24V/PoE+
Power Consumption Approx. 8W
Electric Shutter NTSC: 1/30, 1/60, 1/120, 1/250,1/1000, 1/10000 sec
PAL: 1/25, 1/50, 1/120, 1/250,1/1000, 1/10000 sec
Black light compensation ON/OFF
8

SPECIFICATIONS
Network
Image compression method MJPEG / MPEG4
Protocol TCP/IP, UDP/IP, HTTP, SMTP, DNS, DHCP, NTP, DDNS, FTP, RTP
Connectors 2-pin terminal block
Interface
Network Port RJ45 with LEDs
Audio IN & OUT Ports 3.5mm phone jack
Alarm IN & OUT Ports 1x Alarm In / 1x Alarm out
9
