IBA ibaMS16-DI-24V Series User manual

ibaMS16xDI-24V/-220V
Input module for digital signals
Manual
Issue 1.4

Manufacturer
iba AG
Koenigswarterstr. 44
90762 Fuerth
Germany
Contacts
Head office [phone] Support [phone]
Fax [phone] Technology [phone]
E-Mail: [e-mail]
Web: www.iba-ag.com
This manual must not be circulated or copied, or its contents utilized and disseminated, without
our express written permission. Any breach or infringement of this provision will result in liability
for damages.
© iba AG 2020, All rights reserved.
The content of this publication has been checked for compliance with the described hardware
and software. Nevertheless, deviations cannot be excluded completely so that the full
compliance is not guaranteed. However, the information in this publication is updated regularly.
Required corrections are contained in the following regulations or can be downloaded on the
Internet.
The current version is available for download on our web site www.iba-ag.com.
Copyright notice
Windows®is a label and registered trademark of the Microsoft Corporation. Other product and
company names mentioned in this manual can be labels or registered trademarks of the
corresponding owners.
Certification
The product is certified according to the European standards and directives. This product meets
the general safety and health requirements.
Further international customary standards and directives have been observed.
Note: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
Issue
Date
Revision
Chapter
Author
Version
HW / FW
1.4
12-2020
FCC declaration

ibaMS16xDI-24V/-220V
Manual
Issue 1.4 3
Table of contents
1About this manual ...........................................................................................5
1.1 Target group .................................................................................................. 6
1.2 Notations....................................................................................................... 6
1.3 Used symbols................................................................................................ 7
2Introduction .....................................................................................................8
3Scope of delivery.............................................................................................9
4Safety instructions ..........................................................................................9
4.1 Proper use .................................................................................................... 9
4.2 Special safety instructions ............................................................................. 9
5System Requirements...................................................................................10
5.1 Hardware .................................................................................................... 10
5.2 Software...................................................................................................... 10
6Mounting, Connecting, Dismounting........................................................... 11
6.1 Mounting ......................................................................................................11
6.2 Connecting...................................................................................................11
6.3 Dismounting .................................................................................................11
7Device description ........................................................................................12
7.1 Views .......................................................................................................... 12
7.2 Indicator elements ....................................................................................... 13
7.2.1 Operating status.......................................................................................... 13
7.2.2 Status of digital inputs ................................................................................. 13
7.3 Digital inputs X5, X6.................................................................................... 14
7.3.1 Connection diagram / Pin assignment ......................................................... 14
7.3.2 Debounce filters .......................................................................................... 16
8Start-up / Update ...........................................................................................18
8.1 Auto-Update................................................................................................ 18
8.2 Overall Release Version.............................................................................. 18
8.3 Update ........................................................................................................ 18
8.3.1 Update via Web Interface ............................................................................ 19
8.3.2 Update via ibaPDA ...................................................................................... 19
8.4 Module Information / Diagnostics ................................................................ 20
8.4.1 Diagnostics ................................................................................................. 20
8.4.2 Webinterface ............................................................................................... 20
8.4.3 „info“ tab...................................................................................................... 20
8.4.4 „notes“ tab................................................................................................... 20
9iba Applications.............................................................................................22
9.1 Configuration in ibaPDA .............................................................................. 22

Manual
ibaMS16xDI-24V/-220V
4
Issue 1.4
9.2 Configuration in ibaLogic-V5 ....................................................................... 25
9.2.1 Configuring signals...................................................................................... 25
9.2.2 Configuring the debounce filter.................................................................... 27
10 Technical Data............................................................................................... 29
10.1 Main data .................................................................................................... 29
10.2 Digital inputs ............................................................................................... 30
10.3 Dimensions ................................................................................................. 31
11 Support and contact ..................................................................................... 32

ibaMS16xDI-24V/-220V
Manual
Issue 1.4 5
1 About this manual
In this manual, you learn a lot about the design of the ibaMS16xDI-24V/-220V device
and how to use and operate them. You can find a general description of the iba-modular
system and further information about the design of the central units and how to use and
operate them in separate manuals.
Note
The documentation for the iba-modular system is part of the DVD
“iba Software &
Manuals”.
The documentation of the iba-modular system comprises the following manuals:
Central units
The manuals of the ibaPADU-S-IT-2x16 central units and ibaPADU-S-CM contain
the following information:
Scope of delivery
System requirements
Description of the device
Mounting/Demounting
Start-up
Configuration
Technical data
Accessories
Modules
The manuals for the single modules contain specific information about the module.
There are the following information classes:
Short description
Scope of delivery
Product characteristics
Configuration
Description of the functions
Technical data
Connection diagram

Manual
ibaMS16xDI-24V/-220V
6
Issue 1.4
1.1 Target group
This manual addresses in particular the qualified professionals who are familiar with
handling electrical and electronic modules as well as communication and measurement
technology. A person is regarded to as professional if he/she is capable of assessing
safety and recognizing possible consequences and risks on the basis of his/her specialist
training, knowledge and experience and knowledge of the standard regulations.
1.2 Notations
In this manual, the following notations are used:
Action Notations
Menu command Menu Logic diagram
Call of menu command Step 1 – Step 2 – Step 3 – Step x
Example:
Select menu Logic diagram – Add – New logic
diagram
Keys <Key name>
Example: <Alt>; <F1>
Press keys simultaneously <Key name> + <Key name>
Example:
<Alt> + <Ctrl>
Buttons <Button name>
Example:
<OK>; <Cancel>
File names, Paths „File name“, „Path”
Example:
„Test.doc“

ibaMS16xDI-24V/-220V
Manual
Issue 1.4 7
1.3 Used symbols
If safety instructions or other notes are used in this manual, they mean:
The non-observance of this safety information may result in an imminent risk of death
or severe injury:
•By an electric shock!
•Due to the improper handling of software products which are coupled to input and
output procedures with control function!
If you do not observe the safety instructions regarding the process and the system or
machine to be controlled, there is a risk of death or severe injury!
The non-
observance of this safety information may result in a potential risk of death or
severe injury!
The non-
observance of this safety information may result in a potential risk of injury or
material damage!
Note
A note specifies special requirements or actions to be observed.
Important note
Note if some special features must be observed, for example exceptions from the rule.
Tip
Tip or example as a helpful note or insider tip to make the work a little bit easier.
Other documentation
Reference to additional documentation or further reading.

Manual
ibaMS16xDI-24V/-220V
8
Issue 1.4
2 Introduction
The modules ibaMS16xDI-24V and ibaMS16xDI-220V are members of the iba-modular
system. The design and the handling of the modules are similar, they only differ in their
signal level. By way of an example this description is based on the ibaMS16xDI-24V
module.
The modular concept is designed on the basis of a backplane. You can plug on this
backplane not only the CPU, but also up to 4 input/output modules. The power supply of
the I/O modules is provided by the backplane bus. The modules offer 16 digital inputs.
In brief
I/O module for the iba-modular system
16 digital inputs, galvanically isolated
Input level ± 24 V or ±220 V (nominal voltage)
Sampling rate up to 40 kHz, freely adjustable
Debounce filter
Rugged design, easy mounting
Certification according to CE
Fields of application
Capturing digital input signals in the fields:
Power generation and distribution
Power factor compensation plants
Test benches
Condition Monitoring

ibaMS16xDI-24V/-220V
Manual
Issue 1.4 9
3 Scope of delivery
After having unpacked the delivery, please check it for completeness and have a look if
the parts might be damaged.
The scope of delivery comprises:
ibaMS16xDI-24V or ibaMS16xDI-220V device
2 x 16-pin multi-pin connector, clamp type terminal (contact spacing 5.08)
Manual (German and English)
DVD „iba Software & Manuals“ (only for single delivery)
4 Safety instructions
4.1 Proper use
The device is an electrical apparatus. It is only allowed to use the device for the following
applications:
Capturing of measuring data
Automation of industrial plants
Applications with iba products (ibaPDA, ibaLogic etc.)
The device is only to be applied as shown in the Technical Data.
4.2 Special safety instructions
Strictly observe the operating voltage range
(see Technical Data)!
Never use damaged measuring cables!
Measuring cables must NOT be attached or detached to/from the device under voltage!
Modules must NOT be attached or detached to/from the rack under
voltage!
Switch off the central unit or disconnect power supply before attaching/detaching the
modules
.
Important Note
Do not open the device!
Opening the device leads to a loss of warranty!
Note
Clean the device only on the outside with a dry or slightly damp
and statically
discharged
cloth.

Manual
ibaMS16xDI-24V/-220V
10
Issue 1.4
5 System Requirements
5.1 Hardware
Central unit: ibaPADU-S-IT-2x16 or ibaPADU-S-CM (version 02.10.001 or later)
Backplane unit, e. g. ibaPADU-B4S
5.2 Software
ibaPDA version 6.34.0 or later
ibaLogic-V5 version 5.0.2 or later
Note
The use of ibaLogic
-V5 requires the central unit ibaPADU-S-IT-
2x16. If the module is
used with the predecessor ibaPADU
-S-IT-16, only ibaLogic-V4 can be used.

ibaMS16xDI-24V/-220V
Manual
Issue 1.4 11
6 Mounting, Connecting, Dismounting
Works on the device must NOT be done when it is under voltage!
Always disconnect
the central unit from the power supply
!
Note
Mount one or more modules on the right next to the central unit
(slot X2 to X5
can be
freely selected
).
6.1 Mounting
1. Disconnect the central unit from the power supply.
2. Remove the cover from the backplane bus, to which the module should be attached.
3. Attach the device to the backplane bus and press it firmly against the backplane.
4. Secure the device with the fixing screws.
5. Connect the grounding screw with the protective ground / grounding shield.
Connect the
grounding screw on the bottom side of the housing
with the protective ground
/ grounding shield.
Important note
Always screw tight the device and the modules. If you do not screw it tight, connecting or
disconnecting the connectors for the inputs and outputs might cause damages.
6.2 Connecting
Note
The backplane unit and the device must be connected to a protective
conductor.
1. Connect all cables.
2. If all required cables are connected, connect the central unit to the power supply.
3. Switch on the central unit.
6.3 Dismounting
1. Disconnect the central unit from the power supply.
2. Remove all cables.
3. Remove the both fixing screws on the upper and the lower side of the device.
4. Pull the device straight from the backplane.
5. Put the cover on the backplane bus.

Manual
ibaMS16xDI-24V/-220V
12
Issue 1.4
7 Device description
7.1 Views
1
2
3
4
5
Fixing screws
Operating status indicators L1 to L4
Status LEDs L10 to L25 of the digital inputs 00 to 15
Connector X5 for digital inputs 00 to 07
Connector X6 for digital inputs 08 to 15
Figure 1: Front view
6 Grounding screw (only with ibaMS16xDI-220V)
Figure 2: Bottom view

ibaMS16xDI-24V/-220V
Manual
Issue 1.4 13
7.2 Indicator elements
The operating status of the device and the status of the digital inputs are shown by
colored status LEDs.
7.2.1 Operating status
LED Status Description
L1: green Flashing / On
Off
Device is working
Device is not working (switched off)
L2: yellow On Access to the backplane bus
L3: white - -
L4: red Off
Flashing
Normal status, no faults
Device failure
Important note
When the LED L4 indicates a failure, please contact the iba Support.
7.2.2 Status of digital inputs
LED per channel Status Description
L10 … L25
green
Off No signal, logical 0
On Signal ok, logical 1

Manual
ibaMS16xDI-24V/-220V
14
Issue 1.4
7.3 Digital inputs X5, X6
7.3.1 Connection diagram / Pin assignment
Here, you can connect 16 input signals (0…15), each bipolar and electrically isolated.
Each channel is connected by means of two-wire connection. Due to the reverse polarity
protection, the measuring signal is indicated logically correct, even if the connection is
polarity-reversed.

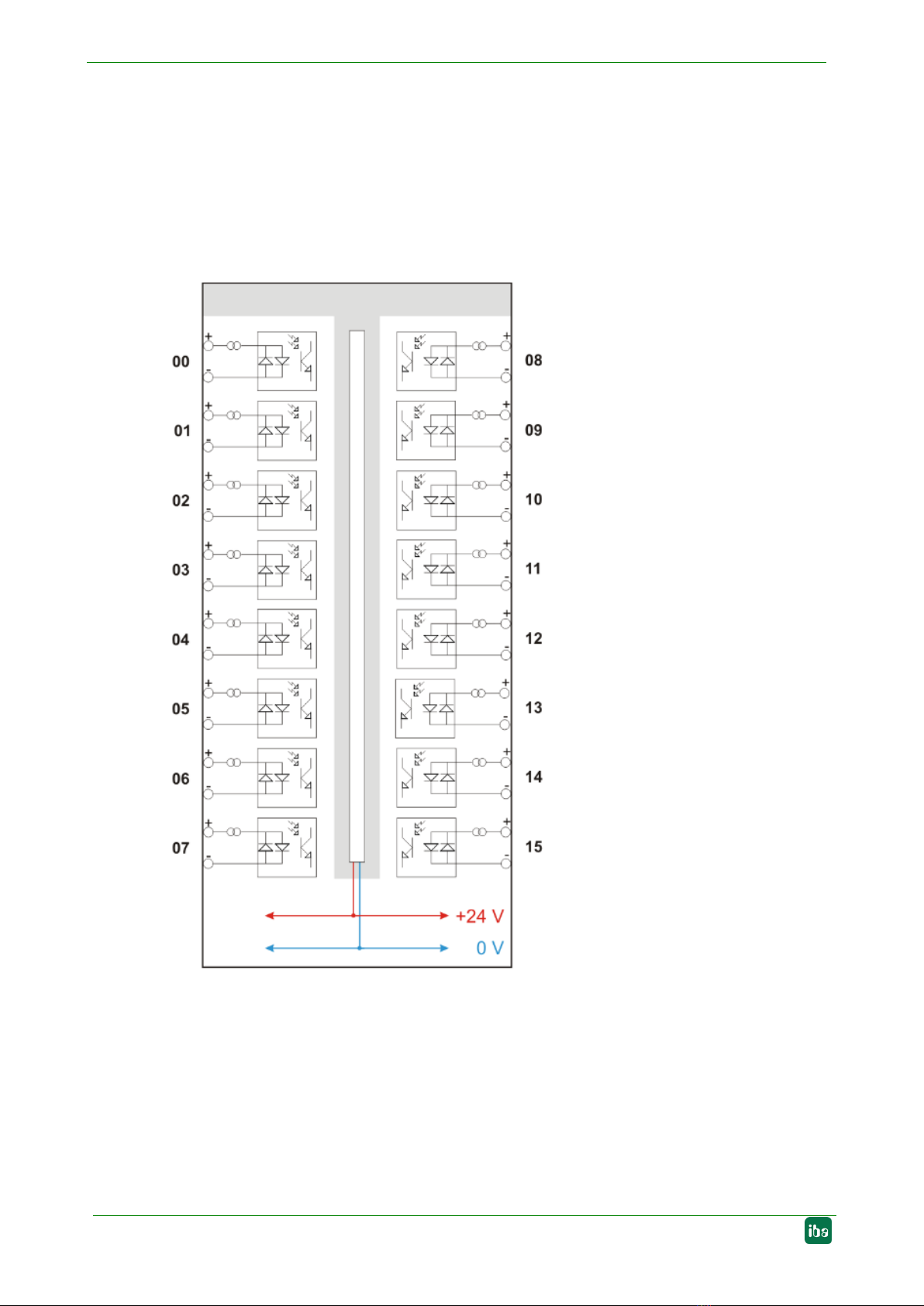

Figure 3: Connection diagram

ibaMS16xDI-24V/-220V
Manual
Issue 1.4 15
Pin assignment
X5 Pin... Connection LED X6 Pin... Connection LED
1 Digital input 00 +
L10
1 Digital input 08 +
L18
2 Digital input 00 −2 Digital input 08 −
3 Digital input 01 +
L11
3 Digital input 09 +
L19
4 Digital input 01 −4 Digital input 09 −
5 Digital input 02 +
L12
5 Digital input 10 +
L20
6 Digital input 02 −6 Digital input 10 −
7 Digital input 03 +
L13
7 Digital input 11 +
L21
8 Digital input 03 −8 Digital input 11 −
9 Digital input 04 +
L14
9 Digital input 12 +
L22
10 Digital input 04 −10 Digital input 12 −
11 Digital input 05 +
L15
11 Digital input 13 +
L23
12 Digital input 05 −12 Digital input 13 −
13 Digital input 06 +
L16
13 Digital input 14 +
L24
14 Digital input 06 −14 Digital input 14 −
15 Digital input 07 +
L17
15 Digital input 15 +
L25
16 Digital input 07 −16 Digital input 15 −

Manual
ibaMS16xDI-24V/-220V
16
Issue 1.4
7.3.2 Debounce filters
For the digital inputs, there are four debounce filters for each. These can be chosen and
configured for each signal independently. You have got the following filters at your
disposal:
„Off“ (without filter)
„Stretch rising edge“
„Stretch falling edge“
„Stretch both edges“
„Delay both edges“
For each filter, a debounce time has to be defined in µs. This debounce time can have a
value between [1µs…65535µs].
Off
The measured input signal is transferred without filtering.
„Stretch rising edge“
With the first rising edge, the input signal (red) switches to logical 1 and keeps this value
for the defined debounce time. Thereafter, the channel is transparent again and waits for
the next rising edge.
Figure 4: Debounce filter: „Stretch rising edge“
„Stretch falling edge“
With the first falling edge, the output signal (green) switches to logical 0 and keeps this
value for the defined debounce time. Thereafter, the channel is transparent again and
waits for the next falling edge.
Figure 5: Debounce filter: „Stretch falling edge“

ibaMS16xDI-24V/-220V
Manual
Issue 1.4 17
„Stretch both edges“
With the first edge, the output signal (ocher) follows the initial signal (blue) and keeps
the logical level for the duration of the defined debounce time. Thereafter, the channel is
transparent again and waits for the next edge – be it rising or falling.
Figure 6: Debounce filter: „Stretch both edges“
„Delay both edges“
Beginning with the first edge, the output signal (purple) blocks the input and keeps the
logical value of the edge for the duration of the defined debounce time. Thereafter, the
channel is transparent again, directly assumes the logical level of the input signal and
waits for the next edge – be it rising or falling.
Figure 7: Debounce filter: „Delay both edges“

Manual
ibaMS16xDI-24V/-220V
18
Issue 1.4
8 Start-up / Update
Important note
I
nstalling an update can take some minutes.
Please do not switch off the device when an
update is running. This might damage the device.
8.1 Auto-Update
After having mounted the module and applied the voltage to the central unit, the central
unit detects the modules and checks the software version.
The central unit has a so called “overall release version“. This version contains the
current software version of the central unit as well as the software versions of the
modules. You can find the “overall release version“ on the Website of the central unit on
the „firmware“ tab.
When the software version of a module does not match the “overall release version“ of
the central unit, the central unit does an automatic up- or downgrade of the module.
Thereafter, the module is ready to be used.
Important note
The
“overall release version“ contains all modules developed up to
the date of release
of this firmware
and the corresponding software versions. If a module cannot be
detected, yet (
i.e. it is more recent than the firmware version of the CPU), this module
is ignored and outlined in red on the Web interface.
In this case, a new u
pdate file has to be installed for the “overall release version“. If you
want to get the current update file, please contact the iba Support.
8.2 Overall Release Version
The „overall release version“ provides information about the software version of the
entire iba-modular system. You can find it on the Website of the central unit or in the
I/O Manager of ibaPDA.
Important note
If you require support, specify the „overal
l release version“.
8.3 Update
An update can be installed in two different ways.
Web interface (only with ibaPADU-S-IT-2x16)
ibaPDA
No matter which of the both ways you choose to install an update: the progress of the
update is shown by the LEDs L5 … L8. Beginning with L5, the LEDs are flashing one
after another, at first in orange and then in green and at a slower rate. When the update
is finished, the device will be rebooted.

ibaMS16xDI-24V/-220V
Manual
Issue 1.4 19
8.3.1 Update via Web Interface
Important note
The Web i
nterface is available only with the central unit ibaPADU-S-IT-2x16.
Start the Website of the iba-modular system in your browser and select the central
unit.
On the “update“ tab, click on the <Browse…> button and choose the
<padusit2x16_ v[xx.yy.zzz].iba> update file.
By clicking on <Start Update>, you start the update.
Figure 8: Update via Web interface
8.3.2 Update via ibaPDA
Open the ibaPDA I/O Manager and choose your iba-modular system in the tree
structure.
On the “Diagnostics“ tab, click on the <Write firmware> button and choose the
„padusit2x16_v[xx.yy.zzz].iba“ or „paduscm_v[xx.yy.zzz].iba“ update file.
You start the update by clicking on <OK>.
Figure 9: Update via ibaPDA
Important note
When updating the iba
-modular system, a possible autostart of the ibaLogic PMAC
is
deactivated and the existing
ibaLogic-V5 application deleted
. Furthermore, an update
of the
ibaLogic-V5 software (ibaLogic Clients) might be necessary.

Manual
ibaMS16xDI-24V/-220V
20
Issue 1.4
8.4 Module Information / Diagnostics
8.4.1 Diagnostics
Important information about the iba-modular system, like hardware version, firmware
version, FPGA version and serial number is displayed in the “Diagnostics” tab. Open the
ibaPDA I/O Manager and choose your iba-modular system in the tree structure (see also
the figure above).
8.4.2 Webinterface
On the module Website, general information about the module is only displayed. You
cannot change the values.
Important note
The Web interface is only available with the central unit ibaPADU
-S-IT-2x16.
8.4.2.1 „info“ tab
The „info“ tab displays general information and technical specifications of the I/O module.
Figure 10: „info“ tab
8.4.2.2 „notes“ tab
On the “notes“ tab, you can enter notes, e.g. for notes on wiring or on recording of
changes.
By clicking on <save notes>, the notes are permanently stored on the device.
