IBA ibaMS16xAO-10V/-20mA User manual

ibaMS16xAO-10V/-20mA
Output module for output signals
Manual
Issue 1.4

Manufacturer
iba AG
Koenigswarterstr. 44
90762 Fuerth
Germany
Contacts
Head office [phone]
Fax [phone]
Support [phone]
Technology [phone]
E-Mail: [email protected]
Web: www.iba-ag.com
This manual must not be circulated or copied, or its contents utilized and disseminated,
without our express written permission. Any breach or infringement of this provision will
result in liability for damages.
© iba AG 2019, All rights reserved.
The content of this publication has been checked for compliance with the described
hardware and software. Nevertheless, deviations cannot be excluded completely so
that the full compliance is not guaranteed. However, the information in this publication
is updated regularly. Required corrections are contained in the following regulations or
can be downloaded on the Internet.
The current version is available for download on our web site www.iba-ag.com.
Copyright notice
Windows®is a label and registered trademark of the Microsoft Corporation. Other prod-
uct and company names mentioned in this manual can be labels or registered trade-
marks of the corresponding owners.
Certification
The product is certified according to the European standards and directives. This prod-
uct meets the general safety and health requirements.
Further international customary standards and directives have been observed.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pur-
suant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harm-
ful interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in residential
area is likely to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
Issue
Date
Revision
Chapter
Author
Version
HW / FW
1.4
04/05/2019
Technical data
10

ibaMS16xAO-10V/-20mA
Manual
Issue 1.4
3
Table of contents
1About this manual...........................................................................................5
1.1 Target group ..................................................................................................6
1.2 Notations.......................................................................................................6
1.3 Used symbols................................................................................................7
2Introduction.....................................................................................................8
3Scope of delivery ............................................................................................9
4Safety instructions..........................................................................................9
4.1 Proper use.....................................................................................................9
4.2 Special safety instructions .............................................................................9
5System requirements....................................................................................10
5.1 Hardware.....................................................................................................10
5.2 Software......................................................................................................10
6Mounting, Connecting, Dismounting ..........................................................10
6.1 Mounting......................................................................................................10
6.2 Connecting ..................................................................................................11
6.3 Dismounting.................................................................................................11
7Device description........................................................................................12
7.1 Views...........................................................................................................12
7.2 Indicator elements .......................................................................................13
7.2.1 Operating status L1 … L4 ............................................................................13
7.2.2 Status of analog outputs L26 … L41............................................................13
7.3 Analog outputs.............................................................................................13
7.3.1 Filter ............................................................................................................13
7.3.2 Overload protection .....................................................................................14
7.3.3 Connection diagram / pin assignment..........................................................14
8Start-up / Update...........................................................................................16
8.1 Auto-Update ................................................................................................16
8.2 Overall Release Version ..............................................................................16
8.3 Update.........................................................................................................17
8.3.1 Update via Web interface.............................................................................17
8.3.2 Update via ibaPDA ......................................................................................18
8.4 Module Information / Diagnostics.................................................................18
8.4.1 Diagnostics..................................................................................................18
8.4.2 Webinterface ...............................................................................................18
9iba Applications ............................................................................................20
9.1 Configuration in ibaPDA...............................................................................20
9.1.1 General settings ..........................................................................................20
9.1.2 Output Configuration....................................................................................22
9.1.3 Reset channel errors ...................................................................................23
9.2 Configuration in ibaLogic-V5........................................................................24

Manual
ibaMS16xAO-10V/-20mA
4
Issue 1.4
10 Technical Data............................................................................................... 27
10.1 Main data ....................................................................................................27
10.2 Analog outputs ............................................................................................27
10.3 Dimensions .................................................................................................29
11 Support and contact..................................................................................... 30

ibaMS16xAO-10V/-20mA
Manual
Issue 1.4
5
1 About this manual
In this manual, you learn a lot about the design of the ibaMS16xAO-10V and
ibaMS16xAO-20mA modules and how to use and operate them. You can find a general
description of the iba-modular system and further information about the design of the
central units and how to use and operate them in separate manuals.
Note
The documentation for the iba-modular system is part of the DVD that is included in
delivery.
The documentation of the iba-modular system comprises the following manuals:
Central units
The manuals of the ibaPADU-S-IT-2x16 central units and ibaPADU-S-CM contain
the following information:
Scope of delivery
System requirements
Description of the device
Mounting/Demounting
Start-up
Configuration
Technical data
Accessories
Modules
The manuals for the single modules contain specific information about the module.
There are the following information classes:
Short description
Scope of delivery
Product characteristics
Configuration
Description of the functions
Technical data
Connection diagram

Manual
ibaMS16xAO-10V/-20mA
6
Issue 1.4
1.1 Target group
This manual addresses in particular thequalified professionals who arefamiliar with han-
dling electrical andelectronic modules aswell as communication and measurementtech-
nology. A person is regarded to as professional if he/she is capable of assessing safety
and recognizing possible consequences and risks on the basis of his/her specialist
training, knowledge and experience and knowledge of the standard regulations.
1.2 Notations
In this manual, the following notations are used:
Action
Notations
Menu command
Menu Logic diagram
Call of menu command
Step 1 –Step 2 –Step 3 –Step x
Example:
Select menu Logic diagram –Add –New logic
diagram
Keys
<Key name>
Example: <Alt>; <F1>
Press keys simultaneously
<Key name> + <Key name>
Example:
<Alt> + <Ctrl>
Buttons
<Button name>
Example:
<OK>; <Cancel>
File names, Paths
„File name“, „Path”
Example:
„Test.doc“

ibaMS16xAO-10V/-20mA
Manual
Issue 1.4
7
1.3 Used symbols
If safety instructions or other notes are used in this manual, they mean:
The non-observance of this safety information may result in an imminent risk of death
or severe injury:
By an electric shock!
Due to the improper handling of software products which are coupled to input
and output procedures with control function!
If you do not observe the safety instructions regarding the process and the system or
machine to be controlled, there is a risk of death or severe injury!
The non-observance of this safety information may result in a potential risk of death or
severe injury!
The non-observance of this safety information may result in a potential risk of injury or
material damage!
Note
A note specifies special requirements or actions to be observed.
Important note
Note if some special features must be observed, for example exceptions from the rule.
Tip
Tip or example as a helpful note or insider tip to make the work a little bit easier.
Other documentation
Reference to additional documentation or further reading.

Manual
ibaMS16xAO-10V/-20mA
8
Issue 1.4
2 Introduction
The modules ibaMS16xAO-10V and ibaMS16xAO-20mA are members of the iba-modu-
lar system. The modular concept is designed on the basis of a backplane. You can plug
on this backplane not only the CPU, but also up to 4 input/output modules. The power
supply of the I/O modules is provided by the backplane bus.
The modules provide 16 analog outputs.
In brief
I/O modules for the iba-modular system
4 galvanically isolated roots with 4 signals each
Output level ±10 V or ±20 mA
16 bit resolution
Output frequency up to 40 kHz, freely adjustable
Analog smoothing filter 40 kHz
Rugged design, easy mounting
Certification according to CE
The device driver and the firmware are saved on the module. When switching on and
booting the central unit, the module is identified automatically and the drivers are loaded.
Fields of application
Output of analog signals (±10 V / ±20 mA) for triggering:
Converters
Controllers
Drives / linear drives
Valves
Test benches

ibaMS16xAO-10V/-20mA
Manual
Issue 1.4
9
3 Scope of delivery
After having unpacked the delivery, please check it for completeness and have a look if
the parts might be damaged.
The scope of delivery comprises:
ibaMS16xAO-10V or ibaMS16xAO-20mA device
4 x 12-pin multi-pin connector
Manual
DVD „iba Software & Manuals“ (only for single delivery)
4 Safety instructions
4.1 Proper use
The device is an electrical apparatus. It is only allowed to use the device for the following
applications:
Automation of industrial plants
Applications with iba products
The device is only to be used as shown in the Technical Data chapter.
4.2 Special safety instructions
Strictly observe the measuring range!
Never use damaged measuring cables!
Measuring cables must NOT be attached or detached to/from the device under voltage!
Modules must NOT be attached or detached to/from the rack under voltage!
Switch off the central unit or disconnect power supply before attaching/detaching the
modules.
Important Note
Do not open the device! Opening the device leads to a loss of warranty!
Note
Clean the device only on the outside with a dry or slightly damp and statically dis-
charged cloth.

Manual
ibaMS16xAO-10V/-20mA
10
Issue 1.4
5 System requirements
5.1 Hardware
Central unit: ibaPADU-S-IT-2x16 or ibaPADU-S-CM (version 02.10.001 or later)
Backplane unit, e. g. ibaPADU-B4S
5.2 Software
ibaPDA version 6.34.0 or later
ibaLogic-V5 version 5.0.2 or later
Note
The use of ibaLogic-V5 requires the central unit ibaPADU-S-IT-2x16. If the module is
used with the predecessor ibaPADU-S-IT-16, only ibaLogic-V4 can be used.
6 Mounting, Connecting, Dismounting
Works on the device must NOT be done when it is under voltage! Always disconnect
the central unit from the power supply!
Note
Mount one or more modules on the right next to the central unit (slot X2 to X5 can be
freely selected).
6.1 Mounting
1. Disconnect the central unit from the power supply.
2. Remove the cover from the backplane bus, to which the module should be attached.
3. Attach the device to the backplane bus and press it firmly against the backplane.
4. Secure the device with the fixing screws.
5. Connect the grounding screw with the protective ground / grounding shield.
Connect the grounding screw on the bottom side of the housing with the protective ground
/ grounding shield.
Important Note
Always screw tight the device and the modules. If you do not screw it tight, connecting or
disconnecting the connectors for the inputs and outputs might cause damages.

ibaMS16xAO-10V/-20mA
Manual
Issue 1.4
11
6.2 Connecting
Note
The backplane unit and the device must be connected to a protective conductor.
1. Connect all cables.
2. If all required cables are connected, connect the central unit to the power supply.
3. Switch on the central unit.
Note
When switching on and off the power supply or the central unit, it may be possible that
intermediate values are wrong at the analog outputs for approx. 5 seconds within the
output signal range.
6.3 Dismounting
1. Disconnect the central unit from the power supply.
2. Remove all cables.
3. Remove the both fixing screws on the upper and the lower side of the device.
4. Pull the device straight from the backplane.
5. Put the cover on the backplane bus.

Manual
ibaMS16xAO-10V/-20mA
12
Issue 1.4
7 Device description

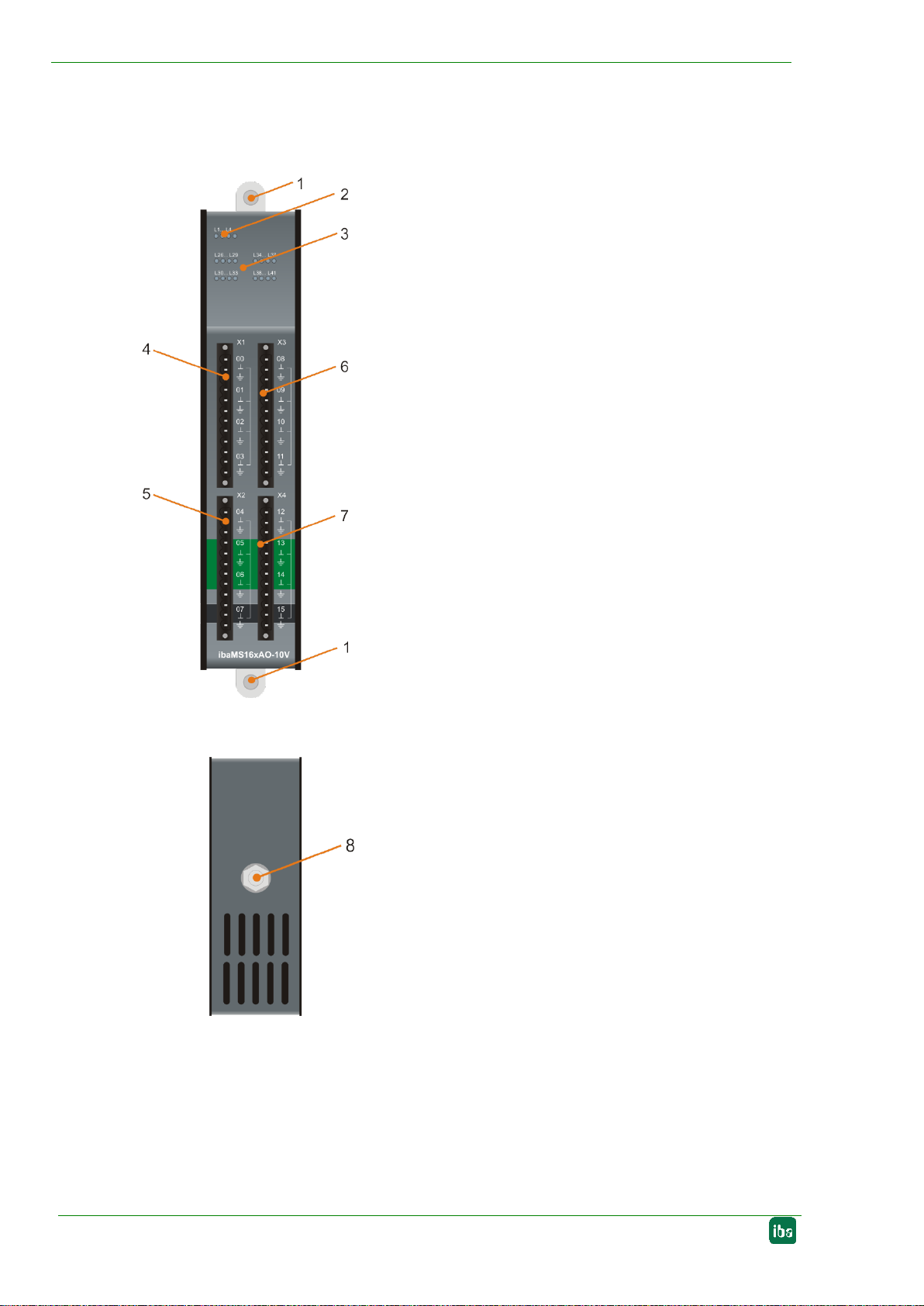

7.1 Views
1
2
3
4
5
6
7
Fixing screws
Operating status indicators L1…L4
Status LED L26 to L41 of the analog outputs 00 …15
Connection X1 for analog outputs 00…03
Connection X2 for analog outputs 04 …07
Connection X3 for analog outputs 08 …11
Connection X4 for analog outputs 12 …15
Figure 1: Front view
8Grounding screw
Figure 2: Bottom view

ibaMS16xAO-10V/-20mA
Manual
Issue 1.4
13
7.2 Indicator elements
The operating status of the device and the status of the analog outputs are shown by
colored status LEDs.
7.2.1 Operating status L1 … L4
LED
Status
Description
L1: green
Flashing / On
Off
Device is working
Device is not working (switched off)
L2:
yellow
On
Access to the backplane bus
L3: white
-
-
L4: red
Off
Flashing
Normal status, no error
Device error
Important note
When the LED L4 indicates a failure, please contact the iba support.
7.2.2 Status of analog outputs L26 … L41
LED per
channel*
Status
Description
ibaMS16xAO-10V
Description
ibaMS16xAO-20mA
L26 … L41
Off
= 0 V
= 0 mA
Green
≠0 V
≠0 mA
Red
Channel error
Channel error
*If an output is deactivated with ibaPDA, the corresponding LED remains off.
7.3 Analog outputs
7.3.1 Filter
There are the following analog filters per channel:
Filter type
Order
Cut-off
frequency
in addition /
permanent
R/C low pass
1st
40 kHz
permanent

Manual
ibaMS16xAO-10V/-20mA
14
Issue 1.4
7.3.2 Overload protection
The outputs are protected against short circuits. Nevertheless a hardware error may oc-
cur, e. g. when the wiring is not correct.
When there is a hardware error, e. g. overtemperature, all channels of a signal root are
set to “safe state” (0 V or 0 mA). The error must be reset by “ResetError_Ch[00..15]”in
ibaLogic or “Reset channel errors” in ibaPDA (see also chapter 9.1.2).
7.3.3 Connection diagram / pin assignment
Here you can connect 16 output signals (0…15), each bipolar plus ground. 4 separated
galvanically isolated groups have 4 outputs each.
ibaMS16xAO-10V
ibaMS16xAO-20mA
Figure 3: Connection diagram

ibaMS16xAO-10V/-20mA
Manual
Issue 1.4
15
Pin assignment
Pin
Connection
LED
Pin
Connection
LED
1
Analog output 00 +
L26
1
Analog output 08 +
L34
2
Analog output 00 
2
Analog output 08 
3
Analog output 00
3
Analog output 08
4
Analog output 01 +
L27
4
Analog output 09 +
L35
5
Analog output 01 
5
Analog output 09 
6
Analog output 01
6
Analog output 09
7
Analog output 02 +
L28
7
Analog output 10 +
L36
8
Analog output 02 
8
Analog output 10 
9
Analog output 02
9
Analog output 10
10
Analog output 03+
L29
10
Analog output 11 +
L37
11
Analog output 03 
11
Analog output 11 
12
Analog output 03
12
Analog output 11
1
Analog output 04 +
L30
1
Analog output 12 +
2
Analog output 04 
2
Analog output 12 
L38
3
Analog output 04
3
Analog output 12
4
Analog output 05 +
4
Analog output 13 +
5
Analog output 05 
L31
5
Analog output 13 
L39
6
Analog output 05
6
Analog output 13
7
Analog output 06 +
7
Analog output 14 +
8
Analog output 06 
L32
8
Analog output 14 
L40
9
Analog output 06
9
Analog output 14
10
Analog output 07+
10
Analog output 15 +
11
Analog output 07 
L33
11
Analog output 15 
L41
12
Analog output 07
12
Analog output 15
Important note
The signals must be connected to their own channel. It is not allowed to connect signals
to another channel.

Manual
ibaMS16xAO-10V/-20mA
16
Issue 1.4
8 Start-up / Update
Important note
Installing an update can take some minutes. Please do not switch off the device when an
update is running. This might damage the device.
8.1 Auto-Update
After having mounted the module and applied the voltage to the central unit, the central
unit detects the modules and checks the firmware version.
The central unit has a so called “overall release version“. This version contains the cur-
rent firmware version of the central unit as well as the firmware versions of the modules.
You can find the “overall release version“ on the Website of the central unit on the „firm-
ware“ tab.
When the firmware version of a module does not match the “overall release version“ of
the central unit, the central unit does an automatic up- or downgrade of the module.
Thereafter, the module is ready to be used.
Important note
The “overall release version“ contains all modules developed up to the date of release
of this firmware and the corresponding firmware versions. If a module cannot be de-
tected, yet (i.e. it is more recent than the Firmware version of the CPU), this module is
ignored and outlined in red on the Web interface.
In this case, a new update file has to be installed for the “overall release version“. If you
want to get the current update file, please contact the iba support.
8.2 Overall Release Version
The „overall release version“ provides information about the firmware version of the en-
tire ibaPADU-S system. You can find it on the Website of the central unit or in the
I/O Manager of ibaPDA.
Important note
If you require support, specify the „overall release version“.

ibaMS16xAO-10V/-20mA
Manual
Issue 1.4
17
8.3 Update
An update can be installed in two different ways:
Web interface (only with ibaPADU-S-IT-2x16)
ibaPDA
No matter which of the both ways you choose to install an update: the progress of the
update is shown by the LEDs L5 … L8. Beginning with L5, the LEDs are flashing one
after another, at first in orange and then in green and at a slower rate. When the update
is completed, the device reboots automatically.
8.3.1 Update via Web interface
Important note
The Web interface is available only with the central unit ibaPADU-S-IT-2x16.
Start the Website of the iba-modular system in your browser and select the central
unit.
On the “update“ tab, click on the <Browse…> button and choose the
<padusit2x16_ v[xx.yy.zzz].iba> update file.
By clicking on <Start Update>, you start the update.
Figure 4: Update via Web interface
Important note
When updating the iba-modular system, a possible autostart of the ibaLogic PMAC is
deactivated and the existing ibaLogic-V5 application deleted. Furthermore, an update
of the ibaLogic-V5 software (ibaLogic Clients) might be necessary.

Manual
ibaMS16xAO-10V/-20mA
18
Issue 1.4
8.3.2 Update via ibaPDA
Open the ibaPDAI/O Manager and choose your iba-modular system in the tree
structure.
On the “Diagnostics“ tab, click on the <Write firmware> button and choose the
„padusit2x16_v[xx.yy.zzz].iba“ or „paduscm_v[xx.yy.zzz].iba“ update file.
You start the update by clicking on <OK>.
Figure 5: Update via ibaPDA
8.4 Module Information / Diagnostics
8.4.1 Diagnostics
Important information about the iba-modular system, like hardware version, firmware ver-
sion, FPGA version and serial number is displayed in the “Diagnostics” tab. Open the
ibaPDAI/O Manager and choose your iba-modular system in the tree structure (See also
figure above)
8.4.2 Webinterface
On the module Website, general information about the module is only displayed. You
cannot change the values.
Important note
The Web interface is available only with the central unit ibaPADU-S-IT-2x16.

ibaMS16xAO-10V/-20mA
Manual
Issue 1.4
19
8.4.2.1 „info“ tab
The „info“ tab displays general information and technical specifications of the I/O module.
Figure 6: „info“ tab
8.4.2.2 „notes“tab
On the “notes“ tab, you can enter notes, e.g. for notes on wiring or on recording of
changes.
By clicking on <save notes>, the notes are permanently stored on the device.
Figure 7: „notes“ tab

Manual
ibaMS16xAO-10V/-20mA
20
Issue 1.4
9 iba Applications
9.1 Configuration in ibaPDA
You can configure the signals with the I/O Manager of ibaPDA. If the iba-modular system
is already installed and you want to add a new module, click on „Read configuration from
device“. The module will be detected automatically.
Figure 8: Automatic detection of the module
Note
The automatic detection requires a bidirectional FO connection from the ibaPDA com-
puter to the central unit.
Other documentation
If you want to install the iba-modular system at first, refer to the manual of the central unit,
chapter “Configuration with ibaPDA”.
9.1.1 General settings
If the module is detected, click on the module in the signal tree and the „General“ tab
appears.
Figure 9: ibaMS16xAO-10V –“General”tab
Basic settings
Module Type
Display of module type (read only)
