IBA ibaMS8xAI-110VAC User manual

ibaMS8xAI-110VAC
Input module for analog signals
Manual
Issue 1.4.1

Manufacturer
iba AG
Koenigswarterstr. 44
90762 Fuerth
Germany
Contacts
Head office [phone]
Fax [phone]
Support [phone]
Technology [phone]
E-Mail: [e-mail]
Web: www.iba-ag.com
This manual must not be circulated or copied, or its contents utilized and disseminated, without
our express written permission. Any breach or infringement of this provision will result in liability
for damages.
© iba AG 2020, All rights reserved.
The content of this publication has been checked for compliance with the described hardware and
software. Nevertheless, deviations cannot be excluded completely so that the full compliance is
not guaranteed. However, the information in this publication is updated regularly. Required correc-
tions are contained in the following regulations or can be downloaded on the Internet.
The current version is available for download on our web site www.iba-ag.com.
Copyright notice
Windows®is a label and registered trademark of the Microsoft Corporation. Other product and
company names mentioned in this manual can be labels or registered trademarks of the corre-
sponding owners.
Certification
The product is certified according to the European standards and directives. This product meets
the general safety and health requirements.
Further international customary standards and directives have been observed.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter-
ference when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in residential area is
likely to cause harmful interference in which case the user will be required to correct the interference at his
own expense.
Issue
Date
Revision
Chapter
Author
Version
HW / FW
1.4.1
07/24/2020
Correction technical data

ibaMS8xAI-110VAC
Manual
Issue 1.4.1 3
Table of contents
1About this manual........................................................................................... 5
1.1 Target group ..................................................................................................6
1.2 Notations .......................................................................................................6
1.3 Used symbols................................................................................................7
2Introduction ..................................................................................................... 8
3Scope of delivery ............................................................................................ 8
4Safety instructions.......................................................................................... 9
4.1 Proper use.....................................................................................................9
4.2 Special safety instructions .............................................................................9
5System Requirements .................................................................................. 10
5.1 Hardware.....................................................................................................10
5.2 Software ......................................................................................................10
6Mounting, Connecting, Dismounting .......................................................... 10
6.1 Mounting......................................................................................................10
6.2 Connecting ..................................................................................................11
6.3 Dismounting................................................................................................. 11
7Device description ........................................................................................ 12

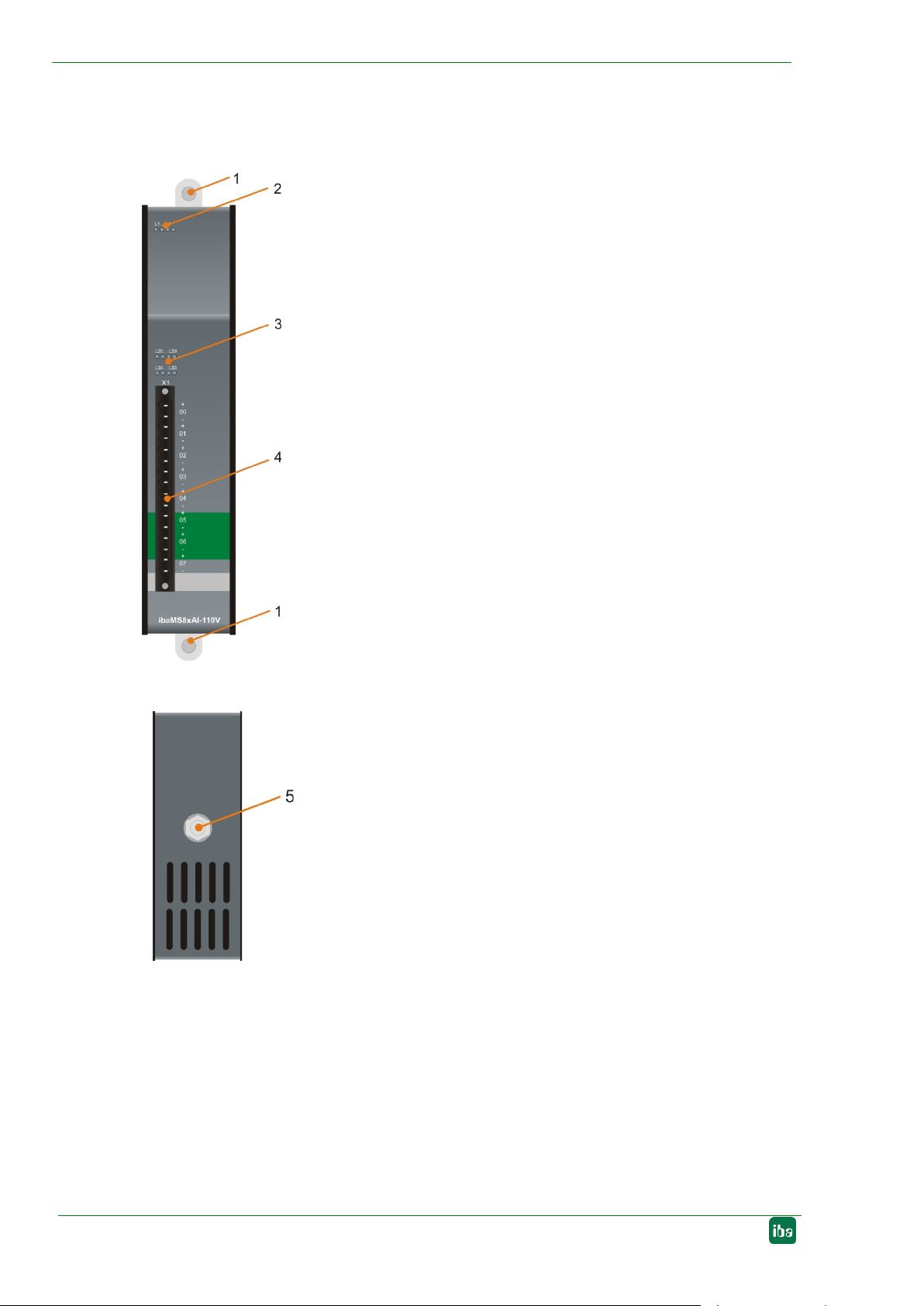

7.1 Views...........................................................................................................12
7.2 Indicator elements .......................................................................................13
7.2.1 Operating status ..........................................................................................13
7.2.2 Status of the analog inputs ..........................................................................13
7.3 Analog inputs...............................................................................................13

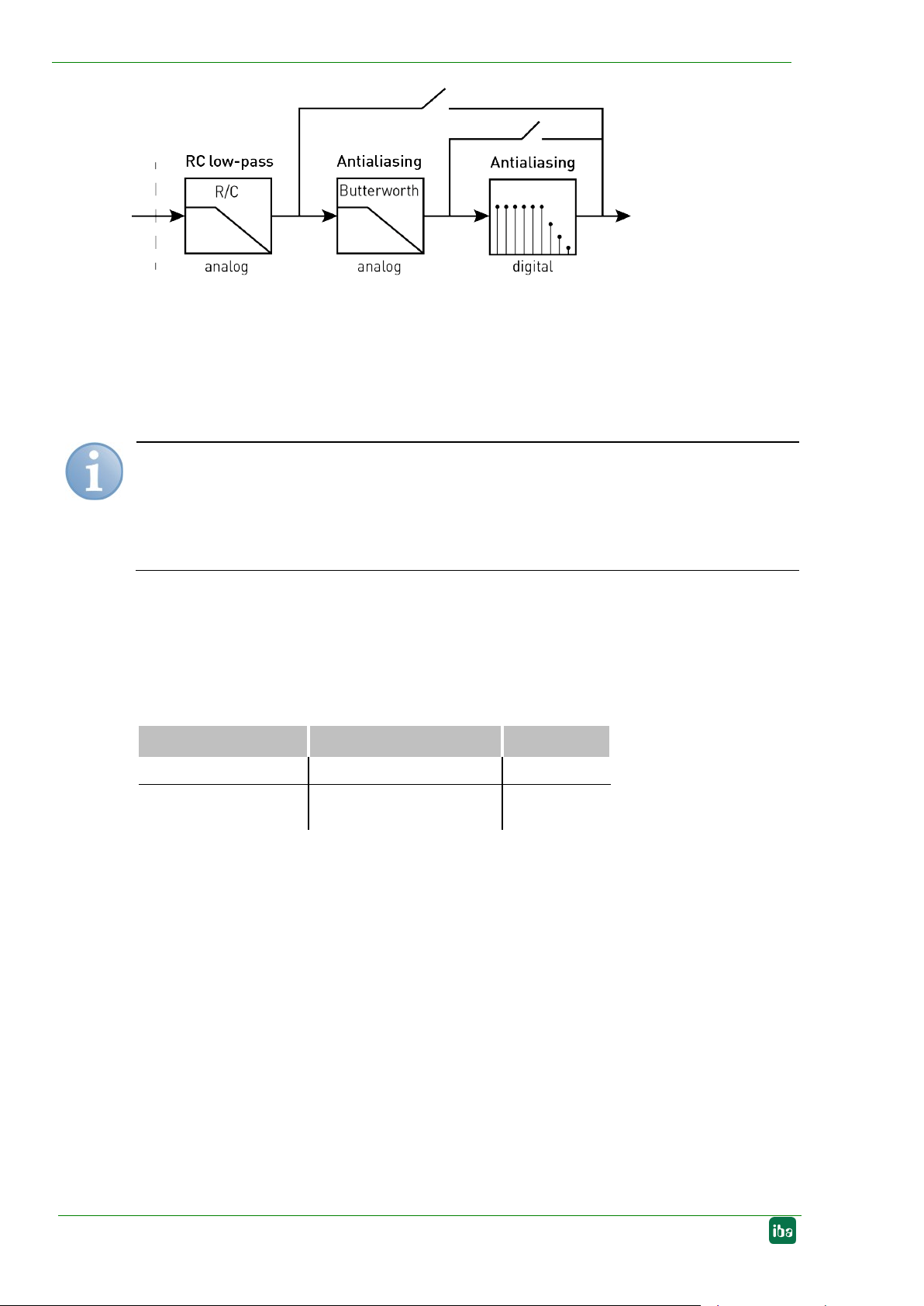

7.3.1 Filter ............................................................................................................13
7.3.2 Grid frequency measurement.......................................................................14
7.3.3 Connection diagram / pin assignment..........................................................15
8Start-up / Update ........................................................................................... 16
8.1 Auto-Update ................................................................................................16
8.2 Overall Release Version ..............................................................................16
8.3 Update.........................................................................................................16
8.3.1 Update via Web Interface ............................................................................17
8.3.2 Update via ibaPDA ......................................................................................17
8.4 Module Information / Diagnostics.................................................................18
8.4.1 Diagnostics..................................................................................................18

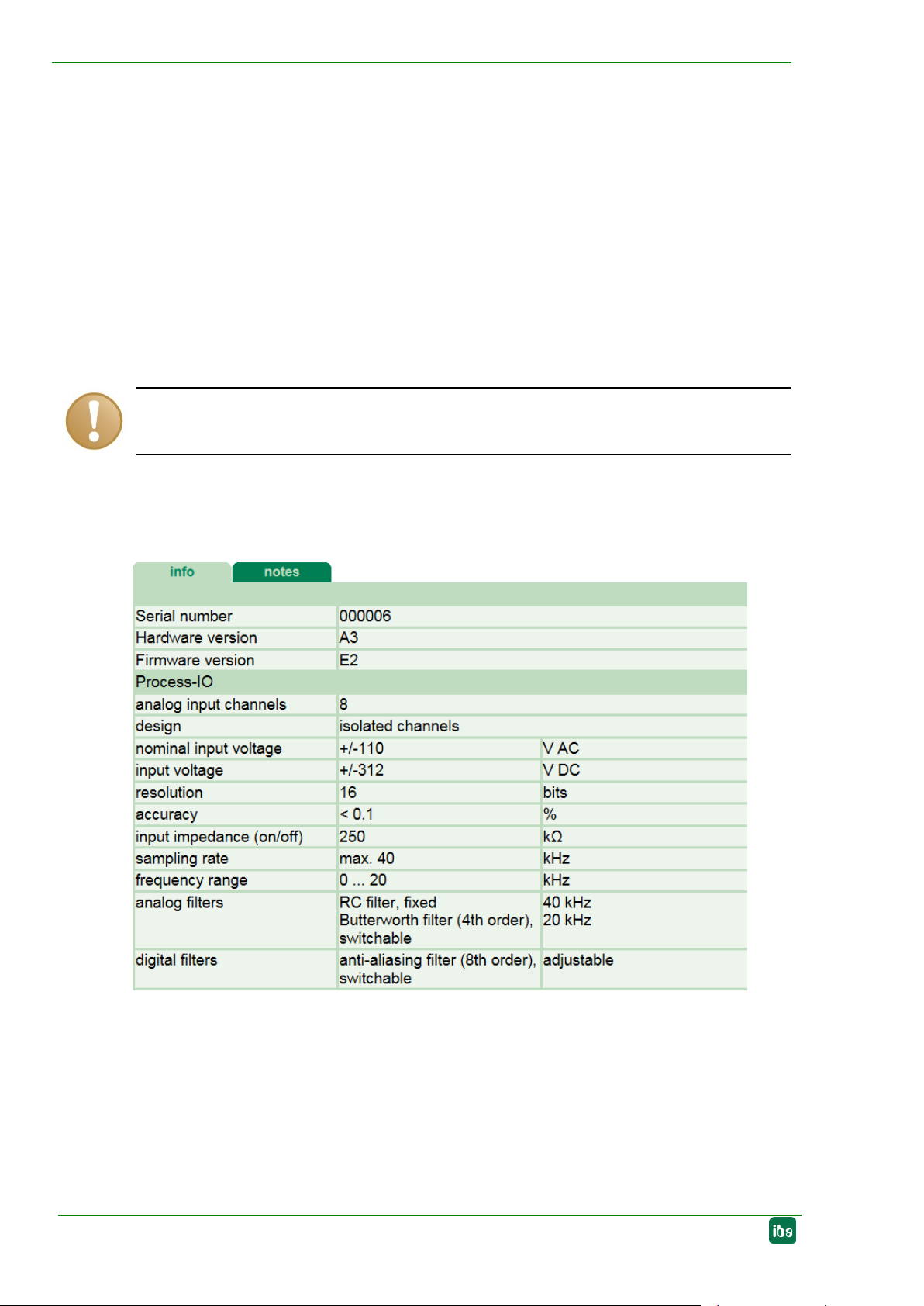

8.4.2 Web Interface ..............................................................................................18
9iba Applications ............................................................................................ 20

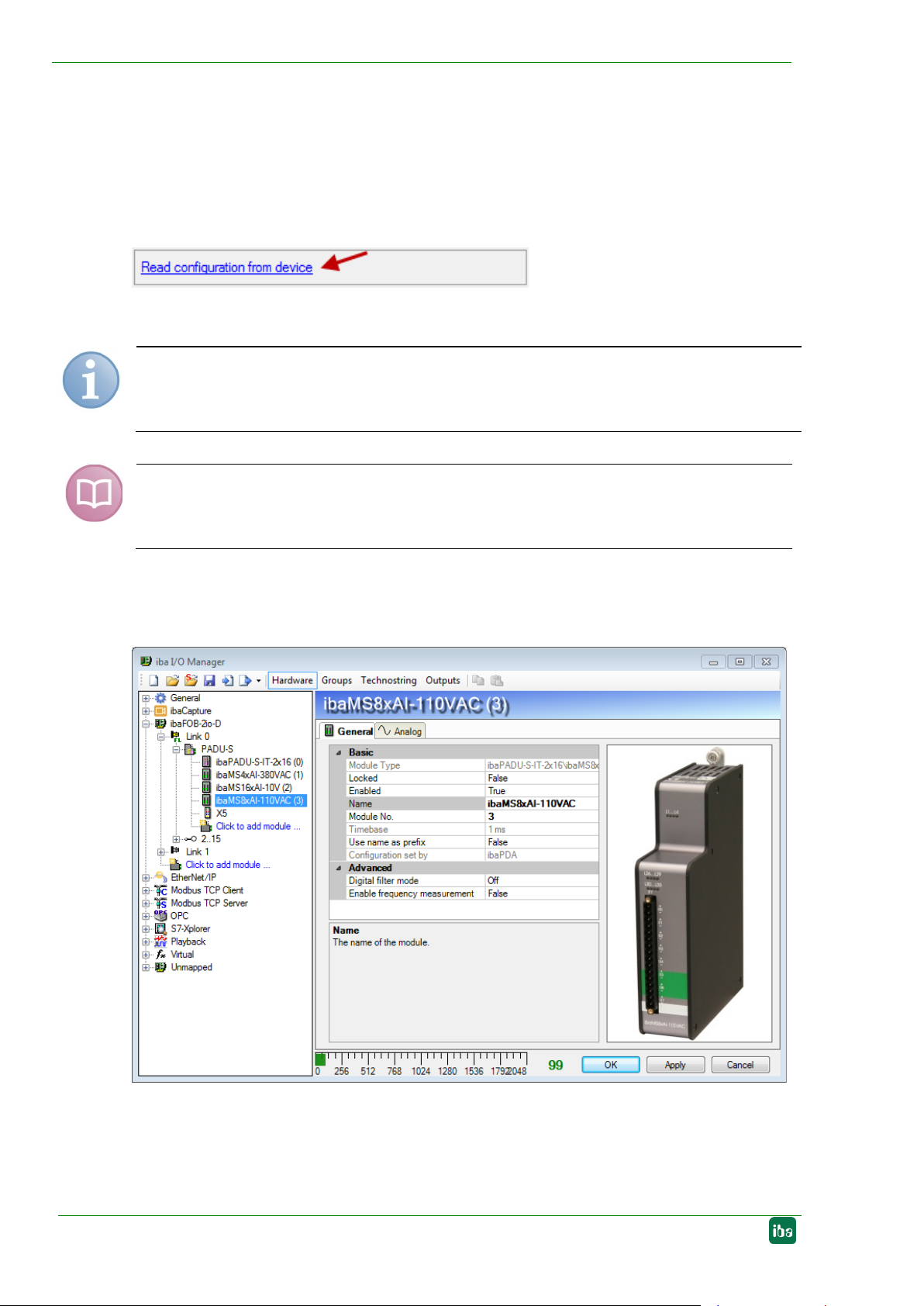

9.1 Configuration in ibaPDA...............................................................................20

Manual
ibaMS8xAI-110VAC
4
Issue 1.4.1
9.1.1 “General” tab ............................................................................................... 20
9.1.2 “Analog” tab................................................................................................. 22
9.1.3 „Grid frequency [10Hz..80Hz]“ tab ............................................................... 23
9.2 Configuration in ibaLogic-V5 ....................................................................... 25
9.2.1 Configuring signals...................................................................................... 25
9.2.2 Additional functions ..................................................................................... 27
10 Technical Data............................................................................................... 30
10.1 Main data .................................................................................................... 30
10.2 Analog inputs .............................................................................................. 30
10.3 Additional functions ..................................................................................... 31
10.4 Dimensions ................................................................................................. 32
11 Support and contact..................................................................................... 33

ibaMS8xAI-110VAC
Manual
Issue 1.4.1 5
1 About this manual
In this manual, you learn a lot about the design of the ibaMS8xAI-110VAC module and
how to use and operate it. You can find a general description of the iba-modular system
and further information about the design of the central units and how to use and operate
them in separate manuals.
Note
The documentation for the iba-modular system is part of the DVD that is included in
delivery.
The documentation of the iba-modular system comprises the following manuals:
Central units
The manuals of the ibaPADU-S-IT-2x16 central units and ibaPADU-S-CM contain
the following information:
Scope of delivery
System requirements
Description of the device
Mounting/Demounting
Start-up
Configuration
Technical data
Accessories
Modules
The manuals for the single modules contain specific information about the module.
There are the following information classes:
Short description
Scope of delivery
Product characteristics
Configuration
Description of the functions
Technical data
Connection diagram

Manual
ibaMS8xAI-110VAC
6
Issue 1.4.1
1.1 Target group
This manual addresses in particular the qualified professionals who are familiar with han-
dling electrical and electronic modules as well as communication and measurement tech-
nology. A person is regarded to as professional if he/she is capable of assessing safety
and recognizing possible consequences and risks on the basis of his/her specialist
training, knowledge and experience and knowledge of the standard regulations.
1.2 Notations
In this manual, the following notations are used:
Action Notations
Menu command Menu Logic diagram
Call of menu command Step 1 – Step 2 – Step 3 – Step x
Example:
Select menu Logic diagram – Add – New logic
diagram
Keys <Key name>
Example: <Alt>; <F1>
Press keys simultaneously <Key name> + <Key name>
Example:
<Alt> + <Ctrl>
Buttons <Button name>
Example:
<OK>; <Cancel>
File names, Paths „File name“, „Path”
Example:
„Test.doc“

ibaMS8xAI-110VAC
Manual
Issue 1.4.1 7
1.3 Used symbols
If safety instructions or other notes are used in this manual, they mean:
The non-observance of this safety information may result in an imminent risk of death
or severe injury:
•By an electric shock!
•Due to the improper handling of software products which are coupled to input and
output procedures with control function!
If you do not observe the safety instructions regarding the process and the system or
machine to be controlled, there is a risk of death or severe injury!
The non-
observance of this safety information may result in a potential risk of death or
severe injury!
The non-
observance of this safety information may result in a potential risk of injury or
material damage!
Note
A note specifies special requirements or actions to be observed.
Important note
Note if some special features must be observed, for example exceptions from the rule.
Tip
Tip or example as a helpful note or insider tip to make the work a little bit easier.
Other documentation
Reference to additional documentation or further reading.

Manual
ibaMS8xAI-110VAC
8
Issue 1.4.1
2 Introduction
The ibaMS8xAI-110VAC module is member of the iba-modular system. The modular
concept is designed on the basis of a backplane. You can plug on this backplane not
only the CPU, but also up to 4 input/output modules. The power supply of the I/O mod-
ules is provided by the backplane bus. The ibaMS8xAI-110VAC module offers 8 analog
inputs.
In brief
I/O module for the iba-modular system
8 analog inputs, galvanically isolated
Input signal 110 V AC
16 bit resolution
Sampling rate up to 40 kHz, freely adjustable
Real parallel data capturing with an A/D converter per channel
Analog and digital filter per channel
Grid frequency measurement
Rugged design, easy mounting
Certification according to CE
Fields of application
Capturing analog input signals 110 V AC in the fields:
Test benches
Power factor compensation plants
General voltage measurement
Energy networks AC 110 V
Condition Monitoring
3 Scope of delivery
After having unpacked the delivery, please check it for completeness and have a look if
the parts might be damaged.
The scope of delivery comprises:
ibaMS8xAI-110VAC device
16-pin multi-pin connector, clamp type terminal
Manual (German and English)
DVD “iba Software & Manuals” (only for single delivery)

ibaMS8xAI-110VAC
Manual
Issue 1.4.1 9
4 Safety instructions
4.1 Proper use
The device is an electrical apparatus. It is only allowed to use the device for the following
applications:
Capturing of measuring data
Automation of industrial plants
Applications with iba products (ibaPDA, ibaLogic etc.)
The device is only to be applied as shown in the Technical Data.
4.2 Special safety instructions
Strictly observe the
measuring range!
Never use damaged measuring cables!
Measuring cables must NOT be attached or detached to/from the device under voltage!
The device m
ust not be connected to CAT III and CAT IV categories!
The device is approved for the use in CAT II
1.
Modules must NOT be attached or detached to/from the rack under voltage!
Switch off the central unit or disconnect power supply before attaching/detaching the
modules.
Important note
Do not open the device!
Opening the device leads to a loss of warranty!
Note
Clean the device only on the outside with a dry or slightly damp
and statically dis-
charged
cloth.
1For devices with hardware version B0 or higher

Manual
ibaMS8xAI-110VAC
10
Issue 1.4.1
5 System Requirements
5.1 Hardware
Central unit: ibaPADU-S-IT-2x16 or ibaPADU-S-CM (version v02.10.001 or later)
Backplane unit, e. g. ibaPADU-B4S
5.2 Software
ibaPDA version 6.34.0 or later
ibaLogic-V5 version 5.0.2 or later
Note
This manual applies to devices of hardware version B0 or later
.
The use of
ibaLogic-V5 requires the central unit ibaPADU-S-IT-
2x16. If the module is
used with the predecessor ibaPADU
-S-IT-16, only ibaLogic-V4 can be used.
6 Mounting, Connecting, Dismounting
Works on the device must NOT be done when it is under voltage!
Always disconnect
the central unit from the power supply!
Note
Mount one or more modules on the right next to the central unit
(slot X2 to X5
can be
freely selected
).
6.1 Mounting
1. Disconnect the central unit from the power supply.
2. Remove the cover from the backplane bus, to which the module should be attached.
3. Attach the device to the backplane bus and press it firmly against the backplane.
4. Secure the device with the fixing screws.
5. Connect the grounding screw with the protective ground / grounding shield.
Connect the
grounding screw on the bottom side of the housing
with the protective ground
/ grounding shield.
