iBasso Audio DX240 User manual

iBasso Audio
USER GUIDE

Android Basic Features Introduction
WiFi Connection/Bluetooth Connection
Contents
Package Components
Main Features
Specifications
Names of Parts & Functions
7-8
5-6
2-4
9-13
14-26
15-16
Application (APP) Installation/App， to Uninstall/USB Connections
17-20
Power Off/Reboot/System Switching 26
System Settings 21-25
iBasso Mango Music Player Application 27-58
Playback Screen (home screen) 27
Music Screen 28-38
Settings Screen 39-58
System Switching 59
Mango OS 59-62
MQA 63
Mango OS User Interface 60
To Return to The Android System 61
MTP 62

USB-C cable Screen Protector
Quick Start Guide Warranty Card
2
Package Components
Coaxial Cable Balanced Burn-in Cable
Clear TPU
protection case
DX240 Player

3
USB-C Cable：
Coaxial Cable：
Connect the coaxial cable to an external DAC, to allow
the DX240 to work as a digital transport.
Connect the USB-C cable to a computer for charging,
data transfer, and USB-DAC function.The USB-C cable
can also be used with a USB charger to charge the
battery.
Clear TPU protection case:
Use the TPU protection case to protect the DX240
chassis from scratches.
Screen Protector：
Use the screen protector to protect the DX240 screen
from scratches.
Warranty Card：
The warranty card will be requested at the time of
warranty repair. Please retain the warranty card.
Quick Start Guide:
This reviews the basic functions of the DX240.
Balanced Burn-in Cable：
Plug the burn-in cable into the output socket and keep
playing music to burn-in the DX240. The burn-in process
helps the DX240 sound reach its full potential by forming
the capacitors and stabilizing the electronic components
used.

4
Tips for burn-in
The use of the cable is very straightforward. The burn-in
cable is used to form the capacitors and to condition the rest
of the circuitry. The method for burn-in is to use normal
resolution music, as higher resolution causes more heat due
to the higher demand on the system. Also, use a normal
listening volume, as the higher volume will have a higher
power consumption therefore more heat will be generated.
While burning in the DX240, both the balanced and the single
ended components are being affected and burned in.
The burn-in time can be from 100 to 200 hours and the
burn-in doesn't have to be continual. You can power off the
player and continue the burn-in process after a few days. It
is also not mandatory to use the burn-in cable, we supply it
as a convenience for when you are not listening to the DX240
and you would like to get your dap conditioned as soon as
possible. You can also just listen to the player and enjoy the
music as your player goes through this process while playing
through IEMs or headphones.

5
Main Features
- ESS flagship ES9038Pro DAC Chip.
- Bit for Bit playback with support up to 32bit/768kHz.
- Support of Native DSD up to 512x.
- Sharp 5.0″ IPS full screen (1080*1920), with On-Cell
capacitive touch panel.
- Support of QC3.0 and PD3.0 quick charge.
- In-house developed FPGA-Master as the audio system
controller, synchronizing and generating the signal to all
audio clocks.
- 2 NDK ultra-low phase noise Femtosecond oscillators.
- 4GB LPDDR4X + 64GB ROM.
- 14nm Octa-Core Qualcomm Snapdragon 660 SoC.
- USB digital output up to PCM 32bit/384kHz, Native
DSD256, and DoP DSD128.
- Mini coaxial output that supports up to 24bit/384kHz and
DoP DSD128.
- USB DAC function that supports up to 32bit/384kHz and
DoP DSD128 input.
- Support of 2.4GHz and 5GHz WiFi and Bluetooth 5.0.
- Support of SDHC and SDXC Micro SD cards up to 2TB.

6
- Support of USB 3.1 Super speed transfer.
- 3 gain settings for hardware control.
- 100 step volume control.
- Patented replaceable AMP card design, compatible with
AMP1 through AMP8.
- Audio Formats Supported: MQA, APE, FLAC, WAV, WMA,
AAC, ALAC, AIFF, OGG, MP3, DFF, DSF, and DXD.
- Support for M3U playlists.
- 3.8V 4400mAh Li-Polymer battery.

7
Specifications
Maximum output level：
Output Power：
Frequency Response：
S/N：
Dynamic Range：
THD+N：
Crosstalk：
Output impedance：
Maximum output level：
Output Power：
Frequency Response：
S/N：
Dynamic Range：
THD+N：
Crosstalk：
Output impedance：
6.2Vrms
878mW@32ohm, 128mW@300ohm
10Hz~45kHz +/-0.1dB
125dB
125dB
-114dB (3Vrms, no load)
-114dB (3Vrms, 32ohm load)
-119dB
0.57ohm
3.1Vrms
281mW@32ohm, 32mW@300ohm
10Hz~45kHz +/-0.1dB
123dB
123dB
-110dB (1.8Vrms, no load)
-109dB (1.8Vrms, 32ohm load)
-117dB
0.38ohm
2.5mm Balanced Phone Port：
3.5mm Single Ended Phone Out:

8
11hours
(The play time varies with different
resolutions, volume used and headphone
/IEMloads.)
Average Play Time:
Maximum output level：
Frequency Response：
S/N：
Dynamic Range：
THD+N：
Crosstalk：
3Vrms
10Hz~45kHz +/-0.1dB
122dB
-122dB
-110dB (1.8Vrms, no load)
-116dB
3.5mm Single Ended Line Out：

9
Names of Parts & Functions
3.5mm Line Output Port
Coaxial Output Port USB-C
Micro SD
3.5mm Phone Output Port
2.5mm Balanced Output

10
3.5mm Phone Output
Plug in the single-ended earphone and output sound through the
phone port.
3.5mm Line Output
Use a 3.5 to 3.5 interconnect cable to play music stored in the
DX240 on an external amplifier with a line in port.
USB-C Port
Connect the DX240 to a computer or a USB charger to charge
the DX240.
Connect the DX240 to a computer to allow the DX240 to work
as a card reader or an external storage.
Connect the DX240 to an OTG storage device to play music
files stored in this OTG storage device.
Connect the DX240 to a Windows PC or a Mac computer to
work as a USB DAC.
2.5mm Balanced Output
Plug in the 2.5mm balanced earphone and output sound through
the Balanced phone port.
Coaxial Output Port:
Use the furnished coaxial cable to play music stored in the
DX240 on an external device with a coaxial input port. Mini
coaxial output has the highest output priority which would
close the phone out or line out when coaxial cable plugged
in. The output of this port is up to 24bit/384kHz or DoP
DSD128.

11
Previous/Rewind
Play/Pause
Next/Fast Forward
Power/Volume
USB-C
Coaxial Output Port
5.0 inch LCD

12
Power：
Volume：
Previous/Rewind：
Next/Fast Forward：
Play/Pause：
Rotate the wheel clockwise to increase the volume.
Rotate the wheel counter clockwise to decrease the volume.
Short Press - Play the next track.
Long Press - Fast forward.
Short Press - Play/Pause.
On the Mango OS, long press the play button to lock the screen.
Short Press - Replay previous track.
Long Press - Rewind.
Short Press - Power the LCD screen on and off.
Long Press - To display the pop up window with three
options that are Power off, Reboot, and To Mango.

Connecting to a computer to work as a USB DAC:
The DX240 can work as a USB DAC for Windows PC, Mac
computer, and Linux computer. It is driver free on Windows PC,
Mac computer, and Linux computer. For Windows PC, the DX240
supports WASAPI protocol.
The DX240 supports up to 32bit/384kHz PCM, and DSD DoP up
to 128x when be used as a USB-DAC.
Power on/off:
1. Press and hold the power button to power on.
2. After the DX240 is powered on, a long press of the Power
button to display the pop up window, press Power Off button
to power off the DX240.
Power on/off the screen:
Single press the power button to power on/off the screen after
the DX240 has been powered on.
Reset:
When the DX240 stops unexpectedly during operation and the
keys are no longer responsive, press and hold the power button
for 10 seconds to reset the DX240.
Charging:
DX240 supports two quick charge protocols, QC3.0 and PD3.0.
Charging can be done with a standard 5V USB charger or with
quick charger that is compliant the stated 2 protocols. A full
charge takes about 2.5 hours with the afore mentioned quick
charge types.
Connecting to a computer to work as a USB DAC:
Basic Operation:
13

14
Battery indicator
WiFi
Bluetooth
Time
Volume
Gain
Digital Filter
Android Basic Features
Introduction

15

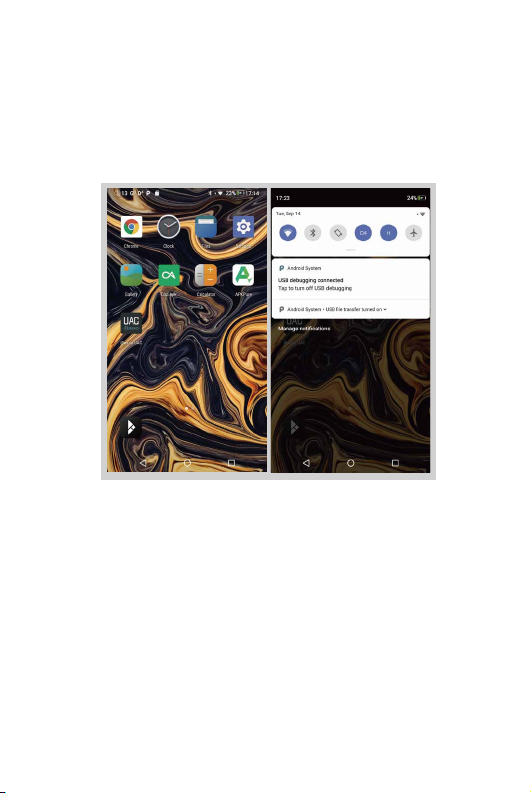

WiFi Connection:
① On the Android desktop, from the top, swipe down
the screen to display the notification bar.
② Press the Wireless local area network(WLAN) to turn
on the WiFi function. The first time you enter the
WLAN, you need to choose the hot spot you will be
using and enter the password. From this point
forward your password for this hotspot will be
remembered and you simply press the WLAN icon
to connect to the WiFi internet.

16

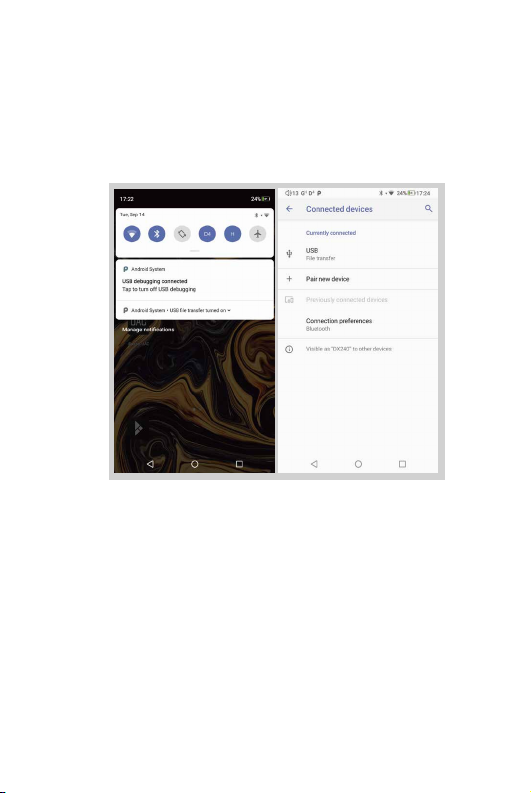

Bluetooth Connection:
① On the Android desktop, swipe down from the top
of the screen to display the notification bar.
② Press the Bluetooth icon to turn on the Bluetooth
function. The DX240 will automatically search for
the nearby Bluetooth device. At the same time, the
DX240 will be visible to the nearby devices.
Choose the device that you would like to pair with.
After the device has been paired, you can use the
DX240 in the Bluetooth mode.

APP Installation:
17
Method 1:
① APKPure and CoolAPK are pre-installed on the
DX240. They are similar to Play Store.
② Launch one of them.
③ Search for the APP that you would like to install.
④ Download the APP and install it.
Method 2:
① Press the internet browser on the desktop.
② Enter the website address of the APP.
③ Find the download icon on the website and start
the download.
④ Return to the desktop and open download
manager.
⑤ Press the on downloaded app and install it.

App, to Uninstall:
18

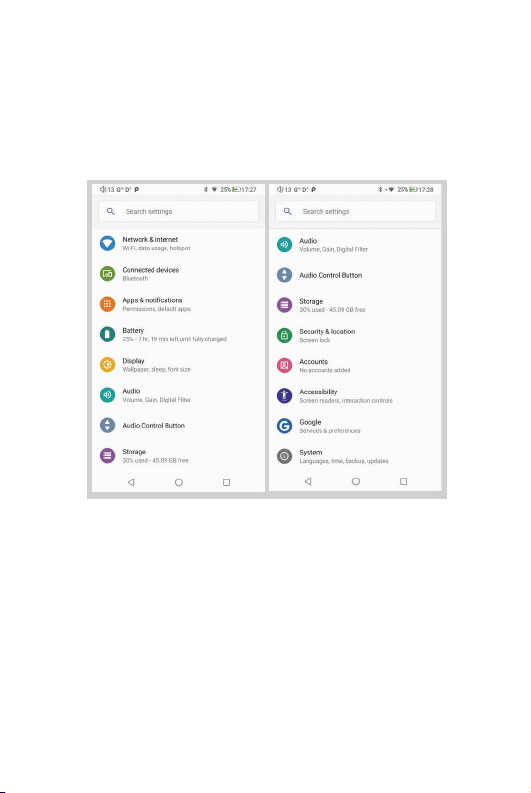

① Press the Settings icon on the desktop and scroll
down and press APPs.
② Press the APP that you would like to uninstall.
③ Press uninstall to delete the APP.

19
USB Connections:
Connect the DX240 to the computer using the furnished
USB-C cable. The DX240 will show on the computer as
an external storage. Users can transfer files by copying
and pasting.
* If you are using a Mac computer, please make sure the MTP
software Android File Transfer is installed.
