iBasso Audio DX320 MAX User manual

iBasso Audio
USER GUIDE

Contents
Android Basic Features Introduction
WiFi Connection/Bluetooth Connection
Package Components
Main Features
Specifications
Names of Parts & Functions
9-10
7-8
2-6
11-15
18-30
iBasso Mango Music Player Application 31-63
18-20
Charge 16-17
Application (APP) Installation/App， to Uninstall/USB Connections
21-23
Power Off/Reboot/System Switching 30
Playback Screen (home screen) 31-33
System Settings 24-29
Music Screen 34-42
Settings Screen 43-63
System Switching 64
Mango OS 64-67
MQA 68
Mango OS User Interface 65
To Return to The Android System 66
MTP 67

USB-C cable
2
Package Components
DX320MAX player
AC adapter (12V/1.5A)
Coaxial cable Balanced burn-in cable
Leather case

3

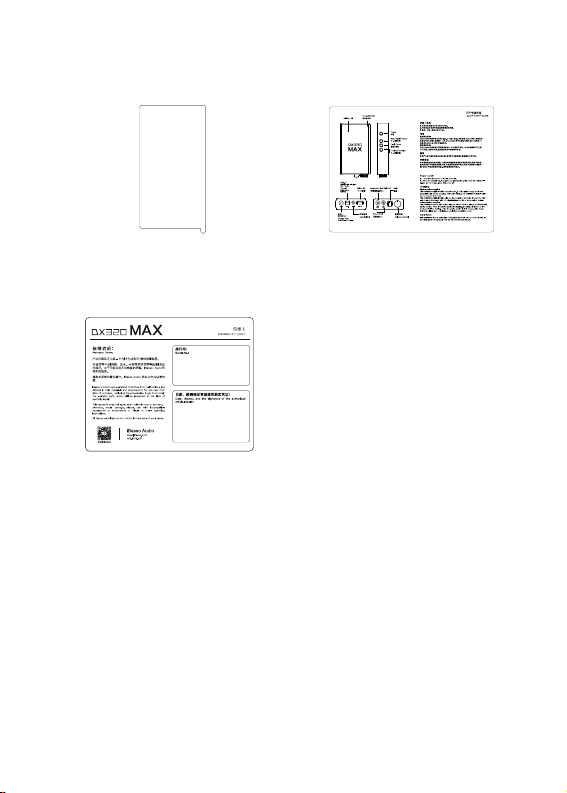

Screen protector Quick start guide
Warranty card

4
USB-C cable：
Coaxial cable：
Connect the coaxial cable to an external DAC, to allow the
DX320MAX working as a digital transport.
AC adapter (12V/1.5A)：
Use this AC adapter to charge the battery of the analog
section.
Connect the USB-C cable to a computer for charging,
data transfer, and USB-DAC function.The USB-C cable
can also be used with a USB charger to charge the
battery of the digital section.
Leather case：
Use the leather case to protect the DX320MAX’s chassis
from scratches.
Screen protector：
Use the screen protector to protect the DX320MAX’s
screen from scratches.
Balanced burn-in cable：
Plug the burn-in cablinto the BAL output socket, and keep
playing music to burn-in the DX320MAX. The burn-in
process helps the DX320MAX's sound reach its full
potential by forming the capacitors and stabilizing the
electronic components used.

5
Warranty card：
The warranty will be requested at the time of warranty
repair. Please retain the warranty card.
Quick start guide:
This reviews the basic functions of the DX320MAX.

6
Tips for burn-in
The use of the burn-in cable is very straightforward. The
burn-in cable is used to form the capacitors and to condition
the rest of the circuitry. The method for burn-in is to use
normal resolution music, as higher resolution causes more
heat due to the higher demand on the system. Also, use a
normal listening volume, as the higher volume will have a
higher power consumption therefore more heat will be
generated. While burning in the DX320MAX, both the
balanced and the single ended components are being
affected and burned in.
The burn-in time can be from 100 to 200 hours and the
burn-in doesn't have to be continual. You can power off the
player and continue the burn-in process after a few days. It
is also not mandatory to use the burn-in cable, we supply it
as a convenience for when you are not listening to the
DX320MAX and you would like to get your dap conditioned
as soon as possible. You can also just listen to the player
and enjoy the music as your player goes through this process
while playing through IEMs or headphones.

7
Main Features
-The digital and analog sections of the DX320MAX are
powered separately, with each having an independent
charging system. The digital and analog hardware and signal
communications, adopt optocouplers and I2C isolators to
completely isolate the digital to analog sections from any
interference.
-The AMP section is powered by a true +/- 8.4V battery
pack. No voltage boost is used, which ensures the highest
purity and current output.
-An optimized super class A discrete amp circuit, which
eliminates the switching distortion of transistors, while
providing the sound signature of a class A amplifier, that
also significantly reduces heat generation, is used.
-The DX320MAX has versatile outputs that incorporate a
4.4mm balanced phone out/ line out, and a 3.5mm single
ended phone out/ line out.
-The voltage output of the 3.5mm single ended is up to 4.5V
RMS and the balanced phone output is up to 9V RMS.
-Electrolytic capacitors and film capacitors are used in the
DX320MAX.
-A custom analog 4 section stepped attenuator that has less
than +/-0.1dB channel tolerance imbalance, has been
selected.
-Quad BD34301EKV DAC Chips are incorporated.
-Bit for Bit playback with support up to 32bit/768kHz.
-Support of Native DSD up to 512x.
-5.0" IPS screen (1080*1920), with On Cell capacitive touch
panel.

8
-
-FPGA-Master, a dedicated control of the audio system.
Support of QC3.0 and PD3.0 quick charge for digital section.
-2 Accusilicon ultra-low phase noise Femtosecond oscillators.
-USB DAC function that supports up to 32bit/384kHz and DoP
DSD128.
-14nm Octa-Core Qualcomm Snapdragon 660 SoC.
-6GB LPDDR4X + 128GB ROM.
-USB digital output that outputs up to PCM 32bit/384kHz,Na-
tive DSD256, and DoP DSD128.
-Mini coaxial output that supports up to 24bit/384kHz and DoP
DSD128.
-Support of 2.4G & 5G WiFi, Bluetooth 5.0.
-Support of SDXC and SDHC Micro SD cards.
-Support USB3.1 Superspeed transfer.
-4 settings for the physical gain control.
-Audio Formats Supported: MQA, APE, FLAC, WAV, WMA, AAC,
ALAC, AIFF, OGG, MP3, DFF, DSF, and DXD.
-Support for M3U playlists.
-Aerospace titanium case.
-Individually numbered nameplate.
-Battery accessible.

9
Specifications
Output Level：
Frequency Response：
S/N：
Dynamic Range：
THD+N：
Crosstalk：
Output Level：
Frequency Response：
S/N：
Dynamic Range：
THD+N：
Crosstalk：
9.0VRMS (NO LOAD)
9.0VRMS (@300ohm)
6.0VRMS (@32ohm)
10Hz-40kHz (+/- 0.3dB)
125dB
125dB
-114dB (NO LOAD)(1k/44.1kHz/24bit,9VRMS)
-113dB (@300ohm)(1k/44.1kHz/24bit,9VRMS)
-102dB (@32ohm)(1k/44.1kHz/24bit,2.7VRMS)
-123dB
4.5VRMS (NO LOAD)
4.5VRMS (@300ohm)
4.0VRMS (@32ohm)
10Hz-40kHz (+/- 0.3dB)
122dB
122dB
-112dB (NO LOAD)(1k/44.1kHz/24bit,4.5VRMS)
-109dB (@300ohm)(1k/44.1kHz/24bit,4.5VRMS)
-101dB (@32ohm)(1k/44.1kHz/24bit,1.0VRMS)
-117dB
4.4mm BAL Phone Out :
3.5mm SE Phone Out:

10
Output Level：
Frequency Response：
S/N：
Dynamic Range：
THD+N：
Crosstalk：
4.5VRMS (NO LOAD)
10Hz-40kHz (+/- 0.3dB)
125dB
125dB
-112dB (NO LOAD) (1k/44.1kHz/24bit,4.5VRMS)
-102dB
17 hours (Standard mode)
13 hours (Ultimate mode)
(The play time varies with different
resolutions and headphone/IEM loads.)
4.4mm BAL Line Out:
Output Level：
Frequency Response：
S/N：
Dynamic Range：
THD+N：
Crosstalk：
2.25VRMS (NO LOAD)
10Hz-40kHz (+/- 0.3dB)
122dB
122dB
-107dB (NO LOAD) (1k/44.1kHz/24bit,2.25VRMS)
-100dB
3.5mm SE Line Out:
Average Play Time:
Charging time：
Digital Section Charging：
2 hours
3 hours
Analog Section Charging：
Weight and Size：
Size：
620g
146*86*30mm
Weight：

11
Names of Parts & Functions
Gain
Micro SD Balanced Port
USB-C
Digital Section Charging/
Data Transfer
Charge Port Coaxial Out Single-ended Output Volume Control
Analog Section
Charging
5.0inch LCD Charge indicator
Power
Next/ Fast Forward
Play/ Pause
Previous/ Rewind

12
Coaxial Output Port:
Use the furnished coaxial cable to play music stored in the
DX320MAX on an external device with a coaxial input port.
Coaxial output has the highest output priority which would close
the phone out or line out when coaxial cable plugged in. The
output of this port is up to 24bit/384kHz and DoP DSD128.
Volume Control
Turn clockwise to increase the volume, turn counterclockwise to
decrease the volume.
USB-C Port
Connect the DX320MAX to a computer or a USB charger to
charge the DX320MAX’s digital section.
Connect the DX320MAX to a computer to allow the DX320MAX
to work as a card reader or an external storage.
Connect the DX320MAX to an OTG storage device to play music
files stored in this OTG storage device.
Connect the DX320MAX to a PC or a Mac computer to work as
a USB DAC.
4.4mm Line Out Port:
Use a 4.4mm interconnect cable to play music stored in the
DX320MAX on an external amplifier with a balanced line in port.
Use the furnished 4.4mm to 3.5mm interconnect cable to play
music stored in the DX320MAX on an external amplifier with a
3.5mm single ended line in port.
Power/System Switching
Short Press， Power the LCD screen on and off.
Long Press， To display the pop up window with three options that
are Power off, Reboot, and To Mango.

13
3.5mm Phone Out Port
Plug in the 3.5mm single-ended monitor and output sound
through the phone port.
4.4mm Balanced Phone Out Port:
Plug in the 4.4mm (2.5mm with adapter) balanced earphone and
output sound through the balanced phone port.
Micro SD Card Slot
Insert a Micro SD card into the DX320MAX to access its stored files.

14
Power on/off:
1. Press and hold the power button to power on.
2. After the DX320MAX has been powered on, a long press of the
Power button to display the pop up window, press Power Off button
to power off the DX320MAX.
Power on/off the screen:
Single press the power button to power on/off the screen after
the DX320MAX was powered on.
Reset:
When the DX320MAX stops unexpectedly during operation and the
keys are no longer responsive, press and hold the power button
for 10 seconds to reset the DX320MAX.
Connecting to a computer to work as a USB DAC:
Basic Operation:
The DX320MAX can work as a USB DAC for Windows PC,
Mac computer, and Linux computer. It is driver free. To turn the
DX320MAX into the USB DAC mode, connect the DX320MAX
to a computer via the USB-C cable. After the DX320MAX is
detected, the soundcard driver will be installed automatically.
Now, you can select the DX320MAX as the audio output device
and use it as the USB soundcard. The DX320MAX supports up
to 32bit/384kHz PCM, and DoP DSD up to 128x when be used
as a USB-DAC. On Windows OS, the USB DAC function supports
WASAPI.

15
The following are the instructions to function as a USB DAC.
USB DAC function that supports up to 32bit/384kHz and DoP
DSD128.
1. Power on the DX320MAX.
2. Press the DAC on button on Settings/DAC.
3. The“USB DAC”screen will be shown on the DX320MAX.
4. Connect the DX320MAX to a computer via the furnished
USB-C Cable.
5. Select “iBasso Audio HiFi device” as the audio output device.
Then one can play music on the computer and listen it via the
DX320MAX.

Charging the Analog Section:
Charge
16
With the furnished AC adapter (12V/1.5A), the analog section can
be fully charged in about 2 hours. The battery indicator and status
of the analog section is displayed in the upper right corner, the
one that has "A" and "%" when AC adapter is connected, "A"
and "%" will turn to green color. There is also a red color indicator
on the upper right corner of the screen. When the analog battery
is charging, the, the red light flicks. When the analog battery is
fully charged, the red light stays on. When the 12V AC adapter is
removed, the red light indicator will turn off. When the battery of
the analog section is empty, the amp function cannot be used. At
this time, the digital section would not be affected. But there will
be no sound when using the 3.5mm phone out, 4.4mm balanced
phone out, or 4.4mm line out.
Analog Battery
Charge Indicator

17
Charging the Digital Section:
The digital section of the DX320MAX can be charged via the
USB-C port. The USB charge supports PD3.0, QC3.0, quick
charging protocols, and the charging time is about 3 hours. The
status bar of the digital section is located at the upper right.
The one that has "D" and "%". When charging, the battery
icon will turn to green. When the battery is 0%, the
DX320MAX will be powered off.

18

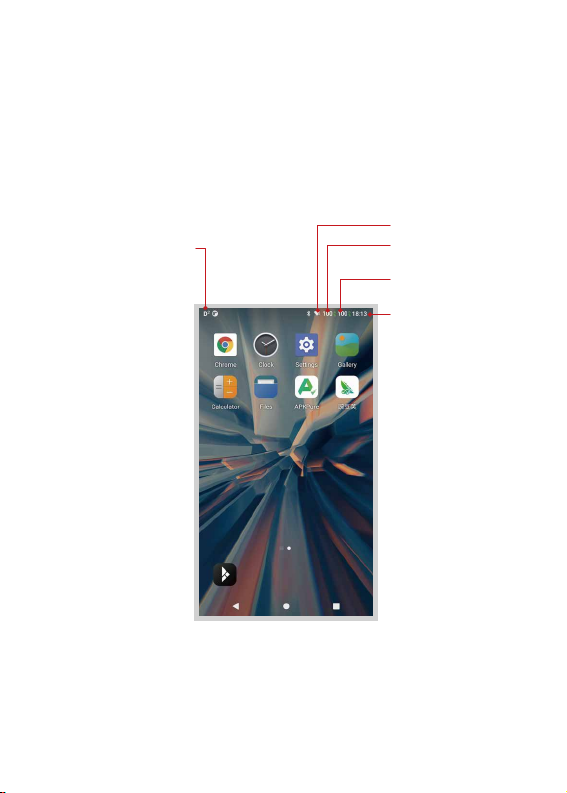

Battery indicator
for analog section
Battery indicator for
digital section
WiFi
Time
Digital Filter
Android Basic Features
Introduction

19

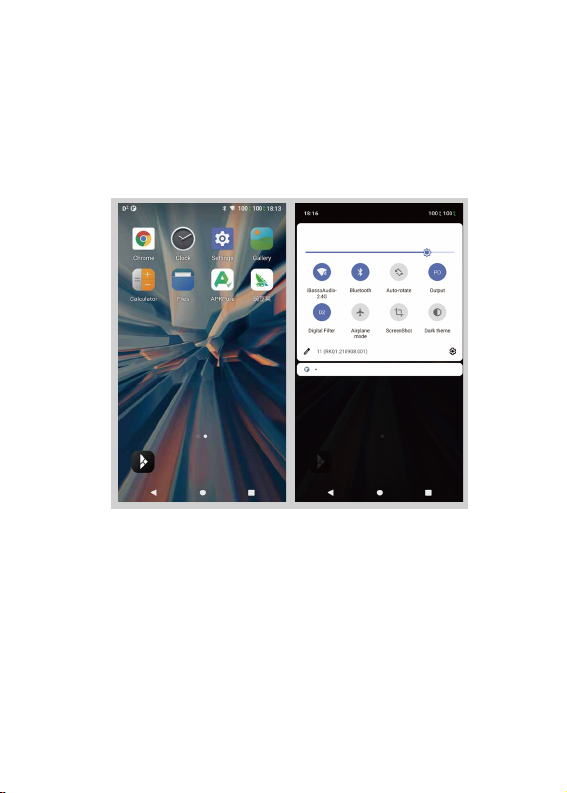

WiFi Connection:
① On the Android desktop, from the top, swipe down
the screen to display the notification bar.
② Press the Wireless local area network(WLAN) to turn
on the WiFi function. The first time you enter the WLAN,
you need to choose the hot spot you will be using and
enter the password. From this point forward your
password for this hotspot will be remembered and you
simply press the WLAN icon to connect to the WiFi
internet.
