dear customer,
we are glad that you have decided for this blood pressure monitor. The product you have bought is
state of the art, of highest quality and has many advanced features. The device measures the upper arm
blood pressure both rapidly and extremely accurately, and avoids the need to constrict the blood supply to
the arm for long periods. The device is ideal for regular blood pressure checking. Because the device has a
memory, which can store 60 values, you can easily track changes and notify your doctor in good time if
problems are detected. The unit is determined for household use and should be used by adult persons
only.
important notes !
Please read this Instruction Manual carefully to know your blood pressure monitor. Then the monitor
will give you many years of smooth service and supply measuring data of high accuracy. Only your
physician can interpret your blood pressure values. If you suffer from cardiac arrhythmia, always discuss
the blood pressure values with your doctor. If you have questions about blood pressure for which you
do not find an answer in this booklet, also consult your doctor.
The right to technical modifications is reserved.
1 introduction
MediPro 100f Englisch 05.08.2003 10:55 Uhr Seite 2

3
This Blood Pressure Monitor complies with the European regulations and bears the CE mark
“CE 0366“.
This Blood Pressure Monitor bears the CE (conformity) label for notinvasive Blood Pressure
Monitors to show that it conforms with the EU Council Directive ( EN 1060-1 / EN 1060-3) for
notinvasive Blood Pressure Monitors. It also confirms with the EU Council Directive “93/42/EEC
of 14th June 1993 on Medical Products“, and the EU Council Directive “89/336/EEC.
ibp hereby confirms that the product delivered together with this Instruction Manual complies
with this Directive. The appropriate conformity declaration is available with ibp.
To ensure accurate measurements, the Blood Pressure Monitor must receive a technical check-
up every 2 years. Inspection is also required when the blood pressure data supplied by the
monitor are obviously off-range. If you have any questions about these checks, please contact our
Customer Services Department (address on the warranty certificate).
0366
-
-
-
-
preliminary remar s 2
the“Real Fuzzy” measuring technology
This Blood Pressure Monitor uses trends-setting “Real Fuzzy“ Technology to detect your blood pressure.
With one touche of a button, the device will automatically start to inflate. If the pressure in the sleeve is
too low, the device will interrupt the measuring process and pump the sleeve higher until a suitable
pressure is reached. The ideal sleeve pressure is obtained from the systolic blood pressure and the size of
the arm. Arm pains are thus eliminated and incorrect readings due to a wrongly inflated sleeve are
prevented.
MediPro 100f Englisch 05.08.2003 9:11 Uhr Seite 3

4
More than half the number of people suffering from high blood pressure are unaware of it. The
most common cause of death in today's society is from diseases that are directly related to the
problem of high blood pressure. This Blood Pressure Monitor allows you to measure your blood
pressure at home. If your blood pressure is off limits, the monitor helps you to keep it under
constant watch. Remember only your physician can interpret your blood pressure values. Never
venture self-diagnosis or self-treatment. The blood pressure is the measure of the force which the
heart needs to pump the blood through the circulatory system and supply the vital organs of our
body. The higher the pressure, the harder the heart must work.
3.1 blood pressure values
Typical normal blood pressure as recommended:
systolic blood pressure diastolic blood pressure
hypotension less than 105 mmHg less than 60 mmHg
normalless less than 140 mmHg less than 90 mmHg
borderline 140 - 160 mmHg 90 - 95 mmHg
hypertension more than 160 mmHg over 95 mmHg
If the blood transport system is inot functioning normally, the blood pressure can be higher than
normal. High blood pressure can damage vital organs, such as the heart, the brain or muscles.
3 about blood pressure
MediPro 100f Englisch 05.08.2003 9:11 Uhr Seite 4

5
about blood pressure 3
Remember that only the physician can interpret your blood pressure values. Never venture self-
diagnosis or self-treatment. We recommend you to discuss your blood pressure values with your
physician. He can advise you on any measures that may be good to take.
The blood pressure is
changing constantly. You
should not be frustrated by
two or three bad readings,
and don’t fly into high spirits
if a few readings are good.
The blood pressure changes
during the day as during the
month. It is also influenced by
the time of year and the
temperature. Monitor your
blood pressure regularly and
keep a full record of all
readings. This allows you to
make a competent judgment.
blood pressure changes during a day
(test person: M, male, 35 years old)
6 a.m. 12 a.m. 6 p.m. 12 p.m.
Systolic pressure
Diastolic pressure
morning afternoon
Get
up
Arrive
office
Heated debate
during
conference
Leave
office
mmHg
200
150
100
050
Make
phone
call
MediPro 100f Englisch 05.08.2003 9:11 Uhr Seite 5

6
3.2 what is “Hypertension“ (High Blood Pressure) and why is it harmful?
If parts of the blood transport system are constricted, diseased or in any way not functioning
normally, the blood pressure can be higher than normal. High blood pressure can damage vital
organs, such as the brain or the heart.
3.3 measures affecting your blood pressure positively
If your blood pressure is high or you want to avoid high blood pressure, your lifestyle should generally
be conducive to this goal.
Existing diseases: Strictly follow the instructions of your doctor to treat existing diseases e.g.,
diabetes, gout, disturbed lipid metabolism, etc.)
Nutrition: Reduce overweight. Use little salt with your food, avoid food with lots of fat.
Smoking, drinking: No smoking! Consume only little alcohol and coffee.
Sport activities:
If advised by your doctor after an examination, practice stamina sports
(jogging, swimming). Avoid sports involving strength, do not try your limits!
3 about blood pressure
MediPro 100f Englisch 05.08.2003 9:11 Uhr Seite 6

7
3.4 how to obtain accurate readings
The blood pressure is constantly changing throughout a day. The changes are caused by psychic and
physical factors, such as anxiety, exercise, smoking, caffeine and stress. Because it is changing, the
blood pressure should always be measured at the same time of day, when your body is relaxed. It is
the physician’s responsibility to interpret the readings and analyze your physi
cal condition. It is
important that you consult your physician regularly. He will tell you your normal blood pressure and
what you should take care of.
here are a few helpful tips to obtain accurate readings:
Wait one hour before measuring the blood pressure after a substantial meal.
Do not smoke or drink alcohol before measuring the blood pressure.
You should not do physical work one hour before taking a reading.
It is important that you relax. Try to take 15 minutes rest before the reading.
Do not take measurements if you are under stress or tension.
Take the blood pressure reading at normal body temperature, not when you feel cold or hot.
When the monitor is stored at very low temperature (near freezing), keep it at a warm place at least
for 1 hour before using it.
Wait about 5 minutes before making the next pressure measurement.
-
-
-
-
-
-
-
-
about blood pressure 3
MediPro 100f Englisch 05.08.2003 9:11 Uhr Seite 7

8
4 the unit / accessories
60 auto-memory
identification of the unit
accessories included are instruction
manual with warranty, batteries
and eeping box
(without ill.)
4 “AA” size 1,5 V
alkaline batteries
arm cuff
with connector
LCD display
ON/OFF/START-
key
MEMORY
key
air tube
MediPro 100f Englisch 05.08.2003 9:11 Uhr Seite 8

9

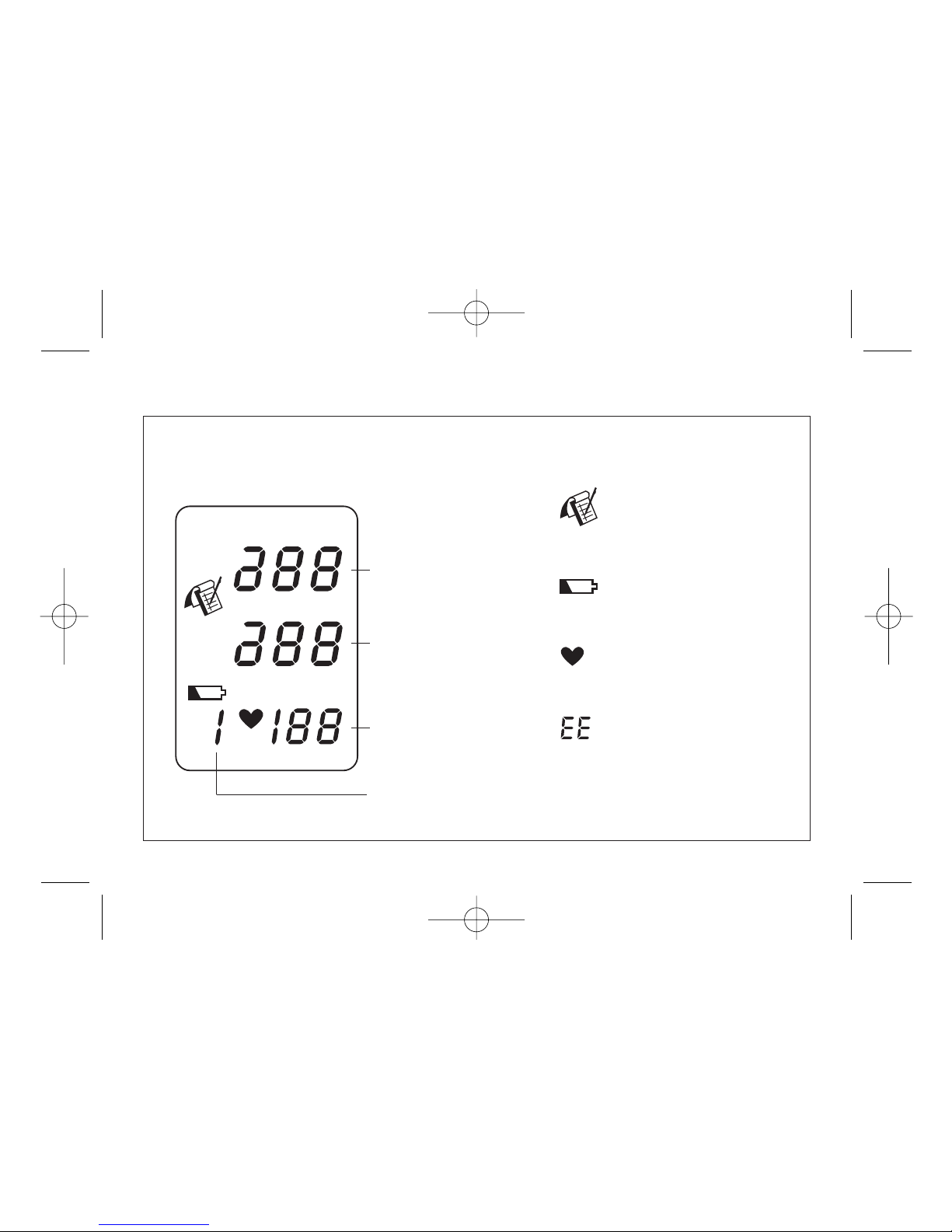

the display / icons 5
display icons
Systolic
pressure
Diastolic
pressure
Pulse rate
No. of Memory
Sequence
memory icon
The memory icon is displayed during
save or memory display.
battery icon
When this icon appears the batteries
should be replaced.
pulse icon
The pulse icon appears when the
pulse rate is displayed.
error icon
The error icon appears with wrong
input or device defect.
MediPro 100f Englisch 05.08.2003 9:11 Uhr Seite 9

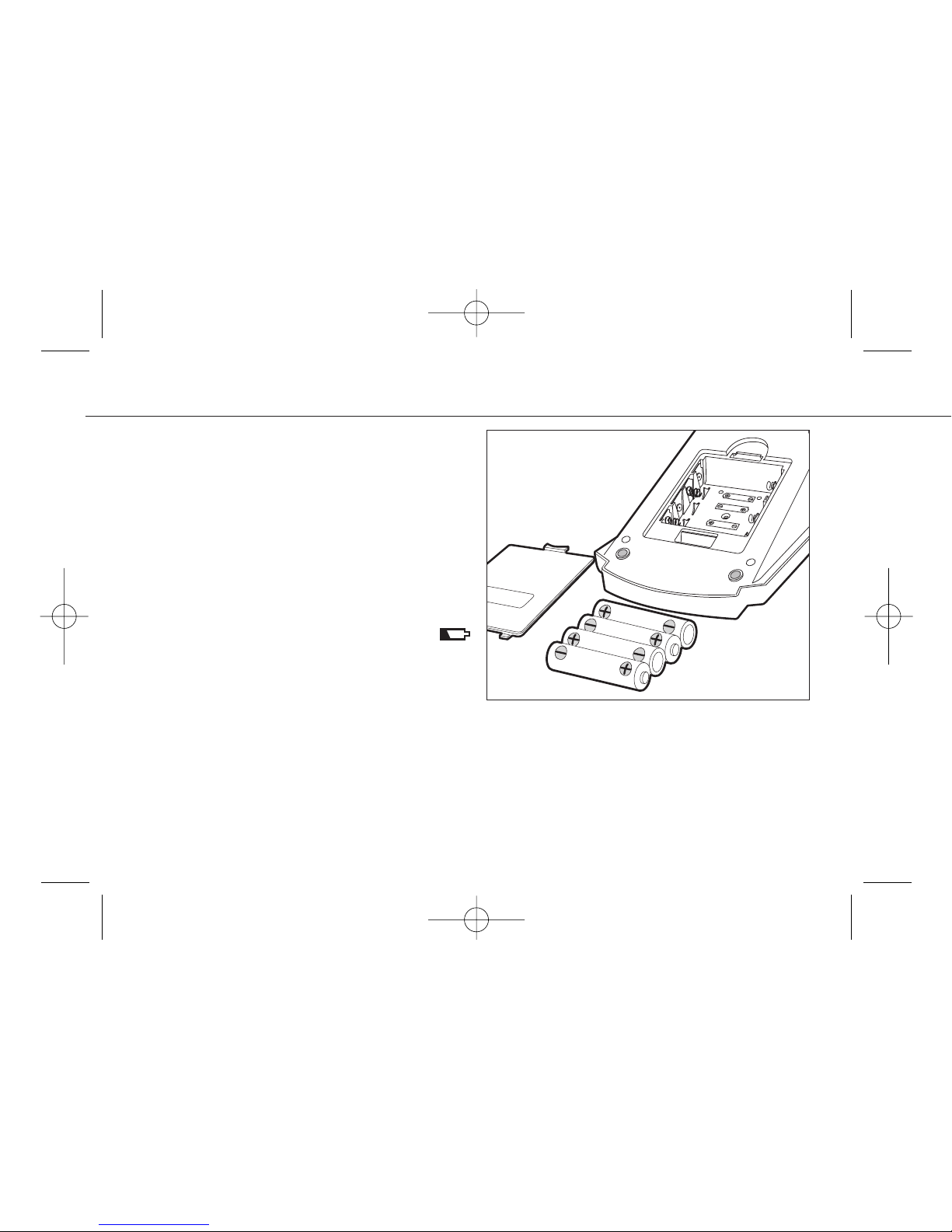

battery installation /
battery replacement
The enclosed batteries must be fitted before use.
The battery cover is on the bottom side of the unit.
Push it open and remove it. Insert the 4 supplied
“AA“ size, 1.5 V alkaline batteries as shown here.
Ensure correct polarity according to the indication
inside the compartment. Replace the battery cover
by clicking in the bottom hooks first, then push in
the top end of the battery door.
Replace all the
batteries when the battery replacement sign
appears on the LCD display, or when the LCD
display is blank after you switch on the unit.
notes:
10
6 battery installation / replacement
As the supplied batteries are for test only, they may be discharged earlier than batteries you buy
in the store. Replace the batteries all of them the same time.
Batteries are hazardous waste. Do not dispose them together with the household garbage
.
Remove the batteries when the unit is not used for a long time.
Battery safety - Keep away from children! - Do not short-circuit!
instructions: - Not rechargeable! - Do not throw into fire!
MediPro 100f Englisch 05.08.2003 9:11 Uhr Seite 10

11
Plug in the cuff connecting tube into the left
side of the unit. The monitor is used as a
desktop unit.
Unwrap the arm cuff, leaving the “Index“ end
of the cuff through the D-ring of the cuff, so
that the cuff forms a tunnel shape (a).
Put your left arm through the cuff loop.
Position the red marked artery range at the
middle of the arm (b), in line with your middle
finger. Tighten the cuff by pulling the end of
the cuff (c).
Turn your left palm upward and place the
edge of the arm cuff at approximately 2 to 3
cm above the inner side of the elbow joint (d).
If the “Index“ arrow falls within the “OK“
range, indicated at the edge of the cuff, this
cuff is suitable for your use. If the “Index“
arrow falls out of the “OK“ range, you may
need a special cuff for measurement.
ma ing a blood pressure measurement 7
a)
b)
c)
d)
e)
7.1 attaching the wrist cuff
2-3 cm
red marked
artery range
a
b
c
d
MediPro 100f Englisch 05.08.2003 9:11 Uhr Seite 11

12
7 ma ing a blood pressure measurement
Have yourself on a seat in a comfortable position, breathe
deeply several times and relax.
To get a correct picture of the blood pressure changes during
the day, make the measurements at home daily at the
same time.
To make sure that you obtain a correct measurement,
position your arm as shown in the illustration opposite. Place
your elbow on the table or other suitable support and hold
the cuff so that the cuff is at the same level as the heart.
Record the values and show them to your physician for
assessment.
-
-
-
-
7.2 the right measuring position
If the cuff is not pulled tight you get wrong measure values.
Sit in a comfortable position. The room should be at an agreeable temperature. Wait at least 5 minutes
before taking a measurement.
If you cannot place the cuff around your left arm and the blood pressure measurement is not
possible on the left arm, place the cuff around the right arm. Always take your measurements on the
same arm.
f)
g)
MediPro 100f Englisch 05.08.2003 9:11 Uhr Seite 12

13
ma ing a blood pressure measurement 7
Place the cuff around your arm as
described on pages 11 and 12.
Start the Monitor by pressing the
ON/OFF/START key.
When the ON/OFF/START key
is pressed, all digits will light up
(see fig. 1). This is a check of the
dis
play functions which is com-
plete after about 2 seconds. After
the LCD test, the digit "0" is
briefly displayed (see fig. 2).
When the display check is com-
plete, the LCD will show the pat-
tern on the right to indicate that
the unit is ready for use (fig. 2).
fig. 1 fig. 2
a)
b)
c)
7.3 the measuring method
MediPro 100f Englisch 05.08.2003 9:11 Uhr Seite 13

14
7 ma ing a blood pressure measurement
The unit is ready for use. The unit
will automatically start to inflate
slowly to measure your blood
pressure. During inflation, a
changing measure of the cuff
pressure will be shown on the
display.
If the cuff pressure is low, the
unit interrupts the measuring and
increases the cuff pressure to an
acceptable level. When pressure
reaches to the proximity of your
systolic blood pressure, the moni-
tor will exhaust cuff pressure.
d)
e)
notes:
While measuring, do not move the cuff or your arm or hand muscles, don’t speak. As the unit
detects pulse, the LCD will show the pulse rate. If you want to interrupt the measurement, simply
press any key. The cuff will be deflated.
...
MediPro 100f Englisch 05.08.2003 9:11 Uhr Seite 14

15
ma ing a blood pressure measurement 7

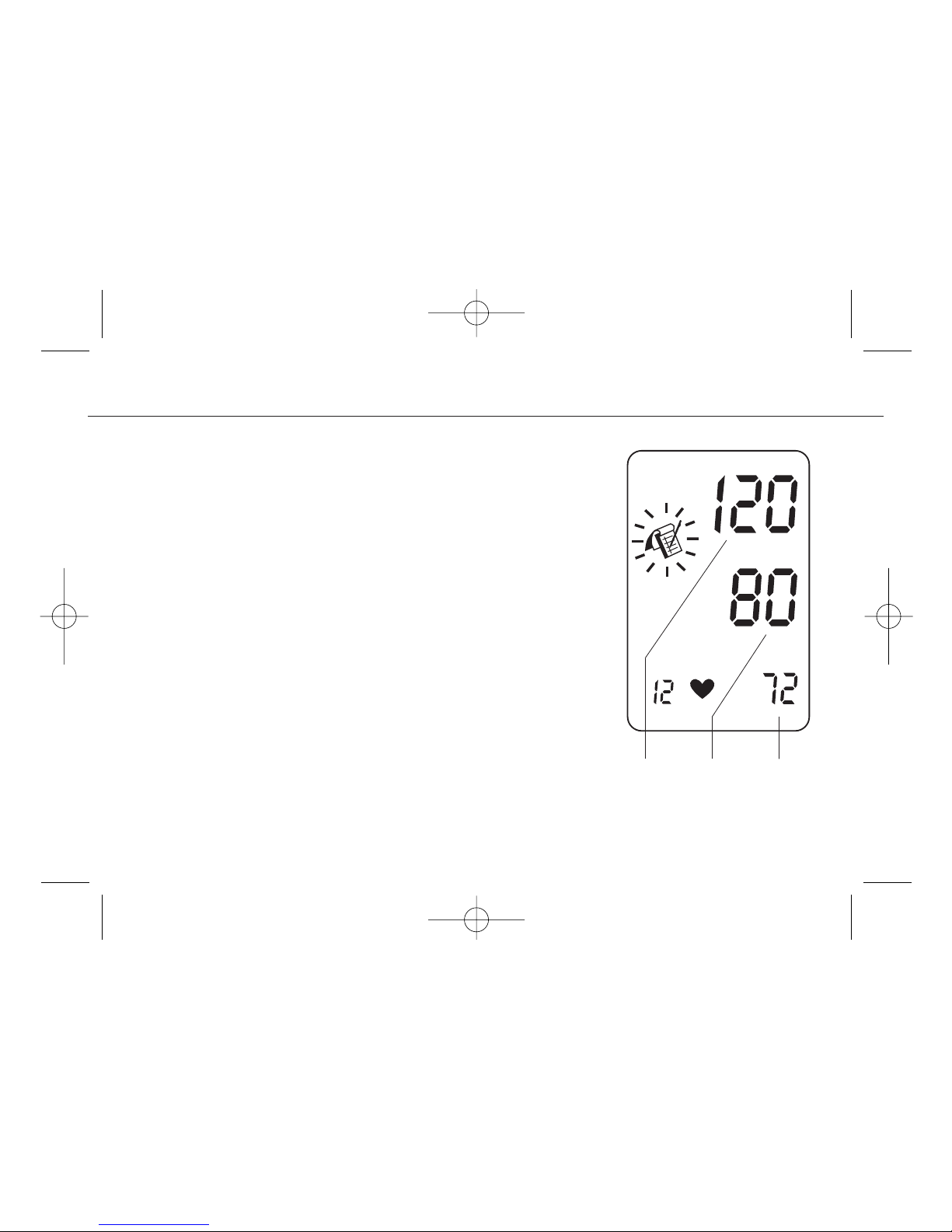

The cuff will deflate when the unit completes the measuring.
The LCD then shows the systolic and diastolic pressures, and
the pulse rate. The Memory symbol blinks briefly. Then it will
automatically display and save one’s systolic, diastolic, and
pulse in the Memory. Up to 60 memories can be saved in the
Memory Zone.
7.4 switching off automatically
Measurement is now completed. Press the ON/OFF/START key to
turn off the power.
The Monitor goes "off" automatically after 1 minute of inactivity.
Systolic Diastolic Pulserate
f)
MediPro 100f Englisch 05.08.2003 9:11 Uhr Seite 15

16
8 the memory function
The data in the memory will not be lost even when the Blood Pressure Monitor is switched
off. The data in the memory is erased when the batteries are replaced.
Up to 60 measurements can be saved in the memory
automatically. The values (blood pressure and pulse rate) can be
saved in the memory of the unit, together with the time and
date.

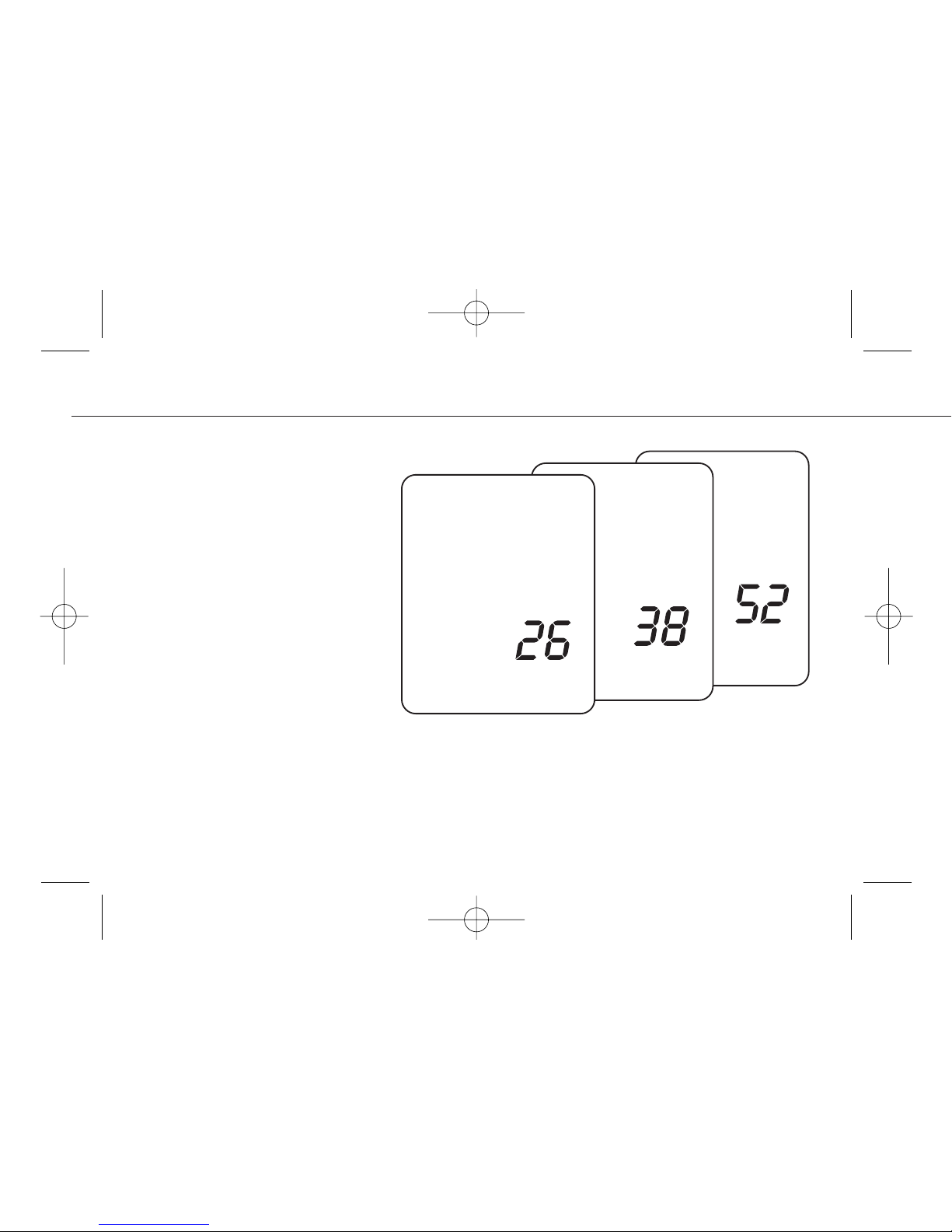

To read memory values, press the MEMORY key. The memory
values will be shown on the LCD, together with the time and
date. The last measurement will be shown first. Every new press
of the MEMORY key calls one prior value pair.
a)
b)
note:
MediPro 100f Englisch 05.08.2003 9:11 Uhr Seite 16

an error is displayed 9

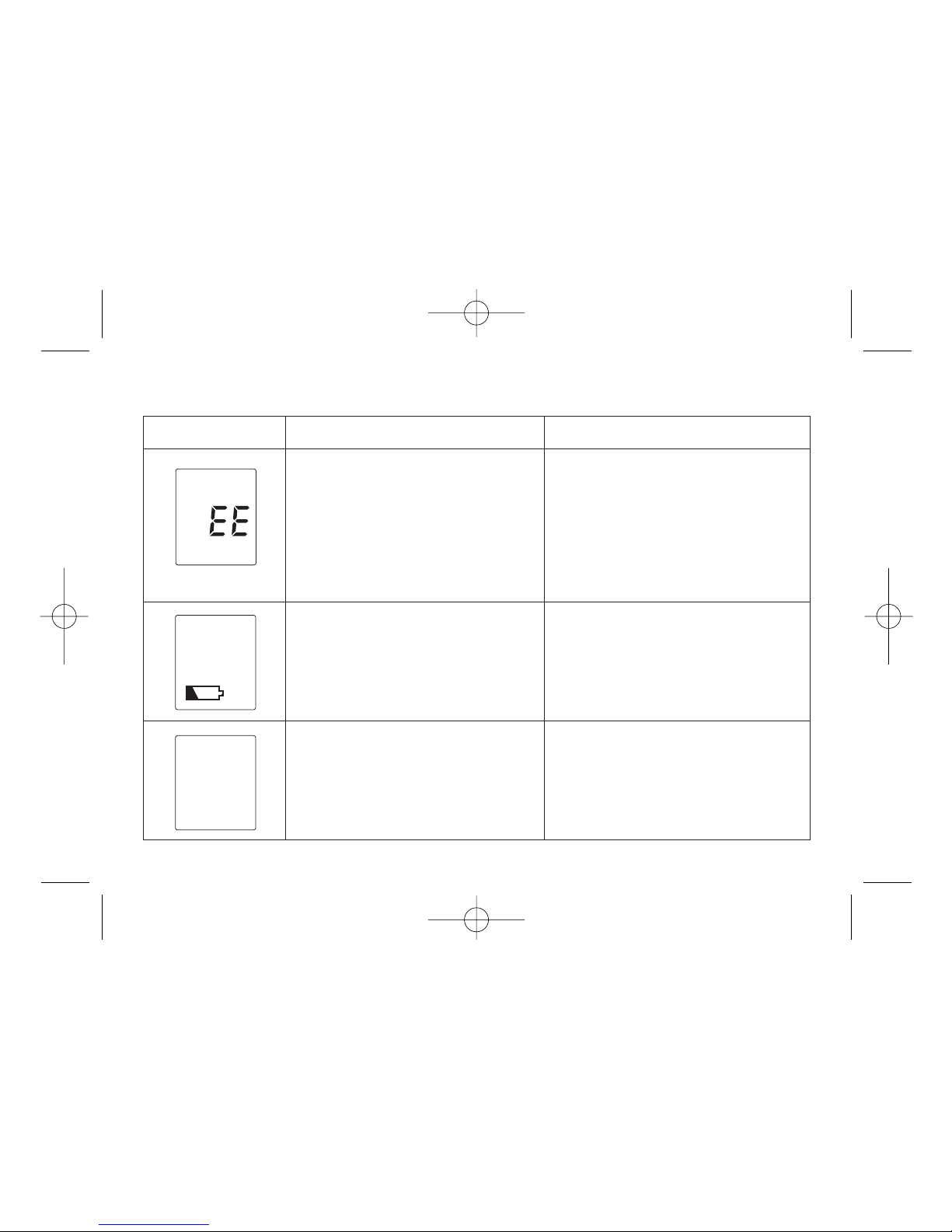

Error display Possible reason Remedy
The cuff position is not correct. Put on the cuff correctly.
The unit is displaying very Do not move while the
high or very low values. measuring continues.
You have talked or moved Don’t speak.
during measurement.
The batteries are empty. Replace the 4 empty
batteries by new
size „AA“
1.5V batteries.
The display remains blank. Insert batteries.
Batteries are not inserted Check the battery
or inserted wrongly position or
or batteries are depleted. replace batteries.
17
MediPro 100f Englisch 05.08.2003 9:11 Uhr Seite 17

18
10 other important notes
The unit contains high-precision assemblies. Therefore avoid extreme temperatures, humidity, direct
sunlight. Do not give strong shock. Do not try to open the blood pressure monitor. This will destroy
the calibrated factory settings.
Protect from ingress of dust.
Do not bend the preformed cuff inside out. Clean the blood pressure computer body and the cuff
carefully with a slightly damp, soft cloth. Do not press. Do not wash the cuff or use chemical
cleaner on it. Never use thinner, alcohol or petrol as cleaner.
Leaky batteries can damage the unit. Remove the batteries when the unit is not used for a long
time.
Do not press the Start key when the cuff is not placed around the arm.
You should not use any tool to open the device nor should you attempt to adjust anything inside the
device. If you have any problems, please contact the ibp Service Centre: Hotline [phone].
For users giagnosed with common arrhythma (atrial or ventricular premature beats or atrial fibril-
lation), diabetes, poor circulation of blood, kidney problems, or for users suffered from stroke, or
for unconscious users, the device might not be suitable for use.
1.
2.
3.
4.
5.
6.
7.
MediPro 100f Englisch 05.08.2003 9:11 Uhr Seite 18
