icklebubba Stomp User manual

INSTRUCTIONS FOR USE
THE
STOMP
travel system

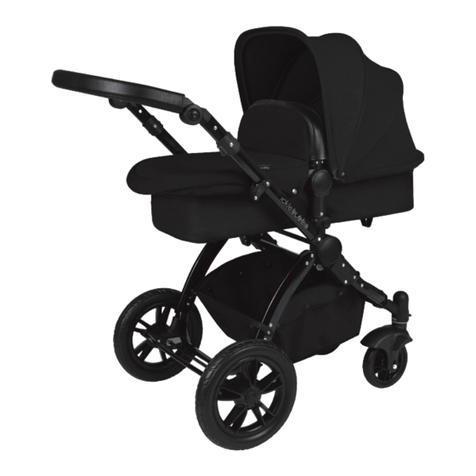

Product may differ slightly
from image shown

3icklebubba.com
Dear Parents
Congratulations on the purchase of your Stomp Travel System!
Your child’s safety can only be guaranteed if this product is used according
to these instructions. Therefore, please take time to read through this
instruction manual carefully and keep for future reference.
Contents
Features 3
Components 4
Important Safety Information 6
Set Up & Assembly 7
Carry Cot Set Up 10
Seat Unit Set Up 12
Carry Cot/Seat Unit Attachment 13
How to use the stroller 14
Adapter/ Capsule Attatchment 17
Accessories 18
Care and Maintenance 19
Warranty Information 20
Product may differ slightly from image shown
F E ATU R ES
2
1
3
4
5
6
7
8
9
10
11
12
Available Configurations
Carry Cot Stroller
1. Interchangeable hood
2. Removable bumper bar
3. 5-point safety harness
4. Comfortable seat liner
5. 360 degree swivel/lockable wheels
6. Built-in front suspension
7. Adjustable handle
8. Easy action fold without removing seat
9. Reclining seat unit
10. Forward and rear-facing options
11. Easy action foot brake
12. Large easy access shopping basket

4 5icklebubba.com icklebubba.com
COMPONENTS
B
A
C
D
E
F
G
H
I
J
K
L
M
N
O
P
R
S
U
T
V
W
X
Y
Components
V .0 1.21
4
QR
A Handlebar & Cover
B Handlebar Adjuster
C Right Folding Button
D Left Folding Button
E Seat Unit
F Seat Disassembly Button
G Brake Bar
H Storage Basket
I Rear Wheel
J Wheel Disassembly Button
K Canopy
L Bumper Bar
M Canopy Connector
N Recline Buttons
O Revolving Wheel Lock
P Front Wheel
Q Seat/Carry Cot Frame*
R Carry Cot Fabric
S Seat Unit Fabric
T Chassis
U Carry Cot Apron
V Raincover
W Tether Strap
S
U
W
V
T
*IMPORTANT: The Carry Cot/Seat Unit Frame (Q) and the Carry Cot Fabric (R) are already assembled. When
converting from carry cot mode to stroller mode, the carry cot fabric will need to be removed from the carry cot
frame in order for the seat unit to be assembled with component (S).

6 7icklebubba.com icklebubba.com
WARNINGS!
IMPORTANT: Read these instructions carefully before use and keep
them for future reference. Your child’s safety may be affected if you
do not follow these instructions. Failure to follow these warnings and
the instructions could result in serious injury or death.
The Stomp carry cot unit is suitable for children from birth. It is suitable for a child
who cannot sit up unaided, roll over and cannot push itself up on its hands and
knees. Maximum weight of the child is 9kgs. The Stomp seat unit is suitable for
children from 6 months up to 22kgs (or 4 years, whichever comes first).
FOLLOW THE MANUFACTURERS INSTRUCTIONS.
WARNING: TO AVOID INJURY OR DEATH: ALWAYS APPLY THE
BRAKES WHENEVER THE PRAM/STROLLER IS STATIONERY.
• DO NOT LEAVE CHILDREN UNATTENDED.
• SECURE THE CHILD IN THE HARNESS AT ALL TIMES.
• DO NOT CARRY EXTRA CHILDREN OR BAGS ON THIS PRAM/STROLLER.
• MAKE SURE CHILDREN ARE CLEAR OF ANY MOVING PARTS IF YOU ADJUST
THE PRAM/STROLLER.
• USE THIS HARNESS AT ALL TIMES.
• USE THIS STRAP TO STOP THE PRAM/STROLLER ROLLING AWAY.
•
The vehicle is not to be used as an unsupervised sleeping environment.
• It is unsafe to use accessories other than those approved by lckle Bubba.
• PUT ON ALL THE BRAKES WHENEVER YOU PARK THE PRAM OR STROLLER.
• MAKE SURE CHILDREN ARE CLEAR OF ANY MOVING PARTS IF YOU ADJUST
THE PRAM OR STROLLER, OTHERWISE THEY MAY BE INJURED.
INSTRUCTIONS FOR SAFE USE
This stroller has been designed for use on flat or gently sloped surfaces. Using
this stroller on uneven or higher sloped surfaces may cause the stroller to
become unstable and tip over.
THE STOMP V3 PRAM HAS BEEN APPROVED IN ACCORDANCE TO
AS/NZS 2088 : 2013
IMPORTANT SAFETY INFORMATION
• Ensure that all locking devices are
engaged before use.
• Use the tether strap to prevent the
stroller rolling away.
• Never leave safety harness connected
when not fitted to a child in the stroller,
as this may create loops that cause a
strangulation hazard.
• Fingers or parts of the body could be
injured when the stroller is being folded
or unfolded. Please use caution when
folding or unfolding the stroller.
• To avoid injusry ensure that your child is
kept away when folding and unfolding
the stroller.
• Never leave a child in the pram/stroller
when ascending or descending stairs or
escalators. Use great care when using
the stroller on other moving surfaces.
• Regularly inspect all parts and locking
devices, promptly replace worn out or
broken parts.
• Use only the accessories which are
supplied by Ickle Bubba and approved
for use with this stroller.
• To prevent the risk of the stroller
catching fire, do not park it near an
open fire, heater or barbecue.
• Do not run or jog with this stroller.
• Shopping basket capacity should not
be more than 2.5kg.
• Be aware of the danger of moving
parts, they can cause injury.
SET UP & ASSEMBLY
Unfolding the Stroller
1 2
a
1. Squeeze the stroller frame together slightly whilst pulling the release catch as shown.
2. Pull the stroller upwards until you hear the frame click into the upright position.
Test the chassis by pushing downwards on the handle bar to make sure it is securely
locked in to place at the joint (a).

8 9icklebubba.com icklebubba.com
Brake Bar Installation
Rear Wheel Installation
1
3 4
2
Brake Bar Installation
1. Please ensure the chassis is unfolded before installing the brake bar and wheels.
Attach the brake bar to the rear of the chassis as shown above.
2. Ensure the silver locking clips are visible on each side and test this by pulling the brake
bar downwards once it has been installed.
Rear Wheel Installation
3. To attach the rear wheels simply press the centre button whilst pushing on to each side of
the axle. Test this by trying to remove the wheels without pressing the centre button.
4. To disassemble the wheels push the centre button and pull.
Front Wheel Installation
1 2
1. Keep holding the front wheel button and attach the front wheel onto the chassis.
Repeat other side.
2. Please ensure you test your installation by pulling the front wheel down a few times before using.
NOTE: Please ensure that the front wheels are locked when using on rough terrain.
To take the front wheel off push the silver button and pull down on the wheel.
3

10 11icklebubba.com icklebubba.com
Preparing the Carry cot
1. The carry cot fabric should already be attached to the carry cot/seat unit frame.
IMPORTANT: The position of the carry cot may need to be adjusted to make it level.
This can be done by firmly pressing on the recline buttons and making sure this all points
vertically downwards (a) located either side of the carry cot frame, as shown above.
Bumper Bar Installation
2. Line up the holes on each side before pushing firmly into place.
3. To remove, press the centre button (b) inwards whilst pulling the bumper bar upwards.
1
2 3
a
b
CARRYCOT SET UP
Canopy Installation
1 2
3
4
1. Take the longer strip from part (a) and thread it through the front section of the canopy fabric (b).
Repeat the same process with the shorter strip from part (a) by threading it through the rear part
of the canopy fabric.
2. Make sure the canopy connectors are facing inwards.
3. Insert the shorter strip from part (a) into the rear holes and the larger strip into the front holes of the
canopy connectors. Make sure to wrap elastic around the base of the connectors as per image.
4. With the canopy in place, fit the connectosr onto the frame.
b
a

12 13icklebubba.com icklebubba.com
1. Remove the carry cot fabric from the frame in preparation for the seat unit attachment.
2. To attach the seat unit fabric, first slide the top of the seat fabric onto the top of the chassis.
PLEASE NOTE: The top of the chassis will not have the studs on.
3. Feed the two narrow fabric trim panels positioned either side of the seat unit, into the slots on the
inside of the seat frame which are positioned just below the bumper bar attachment point in the
middle of the seat frame. The holes in the seat fabric need to be placed over the bumper bar
brackets/holes.
4. Secure the fabric seat un place using the velcro fastenings and eyelet hooks.
5. Connect buckle under seat unit and tighten. Clip the canopy onto the frame.
PLEASE NOTE: The seat unit is suitable for children 6 months or over.
Preparing the Seat Unit
1
4 5
2
3
SEAT UNIT SET UP CARRY COT/STROLLER ATTACHMENT
Tether Strap
1 2
Installation
1. Line up the release clips with the chassis and then push down until both sides click into place.
Please test this by pulling upwards.
IMPORTANT: There may be a slight movement to the carry cot when it is locked onto the chassis.
Disassembly
2. Push the release buttons forward until you feel it click before lifting upwards to remove.
Whenever a child is in the pram and the brakes are not engaged, the large loop should
be around your wrist.

1
3
2
Reversing the Seat Unit
Safety Harness
Pram Brake
14 15icklebubba.com icklebubba.com
Front Wheel Lock Feature
1. To lock the front wheels in place, simply press the button downwards.
Pull upwards to release and enable 360 degree turn.
2. IMPORTANT: Ensure the wheels are in a locked position when using on uneven or rough terrain.
Handlebar Adjustment
3. To adjust the height of the handlebar press the buttons on each side inwards simultaneously whilst
lifting up or down.
Seat Reclining Adjustment
4. To adjust the recline of the stroller, press the two recline buttons inwards simultaneously.
There are 4 recline positions.
1
3
2
4
HOW TO USE THE STROLLER
To reverse the seat unit direction, simply
follow the same steps as indicated
on page 13 as the seat unit can be
Parent Facing or World Facing.
1. Insert both shoulder strap fasteners securely into
the loops located on the side straps. To lengthen
move shoulder pad to find harness adjuster,
hold to top near the seat and slide to change.
2. Press the two side straps into the centre
clasp until both sides are clicked in securely.
Adjust each strap length as required.
3. To undp the harness, press the buckles in
the centre of the harness and pull apart.
Shoulder Straps: Select the position that places
the shoulder strap level with, or below the top of the
child’s shoulder. To adjust harness height unhook
the shoulder strap from the crotch buckle. Feed
shoulder strap through the appropriate slot and
reattach the shoulder strap to the crotch buckle.
To apply the brake simply push down. To
remove the brake function lift upwards.

16 17icklebubba.com icklebubba.com
1. Press and hold down the fold button with your index finger.
2. Whilst holding down the fold button, pull both levers towards you and then fold the chassis down.
3. Follow the arrow direction. Be aware of the danger of moving parts, they can
cause injury. Lift and carry the folded chassis safely by the handle.
4. Secure the chassis in place using the folding loc ensuring the storage latch has
engaged automatically, if it has not then apply the latch manually.
Folding The Stroller
12
3 4
ADAPTER/CAPSULE ATTATCHMENT
1
2
Capsule Adapter Attachment
1. Insert each adapter into the capsule before attaching to the chassis.
Capsule Attachment
2. Line up the capsule adapters with the chassis and apply even pressure on both sides
until you here a click.
Removing the Capsule
3. Press down firmly the ‘release buttons’ on either side of the capsules -please refer to capsule
instructions for more details..
PLEASE NOTE: the capsule adapters will remain on the chassis after removing the capsule.
Store the adapters safely after use.
“Click”
3
WARNINGS - IMPORTANT! Read carefully and keep for future reference.
Your child’s safety may be affected if you do not follow these instructions.
Only attach the capsules to face you on the chassis. Never leave your child
unattended. Check that the capsule adaptors are correctly engaged before use.
Remove the capsule adapters before using the stroller/pushchair with a seated
child. This capsule does not replace a cot or a bed. Should your child need to
sleep, then it should be placed in a suitable pram body, cot or bed.

18 19icklebubba.com icklebubba.com
ACCESSORIES
1
3
2
4
Raincover
1. Line up the seams on the rain cover with the seams on the hood. Open the window using the Velcro to
ensure sufficient ventilation.
Carry Cot Apron
2. Secure the carry cot apron in place by fastening the poppers on each side.
Foot Warmer
3. Attach the bottom part of the foot warmer to the underside of the seat unit frame. Then, wrap the
top part of the foot warmer under and over the bumper bar and secure in place using the poppers.
Changing Bag
4.
CARE AND MAINTENANCE
• Always check the stroller for any wear or damage.
• Storage – Store the stroller in a dry place, do not store in a damp or hot
environment. Never leave in sunlight for prolonged periods.
• Chassis – Regularly lubricate all moving parts. Polish metal with a clean dry cloth.
• Wheels – Use a soft brush or cloth.
• Seat Unit/Carry cot outer/Removable Canopy and Shopping basket –
Sponge clean with warm soapy water. Rinse with clean water to avoid
staining. Dry naturally away from direct heat and prolonged sunlight.
Do not use strong detergents or bleach.
• Carry cot mattress removable cover:
Dimensions Open : L: 61cm H: 104cm D: 95cm
Closed : L: 61cm H: 30cm D: 77cm

20 21icklebubba.com icklebubba.com
PRODUCT WARRANTY
Please retain your receipt and keep it with this User Guide for future
reference. (Failure to product proof of purchase could affect warranty)
Don’t forget to register online today at:
https://au.icklebubba.com/pages/warranty-information
Register within 28 days of purchase for
a FREE 4 Year Extended Warranty.
To activate your FREE 4 year warranty, register online and keep your proof of purchase
for any future claim. If you register within 28 days of purchase we will extend your
standard warranty to 4 years from the date of purchase at no extra cost.
Warranty Team
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
-Stroller frame - 2 years from purchase date
-Wheels & Fabric - 1 year from purchase date
What Your Warranty Does Not Cover
Damage caused by normal wear and tear, accidental damage, improper use and damage
caused by negligence, misuse and by not following the maintenance instructions. The
warranty is not valid in the following situations:
-In case of use or purpose other than described in the instruction manual.
-If the product is submitted for repair through a retailer/ distributor that is not approved or
authorised by us.
-If repairs have been carried out by third parties or a retailer who it not authorised or
approved by us.
-If you have purchased your product over the internet from an unauthorised reseller.
Where Your Warranty Applies
Your warranty applies in the country of purchase only.
The warranty applied to the first owner and is non transferrable.
What to Do in Case of Defects
If you feel there is a problem with your Ickle Bubba product then please contact your
original approved reseller.
Ickle Bubba Ltd, 10-12 Flushcombe Rd, Blackstown, NSW 2148
Email Contact : [e-mail]
Telephone Contact Number : [phone]
Please retain your original receipt of purchase and keep with this instruction booklet
CUSTOMER SERVICE
01554 707022
09:00 - 17:00 Monday - Thursday
09:00 - 16:00 Friday
*You will need the original order number as proof of purchase

22 23icklebubba.com icklebubba.com
NOTES NOTES

[e-mail]
Atlantic House, Unit 2, Atlantic Close, Swansea, SA7 9FJ
Ickle Bubba Ltd, 10-12 Flushcombe Rd, Blackstown, NSW 2148
www.icklebubba.com
