Components in shaded area only required for email
IC-M802

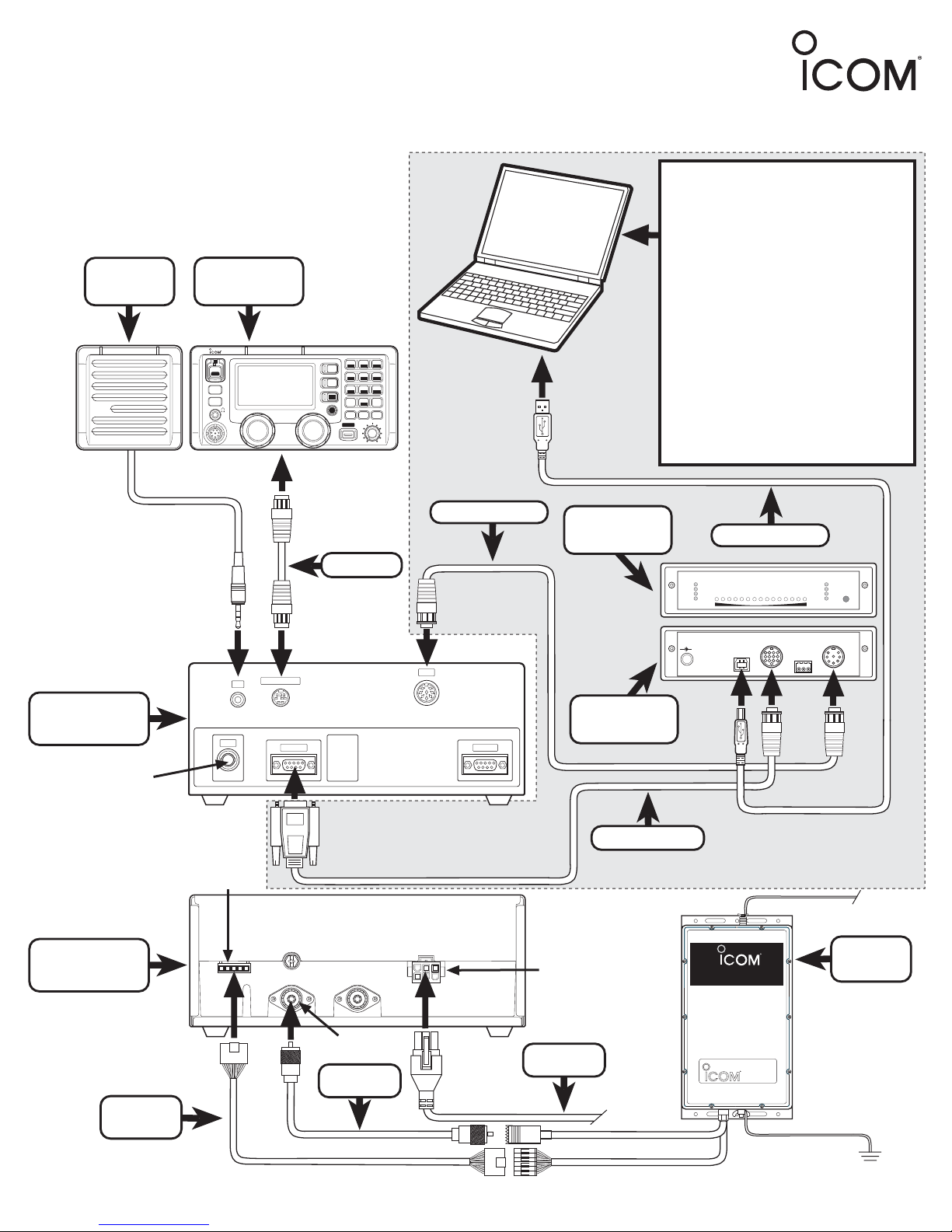

GENERAL & EMAIL CONNECTION GUIDE
©2007 Icom America Inc. The Icom logo is a registered trademark of Icom Inc. 9456
HF MARINE
IC-M802
DISTRESS
1NB
QZ
F
POWER
USA
25W
TAG
27°25.299N
80°16.500W
Local 12:05 CALLING
12A
2
SQL
ABC
3
SCAN
DEF
1
SP*
GHI
5
AGC*
JKL
6
RF-G
MNO
4
Lo
PRS
8Mid
TUV
9Hi
WXY
7
CE 0DIM
– /. ENT
CLAR
PX
TXF
TX
FREQ
/CH
THRU
TUNE
SET
MODE
mail
e
VOL
CHGRP
MIC
DSC
CANCEL
CALL
GPS
REMOTE AF/MOD
SP CONTROLLER
ACC
M802
REMOTE HEAD
(RC-25)
AT-140N
Antenna
Tuner
M802
Transceiver Unit
(Front)
SailMail
1. Download the SailMail application from
http://www.sailmail.com .
2. Extract the zip file to the Desktop of your PC.
3. Double click the setup.exe file to begin the
software installation.
4. Please refer the SailMail Primer
(http://www.sailmail.com/smprimer.htm)
for detailed instructions.
Cruise Email
1. Download the CruiseEmail application from
http://www.cruisemail.com .
2. Extract the zip file to the Desktop of your PC.
3. Double click the setup.exe file to begin the
software installation.
4. Please refer the CrusieEmail User Guide
(http://www.cruisemail.com) for detailed
instructions.
OPC-1106
AUTOMATIC ANTENNA TUNER
AT-140
SCS PTC-IIusb
Pactor Modem
(Front)
To Antenna
OPC-1147N
(Shielded
Control Cable)
SCS Part #8083
OPC-1107A
(Power Cable)
To Battery
Tuner Control
Socket
Antenna
Connector 1
DC Power
Socket
SCS PTC-IIusb
Pactor Modem
(Back)
M802
Transceiver Unit
(Back)
From GPS
(for DSC)
SCS Part #9090
SP-24
EXTERNAL
SPEAKER
SCS PTC-IIusb
DSP Multimode PACTOR Controller
PACTOR-IIPACTOR-1
RTTYAMTOR
FAX/SSTVAUDIO
PACKETCW
Send/PTTConnected
DBPSKDQPSK
HiSpeedMaxSpeed
Error/RqTraffic/CD
ON/OFF
TRX Audio
DC In TRX Control
USB
GPS
RF Ground
Copper Foil
Coaxial
Cable
USB A/B Cable
