Icom D-STAR ID-4100A User manual

S-15403XZ-C1
May 2017
SERVICE
MANUAL
DUAL BAND TRANSCEIVER
ID-4100E
ID-4100A

Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the
United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries.
This service manual describes the latest technical informa-
tion for the ID-4100A/ID-4100E DUAL BAND TRANSCEIVER
at the time of publication.
To upgrade quality, any electrical or mechanical parts and internal
circuits are subject to change without notice or obligation.
Be sure to include the following four points when ordering
replacement parts:
1. 10-digit Icom part number
2. Component name
3. Equipment model name and unit name
4. Quantity required
<SAMPLE ORDER>
1110003491 S.IC TA31136FNG ID-4100A MAIN UNIT 5 pieces
8820001210 Screw 2438 screw ID-4100A Top cover 10 pieces
Addresses are provided on the inside back cover for your
convenience.
ORDERING PARTS
1. Be sure that the problem is internal before disassembling
the transceiver.
2. DO NOT open the transceiver until you have disconnected
it from its power source.
3. DO NOT short any circuits or electronic parts.
4. DO NOT keep power ON for a long time when the trans-
ceiver is defective.
5. DO NOT transmit power into a Standard Signal Genera-
tor or a Sweep Generator. Otherwise the RF power may
damage them.
6. ALWAYS connect a 30/40 dB attenuator between the
transceiver and a Deviation Meter or Spectrum Analyzer,
when using such test equipment.
7. READ the instructions of the test equipment thoroughly
before connecting them to the transceiver.
REPAIR NOTES
INTRODUCTION
MODEL VERSION VERSION
NUMBER TX POWER
ID-4100E EUR-01 #12
50 W
ITR-01 #13
ID-4100A USA-01 #15
EXP-01 #19
*Refer to the HM-207S SERVICE MANUAL.
MICROPHONE HM-207S*
NEVER connect the transceiver to an AC outlet or to a DC
power supply that uses more than the specified voltage. This
will ruin the transceiver.
DO NOT expose the transceiver to rain, snow or liquids.
DO NOT reverse the polarity of the power cable when con-
necting the transceiver.
CAUTION

TABLE OF CONTENTS
SECTION 1 SPECIFICATIONS
SECTION 2 CONNECTOR INFORMATION
SECTION 3 INSIDE VIEWS
SECTION 4 DISASSEMBLY INSTRUCTIONS
SECTION 5 ADJUSTMENT PROCEDURES
5-1 PREPARATION ……………………………………………………………………………………… 4-1
5-2 TRANSMIT ADJUSTMENTS ……………………………………………………………………… 4-2
5-3 RECEIVE ADJUSTMENTS ………………………………………………………………………… 4-7
SECTION 6 PARTS LIST
SECTION 7 MECHANICAL PARTS
SECTION 8 BOARD LAYOUTS
SECTION 9 BLOCK DIAGRAM
SECTION 10 VOLTAGE DIAGRAM
DISTRIBUTOR ADDRESS

1-1
SECTION 1 SPECIFICATIONS
MGENERAL [EUR] [ITR] [USA] [EXP]
• Frequency range Receive 118 ~ 174 MHz
(Guaranteed only
144 ~ 146 MHz)
230 ~ 550 MHz
(Guaranteed only
430 ~ 440 MHz)
118 ~ 136.99166 MHz
(Not guaranteed),
144 ~ 146 MHz,
430 ~ 434 MHz,
435 ~ 438 MHz
118 ~ 174 MHz
(Guaranteed only
144 ~ 148 MHz)
230 ~ 550 MHz
(Guaranteed only
430 ~ 450 MHz)
118 ~ 174 MHz
(Guaranteed only
144 ~ 148 MHz)
230 ~ 550 MHz
(Guaranteed only
430 ~ 440 MHz)
Transmit
144 ~ 146 MHz,
430 ~ 440 MHz
144 ~ 146 MHz,
430 ~ 434 MHz,
435 ~ 438 MHz
144 ~ 148 MHz,
430 ~ 450 MHz
137 ~ 174 MHz
(Guaranteed only
144 ~ 148 MHz)
400 ~ 470 MHz
(Guaranteed only
430 ~ 440 MHz)
• Mode F2D/F3E (FM/FM-N), F7W (DV), A3E (AM/AM-N) RX only
• Number of memory channels 1000 channels
• Number of program scan channels 50 channels (2 channels × 25 pairs)
• Frequency stability ±2.5 ppm (–10˚C to +60˚C, +14˚F to +140˚F) at +25˚C (+77˚F)
• Antenna impedance 50 (SO-239)
• Usable temperature range –10˚C to +60˚C, +14˚F to +140˚F
• Power supply requirement 13.8 V DC ±15% (Negative ground)
• Frequency resolution 5 kHz, 6.25 kHz, 8.33 kHz*, 10 kHz, 12.5 kHz,
15 kHz, 20 kHz, 25 kHz, 30 kHz, and 50 kHz
* Selectable depending on the operating band or mode.
• Current drain RX Standby 0.9 A
Maximum audio 1.2 A
TX Maximum current
drain 13.0 A (at 50 W), 7.5 A (at 15 W), 5.0 A (at 5 W)
• Dimensions (projections are not included) 150(W) × 40(H) × 172(D) mm, 5.9(W) × 1.6(H) × 6.8(D) inches
• Weight (approximately) 1.2 kg, 2.6 lb (microphone, cable, and bracket are not included)
MTRANSMITTER
• Modulation system:
FM/FM-N
Variable reactance frequency modulation
DV GMSK reactance frequency modulation
• Transmit output power High 50 W
Middle 15 W
Low 5 W
• Maximum deviation (Analog) FM ±5.0 kHz
FM-N ±2.5 kHz
• Occupied bandwidth FM 16.0 kHz
FM-N 8.0 kHz
DV 6.0 kHz
• Spurious emission –60 dBc
• Input impedance (microphone) 600 

1-2
MRECEIVER [EUR] [ITR] [USA] [EXP]
• Receive system Double Conversion Superheterodyne system
• Intermediate frequencies 1st IF 46.35 MHz, 2nd IF 450 kHz
• Sensitivity
(except spurious points) Amateur
bands
FM/
FM-N
0.18 V
(12 dB SINAD)
DV
(BER 1%)
0.22 V
(BER 1%)
Other
than the
Amateur
bands
FM/
FM-N
(12 dB
SINAD)
0.32 V (137.000 to 174.000 MHz)
1.8 V (230.000 to 259.995 MHz)
0.56 V (260.000 to 399.995 MHz)
0.32 V (400.000 to 499.995 MHz)
0.56 V (500.000 to 550.000 MHz)
AM/
AM-N
(10 dB
S/N )
1 V (118.000 to 136.991 MHz)
5.6 V (230.000 to 259.995 MHz)
1.8 V (260.000 to 374.995 MHz)
• Squelch sensitivity (at threshold) 0.13 V typical
• Selectivity FM 60 dB
FM-N 55 dB
DV 50 dB
• Spurious and image rejection ratio 60 dB
• Audio output power 2.0 W typical (at 10% distortion into an 8 load)
• Output impedance (Speaker) 8 
All stated specifications are subject to change without notice or obligation.

2-1
SECTION 2 CONNECTOR INFORMATION
12345678 Front panel view
PIN
No.
NAME DESCRIPTION SPECIFICATIONS
18V +8 V DC output Maximum 10 mA
2MIC U/D Frequency Up/Down UP: Ground DN: Ground
through 470 ˘
3M8V SW
Grounds when
the HM-207S is
connected —
4 PTT PTT input Ground for
transmission
5MIC E Microphone ground —
6 MIC Microphone input —
7GND PTT ground —
8DATA IN
When the HM-207S
is connected, inputs
HM-207S data
—
•Microphone connector information

3-1

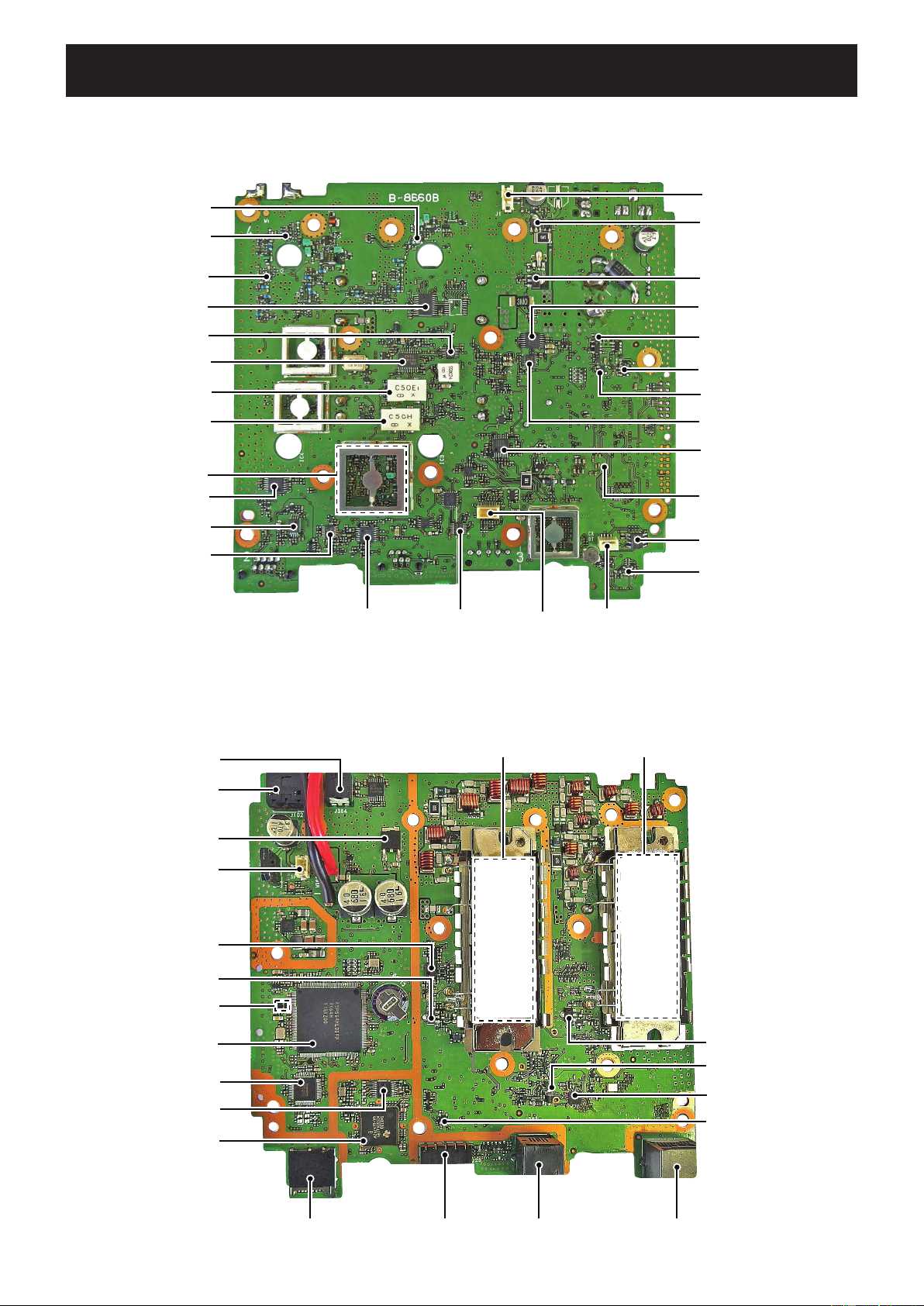

SECTION 3 INSIDE VIEWS
???????
(???)
• MAIN UNIT
(TOP VIEW)
• ??? UNIT
(BOTTOM VIEW)
???????
(???)
DTMF MUTE
(IC104)
J5
J301
??????? (???)
ELECTRONIC VOLUME IC
(IC110)
???????
(???)
3.3 V REGULATOR
(IC403)
4.2 V REGULTOR
(IC323)
DIGITAL/ANALOG AF MUTE
(IC109)
???????
(???)
???????
(???)
VCO
AM/FM SW
(IC119)
PRE AMP
(Q510)
???????
(???)
ALC AMP
(IC14)
BTMIC SW
(IC100)
VOX AMP
(IC112)
???????
(???)
???????
(???)
• MAIN UNIT
(TOP VIEW)
FPGA
(IC306)
PPI RAM
(IC150)
LED CONTROLLER
(IC304)
FLASH ROM
(IC20)
VOLTAGE DETECT IC
(IC13)
3.3 V REGULATOR
(IC311)
VCC SW
(Q306)
FAN CTRL
(Q30)
J1
3.3 V REGULATOR
(IC314)
SD3V REGULATOR
(IC305)
SELECT IC
(IC218)
MIC AMP
(IC101)
IF IC
(IC120)
D/A CONVERTER
(IC1)
RF AMP
(Q500)
RF AMP
(Q17)
CERAMIC BPF
(FI100)
CERAMIC BPF
(FI101)
CPU
(IC29)
TX BUFF
(IC36)
LCD
(IC300)
FIFO
(IC20)
STC
(IC215)
FTC
(IC219)
LVDS
(IC301)
LED CONTROLLER
(IC305)
ONE SHOT IC
(IC217)
BUFF
(IC201)
D/A
(IC32)
DETECT IC
(IC211 to IC213)
???????
(???)
• MAIN UNIT
(BOTTOM VIEW)
• ??? UNIT
(BOTTOM VIEW)
???????
(???)
DRIVE AMP
(Q41)
PLL IC
(IC206)
???????
(???)
J100J300J25
J305
DSP
(IC18)
BT3V REGULATOR
(IC306)
???????
(???)
CPU
(IC300)
EEPROM
(IC301, IC304)
+8 V REGULATOR
(IC313)
J103
J102
CPU
(IC405)
???????
(???)
POWER AMP
(UHF BAND)
(IC4)
POWER AMP
(VHF BAND)
(IC3)
LOOP FILTER
(IC207)
???????
(???)
???????
(???)
???????
(???)
???????
(???)
???????
(???)
J304
DRIVE AMP
(Q40)
APC CTRL
(IC2)
???????
(???)
???????
(???)
???????
(???)
???????
(???)
LINEAR CODEC
(IC15)
???????
(???)
1.5V REGULATOR
(IC7) DC-DC
(IC5)

4-1
SECTION 4 DISASSEMBLY INSTRUCTIONS
2. DISASSEMBLE THE CONTROL UNIT
1) Remove 3 knobs from the front panel.
2) Unscrew 4 screws from the rear panel.
3) Disconnect the flat cable from J5.
4) Take off the CONTROL UNIT from the front panel.
BE CAREFUL when you disconnect the speaker cable
and cooling fan cable from the MAIN UNIT, to keep from
damaging them.
1. REMOVING TOP AND BOTTOM COVERS
1) Unscrew total of 16 screws; 8 screws from the top cover
and 8 screws from the bottom cover.
2) Remove the top cover and bottom cover as illustrated
below.
Knobs
Front panel
Front panel
Screw x4
flat cable
Release the locks
Pull straight
FLAT CABLE
Flat cable
Flat cable
BE CAREFUL when unlocking the locks.
CONTROL UNIT
FLAT CABLE
J5
Top cover
Bottom cover
Screw x4
Screw x13
COOLING
FAN CABLE
UNSOLDER
Solder
remover
<Bottom view>
MAIN UNIT
IC clip
SPEAKER
CABLE
<Top view>
Speaker
2. REMOVING THE MAIN UNIT
2. REMOVING THE MAIN UNIT (continued)
3) Unscrew 13 screws from the MAIN UNIT.
4) Unscrew 4 screws from the chassis.
5) Disconnect the cooling fan cable from the MAIN UNIT.
6) Unsolder total of 3 points, and take off the MAIN UNIT.
1) Remove the IC clip from the chassis.
2) Disconnect the speaker cable from the MAIN UNIT, and
then remove the speaker from the chassis.

5-1
SECTION 5 ADJUSTMENT PROCEDURES
MCONNECTION
MJIG CABLE
EQUIPMENT SPECIFICATIONS EQUIPMENT SPECIFICATIONS
JIG cable Modified modular cable.
(See the illustration shown below.)
Audio generator
(AG)
Frequency range: 300–3000 Hz
Output level: 1–500 mV
DC power supply Voltage: 13.8 V
Capacity: More than 15 A AC millivoltmeter Measuring range: 10 mV to 10 V
RF power meter
(50 terminated)
Measuring range: 0.1–60 W
Frequency range: 100–600 MHz
SWR: Less than 1.2: 1
Frequency counter
Range: 0.1–600 MHz
Accuracy: ±1 ppm or better
Input level: Less than 1 mW
Modulation
analyzer
Frequency range: DC–600 MHz
Measuring range: 0 to ±10 kHz
Standard signal
generator (SSG)
Frequency range: 0.1–600 MHz
Output level: –20 dBµ to 90 dBµ
(–127 dBm to –17 dBm)
AC millivoltmeter Measuring range: 10 mV to 10 V Attenuator Attenuation: 40 dB
Capacity: More than 60 W
MREQUIRED EQUIPMENT
5-1 PREPARATION
The tests described in this section should be measured and adjusted with the above test equipment.
However, a radio tester can also be used for these adjustment procedures.
Modulation
analyzer
60 W Loose
coupling
(Rear view)
to the antenna connector
Attenuator
40 dB
RF power meter
Frequency
counter
Standard signal generator
–20 dBµ to 90 dBµ
(–127 dBm to –17 dBm)
DO NOT transmit while
an SSG is connected to
the antenna connector.
5
2
7
4
7
6
12345678
MIC JACK
Front panel view
(MIC)
(MICU/D)
(GND)
(PTT)
(GND)
(MICE)
AUDIO GENERATOR
JIG CABLE
(300–3000 Hz/1–500 mV)
+−
22 k Ω
+−
AC MILLIVOLTMETER
(10 mV to 10 V)
PTT

5-2
M ENTERING THE ADJUSTMENT MODE
1) Connect the JIG cable to [MIC].
2) While holding down [QUICK] and [DIAL], turn ON the power to enter the Adjustment mode.
[DIAL] [QUICK] [POWER]
3) The adjustment screen is displayed.

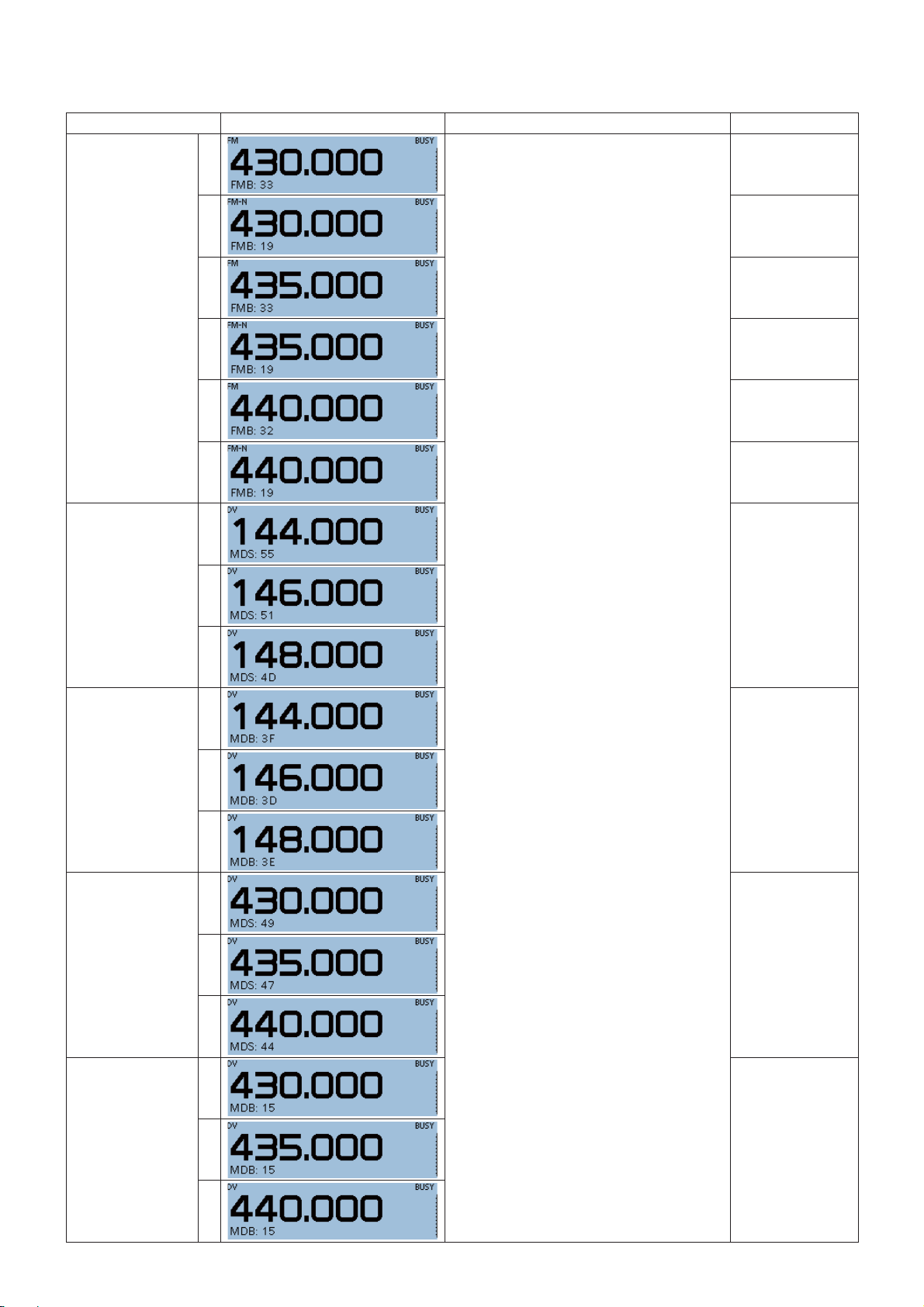

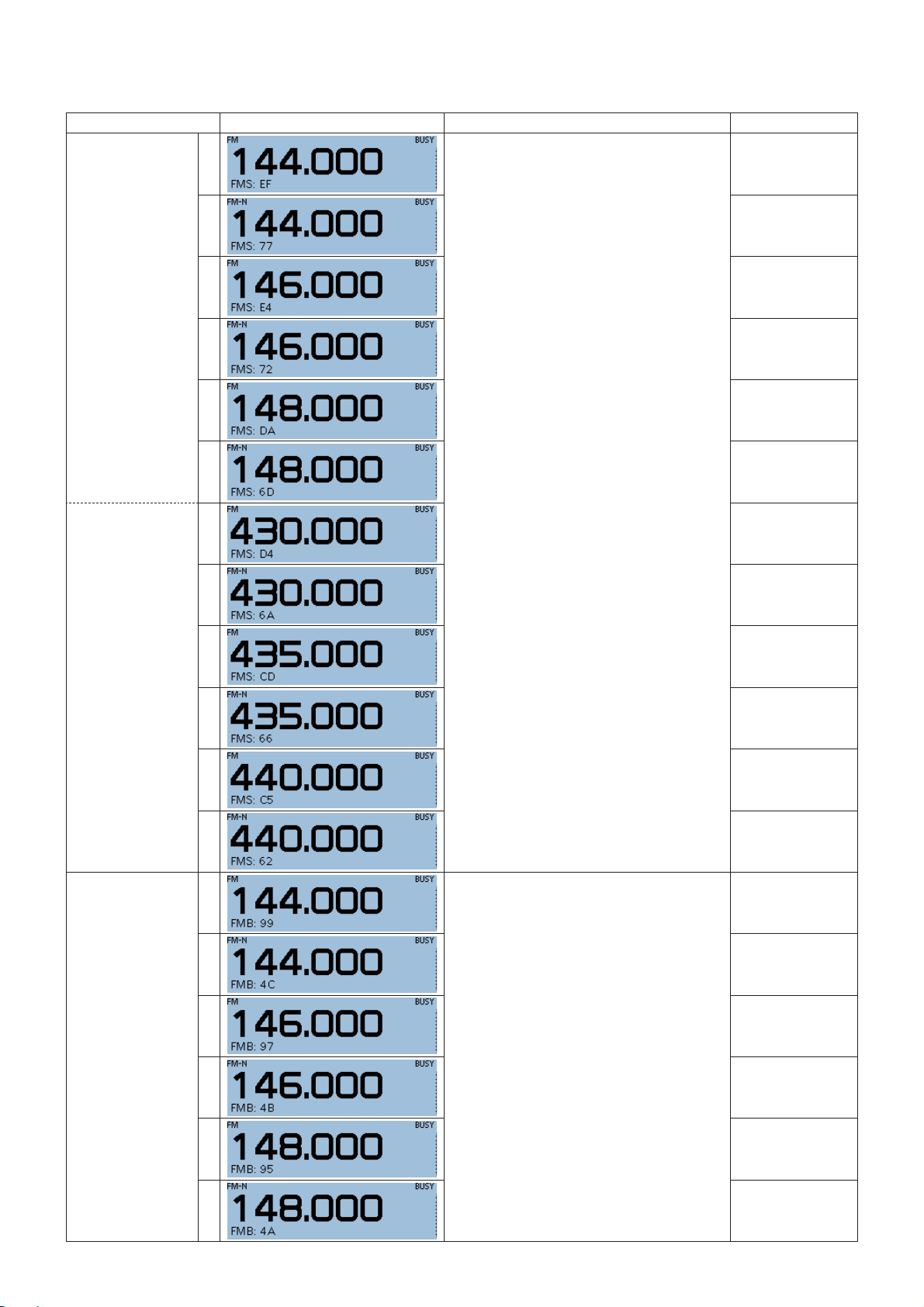

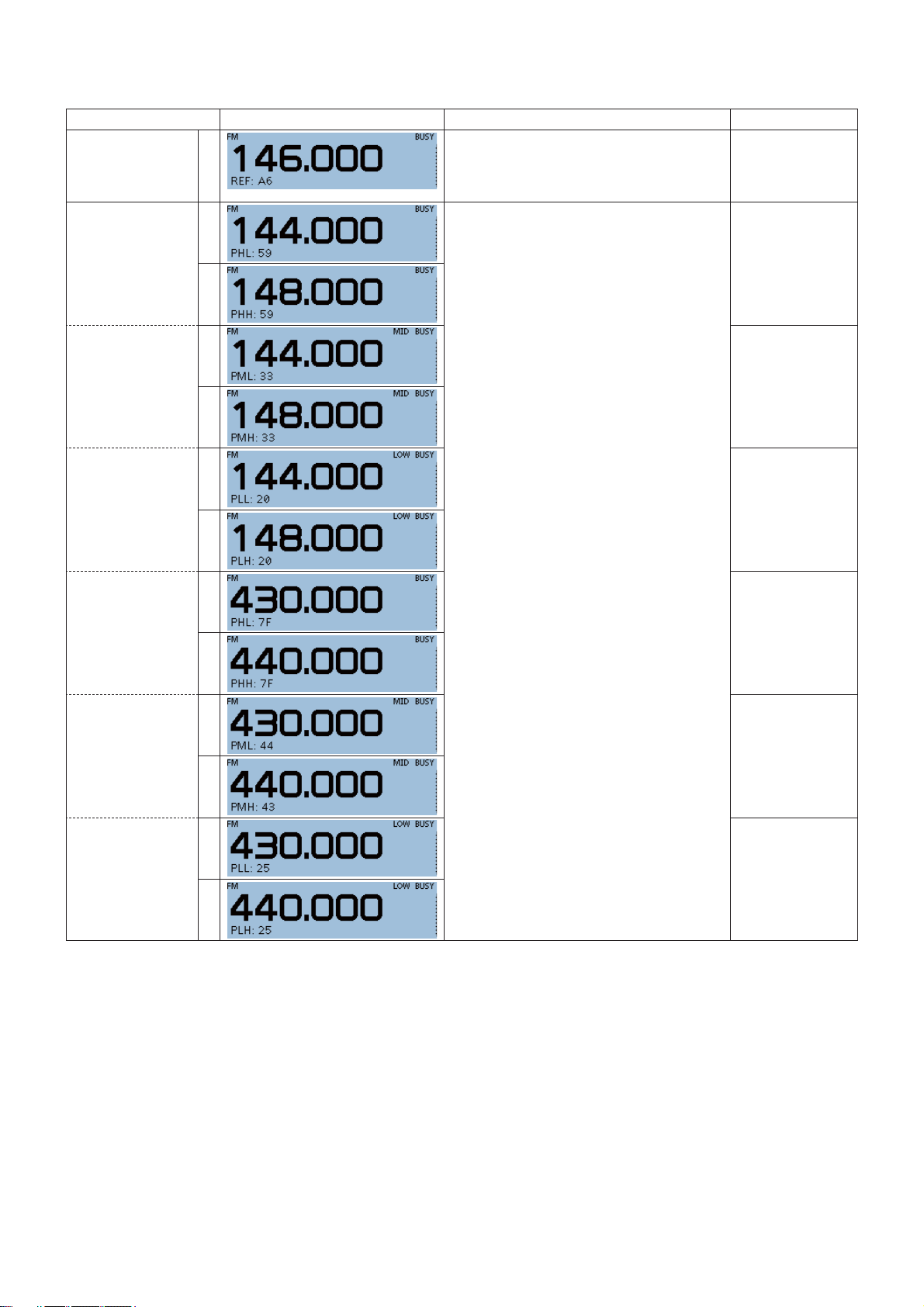

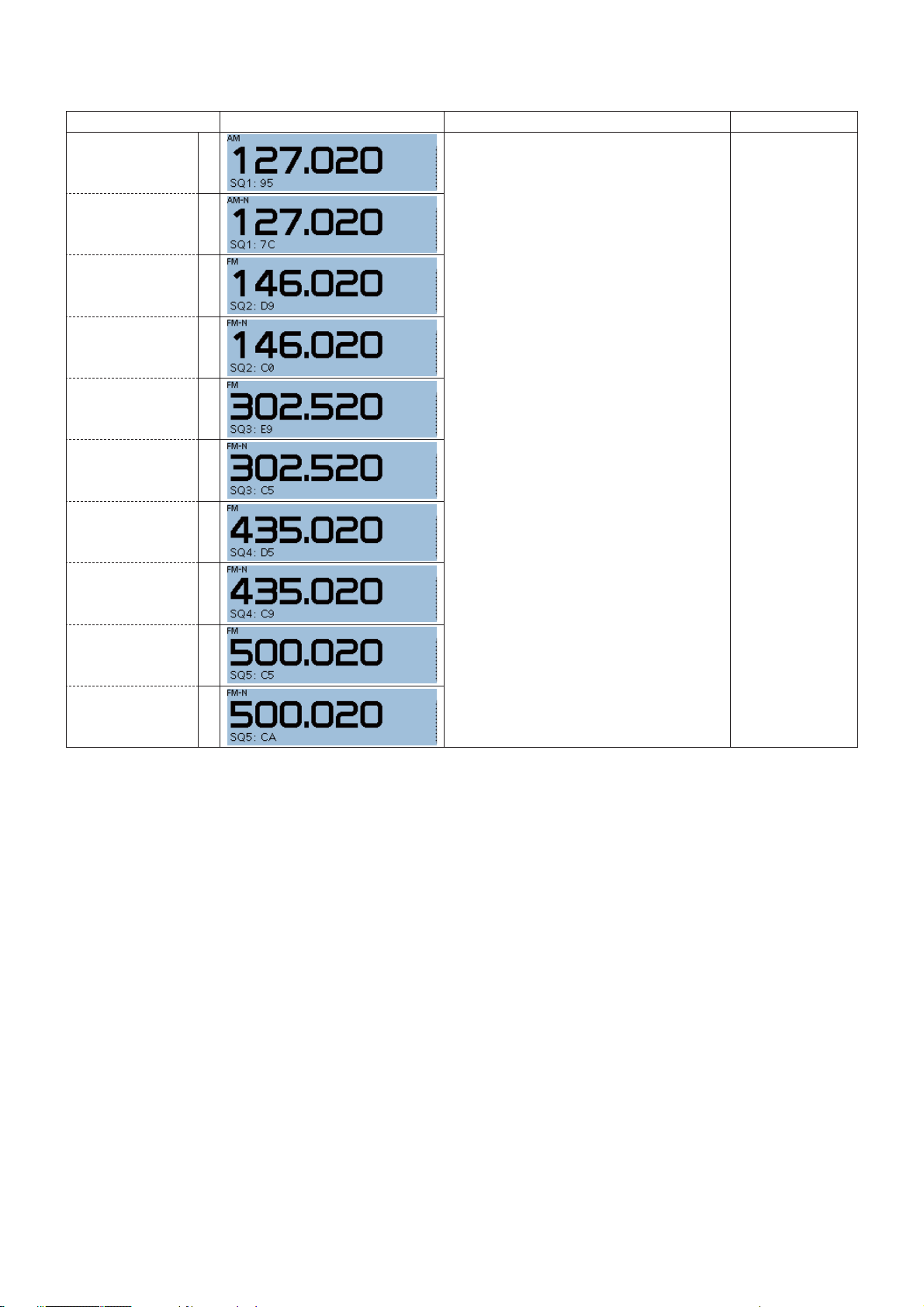

• ADJUSTMENT SCREEN
Adjustment frequency
Adjustment value
Adjustment item name
M ADJUSTMENT MODE OPERATION
1) Push [MONI] to select the next adjustment item, and push [QUICK] to select the previous adjustment item.
2) Set or modify the adjustment value as specified, by rotating [DIAL].
3) Push [DIAL] to store the value or start automatic adjustment.
[DIAL] [QUICK][MONI]
M QUITTING THE ADJUSTMENT MODE
1) Turn OFF the power, and then remove the JIG cable from [MIC].
2) Turn ON the power again.

5-3
4-2 TRANSMIT ADJUSTMENTS
Select an adjustment item using [MONI]/[QUICK], and then set the adjustment value as specified using [DIAL].
ADJUSTMENT ITEM TRANSCEIVER'S DISPLAY CONDITION VALUE
REFERENCE
FREQUENCY 1• Loosely couple the frequency counter to
the antenna connector, as shown on page
4-1.
• Transmit.
146.010 MHz
±50 Hz
TRANSMIT
OUTPUT POWER
VHF High power
2• Connect the test equipment to the antenna
connector as shown in page 4-1.
• Transmit.
50 W
3
VHF Middle power 415 W
5
VHF Low power 65 W
7
UHF High power 850 W
9
UHF Middle power 10 15 W
11
UHF Low power 12 5 W
13
NOTE: The displayed adjustment frequency is only an example, and the frequency will differ depending on the transceiver version.

5-4
4-2 TRANSMIT ADJUSTMENTS (continued)
Select an adjustment item using [MONI]/[QUICK], and then set the adjustment value as specified using [DIAL].
ADJUSTMENT ITEM TRANSCEIVER'S DISPLAY CONDITION VALUE
FM DEVIATION
VHF
14 • Connect the test equipment to the antenna
connector through the attenuator, and set
as shown below:
HPF: OFF
LPF: 20 kHz
De-emphasis: OFF
Detector: (P−P)/2
• Connect the test equipment to [MIC], and
set as shown below:
Frequency: 1 kHz
Wave form: Sine wave
Output level: 80 mV rms (USA)
20 mV rms (other than USA)
• Transmit.
±4.2 kHz
15 ±2.1 kHz
16 ±4.2 kHz
17 ±2.1 kHz
18 ±4.2 kHz
19 ±2.1 kHz
UHF 20 ±4.2 kHz
21 ±2.1 kHz
22 ±4.2 kHz
23 ±2.1 kHz
24 ±4.2 kHz
25 ±2.1 kHz
FM DEVIATION
BALANCE
VHF
26 • Connect the test equipment to the antenna
connector through the attenuator, and set
as shown below:
HPF: OFF
LPF: 20 kHz
De-emphasis: OFF
Detector: (P−P)/2
• No audio is applied to [MIC].
• Transmit.
±4.7 kHz
27 ±2.35 kHz
28 ±4.7 kHz
29 ±2.35 kHz
30 ±4.7 kHz
31 ±2.35 kHz
NOTE:
The displayed adjustment frequency is only an example, and the frequency will differ depending on the transceiver version.

5-5
4-2 TRANSMIT ADJUSTMENTS (continued)
Select an adjustment item using [MONI]/[QUICK], and then set the adjustment value as specified using [DIAL].
ADJUSTMENT ITEM TRANSCEIVER'S DISPLAY CONDITION VALUE
FM DEVIATION
BALANCE
UHF
32 • Connect the test equipment to the antenna
connector through the attenuator, and set
as shown below:
HPF: OFF
LPF: 20 kHz
De-emphasis: OFF
Detector: (P−P)/2
• No audio is applied to [MIC].
• Transmit.
±4.3 kHz
33 ±2.15 kHz
34 ±4.3 kHz
35 ±2.15 kHz
36 ±4.3 kHz
37 ±2.15 kHz
DIGITAL
MODULATION
VHF
38 ±1.05 kHz
39
40
DIGITAL
MODULATION
BALANCE
VHF
41 Minimum deviation
42
43
DIGITAL
MODULATION
UHF
44 ±1.05 kHz
45
46
DIGITAL
MODULATION
BALANCE
UHF
47 Minimum deviation
48
49
NOTE: The displayed adjustment frequency is only an example, and the frequency will differ depending on the transceiver version.

5-6
ADJUSTMENT ITEM TRANSCEIVER'S DISPLAY CONDITION VALUE
CTCSS
DEVIATION
VHF wide
50 • Connect the test equipment to the antenna
connector through the attenuator, and set
as shown below:
HPF: OFF
LPF: 20 kHz
De-emphasis: OFF
Detector: (P−P)/2
• No audio is applied to [MIC].
• Transmit.
• Records the adjustment value of the wide
deviation setting.
±0.75 kHz
VHF narrow 51 The same
adjustment value
as the wide setting.
UHF wide 52 ±0.75 kHz
UHF narrow 53 The same
adjustment value
as the wide setting.
DTCS DEVIATION
VHF wide
54 ±0.75 kHz
VHF narrow 55 The same
adjustment value
as the wide setting.
UHF wide 56 ±0.75 kHz
UHF narrow 57 The same
adjustment value
as the wide setting.
DTMF DEVIATION
VHF wide
58 • Connect the test equipment to the antenna
connector through the attenuator, and set
as shown below:
HPF: OFF
LPF: 20 kHz
De-emphasis: OFF
Detector: (P−P)/2
• No audio is applied to [MIC].
• Transmit.
±3.5 kHz
VHF narrow 59 ±1.75 kHz
UHF wide 60 ±3.5 kHz
UHF narrow 61 ±1.75 kHz
1750 Hz TONE
DEVIATION
VHF wide
62 ±3.5 kHz
VHF narrow 63 ±1.75 kHz
UHF wide 64 ±3.5 kHz
UHF narrow 65 ±1.75 kHz
4-2 TRANSMIT ADJUSTMENTS (continued)
Select an adjustment item using [MONI]/[QUICK], and then set the adjustment value as specified using [DIAL].
NOTE:
The displayed adjustment frequency is only an example, and the frequency will differ depending on the transceiver version.

5-7
ADJUSTMENT ITEM TRANSCEIVER'S DISPLAY CONDITION VALUE
RECEIVE
SENSITIVITY 66 • Connect the test equipment to the antenna
connector and set as shown below:
Frequency: As displayed
Modulation: None
Output level: 0 dBμ†(–107 dBm)
• Receive
Push [DIAL]
for automatic
adjustment.
67
68
69
70
71
72
73
74
RECEIVE
SENSITIVITY
(continued)
75 • Connect an SSG to the antenna connector
and set as shown below:
Frequency: As displayed
Modulation: Non
Output level: 0 dBμ
• Receive
Push [DIAL]
for automatic
adjustment.
76
77
4-3 RECEIVE ADJUSTMENTS
Select an adjustment item using [MONI]/[QUICK], and then set the adjustment value as specified using [DIAL].
NOTE:
The displayed adjustment frequency is only an example, and the frequency will differ depending on the transceiver version.
†: The output level of the standard signal generator (SSG) is indicated as the SSG’s open circuit.

5-8
ADJUSTMENT ITEM TRANSCEIVER'S DISPLAY CONDITION VALUE
S-METER
Air band S1
78 • Connect the test equipment to the antenna
connector and set as shown below:
Frequency: As displayed
Modulation: None
Output level: S1 –6 dBμ†(–113 dB m)
S3 0 dBμ†(–107 dBm)
Full +10 dBμ†(–97 dBm)
• Receive
Push [DIAL]
for automatic
adjustment.
Air band S3 79
Air band Full 80
VHF S1 81
VHF S3 82
VHF Full 83
UHF Low S1 84
UHF Low S3 85
UHF Low Full 86
UHF Center S1 87
UHF Center S3 88
UHF Center Full 89
UHF High S1 90
UHF High S3 91
UHF High Full 92
4-3 RECEIVE ADJUSTMENT (continued)
Select an adjustment item using [MONI]/[QUICK], and then set the adjustment value as specified using [DIAL].
NOTE:
The displayed adjustment frequency is only an example, and the frequency will differ depending on the transceiver version.
†: The output level of the standard signal generator (SSG) is indicated as the SSG’s open circuit.

5-9
4-3 RECEIVE ADJUSTMENT (continued)
Select an adjustment item using [MONI]/[QUICK], and then set the adjustment value as specified using [DIAL].
ADJUSTMENT ITEM TRANSCEIVER'S DISPLAY CONDITION VALUE
SQUELCH
Air band
93 • Terminate the antenna connector with
a dummy load (50 Ω), so no signal is
received.
Push [DIAL]
for automatic
adjustment.
Air band narrow 94
VHF 95
VHF narrow 96
UHF Low 97
UHF Low narrow 98
UHF Center 99
UHF Center narrow
100
UHF High
101
UHF High narrow
102
NOTE: The displayed adjustment frequency is only an example, and the frequency will differ depending on the transceiver version.

REF PART DESCRIPTION M. H/V
NO. NO.
LOCATION
REF PART DESCRIPTION M. H/V
NO. NO.
LOCATION
[CONTROL UNIT]
IC2 1140016220 S.IC STM32F101VFT6 T 84.1/20.3
IC5 1110007780 S.IC NJU7704F3-28A-TE1-#ZZZH B 93.0/28.2
IC6 1180003980 S.REG XC6221A332MR-G B 47.6/13.6
IC7 1190004620 S.IC GSU-141A-098A B 42.2/27.6
IC8 1180003970 S.REG XC6221A332NR-G T 48.4/13.7
Q6 1530003990 S.TRA 2SC4738-BL(TE85LF) B 95.0/5.5
Q7 1530003990 S.TRA 2SC4738-BL(TE85LF) B 81.0/5.3
Q8 1530003990 S.TRA 2SC4738-BL(TE85LF) B 92.7/5.5
Q12 1530003990 S.TRA 2SC4738-BL(TE85LF) T 35.3/12.1
Q13 1530003990 S.TRA 2SC4738-BL(TE85LF) T 35.4/9.9
Q14 1530003990 S.TRA 2SC4738-BL(TE85LF) B 32.3/8.8
D3 1750002230 S.DIO LRB751S-40T1G B 33.5/29.3
D4 1750001810 S.DIO L1SS400T1G T 106.6/18.2
D8 1750001820 S.DIO LRB706F-40T1G T 71.6/10.2
D9 1750001820 S.DIO LRB706F-40T1G T 71.6/12.7
D12 1750002110 S.DIO LRB551V-30T1G B 49.5/9.3
D13 1750002110 S.DIO LRB551V-30T1G T 10.0/5.2
D14 1750001810 S.DIO L1SS400T1G B 50.0/13.1
D16 1790001830 S.VAR AVR-M1005C270MTAAB T 64.5/9.2
D17 1790001830 S.VAR AVR-M1005C270MTAAB T 58.7/8.4
D18 1790001830 S.VAR AVR-M1005C270MTAAB T 51.4/12.3
D19 1790002160 S.VAR TPD1E10B06DPYR T 54.5/14.9
D20 1790002160 S.VAR TPD1E10B06DPYR T 60.5/14.9
D21 1790002160 S.VAR TPD1E10B06DPYR T 63.5/14.9
L100 6200015410 S.COI MLK1005SR33JT B 33.9/25.0
R1 7210003731 VAR R09022N0-FB20B7B503-0004
R2 7030005120 S.RES ERJ2GEJ 102 X (1K) T 107.3/19.4
R3 7210003731 VAR R09022N0-FB20B7B503-0004
R4 7030005120 S.RES ERJ2GEJ 102 X (1K) T 107.2/17.0
R5 7030005240 S.RES ERJ2GEJ 473 X (47K) T 79.7/30.5
R6 7030005240 S.RES ERJ2GEJ 473 X (47K) T 78.6/29.4
R7 7510001770 S.THE NTCG10 4LH 473JT T 72.9/24.5
R8 7030007350 S.RES ERJ2GEJ 393 X (39K) T 72.5/25.7
R10 7030005530 S.RES ERJ2GEJ 100 X (10) B 46.6/11.1
R12 7030005530 S.RES ERJ2GEJ 100 X (10) B 77.1/22.5
R14 7030005240 S.RES ERJ2GEJ 473 X (47K) T 105.2/17.0
R16 7410001340 S.ARR EXB28V473JX B 81.9/20.6
R19 7030005160 S.RES ERJ2GEJ 105 X (1M) T 94.0/19.3
R20 7030010040 S.RES ERJ2GEJ-JPW T 95.0/20.0
R21 7030004980 S.RES ERJ2GEJ 101 X (100) T 94.9/25.0
R24 7030005050 S.RES ERJ2GEJ 103 X (10K) T 17.7/6.6
R25 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 17.7/5.7
R48 7410001220 S.ARR EXB28V103JX B 88.0/7.2
R50 7410001340 S.ARR EXB28V473JX T 86.1/30.3
R55 7410001220 S.ARR EXB28V103JX B 85.1/9.6
R56 7410001340 S.ARR EXB28V473JX T 87.4/9.9
R58 7410001340 S.ARR EXB28V473JX T 94.9/13.9
R59 7030005240 S.RES ERJ2GEJ 473 X (47K) B 80.2/20.5
R62 7030005530 S.RES ERJ2GEJ 100 X (10) T 73.6/30.1
R63 7030005240 S.RES ERJ2GEJ 473 X (47K) B 79.2/21.4
R71 7030005240 S.RES ERJ2GEJ 473 X (47K) T 81.4/31.0
R72 7030005090 S.RES ERJ2GEJ 104 X (100K) T 82.6/31.4
R73 7030005240 S.RES ERJ2GEJ 473 X (47K) T 84.4/31.0
R79 7030005090 S.RES ERJ2GEJ 104 X (100K) B 49.3/30.8
R80 7030005090 S.RES ERJ2GEJ 104 X (100K) T 50.5/13.5
R82 7030005530 S.RES ERJ2GEJ 100 X (10) T 47.8/10.7
R83 7030005050 S.RES ERJ2GEJ 103 X (10K) B 92.9/25.4
R91 7030005240 S.RES ERJ2GEJ 473 X (47K) T 65.2/24.2
R92 7410001140 S.ARR EXB28V104JX T 69.7/25.4
R93 7410001140 S.ARR EXB28V104JX B 72.1/23.0
R101 7030009280 S.RES ERJ2GEJ 391 X T 32.4/18.2
R102 7030009280 S.RES ERJ2GEJ 391 X T 32.4/20.1
R103 7030009280 S.RES ERJ2GEJ 391 X T 32.5/23.5
R104 7030009280 S.RES ERJ2GEJ 391 X T 32.5/25.5
R105 7030009280 S.RES ERJ2GEJ 391 X T 32.2/29.0
R106 7030009280 S.RES ERJ2GEJ 391 X T 32.2/30.9
R107 7030005000 S.RES ERJ2GEJ 471 X (470) T 30.5/18.8
R108 7030005000 S.RES ERJ2GEJ 471 X (470) T 30.5/21.5
R109 7030005000 S.RES ERJ2GEJ 471 X (470) T 30.5/24.2
R110 7030005000 S.RES ERJ2GEJ 471 X (470) T 30.5/26.9
R111 7030005000 S.RES ERJ2GEJ 471 X (470) T 30.5/29.6
R112 7030005000 S.RES ERJ2GEJ 471 X (470) T 30.5/32.4
R113 7030005000 S.RES ERJ2GEJ 471 X (470) T 30.5/17.0
R114 7030005000 S.RES ERJ2GEJ 471 X (470) T 30.5/19.7
R115 7030005000 S.RES ERJ2GEJ 471 X (470) T 30.5/22.4
R116 7030005000 S.RES ERJ2GEJ 471 X (470) T 30.5/25.1
R117 7030005000 S.RES ERJ2GEJ 471 X (470) T 30.5/27.8
R118 7030005000 S.RES ERJ2GEJ 471 X (470) T 30.5/30.5
R119 7030009280 S.RES ERJ2GEJ 391 X T 32.4/14.5
R120 7030005000 S.RES ERJ2GEJ 471 X (470) T 30.5/14.2
R121 7030005000 S.RES ERJ2GEJ 471 X (470) T 30.5/16.1
R122 7030009280 S.RES ERJ2GEJ 391 X T 32.4/12.9
R123 7030005000 S.RES ERJ2GEJ 471 X (470) T 30.5/11.5
R124 7030005000 S.RES ERJ2GEJ 471 X (470) T 30.5/13.3
R127 7030005050 S.RES ERJ2GEJ 103 X (10K) T 59.9/9.2
R128 7030005050 S.RES ERJ2GEJ 103 X (10K) T 62.0/9.2
R133 7030005120 S.RES ERJ2GEJ 102 X (1K) T 51.9/11.1
R134 7030005120 S.RES ERJ2GEJ 102 X (1K) T 12.8/11.3
R152 7030005120 S.RES ERJ2GEJ 102 X (1K) T 63.3/9.4
R153 7030005120 S.RES ERJ2GEJ 102 X (1K) T 60.8/9.2
[CONTROL UNIT]
R162 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 4.8/33.5
R163 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 4.3/9.1
R165 7030005050 S.RES ERJ2GEJ 103 X (10K) T 33.7/3.7
R166 7030005050 S.RES ERJ2GEJ 103 X (10K) T 44.6/4.0
R167 7030005050 S.RES ERJ2GEJ 103 X (10K) T 56.1/3.9
R168 7030005050 S.RES ERJ2GEJ 103 X (10K) T 67.5/4.0
R169 7030005050 S.RES ERJ2GEJ 103 X (10K) T 79.3/3.7
R170 7030005050 S.RES ERJ2GEJ 103 X (10K) T 90.7/3.7
R172 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 5.2/32.3
R173 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 5.5/8.9
R175 7030005050 S.RES ERJ2GEJ 103 X (10K) T 33.7/2.8
R176 7030005050 S.RES ERJ2GEJ 103 X (10K) T 45.1/2.8
R177 7030005050 S.RES ERJ2GEJ 103 X (10K) T 56.5/2.8
R178 7030005050 S.RES ERJ2GEJ 103 X (10K) T 67.9/2.8
R179 7030005050 S.RES ERJ2GEJ 103 X (10K) T 79.3/2.8
R180 7030005050 S.RES ERJ2GEJ 103 X (10K) T 90.7/2.8
R182 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 8.9/7.5
R183 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 9.2/8.8
R185 7030005050 S.RES ERJ2GEJ 103 X (10K) T 38.2/2.8
R186 7030005050 S.RES ERJ2GEJ 103 X (10K) T 49.6/2.8
R187 7030005050 S.RES ERJ2GEJ 103 X (10K) T 61.0/2.8
R188 7030005050 S.RES ERJ2GEJ 103 X (10K) T 72.4/2.8
R189 7030005050 S.RES ERJ2GEJ 103 X (10K) T 83.8/2.8
R190 7030005050 S.RES ERJ2GEJ 103 X (10K) T 95.2/2.8
R200 7030005120 S.RES ERJ2GEJ 102 X (1K) B 76.3/19.5
R201 7030005120 S.RES ERJ2GEJ 102 X (1K) B 76.8/18.6
R202 7030005120 S.RES ERJ2GEJ 102 X (1K) B 71.3/18.0
R203 7030005120 S.RES ERJ2GEJ 102 X (1K) B 74.0/20.8
R204 7030005000 S.RES ERJ2GEJ 471 X (470) B 72.1/20.5
R205 7030005000 S.RES ERJ2GEJ 471 X (470) B 70.5/20.9
R206 7030005000 S.RES ERJ2GEJ 471 X (470) B 69.7/18.4
R207 7030005000 S.RES ERJ2GEJ 471 X (470) B 67.6/18.0
R208 7030005000 S.RES ERJ2GEJ 471 X (470) B 74.3/14.0
R209 7030005000 S.RES ERJ2GEJ 471 X (470) B 79.1/12.9
R210 7030005120 S.RES ERJ2GEJ 102 X (1K) B 52.5/17.8
R211 7030005120 S.RES ERJ2GEJ 102 X (1K) B 50.9/17.5
R212 7030005120 S.RES ERJ2GEJ 102 X (1K) B 48.9/15.8
R213 7030005120 S.RES ERJ2GEJ 102 X (1K) B 47.3/15.8
R214 7030005000 S.RES ERJ2GEJ 471 X (470) T 72.1/19.9
C2 4030023030 S.CER 0402B103K250CT T 105.3/19.7
C3 4030022940 S.CER 0402B104K100CT T 72.9/23.6
C4 4030023030 S.CER 0402B103K250CT T 104.3/17.0
C6 4030022940 S.CER 0402B104K100CT T 72.7/30.1
C7 4030022640 S.CER 0402N101J500CT T 16.4/6.1
C8 4030022640 S.CER 0402N101J500CT T 15.4/5.5
C10 4030023030 S.CER 0402B103K250CT B 77.7/21.3
C11 4030020000 S.CER C1005 JB 1A 105K-T T 3.1/32.5
C12 4030020000 S.CER C1005 JB 1A 105K-T T 96.1/3.9
C18 4030022740 S.CER 0402N220J500CT T 96.9/14.9
C19 4030022740 S.CER 0402N220J500CT T 96.8/20.0
C23 4030019120 S.CER GRM188B31E105KA75D B 56.1/22.6
C24 4030020000 S.CER C1005 JB 1A 105K-T B 50.5/14.7
C25 4030023030 S.CER 0402B103K250CT B 50.5/15.6
C26 4030022960 S.CER 0402B333K100CT B 92.5/30.0
C27 4030023090 S.CER 0402B102K500CT B 49.6/11.0
C28 4030020000 S.CER C1005 JB 1A 105K-T B 48.6/11.0
C29 4030023090 S.CER 0402B102K500CT T 11.4/4.9
C30 4030022860 S.CER 0402N470J500CT T 14.5/5.3
C31 4030022860 S.CER 0402N470J500CT T 12.3/4.9
C32 4030019560 S.CER GRM21BB31C106KE15L T 91.6/9.9
C33 4030022940 S.CER 0402B104K100CT T 94.0/16.6
C34 4030022940 S.CER 0402B104K100CT T 88.8/30.8
C35 4030019120 S.CER GRM188B31E105KA75D B 57.4/22.6
C36 4030019120 S.CER GRM188B31E105KA75D B 59.4/22.7
C37 4030022940 S.CER 0402B104K100CT T 76.2/28.8
C38 4030022940 S.CER 0402B104K100CT T 76.3/13.2
C39 4030023090 S.CER 0402B102K500CT B 92.7/26.3
C40 4030022940 S.CER 0402B104K100CT T 89.7/10.3
C41 4030023030 S.CER 0402B103K250CT T 94.9/25.9
C42 4030019560 S.CER GRM21BB31C106KE15L T 95.8/27.3
C43 4030023030 S.CER 0402B103K250CT T 94.5/23.6
C44 4030019560 S.CER GRM21BB31C106KE15L T 96.7/23.6
C45 4030023090 S.CER 0402B102K500CT T 16.6/7.5
C48 4030022940 S.CER 0402B104K100CT B 62.8/22.6
C53 4030023030 S.CER 0402B103K250CT T 104.7/15.6
C57 4030023090 S.CER 0402B102K500CT T 38.8/5.3
C58 4030023090 S.CER 0402B102K500CT T 50.0/5.3
C59 4030023090 S.CER 0402B102K500CT T 61.4/5.3
C60 4030023090 S.CER 0402B102K500CT T 72.8/5.3
C61 4030023090 S.CER 0402B102K500CT T 84.2/5.3
C62 4030023090 S.CER 0402B102K500CT T 90.3/6.4
C63 4030022860 S.CER 0402N470J500CT T 3.5/6.2
C64 4030022860 S.CER 0402N470J500CT T 6.3/27.3
C65 4030022860 S.CER 0402N470J500CT T 16.6/8.4
C67 4030022860 S.CER 0402N470J500CT T 18.7/8.0
C68 4030022860 S.CER 0402N470J500CT T 18.9/5.6
C69 4030023090 S.CER 0402B102K500CT T 51.0/9.6
C70 4030023090 S.CER 0402B102K500CT T 74.3/9.0
C74 4030023090 S.CER 0402B102K500CT T 75.4/10.4
C75 4030023090 S.CER 0402B102K500CT T 76.0/9.3
C76 4030023090 S.CER 0402B102K500CT B 32.7/6.2
C80 4030020000 S.CER C1005 JB 1A 105K-T B 32.4/10.2
C82 4030023090 S.CER 0402B102K500CT T 80.5/9.5
C90 4030020000 S.CER C1005 JB 1A 105K-T T 48.1/15.5
C92 4030022940 S.CER 0402B104K100CT B 50.2/25.6
C93 4030022060 S.CER GRM188B30J106ME47D B 35.2/30.1
SECTION 6 PARTS LIST
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
6-1

REF PART DESCRIPTION M. H/V
NO. NO.
LOCATION
REF PART DESCRIPTION M. H/V
NO. NO.
LOCATION
[CONTROL UNIT]
6-2
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
[MAIN UNIT]
C94 4030022940 S.CER 0402B104K100CT B 49.8/27.7
C97 4030020000 S.CER C1005 JB 1A 105K-T T 48.0/12.0
C110 4030023090 S.CER 0402B102K500CT B 34.9/29.1
C111 4050000380 S.FEE NFM15PC104R1A3D B 33.5/27.2
C112 4030023090 S.CER 0402B102K500CT B 50.2/30.8
C113 4030023090 S.CER 0402B102K500CT B 51.1/28.5
C114 4030023090 S.CER 0402B102K500CT B 49.8/26.8
C115 4030023090 S.CER 0402B102K500CT B 49.3/25.6
C116 4030023090 S.CER 0402B102K500CT B 48.4/25.6
C117 4030023090 S.CER 0402B102K500CT B 48.4/30.8
C118 4030023090 S.CER 0402B102K500CT B 49.8/28.6
C120 4030022640 S.CER 0402N101J500CT B 35.5/25.0
C130 4030022630 S.CER 0402N100C500CT B 63.8/21.2
C131 4030022630 S.CER 0402N100C500CT B 64.7/21.2
C132 4030023090 S.CER 0402B102K500CT B 57.8/18.1
C133 4030023090 S.CER 0402B102K500CT B 53.7/18.7
C134 4030023090 S.CER 0402B102K500CT B 35.5/17.0
C135 4030023090 S.CER 0402B102K500CT B 35.5/15.1
C136 4030023090 S.CER 0402B102K500CT B 34.4/15.0
C137 4030023090 S.CER 0402B102K500CT B 35.9/11.7
C138 4030023090 S.CER 0402B102K500CT T 8.2/24.4
C139 4030023090 S.CER 0402B102K500CT T 9.7/2.0
C140 4030023090 S.CER 0402B102K500CT T 61.9/18.6
C141 4030020000 S.CER C1005 JB 1A 105K-T T 61.8/20.2
C142 4030022630 S.CER 0402N100C500CT T 63.6/22.4
C143 4030022630 S.CER 0402N100C500CT T 63.9/23.3
C144 4030022630 S.CER 0402N100C500CT T 65.8/18.4
C145 4030022630 S.CER 0402N100C500CT T 66.9/19.4
C146 4030022630 S.CER 0402N100C500CT T 66.1/24.2
C147 4030022630 S.CER 0402N100C500CT T 67.4/21.9
C148 4030022630 S.CER 0402N100C500CT T 68.0/24.7
C149 4030022630 S.CER 0402N100C500CT T 69.8/23.4
C150 4030022630 S.CER 0402N100C500CT T 69.3/21.6
C151 4030022860 S.CER 0402N470J500CT T 73.5/19.4
C152 4030022860 S.CER 0402N470J500CT T 78.1/10.2
C153 4030022860 S.CER 0402N470J500CT T 78.1/11.1
C154 4030023090 S.CER 0402B102K500CT T 81.4/10.7
C155 4030023090 S.CER 0402B102K500CT T 82.3/10.7
C156 4030022860 S.CER 0402N470J500CT T 83.8/10.7
C157 4030022860 S.CER 0402N470J500CT T 84.7/10.7
C158 4510008040 S.ELE EEFCD 0K 330R T 42.7/13.8
J1 6510027710 S.CON S5B-ZR-SM4A-TF(LF)(SN) T 64.0/30.4
J2 6510028740 S.CON 14FLH-SM1-TB(LF)(SN)(F) B 82.3/26.5
J3 6510027270 CON 3167 FRONT CONNECTOR
J4 6510023170 CON 3008L-6P6C
J5 6510030960 S.CON IMSA-9631S-27Y801 B 64.4/27.3
J251 6510023480 S.CON AYU1-1P-02676-120-TF B 34.9/22.3
DS1 5030004350 LCD UNC-MSFF014230-02
DS4 5040004070 S.LED E3623RGB-10D-000114 T 35.9/3.2
DS5 5040004070 S.LED E3623RGB-10D-000114 T 47.3/3.2
DS6 5040004070 S.LED E3623RGB-10D-000114 T 58.7/3.2
DS7 5040004070 S.LED E3623RGB-10D-000114 T 70.1/3.2
DS8 5040004070 S.LED E3623RGB-10D-000114 T 81.5/3.2
DS9 5040004070 S.LED E3623RGB-10D-000114 T 92.9/3.2
DS11 5040004070 S.LED E3623RGB-10D-000114 T 6.9/33.0
DS12 5040004070 S.LED E3623RGB-10D-000114 T 7.3/8.9
DS14 5040004070 S.LED E3623RGB-10D-000114 T 28.6/31.4
DS15 5040004070 S.LED E3623RGB-10D-000114 T 28.6/28.7
DS16 5040004070 S.LED E3623RGB-10D-000114 T 28.6/26.0
DS17 5040004070 S.LED E3623RGB-10D-000114 T 28.6/23.2
DS18 5040004070 S.LED E3623RGB-10D-000114 T 28.6/20.6
DS19 5040004070 S.LED E3623RGB-10D-000114 T 28.6/17.8
DS20 5040004070 S.LED E3623RGB-10D-000114 T 28.6/15.1
DS21 5040004070 S.LED E3623RGB-10D-000114 T 28.6/12.4
S3 2230001480 S.SWI LS37J2-T T 110.3/17.5
S4 2230001480 S.SWI LS37J2-T T 35.9/6.0
S5 2230001480 S.SWI LS37J2-T T 47.3/6.0
S6 2230001480 S.SWI LS37J2-T T 58.7/6.0
S7 2230001480 S.SWI LS37J2-T T 70.1/6.0
S8 2230001480 S.SWI LS37J2-T T 81.5/6.0
S9 2230001480 S.SWI LS37J2-T T 92.9/6.0
S10 2230001480 S.SWI LS37J2-T T 6.1/5.7
S11 2230001480 S.SWI LS37J2-T T 6.1/29.6
S14 2250000660 ENC SW-170(EC12D1564402)
EP2 3310005080 ANT GBA-962(031015071EM0800)
EP4 6910018460 S.BEA MMZ1005Y102C-T T 93.2/10.8
EP7 6910018460 S.BEA MMZ1005Y102C-T T 46.9/16.7
EP9 6910012350 S.BEA MMZ1608Y 102BT T 10.2/8.1
EP10 6910012350 S.BEA MMZ1608Y 102BT T 14.6/7.5
EP11 6910012350 S.BEA MMZ1608Y 102BT T 11.4/7.2
EP12 6910012350 S.BEA MMZ1608Y 102BT T 13.4/5.6
EP13 6910012350 S.BEA MMZ1608Y 102BT T 57.7/9.4
EP14 6910012350 S.BEA MMZ1608Y 102BT T 68.5/12.1
EP15 6910018460 S.BEA MMZ1005Y102C-T B 31.2/5.8
EP20 6910018460 S.BEA MMZ1005Y102C-T B 59.0/17.6
EP21 6910018460 S.BEA MMZ1005Y102C-T B 54.9/18.2
EP22 6910018460 S.BEA MMZ1005Y102C-T T 62.3/17.4
EP251 6910018460 S.BEA MMZ1005Y102C-T B 62.6/21.4
IC1 1130016460 S.IC R2A20169SA T 60.4/93.8
IC2 1110008910 S.IC NJM2904CV-TE1-#HMZR B 84.0/70.5
IC3 1150002680 IC RA60H1317M1A-522
IC4 1150002690 IC RA60H3847M1-521
IC12 1110008940 S.IC NJU7057RB1-TE2-#ZMZH T 73.9/41.0
IC13 1110008830 S.IC NJU7058V-TE2-#ZMZH T 84.2/49.1
IC14 1110007630 S.IC NJM2783V-TE1-#ZZZH T 13.5/37.3
IC15 1110007770 S.IC PCM3008T/2K B 99.0/33.4
I C17 1110 0 08 210 S. IC O PA 35 6AI DBV R B 110. 0 / 26 .8
IC18 1140013290 S.IC TMS320VC5509AZHH B 100.7/21.8
IC20 1130017800 S.IC EN25Q40A-104GIP T 127.1/19.1
IC100 1130015760 S.IC TC74VHC4066AFK(EK) T 30.3/22.3
IC101 1110007660 S.IC NJM2746V-TE1-#ZZZB T 19.3/24.4
IC102 1110007550 S.IC R2A20178NP T 68.2/32.4
IC103 1110008940 S.IC NJU7057RB1-TE2-#ZMZH T 60.3/24.8
IC104 1130015760 S.IC TC74VHC4066AFK(EK) T 70.9/23.0
IC106 1110003091 IC LA4425A-E
IC107 1110008890 S.IC NJU7056F3-TE2-#ZZZH T 104.5/81.5
IC109 1130015760 S.IC TC74VHC4066AFK(EK) T 93.6/75.9
IC110 1110008680 S.IC NJU72341V-TE2-#UZZH T 94.3/82.4
I C112 1110 0 08 83 0 S .I C NJ U70 58V-TE 2- # ZM ZH T 4 2. 0 / 21. 4
IC119 1130015760 S.IC TC74VHC4066AFK(EK) T 68.4/78.8
IC120 1110007300 S.IC NJM2552V-TE1-#ZZZB T 55.0/76.2
IC122 1110008890 S.IC NJU7056F3-TE2-#ZZZH T 63.0/85.1
IC206 1130017460 S.IC AK1542A-L B 39.0/29.4
IC207 1130007021 S.IC TC7S66FU(TE85LF) B 48.1/33.4
IC300 1140017930 S.IC R5F564MLDDFB B 115.7/55.1
IC301 1140017190 S.IC GT24C1024-2CLI-TR B 128.7/59.5
IC302 1130018740 S.IC RX8130CE B 101.8/72.8
IC303 1110009520 S.IC TMP303BDRLR [#12] T 116.8/12.9
1110009520 S.IC TMP303BDRLR [#13]
IC304 1140017190 S.IC GT24C1024-2CLI-TR B 131.1/59.5
IC305 1180003980 S.REG XC6221A332MR-G T 124.4/9.2
IC306 1180004490 S.REG XC6209F332MR-G B 80.6/23.8
IC307 1110008890 S.IC NJU7056F3-TE2-#ZZZH T 24.5/17.7
IC308 1110009440 S.IC S-80929CNPF-G8ZTFU T 131.8/54.7
IC309 6910022360 S.DC TPS62110RSAR B 128.0/84.4
IC310 1190004090 S.IC INA199B1DCKR T 94.2/90.7
IC311 1180004490 S.REG XC6209F332MR-G T 123.5/72.5
IC312 1130014260 S.IC SN74LVC2GU04DCKR B 132.1/66.0
IC313 1180003500 S.REG NJM7808DL1A-TE1-#FZZB B 95.8/109.2
IC314 1180004490 S.REG XC6209F332MR-G T 114.9/83.0
IC318 1120003020 S.IC MAX3221IPWR B 100.3/127.4
IC319 1180004430 S.REG XC6209F502MR-G T 114.9/79.6
IC320 1110007620 S.IC NJU7704F3-42A-TE1-#ZZZB B 85.4/30.9
IC323 1180003920 S.REG XC6222D421MR-G T 116.3/73.0
IC324 1110007620 S.IC NJU7704F3-42A-TE1-#ZZZB B 85.4/27.4
IC403 1180003980 S.REG XC6221A332MR-G T 96.6/42.5
IC404 1180004990 S.REG XC6221B13AMR-G T 87.9/33.6
IC405 1140017210 S.IC R5F104GAAFB B 123.3/33.9
Q1 1590004070 S.TRA LDTC144EET1G B 38.6/67.7
Q5 1590004070 S.TRA LDTC144EET1G B 42.8/67.7
Q9 1590005220 S.TRA LDTA114YET1G B 38.5/70.3
Q10 1590005220 S.TRA LDTA114YET1G B 35.6/70.3
Q13 1590004070 S.TRA LDTC144EET1G T 79.0/47.1
Q14 1590005220 S.TRA LDTA114YET1G B 40.5/70.3
Q17 1580000731 S.FET 3SK293(TE85LF) T 11.0/102.7
Q19 1580000731 S.FET 3SK293(TE85LF) T 48.4/96.5
Q21 1530003990 S.TRA 2SC4738-BL(TE85LF) T 55.3/94.1
Q22 1530004590 S.TRA BFR193F H6327 T 25.7/102.4
Q23 1530004590 S.TRA BFR193F H6327 T 24.8/93.7
Q27 1590004090 S.TRA LDTC114YET1G T 87.5/59.6
Q28 1510000581 S.TRA 2SA1362-GR(TE85RF) T 84.4/57.5
Q29 1530003990 S.TRA 2SC4738-BL(TE85LF) T 98.4/122.0
Q30 1520001010 S.TRA 2SB1132G-R-AB3-R T 95.6/119.6
Q31 1510000771 S.TRA 2SA1586-GR(TE85LF) T 99.4/118.7
Q32 1590004090 S.TRA LDTC114YET1G T 43.3/60.2
Q33 1590004070 S.TRA LDTC144EET1G B 40.7/67.7
Q34 1510000581 S.TRA 2SA1362-GR(TE85RF) T 40.8/58.4
Q36 1530004460 S.TRA MT3S20TU(TE85L) B 76.1/49.1
Q37 1530003321 S.TRA 2SC5108-Y(TE85RF) B 32.4/45.0
Q38 1530003321 S.TRA 2SC5108-Y(TE85RF) B 31.2/50.0
Q40 1530004100 S.TRA MT3S20P(TE12LF) B 84.0/55.4
Q41 1530004100 S.TRA MT3S20P(TE12LF) B 40.5/55.4
Q46 1590004050 S.TRA LDTA144EET1G B 79.3/70.5
Q48 1590004050 S.TRA LDTA144EET1G B 79.3/67.6
Q100 1590004070 S.TRA LDTC144EET1G T 30.5/26.6
Q102 1530003990 S.TRA 2SC4738-BL(TE85LF) T 8.4/31.8
Q106 1560002190 S.FET RUM002N02T2L B 126.3/95.2
Q112 1590004590 S.TRA DMC506010R T 83.4/76.3
Q117 1590004070 S.TRA LDTC144EET1G T 69.2/61.4
Q119 1590004310 S.TRA LDTA114EET1G T 66.7/62.2
Q121 1590004070 S.TRA LDTC144EET1G T 69.6/57.9
Q123 1590004050 S.TRA LDTA144EET1G T 64.3/61.7
Q125 1590004390 S.TRA DMG504010R T 84.4/68.0
Q127 1590004070 S.TRA LDTC144EET1G T 62.5/68.9
Q129 1590004310 S.TRA LDTA114EET1G T 56.1/83.3
Q131 1590004070 S.TRA LDTC144EET1G T 49.2/85.2
Q133 1530003990 S.TRA 2SC4738-BL(TE85LF) T 48.9/82.9
Q137 1530002601 S.TRA 2SC4215-O(TE85RF) B 41.4/74.5
Q139 1590004090 S.TRA LDTC114YET1G T 76.3/80.6
Q141 1590004050 S.TRA LDTA144EET1G T 64.2/58.9
Q143 1580000731 S.FET 3SK293(TE85LF) T 27.7/79.0
Q148 1590004070 S.TRA LDTC144EET1G T 67.8/59.5
Q149 1590004070 S.TRA LDTC144EET1G T 56.3/20.2
Q151 1590004070 S.TRA LDTC144EET1G T 34.3/16.0
Q152 1590004060 S.TRA LDTC114EET1G T 30.5/16.1
Q154 1590004070 S.TRA LDTC144EET1G T 73.4/27.0
Q220 1530003990 S.TRA 2SC4738-BL(TE85LF) B 33.9/31.5
Q221 1560000541 S.FET 2SK880-Y(T5RICOMF) B 55.1/29.6
Q222 1590004070 S.TRA LDTC144EET1G B 52.5/34.0
Q223 1590004070 S.TRA LDTC144EET1G B 109.7/35.1

[MAIN UNIT]
6-3
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
[MAIN UNIT]
Q226 1530003990 S.TRA 2SC4738-BL(TE85LF) B 48.2/42.6
Q227 1560002190 S.FET RUM002N02T2L T 53.6/41.8
Q228 1560002190 S.FET RUM002N02T2L T 45.6/43.4
Q229 1590004090 S.TRA LDTC114YET1G B 52.8/41.7
Q230 1590004090 S.TRA LDTC114YET1G B 52.8/39.7
Q231 1590004580 S.TRA DMA501010R B 48.4/39.9
Q232 1530004590 S.TRA BFR193F H6327 T 49.7/46.8
Q233 1530004590 S.TRA BFR193F H6327 T 40.6/37.5
Q234 1530003321 S.TRA 2SC5108-Y(TE85RF) T 36.5/40.6
Q235 1530003321 S.TRA 2SC5108-Y(TE85RF) T 44.9/47.0
Q236 1530003321 S.TRA 2SC5108-Y(TE85RF) T 40.4/43.4
Q238 1530003321 S.TRA 2SC5108-Y(TE85RF) T 21.5/57.7
Q301 1590004090 S.TRA LDTC114YET1G T 90.2/102.3
Q302 1590004050 S.TRA LDTA144EET1G [#12] T 119.0/11.0
1590004050 S.TRA LDTA144EET1G [#13]
Q303 1550000090 S.FET RSQ035P03TR T 121.2/80.6
Q304 1510001100 S.TRA 2SA1832-GR(TE85RF) B 128.9/65.3
Q305 1530003990 S.TRA 2SC4738-BL(TE85LF) B 129.7/68.3
Q306 1520001010 S.TRA 2SB1132G-R-AB3-R T 95.4/101.5
Q500 1580000731 S.FET 3SK293(TE85LF) T 17.1/116.2
Q510 1580000731 S.FET 3SK293(TE85LF) T 58.6/114.6
Q905 1590004060 S.TRA LDTC114EET1G B 56.6/36.0
Q906 1590004060 S.TRA LDTC114EET1G B 50.8/37.4
D1 1750002230 S.DIO LRB751S-40T1G T 67.1/112.3
D2 1750002230 S.DIO LRB751S-40T1G T 20.8/113.8
D10 1750002990 S.DIO BAR88-02V H6327 T 12.4/90.3
D11 1720000702 S.VAR 1SV305H3F T 10.7/92.4
D14 1750002230 S.DIO LRB751S-40T1G T 45.4/97.5
D15 1720000702 S.VAR 1SV305H3F T 10.6/94.8
D18 1750002990 S.DIO BAR88-02V H6327 T 36.3/97.1
D19 1720000702 S.VAR 1SV305H3F T 43.4/96.7
D21 1720000702 S.VAR 1SV305H3F T 8.3/113.4
D23 1720000702 S.VAR 1SV305H3F T 11.0/110.4
D25 1720000702 S.VAR 1SV305H3F T 10.3/114.0
D27 1720000702 S.VAR 1SV305H3F T 52.3/105.0
D28 1750002230 S.DIO LRB751S-40T1G T 101.5/22.4
D29 1720000702 S.VAR 1SV305H3F T 8.2/110.4
D31 1750002570 S.DIO BAP50-04215 T 29.5/114.5
D32 1790001621 S.DIO 1SV308(TPL3F) T 29.1/112.1
D33 1750002570 S.DIO BAP50-04215 T 67.1/118.5
D36 1750002990 S.DIO BAR88-02V H6327 T 20.3/90.2
D45 1720000702 S.VAR 1SV305H3F T 24.9/96.6
D47 1750001810 S.DIO L1SS400T1G B 39.9/48.5
D48 1750001810 S.DIO L1SS400T1G B 38.5/48.6
D49 1750001970 S.ZEN DZ2J082M0L T 94.8/123.5
D50 1790001622 S.DIO 1SV308L3F B 29.9/46.9
D51 1720000702 S.VAR 1SV305H3F T 29.0/100.8
D52 1790001622 S.DIO 1SV308L3F B 28.3/45.5
D53 1750001810 S.DIO L1SS400T1G B 82.2/52.0
D55 1750001810 S.DIO L1SS400T1G B 39.5/52.3
D56 1790001621 S.DIO 1SV308(TPL3F) T 30.8/111.9
D57 1720000702 S.VAR 1SV305H3F T 27.9/105.9
D58 1720000702 S.VAR 1SV305H3F T 36.2/109.0
D59 1750001820 S.DIO LRB706F-40T1G B 76.1/112.2
D62 1750001820 S.DIO LRB706F-40T1G B 38.6/89.4
D63 1750001820 S.DIO LRB706F-40T1G B 71.0/111.4
D66 1750002190 S.DIO JDP2S12CR(TE85LQ) B 75.7/126.9
D67 1750001820 S.DIO LRB706F-40T1G B 27.5/111.4
D68 1750002190 S.DIO JDP2S12CR(TE85LQ) B 40.8/115.1
D69 1790001622 S.DIO 1SV308L3F B 68.2/119.2
D70 1790001622 S.DIO 1SV308L3F B 69.4/119.2
D71 1790001622 S.DIO 1SV308L3F B 70.6/119.2
D73 1750002190 S.DIO JDP2S12CR(TE85LQ) B 30.8/116.8
D75 1790001622 S.DIO 1SV308L3F T 30.5/123.0
D77 1790001622 S.DIO 1SV308L3F T 72.8/119.8
D79 1750001810 S.DIO L1SS400T1G T 32.7/116.9
D81 1750001810 S.DIO L1SS400T1G T 63.6/118.3
D84 1750002190 S.DIO JDP2S12CR(TE85LQ) B 42.9/115.2
D85 1720000702 S.VAR 1SV305H3F T 52.3/101.9
D86 1720000702 S.VAR 1SV305H3F T 40.5/97.4
D89 1720000702 S.VAR 1SV305H3F T 8.7/96.0
D90 1720000702 S.VAR 1SV305H3F T 8.1/92.4
D100 1750001810 S.DIO L1SS400T1G T 11.1/30.7
D101 1730002850 S.ZEN DZ2J047M0L T 18.3/30.0
D105 1750002020 S.DIO DA2S10100L T 61.1/58.3
D106 1750002020 S.DIO DA2S10100L T 60.3/60.2
D109 1750002020 S.DIO DA2S10100L T 46.1/66.0
D110 1750002020 S.DIO DA2S10100L T 48.1/67.9
D113 1750001820 S.DIO LRB706F-40T1G T 47.6/77.9
D115 1750002230 S.DIO LRB751S-40T1G B 43.8/76.9
D117 1750001820 S.DIO LRB706F-40T1G T 41.9/70.3
D123 1750001810 S.DIO L1SS400T1G T 39.2/16.0
D124 1750001810 S.DIO L1SS400T1G T 37.3/15.2
D127 1750002230 S.DIO LRB751S-40T1G T 25.7/84.0
D128 1750002230 S.DIO LRB751S-40T1G T 25.7/85.2
D129 1750002230 S.DIO LRB751S-40T1G T 11.3/85.2
D178 1750002230 S.DIO LRB751S-40T1G T 22.1/99.0
D223 1750002860 S.VAR BBY57-02V H6327 T 50.2/38.2
D224 1750002860 S.VAR BBY57-02V H6327 T 52.8/37.9
D225 1750001771 S.VAR 1SV323H3F T 45.2/32.9
D226 1750001771 S.VAR 1SV323H3F T 46.0/34.7
D227 1750001771 S.VAR 1SV323H3F T 47.7/37.6
D228 1750001771 S.VAR 1SV323H3F T 45.1/31.7
D229 1750001790 S.DIO 1SS390 TE61 T 50.4/43.2
D230 1750001790 S.DIO 1SS390 TE61 T 44.3/41.0
D231 1750001810 S.DIO L1SS400T1G T 40.5/45.9
D232 1750001790 S.DIO 1SS390 TE61 T 38.4/46.9
D233 1750001790 S.DIO 1SS390 TE61 T 40.1/47.9
D234 1750002990 S.DIO BAR88-02V H6327 T 18.1/61.4
D235 1750002990 S.DIO BAR88-02V H6327 T 22.3/60.1
D251 1750002230 S.DIO LRB751S-40T1G T 94.7/21.0
D252 1750002230 S.DIO LRB751S-40T1G T 101.5/21.2
REF PART DESCRIPTION M. H/V
NO. NO.
LOCATION
D253 1750002230 S.DIO LRB751S-40T1G T 99.0/21.1
D254 1750002230 S.DIO LRB751S-40T1G B 108.1/18.5
D301 1750001810 S.DIO L1SS400T1G [#12] T 116.5/11.0
1750001810 S.DIO L1SS400T1G [#13]
D302 1750001810 S.DIO L1SS400T1G [#15] B 104.3/72.6
1750001810 S.DIO L1SS400T1G [#19]
D304 1750001771 S.VAR 1SV323H3F B 130.8/47.9
D307 1750001810 S.DIO L1SS400T1G [#12] T 110.2/73.3
1750001810 S.DIO L1SS400T1G [#13]
1750001810 S.DIO L1SS400T1G [#15]
D309 1750001810 S.DIO L1SS400T1G Only [#13] B 110.2/73.3
D314 1750001810 S.DIO L1SS400T1G Only [#13] T 110.2/70.9
D315 1750001810 S.DIO L1SS400T1G [#12] T 110.2/72.1
1750001810 S.DIO L1SS400T1G [#13]
1750001810 S.DIO L1SS400T1G [#15]
D316 1750001810 S.DIO L1SS400T1G Only [#13] B 110.2/70.9
D317 1750001810 S.DIO L1SS400T1G [#12] B 110.2/72.1
1750001810 S.DIO L1SS400T1G [#13]
D322 1750001810 S.DIO L1SS400T1G [#12] B 110.2/69.7
1750001810 S.DIO L1SS400T1G [#19]
D324 1710001420 DIO 1.5KE20A
D325 1750001810 S.DIO L1SS400T1G T 123.2/74.8
D326 1750001810 S.DIO L1SS400T1G T 119.3/75.9
D327 1750001810 S.DIO L1SS400T1G B 127.5/68.5
D328 1750001820 S.DIO LRB706F-40T1G B 62.4/14.9
D331 1750002110 S.DIO LRB551V-30T1G T 122.4/77.4
D332 1750002110 S.DIO LRB551V-30T1G T 115.2/76.3
D333 1750002110 S.DIO LRB551V-30T1G T 120.0/73.6
D334 1750001820 S.DIO LRB706F-40T1G B 10.1/23.4
D335 1750001820 S.DIO LRB706F-40T1G B 67.4/14.9
D336 1750001820 S.DIO LRB706F-40T1G B 64.9/14.9
D338 1750001820 S.DIO LRB706F-40T1G B 108.6/105.6
D340 1750001820 S.DIO LRB706F-40T1G B 10.5/26.0
D343 1750002990 S.DIO BAR88-02V H6327 T 26.1/75.0
D344 1750002990 S.DIO BAR88-02V H6327 T 20.0/76.2
D348 1790002160 S.VAR TPD1E10B06DPYR T 83.6/18.4
D349 1790002160 S.VAR TPD1E10B06DPYR T 80.3/18.4
D350 1790002160 S.VAR TPD1E10B06DPYR T 77.3/18.4
D351 1750001810 S.DIO L1SS400T1G T 108.5/103.0
D352 1790002160 S.VAR TPD1E10B06DPYR T 106.7/43.1
D353 1790002160 S.VAR TPD1E10B06DPYR T 106.9/41.0
D354 1790002160 S.VAR TPD1E10B06DPYR T 109.2/41.0
D355 1790002160 S.VAR TPD1E10B06DPYR T 109.1/42.8
D356 1790002160 S.VAR TPD1E10B06DPYR T 111.4/41.6
D357 1790002160 S.VAR TPD1E10B06DPYR T 111.0/43.4
FI100 2020002520 S.CER LTWC450H T 52.8/57.6
FI101 2020002480 S.CER LTWC450E1 T 54.9/66.8
FI104 2030000870 S.MON XDCAB 46.350 MHz (FL-442) T 38.2/75.6
X3 6050013981 S.XTA CR-997A DSA221SDN
12.288 MHz B 111.9/32.8
X101 6070000300 S.DIS JTBM450CX24 T 67.8/72.3
X201 6050013930 S.XTA CR-993 NT3225SA 15.3 MHz B 27.4/32.5
X300 6050014200 S.XTA CR-1021 S3225A 12.288 MHz B 130.8/51.3
L3 6200011730 S.COI LQW18AN10NG00D(650MA) T 8.2/91.0
L9 6200011670 S.COI LQW18AN82NG00D T 39.2/97.4
L11 6200010700 S.COI LQW18AN12NG00D T 10.7/96.5
L15 6200011590 S.COI LQW18AN39NG00D T 10.0/99.8
L17 6200011770 S.COI LQW18ANR10G00D T 48.8/93.8
L22 6200013010 S.COI 0.30-0.9-5TL 10.3N T 11.0/108.7
L23 6200011670 S.COI LQW18AN82NG00D T 51.9/99.1
L27 6200012520 S.COI 0.26-1.0-5TL 12N T 8.4/115.2
L32 6200009290 S.COI LQW18AN47NG00D
(LQW1608A47NG00) T 53.1/107.2
L33 6200009290 S.COI LQW18AN47NG00D
(LQW1608A47NG00) T 51.1/108.0
L49 6200015410 S.COI MLK1005SR33JT B 32.2/46.6
L50 6200013780 S.COI MLK1005S56NJT B 69.1/50.0
L51 6200013780 S.COI MLK1005S56NJT B 68.4/48.5
L52 6200013800 S.COI MLK1005S39NJT B 26.1/47.8
L53 6200013840 S.COI MLK1005S18NJT B 72.7/47.2
L54 6200013780 S.COI MLK1005S56NJT B 83.3/58.4
L55 6200013790 S.COI MLK1005S47NJT B 74.0/49.7
L57 6200013810 S.COI MLK1005S33NJT B 31.7/51.6
L58 6200013840 S.COI MLK1005S18NJT B 34.1/52.8
L60 6200013800 S.COI MLK1005S39NJT B 80.5/55.1
L62 6200013840 S.COI MLK1005S18NJT B 37.3/52.5
L64 6200013820 S.COI MLK1005S27NJT B 36.8/55.2
L65 6200013840 S.COI MLK1005S18NJT B 38.7/58.4
L67 6200010060 S.COI AS080647-56N B 84.5/104.3
L68 6200010060 S.COI AS080647-56N B 81.8/113.1
L69 6200010150 S.COI AS080340-15N B 38.7/100.4
L73 6200010160 S.COI AS080440-22N B 39.0/108.0
L76 6200010420 S.COI FHW1210HC 1R0JGT B 80.0/126.6
L79 6200010060 S.COI AS080647-56N B 62.4/126.6
L80 6200010060 S.COI AS080647-56N B 71.2/123.0
L81 6200010420 S.COI FHW1210HC 1R0JGT B 43.4/110.5
L83 6200010070 S.COI AS080747-68N B 55.5/127.9
L84 6200010160 S.COI AS080440-22N B 37.4/122.4
L85 6200012900 S.COI 0.30-2.0-7TL 57.2N T 69.3/121.8
L86 6200010150 S.COI AS080340-15N B 35.2/117.2
L87 6200010050 S.COI AS080547-47N B 48.7/129.5
L88 6200010160 S.COI AS080440-22N B 36.7/127.5
L90 6200010040 S.COI AS100340-10N-A B 26.3/125.8
L92 6200012960 S.COI 0.45-1.4-4TL 12.1N T 31.6/120.3
L94 6200010160 S.COI AS080440-22N B 19.1/120.5
L96 6200010040 S.COI AS100340-10N-A B 11.1/120.1
L99 6200011780 S.COI LQW18ANR18G00D T 11.7/112.4
L100 6200011780 S.COI LQW18ANR18G00D T 12.4/94.1
REF PART DESCRIPTION M. H/V
NO. NO.
LOCATION
