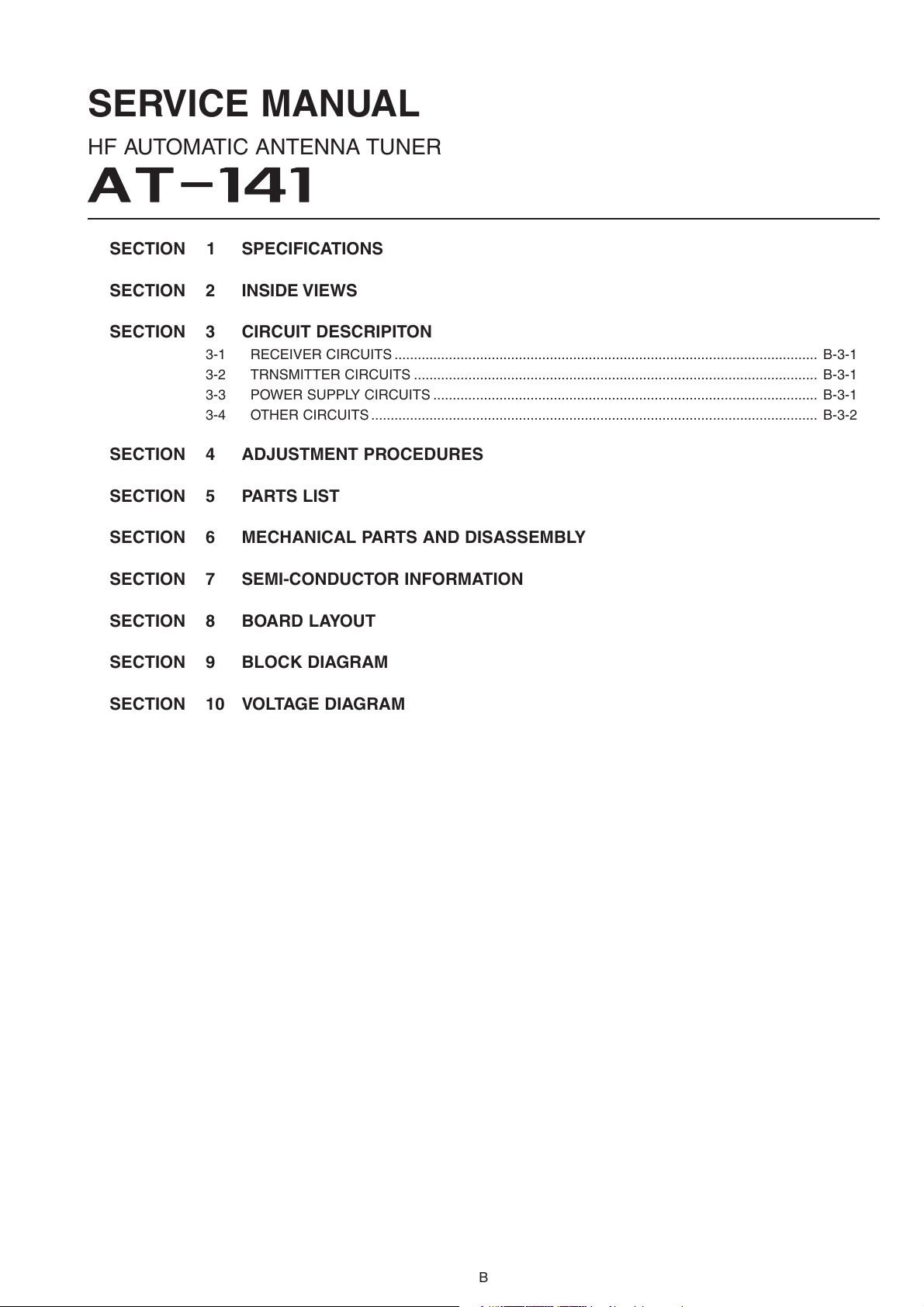

Icom AT-141 User manual
SECTION 1 SPECIFICATIONS
SECTION 2 INSIDE VIEWS
SECTION 3 CIRCUIT DESCRIPITON
3-1 RECEIVER CIRCUITS ............................................................................................................. B-3-1
3-2 TRNSMITTER CIRCUITS ........................................................................................................ B-3-1
3-3 POWER SUPPLY CIRCUITS ................................................................................................... B-3-1
3-4 OTHER CIRCUITS ................................................................................................................... B-3-2
SECTION 4 ADJUSTMENT PROCEDURES
SECTION 5 PARTS LIST
SECTION 6 MECHANICAL PARTS AND DISASSEMBLY
SECTION 7 SEMI-CONDUCTOR INFORMATION

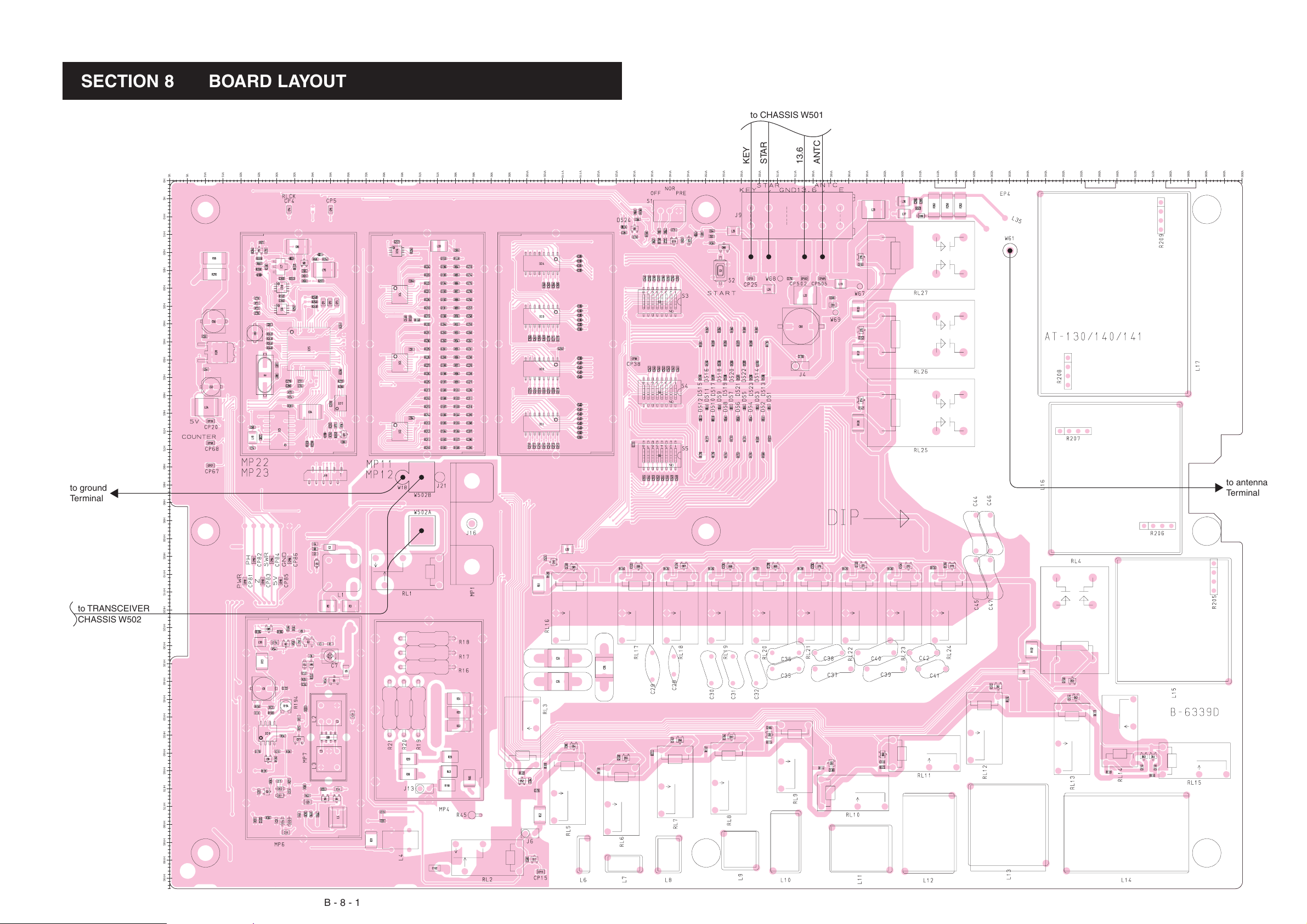

SECTION 8 BOARD LAYOUT
SECTION 9 BLOCK DIAGRAM
SECTION 10 VOLTAGE DIAGRAM
SERVICE MANUAL
HF AUTOMATIC ANTENNA TUNER
B
B - 1 - 1

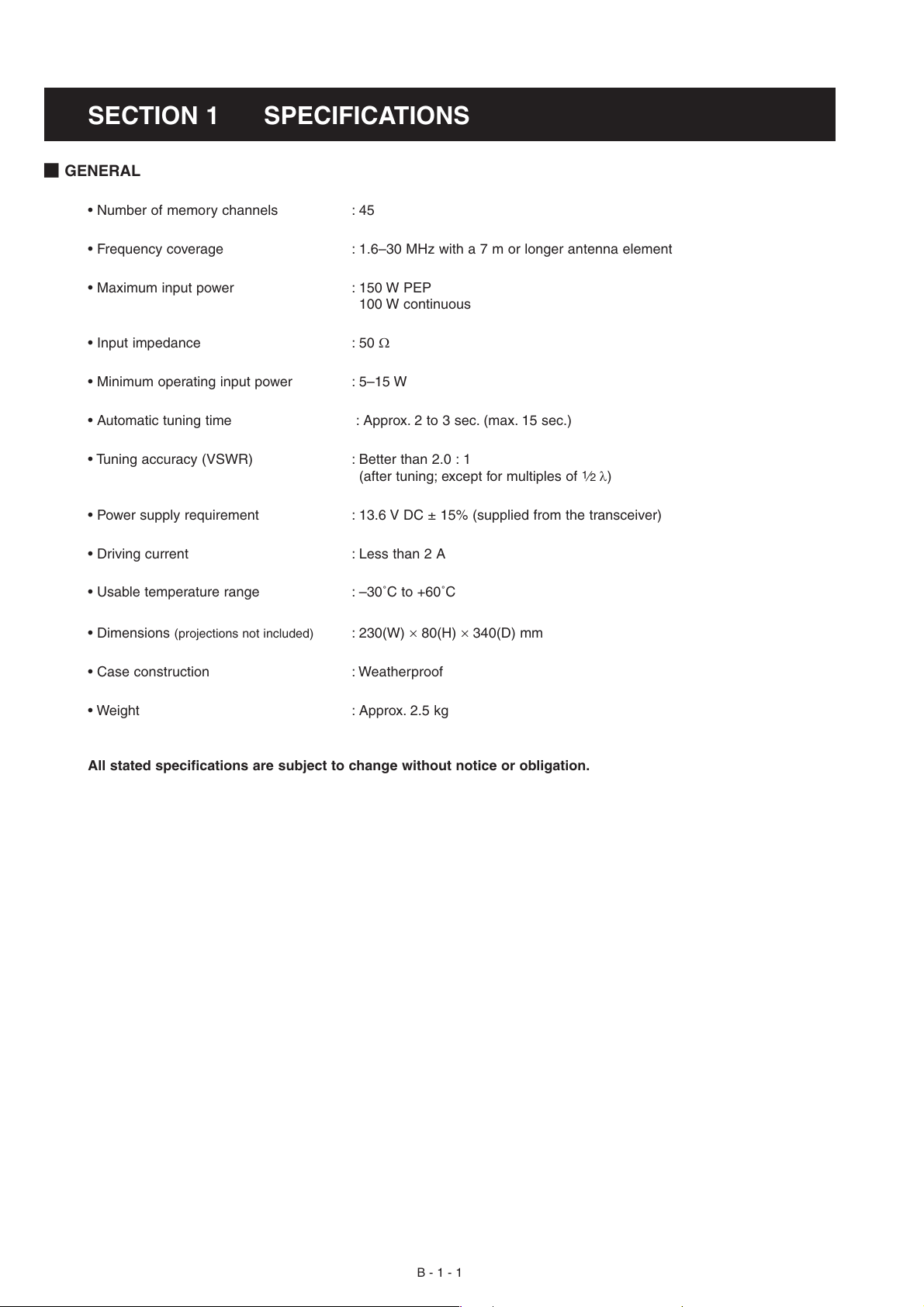

SECTION 1 SPECIFICATIONS
PGENERAL
• Number of memory channels : 45
• Frequency coverage : 1.6–30 MHz with a 7 m or longer antenna element
• Maximum input power : 150 W PEP
100 W continuous
• Input impedance : 50 Ω
• Minimum operating input power : 5–15 W
• Automatic tuning time : Approx. 2 to 3 sec. (max. 15 sec.)
• Tuning accuracy (VSWR) : Better than 2.0 : 1
(after tuning; except for multiples of 1⁄2 λ)
• Power supply requirement : 13.6 V DC ± 15% (supplied from the transceiver)
• Driving current : Less than 2 A
• Usable temperature range : –30˚C to +60˚C
• Dimensions
(projections not included) : 230(W) ×80(H) ×340(D) mm
• Case construction : Weatherproof
• Weight : Approx. 2.5 kg
All stated specifications are subject to change without notice or obligation.
SECTION 2 INSIDE VIEWS
B - 2 - 1
Control cable
receptacle
+5V regulator
(IC20: TA7805F)
CPU
(IC15: MB95F108AHSPFM)
LEDs
(DS1
-
DS23: SML-311UT)
Ground terminal
Antenna terminal
Antenna cable
receptacle
Attenuator
Phase detector
circuit
Forward power
detector circuit
SWR detector
circuit
B - 3 - 1
SECTION 3 CIRCUIT DESCRIPTION
3-1 GENERAL
An 8-bit microprocessor controls the AT-141. The antenna tuner matches the antenna system to the transceiver by using four
kinds of detector circuits.
(1) FORWARD POWER DETECTOR
(2) SWR DETECTOR
(3) PHASE DETECTOR
(4) IMPEDANCE DETECTOR
Detailed descriptions for each circuit as follows.
FORWARD (FWD)
POWER DETECTOR
CIRCUIT
TRANSCEIVER
FWD
DATA
TO
RL1, RL2
Z
DATA
PH
DATA
SWR
DATA
LOGIC
CIRCUIT
LED
CIRCUIT
IMPEDANCE
DETECTOR
CIRCUIT
PHASE DETECTOR
CIRCUIT
SWR
DETECTOR
CIRCUIT
MATCHING
NETWORK
ATTENUATOR
RL1 RL2 ANT
3-2 FORWARD (FWD) POWER DETECTOR CIRCUIT
This circuit ensures the input power from the transceiver is
low enough to be handled by the attenuator within the tuner.
The RF power from the connected transceiver is detected at
the power detector (L1) and then convert into a DC voltage.
The converted voltage is applied to the CPU (IC15, pin 62)
and then analyzed input RF power.
C3
C2
D1
L1
R13
R8 R72R9
To CPU
(IC15, pin 63)
To RL2
INPUT
(FROM RL1)
C4 C178
• FORWARD POWER DETECTOR CIRCUIT
L4
R30
R29
R28
(FROM RL1)
R31
C18 D14
C21 R37
D13
INPUT
To CPU
(IC15, pin 62)
R36
OUTPUT
(TO RL2)
• SWR DETECTOR CIRCUIT
3-3 SWR DETECTOR CIRCUIT
The SWR detector detects the reflected signal from the
antenna system.
The reflected signal is detected at the SWR detector (L4)
and then converted into DC voltage at D13, D14. The con-
verted voltage is applied to the CPU (IC15, pin 62) and the
CPU controls the setting of the coils and capacitors in the
matching network.
B - 3 - 2
ATTENUATOR
R16–R24
SWR DETECTOR
CIRCUIT
INPUT
C7
C8
D8
D7 C12
C15
C16
R33
R34
R151
IC19
R27 D11
D12
C17
Q4
C19
C20
TO Q5
TO IC15
BUFFER
AMP
OUTPUT
(TO RL2)
(FROM RL1)
ATTENUATOR
R16–R24
SWR DETECTOR
CIRCUIT
INPUT
C6
From R193
L2 L3
D6
R14
D81
IC19
D5
R15
BUFFER
AMP
Q4, Q5
TO IC15
OUTPUT
(TO RL2)
(FROM RL1)
• PHASE DETECTOR CIRCUIT
• IMPEDANCE DETECTOR CIRCUIT
C285
L36
C286
R259
R258
L35
L37
TO W501
(ANTC)
L302 TO L317
FROM
ANTENNA
D86
• ANTENNA CURRENT DETECTOR CIRCUIT
3-4 PHASE DETECTOR CIRCUIT
The phase detector consists of L2, L3 and D81. The phase
detector’s purpose is to detect reactance components and
provide a pure resistance.
The output of D81 is a reference voltage of approximately
0 V when the load of L3 is a pure resistance with no reac-
tance. An inductive load produces an output voltage from
D81 which is lower than the reference voltage, whereas, a
capacitive load produces an output voltage higher than the
reference voltage. The output voltage from the phase detec-
tor is applied to the comparator (IC19b) and then applied to
the CPU (IC15, pin 23).
3-5 IMPEDANCE DETECTOR CIRCUIT
The tuner uses an attenuator to reduce the transmit power
to a very low level. The low power minimizes the risk of
interference to other stations while matching an antenna to
the transmitter.
The VSWR at the input terminal is usually close to 1:1 even
with a large change of impedance at the attenuator output
due to the 16 dB of isolation between the input and the
matching network.
The circuit uses the constant voltage at D7 and D8 as a ref-
erence. If the impedance of the attenuator output is higher
than 50 Ω, the detected voltage by D11 and D12 is high. If
the impedance is lower than 50 Ω, the voltage is low. Both
the reference and detected voltages are applied to the com-
parator (IC19a). The output voltage from the comparator is
applied to the CPU (IC15, pin 24)
3-6 LOGIC CIRCUIT
The CPU (IC15) controls the antenna matching network.
The CPU receives +5V through IC20 when DC power is
applied to the tuner. This voltage initializes the CPU and
then the CPU sets each relay to the initial condition.
The tuning program begins only if the START line is at LOW
level. RL1 and RL2 activate when RF power is applied to
the tuner from the transceiver.
3-8 ANTENNA CURRENT DETECTOR CIRCUIT
Antenna current detected at antenna current detector (L35).
The detected voltage is converted into a DC voltage at D86
and then applied to the ANTC line after passed through the
low-pass filter (L36, C286).
B - 4 - 1
SECTION 4 ADJUSTMENT PROCEDURES
DC power supply
IC-M801E
Antenna receptacle
Control receptacle
AT-141
–+
• CONNECTION
4-1 PREPARATION
■REQUIRED TEST EQUIPMENT
EQUIPMENT GRADE AND RANGE
DC power supply Output voltage : Depended on connected transceiver
Current capacity : Depended on connected transceiver
Oscilloscope Frequency range : DC–20 MHz
Measuring range : 0.01–10 V
B - 4 - 2
4-2 TUNER ADJUSTMENT
ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE ADJUSTMENT
UNIT LOCATION UNIT ADJUST
PREPARA-
TION
1 • Disconnect short pin (P6) from J6
• Connect the disconnected short pin (P6) to J13.
• Connect a wire between CP15 and ground.
• TRANSCEIVER
Display frequency : 1.6000 MHz
Output power : 10 W (Carrier only)
FORWARD
DETECTOR
CIRCUIT
2 • Transmit the transceiver. TUNER Connect a voltme-
ter to CP81.
1.4 – 2.4 V TUNER Verify
SWR DE-
TECTOR
CIRCUIT
3 • Transmit the transceiver. Connect a voltme-
ter to CP84.
0 – 0.1 V Verify
PHASE
DETECTOR
CIRCUIT
4 • Transmit the transceiver. Connect an oscil-
loscope to CP81.
5 V (Set R194 at
the point where the
voltage just before
drops to 0 V.)
R194
IMPEDANCE
DETECTOR
CIRCUIT
5 • Transmit the transceiver. Connect an oscil-
loscope to CP83.
5 V (Set C7 at the
point where the
voltage just before
drops to 0 V.)
C7
NOTE: • After the adjustment, remove the jumper wire between CP15 and ground.
• After the adjustment, disconnect short pin (P6) from J13.
• After the adjustment, connect the disconnected short pin (P6) to J6.
• While the adjustment the transmitting time as short as possible.
C7
J13
CP84
R194
Impedance detector
adjustment
Pre-set point
J6 Pre-set point
CP15 Pre-set point
SWR detector
check point
CP82
Phase detector
check point
CP81
CP83
Impedance detector
check point
Phase detector
adjustment
B - 5 - 1

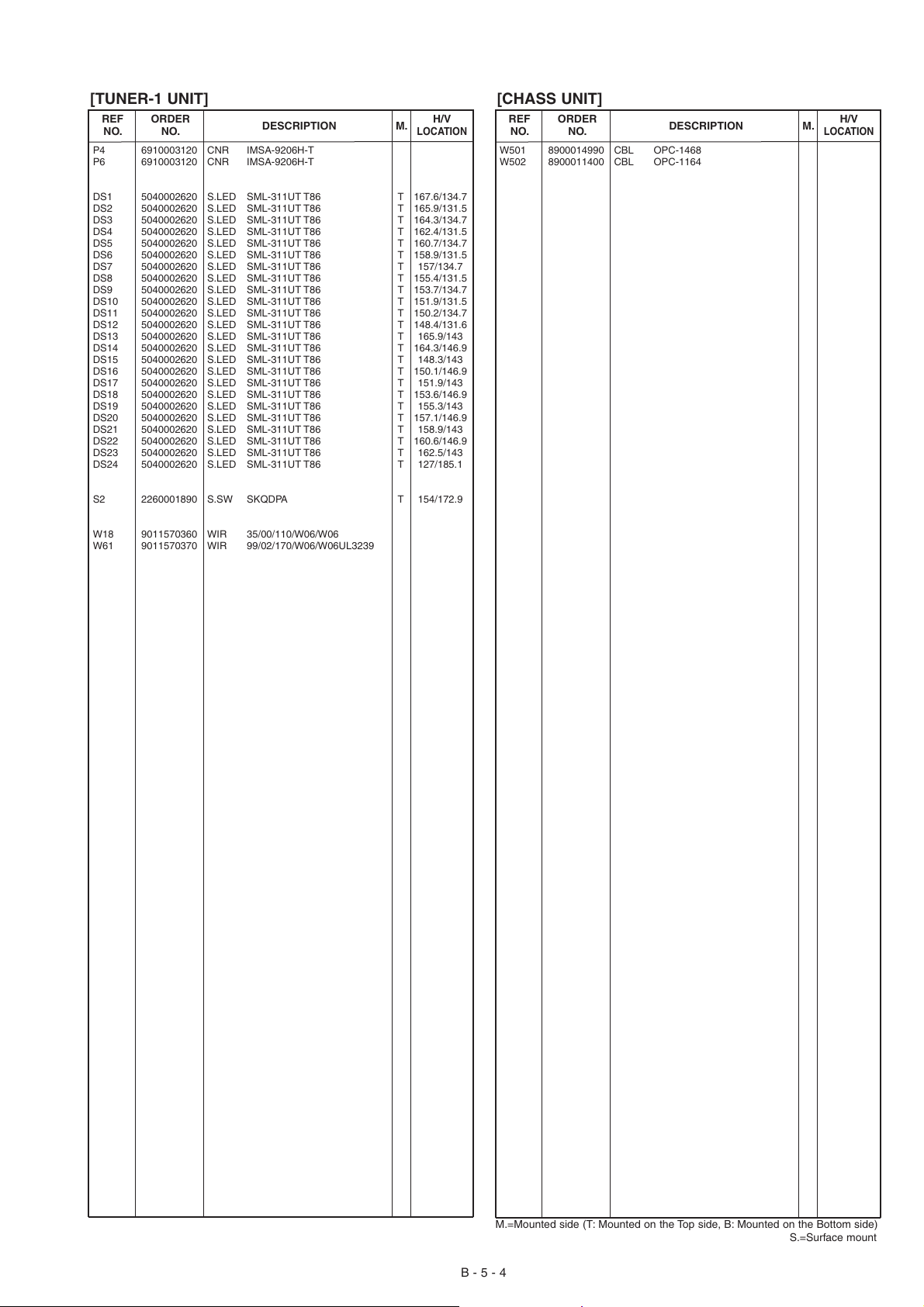

SECTION 5 PARTS LIST
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
[TUNER-1 UNIT]
IC2 1130007570 S.IC BU4094BCFV-E2 T 64.3/127.9
IC3 1130007570 S.IC BU4094BCFV-E2 T 64.3/147.1
IC4 1130007570 S.IC BU4094BCFV-E2 T 64.3/166.2
IC5 1130008411 S.IC TC74A393F (EL, F) T 30.6/128.3
IC6 1130007111 S.IC TC7W04FU (TE12L, F) T 31.3/162.1
IC7 1110005791 S.IC S-80841CLUA-B62T2G T 30.9/174
IC11 1160000120 S.IC
vPA2004GR-E2 T 104/130
IC12 1160000120 S.IC
vPA2004GR-E2 T 104/145.4
IC13 1160000120 S.IC
vPA2004GR-E2 T 104/160.1
IC14 1160000120 S.IC
vPA2004GR-E2 T 104/174.9
IC15 1140013390 S.IC MB95F108AHSPFM-GE1 T 38.9/151
IC17 1130013080 S.IC S-24CS08AFT-TB-1 T 47.8/135.8
IC18 1130007261 S.IC TC7W74FU (TE12, F) T 31.3/168.2
IC19 1110001591 S.IC TA75393FG (EL) T 27.4/43.5
IC20 1180001071 S.IC TA7805F (TE16L, Q) T 13.4/150
Q2 1530002691 S.TR 2SC4116-GR (TE85R, F) T 32.5/68.5
Q3 1590000430 S.TR DTC144EUA T106 T 27.2/27.2
Q4 1530002691 S.TR 2SC4116-GR (TE85R, F) T 46.7/25.2
Q5 1530002691 S.TR 2SC4116-GR (TE85R, F) T 43.5/25.2
Q7 1510000771 S.TR 2SA1586-GR (TE85R,F) T 25/178.6
Q8 1530002691 S.TR 2SC4116-GR (TE85R, F) T 37.6/175.1
Q11 1530002691 S.TR 2SC4116-GR (TE85R, F) T 48.7/127.1
D1 1750000950 S.DIO MA732 (TX) T 41.1/91
D2 1790000450 S.DIO MA862 (TX) T 38.8/69.1
D5 1790000491 S.DIO HSM88ASTR-E T 46/58.3
D7 1750000950 S.DIO MA732 (TX) T 37.7/62.7
D8 1750000950 S.DIO MA732 (TX) T 39.6/62.7
D9 1750000271 S.DIO 1SS301 (TE85R, F) T 27.5/36.3
D11 1750000950 S.DIO MA732 (TX) T 30.9/26.1
D12 1750000950 S.DIO MA732 (TX) T 30.9/28
D13 1750000950 S.DIO MA732 (TX) T 33.4/18.8
D14 1750000950 S.DIO MA732 (TX) T 31.5/18.8
D16 1750000271 S.DIO 1SS301 (TE85R, F) T 107.3/91.4
D17 1750000271 S.DIO 1SS301 (TE85R, F) T 102/8.3
D22 1790001250 S.DIO MA2S111-(TX) T 34.1/176.3
D52 1750000271 S.DIO 1SS301 (TE85R, F) T 98.5/30.2
D53 1750000271 S.DIO 1SS301 (TE85R, F) T 252.4/58.2
D54 1750000271 S.DIO 1SS301 (TE85R, F) T 113/39.9
D55 1750000271 S.DIO 1SS301 (TE85R, F) T 127.6/36.6
D56 1750000271 S.DIO 1SS301 (TE85R, F) T 142.7/41.6
D57 1750000271 S.DIO 1SS301 (TE85R, F) T 157.1/42.5
D58 1750000271 S.DIO 1SS301 (TE85R, F) T 167.7/43.1
D59 1750000271 S.DIO 1SS301 (TE85R, F) T 185/35.1
D60 1750000271 S.DIO 1SS301 (TE85R, F) T 199.4/37.6
D61 1750000271 S.DIO 1SS301 (TE85R, F) T 231.7/56.6
D62 1750000271 S.DIO 1SS301 (TE85R, F) T 253.4/53.5
D63 1750000271 S.DIO 1SS301 (TE85R, F) T 272.4/37
D64 1750000271 S.DIO 1SS301 (TE85R, F) T 275/37
D65 1750000271 S.DIO 1SS301 (TE85R, F) T 113/90
D66 1750000271 S.DIO 1SS301 (TE85R, F) T 131.1/90.2
D67 1750000271 S.DIO 1SS301 (TE85R, F) T 143.8/90.3
D68 1750000271 S.DIO 1SS301 (TE85R, F) T 156.8/90.2
D69 1750000271 S.DIO 1SS301 (TE85R, F) T 169.4/90.2
D70 1750000271 S.DIO 1SS301 (TE85R, F) T 181.7/90.2
D71 1750000271 S.DIO 1SS301 (TE85R, F) T 194/90.4
D72 1750000271 S.DIO 1SS301 (TE85R, F) T 206.6/90.2
D73 1750000271 S.DIO 1SS301 (TE85R, F) T 218.8/90.3
D74 1750000271 S.DIO 1SS301 (TE85R, F) T 193.3/136.7
D75 1750000271 S.DIO 1SS301 (TE85R, F) T 193.4/156.3
D76 1750000271 S.DIO 1SS301 (TE85R, F) T 193.3/176.7
D77 1790000491 S.DIO HSM88ASTR-E T 36.1/41.8
D78 1790001250 S.DIO MA2S111-(TX) T 25/171.7
D79 1790001250 S.DIO MA2S111-(TX) T 43.4/126.9
D80 1790000491 S.DIO HSM88ASTR-E T 155/179.4
D81 1750000431 S.DIO HSB88WSTR-E T 44.4/42.4
D85 1750000271 S.DIO 1SS301 (TE85R, F) T 27.7/72.7
D86 1750000950 S.DIO MA732 (TX) T 210.2/188.2
X1 6050009870 S.XTL CR-567 (9.8304 MHz) T 26.6/143.7
L1 6140003490 COL LR-391
L2 6140000930 COL LR-116
L3 6140000930 COL LR-116
L4 6140000070 COL LR-19
L5 6200011630 S.COL NL565050T-222J-PF T 47/20
L6 6110002750 COL LA-459
L7 6110002760 COL LA-460
L8 6110002770 COL LA-461
L9 6110002780 COL LA-462
L10 6110002790 COL LA-463
L11 6110002800 COL LA-464
L12 6110002810 COL LA-465
L13 6110002820 COL LA-466
L14 6110002830 COL LA-467
L15 6110002840 COL LA-468
L16 6110002850 COL LA-469
L17 6110002860 COL LA-470
L18 6200003261 S.COL NLV32T-101J T 23.1/126.2
L20 6200008820 S.COL HF70ACC 635050-T T 196.8/190
L22 6200008820 S.COL HF70ACC 635050-T T 177.7/166
L24 6200003261 S.COL NLV32T-101J T 167.6/167.7
L25 6200003261 S.COL NLV32T-101J T 157.6/184
L28 6200003261 S.COL NLV32T-101J T 25.3/69
L31 6200011610 S.COL NLC453232T-100K-PF T 238.8/60.8
L32 6200001831 S.COL NLV32T-100J T 111.2/95
L33 6200011620 S.COL NLC453232T-470K-PF T 75.3/179.8
L34 6200008820 S.COL HF70ACC 635050-T T 10.3/134.7
L35 6140001550 COL LR-174
L36 6200003950 S.COL HF50ACC 322513-T T 205.3/192.3
L37 6200003950 S.COL HF50ACC 322513-T T 205.4/188.8
R1 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 44.9/68.5
R2 7030007190 S.RES ERJ12YJ220U (22) T 44.3/79.1
R3 7030007190 S.RES ERJ12YJ220U (22) T 50.5/79.1
R8 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 40.6/95.1
R9 7030003590 S.RES ERJ3GEYJ 183 V (18 k) T 36.9/72.1
R10 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 34.6/72.8
R11 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 36.1/47.7
R12 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 28.3/50.7
R13 7030006270 S.RES ERJ12YJ221U (220) T 25.8/63.6
R14 7030003200 S.RES ERJ3GEYJ 100 V (10) T 43.4/58.2
R15 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 36.1/44.9
R16 7070000731 RES ERG2SJ 331 (330)
R17 7070000731 RES ERG2SJ 331 (330)
R18 7070000721 RES ERG2SJ 271 (270)
R19 7070000291 RES ERG2SJ 221 (220)
R20 7070000291 RES ERG2SJ 221 (220)
R21 7070000291 RES ERG2SJ 221 (220)
R22 7030011300 S.RES ERJ1TY 331U (330) T 80.8/45.6
R23 7030011300 S.RES ERJ1TY 331U (330) T 80.8/49.4
R24 7030011310 S.RES ERJ1TY 271U (270) T 80.8/53.2
R25 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 37.6/58.6
R26 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 33.2/38.4
R27 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 33.4/30.1
R28 7030006220 S.RES ERJ12YJ470U (47) T 78.4/36.9
R29 7030006220 S.RES ERJ12YJ470U (47) T 66.7/36.3
R30 7030006220 S.RES ERJ12YJ470U (47) T 66.7/32.1
R31 7030006220 S.RES ERJ12YJ470U (47) T 56.3/13.7
R32 7030003280 S.RES ERJ3GEYJ 470 V (47) T 42.9/27.9
R33 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 38/50.3
R34 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 31.6/42.8
R35 7030003650 S.RES ERJ3GEYJ 563 V (56 k) T 28.2/30.1
R36 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 27.5/19.9
R37 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 23.8/19.2
R38 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 37.7/28.5
R39 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 38/20.9
R40 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 39.5/20.9
R41 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 36.2/20.8
R42 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 38.5/26.1
R43 7030007990 S.RES ERJ12YJ820U (82) T 78.1/32.8
R44 7030003360 S.RES ERJ3GEYJ 221 V (220) T 41.3/20.8
R45 7540000250 ABS SA05C 401N
R46 7030007980 S.RES ERJ12YJ473U (47 k) T 83.8/31
R51 7030007240 S.RES ERJ12YJ680U (68) T 103.1/85
R52 7030007240 S.RES ERJ12YJ680U (68) T 103.5/20.6
R53 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 34.5/68.8
R54 7030003370 S.RES ERJ3GEYJ 271 V (270) T 29.2/67.1
R55 7030010610 S.RES ERJ1TYJ 470U (47) T 12.5/176.4
R56 7030003600 S.RES ERJ3GEYJ 223 V (22 k) T 151.6/180.6
R57 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 25.7/180.8
R58 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 37.7/170
R59 7030003580 S.RES ERJ3GEYJ 153 V (15 k) T 37.7/171.4
R66 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 25/174.9
R67 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 25.4/126.3
R71 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 24.4/163.8
R72 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 24.4/162.4
R73 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 33.7/138.9
R74 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 33.7/137.6
R76 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 48/129.6
R77 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 46.4/129.6
R78 7030005631 S.RES ERA3YKD 154V (150 k) T 44.9/126.9
R84 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/174
R85 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/171.7
R86 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/169.4
R87 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/167.1
S.=Surface mount
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
[TUNER-1 UNIT]
B - 5 - 2
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
[TUNER-1 UNIT]
R88 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/164.8
R89 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/162.5
R90 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/160.2
R92 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/157.9
R93 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/155.6
R94 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/153.3
R95 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/151
R96 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/148.7
R97 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/146.4
R98 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/144.1
R99 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/141.8
R101 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/139.5
R102 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/137.2
R103 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/134.9
R104 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/132.6
R105 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/130.3
R106 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/128
R107 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/125.7
R108 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/123.4
R109 7030003240 S.RES ERJ3GEYJ 220 V (22) T 105/34.4
R110 7030003240 S.RES ERJ3GEYJ 220 V (22) T 119.9/33
R111 7030003240 S.RES ERJ3GEYJ 220 V (22) T 134.9/38
R112 7030003240 S.RES ERJ3GEYJ 220 V (22) T 149.9/39
R113 7030003240 S.RES ERJ3GEYJ 220 V (22) T 167.6/41
R114 7030003240 S.RES ERJ3GEYJ 220 V (22) T 182.2/33.8
R115 7030003240 S.RES ERJ3GEYJ 220 V (22) T 199.3/34
R116 7030003240 S.RES ERJ3GEYJ 220 V (22) T 234.2/53
R117 7030003240 S.RES ERJ3GEYJ 220 V (22) T 258.7/49.1
R118 7030003240 S.RES ERJ3GEYJ 220 V (22) T 274.8/31.7
R119 7030003240 S.RES ERJ3GEYJ 220 V (22) T 262.6/32.7
R120 7030010620 S.RES ERJ12YJ180U (18) T 192.5/130.3
R121 7030010620 S.RES ERJ12YJ180U (18) T 192.5/149.9
R122 7030003240 S.RES ERJ3GEYJ 220 V (22) T 98.5/32.4
R123 7030003240 S.RES ERJ3GEYJ 220 V (22) T 105.7/87.8
R124 7030003240 S.RES ERJ3GEYJ 220 V (22) T 126.4/89.6
R125 7030003240 S.RES ERJ3GEYJ 220 V (22) T 138.9/89.6
R126 7030003240 S.RES ERJ3GEYJ 220 V (22) T 151.4/89.6
R127 7030003240 S.RES ERJ3GEYJ 220 V (22) T 163.9/89.6
R128 7030003240 S.RES ERJ3GEYJ 220 V (22) T 176.4/89.6
R129 7030003240 S.RES ERJ3GEYJ 220 V (22) T 188.9/89.6
R130 7030003240 S.RES ERJ3GEYJ 220 V (22) T 201.5/89.6
R131 7030003240 S.RES ERJ3GEYJ 220 V (22) T 213.5/89.8
R132 7030010620 S.RES ERJ12YJ180U (18) T 241/66.8
R133 7030010620 S.RES ERJ12YJ180U (18) T 192.5/162.1
R149 7030003400 S.RES ERJ3GEYJ 471 V (470) T 80.2/176.3
R150 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 24.5/51
R151 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 39.6/59.4
R156 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 133.3/183.1
R157 7030005521 S.RES ERA3YKD 334V (330 k) T 34.9/174
R159 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 67.2/159.5
R160 7030003400 S.RES ERJ3GEYJ 471 V (470) T 69.2/159.1
R162 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 31.3/165.8
R163 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 38.4/124.4
R167 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 167.7/125.9
R168 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 165.9/121.3
R169 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 164.3/125.7
R170 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 162.4/121.3
R171 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 160.7/125.8
R172 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 158.9/121.3
R173 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 157/125.9
R174 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 155.4/121.3
R175 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 153.7/125.8
R176 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 151.9/121.4
R177 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 150.2/125.8
R178 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 148.4/121.4
R179 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 167/152.4
R180 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 164/156.3
R181 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 148.4/152.4
R182 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 150.2/156.3
R183 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 151.9/152.5
R184 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 153.6/156.3
R185 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 155.3/152.5
R186 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 157.1/156.3
R187 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 158.9/152.5
R188 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 160.6/156.3
R189 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 162.5/152.5
R190 7030006070 S.RES ERJ12YJ101U (100) T 77.6/28.9
R191 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 26.4/33
R192 7030003550 S.RES ERJ3GEYJ 822 V (8.2 k) T 29.6/36.3
R193 7030003740 S.RES ERJ3GEYJ 334 V (330 k) T 28.3/49.2
R194 7310005020 S.TRI RH03ADC14X (10 k) T 32.5/51.1
R195 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 24.7/71.9
R196 7030003530 S.RES ERJ3GEYJ 562 V (5.6 k) T 30.8/71.9
R198 7030003650 S.RES ERJ3GEYJ 563 V (56 k) T 131.6/189.4
R200 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 24.9/173.3
R201 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 33.7/135.1
R202 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 46.4/126.9
R203 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 25/176.3
R204 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 23.1/178.5
R205 7410000352 ARY RGLD3X104J
R206 7410000352 ARY RGLD3X104J
R207 7410000352 ARY RGLD3X104J
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
[TUNER-1 UNIT]
R208 7410000352 ARY RGLD3X104J
R209 7410000352 ARY RGLD3X104J
R210 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/123.4
R211 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/125.7
R212 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/128
R213 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/130.3
R214 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/132.6
R215 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/134.9
R216 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/137.2
R217 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/139.5
R218 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/162.5
R219 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/160.2
R220 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/164.8
R221 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/167.1
R222 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/169.4
R223 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/171.7
R224 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/174
R225 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/141.8
R226 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/144.1
R227 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/146.4
R228 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/148.7
R229 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/151
R230 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/153.3
R231 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/155.6
R232 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 72/157.9
R235 7030005521 S.RES ERA3YKD 334V (330 k) T 44.9/129.6
R236 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 47.8/140.5
R237 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 47.8/142
R238 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 47.7/144.6
R239 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 39.8/124.4
R240 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 27.9/151.3
R242 7030003860 S.RES ERJ3GE JPW V T 27.9/155.2
R243 7030003860 S.RES ERJ3GE JPW V T 27.9/153.9
R244 7030003860 S.RES ERJ3GE JPW V T 27.9/152.6
R248 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 40.5/165.5
R249 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 40.5/162.9
R250 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 40.5/164.2
R251 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 47.7/157.5
R252 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 34.7/162.4
R253 7030007911 S.RES ERA3YKD 563V (56 k) T 34.2/170.7
R255 7030010610 S.RES ERJ1TYJ 470U (47) T 12.5/171.9
R256 7030003860 S.RES ERJ3GE JPW V T 67.5/178.5
R257 7030003860 S.RES ERJ3GE JPW V T 42.3/170
R258 7030010520 S.RES ERJ1TYJ 101U (100) T 217.4/191.1
R259 7030003620 S.RES ERJ3GEYJ 333 V (33 k) T 209.3/190.3
R262 7030010520 S.RES ERJ1TYJ 101U (100) T 213.7/191.1
R263 7030010520 S.RES ERJ1TYJ 101U (100) T 221.1/191.1
C1 4030006880 S.CER C1608 JB 1H 472K-T T 42.2/68.5
C2 4030011120 S.CER GRM31M2C2H100JV01L T 44.7/95.5
C3 4030007170 S.CER C1608 CH 1H 221J-T T 40.6/93.7
C4 4030010760 S.CER C1608 CH 1H 331J-T T 40.6/96.5
C6 4030011070 S.CER GRM31M2C2H5R0CY21L T 49.3/60.9
C7 4610001160 S.TRI ECR-JA010 A11W T 44.8/65.1
C8 4030007160 S.CER C1608 CH 1H 181J-T T 39.5/65.1
C9 4510008690 S.ELE EEE1EA330SP T 26.3/56
C10 4030006880 S.CER C1608 JB 1H 472K-T T 24.4/49.2
C11 4030005110 S.CER C2012 JB 1E 473K-T T 51.1/48.7
C12 4030010760 S.CER C1608 CH 1H 331J-T T 37.6/60.3
C13 4030010760 S.CER C1608 CH 1H 331J-T T 33.4/27.3
C14 4030005110 S.CER C2012 JB 1E 473K-T T 47.1/27.9
C15 4030006880 S.CER C1608 JB 1H 472K-T T 30.1/38.4
C16 4030006880 S.CER C1608 JB 1H 472K-T T 37.6/57.2
C17 4030011600 S.CER C1608 JB 1E 104K-T T 30.6/30.1
C18 4030005110 S.CER C2012 JB 1E 473K-T T 32.5/15.8
C19 4030007010 S.CER C1608 CH 1H 100D-T T 59.5/21.5
C20 4030008560 S.CER C1608 CH 1H 300J-T T 59.5/19
C21 4030010760 S.CER C1608 CH 1H 331J-T T 29.8/19.1
C22 4030006880 S.CER C1608 JB 1H 472K-T T 24.9/27.1
C23 4030005110 S.CER C2012 JB 1E 473K-T T 38.6/24.3
C24 4320001230 S.MIC UC552H 1201J-T T 108.6/64.5
C25 4320001230 S.MIC UC552H 1201J-T T 108.6/58
C26 4320001230 S.MIC UC552H 1201J-T T 121.5/61.9
C28 4010008720 CER DEA1X3D271JA2B
C29 4010008710 CER DEA1X3D331JA3B
C30 4010008560 CER DEA1X3F151JA3B
C31 4010008560 CER DEA1X3F151JA3B
C32 4010008560 CER DEA1X3F151JA3B
C34 4030006880 S.CER C1608 JB 1H 472K-T T 100.7/30.2
C35 4010008560 CER DEA1X3F151JA3B
C36 4010008560 CER DEA1X3F151JA3B
C37 4010004790 CER DEC1X3J680JC4B
C38 4010008680 CER DEA1X3F820JA3B
C39 4010004770 CER DEC1X3J390JC4B
C40 4010004770 CER DEC1X3J390JC4B
C41 4010008730 CER DEA1X3F180JCDB
C42 4010008730 CER DEA1X3F180JCDB
C43 4030006880 S.CER C1608 JB 1H 472K-T T 105/92.5
C44 4010004810 CER DEC1X3J101JC4B
C45 4010004810 CER DEC1X3J101JC4B
C46 4010004810 CER DEC1X3J101JC4B
B - 5 - 3
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
[TUNER-1 UNIT]
C47 4010004810 CER DEC1X3J101JC4B
C48 4030006880 S.CER C1608 JB 1H 472K-T T 99.9/8.2
C50 4030008960 S.CER C2012 JB 1C 104K-T T 36.1/69
C53 4510008570 S.ELE EEE1CA220SR T 11.6/140.4
C54 4030006880 S.CER C1608 JB 1H 472K-T T 10.1/145.3
C55 4030006880 S.CER C1608 JB 1H 472K-T T 9.7/154.5
C56 4510008520 S.ELE EEE1CA470SP T 12.3/158.7
C58 4030006880 S.CER C1608 JB 1H 472K-T T 185.3/165.3
C59 4030005110 S.CER C2012 JB 1E 473K-T T 185.4/163.3
C60 4510008510 S.ELE EEE1CA471P T 176.5/157.3
C62 4030006880 S.CER C1608 JB 1H 472K-T T 151.5/182.5
C64 4030006880 S.CER C1608 JB 1H 472K-T T 151.6/184
C65 4030006880 S.CER C1608 JB 1H 472K-T T 37.7/172.8
C68 4030006880 S.CER C1608 JB 1H 472K-T T 23.1/129.1
C73 4030006880 S.CER C1608 JB 1H 472K-T T 26.9/178.5
C74 4030006880 S.CER C1608 JB 1H 472K-T T 23.1/123.3
C75 4340000390 S.MLR ECWU1H224JC9 T 43.2/173.1
C76 4030006880 S.CER C1608 JB 1H 472K-T T 36.5/140.7
C77 4030006880 S.CER C1608 JB 1H 472K-T T 36.5/142
C78 4030006850 S.CER C1608 JB 1H 471K-T T 24.4/161
C79 4030006850 S.CER C1608 JB 1H 471K-T T 24.4/165.2
C81 4030006880 S.CER C1608 JB 1H 472K-T T 27.9/157.8
C82 4510008540 S.ELE EEE1CA100SR T 23.8/155.4
C84 4340000390 S.MLR ECWU1H224JC9 T 39.3/133.4
C85 4340000390 S.MLR ECWU1H224JC9 T 35.7/179.6
C86 4030006860 S.CER C1608 JB 1H 102K-T T 48.6/125
C87 4030008560 S.CER C1608 CH 1H 300J-T T 29.9/146.5
C88 4030008560 S.CER C1608 CH 1H 300J-T T 29.9/143.4
C89 4030006880 S.CER C1608 JB 1H 472K-T T 80.2/178.6
C91 4030006880 S.CER C1608 JB 1H 472K-T T 67.6/150.9
C94 4030006880 S.CER C1608 JB 1H 472K-T T 67.6/131.7
C98 4030006880 S.CER C1608 JB 1H 472K-T T 110.8/40
C100 4030006880 S.CER C1608 JB 1H 472K-T T 125.5/36.7
C102 4030006880 S.CER C1608 JB 1H 472K-T T 140.5/41.6
C104 4030006880 S.CER C1608 JB 1H 472K-T T 155/42.4
C106 4030006880 S.CER C1608 JB 1H 472K-T T 167.6/45.1
C108 4030006880 S.CER C1608 JB 1H 472K-T T 185.1/33.2
C110 4030006880 S.CER C1608 JB 1H 472K-T T 199.3/35.5
C112 4030006880 S.CER C1608 JB 1H 472K-T T 229.7/56.7
C114 4030006880 S.CER C1608 JB 1H 472K-T T 251.5/53.5
C116 4030006880 S.CER C1608 JB 1H 472K-T T 271.8/33.9
C118 4030006880 S.CER C1608 JB 1H 472K-T T 275.6/33.9
C120 4030006880 S.CER C1608 JB 1H 472K-T T 110.9/90.2
C122 4030006880 S.CER C1608 JB 1H 472K-T T 129/90.3
C124 4030006880 S.CER C1608 JB 1H 472K-T T 141.6/90.4
C126 4030006880 S.CER C1608 JB 1H 472K-T T 154.8/90.3
C128 4030006880 S.CER C1608 JB 1H 472K-T T 167.4/90.4
C130 4030006880 S.CER C1608 JB 1H 472K-T T 179.7/90.3
C132 4030006880 S.CER C1608 JB 1H 472K-T T 192/90.7
C134 4030006880 S.CER C1608 JB 1H 472K-T T 204.3/90.3
C136 4030006880 S.CER C1608 JB 1H 472K-T T 216.8/90.5
C147 4030006880 S.CER C1608 JB 1H 472K-T T 193.4/134.5
C148 4030006880 S.CER C1608 JB 1H 472K-T T 65.9/159.5
C150 4030006880 S.CER C1608 JB 1H 472K-T T 250/58.3
C152 4030006880 S.CER C1608 JB 1H 472K-T T 193.4/154.1
C153 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/176.3
C155 4030006880 S.CER C1608 JB 1H 472K-T T 193.2/174.6
C162 4030011120 S.CER GRM31M2C2H100JV01L T 74.1/5.8
C164 4030006880 S.CER C1608 JB 1H 472K-T T 33/72.8
C165 4030006880 S.CER C1608 JB 1H 472K-T T 25.4/19.2
C172 4030006880 S.CER C1608 JB 1H 472K-T T 32.2/56.1
C173 4030006880 S.CER C1608 JB 1H 472K-T T 24.6/38.4
C174 4030005110 S.CER C2012 JB 1E 473K-T T 29.4/68.9
C176 4030006880 S.CER C1608 JB 1H 472K-T T 173.4/170.7
C178 4030006880 S.CER C1608 JB 1H 472K-T T 176.5/148.9
C179 4030006880 S.CER C1608 JB 1H 472K-T T 102.7/27.5
C181 4030006880 S.CER C1608 JB 1H 472K-T T 27/174
C182 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/123.4
C183 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/125.7
C184 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/128
C185 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/130.3
C186 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/132.6
C187 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/134.9
C188 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/137.2
C189 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/139.5
C190 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/160.2
C191 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/162.5
C192 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/164.8
C193 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/167.1
C194 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/169.4
C195 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/171.7
C196 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/174
C197 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/141.8
C198 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/144.1
C199 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/146.4
C200 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/148.7
C201 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/151
C202 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/153.3
C203 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/155.6
C204 4030006880 S.CER C1608 JB 1H 472K-T T 76.6/157.9
C205 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/123.4
C206 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/125.7
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
[TUNER-1 UNIT]
C207 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/128
C208 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/130.3
C209 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/132.6
C210 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/134.9
C211 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/137.2
C212 4030006880 S.CER C1608 JB 1H 472K-T T 108.5/123.9
C213 4030006880 S.CER C1608 JB 1H 472K-T T 107.2/123.9
C214 4030006880 S.CER C1608 JB 1H 472K-T T 105.9/123.9
C215 4030006880 S.CER C1608 JB 1H 472K-T T 104.6/123.9
C216 4030006880 S.CER C1608 JB 1H 472K-T T 103.2/123.9
C217 4030006880 S.CER C1608 JB 1H 472K-T T 101.9/123.9
C218 4030006880 S.CER C1608 JB 1H 472K-T T 100.5/123.9
C219 4030006880 S.CER C1608 JB 1H 472K-T T 108.5/139.3
C220 4030006880 S.CER C1608 JB 1H 472K-T T 107.2/139.3
C221 4030006880 S.CER C1608 JB 1H 472K-T T 105.9/139.3
C222 4030006880 S.CER C1608 JB 1H 472K-T T 104.6/139.3
C223 4030006880 S.CER C1608 JB 1H 472K-T T 103.3/139.3
C224 4030006880 S.CER C1608 JB 1H 472K-T T 102/139.3
C225 4030006880 S.CER C1608 JB 1H 472K-T T 100.7/139.3
C226 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/139.5
C227 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/141.8
C228 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/144.1
C229 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/146.4
C230 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/148.7
C231 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/151
C232 4030006880 S.CER C1608 JB 1H 472K-T T 109.3/151.1
C256 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/164.8
C257 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/162.5
C258 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/160.2
C259 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/157.9
C260 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/155.6
C261 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/153.3
C262 4030006880 S.CER C1608 JB 1H 472K-T T 104.6/168.8
C263 4030006880 S.CER C1608 JB 1H 472K-T T 105.9/168.8
C264 4030006880 S.CER C1608 JB 1H 472K-T T 107.2/168.8
C265 4030006880 S.CER C1608 JB 1H 472K-T T 108.5/168.8
C266 4030006880 S.CER C1608 JB 1H 472K-T T 100.7/154
C267 4030006880 S.CER C1608 JB 1H 472K-T T 102/154
C268 4030006880 S.CER C1608 JB 1H 472K-T T 103.3/154
C269 4030006880 S.CER C1608 JB 1H 472K-T T 104.6/154
C270 4030006880 S.CER C1608 JB 1H 472K-T T 105.9/153.9
C271 4030006880 S.CER C1608 JB 1H 472K-T T 107.2/153.9
C272 4030006880 S.CER C1608 JB 1H 472K-T T 108.5/153.9
C273 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/174
C274 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/171.7
C275 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/169.4
C276 4030006880 S.CER C1608 JB 1H 472K-T T 83.8/167.1
C278 4030006880 S.CER C1608 JB 1H 472K-T T 45/135.6
C279 4030011600 S.CER C1608 JB 1E 104K-T T 33.2/142
C280 4030011600 S.CER C1608 JB 1E 104K-T T 33.2/140.7
C281 4030011600 S.CER C1608 JB 1E 104K-T T 127.1/183.5
C282 4030006880 S.CER C1608 JB 1H 472K-T T 31.3/164.5
C283 4030006880 S.CER C1608 JB 1H 472K-T T 31.3/170.7
C284 4030006880 S.CER C1608 JB 1H 472K-T T 67.6/170
C285 4030011330 S.CER C1608 CH 1H 391J-T T 210/192.3
C286 4030006880 S.CER C1608 JB 1H 472K-T T 208.5/192.3
RL1 6330001070 RLY AJQ1341 B01
RL2 6330001070 RLY AJQ1341 B01
RL3 6330001060 RLY APQ 3311
RL4 6330000570 RLY AR-39251
RL5 6330001060 RLY APQ 3311
RL6 6330001060 RLY APQ 3311
RL7 6330001060 RLY APQ 3311
RL8 6330001060 RLY APQ 3311
RL9 6330001060 RLY APQ 3311
RL10 6330001060 RLY APQ 3311
RL11 6330001060 RLY APQ 3311
RL12 6330001060 RLY APQ 3311
RL13 6330001060 RLY APQ 3311
RL14 6330001060 RLY APQ 3311
RL15 6330001060 RLY APQ 3311
RL16 6330001060 RLY APQ 3311
RL17 6330001060 RLY APQ 3311
RL18 6330001060 RLY APQ 3311
RL19 6330001060 RLY APQ 3311
RL20 6330001060 RLY APQ 3311
RL21 6330001060 RLY APQ 3311
RL22 6330001060 RLY APQ 3311
RL23 6330001060 RLY APQ 3311
RL24 6330001060 RLY APQ 3311
RL25 6330000570 RLY AR-39251
RL26 6330000570 RLY AR-39251
RL27 6330000570 RLY AR-39251
J4 6910003141 CNR IMSA-9202B-1-02Z041-PT1
J6 6910003141 CNR IMSA-9202B-1-02Z041-PT1
J13 6910003141 CNR IMSA-9202B-1-02Z041-PT1
J16 6510003100 CNR RT01T-1.3B
J19 6510022621 S.CNR 10FMN-BMTTR-A-TBT (LF) (SN) T 43.5/115.6
B - 5 - 4
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
[TUNER-1 UNIT]
P4 6910003120 CNR IMSA-9206H-T
P6 6910003120 CNR IMSA-9206H-T
DS1 5040002620 S.LED SML-311UT T86 T 167.6/134.7
DS2 5040002620 S.LED SML-311UT T86 T 165.9/131.5
DS3 5040002620 S.LED SML-311UT T86 T 164.3/134.7
DS4 5040002620 S.LED SML-311UT T86 T 162.4/131.5
DS5 5040002620 S.LED SML-311UT T86 T 160.7/134.7
DS6 5040002620 S.LED SML-311UT T86 T 158.9/131.5
DS7 5040002620 S.LED SML-311UT T86 T 157/134.7
DS8 5040002620 S.LED SML-311UT T86 T 155.4/131.5
DS9 5040002620 S.LED SML-311UT T86 T 153.7/134.7
DS10 5040002620 S.LED SML-311UT T86 T 151.9/131.5
DS11 5040002620 S.LED SML-311UT T86 T 150.2/134.7
DS12 5040002620 S.LED SML-311UT T86 T 148.4/131.6
DS13 5040002620 S.LED SML-311UT T86 T 165.9/143
DS14 5040002620 S.LED SML-311UT T86 T 164.3/146.9
DS15 5040002620 S.LED SML-311UT T86 T 148.3/143
DS16 5040002620 S.LED SML-311UT T86 T 150.1/146.9
DS17 5040002620 S.LED SML-311UT T86 T 151.9/143
DS18 5040002620 S.LED SML-311UT T86 T 153.6/146.9
DS19 5040002620 S.LED SML-311UT T86 T 155.3/143
DS20 5040002620 S.LED SML-311UT T86 T 157.1/146.9
DS21 5040002620 S.LED SML-311UT T86 T 158.9/143
DS22 5040002620 S.LED SML-311UT T86 T 160.6/146.9
DS23 5040002620 S.LED SML-311UT T86 T 162.5/143
DS24 5040002620 S.LED SML-311UT T86 T 127/185.1
S2 2260001890 S.SW SKQDPA T 154/172.9
W18 9011570360 WIR 35/00/110/W06/W06
W61 9011570370 WIR 99/02/170/W06/W06UL3239
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
[CHASS UNIT]
W501 8900014990 CBL OPC-1468
W502 8900011400 CBL OPC-1164
SECTION 6 MECHANICAL PARTS AND DISASSEMBLY
B - 6 - 1
[CHASSIS PARTS]
W501 8900011380 Cable OPC-1146 1
W502 8900011400 Cable OPC-1164 1
EP501 6910000880 Sheet NC-1 (SUS) 1
EP502 6910000880 Sheet NC-1 (SUS) 1
MP501 8310006540 High voltage waring seal 1
MP502 8010019030 1157 U-case 1
MP503 8010019020 1157 L-case 1
MP504 8930006900 Mounting plate 2
MP505 8930006540 Waterproof seal 1
MP506 8930002800 O ring (G) 2
MP507 8930006550 Sealing washer (A) 1
MP508 8930006560 Sealing washer (C) 1
MP509 8930006570 Sealing washer (D) 4
MP510 6910000470 Pair insulator 1
MP512 8310066500 Caution seal (P) 1
MP517 8810000620 Screw PH M3 ×13 SUS 1
MP518 8830000230 Nut M3 SUS 1
MP519 8810003480 Hex head bolt M5 ×60 SUS 1
MP520 8860000160 Earth lug B8 (M5) AG BS 1
MP521 8850000500 Spring washer M5 SUS 1
MP522 8850000180 Flat washer M5 SUS 1
MP523 8830000250 Nut M5 SUS 1
MP524 8860000190 Earth lug (M5) AG BS 1
MP525 8850000600 Gear Washer M5 SUS 1
MP526 8830000370 Wing nut M5 SUS 1
MP527 8810003470 Hex head bolt M5 ×20 SUS 1
MP528 8860000160 Earth lug B8 (M5) AG BS 1
MP529 8850000500 Spring washer M5 SUS 1
MP530 8850000180 Flat washer M5 SUS 1
MP531 8830000250 Nut M5 SUS 1
MP532 8860000190 Earth lug D5 (M5) AG BS 1
MP533 8850000600 Gear Washer M5 SUS 1
MP534 8830000370 Wing nut M5 SUS 1
MP535 8810002800 Screw PH M5 ×10 SUS 4
MP536 8810000660 Screw PH M4 ×14 SUS 10
MP537 8810001480 Screw PH A M5 ×10 SUS 2
MP538 8810001691 Screw PH B0 3 ×8 (PL) 9
MP539 8830000240 Nut M4 SUS 10
MP541 8930006570 Sealing washer (D) 1
MP544 8930006570 Sealing washer (D) 1
MP551 8950001980 Cable tie-140 1
MP552 6910014570 Super ground (FGA13-08B) 1
MP553 6910014570 Super ground (FGA13-08B) 1
ORDER
NO.
REF.
NO. DESCRIPTION QTY.
Screw abbreviations A,B0,B1: Self-tapping
PH: Pan head BS: Brass
NI: Nickel SUS: Stainless
[TUNER-1 UNIT]
MP3 8510001101 Shied case (A) cover (A)-1 1
MP4 8510001081 Shield case (A)-1 1
MP6 8510003500 406 shield case 1
MP7 8510002020 MIX shield case 1
MP11 8510003500 406 shield case 1
MP12 8510003510 406 shield case cover 1
MP22 8510003500 406 shield case 1
MP23 8510003510 406 shield case cover 1
ORDER
NO.
REF.
NO. DESCRIPTION QTY.
[ACCESSORIES]
W701 8900004200 Cable OPC-412 1
J701 6510002030 Connector 1380T 4
P702 6510001930 1490P1 1
MP701 8820000440 U-bolt A SUS 2
MP702 8010000010 U-bolt plate 2
MP703 8830000260 Nut M6 SUS 8
MP704 8850000510 Spring washer M6 SUS 8
MP705 8850000190 Flat washer M6 SUS 4
MP706 8810001500 Screw PH A M6 ×30 SUS 4
MP707 8810003500 Hex head bolt M6 ×50 SUS 4
MP708 8850000200 Flat washer M6 SUS 8
MP711 6950000010 Waterproof cap 1
ORDER
NO.
REF.
NO. DESCRIPTION QTY.
MP701
MP702
MP708
MP705
MP704
MP703
MP707
MP706
MP711
P702 J701
W701
MP538 (C)
MP552 (C)
W501 (C)
P4 (T)
MP11 (T)
MP12 (T)
P6 (T) MP7 (T)
MP505 (C)
MP502 (C)
MP552 (C)
MP536 (C)
TUNER-1 UNIT
MP12 (T)
MP23 (T)
MP5 (T)
MP4 (T)
MP544 (C)
MP6 (T)
MP553 (C)
MP503 (C)
MP551 (C)
MP553 (C)
W502 (C)
MP530 (C)
MP531 (C)
MP532 (C)
MP533 (C)
MP534 (C)
MP526 (C)
MP525 (C)
MP524 (C)
MP523 (C)
MP522 (C)
MP541 (C)
MP535 (C)
MP509 (C)
MP510 (C)
MP504 (C)
MP508 (C)
MP539 (C)
MP506 (C)
MP537 (C)
MP510 (C)
MP520 (C)
MP521 (C)
MP519 (C)
MP527 (C)
MP529 (C)
MP528 (C)
MP506 (C)
MP537 (C)
A
A
B
B
C
C
Unit abbreviations
(C): CHASSIS PARTS
(T): TUNER-1 UNIT
B - 6 - 2
B - 7 - 1
SECTION 7 SEMICONDUCTOR INFORMATION
• TRANSISTORS AND FET'S
B
E
C
B
E
C
B
E
C
2SA1586 GR 2SC4116 GR DTC144EUA T106
(Symbol: SG) (Symbol: LG) (Symbol: 26_)
• DIODES
C
A1
A2
AC AC
A2 A1
C2 C1
1SS301 HSB88WSTR HSM88AS TR MA2S111 MA732
MA862
(Symbol: B3) (Symbol: Silver line) (Symbol: C1) (Symbol: A) (Symbol: 2C)
(Symbol: M1I)
SECTION 8 BOARD LAYOUT
B - 8 - 1
H5 H10 H15 H20 H25 H30 H35 H40 H45 H50 H55 H60 H65 H70 H75 H80 H85 H90 H95 H100 H105 H110 H115 H120 H125 H130 H135 H140 H145 H150 H155 H160 H165 H170 H175 H180 H185 H190 H195H0
V5
V10
V15
V0
V25
V30
V35
V20
V45
V50
V55
V40
V65
V70
V75
V60
V80
V90
V95
V100
V85
V105
V110
V115
V125
V130
V135
V120
V145
V150
V155
V140
V165
V170
V175
V160
V180
V190
V195
V200
V185
V205
V210
V215
V225
V230
V235
V220
V245
V240
V250
V255
V265
V270
V275
V260
V280
V285
V290
V300
V295
to ground
Terminal
to antenna
Te r mi na l
to CHASSIS W501
KEY
STAR
13.6
ANTC
to TRANSCEIVER
CHASSIS W502
VOLTAGE LINE
Explanatory notes
COMMON LINE
ANT
L
NETWORK
D13, D14
MA732 × 2
IMP
DET COMPARATOR
IC19
TA75393S
CPU
Q7
2SA1586
CPU
CTRL
IC15
MB95F108AHSPFM
BUFF LATCH LATCH
IC2, IC3
BU4094BCFV × 2
IC3, IC4
BU4094BCFV × 2
C
NETWORK
13.6V REG
IC20
TA7805F
5V
Q8
2SC4116
BUFF
D1
MA732
FWD PWR
DET
D11
MA732
D7, D8, D11, D12
MA732 × 4
TRANSCEIVER
P/D
Q2 2SC4116
IC5
TC74HC393F
BUFF DIV
SWR
DET
ATT
SECTION 9 BLOCK DIAGRAM
B - 9 - 1
VOLTAGE LINE
Explanatory notes
COMMON LINE
PULSE
RESET
5V
0V
60mS
WHILE TUNING: 0.7
NORMAL: 13.6
33
34
35
36
37
13.6
47
0.0047
C55
13.6 13.6
0.0047
C64
5V
-
++
-
10k
R41
5V
3
IC4 BU4094BCFV
1
2
3
17
30p
C88
30p
C87
R73 1k
C85 0.22
D22 MA2S111
L18 100µ
0.0047
C74
47k
R67
CR567
X1
470p
C78
1k
R72
8
9
10
11
12
13
14
1
2
3
6
5
4
7
IC5 TC74HC393AP
2QD
2QC
2CK
VDD
2CR
2QA
2QB
VSS
1QD
1QB
1QC
1QA
1CR
1CK
5V
5V
5V
Z
PH
1SS133
D78
100k
R200
0.0047
C181
100k
R66
S-80841CLUA
IC7
3
1
2O
G
I
0.0047
C73
5
6
7
8
4
3
2
1
5
6
7
8
4
3
2
1
IC16 TC7W74FU
IC6 TC4013BP
Q
CLR
PR
VCC
GND
Q
D
CK
5V 5V
5V
13.6
13.6
47
C56
0.0047
C55
0.0047
C57
1N4002
D19
TA7805S
IC20
E
+5V
IN
5V
13.6V
KEY
13.6
STAR
ANTC
ECP25
CP502
CP505
NOTE:UNLESS OTHERWISE SPECIFIED:RX
THAT SHORT J13 AND ONLY RL1 IS ON.Tx with 2MHz/10W.
NOTE:WAVEFORM WITH MARK IS MEASURED AT TX WITH THE CONDITION
7.8V 7.3V
13.6
10
C82
0.0047
C81
0.0047
C81
L24 100µ
L20 HF70ACC635050
L22 HF70ACC635050
100k
R57
0.0047
C62
MA700
D80
S2
22k
R56
47k
R156
56k
R198
47k
R204
47k
R203
Q7
3.3k
R58
15k
R59
0.0047
C65
2SC2458
Q8
0.0047
C64
100µ
L25
5V
13.6
5V
5V
HSB88WS
D81
0.2V
Z<50 0
Z>50 5.0
2.5V
0.9V
INDUCTIVE : 5.0V
CAPACITIVE: 0V
2.0V
2Vp-p
3Vp-p
0.0047
C165
R51 68
5V
10k
R194
0.0047
C172
4.7k
R12
680
R54
0.047
C174
100µ
L28
10µ
L31
0.0047
C163
47
R6
2SC2668
Q2
39k
R53
1SS301
D85
5.6k
R196
1k
R195
100µ
L29
10µ
L32
0.047
C5
330
R4
0.1
C50
2SK241
Q1
470k
R5
0.047
C1
D2 MA862
0.0047
C164
4.7k
R10
0.22
C75 0
R257
1k
R1
330p
C4
220p
C3
2.2k
R9
10k
R8
MA732
D1
10p
C2
22
R3
22
R2
L1
LR-22A
22p
C6
10
R14
D5 HSM88ASTR
180p
C8
10p
C7
MA732
D7
MA732
D8
330p
C12
22p
C162
2.2k
R151
R258 100
LR-17
ANT
L35
R262 100
R263 100
D86 MA732
L36 HF50ACC322513
R259 33k
47k
R25
LR-116
L3
LR116
L2
C14 0.047
47
R30
LR-19
L4
4.7k
R150
C10 0.0047
C9 33
R13 220
R11 2.2k
C11 0.047
R15 10k
R193 330k
MA700
D77
TA75393FS
IC19b
4
5
-
+
8
761
8
3
2
TA75393FS
IC19a
C16 0.0047
220k
R34
220k
R33
2.2k
R191
8.2k
R192
1SS301
D9
0.0047
C173
+
-
EL204HD
DS24
R149 470
0.0047
C153
0.0047
C89
47
R29
10k
R41
10k
R40
10k
R39
2.2m
L5
30p
C20
10p
C19
82
R43
10
R190
J13
R253 56k R157 30k
R68 47k
R19 220
R20 220
R21 220
5V 5V
5V
5V
5V
5V
5V
OFF: 13.6
EACH RELAY ON: 0.7
0V
5V
1.4µS
RL4,RL25∼RL27 IS ON: 40mS
RL3,RL5 ∼RL24 IS ON: 15mS
SL-811UT×11
DS13–DS23
SL-311UT×12
DS1−DS12
J4
CP15
AJQ1341
RL2
SA05C
R45
47k
R46
QSGND
IC4 BU4094BCFV
Q‘S5
Q8
Q7
Q6
Q5
OE
V+
Q4
D
CLK
Q1
Q2
Q3
9
10
11
12
13
14
15
16
7
6
1
2
5
4
3
STR
8
8
Q14
Q13
Q12
Q15
Q16
Q17
Q18
R90 470
R89 470
R88 470
R87 470
R86 470
R85 470
R84 470
R94 470
R93 470
R92 470
R103 470
R102 470
R101 470
C7
C6
C9
C8
C3
C5
C4
Q35
Q34
Q37
Q36
Q31
Q33
Q32
Q25
Q24
Q27
Q26
Q28
Q21
Q23
Q22
Q15
Q14
Q17
Q16
Q18
Q11
Q13
Q12
7
6
1
2
5
4
3
AJQ1341
RL2
CO1
CO2
CO3
CO4
CO5
CO6
CO7
CO8
CO9
LO12
LO11
LO10
LO9
LO8
LO7
LO6
LO5
LO4
LO3
LO2
LO1
COUT
CRED
1.2k
R178 DS12
1.2k
R177 DS11
1.2k
R176 DS10
1.2k
R175
DS9
1.2K
R174
DS8
1.2k
R173
DS7
1.2k
R172
DS6
1.2k
R171
DS5
1.2k
R170
DS4
1.2k
R169
DS3
1.2k
R168
DS2
1.2k
R167
DS1
1.2k
R181 DS15
1.2k
R182 DS16
1.2k
R183 DS17
1.2k
R184 DS18
1.2k
R185 DS19
1.2k
R186 DS20
1.2k
R187 DS21
1.2k
R188 DS22
1.2k
R189 DS23
1.2k
R180 DS14
1.2k
R179 DS13
HF70ACC635050
L34
47k
R162
1k
R76 100k
0.22
C84
C279 0.1
C280 0.1
1SS133
D79
R78 480k
220k
R77
10k
R236
10k
R237
R201
220k
R202
2SC2458
Q11
1k
R42
4.2V
4.9V
11.5V
5.5V
2Vp-p
LR-19
R24 270
R23 330
R22 330
R18 270
R17 330
R16 330
COUT
2.2k
R36
0.0047
C22
RN1204
Q3
0.0047
C15
47k
R26
56k
R35
2.2k
R27
R242 0
R243 0
R244 0
5Vp-p
TUNE
330p
C13
MA732
D12
MA732
D11
C17 0.1
47k
1k
R71
R37
R249 47k
R250 47k
330p
C21
C79
MA732
470p
C94
0.0047
C91
0.0047
C284
0.0047
D14
MA732
D13
47
R28
0.047
C18
47k
R31
R32 47
R251 47k
1k
R38
2SC2458
Q5
220
R44
0.047
C23
2SC2458
Q4
10k
R40
30p
C20
13.6
13.6
13.6
QSGND
IC3 BU4094BCFV
Q‘S5
Q8
Q7
Q6
Q5
OE
V+
Q4
D
CLK
Q1
Q2
Q3
9
10
11
12
13
14
15
16
7
6
1
2
5
4
3
STR
8
Q11
Q24
Q23
Q22
Q21
Q34
Q33
Q32
Q31
IC4 BU4094BCFV
Q‘S5
Q8
Q7
Q6
Q5
OE
Q4
D
CLK
Q1
Q2
Q3
9
10
11
12
13
14
15
16
STR
V+
L7
L1
L2
L3
L4
L5
L6
LO1
LO2
LO3
LO4
LO7
LO5
LO6
µPA2004GR
IC11
SK
O7
O6
O5
O4
O3
O2
O1
VSS
I7
I2
I3
I4
I5
I6
9
10
11
12
13
14
15
16
8
7
6
1
2
5
4
3
I1
C211 0.0047
C210 0.0047
C209 0.0047
C208 0.0047
C207 0.0047
C206 0.0047
C205 0.0047
C212 0.0047
C213 0.0047
C214 0.0047
C215 0.0047
C216 0.0047
C217 0.0047
C218 0.0047
C5
COUT
C1
C2
C3
C4
C_OUT
C_IN
CO1
CO2
CO5
CO3
CO4
µPA2004GR
IC13
SK
O7
O6
O5
O4
O3
O2
O1
VSS
I7
I2
I3
I4
I5
I6
9
10
11
12
13
14
15
16
8
7
6
1
2
5
4
3
I1
C261 0.0047
C260 0.0047
C259 0.0047
C258 0.0047
C257 0.0047
C256 0.0047
C266 0.0047
C267 0.0047
C268 0.0047
C269 0.0047
C270 0.0047
C271 0.0047
C272 0.0047
C9
C6
C7
C8
10
11
12
13
14
15
16
CO6
CO9
CO7
CO8
µPA2004GR
IC14
SK
O7
O6
O5
O4
O3
O2
O1
VSS
I7
I2
I3
I4
I5
I6
98
7
6
1
2
5
4
3
I1
C276 0.0047
C275 0.0047
C274 0.0047
C273 0.0047
C265 0.0047
C264 0.0047
C263 0.0047
C262 0.0047
ATT
L8
L9
L10
L11
L12
CRED
LO8
LO9
LO10
LO11
ATT_ O
LO12
C_RED
µPA2004GR
IC12
SK
O7
O6
O5
O4
O3
O2
O1
VSS
I7
I2
I3
I4
I5
I6
9
10
11
12
13
14
15
16
8
7
6
1
2
5
4
3
I1
C226 0.0047
C227 0.0047
C228 0.0047
C229 0.0047
C230 0.0047
C231 0.0047
C232 0.0047
C219 0.0047
C220 0.0047
C221 0.0047
C222 0.0047
C223 0.0047
C224 0.0047
C225 0.0047
R222 2.2k
R223 2.2k
R220 2.2k
R221 2.2k
R218 2.2k
R219 2.2k
C195 0.0047
C194 0.0047
R224 2.2k
C196 0.0047
C193 0.0047
C192 0.0047
C191 0.0047
C190 0.0047
R99 470
R98 470
R97 470
R96 470
R95 470
CRED
L12
L9
L11
L10
C2
C1
COUT
R229 2.2k
R230 2.2k
R227 2.2k
R228 2.2k
R225 2.2k
R226 2.2k
C202 0.0047
C201 0.0047
C200 0.0047
R216 2.2k
R217 2.2k
R256 0
C189 0.0047
R231 2.2k
R232 2.2k
C204 0.0047
C203 0.0047
R215 2.2k
C188 0.0047
C199 0.0047
C198 0.0047
C197 0.0047
R108 470
R107 470
R106 470
R105 470
R104 470
L5
L4
L1
L3
L8
L7
L6
L2
R214 2.2k
R212 2.2k
R213 2.2k
R210 2.2k
R211 2.2k
C187 0.0047
C186 0.0047
C185 0.0047
C184 0.0047
C183 0.0047
C182 0.0047
1SS301
D52
C34
RL3
0.0047
C_OUT
AP03311
RL6
AP03311
22
R212
1SS301
D55
C100
0.0047
22
1SS301
D12
C48
0.0047
AJQ1341
RL1
CHASSIS
W502
CHASSIS
W501
1SS301
D16
GND
GND
RF
AP03311
RL5
AP03311
1SS301
D54
C98
0.0047
22
1SS301
D56
C102
0.0047
22
R111
LO1
C_IN
CO9
CO8
CO6
CO7
CO5
CO4
CO3
CO2
CO1
C_RED
C_OUT
ATT
LO2
LO3
LO4
LO5
LO6
LO7
LO8
LO9
LO10
LO11
LO12
R110
R109
AP03311
1SS301 1SS301
D57
C104
0.0047
R112
RL9
AP03311
D58
C106
0.0047
22
22
R113
RL10
AP03311
1SS301
D59
C108
0.0047
22
R114
RL11
AP03311
1SS301
D60
C110
0.0047
22
R115
RL12
AP03311
1SS301
D61
C112
0.0047 0.0047
22
R116
RL13
AP03311
1SS301
D62
C114
22
R117
RL15
AP03311
1SS301
D64
C118
0.0047
22
R118
RL14
AP03311
RL25
AR39251
RL26
AR39251
RL27
AR39251
RL4
AR39251
1SS301
D63
C116
0.0047
1SS301
D74
1SS301
D75
C147
0.0047
C152
0.0047
C265
0.0047
22
R119
18
R120
18
R121
LA-460
L7
LA-459
L6
ATT
LA-461
L8
LA-462
L9
LA-463
L10
LA-464
L11
LA-465
L12
LA-466
L13
LA-467
L14
LA-468
L15
LA-469
L16
100k
R208
100k
R205
100k
R206
100k
R209
100k
R207
LA-470
L17
1SS301
D65
C120
RL16
0.0047
AP03311
22
R123
1SS301
D66
C122
RL17
0.0047
AP03311
22
R124
1SS301
D67
C124
RL18
0.0047
AP03311
22
R125
1SS301
D68
C126
RL19
0.0047
AP03311
22
R126
1SS301
D69
C128
RL20
0.0047
AP03311 AP03311
22
R127
1SS301
D70
C130
RL21
0.0047
22
R128
1SS301
D71
C132
RL22
0.0047
AP03311
22
R129
1SS301
D72
C134 C136
RL23
0.0047
AP03311
22
R130
18
R132
1SS301
D73
RL24
0.0047
C150
1SS301
D53
0.0047
18
R133
C155
1SS301
D76
0.0047
AP03311
22
R131
C24 0.0012
C25 0.0012
C26 0.0012
C28 270p
C29 330p
C31 150p
C30 150p
C32 150p
150p
C35
150p
C36
68p
C37
82p
C38
39p
C39
39p
C40
18p
C41
18p
C42
100p
C46
100p
C47
100p
C44
100p
C45
PWR
13.6
AVR
VCC
R248 47k
4.7k
R238
0.0047
0.0047
C176
R55 22
R255 22
19
18
38
39
40
41
46
47
48
M890F108HSPFM
IC15
UCKO/P12
UOO/P11
UIO/P10
INT07/P07
INT06/P06
INT05/P05
INT04/P04
INT03/P03
INT02/P02
INT01/P01
INT00/P00
RST
PG1/X0A
PG2/X1A
ICPIN1/PG0
VCC
P65/SCK
P66/SOT
P67/SIN
P43/AN11
P42/AN10
P41/AN09
P40/AN08
P37/AN07
P36/AN06
P35/AN05
P34/AN04
P33/AN03
P32/AN02
P31/AN01
P30/AN00
AVSS
P13/TRG0/AGTG
P14/PPG0
P20/PPG00
P21/PPG01
P22/T000
P23/T001
P24/EC0
P50/SLC0
P51/SDA0
P52/PPG1
P53/TRG1
P60/PPG10
P61/PPG11
P62/T010
P63/T011
P64/EC1
VS5
X1
X0
MOO
TOO/P70
TIO/P71
PB0
PB1
PB2
PB3
INT10/PE0
PNT11/PE1
INT12/PE2
INT13/PE3
AVR
VCC
32
31
30
29
28
27
26
25
24
23
22
21
20
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
42
43
44
45
CP1
CP5
CP2
CP3
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
5
6
7
8
4
3
2
1
IC17 S-24CS08AFT
SDA
SCL
WP
VCC
VSS
A2
A1
A0
SKHLAD035A
S2
100k
R163
10k
R240
5V
Z
PH
PWR
13.6
Q25
Q26
Q27
Q28
Q35
Q36
Q37
Q38
ATT
0.0047
C148
R159
470
R160
10k
R52 68
13.6
13.6
SECTION 10 VOLTAGE DIAGRAM
B - 10 - 1
6F No.68, Sec. 1 Cheng-Teh Road, Taipei, Taiwan, R.O.C.
Phone : +886 (02) 2559 1899 Fax : +886 (02) 2559 1874
URL : http://www.asia-icom.com
Zac de la Plaine
1 Rue Brindejonc des Moulinais BP 5804
31505 Toulouse Cedex, France
Phone : +33 (5) 61 36 03 03 Fax : +33 (5) 61 36 03 00
URL : http://www.icom-france.com
E-mail : icom@icom-france.com
Unit 9, Sea St., Herne Bay, Kent, CT6 8LD, U.K.
Phone : +44 (01227) 741741 Fax : +44 (01227) 741742
URL : http://www.icomuk.co.uk
E-mail : info@icomuk.co.uk
Ctra. Rubi, No. 88 Bajos A 08174, Sant Cugat del Valles, Barcelona, Spain
Phone : +34 (93) 590 26 70 Fax : +34 (93) 589 04 46
URL : http://www.icomspain.com
<Corporate Headquarters>
2380 116th Avenue N.E., Bellevue, WA 98004, U.S.A.
Phone : +1 (425) 454-8155 Fax : +1 (425) 454-1509
URL : http://www.icomamerica.com
E-mail : sales@icomamerica.com
<Customer Service>
Phone : +1 (425) 454-7619
Glenwood Centre #150-6165
Highway 17 Delta, B.C., V4K 5B8, Canada
Phone : +1 (604) 952-4266 Fax : +1 (604) 952-0090
URL : http://www.icomcanada.com
Unit 1 / 103 Garden Road, Clayton VIC 3168 Australia
Phone : +61 (03) 9549-7500 Fax : +61 (03) 9549-7505
URL : http://www.icom.net.au
146A Harris Road, East Tamaki,
Auckland, New Zealand
Phone : +64 (09) 274 4062 Fax : +64 (09) 274 4708
URL : http://www.icom.co.nz
10C07, Long silver Mansion, No.88, Yong Ding
Road, Haidian District, Beijing, 100039, China
Phone : +86 (010) 5889 5391/5392/5393
Fax : +86 (010) 5889 5395
URL : http://www.bjicom.com
81-850 Sopot, ul. 3 Maja 54, Poland
Phone : +48 (58) 550 7135 Fax : +48 (58) 551 0484
1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan
Phone : +81 (06) 6793 5302
Fax : +81 (06) 6793 0013
URL : http://www.icom.co.jp/world/index.html
Communication Equipment
Auf der Krautweide 24
65812 Bad Soden am Taunus, Germany
Phone : +49 (6196) 76685-0
Fax : +49 (6196) 76685-50
URL
: http://www.icomeurope.com
E-mail
: info@icomeurope.com
1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan
S-14232HZ-C1
© 2006 Icom Inc.
Other manuals for AT-141
2
Table of contents
Other Icom Tuner manuals
