ICON Health & Fitness PRO-FORM ab GLIDER User manual

Model No. PFBE19410.0
Serial No.
Write the serial number in the
space above for reference. USER'S MANUAL
www.proform.com
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. eep this manual
for future reference.
Serial Number
Decal

2
TABLE OF CONTENTS
WARNINGDECALPLACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMBLY ...............................................................................5
HOWTOUSETHEABDOMINALEXERCISER...................................................9
EXERCISEGUIDELINES ...................................................................12
PARTLIST ..............................................................................14
EXPLODEDDRAWING ....................................................................15
ORDERINGREPLACEMENTPARTS ..................................................BackCover
LIMITEDWARRANTY ..............................................................BackCover
WARNING DECAL PLACEMENT
PROFORM is a registered trademark of ICON IP, Inc.
This drawing shows the location(s) of
the warning decal(s). If a decal is
missing or illegible, see the front
cover of this manual and request a
free replacement decal. Apply the
decal in the location shown.
Note: The decal(s) may not be shown
at actual size.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your abdominal exerciser before using your abdomi-
nal exerciser. ICON assumes no responsibility for personal injury or property damage sustained by
or through the use of this product.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or
persons with pre-existing health problems.
2. Use the abdominal exerciser only as
described in this manual.
3. It is the responsibility of the owner to ensure
that all users of the abdominal exerciser are
adequately informed of all precautions.
4. The abdominal exerciser is intended for
home use only. Do not use the abdominal
exerciser in any commercial, rental, or
institutional setting.
5. eep the abdominal exerciser indoors, away
from moisture and dust. Place the abdominal
exerciser on a level surface, with carpet or a
non-slip mat beneath it.
6. Make sure that there is enough clearance
around the abdominal exerciser to mount,
dismount, and use the abdominal exerciser.
7. Inspect and properly tighten all parts
regularly. Replace any worn parts
immediately.
8. eep children under age 12 and pets away
from the abdominal exerciser at all times.
9. The abdominal exerciser should not be used
by persons weighing more than 300 lbs.
(136 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the abdominal exerciser. Always
wear athletic shoes for foot protection while
exercising.
11. Use extreme caution while mounting and
dismounting the abdominal exerciser (see
HOW TO MOUNT AND DISMOUNT THE
ABDOMINAL EXERCISER on page 9). Always
hold the handlebar while exercising; do not
hold the pivot frame or the console.
12. eep hands and feet away from moving
parts.
13. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.

4
Handlebar
Handlebar nob
Pin
Console
nee Pad
Roller Stop
BEFORE YOU BEGIN
Thank you for selecting the PROFORM®AB GLIDER
abdominal exerciser. The versatile AB GLIDER
abdominal exerciser is designed to help you develop
your core muscles, improve your muscle tone, achieve
a shapelier figure, and increase your overall fitness.
For your benefit, read this manual carefully before
using the abdominal exerciser. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, note the
product model number and serial number before con-
tacting us. The model number and the location of the
serial number decal are shown on the front cover of
this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Pivot Frame

5
ASSEMBLY
To hire an authorized service technician to assemble the abdominal exerciser, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the abdominal exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver and an
adjustable wrench .
See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
M8 x 15mm
Button Screw
(29)–12
M6 x 15mm
Button Screw
(28)–4
Large Washer
(41)–1
Pivot Washer
(43)–1
M10 Curved
Washer (39)–2
M10 x 157mm Button Bolt (30)–1
M8 x 55mm Button
Bolt (47)–1
M6 Washer
(35)–4
M10 Locknut
(38)–1
M8 Washer
(34)–13
M8 Locknut
(46)–1
M4 x 16mm
Flange Screw
(48)–2

6
2
1
2
1
4
1
34
11
29
29
34
48
1.
Attach a Base (2) to the Frame (1) with four M8
x 15mm Button Screws (29) and four M8
Washers (34). Tip: Start all the Button
Screws before tightening any of them.
Then, attach a Frame Foot (11) to the underside
of the Frame (1) with an M4 x 16mm Flange
Screw (48).
Attach the other Base (not shown) and the
other Frame Foot (not shown) in the same
way.
2. Insert the Upright (4) into the Frame (1).
Attach the Upright (4) with three M8 x 15mm
Button Screws (29) and three M8 Washers (34).
Do not tighten the Button Screws yet.
Finish attaching the Upright (4) with an M8 x
55mm Button Bolt (47), two M8 Washers (34),
and an M8 Locknut (46).
Firmly tighten the three M8 x 15mm Button
Screws (29) and the M8 Locknut (46).
To make assembly easier, read the
information on page 5 before you begin.
29
34
34
47
34
34
46

7
3
5
439
38
37
30
39
3. Attach the Handlebar (5) to the Upright (4) with
an M10 x 157mm Button Bolt (30), two M10
Curved Washers (39), and an M10 Locknut
(38).
Tip: It may be helpful to use a hex key to
turn the M10 x 157mm Button Bolt (30) while
you are inserting it through the Handlebar
(5) and the Upright (4).
Secure the Handlebar (5) with the Handlebar
nob (37).
4
3
43
1
41
29
4. Using a small plastic bag to keep your hand
clean, apply a small amount of the included
grease to both sides of a Pivot Washer (43) and
to the axle on the Pivot Frame (3).
Slide the Pivot Washer (43) onto the axle on the
Pivot Frame (3). Then, insert the Pivot Frame
into the Frame (1).
Attach the Pivot Frame (3) with an M8 x 15mm
Button Screw (29) and a Large Washer (41). Do
not overtighten the Button Screw; the Pivot
Frame must pivot freely. Grease

6
7
8. Make sure that all parts are properly tightened before you use the abdominal exerciser. Note: Some
hardware may be left over after assembly is completed.
6. Orient the Roller Carriage (6) as shown. Slide
the Roller Carriage onto the Pivot Frame (3).
Tighten the Roller Stop (16) into the Pivot
Frame (3).
7. Move the Roller Carriage (6) to the position
shown, and align the indicated hole in the Roller
Carriage with the corresponding hole (not
shown) in the Pivot Frame (3).
Insert the Pin (27) into the Roller Carriage (6)
and the Pivot Frame (3).
6
6
3
16
27
Hole
8
5. Orient the nee Pad (7) and the Roller Carriage
(6) as shown.
Attach the nee Pad (7) to the Roller Carriage
(6) with four M6 x 15mm Button Screws (28)
and four M6 Washers (35).
5
7
6
Wide
End
Welded
Bar
35
35
28
28
3
Welded
Bar

9
HOW TO USE THE ABDOMINAL EXERCISER

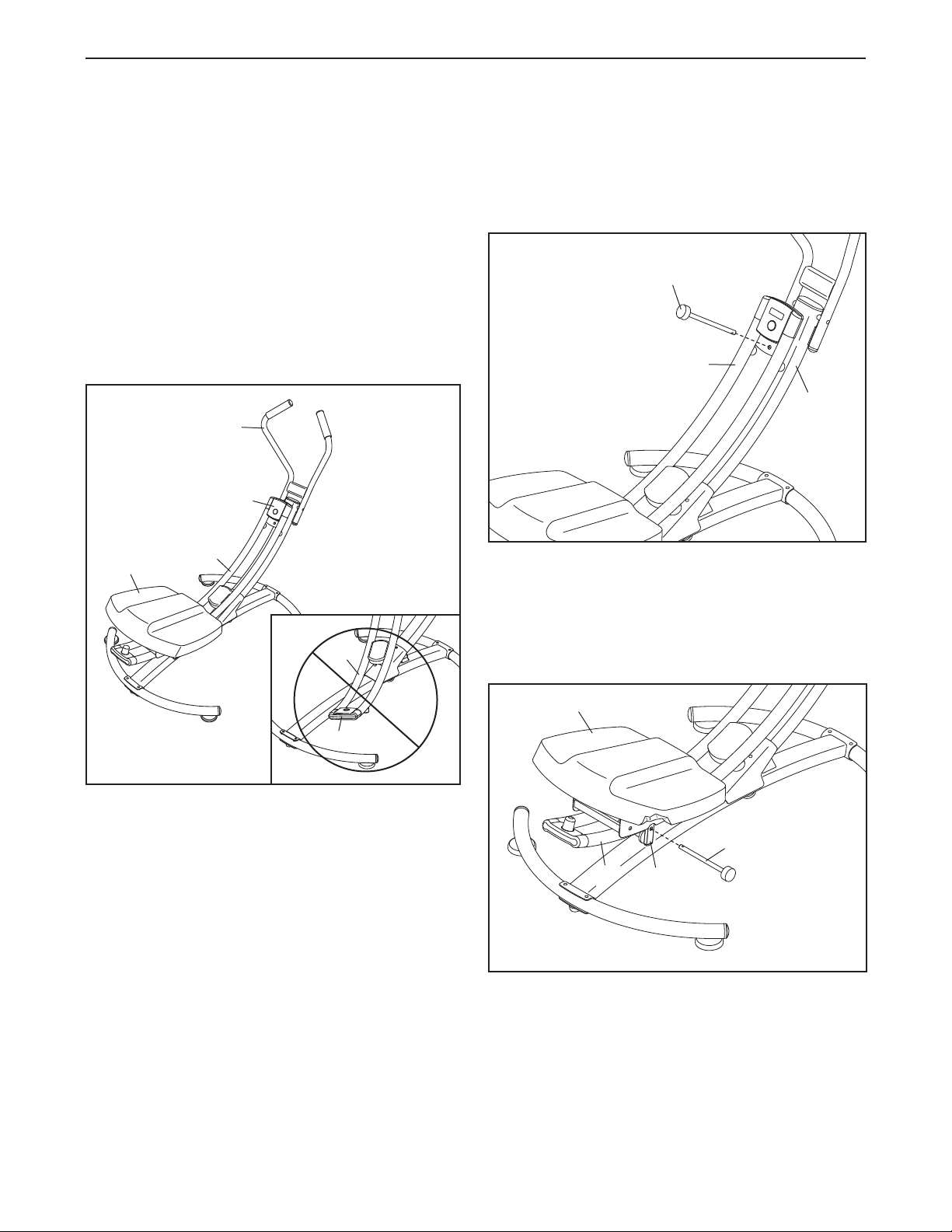

HOW TO MOUNT AND DISMOUNT THE
ABDOMINAL EXERCISER
The pivot frame can swivel from side to side, and
the knee pad can move forward and backward; to
avoid losing your balance, use extreme caution
while mounting and dismounting the abdominal
exerciser.
Before mounting the abdominal exerciser, make sure
that the Pivot Frame (3) is in the position shown below.
Do not rotate the Pivot Frame so that the Console
(8) is near the floor as shown in the inset drawing.
Next, stand beside the abdominal exerciser and hold
the Handlebar (5) firmly with both hands. Place one
knee on the nee Pad (7), halfway between the front
of the nee Pad and the back of the nee Pad. Then,
place your other knee on the nee Pad. Always hold
the Handlebar while exercising; do not hold the
Pivot Frame or the Console (8).
To dismount, hold the Handlebar (5) and place one
foot at a time on the floor beside the nee Pad (7).
HOW TO LOC THE PIVOT FRAME
To lock the Pivot Frame (3) so that it will not swivel
from side to side, insert the Pin (27) into the Pivot
Frame (3) and into the Upright (4).
HOW TO LOC THE NEE PAD
To lock the nee Pad (7) so that it will not move for-
ward and backward, insert the Pin (27) into the Roller
Carriage (6) and into the Pivot Frame (3).
4
27
73
8
8
3
5
3
6
7
27
3

10
HOW TO USE THE ABDOMINAL EXERCISER
The abdominal exerciser can be used with the pivot
frame in the locked position or the unlocked position
(see HOW TO LOC THE PIVOT FRAME on page 9).
In addition, the abdominal exerciser can be used with
the knee pad in the locked position or in the unlocked
position (see HOW TO LOC THE NEE PAD on
page 9).
With the pivot frame unlocked and the knee pad
unlocked, the pivot frame can swivel from side to
side and the knee pad can move forward and back-
ward. To exercise, use your core muscles to swivel
the pivot frame from side to side and/or to move the
knee pad forward and backward.
With the pivot frame locked and the knee pad
unlocked, the pivot frame will not swivel from side to
side, but the knee pad will move forward and back-
ward. To exercise, use your core muscles to move the
knee pad forward and backward.
With the pivot frame unlocked and the knee pad
locked, the pivot frame can swivel from side to side,
but the knee pad will not move forward and backward.
To exercise, use your core muscles to swivel the pivot
frame from side to side.
For more information about using the abdominal exer-
ciser, see the accompanying workout DVD.
HOW TO STORE THE ABDOMINAL EXERCISER
The abdominal exerciser can be folded for storage.
First, remove the Pin (27) if necessary. Next, remove
the Roller Stop (16), and slide the nee Pad (7) off
the Pivot Frame (3).
Then, remove the Handlebar nob (37), swivel the
Pivot Frame (3) to the right or to the left, and fold the
Handlebar (5) downward.
Reverse these actions to reassemble the abdominal
exerciser. Make sure to orient the nee Pad (7) as
shown.
16
27
37
7
Wide
End
3
5

11
FEATURES OF THE CONSOLE
The console features five modes that provide instant
exercise feedback during your workouts:
Scan—Displays the
Time, Calorie, and
Reps/Min modes in
a repeating cycle
Time—Displays the
elapsed time
Count—Displays the
number of repetitions
completed during the
current workout
Calorie—Displays the approximate number of calories
you have burned
Reps/Min—Displays the number of repetitions com-
pleted per minute
HOW TO INSTALL A BATTERY
The console requires one AA battery (not included); an
alkaline battery is recommended. IMPORTANT: If the
console has been exposed to cold temperatures,
allow it to warm to room temperature before you
insert a battery. Otherwise, you may damage the
console display or other electronic components.
Locate the battery door on the back of the console.
Press the tab on the battery door, and remove the bat-
tery door. Next, insert a battery into the console;
orient the battery as shown by the diagram inside
the console. Then, reattach the battery door.
HOW TO USE THE CONSOLE
Note: Make sure that a battery is installed (see HOW
TO INSTALL A BATTERY at the left). If there is a
sheet of plastic on the display, remove the plastic.
1. Turn on the console.
Press the console button on the console or begin
exercising to turn on the console.
2. Select a mode for display.
Scan mode—To
select the scan
mode, press the
console button
repeatedly until an
arrow appears
next to the word
SCAN.
Time, Calorie, or Reps/Min mode—To select one
of these modes for continuous display, press the
console button repeatedly until an arrow appears
next to the desired selection. Make sure that
there is not an arrow next to the word SCAN.
3. Begin exercising and follow your progress with
the display.
As you exercise, the console will provide instant
feedback about your workout.
4. Reset the console, if desired.
To reset the console display, press and hold the
console button for several seconds until zeros
appear in the display.
5. When you are finished exercising, the console
will turn off automatically.
If you do not move the knee pad and do not press
the console button for a few minutes, the console
will turn off automatically.

12
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
HOW TO MEASURE YOUR HEART RATE
To measure your heart
rate, exercise for at
least four minutes.
Then, stop exercising
and place two fingers on
your wrist as shown.
Take a six-second heart-
beat count, and multiply
the result by 10 to find your heart rate. For example, if
your six-second heartbeat count is 14, your heart rate
is 140 beats per minute.
WOR OUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.

13
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Hamstrings, back of knees,
and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back, and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. eep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat
3 times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons, and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and
hip muscles.
1
2
3
4
5

14
ey No. Qty. Description ey No. Qty. Description
PART LIST Model No. PFBE19410.0 R1111A
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
11Frame
22Base
31 Pivot Frame
41Upright
51Handlebar
61Roller Carriage
71 nee Pad
81Console
91Pivot Cover
10 4 Base Foot
11 2 Frame Foot
12 2 Bumper
13 1 Pivot Frame Cap
14 2 Upper Handlebar Cap
15 1 Upright Cap
16 1 Roller Stop
17 2 Foam Grip
18 2 Reed Switch
19 2 Upper Roller
20 2 Lower Roller
21 2 Roller Carriage Cap
22 1 Long Magnet Bracket
23 1 Short Magnet Bracket
24 3 Console Screw
25 4 Roller Spacer
26 1 M4 x 12mm Screw
27 1 Pin
28 4 M6 x 15mm Button Screw
29 12 M8 x 15mm Button Screw
30 1 M10 x 157mm Button Bolt
31 5 M4 x 16mm Screw
32 4 3/8" x 40mm Button Screw
33 2 M4 x 20mm Screw
34 13 M8 Washer
35 4 M6 Washer
36 6 M10 Washer
37 1 Handlebar nob
38 3 M10 Locknut
39 2 M10 Curved Washer
40 2 Bushing
41 1 Large Washer
42 2 Lower Handlebar Cap
43 1 Pivot Washer
44 4 Base Cap
45 2 M13 Washer
46 1 M8 Locknut
47 1 M8 x 55mm Button Bolt
48 10 M4 x 16mm Flange Screw
49 2 M5 Washer
50 2 M5 x 16mm Screw
*–Assembly Tool
•–Grease
*–DVD
*–Userʼs Manual

15
1
2
2
3
4
5
6
7
9
10
10
10
21
11
11
12
13
42
14
15
16
17
18
19
19
21
22
23
25
25
25
25
27
28
29
26
29
29
29
29
10
32
32
32
32
31
31
31
50
33
38
30
36
36
36
36
35
35
20
44
44
38
40
40
41
29
8
44
44
43
37
28
31
39
39
45
34
34
34
34 34
24
24
36
36 20 45 34
47
46
48 48
48
34
48
49
49
48
48 48
48
EXPLODED DRAWING Model No. PFBE19410.0 R1111A

Part No. 303014 R1111A Printed in China © 2011 ICON IP, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING
near the end of this manual)
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. Parts and labor are warranted for one (1) year from
the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All
repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to
a service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a min-
imal handling charge. For in-home service, the customer will be responsible for a minimal trip charge. This
warranty does not extend to any damage to a product caused by or attributable to freight damage, abuse,
misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to
products used for commercial or rental purposes or as store display models; or to products transported
or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by
ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-
nection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-
dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.proformservice.com/registration.
