USER’S MANUAL
Serial
Number
Decal
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Model No. PFEL07920-INT.0
Serial No.
Write the serial number in the space
above for reference.
iconeurope.com
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness, Inc.
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA

2
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE TRAINER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

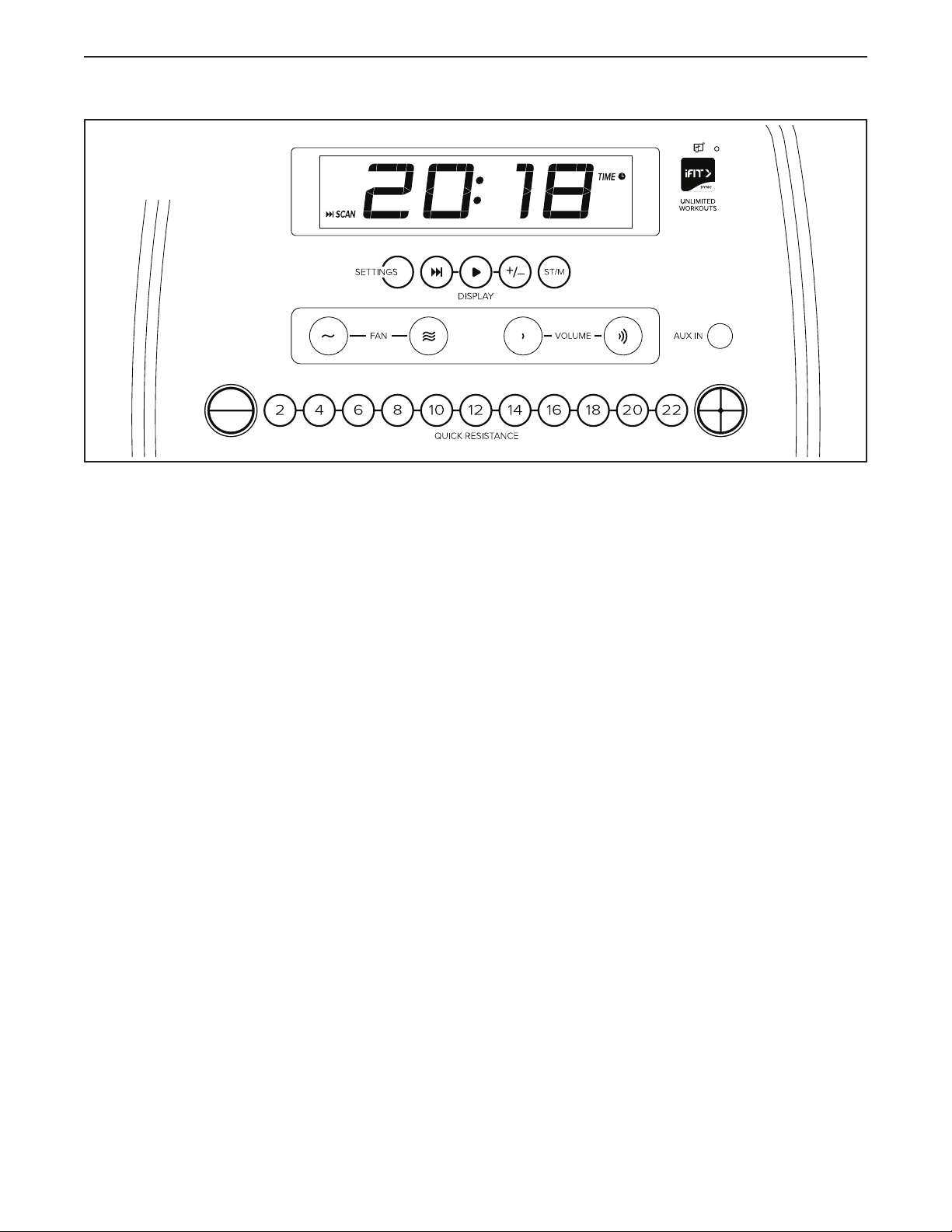

HOW TO USE THE CONSOLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
PROFORM and IFIT are registered trademarks of ICON Health & Fitness, Inc. The Bluetooth®word mark and
logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. Google Maps is a trade-
mark of Google LLC. Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi
Alliance.

3
WARNING: To reduce the risk of serious injury, read all important precautions
and instructions in this manual and all warnings on the trainer before using the trainer. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the trainer are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. The trainer is not intended for use by per-
sons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the trainer
by someone responsible for their safety.
4. Use the trainer only as described in this
manual.
5. The trainer is intended for home use only. Do
not use the trainer in a commercial, rental, or
institutional setting.
6. Keep the trainer indoors, away from moisture
and dust. Do not put the trainer in a garage
or covered patio, or near water.
7. Place the trainer on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the trainer and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the trainer.
8. Inspect and properly tighten all parts each
time the trainer is used. Replace any worn
parts immediately.
9. Keep children under age 16 and pets away
from the trainer at all times.
10. The trainer should not be used by persons
weighing more than 325 lbs. (147 kg).
11. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the trainer. Always wear athletic
shoes for foot protection while exercising.
12. Hold the handlebars or the grips when
mounting, dismounting, or using the trainer.
Before mounting or dismounting, bring
the pedals to a stop with the pedal on the
mounting or dismounting side in its lowest
position.
13. The trainer does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
14. Keep your back straight while using the
trainer; do not arch your back.
15. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
IMPORTANT PRECAUTIONS

4
Fan
Console
Wheel
Pedal
Pedal Leg
Leveling
Foot
Accessory Tray
Handlebar
Grip
Length: 5 ft. 7 in. (170 cm)
Width: 2 ft. 6 in. (76 cm)
Weight: 181 lbs. (82 kg)
Thank you for selecting the revolutionary PROFORM®
HIIT L6 trainer. The HIIT L6 trainer provides an impres-
sive selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the trainer. If you have questions after read-
ing this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN

5
M8 x 15mm
Screw (96)–2
M8 x 25mm
Screw (105)–6 M10 x 20mm
Screw (110)–8
M8 x 20mm
Screw (102)–8
M8 x 86mm Screw
(109)–2
M6 x 12mm
Screw
(108)–8
M4 x 22mm
Screw
(107)–10
M4 x 16mm Flat
Head Screw
(101)–10
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.

6
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 5.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
1. To register your product and activate your
warranty in the UK, go to iconsupport.eu. If
you do not have internet access, call Customer
Service (see the front cover of this manual).
To register your product and activate your
warranty in Australia, email or post the
following information to the email address or
postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name
of your product (see the front cover of this
manual)

7
3. Identify the Right and Left Pedal Bases (2, 3)
and the Right and Left Pedals (22, 23), and
orient them as shown.
Attach the Right Pedal (22) to the Right Pedal
Base (2) with four M6 x 12mm Screws (108);
start all the Screws, and then tighten them.
Attach the Left Pedal (23) to the Left Pedal
Base (3) in the same way.
3
2
23
22
2
3
108
108
1
8
9
110
50, 51
2. Identify the Right and Left Stabilizers (8, 9) and
orient them as shown.
Have a second person hold the Frame (1) and
tip it to the left. IMPORTANT: Be careful not to
damage the Shields (50, 51).
Attach the Right Stabilizer (8) to the Frame
(1) with four M10 x 20mm Screws (110); start
all the Screws, and then tighten them.
Note: Disregard the two unthreaded holes in the
underside of the Frame.
IMPORTANT: Make sure to tighten the
M10 x 20mm Screws (110) firmly and
completely.
Have the second person lower the Frame (1)
to the floor. IMPORTANT: Be careful not to
damage the Shields (50, 51).
Attach the Left Stabilizer (9) in the same way.
110

8
5
4
2
102
24
18 53 50, 51
101
101
4. Attach the Right Pedal Base (2) to the
Right Pedal Leg (24) with four M8 x 20mm
Screws (102); start all the Screws, and then
tighten them.
Attach the Left Pedal Base (3) to the Left
Pedal Leg (25) in the same way.
5. Press the Rear Cover (53) onto the Left and
Right Shields (50, 51).
Attach the Rear Cover (53) with four M4 x 16mm
Flat Head Screws (101); start all the Flat Head
Screws, and then tighten them.
Then, insert the Accessory Tray (18) into the
Rear Cover (53).
102
3
25

9
6. See the upper drawing. With the help of a
second person, orient the Console (5), the
Console Cover (7), and the Console Bracket
(4) as shown. Then, route the wire (A) on the
Console through the Console Cover and the
Console Bracket.
See the lower drawing. Tip: Avoid pinching
the wire (A). Attach the Console (5) and the
Console Cover (7) to the Console Bracket (4)
with four M4 x 22mm Screws (107); start all the
Screws, and then tighten them.
6
5
5
7
7
4
A
4
107
A
Avoid pinching
the wire (A)
496 96
109
115
A
Avoid
pinching
the wires
7
7. While a second person holds the Console
Bracket (4) near the Frame (1), connect
the wire (A) on the Console (5) to the Main
Wire (115).
Tip: Avoid pinching the wires. Attach the
Console Bracket (4) to the Frame (1) with two
M8 x 86mm Screws (109) and two M8 x 15mm
Screws (96); start all the Screws, and then
tighten them.
1
5

10
8
8. Identify the Right and Left Handlebars (10, 11).
Make sure that the Pedals (22, 23) are level.
Attach the Right Handlebar (10) to the Right
Handlebar Arm (15) with three M8 x 25mm
Screws (105); start all the Screws, and then
tighten them. Tip: It may be helpful to rotate
the Right Handlebar for better access to
tighten the Screws.
Attach the Left Handlebar (11) in the
same way.
10
105
11
15
22, 23
9
9. Identify the Rear and Front Pivot Covers
(65, 66).
Press a set of Rear and Front Pivot
Covers (65, 66) together around the Right
Handlebar (10) near the bend (B). Then,
attach them to each other with two M4 x 22mm
Screws (107).
See the inset drawing. Slide the Rear and
Front Pivot Covers (65, 66) toward the Shield
Cover (12). Attach the Front Pivot Cover to
the Right Handlebar (10) with an M4 x 22mm
Screw (107).
Repeat this step on the other side of the
trainer.
66
B
65
107
10
10 66
12
107
65
