iCoolsport iCool 2021 Compact 3+ Series User manual
PageiCool Compact Series |Owners Manual 01
iCool 2021 Compact Series 3+
Owners Manual
icoolsport.com
PageiCool Compact Series |Owners Manual 02
PageiCool Compact Series |Owners Manual 03
Product
Overview
Wifi
Set Up
System
Settings
Automatic
Operation
Basic
Set Up
Starting
Up
Page 05
Page 12
Page 17
Page 16
Page 07
Page 10
Index
Cold & Hot
Settings Page 14
Water Flow
Problems Page 19
01
03
05
07
Important
Safety Warnings Page 22 Troubleshooting Page 24
09
Specifications Page 28 Support Page 30
11
02
04
06
08
10
12
04
Compact Series 3+
PageiCool Compact Series |Owners Manual 05

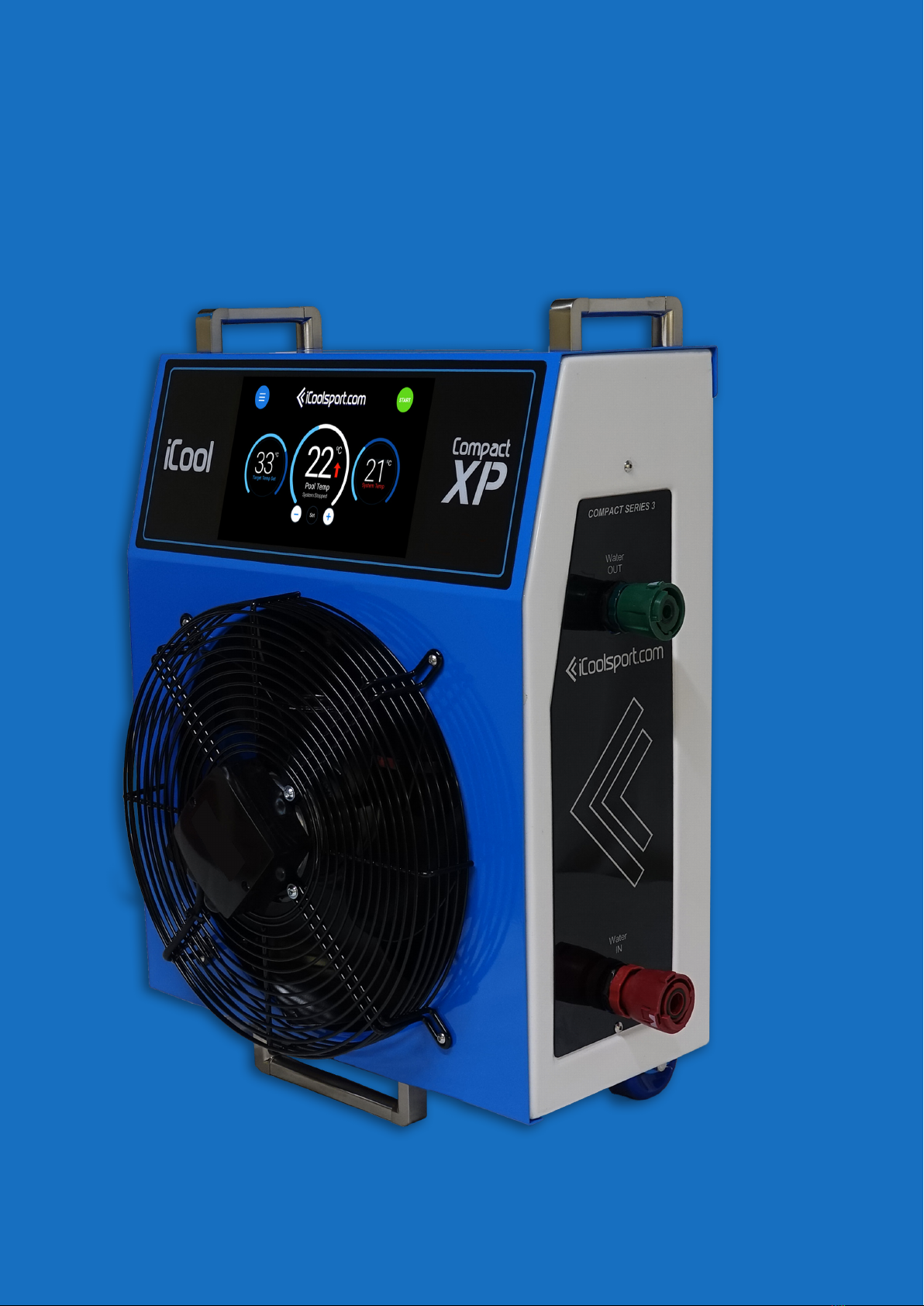

Product Overview
The Compact Cool is the most popular lower
cost system for fast cooling of a single person
pool. It provides impressive cooling power
of 5000 watts. Fully automatic control and
excellent mobility. Quiet operation with the
latest technology powerful low noise turbo fan.
The Compact Cool Dual Temp provides all the
power and functions of the Compact Cool with
the added benefit of heating as well as powerful
cooling for advanced contrast therapy sessions.
It can provide any temperature used in recovery
therapy.
The Compact XP set the standard as the most
powerful advanced heat pump ever available in
a cost effective mobile system. 7400 watts of
cooling and heating in this amazing compact
mobile package. For very fast cooling, or for
bigger pools, the XP is the best mobile ice bath
system available anywhere and the best selling
ice bath machine in the world.
The Compact XP Dual Temp provides all the
power and functions of the Compact XP with
the added benefit of heating as well as powerful
cooling for advanced contrast therapy sessions.
It can provide any temperature used in recovery
therapy.
The Compact Iceman is the latest upgrade of
the ultimate recovery machine. More powerful
than any other compact ice bath chilling system
it was designed specifically to support those
athletes who follow the world famous Whim Hof
method. A powerful tool for athletes dedicated
to getting the ultimate benefits from the latest
recovery science with an impressive unique look
in an all black metal cabinet.
Compact Cool Series 3+
Compact Cool Dual Temp Series 3+
Compact XP Series 3+
Compact XP Dual Temp Series 3+
Compact Iceman Series 3+
Ideally suited to small and medium sized baths
from 200 to 2000 litres depending on the model.
Supplied with complete hose sets, industrial
water pump and accessories.
Key Features of the Compact Range
Remote control from smart phones and
computers now available.
Much larger 10 inch Full HD Capacitive Touch
Screen.
Included on all Series 3+ Models
The 2020 Compact Series 3 was
our best selling model ever. The
2021 Series 3+ is one step closer
to ice bath perfection.
PageiCool Compact Series |Owners Manual 06
Basic Setup
Follow this illustrations and match the colours of the connectors as shown.
GREEN to the TOP RED to the BOTTOM
Step 1: Connecting The Water Hoses
to Your Pool
TO Top of Pool
FROM Top of
Water Pump
Alternative Hoses and Pumps
iCool machines are sometimes delivered with different pumps, hose sets and water connectors depending the electricity
supply in your country and on the owners intended use. If a multi-voltage pump is provided, it will have an independent speed
controller The direction of the water flow will always be as shown regardless of the hose and connector colours.
In these cases simply follow the direction of the water flow as shown in these illustrations.
PageiCool Compact Series |Owners Manual 07
Step 2: Connecting The Water Hoses*
To Your Water Circulation Pump
FROM the Bottom of your Pool
TO the Top of your Pool
Note! Your pump may not look exactly like this one, but the connections are
exactly the same no matter which pump was provided.
The shorter length of hose with RED connectors (600 mm), connects between the BOTTOM fitting on the Compact and to
the TOP fitting on your water circulation pump as shown below.
The longer length of hose with RED connectors, connects between the BOTTOM fitting on the pool and the BOTTOM fitting
on your water circulation pump.
The longer length of smaller diameter hose with the GREEN connectors (3 m), connects between the TOP fitting on your
Compact and the TOP of your pool.
*Depending on the model and country of delivery
your hoses and fittings may not be the same as in this
illustration, but the connection and flow direction will
be the same.
Page 8iCool Compact Series |Owners Manual
Basic Setup
Step 3: Connecting Electric Power
to your Compact machine and your water Pump
IMPORTANT SAFETY NOTE!
As a safety precaution the power inlet
and outlet sockets are recessed in to the
cabinet and angled upwards at 20º to
prevent splashing or rain from entering.
Take care when inserting.
The combined Main Power Switch and
Electrical Safety Device is also recessed
in to the cabinet to protect it from
splashing.
If this device detects any unsafe
electrical leakage it instantly removes all
electric power from both the chiller and
the water pump.
Turn on MAIN POWER here
Plug the MAIN POWER in here.
You must use the correct voltage as
shown above this socket.
Plug the WATER PUMP in here.
If not using the water pump provided
do not use pumps exceeding 1000
watts.
Make sure that you do not connect your Compact machine to the wrong voltage.
Please check the voltage on the name plate above the power IN socket. It is either a 220 volt model or a 110 volt model.
You must not connect to the wrong voltage or this will cause serious damage.
The Water Pump must be connected to the special socket on the Compact Machine as shown.
Warning! You can only use the
voltage marked here. Using a different
voltage will cause serious damage.
Electricity Safety Device with
Test Button inside
Page 9iCool Compact Series |Owners Manual

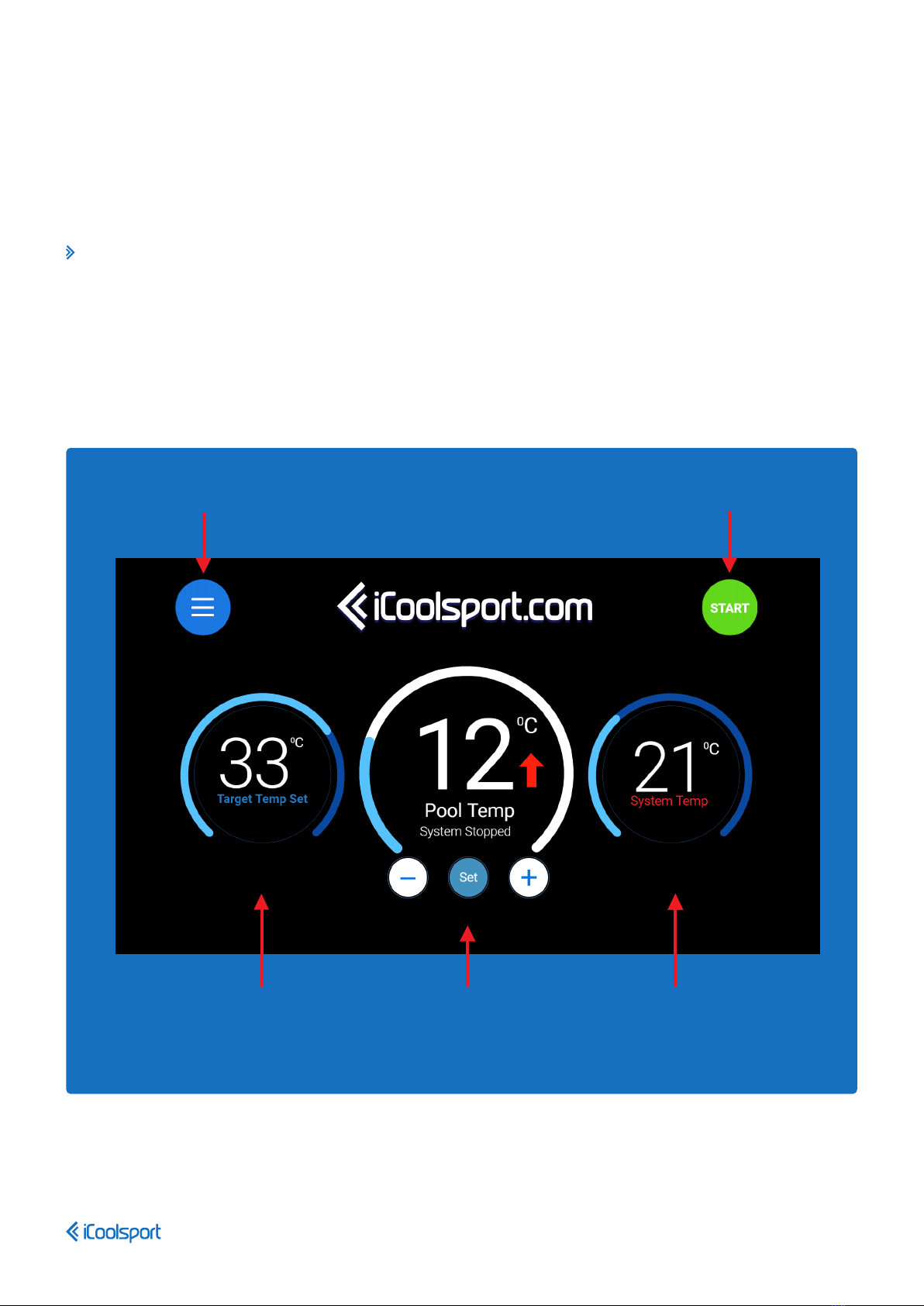

Step 4: The Touch Screen Controller
MENU ITEMS
THE TEMPERATURE
YOU PRE SELECTED
THE HEAT PUMP
OPERATING TEMPERATURE
THE CURRENT POOL TEMPERATURE
THE TEMPERATURE SETTING BUTTONS
AUTOMATIC START BUTTON
The all new modern user interface has been completely redesigned to provide completely automatic start up and
operational. Just set the temperature you need and touch the START Button.

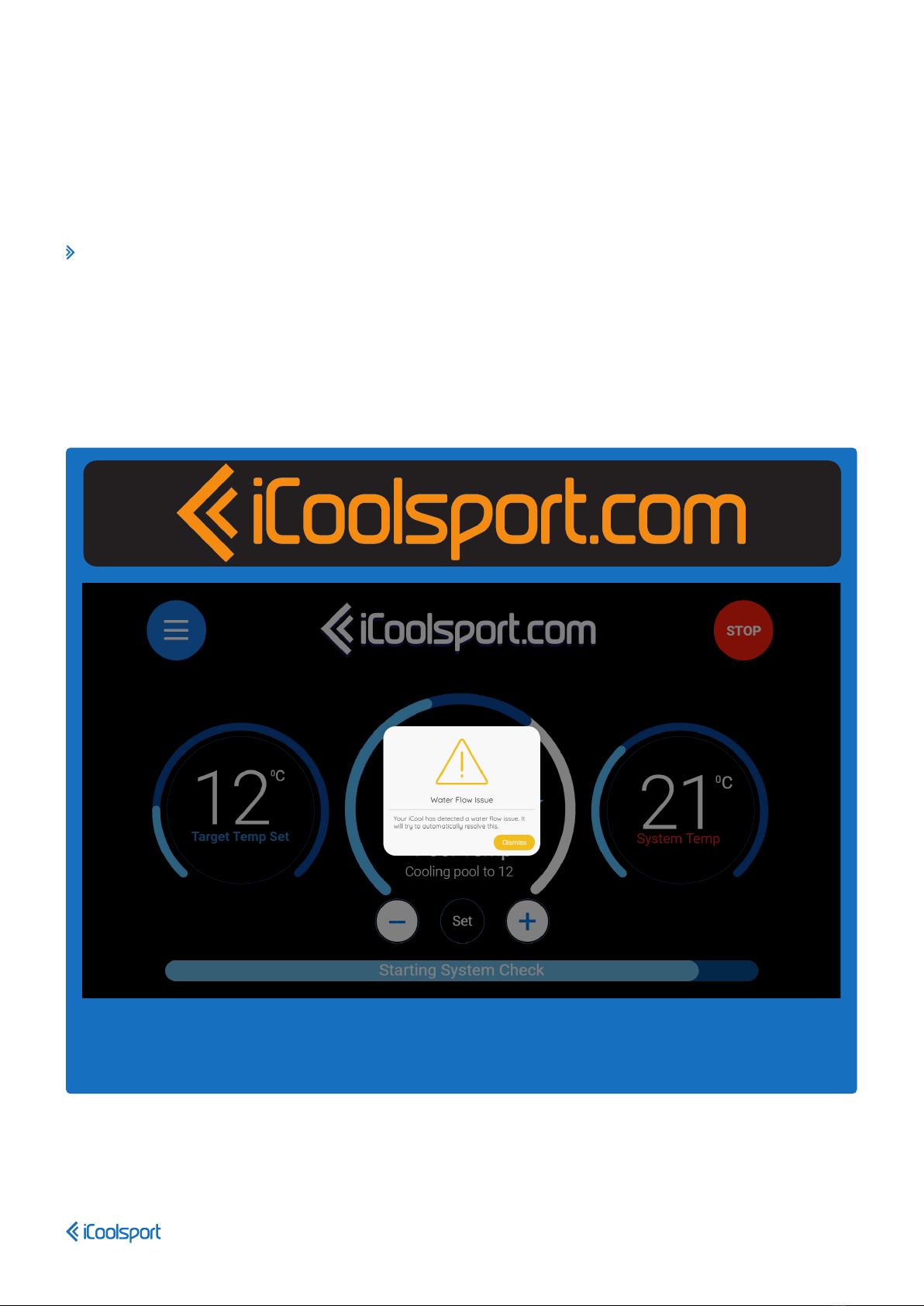

Intelligent Water Flow correction
If the water does not flow steadily when you first start up due to air being trapped in the hoses to and from the pool or inside
the water pump, your iCool will attempt to clear it automatically 3 times.
If this is not successful the touch screen will direct you on how to correct this issue.
Page 10iCool Compact Series |Owners Manual
Starting Up
Turn on the MAIN POWER SWITCH.

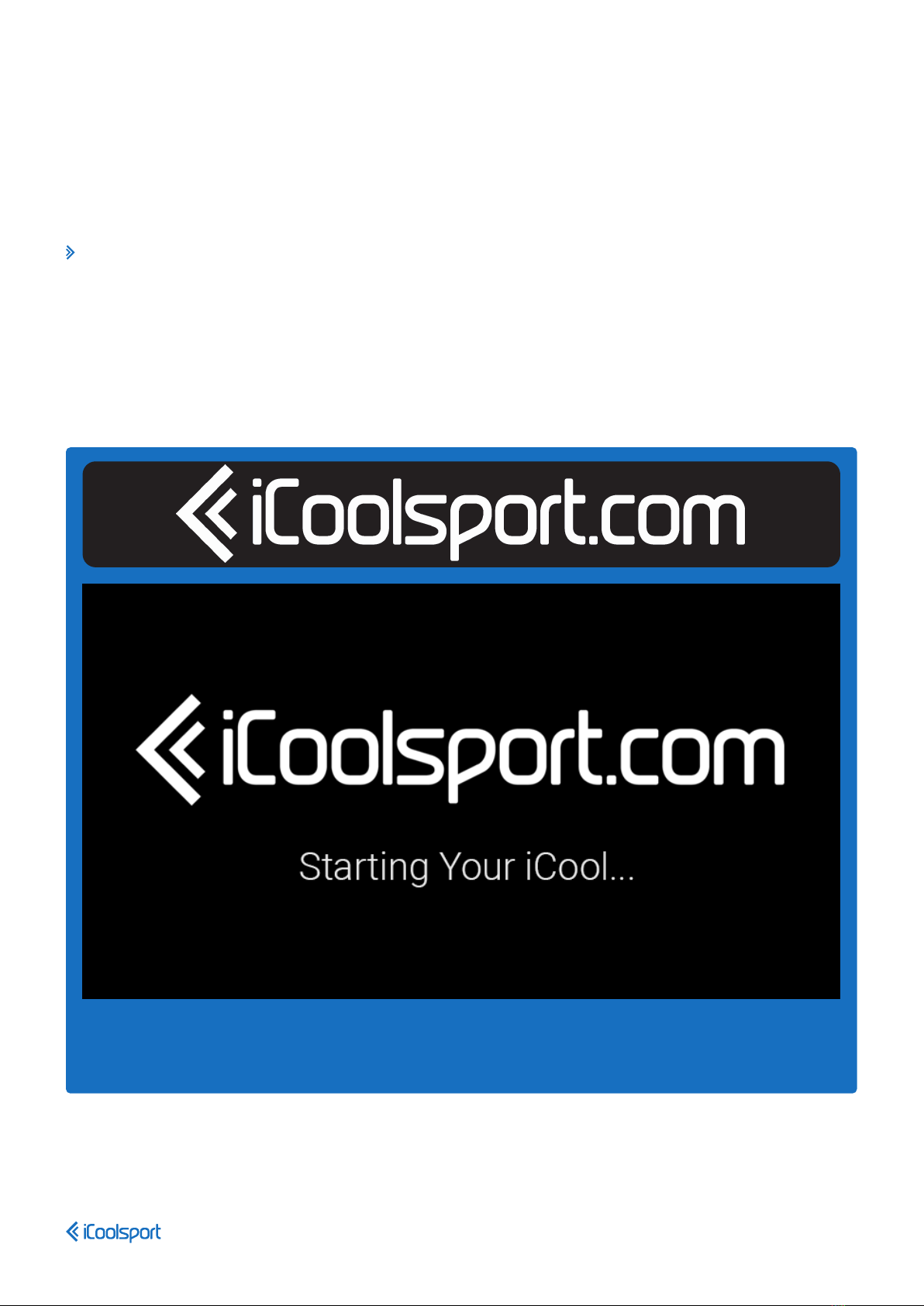

The Touch Screen will be blank for a few seconds and then the iCool Logo will appear.
This will continue until your machine has loaded its operating software and run a full system check.
Do no touch the screen during this self test procedure. Wait for the Welcome screen to appear.
Step 5: STARTING UP and Making your Settings
Page 11iCool Compact Series |Owners Manual

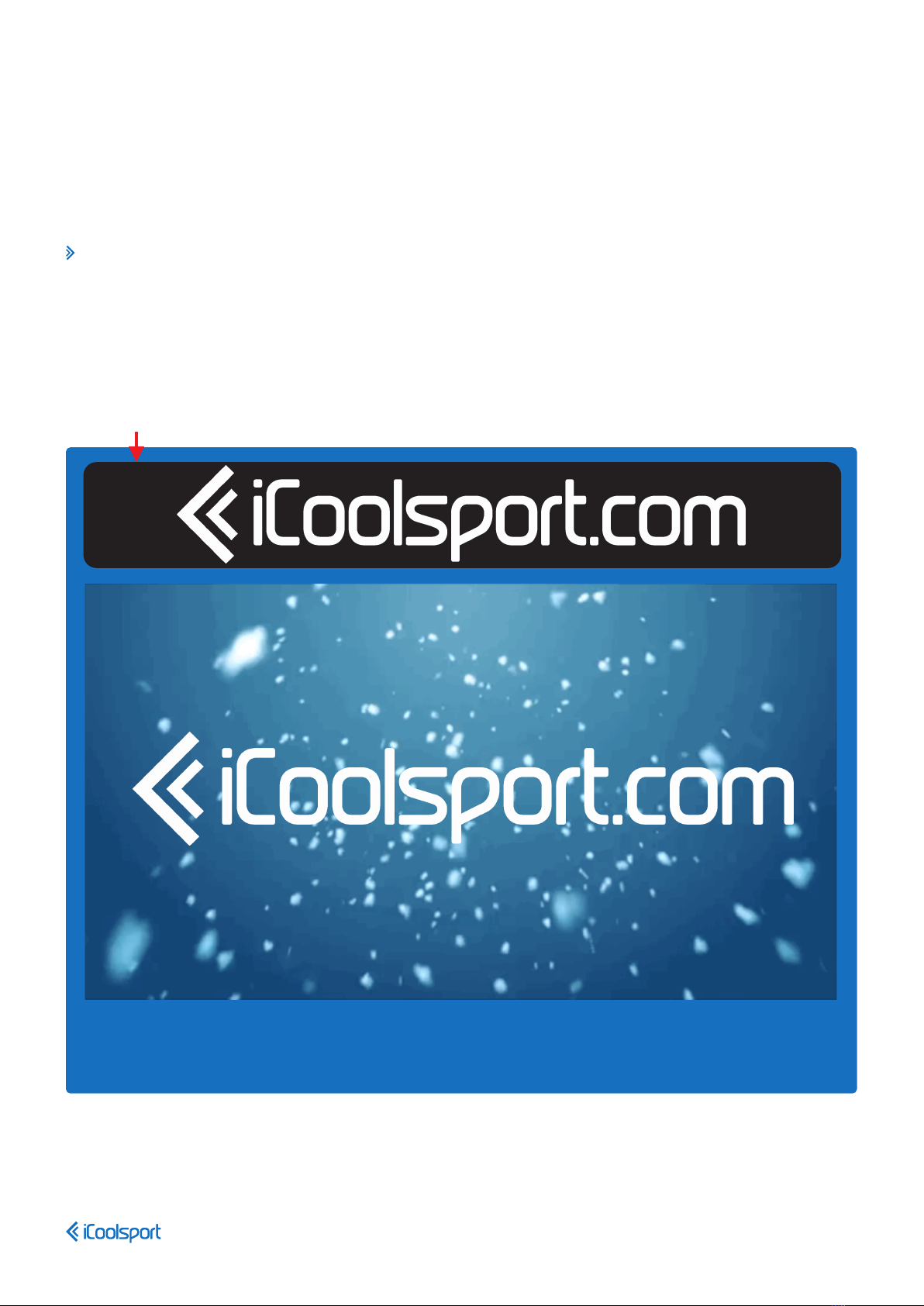

A Welcome screen movie of ice and snow indicates that the machine has loaded the latest software
and all safety checks have been completed successfully.
The logo light bar located on the top of your machine will be white.
TOUCH the screen anywhere and the Main Operating Screen will appear.
Step 6: The Welcome Screen Appears
LIGHT BAR: The iCool logo on top of your machine will change colour depending on the function
Page 12iCool Compact Series |Owners Manual

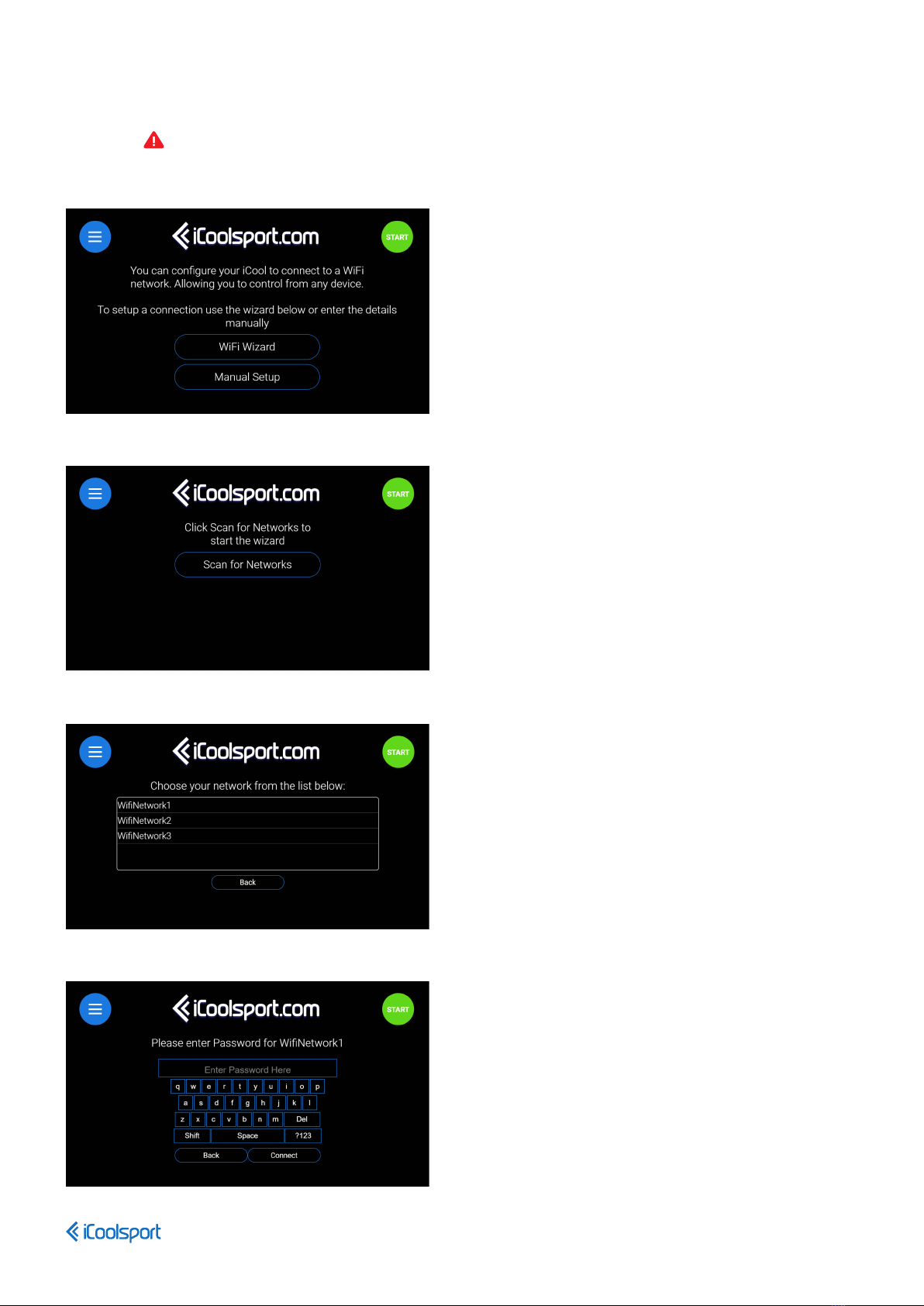

WiFi Set Up
Step 1: Choose WiFi from the MAIN MENU of your iCool. Next, click WiFi WIZARD.
Scroll down the list if your network is not visible
at the top. Tap on your network once you find it to
configure.
Step 2: Click SCAN FOR NETWORKS. The scan might take a few minutes.
Step 3: When the scan is complete, a list of available WiFi Networks will be shown.
Step 4: Enter the password and press CONNECT.
Your iCool will now try to connect to you
network.
For capital letters, press the SHIFT button. For
numbers and symbols, press the ?123 button.
If your network doest not have a password, simply
press CONNECT.
If you want to operate your machine via your smartphone, tablet or computer, follow the instructions below
Page 13iCool Compact Series |Owners Manual

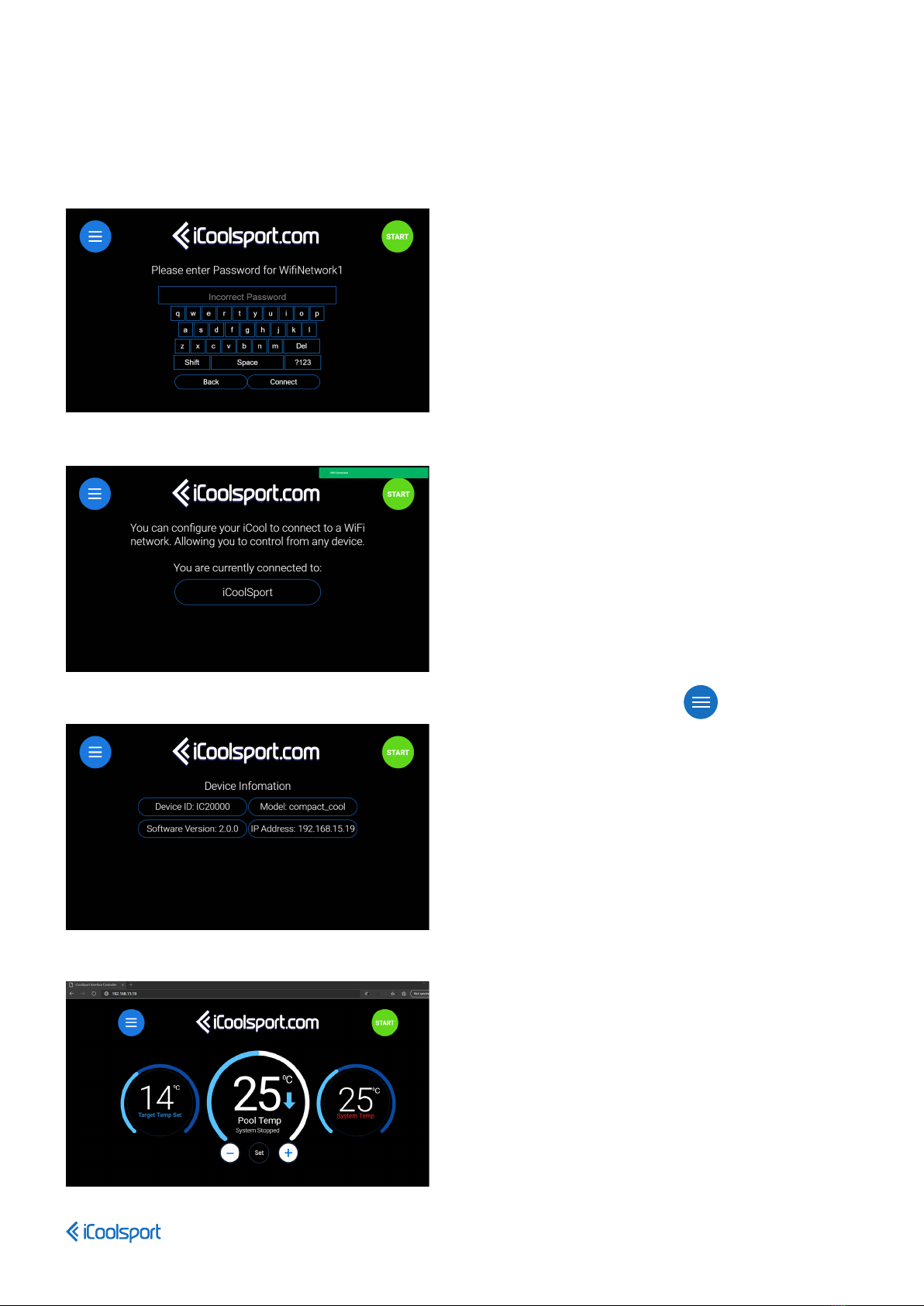

Step 5: If it fails to connect, please check your password and try again.
If you are successfully connected to your network,
an IP address should appear in the bottom right
label as pictured.
Step 6: A GREEN notification will appear when the connection is successful.
Step 7: To access the web interface, choose INFO from the MENU .
Step 8: Enter the IP address into your web browser bar in your laptop or phone.
You should now see your iCool’s screen on your
device. You can now operate all the functions of your
iCool from your computer, phone or tablet.
Note: To reconfigure WiFi settings, you can only do it
from your iCool’s screen.
Your network name will be visible in the middle of
your screen. To change your connection, simply tap
the network name on the screen to reconfigure your
settings.
Page 14iCool Compact Series |Owners Manual
Cold Setting
To SELECT the TEMPERATURE you require simply touch the +or -buttons repeatedly until the large
number above these buttons displays the COLD temperature you need.
Quickly touch the SET button to lock it in.
Your SET Temperature will now be displayed on the left side as the TARGET Temperature and the large
numbers in the middle will now display the actual POOL WATER Temperature.
For safety reasons you can not select temperatures below 5 degrees C or 40 degrees F.
Step 7: Setting the COLD Temperature You Need
Page 15iCool Compact Series |Owners Manual
Hot Setting
To SELECT the TEMPERATURE you require simply touch the +or -buttons repeatedly until the large
number above these buttons displays the HOT temperature you need.
Quickly touch the SET button to lock it in.
Your SET Temperature will now be displayed on the left side as the TARGET Temperature and the large
numbers in the middle will now display the actual POOL WATER Temperature.
For safety reasons you can not select temperatures above 45 degrees C or 112 degrees F.
Step 8: Setting the HOT Temperature You Need
Not Available on COLD ONLY Machines
Your COMPACT Machine will automatically select if it needs to either CHILL or HEAT to achieve your required
water temperature.
Only “Dual Temp” models with the reverse cycle machinery built in can heat.
Page 16iCool Compact Series |Owners Manual
Automatic Operation
Step 9: Touch the Green START BUTTON
The Start button begins a Fully Automatic Start Up procedure and controls all normal operations.
A PROGRESS BAR will appear along the bottom of the screen to inform you of the start up progress.
Your machine will first start the water pump. The light bar will PULSE in WHITE to indicate pump is
running and the automatic startup procedure is in progress.
After a few seconds the refrigeration compressor motor will start. After some more seconds the main
air flow fan will start.
If the start has been successful the light bar will turn BLUE if cooling or RED if heating.
In this case everything has tested correctly and the machine is now
chilling (or heating) to the temperature that you set.
Page 17iCool Compact Series |Owners Manual

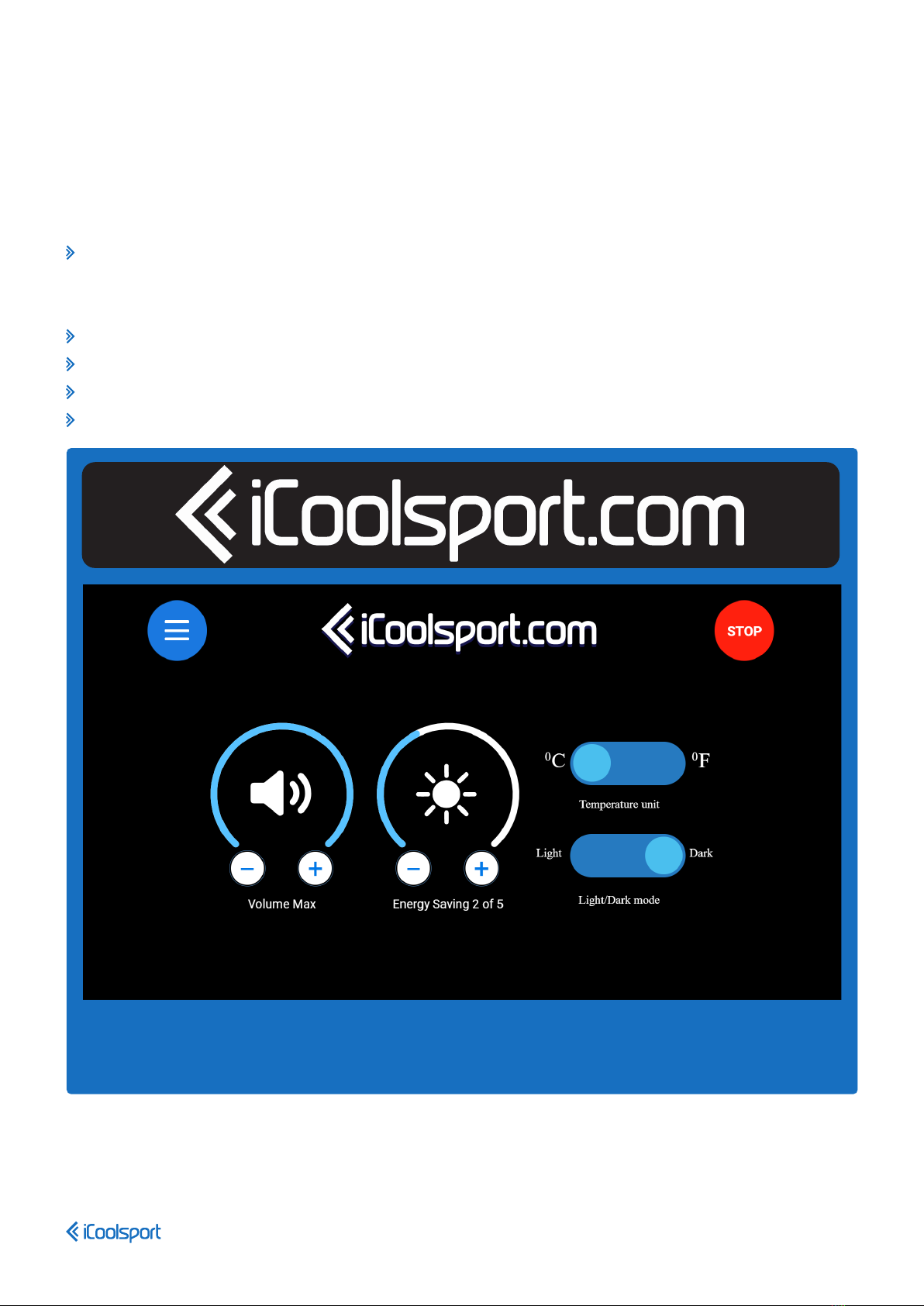

Touch the Blue MENU Button to reveal all available options on your machine & choose SETTINGS from
the list.
You can change between Centigrade and Fahrenheit.
You can select the volume of the System Sounds.
You can change the appearance from Dark Mode to Light Mode.
You can set levels of energy saving. Level 1 provides full cooling power, Level 5 saves the most electricity.
Step 10: Changing Basic System Settings
System Settings
Page 18iCool Compact Series |Owners Manual
Your iCool Compact has a built in SESSION TIMER.
This allows you to pre set the amount of time athletes should
remain in the pool.
It provides a count down on the screen.
It sounds a warning at the end of the session.
It can automatically re set and begin again for the next athlete.
The Change Over time between athletes can also be pre set.
System Settings
Step 11: Built In SESSION TIMER
Page 19iCool Compact Series |Owners Manual
Water Flow Problems
The most common issue that can prevent successful operation is lack of water flow. The light bar will
turn ORANGE if this happens. It can occur if air is trapped in the water pipes or the pump, or if flow is
restricted in the hoses. The Compact will attempt to clear it automatically several times by surging the
pump to dislodge air. If after several attempts it can not correct the lack of water flow, it will shut the
machine down and warn you that action must be taken to correct the problem.
More information on how to clear the water flow is on pages 24-25 of this manual or via the MENU on
the touch screen.
Problem Resolution - Your Compact Machine will attempt to correct any water
flow problems
If your iCool was provided with a multi-speed pump, you can increase its speed to boost the water flow.
This will usually allow the pump to overcome any water flow restrictions in your particular set up. Full
details on pages 24-25.
Page 20iCool Compact Series |Owners Manual
If your Compact can correct the lack of water flow itself it will do so and advise on the screen.
No action is needed, it will continue to operate correctly.
Water Flow Problems Fixed Automatically
Table of contents
Other iCoolsport Medical Equipment manuals
