Icp Cxa618gka100 Installation instructions

421 04 6300 01 May 2012

TECHNICAL SUPPORT MANUAL

Split System Air Conditioner

(C,H,T)XA6

DANGER, WARNING, CAUTION, and

NOTE

The signal words DANGER, WARNING,

CAUTION, and NOTE are used to identify levels of

hazard seriousness. The signal word DANGER is

only used on product labels to signify an immediate

hazard. The signal words WARNING, CAUTION,

and NOTE will be used on product labels and

throughout this manual and other manuals that may

apply to the product.

DANGER -- Immediate hazards which will result in

severe personal injury or death.

WARNING -- Hazards or unsafe practices which

could result in severe personal injury or death.

CAUTION -- Hazards or unsafe practices which

may result in minor personal injury or product or

property damage.

NOTE -- Used to highlight suggestions which will

result in enhanced installation, reliability, or opera-

tion.

Signal Words in Manuals

The signal word WARNING is used throughout this

manual in the following manner:

The signal word CAUTION is used throughout this

manual in the following manner:

Signal Words on Product Labeling

Signal words are used in combination with colors

and/or pictures on product labels.

WARNING

Safety Labeling and Signal Words

!CAUTION

WARNING

TABLE OF CONTENTS

Model Number Identification 2.....................

R--410A Quick Reference Guide 3..................

Wiring Diagrams 4--5.............................

Charging Chart 6.................................

Tech Labels (Expanded Data) 7 -- 11................

Condenser Only Data 12 -- 13......................

CXA6 HXA6 TXA6 Parts List 14 -- 19................

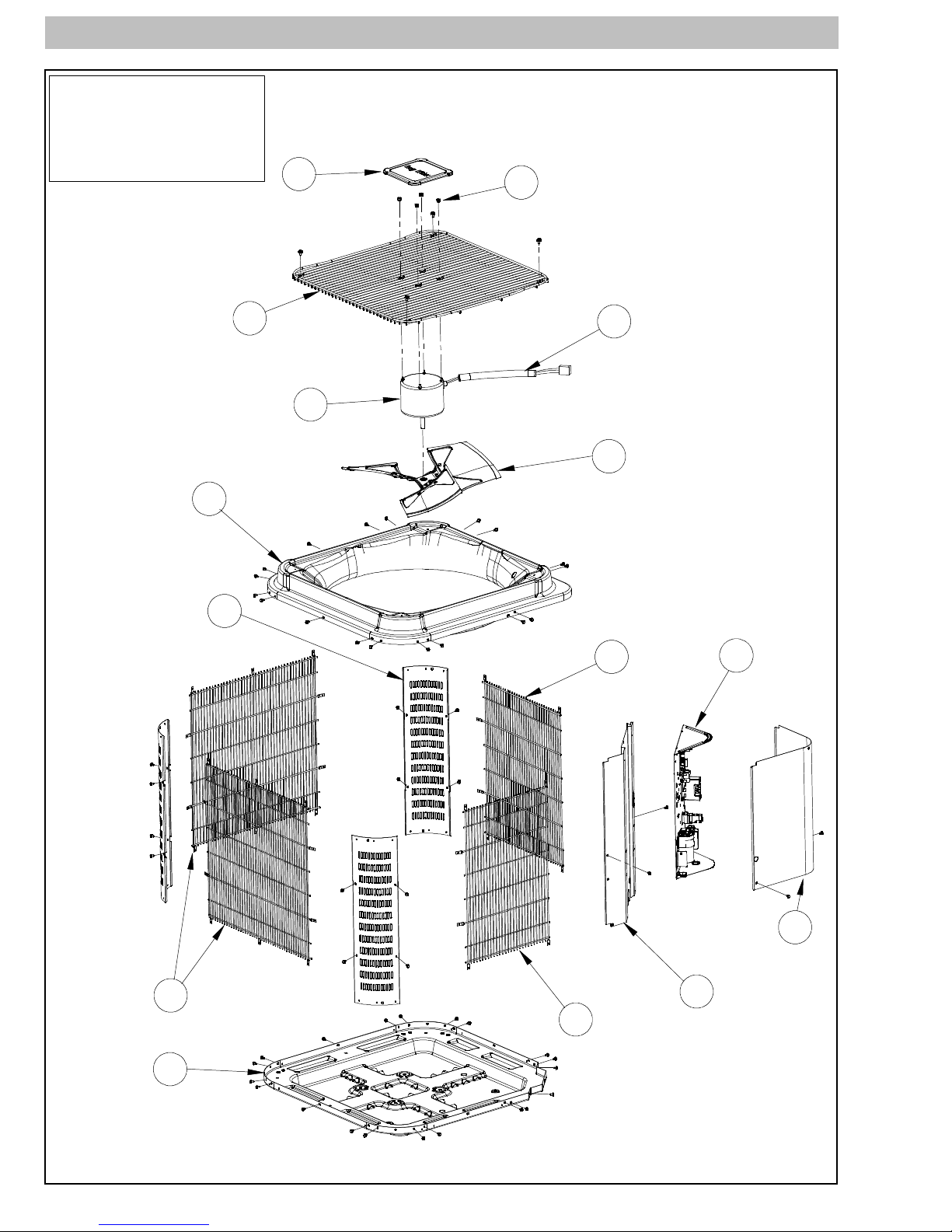

Exploded Drawings 20 -- 22........................

Cooling Multiplying Factors 23 -- 85.................

MODELS

CXA618GKA100 HXA618GKA100 TXA618GKA100

CXA624GKA100 HXA624GKA100 TXA624GKA100

CXA630GKA100 HXA630GKA100 TXA630GKA100

CXA636GKA100 HXA636GKA100 TXA636GKA100

CXA642GKA100 HXA642GKA100 TXA642GKA100

CXA648GKA100 HXA648GKA100 TXA648GKA100

CXA649GKA100 HXA649GKA100 TXA649GKA100

CXA660GKA100 HXA660GKA100 TXA660GKA100

CXA661GKA100 HXA661GKA100 TXA661GKA100

!WARNING

DEATH, PERSONAL INJURY, AND/OR PROPERTY

DAMAGE HAZARD

Failure to carefully read and follow this warning

could result in equipment malfunction, property

damage, personal injury and/or death.

Installation or repairs made by unqualified per-

sons could result in equipment malfunction, prop-

erty damage, personal injury and/or death.

The information contained in this manual is inten-

ded for use by a qualified service technician famili-

ar with safety procedures and equipped with the

proper tools and test instruments.

Installation must conform with local building

codes and with the National Electrical Code

NFPA70 current edition or Canadian Electrical

Code Part 1 CSA C.22.1.

TECHNICAL SUPPORT MANUAL Split System Air Conditioner: (C,H,T)XA6

2421 04 6300 01

OUTDOOR UNIT MODEL NUMBER IDENTIFICATION GUIDE (single phase)

Digit Position: 1 2 3 4 5, 6 7 8 9 10 11 12

Example Part Number: H X A 6 18 G K A 1 0 0

Product Family

4 = R--410A REFRIGERANT

A = Air Conditioner

H = Heat Pump TYPE

3 = 13 SEER

4 = 14 SEER

5 = 15 SEER

6 = 16 SEER

7 = 17 SEER

8 = 18 SEER NOMINAL EFFICIENCY

18 = 18,000 BTUH = 1½tons

24 = 24,000 BTUH = 2 tons

30 = 30,000 BTUH = 2½tons

36 = 36,000 BTUH = 3 tons

42 = 42,000 BTUH = 3½tons

48 = 48,000 BTUH = 4 tons

49 = 49,000 BTUH = 4 tons

60 = 60,000 BTUH = 5 tons

61 = 60,000 BTUH = 5 tons NOMINAL CAPACITY

A = Standard Grille

G = Coil Guard Grille

C = Coastal FEATURES

K = 208/230--1--60 VOLTAGE

Sales Code

Engineering Revision

Extra Digit

ACCESSORIES PART NUMBER IDENTIFICATION GUIDE

Digit Position: 123456, 7 8, 9 10, 11

Example Part Number: N A S A 0 01 01 CH

N = Non--Branded BRANDING

A = Accessory PRODUCT GROUP

S = Split System (AC & HP) KIT USAGE

A = Original

B = 2nd Generation MAJOR SERIES

0 = Generic or Not Applicable

2=R--22

4 = R--410A REFRIGERANT

Product Identifier Number

Package Quantity

Type of Kit (Example: CH = Crankcase Heater)

TECHNICAL SUPPORT MANUAL Split System Air Conditioner: (C,H,T)XA6

421 04 6300 01 3

R--410A QUICK REFERENCE GUIDE

•R--410A refrigerant operates at 50% -- 70% higher pressures than R--22. Be sure that servicing equipment and

replacement components are designed to operate with R--410A.

•R--410A refrigerant cylinders are rose colored.

•Recovery cylinder service pressure rating must be 400 psig, DOT 4BA400 or DOT BW400.

•R--410A systems should be charged with liquid refrigerant. Use a commercial type metering device in the

manifold hose when charging into suction line with compressor operating.

•Manifold sets should be 750 psig high--side and 200 psig low--side with 520 psig low--side retard.

•Use hoses with 750 psig service pressure rating.

•Leak detectors should be designed to detect HFC refrigerant.

•R--410A, as with other HFC refrigerants, is only compatible with POE oils.

•Vacuum pumps will not remove moisture from oil.

•Do not use liquid line filter--driers with rated working pressures less than 600 psig.

•Do not install a suction line filter--drier in liquid line.

•POE oils absorb moisture rapidly. Do not expose oil to atmosphere.

•POE oils may cause damage to certain plastics and roofing materials.

•Wrap all filter--driers and service valves with wet cloth when brazing.

•A liquid line filter--drier is required on every unit.

•Do not use with an R--22 TXV.

•If indoor unit is equipped with an R--22 TXV, it must be changed to an R--410A TXV.

•Never open system to atmosphere while it is under a vacuum.

•When system must be opened for service, break vacuum with dry nitrogen and replace all filter--driers. Evacuate

to 500 microns before recharging.

•Do not vent R--410A into the atmosphere.

•Do not use capillary tube indoor coils.

•Observe all WARNINGS,CAUTIONS, NOTES, and bold text.

International Comfort Products, LLC

Lewisburg, TN 37091 USA

TECHNICAL SUPPORT MANUAL Split System Air Conditioner: (C,H,T)XA6

4421 04 6300 01

Model Sizes: 18, 24, 30, 36, 42, 48, 49, 60, 61

334997--101 Rev. B

1. Symbols are electrical representation only.

2. Compressor and fan motor furnished with inherent thermal protection.

3. To be wired in accordance with National Electric N.E.C. and local codes.

4. N.E.C. class 2, 24 V circuit, min. 40 VA required, 60 VA on units installed with LLS.

5. Use copper conductors only. Use conductors suitable for at least 75° C (167° F).

6. Connection for typical cooling only thermostat. For other arrangements see installation instructions.

7. If indoor section has a transformer with a grounded secondary, connectthe grounded side tothe BRN/YEL lead.

8. When start capacitor and relay are installed, start thermistor is not used.

9. CH not used on all units.

10. If any of the original wire, as supplied, must be replaced, use the same or equivalent wire.

11. Check all electrical connections inside control box for tightness.

12. Do not attempt to operate unit until service valves have been opened.

13. Do not rapid cycle compressor. Compressor must be off 3 minutes to allow pressures to equalize between high and low side

before starting.

14. Wire not present if HPS, LPS or CTD are used.

15. Not for interrupting current.

Notes:

COMP

BRN

BLK

YEL

BLU

BLK

YEL

BRN

BLK

YEL

BLK

YEL

RED or BLK

CONT

208/230 1∅

POWER

SUPPLY

EQUIP GND

BLU

YEL

*ST +t

BLU

YEL

*CHS *CH

BLK

RED

BLK

(NOTE #9)

YEL

*SC

*SR

(NOTE #8)

BRN

YEL/ BLU

(NOTE #14)

POWER

SUPPLY

INDOOR THERMOSTAT (NOTE #6)

RGY

*LLS

BLK

BLK BLK

YEL/PNK BLU/PNK

YEL/ BLU

BRN/YEL

BLK

PL1 (NOTE #15)

PL2 (NOTE #15)

OFM

RED

RED 3

FSC

YEL/BLU

FAN

YEL/ BLU

YEL/PNK BLU/PNK

BLU

CAP

11 21

2323

*DTS

*LPS *HPS

BRN/YEL

EXTERNAL

24 V

(NOTE # 3)

INDOOR BLOWER MOTOR

TECHNICAL SUPPORT MANUAL Split System Air Conditioner: (C,H,T)XA6

421 04 6300 01 5

Model Sizes: 18, 24, 30, 36, 42, 48, 49, 60, 61

334997--101 Rev. B

11 21

*SR *SC

COMP

*ST

CAP

CONT

*LPS *DTS

*LLS

IFR

INDOOR THERMOSTAT

EXTERNAL POWER SUPPLY 24 V

(NOTE #14)

FSC

OFM

FSC

FAN

*HPS

EQUIP

GND

CONT

*CH

*CHS

CONT

CAP

CONT

*CH

*CHS

COMFORT ALERT

CAPACITOR (DUAL RUN)

CONTACTOR

CRANKCASE HEATER

CRANKCASE HEATER SWITCH * MAY BE FACTORY INSTALLED

LEGEND

FACTORY POWER WIRING

FACTORY CONTROL WIRING

FIELD CONTROL WIRING

FIELD POWER WIRING

CONDUCTOR ON CIRCUIT BOARD

COMPONENT CONNECTION

FIELD SPLICE

JUNCTION

PLUG RECEPTACLE

COMP

*DTS

FSC

*HPS

IFR

*LLS

*LPS

OFM

PL1

PL2

*SC

*SR

*ST

COMPRESSOR

DISCHARGE TEMP SWITCH

FAN SPEED CONTROL

HIGH PRESSURE SWITCH

INDOOR FAN RELAY

LIQ LINE SOLENOID VALVE

LOW PRESSURE SWITCH

OUTDOOR FAN MOTOR

COMPRESSOR PLUG

OUTDOOR FAN PLUG

RECEPTACLE

START CAPACITOR

START RELAY

START THERMISTOR

TECHNICAL SUPPORT MANUAL Split System Air Conditioner: (C,H,T)XA6

6421 04 6300 01

R--410A CHARGING CHART

Measured Liquid

Pressure (psig)

Rating Plate (required) Subcooling Temperature °F(°C)

°F (°C) °F (°C) °F (°C) °F(° C) F(° C) F (°C)

6 3 8 4 10 612 714 816 9

R--410A Required Liquid Line Temperature °F(°C)

251 78 26 76 24 74 23 72 22 70 21 68 20

259 80 27 78 26 76 24 74 23 72 22 70 21

266 82 28 80 27 78 26 76 24 74 23 72 22

274 84 29 82 28 80 27 78 26 76 24 74 23

283 86 30 84 29 82 28 80 27 78 26 76 24

291 88 31 86 30 84 29 82 28 80 27 78 26

299 90 32 88 31 86 30 84 29 82 28 80 27

308 92 33 90 32 88 31 86 30 84 29 82 28

317 94 34 92 33 90 32 88 31 86 30 84 29

326 96 36 94 34 92 33 90 32 88 31 86 30

335 98 37 96 36 94 34 92 33 90 32 88 31

345 100 38 98 37 96 36 94 34 92 33 90 32

364 104 40 102 39 100 38 98 37 96 36 94 34

374 106 41 104 40 102 39 100 38 98 37 96 36

384 108 42 106 41 104 40 102 39 100 38 98 37

395 110 43 108 42 106 41 104 40 102 39 100 38

406 112 44 110 43 108 42 106 41 104 40 102 39

416 114 46 112 44 110 43 108 42 106 41 104 40

427 116 47 114 46 112 44 110 43 108 42 106 41

439 118 48 116 47 114 46 112 44 110 43 108 42

450 120 49 118 48 116 47 114 46 112 44 110 43

462 122 50 120 49 118 48 116 47 114 46 112 44

474 124 51 122 50 120 49 118 48 116 47 114 46

CAUTION

1. Compressor damage may occur if system is over charged.

2. This unit is factory charged with R--410A in accordance with the amount shown on the rating plate. The charge is

adequate for most systems using matched coils and tubing not over 15 feet long. Check refrigerant charge for maximum

efficiency. See Product Data Literature for Required indoor air Flow Rates and for use of line lengths over 15 feet.

3. Relieve pressure and recover all refrigerant before system repair or final disposal. Use all service ports and open all

flow--control devices, including solenoid valves.

4. Never vent refrigerant to atmosphere. Use approved recovery equipment.

COOLING ONLY CHARGING PROCEDURE

1. Only use sub cooling charging method when OD ambient is grater than 70ºF and less than 100ºF, indoor temp is

greater than 70ºF and less than 80ºF, and line set is less than 80 ft.

2. Operate unit a minimum of 15 minutes before checking the charge.

3. Measure liquid service valve pressure by attaching an accurate gauge to the service port.

4. Measure the liquid line temperature by attaching an accurate thermistor type or electric thermometer to the

liquid line near the outdoor coil.

5. Refer to unit rating plate for required sub--cooling temperature.

6. Find the point where the required sub--cooling temperature intersect the measured liquid service valve pressure.

7. To obtain the required sub--cooling temperature at specific liquid line pressure, add refrigerant if liquid line

Temperature is higher than indicated. When adding refrigerant, change in liquid form using a flow restricting

Device into suction service port. Recover refrigerant if temperature is lower. Allow a tolerance of +/--3ºF.

TECHNICAL SUPPORT MANUAL Split System Air Conditioner: (C,H,T)XA6

421 04 6300 01 7

2776††3626752776††3626752776††3626752776††3626752776††362675MFC †hBM 51.7165.5104.4143.4123.4133.8156.6

134.5102.5131.5164.9196.7104.6121.6188.5184.0266.8103.7199.6185.6114.1245.9161.8128.7132.71

‡T/S 25.027

.047.000.100.115.096.027.019.000.105.076.007.088.000.194.066.086.068.000.184.056.076.048.000.1

SPM*A60.

810.889.779.779.712.761.731.721.721.744.604.683.673.673.657.527.507.507.507.501.590.580.580.580.5

PIRH2

74864564464464514114804704704363953753653553613213013903803372962762762662

RPOL 96145144144134166125114

1041931461941931731531161741731531231951541531331921

†hBM 83.7197.5136.4119.4188.4116.8139.6107.5187.51

57.5187.9100.8107.6195.6165.6138.0210.9156.7114.7113.7118.1229.9145.8162.8120.81

‡T/S 45.067.087.000.10

0.135.037.067.000.100.115.017.037.000.100.115.096.027.009.000.105.086.007.088.000.1

SPM*A91.831.801.811

.801.843.782.752.752.752.775.625.605.694.694.688.548.528.528.528.522.502.502.502.502.5

PIRH374964664664

664614214904904904463063753753753713313013013013472072862762762

RPOL 2718517410519419615514416415417613

51241241241561151041931831361941831731531

†hBM 35.7169.5118.4163.5143.5108.8121.7109.5192.6162.6110.023

2.8149.6151.7121.7180.1262.9129.7159.7129.7190.2202.0238.8186.8166.81

‡T/S 65.008.028.000.100.155.077.0

97.000.100.135.057.077.000.100.125.037.057.000.100.125.017.037.000.100.1

SPM*A23.852.822.832.832.864.71

4.773.783.783.707.646.626.626.626.600.669.549.549.549.543.523.513.513.513.5

PIRH47496466486486471431401

4114114563163853953853813413113113113472172862862862

RPOL 471061941551551271851741151151071651541741741

861451341441441661251141141141

gnilooCroodnI**71*91X4)D,A(NEhtiWroodtuOeziS81 luByrD,FseergeD-erutarepmeTtneibmAroodtubO501595857 511

bluBteW,FseergeD-erutarepmeTroodnIgniretnE

525

006

576

GNILOOC

2776††3626752776††3626752776††3626752776††3626752776††362675MFC †hBM 65.2274.0229.8159.8129.8190.4278.1

222.0200.0269.9145.5291.3264.1241.1239.0229.6244.4226.2252.2248.1212.8236.5227.3223.3286.22

‡T/S 25.027

.057.000.100.115.007.037.000.100.105.086.017.098.000.194.076.096.078.000.184.056.086.058.000.1

SPM*A64.

0104.0173.0173.0173.0193.933.903.903.992.934.883.863.863.853.855.725.725.715.715.727.627.637.637.637.6

PIRH164754554554554404104993893893353053843843743603303203103103362162952952852

RPOL 071551441541541761

351241141141561151041831731361941831631431161641631431131

†hBM 58.2267.0212.9196.9166.9144.4222.2285.02

18.0287.0259.5206.3268.1258.1228.1283.7219.4280.3258.2297.2227.8261.6232.4219.3207.32

‡T/S 45.077.097.0

00.100.135.047.067.000.100.125.027.047.000.100.115.007.027.000.100.105.096.017.098.000.1

SPM*A36.0175.0

145.0145.0145.0165.905.974.974.974.906.855.835.835.825.827.796.786.776.776.788.688.698.688.698.6

PIRH16

4854654654654504204004004004353153943943843603403203203203362162062062952

RPOL 371951841151151171651541

741741861451341441341661251141041041461051931831731

†hBM 50.3289.0254.9192.0272.0286.4284.2248.0284.125

4.1232.6209.3261.2285.2255.2227.7252.5224.3226.3295.3280.9245.6216.4206.4265.42

‡T/S 75.018.038.000.100

.155.087.008.000.100.145.067.087.000.100.135.047.067.000.100.125.027.047.000.100.1

SPM*A08.0147.0117.01

27.0127.0137.976.946.956.956.977.827.896.807.807.888.758.748.748.748.750.740.740.740.740.7

PIRH26495465

4854754504204004104104453153943053943703403303303303462262062062062

RPOL 571161051751651371951841351251

171751641941941961551441641641761351241341241

GNILOOC

007

008

009

gnilooCroodnI**71*13X4)D,A(NEhtiWroodtuO

eziS42 luByrD,FseergeD-erutarepmeTtneibmAroodtubO511501595857 bluBteW,FseergeD-erutarepmeTroodnIgniretn

See Notes following tables.

TECHNICAL SUPPORT MANUAL Split System Air Conditioner: (C,H,T)XA6

8421 04 6300 01

2776††3626752776††3626752776††3626752776††3626752776††362675MFC †hBM 15.7249.4270.3282.3252.3223.9216.6

256.4265.4225.4200.1361.8211.6208.5296.5285.2316.9274.7280.7267.6290.4399.0367.8213.8267.72

‡T/S 35.037

.067.000.100.115.017.037.000.100.105.096.027.009.000.105.086.007.088.000.194.066.096.068.000.1

SPM*A65.

2175.2175.2175.2175.2172.1192.1192.1192.1192.1141.0161.0181.0171.0171.0161.991.902.902.902.992.833.853.853.853.8

PIRH964564264364264314904604604604063753453453453213903703703603862662462462362

RPOL 96155154

1641641761351241241241561151041931831361941831731531161741631531231

†hBM 38.7272.5204.3241.4211.4217.92

00.7240.5205.5264.5254.1306.8255.6247.6207.6290.3301.0359.7298.7248.7276.4355.1303.9230.9239.82

‡T/S 55

.087.008.000.100.145.057.077.000.100.125.037.057.000.100.115.017.037.000.100.115.007.027.099.000.1

SPM*

A67.2177.2187.2177.2177.2174.1184.1105.1194.1194.1143.0163.0183.0173.0173.0153.983.904.904.904.984.82

5.855.845.845.8

PIRH074664364464464314904704704704163853553553553313013803803803962762562462462

RPOL 2718

51741251251071651541841841861451341541541661251141241141461051041931831

†hBM 40.8225.5266.3238.4208.427

9.9292.7223.5262.6222.6267.1339.8278.6275.7235.7254.3374.0323.8287.8247.8290.5369.1307.9239.9298.92

‡T

/S 75.028.048.000.100.165.097.018.000.100.155.077.097.000.100.135.057.077.000.100.125.037.057.000.100.

SPM*A69.2179.2189.2179.2179.2166.1186.1107.1196.1196.1135.0165.0185.0175.0175.0145.985.906.995.995.98

6.827.847.847.847.8

PIRH174764464664664414014704904904263853653653653413113803903903072762562562562

RPOL 471161051751751271851841351351071751641051051961551441741741761351241441441

GNILOOC

bluBteW,FseergeD-er

utarepmeTroodnIgniretnE

578

0001

5211

gnilooCroodnI**71*13X4)D,A(NEhtiWroodtuOeziS03 luByrD,FseergeD-eruta

repmeTtneibmAroodtubO51150159585

2776††3626752776††3626752776††3626752776††3626752776††362675MFC †hBM 10.3359.9237.7259.7219.7202.5369.1326.9274.9234.9272.7378.3304.1300.1358.0322.9356.5380.3385.2361.2360.1433.7356.4390.4383.33

‡T/S 45.05

7.077.000.100.125.027.057.000.100.115.007.037.029.000.105.096.017.009.000.105.076.007.088.000.1

SPM*A72

.5191.5161.5151.5151.5176.3195.3145.3145.3145.3182.2102.2151.2141.2141.2160.1189.0139.0129.0119.0159.978.938.928.918.9

PIRH764464264264264904604404404404653453253253253803603403403403362262162062062

RPOL 96

1551541641641761351241241241561151041931831361941831731531161741631531231

†hBM 93.3353.0331.8279.8239.8

276.5344.2390.0306.0355.0328.7304.4339.1321.2370.2348.9352.6366.3335.3374.3377.1420.8313.5349.4308.43

‡T/S 65.097.028.000.100.155.077.097.000.100.135.047.077.000.100.125.027.057.000.100.125.017.037.029.00

0.1

SPM*A35.5154.5114.5124.5124.5149.3158.3118.3118.3118.3165.2164.2114.2114.2114.2133.1142.1191.1191.1

191.1122.0141.0190.0180.0180.01

PIRH7644642643643640147045045045047534533533533538036035035035034622621

62162162

RPOL 271851741251251071651541841841861451341541441661251141141141461051041931831

†hBM 56.3356.03

44.8208.9267.9289.5387.2334.0315.1374.1391.8308.4323.2321.3380.3392.0407.6311.4316.4365.4382.2415.8308.5310.6369.53

‡T/S 95.048.068.000.100.175.018.038.000.100.165.087.008.000.100.145.067.087.000.100.135.

047.067.000.100.1

SPM*A97.5117.5176.5196.5196.5112.4121.4170.4180.4190.4128.2137.2176.2196.2196.2106.11

15.1154.1164.1164.1184.0104.0153.0153.0153.01

PIRH86456436446446401470460460460475355335335335380370350

3503503462262162162162

RPOL 571161051751751371951841351351171751641051051961551441741641761351241441441

GNILOOC

0501

0021

0531

511501595857 bluBteW,FseergeD-erutarepmeTroodnIgniretnE

gnilooCroodnI**71*73X4)D,A(N

EhtiWroodtuOeziS63 luByrD,FseergeD-erutarepmeTtneibmAroodtubO

See Notes following tables.

TECHNICAL SUPPORT MANUAL Split System Air Conditioner: (C,H,T)XA6

421 04 6300 01 9

2776††3626752776††3626752776††3626752776††3626752776††362675MFC †hBM 85.9370.6335.3387.3337.3303.2455.8

338.5356.5306.5388.4409.0420.8365.7343.7313.7401.3460.0494.9369.8385.9471.5479.1423.1454.04

‡T/S 25.037

.057.000.100.115.017.037.000.100.105.096.017.098.000.194.076.096.078.000.194.066.086.058.000.1

SPM*A73.

8122.8111.8121.8121.8125.6173.6172.6162.6162.6158.4127.4136.4126.4116.4163.3152.3181.3171.3151.3160.2179.1119.1109.1198.11

PIRH474074764764764814414114114114563263953953953713413213213113372172962862862

OL 861451341541541661251141141041361941931831731161741731531331951541531331031

†hBM 99.9315.6379.3339.43

98.4328.2470.9363.6349.6398.6384.5405.1416.8328.8367.8320.8408.3457.0455.0405.0404.0559.5447.2413.2401.24

‡T/S 55.077.097.000.100.135.057.077.000.100.125.027.057.000.100.115.017.037.000.100.105.096.017.09

8.000.1

SPM*A07.8145.8134.8174.8174.8148.6196.6195.6116.6116.6171.5140.5159.4159.4159.4186.3175.3194.31

94.3194.3173.2182.2122.2112.2112.21

PIRH574174864964964814514214214214663363063063063813513313313313472

172962962962

RPOL 171751641151051961551441741641661251241341341461051041041931261841831731631

†hBM 52.043

8.6303.4368.5318.5361.3454.9347.6389.7339.7319.5459.1460.9369.9319.9325.8413.4452.1428.1467.1489.0535.6413.3425.3464.34

‡T/S 75.028.048.000.100.165.097.018.000.100.145.067.087.000.100.135.047.067.000.100.

125.027.047.000.100.1

SPM*A20.9168.8157.8128.8118.8161.7110.7119.6159.6159.6194.5153.5162.5192.5192.510

0.4188.3108.3128.3118.3186.2195.2135.2135.2135.21

PIRH5741749640740749145142144144147633631632632639136

13313413413472272072072072

RPOL 37195184165155117175164125115196155144184184176135124154154156115114124

1241

GNILOOC

bluBteW,FseergeD-erutarepmeTroodnIgniretnE

5221

0041

5751

gnilooCroodnI**42*34X4)D,A(NEhtiWroo

dtuOeziS24 luByrD,FseergeD-erutarepmeTtneibmAroodtubO51150159585

2776††3626752776††3626752776††3626752776††3626752776††362675MFC †hBM 09.3488.9300.7384.7334.7320.7496.2455.9385.9325.9310.0553.5499.1416.1484.1478.2509.7403.4447.3403.3466.5504.0555.6488.5440.54

‡T/S 45.06

7.087.000.100.135.047.067.000.100.125.027.047.099.000.115.007.027.019.000.105.086.017.098.000.1

SPM*A30

.0291.0262.0242.0242.0259.7112.8153.8143.8143.8179.5163.6195.6106.6116.6140.4185.4129.4149.4189.4121.2128.2182.3123.3114.31

PIRH364854554554554804404004004004853353053053053113703403403403862562262262162

POL 861451441641641661251141241241361051931931831161741731631531951541531431131

†hBM 33.4433.0454.7327.8

376.8385.7432.3411.0499.0439.0486.0500.6446.2411.3450.3486.3576.8460.5411.5450.5416.6572.1524.7480.7439.64

‡T/S 75.018.038.000.100.155.087.008.000.100.145.057.087.000.100.135.037.067.000.100.125.027.047.0

99.000.1

SPM*A83.0255.0236.0295.0295.0272.8155.8117.8166.8166.8162.6176.6129.6178.6188.6182.4158.4112.5

191.5191.5113.2150.3135.3145.3165.31

PIRH46495465475475490450410420420495345315325325321380350350350396

2662362362362

RPOL 171751741251251961551441841841661351241441441461151041141141261941831831731

†hBM 06.44

66.0487.7307.9356.9349.7436.3405.0401.2460.2451.1584.6411.3463.4403.4452.4532.9426.5494.6434.6482.7529.1570.8435.8474.84

‡T/S 95.058.078.000.100.185.028.048.000.100.165.097.018.000.100.155.077.097.000.100

.145.057.077.000.100.1

SPM*A37.0219.0200.1249.0249.0206.8198.8170.9179.8189.8165.6189.6162.7141.7151.71

55.4141.5125.5114.5124.5145.2103.3118.3127.3137.31

PIRH564064754954954014504204404404953553253353353313

903603703703962662462462462

RPOL 3710619417516511717517413512519615515419419417613513416416415611511413

41241

GNILOOC

0041

0061

0081

511501595857 bluBteW,FseergeD-erutarepmeTroodnIgniretnE

gnilooCroodnI**L06X4*DE

htiWroodtuOeziS84 luByrD,FseergeD-erutarepmeTtneibmAroodtubO

See Notes following tables.

TECHNICAL SUPPORT MANUAL Split System Air Conditioner: (C,H,T)XA6

10 421 04 6300 01

2776††3626752776††3626752776††3626752776††3626752776††362675MFC †hBM 89.5479.1490.9309.8348.8359.8496.4

446.1480.1488.0487.1582.7460.4463.3408.2465.4528.9493.6406.5416.4423.7503.2586.8408.7473.64

‡T/S 45.057

.077.000.100.135.027.057.049.000.125.017.037.029.000.115.096.017.098.000.105.086.007.078.000.1

SPM*A11.

2269.1258.1248.1248.1219.9197.9107.9186.9186.9168.7118.7167.7147.7137.7168.5119.5149.5139.5139.5118.3100.4121.4141.4181.41

PIRH284674274174174524914514514414373763463363263523023713613513182772472372272

OL 461051041041041261841831631631951641531431231751441331231921551141131921621

†hBM 15.6494.2436.9352.04

02.0485.9403.5452.2444.2493.2435.2500.8487.4415.4454.4434.5536.0502.7436.6404.6413.8552.3516.9498.8413.84

‡T/S 65.097.018.000.100.155.067.097.000.100.145.047.067.000.100.135.027.057.049.000.125.017.037.02

9.000.1

SPM*A74.2223.2222.2232.2232.2262.0241.0260.0260.0260.0291.8151.8111.8101.8101.8171.6122.6162.61

62.6162.6190.4182.4124.4124.4144.41

PIRH384774374474474624024714714714473963563563563623123813713713282

872572472472

RPOL 761351341641641561151141241241361941931831831061741731531531851541531331231

†hBM 68.647

8.2410.0443.1492.1420.0557.5407.2446.3495.3460.3515.8492.5438.5477.5450.6552.1508.7429.7468.7450.9549.3592.0549.9498.94

‡T/S 95.038.058.000.100.175.008.028.000.100.165.087.008.000.100.155.067.087.000.100.

145.047.067.000.100.1

SPM*A28.2276.2275.2216.2216.2216.0294.0214.0234.0234.0225.8184.8154.8154.8154.818

4.6145.6185.6175.6175.6173.4175.4117.4117.4117.41

PIRH4848744746746747241247149149145739636636636637232

23913913913382972672572572

RPOL 96165154115105176145134174174156125114134134136105193104104116184173173

1731

GNILOOC

bluBteW,FseergeD-erutarepmeTroodnIgniretnE

0041

0061

0081

gnilooCroodnI**L06X4*DEhtiWroodtuOez

iS94 luByrD,FseergeD-erutarepmeTtneibmAroodtubO51150159585

2776††3626752776††3626752776††3626752776††3626752776††362675MFC †hBM 87.2582.8400.5451.6490.6497.6509.

1563.8499.8439.8485.0623.5505.1516.1535.1571.4655.8564.4570.4559.3526.7616.1662.7546.6591.65

‡T/S 55.07

7.097.000.100.135.047.067.000.100.125.027.047.000.100.115.007.027.099.000.105.086.017.098.000.1

SPM*A03

.4251.4240.4280.4280.4210.2268.1257.1277.1277.1269.9138.9137.9147.9147.9101.8100.8139.7139.7129.7173.6123.6182.6182.6172.61

PIRH574074564764764024514014114114963463063063063223713413413313972472172172072

POL 171751641151151961551441741641761351241341341461051041931931261841831731631

†hBM 61.3547.8494.5415.7

454.7413.7574.2539.8445.0584.0532.1600.6581.2543.3582.3579.4643.9542.5559.5588.5555.8645.2671.8583.8513.85

‡T/S 75.028.048.000.100.165.097.018.000.100.145.067.087.000.100.135.047.067.000.100.125.027.047.0

00.100.1

SPM*A67.4216.4205.4275.4275.4274.2223.2212.2262.2262.2224.0292.0291.0222.0222.0255.8154.8193.8

104.8104.8118.6167.6137.6137.6127.61

PIRH67417466496496412461421441441407356316336336332381351361351308

2572272272272

RPOL 471061941751651271851741251251961651541941841761351341541541561251141241241

†hBM 93.35

21.9498.5475.8425.8426.7598.2573.9477.1517.1556.1694.6586.2547.4586.4505.5639.9538.5515.7544.7502.9612.3648.8501.0630.06

‡T/S 06.068.088.000.100.185.038.058.000.100.165.008.028.000.100.155.087.008.000.100

.145.057.087.000.100.1

SPM*A22.5270.5269.4250.5250.5229.2287.2276.2257.2247.2278.0247.0256.0207.0207.02

00.9109.8138.8168.8168.8152.7102.7171.7181.7171.71

PIRH774274764174174224714314514514173663263463463423

913613713713082672372472472

RPOL 6713612511611614710619417517512718517414513510716515410510518614513417

41741

0571

0002

0522

bluBteW,FseergeD-erutarepmeTroodnIgniretnE 511501595857

gnilooCroodnI**42*16X4)D,A(NEh

tiWroodtuOeziS06 luByrD,FseergeD-erutarepmeTtneibmAroodtubO

GNILOOC

See Notes following tables.

TECHNICAL SUPPORT MANUAL Split System Air Conditioner: (C,H,T)XA6

421 04 6300 01 11

2776††3626752776††3626752776††3626752776††3626752776††362675MFC †hBM 81.6573.1598.7453.8482.8493.0661.5

563.1522.1551.1513.4676.8506.4530.4567.3549.7649.1606.7568.6551.6543.1700.5614.0655.9543.85

‡T/S 45.067

.087.000.100.135.037.057.000.100.125.017.037.029.000.115.096.027.009.000.105.086.007.088.000.1

SPM*A49.

5247.5285.5216.5206.5274.3282.3231.3231.3231.3292.1211.1279.0269.0259.0273.9112.9180.9170.9150.9117.7155.7134.7124.7193.71

PIRH684974474574574034424914914914873273863763763033423123023023582182772772672

OL 961451441641541661251141141141461941931831731161741731531431951541531331131

†hBM 17.6549.1574.8409.94

48.9480.1668.5580.2599.2529.2531.5605.9524.5518.5527.5549.8629.2675.8593.8523.8505.2711.6605.1679.0686.06

‡T/S 75.008.028.000.100.155.077.008.000.100.145.057.077.000.100.135.037.057.000.100.125.017.047.02

9.000.1

SPM*A93.6291.6240.6211.6201.6229.3237.3295.3226.3226.3247.1265.1234.1244.1244.1238.9166.9135.91

35.9135.9161.8100.8188.7178.7178.71

PIRH784184674874874134524024224224973373963073963133623223223223682

282872872872

RPOL 171751641251151961551441741741761351241341341461151041041041261941831731731

†hBM 40.756

3.2519.8441.1580.1535.1673.6595.2514.4553.4527.5611.0650.6504.7543.7536.9636.3672.9571.0690.0623.3749.6613.2607.2626.26

‡T/S 06.058.078.000.100.185.028.048.000.100.165.097.018.000.100.155.077.097.000.100.

145.057.077.000.100.1

SPM*A38.6246.6284.6295.6285.6263.4281.4230.4211.4201.4281.2200.2278.1229.1229.127

2.0201.0289.9110.0200.0206.8144.8133.8143.8143.81

PIRH8842847740840842346241244244240834730732732732337

23323423423782382972082082

RPOL 47106194165165117175174125125196155144194184176135124154154156115114124

1241

GNILOOC

bluBteW,FseergeD-erutarepmeTroodnIgniretnE

0571

0002

0522

gnilooCroodnI**42*16X4)D,A(NEhtiWroo

dtuOeziS16 luByrD,FseergeD-erutarepmeTtneibmAroodtubO51150159585

See Notes following tables.

† Total capacities are net (I.D. blower heat subtracted) system capacities based on 25’ line set.

If additional tubing length and/or indoor unit is located above outdoor unit, a slight variation in capacity may occur.

†† At TVA rating indoor condition (75 °Fdb, 63 °Fwb), all other indoor air temperatures are at 80 °Fdb

If additional tubing length and/or indoor unit is located above outdoor unit, a slight variation in capacity may occur.

^ System amps are total of indoor and outdoor amps.

‡ Chart data is for 80°F indoor dry bulb. For indoor db temperatures other than 80°F, measure Indoor db and Indoor CFM, and plug these into the

formula below. Measure outdoor db and indoor wet bulb, apply these to the chart above, find MBh and S/T, and plug these into the formula below.

(Note: if indoor db is the only thing changing, total capacity, MBh, stays the same.)

Sensible Capacity at Indoor db LOWER than 80 °F=(MBhxS/T) -- ( 80 -- Indoor db ) x 835 x Indoor CFM

1000

()

Sensible Capacity at Indoor db HIGHER than 80 °F=(MBhxS/T) +

( Indoor db -- 80 ) x 835 x Indoor CFM

1000

()

TECHNICAL SUPPORT MANUAL Split System Air Conditioner: (C,H,T)XA6

12 421 04 6300 01

Data for Condenser Only (Cooling)

Saturated Suction

Temperature °F

Condenser Entering Air Temperature °F

55 65 75 85 95 105 115 125

(C,H,T)SA618

TCG 15.70 14.90 14.10 13.20 12.30 11.30 10.30 9.20

SDT 65.20 74.80 84.40 94.00 103.60 113.10 122.60 132.00

KW 0.75 0.87 0.99 1.12 1.26 1.43 1.61 1.83

TCG 17.50 16.60 15.70 14.70 13.70 12.60 11.50 10.40

SDT 66.30 75.90 85.40 94.90 104.40 113.80 123.20 132.70

KW 0.74 0.86 0.99 1.12 1.27 1.43 1.61 1.83

TCG 19.40 18.40 17.40 16.30 15.20 14.10 12.90 11.60

SDT 67.50 76.90 86.40 95.80 105.20 114.60 124.00 133.30

KW 0.73 0.86 0.99 1.12 1.27 1.43 1.62 1.83

TCG 21.50 20.40 19.20 18.10 16.80 15.60 14.30 12.90

SDT 68.70 78.00 87.40 96.70 106.10 115.40 124.80 134.10

KW 0.72 0.85 0.99 1.13 1.27 1.44 1.62 1.83

TCG 23.70 22.50 21.20 19.90 18.60 17.20 15.80 14.30

SDT 69.90 79.20 88.40 97.70 107.00 116.30 125.60 134.80

KW 0.71 0.85 0.99 1.13 1.28 1.44 1.63 1.84

TCG 26.00 24.70 23.30 21.80 20.40 18.90 17.40 15.80

SDT 71.20 80.40 89.60 98.80 108.00 117.20 126.50 135.60

KW 0.71 0.85 0.99 1.14 1.29 1.46 1.64 1.85

(C,H,T)SA624

TCG 20.50 19.50 18.50 17.30 16.20 14.90 13.60 12.30

SDT 66.10 75.80 85.30 94.90 104.40 114.00 123.40 132.80

KW 1.00 1.15 1.30 1.47 1.65 1.85 2.09 2.36

TCG 22.70 21.60 20.40 19.20 17.90 16.60 15.20 13.70

SDT 67.20 76.80 86.30 95.80 105.30 114.70 124.10 133.50

KW 0.99 1.15 1.30 1.47 1.65 1.86 2.09 2.36

TCG 25.10 23.80 22.50 21.20 19.80 18.30 16.80 15.30

SDT 68.40 77.90 87.30 96.70 106.10 115.50 124.80 134.10

KW 0.98 1.14 1.30 1.47 1.66 1.86 2.09 2.36

TCG 27.60 26.20 24.80 23.30 21.80 20.20 18.60 16.90

SDT 69.60 79.00 88.30 97.60 107.00 116.30 125.60 134.90

KW 0.97 1.14 1.30 1.48 1.66 1.87 2.10 2.37

TCG 30.30 28.80 27.20 25.60 23.90 22.20 20.40 18.50

SDT 70.80 80.10 89.40 98.70 107.90 117.20 126.40 135.60

KW 0.96 1.13 1.30 1.48 1.67 1.88 2.11 2.38

TCG 33.20 31.50 29.70 27.90 26.10 24.20 22.30 20.30

SDT 72.10 81.30 90.50 99.70 108.90 118.10 127.30 136.40

KW 0.95 1.13 1.31 1.49 1.68 1.89 2.12 2.39

(C,H,T)SA630

TCG 25.00 23.60 22.30 20.90 19.50 18.00 16.30 14.40

SDT 68.10 77.50 87.00 96.40 105.80 115.10 124.40 133.60

KW 1.26 1.42 1.59 1.78 1.99 2.23 2.51 2.82

TCG 27.60 26.10 24.70 23.20 21.60 20.00 18.20 16.30

SDT 69.40 78.70 88.10 97.40 106.70 116.00 125.30 134.40

KW 1.27 1.43 1.60 1.79 2.00 2.24 2.52 2.83

TCG 30.50 28.80 27.20 25.60 23.90 22.20 20.30 18.20

SDT 70.70 79.90 89.20 98.50 107.70 117.00 126.20 135.30

KW 1.28 1.43 1.60 1.79 2.01 2.25 2.53 2.85

TCG 33.50 31.70 29.90 28.20 26.40 24.40 22.40 20.20

SDT 72.00 81.20 90.40 99.60 108.80 118.00 127.20 136.30

KW 1.28 1.43 1.61 1.80 2.01 2.26 2.54 2.86

TCG 36.70 34.70 32.80 30.90 28.90 26.90 24.70 22.30

SDT 73.50 82.50 91.60 100.80 110.00 119.20 128.20 137.20

KW 1.28 1.43 1.61 1.80 2.02 2.27 2.55 2.87

TCG 40.10 38.00 35.90 33.80 31.60 29.40 27.10 24.60

SDT 75.00 84.00 93.00 102.10 111.20 120.30 129.30 138.20

KW 1.27 1.43 1.60 1.80 2.02 2.27 2.55 2.88

(C,H,T)SA636

TCG 31.30 29.70 28.10 26.40 24.60 22.80 20.80 18.80

SDT 69.50 78.70 87.90 97.20 106.60 115.90 125.20 134.60

KW 1.43 1.64 1.86 2.10 2.37 2.68 3.04 3.47

TECHNICAL SUPPORT MANUAL Split System Air Conditioner: (C,H,T)XA6

421 04 6300 01 13

Data for Condenser Only (Cooling)

Saturated Suction

Temperature °F

Condenser Entering Air Temperature °F

Saturated Suction

Temperature °F1251151059585756555

TCG 34.50 32.80 31.00 29.20 27.30 25.30 23.20 21.00

SDT 70.70 79.90 89.10 98.30 107.60 116.80 126.10 135.40

KW 1.43 1.65 1.87 2.11 2.38 2.69 3.05 3.47

TCG 38.10 36.10 34.20 32.20 30.10 27.90 25.70 23.30

SDT 72.10 81.20 90.30 99.50 108.70 117.80 127.10 136.30

KW 1.44 1.66 1.88 2.12 2.39 2.70 3.06 3.48

TCG 41.80 39.70 37.60 35.40 33.10 30.80 28.30 25.70

SDT 73.70 82.60 91.60 100.70 109.80 118.90 128.10 137.20

KW 1.45 1.67 1.90 2.14 2.41 2.72 3.07 3.49

TCG 45.90 43.60 41.20 38.80 36.30 33.80 31.10 28.30

SDT 75.30 84.10 93.10 102.00 111.10 120.10 129.10 138.10

KW 1.47 1.69 1.92 2.16 2.43 2.74 3.09 3.50

TCG 50.20 47.60 45.10 42.40 39.80 37.00 34.10 31.10

SDT 77.00 85.70 94.60 103.40 112.30 121.30 130.20 139.10

KW 1.49 1.71 1.94 2.19 2.46 2.76 3.11 3.52

(C,H,T)SA642

TCG 38.00 36.30 34.40 32.40 30.20 27.90 25.60 23.10

SDT 69.80 79.20 88.70 98.10 107.40 116.70 125.90 135.10

KW 1.83 2.03 2.26 2.54 2.86 3.22 3.63 4.09

TCG 42.00 40.10 38.00 35.80 33.40 30.90 28.40 25.70

SDT 71.20 80.60 89.90 99.20 108.40 117.70 126.80 136.00

KW 1.84 2.04 2.28 2.56 2.88 3.24 3.65 4.11

TCG 46.30 44.20 41.80 39.40 36.80 34.10 31.30 28.40

SDT 72.70 81.90 91.20 100.40 109.60 118.70 127.80 136.90

KW 1.85 2.06 2.30 2.58 2.90 3.26 3.67 4.13

TCG 50.90 48.50 45.90 43.20 40.40 37.40 34.40 31.20

SDT 74.20 83.30 92.50 101.60 110.80 119.90 128.90 137.90

KW 1.86 2.07 2.32 2.60 2.92 3.29 3.70 4.16

TCG 55.70 53.10 50.20 47.30 44.10 40.90 37.60 34.20

SDT 75.80 84.80 93.90 103.00 112.00 121.00 130.00 138.90

KW 1.87 2.09 2.34 2.63 2.95 3.32 3.73 4.19

TCG 60.90 57.90 54.80 51.50 48.10 44.60 41.00 37.30

SDT 77.40 86.40 95.40 104.40 113.40 122.30 131.20 140.00

KW 1.89 2.11 2.36 2.66 2.99 3.36 3.77 4.23

TECHNICAL SUPPORT MANUAL Split System Air Conditioner: (C,H,T)XA6

14 421 04 6300 01

CXA6 PARTS LIST

KEY

NO. DESCRIPTION PART NO.

CXA618GKA100

CXA624GKA100

CXA630GKA100

CXA636GKA100

CXA642GKA100

CXA648GKA100

CXA649GKA100

CXA660GKA100

CXA661GKA100

01 COMPRESSOR ZP16K5EPFV130 1-- -- -- -- -- -- -- --

01 COMPRESSOR ZP20K5EPFV130 -- 1-- -- -- -- -- -- --

01 COMPRESSOR ZP24K5EPFV130 -- -- 1-- -- -- -- -- --

01 COMPRESSOR ZP29K5EPFV130 -- -- -- 1-- -- -- -- --

01 COMPRESSOR ZP34K5EPFV130 -- -- -- -- 1-- -- -- --

01 COMPRESSOR ZP38K5EPFV130 -- -- -- -- -- 1-- -- --

01 COMPRESSOR ZP42K5EPFV130 -- -- -- -- -- -- 1-- --

01 COMPRESSOR ZP44K5EPFV130 -- -- -- -- -- -- -- 1--

01 COMPRESSOR ZP49K5EPFV130 -- -- -- -- -- -- -- -- 1

02 MTR CND 1/230 1/12 820 1183631 1-- -- -- -- -- -- -- --

02 MTR CND 1/230 1/10 1100 1177913 -- 1 1 -- -- -- -- -- --

02 MTR CND 1/230 1/12 820 1179379 -- -- -- 1-- -- -- -- --

02 MTR CND 1/230 1/5 1177593 -- -- -- -- 1-- -- -- --

02 MTR CND 1/230 1/4 1177473 -- -- -- -- -- 1 1 1 1

03 FAN C 24” 3B 1/2” 15 INT 1173721 1-- -- -- -- -- -- -- --

03 FAN C 24” 3B 1/2” 18 INT 1172715 -- 1 1 -- -- -- -- -- --

03 FAN C 26” 3B 1/2” 16 INT 1174940 -- -- -- 1-- -- -- -- --

03 FAN C 26” 3B 1/2” 21 INT 1173661 -- -- -- -- 1-- -- -- --

03 FAN C 26” 3B 1/2” 24 INT 1172716 -- -- -- -- -- 1 1 1 1

04 CONTACTOR 1P 30A 24V W/SHUNT 1172472 1111111-- --

04 CONTACTOR 1P 40A 24V 1176763 -- -- -- -- -- -- -- 1 1

05 CAP RN RD 370V 3+30 1172090 1-- -- -- -- -- -- -- --

05 CAP RN RD 370V 5+35 1172110 -- 1-- -- -- -- -- -- --

05 CAP RN RD 370V 5+40 1172147 -- -- 1-- -- -- -- -- --

05 CAP RN RD 370V 3+45 1172092 -- -- -- 1-- -- -- -- --

05 CAP RN RD 370V 5+45 1172124 -- -- -- -- 1 1 -- -- --

05 CAP RN RD 370V 5+70 1172163 -- -- -- -- -- -- 1-- --

05 CONTACTOR 1P 40A 1176763 -- -- -- -- -- -- -- 1 1

06 COIL ASY COND 1183632 1-- -- -- -- -- -- -- --

06 COIL ASY COND 1183623 -- 1-- -- -- -- -- -- --

06 COIL ASY COND 1183358 -- -- 1-- -- -- -- -- --

06 COIL ASY COND 1183624 -- -- -- 1-- -- -- -- --

06 COIL ASY COND 1183625 -- -- -- -- 1-- -- -- --

06 COIL ASY COND 1179157 -- -- -- -- -- 1-- -- --

06 COIL ASY COND 1183626 -- -- -- -- -- -- 1-- --

06 COIL ASY COND 1183627 -- -- -- -- -- -- -- 1 1

07 VALVE SVC PARK SUC 12S--12S 1172726 111-- -- -- -- -- --

07 VALVE SVC PARK SUC 14S--14S 1172727 -- -- -- 111111

08 VALVE SVC PARK LIQ 06S--06S 1172792 111111111

09 PLUG COMPRESSOR 1173921 1111-- -- -- -- --

09 PLUG COMPRESSOR 1174743 -- -- -- -- 1-- -- -- --

09 PLUG COMP WIRE (SM) 12GAx58” 1174686 -- -- -- -- -- 1 1 1 1

10 GROMMET COMPRESSOR 1.62”DIA 1171270 444444444

11 BOLT SHLDR COMP. MTG, 1173630 444444444

21 CONTROL 2 SPD FAN 1183095 111111111

24 FILTER DRIER ASY 1174727 1111111-- --

24 FILTER DRIER ASY 1174195 -- -- -- -- -- -- -- 1 1

25 COMFORT ALERT 1177402 111111111

27 JACKET SOUND 1172015 1111-- -- -- -- --

27 JACKET SOUND 1172014 -- -- -- -- 11111

32 RACEWAY 1175919 111111111

33 LUG GROUND 1172300 111111111

34 HARNESS ASSY PLUG & PLAY 1173909 111111-- -- --

34 HARNESS ASSY PLUG & PLAY 1173920 -- -- -- -- -- -- 1-- --

34 HARNESS ASSY PLUG & PLAY 1173951 -- -- -- -- -- -- -- 1 1

35 HTR CC WP 40W240V TCH--245 1173944 -- -- -- -- -- 1-- -- --

36 SWITCH TEMP DISC O85 C65 1173669 -- -- -- -- -- 1-- -- --

ATOP COVER ASY 1183097 111-- -- -- -- -- --

-- continued on next page --

TECHNICAL SUPPORT MANUAL Split System Air Conditioner: (C,H,T)XA6

421 04 6300 01 15

CXA6 PARTS LIST

KEY

NO.

CXA661GKA100

CXA660GKA100

CXA649GKA100

CXA648GKA100

CXA642GKA100

CXA636GKA100

CXA630GKA100

CXA624GKA100

CXA618GKA100

PART NO.DESCRIPTION

ATOP COVER ASY 1183317 -- -- -- 1 1 1 1 1 1

BNUT HEX 8--32 KNURL MTR MTG 1172217 444444444

C1 GRILLE INLET 1178628 1 1 -- -- -- -- -- -- --

C1 GRILLE INLET 1178724 -- -- 1-- -- -- -- -- --

C1 GRILLE INLET 1178629 -- -- -- 1-- -- -- -- --

C1 GRILLE INLET 1178579 -- -- -- -- 1 1 1 -- --

C1 GRILLE INLET 1178698 -- -- -- -- -- -- -- 1 1

C2 GRILLE INLET 1178631 2 2 -- -- -- -- -- -- --

C2 GRILLE INLET 1178726 -- -- 2-- -- -- -- -- --

C2 GRILLE INLET 1178630 -- -- -- 2-- -- -- -- --

C2 GRILLE INLET 1178580 -- -- -- -- 2 2 2 -- --

C2 GRILLE INLET 1178699 -- -- -- -- -- -- -- 2 2

C3 GRILLE INLET 1178627 1 1 -- -- -- -- -- -- --

C3 GRILLE INLET 1178728 -- -- 1-- -- -- -- -- --

C3 GRILLE INLET 1178613 -- -- -- 1-- -- -- -- --

C3 GRILLE INLET 1178581 -- -- -- -- 1 1 1 -- --

C3 GRILLE INLET 1178700 -- -- -- -- -- -- -- 1 1

DBOX CONTROL 1172753 111111111

EKIT CONTROL BOX COVER 1178730 1-- -- -- -- -- -- -- --

EKIT CONTROL BOX COVER 1178917 -- 1-- -- -- -- -- -- --

EKIT CONTROL BOX COVER 1178918 -- -- 1-- -- -- -- -- --

EKIT CONTROL BOX COVER 1178919 -- -- -- 1-- -- -- -- --

EKIT CONTROL BOX COVER 1178920 -- -- -- -- 1-- -- -- --

EKIT CONTROL BOX COVER 1178921 -- -- -- -- -- 1-- -- --

EKIT CONTROL BOX COVER 1183630 -- -- -- -- -- -- 1-- --

EKIT CONTROL BOX COVER 1178923 -- -- -- -- -- -- -- 1 1

FSVCE PNL ASSY 1178324 1 1 -- 1-- -- -- -- --

FSVCE PNL ASSY 1178528 -- -- 1-- -- -- -- -- --

FSVCE PNL ASSY 1178326 -- -- -- -- 1 1 1 -- --

FSVCE PNL ASSY 1178696 -- -- -- -- -- -- -- 1 1

GBASE PAN ASSY 1178308 111-- -- -- -- -- --

GBASE PAN ASSY 1178309 -- -- -- 1 1 1 1 1 1

JCORNER POST ASY 1178588 3 3 -- -- -- -- -- -- --

JCORNER POST ASY 1178636 -- -- 3-- -- -- -- -- --

JCORNER POST ASY 1178588 -- -- -- 3-- -- -- -- --

JCORNER POST ASY 1178575 -- -- -- -- 3 3 3 -- --

JCORNER POST ASY 1178697 -- -- -- -- -- -- -- 3 3

LGUARD FAN 1178586 111-- -- -- -- -- --

LGUARD FAN 1178573 -- -- -- 1 1 1 1 1 1

NSUPPORT COIL 1174068 555555555

PCLAMP CAPACITOR ROUND 2.0”D 1172734 1111111-- --

PCLAMP CAPACITOR ROUND 2.5”D 1172735 -- -- -- -- -- -- -- 1 1

RCAP ASY MOTOR 1183633 111111111

Parts Not Shown

)( GROMMET 1171737 111111111

)( HARNESS ASSY COMF ALERT AC 1177426 111111111

)( FILTER DRIER ASSY 1174195 1-- -- -- -- -- -- -- --

)( FILTER DRIER ASSY 1173955 -- 111111-- --

)( FILTER DRIER ASSY 1173980 -- -- -- -- -- -- -- 1 1

)( DRIER FILTER SUCT LINE 8.0 CI 1174194 1111-- -- -- -- --

)( DRIER FILTER SUCT LINE 15.0 CI 1174193 -- -- -- -- 1 1 1 1 1

)( CAP SERVICE KIT 11/16--20 1175650 111111111

)( CAP SERVICE KIT 15/16--20 1175651 1111-- -- -- -- --

)( CAP SERVICE KIT 1--1/16--20 1175652 -- -- -- -- 1 1 1 1 1

)( PAINT TOUCH UP BALTIC GRY 1 PT 1178322 111111111

)( SCREW HEX HD 10AB X 3/8 1176782 14 14 14 14 14 14 14 14 14

)( SCREW HEX HEAD 12AB 5/8 1178281 444444444

)( SCREW HX HEAD 10AB 1/2 1178280 12 12 12 12 12 12 12 12 12

-- continued on next page --

TECHNICAL SUPPORT MANUAL Split System Air Conditioner: (C,H,T)XA6

16 421 04 6300 01

HXA6 PARTS LIST

KEY

NO. DESCRIPTION PART NO.

HXA618GKA100

HXA624GKA100

HXA630GKA100

HXA636GKA100

HXA642GKA100

HXA648GKA100

HXA649GKA100

HXA660GKA100

HXA661GKA100

01 COMPRESSOR ZP16K5EPFV130 1-- -- -- -- -- -- -- --

01 COMPRESSOR ZP20K5EPFV130 -- 1-- -- -- -- -- -- --

01 COMPRESSOR ZP24K5EPFV130 -- -- 1-- -- -- -- -- --

01 COMPRESSOR ZP29K5EPFV130 -- -- -- 1-- -- -- -- --

01 COMPRESSOR ZP34K5EPFV130 -- -- -- -- 1-- -- -- --

01 COMPRESSOR ZP38K5EPFV130 -- -- -- -- -- 1-- -- --

01 COMPRESSOR ZP42K5EPFV130 -- -- -- -- -- -- 1-- --

01 COMPRESSOR ZP44K5EPFV130 -- -- -- -- -- -- -- 1--

01 COMPRESSOR ZP49K5EPFV130 -- -- -- -- -- -- -- -- 1

02 MTR CND 1/230 1/12 820 1183631 1-- -- -- -- -- -- -- --

02 MTR CND 1/230 1/10 1100 1177913 -- 1 1 -- -- -- -- --

02 MTR CND 1/230 1/12 820 1179379 -- -- -- 1-- -- -- -- --

02 MTR CND 1/230 1/5 1177593 -- -- -- -- 1-- -- -- --

02 MTR CND 1/230 1/4 1177473 -- -- -- -- -- 1 1 1 1

03 FAN C 24” 3B 1/2” 15 INT 1173721 1-- -- -- -- -- -- -- --

03 FAN C 24” 3B 1/2” 18 INT 1172715 -- 1 1 -- -- -- -- -- --

03 FAN C 26” 3B 1/2” 16 INT 1174940 -- -- -- 1-- -- -- -- --

03 FAN C 26” 3B 1/2” 21 INT 1173661 -- -- -- -- 1-- -- -- --

03 FAN C 26” 3B 1/2” 24 INT 1172716 -- -- -- -- -- 1 1 1 1

04 CONTACTOR 1P 30A 24V W/SHUNT 1172472 1111111-- --

04 CONTACTOR 1P 40A 24V 1176763 -- -- -- -- -- -- -- 1 1

05 CAP RN RD 370V 3+30 1172090 1-- -- -- -- -- -- -- --

05 CAP RN RD 370V 5+35 1172110 -- 1-- -- -- -- -- -- --

05 CAP RN RD 370V 5+40 1172147 -- -- 1-- -- -- -- -- --

05 CAP RN RD 370V 3+45 1172092 -- -- -- 1-- -- -- -- --

05 CAP RN RD 370V 5+45 1172124 -- -- -- -- 1 1 -- -- --

05 CAP RN RD 370V 5+70 1172163 -- -- -- -- -- -- 1-- --

05 CONTACTOR 1P 40A 1176763 -- -- -- -- -- -- -- 1 1

06 COIL ASY COND 1183632 1-- -- -- -- -- -- -- --

06 COIL ASY COND 1183623 -- 1-- -- -- -- -- -- --

06 COIL ASY COND 1183358 -- -- 1-- -- -- -- -- --

06 COIL ASY COND 1183624 -- -- -- 1-- -- -- -- --

06 COIL ASY COND 1183625 -- -- -- -- 1-- -- -- --

06 COIL ASY COND 1179157 -- -- -- -- -- 1-- -- --

06 COIL ASY COND 1183626 -- -- -- -- -- -- 1-- --

06 COIL ASY COND 1183627 -- -- -- -- -- -- -- 1 1

07 VALVE SVC PARK SUC 12S--12S 1172726 111-- -- -- -- -- --

07 VALVE SVC PARK SUC 14S--14S 1172727 -- -- -- 111111

08 VALVE SVC PARK LIQ 06S--06S 1172792 111111111

09 PLUG COMPRESSOR 1173921 1111-- -- -- -- --

09 PLUG COMPRESSOR 1174743 -- -- -- -- 1-- -- -- --

09 PLUG COMP WIRE (SM) 12GAx58” 1174686 -- -- -- -- -- 1 1 1 1

10 GROMMET COMPRESSOR 1.62”DIA 1171270 444444444

11 BOLT SHLDR COMP. MTG, 1173630 444444444

21 CONTROL 2 SPD FAN 1183095 111111111

24 FILTER DRIER ASY 1174727 1111111-- --

24 FILTER DRIER ASY 1174195 -- -- -- -- -- -- -- 1 1

25 COMFORT ALERT 1177402 111111111

27 JACKET SOUND 1172015 1111-- -- -- -- --

27 JACKET SOUND 1172014 -- -- -- -- 11111

32 RACEWAY 1175919 111111111

33 LUG GROUND 1172300 111111111

34 HARNESS ASSY PLUG & PLAY 1173909 111111-- -- --

34 HARNESS ASSY PLUG & PLAY 1173920 -- -- -- -- -- -- 1-- --

34 HARNESS ASSY PLUG & PLAY 1173951 -- -- -- -- -- -- -- 1 1

35 HTR CC WP 40W240V TCH--245 1173944 -- -- -- -- -- 1-- -- --

36 SWITCH TEMP DISC O85 C65 1173669 -- -- -- -- -- 1-- -- --

-- continued on next page --

TECHNICAL SUPPORT MANUAL Split System Air Conditioner: (C,H,T)XA6

421 04 6300 01 17

HXA6 PARTS LIST

KEY

NO.

HXA661GKA100

HXA660GKA100

HXA649GKA100

HXA648GKA100

HXA642GKA100

HXA636GKA100

HXA630GKA100

HXA624GKA100

HXA618GKA100

PART NO.DESCRIPTION

ATOP COVER ASY 1177914 111-- -- -- -- -- --

ATOP COVER ASY 1178327 -- -- -- 1 1 1 1 1 1

BNUT HEX 8--32 KNURL MTR MTG 1172217 444444444

C1 GRILLE INLET 1177419 1 1 -- -- -- -- -- -- --

C1 GRILLE INLET 1176706 -- -- 1-- -- -- -- -- --

C1 GRILLE INLET 1177492 -- -- -- 1-- -- -- -- --

C1 GRILLE INLET 1177491 -- -- -- 1 1 1 -- --

C1 GRILLE INLET 1178807 -- -- -- -- -- -- -- 1 1

C2 GRILLE INLET 1177969 2 2 -- -- -- -- -- -- --

C2 GRILLE INLET 1178057 -- -- 2-- -- -- -- -- --

C2 GRILLE INLET 1176701 -- -- -- 2-- -- -- -- --

C2 GRILLE INLET 1176702 -- -- -- -- 2 2 2 -- --

C2 GRILLE INLET 1175799 -- -- -- -- -- -- -- 2 2

C3 GRILLE INLET 1177972 1 1 -- -- -- -- -- -- --

C3 GRILLE INLET 1178060 -- -- 1-- -- -- -- -- --

C3 GRILLE INLET 1177495 -- -- -- 1-- -- -- -- --

C3 GRILLE INLET 1177494 -- -- -- -- 1 1 1 -- --

C3 GRILLE INLET 1178808 -- -- -- -- -- -- -- 1 1

DBOX CONTROL 1172753 111111111

EKIT CONTROL BOX COVER 1178730 1-- -- -- -- -- -- -- --

EKIT CONTROL BOX COVER 1178917 -- 1-- -- -- -- -- -- --

EKIT CONTROL BOX COVER 1178918 -- -- 1-- -- -- -- -- --

EKIT CONTROL BOX COVER 1178919 -- -- -- 1-- -- -- --

EKIT CONTROL BOX COVER 1178920 -- -- -- -- 1-- -- -- --

EKIT CONTROL BOX COVER 1178921 -- -- -- -- -- 1-- -- --

EKIT CONTROL BOX COVER 1183630 -- -- -- -- -- -- 1-- --

EKIT CONTROL BOX COVER 1178923 -- -- -- -- -- -- -- 1 1

FSVCE PNL ASSY 1178324 1 1 -- 1-- -- -- -- --

FSVCE PNL ASSY 1178528 -- -- 1-- -- -- -- -- --

FSVCE PNL ASSY 1178326 -- -- -- -- 1 1 1 -- --

FSVCE PNL ASSY 1178696 -- -- -- -- -- -- -- 1 1

GBASE PAN ASSY 1178308 111-- -- -- -- -- --

GBASE PAN ASSY 1178309 -- -- -- 1 1 1 1 1 1

JCORNER POST ASY 1178312 3 3 -- 3-- -- -- -- --

JCORNER POST ASY 1178529 -- -- 3-- -- -- -- -- --

JCORNER POST ASY 1178314 -- -- -- -- 3 3 3 -- --

JCORNER POST ASY 1178805 -- -- -- -- -- -- -- 3 3

LGUARD FAN 1177893 111-- -- -- -- -- --

LGUARD FAN 1174032 -- -- -- 1 1 1 1 1 1

NSUPPORT COIL 1174068 555555555

PCLAMP CAPACITOR ROUND 2.0”D 1172734 1111111-- --

PCLAMP CAPACITOR ROUND 2.5”D 1172735 -- -- -- -- -- -- -- 1 1

RCAP ASY MOTOR 1183637 111111111

Parts Not Shown

)( GROMMET 1171737 111111111

)( HARNESS ASSY COMF ALERT AC 1177426 111111111

)( FILTER DRIER ASSY 1174195 1-- -- -- -- -- -- -- --

)( FILTER DRIER ASSY 1173955 -- 111111-- --

)( FILTER DRIER ASSY 1173980 -- -- -- -- -- -- -- 1 1

)( DRIER FILTER SUCT LINE 8.0 CI 1174194 1111-- -- -- -- --

)( DRIER FILTER SUCT LINE 15.0 CI 1174193 -- -- -- -- 1 1 1 1 1

)( CAP SERVICE KIT 11/16--20 1175650 111111111

)( CAP SERVICE KIT 15/16--20 1175651 1111-- -- -- -- --

)( CAP SERVICE KIT 1--1/16--20 1175652 -- -- -- -- 1 1 1 1 1

)( PAINT TOUCH UP BALTIC GRY 1 PT 1178322 111111111

)( SCREW HEX HD 10AB X 3/8 1176782 14 14 14 14 14 14 14 14 14

)( SCREW HEX HEAD 12AB 5/8 1178281 444444444

)( SCREW HX HEAD 10AB 1/2 1178280 12 12 12 12 12 12 12 12 12

-- continued on next page --

TECHNICAL SUPPORT MANUAL Split System Air Conditioner: (C,H,T)XA6

18 421 04 6300 01

TXA6 PARTS LIST

KEY

NO. DESCRIPTION PART NO.

TXA618GKA100

TXA624GKA100

TXA630GKA100

TXA636GKA100

TXA642GKA100

TXA648GKA100

TXA649GKA100

TXA660GKA100

TXA661GKA100

01 COMPRESSOR ZP16K5EPFV130 1-- -- -- -- -- -- -- --

01 COMPRESSOR ZP20K5EPFV130 -- 1-- -- -- -- -- -- --

01 COMPRESSOR ZP24K5EPFV130 -- -- 1-- -- -- -- -- --

01 COMPRESSOR ZP29K5EPFV130 -- -- -- 1-- -- -- -- --

01 COMPRESSOR ZP34K5EPFV130 -- -- -- -- 1-- -- -- --

01 COMPRESSOR ZP38K5EPFV130 -- -- -- -- -- 1-- -- --

01 COMPRESSOR ZP42K5EPFV130 -- -- -- -- -- -- 1-- --

01 COMPRESSOR ZP44K5EPFV130 -- -- -- -- -- -- -- 1--

01 COMPRESSOR ZP49K5EPFV130 -- -- -- -- -- -- -- -- 1

02 MTR CND 1/230 1/12 820 1183631 1-- -- -- -- -- -- -- --

02 MTR CND 1/230 1/10 1100 1177913 -- 1 1 -- -- -- -- -- --

02 MTR CND 1/230 1/12 820 1179379 -- -- -- 1-- -- -- -- --

02 MTR CND 1/230 1/5 1177593 -- -- -- -- 1-- -- -- --

02 MTR CND 1/230 1/4 1177473 -- -- -- -- -- 1 1 1 1

03 FAN C 24” 3B 1/2” 15 INT 1173721 1-- -- -- -- -- -- -- --

03 FAN C 24” 3B 1/2” 18 INT 1172715 -- 1 1 -- -- -- -- -- --

03 FAN C 26” 3B 1/2” 16 INT 1174940 -- -- -- 1-- -- -- -- --

03 FAN C 26” 3B 1/2” 21 INT 1173661 -- -- -- -- 1-- -- -- --

03 FAN C 26” 3B 1/2” 24 INT 1172716 -- -- -- -- -- 1 1 1 1

04 CONTACTOR 1P 30A 24V W/SHUNT 1172472 1111111-- --

04 CONTACTOR 1P 40A 24V 1176763 -- -- -- -- -- -- -- 1 1

05 CAP RN RD 370V 3+30 1172090 1-- -- -- -- -- -- -- --

05 CAP RN RD 370V 5+35 1172110 -- 1-- -- -- -- -- -- --

05 CAP RN RD 370V 5+40 1172147 -- -- 1-- -- -- -- -- --

05 CAP RN RD 370V 3+45 1172092 -- -- -- 1-- -- -- -- --

05 CAP RN RD 370V 5+45 1172124 -- -- -- -- 1 1 -- -- --

05 CAP RN RD 370V 5+70 1172163 -- -- -- -- -- -- 1-- --

05 CONTACTOR 1P 40A 1176763 -- -- -- -- -- -- -- 1 1

06 COIL ASY COND 1183632 1-- -- -- -- -- -- -- --

06 COIL ASY COND 1183623 -- 1-- -- -- -- -- -- --

06 COIL ASY COND 1183358 -- -- 1-- -- -- -- -- --

06 COIL ASY COND 1183624 -- -- -- 1-- -- -- -- --

06 COIL ASY COND 1183625 -- -- -- -- 1-- -- -- --

06 COIL ASY COND 1179157 -- -- -- -- -- 1-- -- --

06 COIL ASY COND 1183626 -- -- -- -- -- -- 1-- --

06 COIL ASY COND 1183627 -- -- -- -- -- -- -- 1 1

07 VALVE SVC PARK SUC 12S--12S 1172726 111-- -- -- -- -- --

07 VALVE SVC PARK SUC 14S--14S 1172727 -- -- -- 111111

08 VALVE SVC PARK LIQ 06S--06S 1172792 111111111

09 PLUG COMPRESSOR 1173921 1111-- -- -- -- --

09 PLUG COMPRESSOR 1174743 -- -- -- -- 1-- -- -- --

09 PLUG COMP WIRE (SM) 12GAx58” 1174686 -- -- -- -- -- 1 1 1 1

10 GROMMET COMPRESSOR 1.62”DIA 1171270 444444444

11 BOLT SHLDR COMP. MTG, 1173630 444444444

21 CONTROL 2 SPD FAN 1183095 111111111

24 FILTER DRIER ASY 1174727 1111111-- --

24 FILTER DRIER ASY 1174195 -- -- -- -- -- -- -- 1 1

25 COMFORT ALERT 1177402 111111111

27 JACKET SOUND 1172015 1111-- -- -- -- --

27 JACKET SOUND 1172014 -- -- -- -- 11111

32 RACEWAY 1175919 111111111

33 LUG GROUND 1172300 111111111

34 HARNESS ASSY PLUG & PLAY 1173909 111111-- -- --

34 HARNESS ASSY PLUG & PLAY 1173920 -- -- -- -- -- -- 1-- --

34 HARNESS ASSY PLUG & PLAY 1173951 -- -- -- -- -- -- -- 1 1

35 HTR CC WP 40W240V TCH--245 1173944 -- -- -- -- -- 1-- -- --

36 SWITCH TEMP DISC O85 C65 1173669 -- -- -- -- -- 1-- -- --

ATOP COVER ASY 1183097 111-- -- -- -- -- --

-- continued on next page --

TECHNICAL SUPPORT MANUAL Split System Air Conditioner: (C,H,T)XA6

421 04 6300 01 19

TXA6 PARTS LIST

KEY

NO.

TXA661GKA100

TXA660GKA100

TXA649GKA100

TXA648GKA100

TXA642GKA100

TXA636GKA100

TXA630GKA100

TXA624GKA100

TXA618GKA100

PART NO.DESCRIPTION

ATOP COVER ASY 1183317 -- -- -- 1 1 1 1 1 1

BNUT HEX 8--32 KNURL MTR MTG 1172217 444444444

C1 GRILLE INLET 1177422 1 1 -- -- -- --

C1 GRILLE INLET 1176722 -- -- 1-- -- -- --

C1 GRILLE INLET 1177573 -- -- -- 1-- -- -- --

C1 GRILLE INLET 1177575 -- -- -- 1 1 1 -- --

C1 GRILLE INLET 1178809 -- -- -- -- -- -- -- 1 1

C2 GRILLE INLET 1177970 2 2 -- -- -- -- -- -- --

C2 GRILLE INLET 1178058 -- -- 2-- -- -- -- -- --

C2 GRILLE INLET 1176716 -- -- -- 2-- -- -- -- --

C2 GRILLE INLET 1176717 -- -- -- -- 2 2 2 -- --

C2 GRILLE INLET 1176450 -- -- -- -- -- -- -- 2 2

C3 GRILLE INLET 1177973 1 1 -- -- -- -- -- -- --

C3 GRILLE INLET 1178061 -- -- 1-- -- -- -- -- --

C3 GRILLE INLET 1177576 -- -- -- 1-- -- -- -- --

C3 GRILLE INLET 1177578 -- -- -- -- 1 1 1 -- --

C3 GRILLE INLET 1178810 -- -- -- -- -- -- -- 1 1

DBOX CONTROL 1172753 111111111

EKIT CONTROL BOX COVER 1178730 1-- -- -- -- -- -- -- --

EKIT CONTROL BOX COVER 1178917 -- 1-- -- -- -- -- -- --

EKIT CONTROL BOX COVER 1178918 -- -- 1-- -- -- -- -- --

EKIT CONTROL BOX COVER 1178919 -- -- -- 1-- -- -- -- --

EKIT CONTROL BOX COVER 1178920 -- -- -- -- 1-- -- -- --

EKIT CONTROL BOX COVER 1178921 -- -- -- -- -- 1-- -- --

EKIT CONTROL BOX COVER 1183630 -- -- -- -- -- -- 1-- --

EKIT CONTROL BOX COVER 1178923 -- -- -- -- -- -- -- 1 1

FSVCE PNL ASSY 1178324 1 1 -- 1-- -- -- -- --

FSVCE PNL ASSY 1178528 -- -- 1-- -- -- -- -- --

FSVCE PNL ASSY 1178326 -- -- -- -- 1 1 1 -- --

FSVCE PNL ASSY 1178696 -- -- -- -- -- -- -- 1 1

GBASE PAN ASSY 1178308 111-- -- -- -- -- --

GBASE PAN ASSY 1178309 -- -- -- 1 1 1 1 1 1

JCORNER POST ASY 1178547 3 3 3 -- -- -- -- --

JCORNER POST ASY 1178637 -- -- 3-- -- -- -- -- --

JCORNER POST ASY 1178583 -- -- -- -- 3 3 3 -- --

JCORNER POST ASY 1178806 -- -- -- -- -- -- -- 3 3

LGUARD FAN 1177894 111-- -- -- -- -- --

LGUARD FAN 1177572 -- -- -- 1 1 1 1 1 1

NSUPPORT COIL 1174068 555555555

PCLAMP CAPACITOR ROUND 2.0”D 1172734 1111111-- --

PCLAMP CAPACITOR ROUND 2.5”D 1172735 -- -- -- -- -- -- -- 1 1

RCAP ASY MOTOR 1183638 111111111

Parts Not Shown

)( GROMMET 1171737 111111111

)( HARNESS ASSY COMF ALERT AC 1177426 111111111

)( FILTER DRIER ASSY 1174195 1-- -- -- -- -- -- -- --

)( FILTER DRIER ASSY 1173955 -- 111111-- --

)( FILTER DRIER ASSY 1173980 -- -- -- -- -- -- -- 1 1

)( DRIER FILTER SUCT LINE 8.0 CI 1174194 1111-- -- -- -- --

)( DRIER FILTER SUCT LINE 15.0 CI 1174193 -- -- -- -- 1 1 1 1 1

)( CAP SERVICE KIT 11/16--20 1175650 111111111

)( CAP SERVICE KIT 15/16--20 1175651 1111-- -- --

)( CAP SERVICE KIT 1--1/16--20 1175652 -- -- -- -- 1 1 1 1 1

)( PAINT TOUCH UP BALTIC GRY 1 PT 1178322 111111111

)( SCREW HEX HD 10AB X 3/8 1176782 14 14 14 14 14 14 14 14 14

)( SCREW HEX HEAD 12AB 5/8 1178281 444444444

)( SCREW HX HEAD 10AB 1/2 1178280 12 12 12 12 12 12 12 12 12

TECHNICAL SUPPORT MANUAL Split System Air Conditioner: (C,H,T)XA6

20 421 04 6300 01

NOTE: This illustration is for

reference only. Your unit may

differ in appearance or may not

include all components shown.

Please refer to Parts List for

exact parts listing. RB

NUT

RACEWAY

FAN

MOTOR, FAN

FAN, GUARD

CAP

TOP, COVER ASSY

COIL, POST ASSY.

GRILLE, INLET

BASE, PAN ASSY.

SERVICE, PANEL ASSY.

CONTROL, BOX ASSY.

GRILLE, INLET

CONTROL, BOX COVER

This manual suits for next models

Popular Air Conditioner manuals by other brands

York

York HVHC 07-12DS Installation & owner's manual

Toshiba

Toshiba RAS-13SKHP-E Service manual

Celair

Celair Profile Series owner's manual

Vivax

Vivax ACP-12CH35REWI R32 user manual

Samsung

Samsung AJ NBNDEH Series user manual

Cooler Master

Cooler Master Silent Pro Gold 450W user manual

AHRI

AHRI SUPERIOR Series Installation, operation & service manual

Hisense

Hisense 7K Use and Installation Instructions

Thermal

Thermal CS011126 User's & technical manual

Tecumseh

Tecumseh TC300 SERIES Operator's manual

Technibel

Technibel MCAV77C5VAB Technical data & service manual

Fujitsu

Fujitsu ASY7FSACW Service manual

Carrier

Carrier 50VL-D installation instructions

INVENTOR

INVENTOR OMI-09 owner's manual

Haier

Haier HSU-18LEK03/R2 Service manual

Honeywell

Honeywell CL48PM user manual

Innova

Innova Innova Filomuro Incasso SLWI Installation and user manual

Panasonic

Panasonic S-22MZ1H4A operating instructions

ICP CXA618GKA100 Installation instructions

Popular Air Conditioner manuals by other brands
