IEI Technology IMBA-H110 User manual

1
ATX motherboard supports 14nm LGA1151 6th Generation Intel®
Core™ i7/i5/i3, Celeron® and Pemtium® processor, DDR4,
dual independent displays DVI-I/HDMI/iDP, dual Intel® GbE LAN,
USB 3.0, SATA 6Gb/s, HD Audio and RoHS
IMBA-H110
Quick Installation Guide
Version 1.0
Jan 19, 2017.
Package List
IMBA-H110 package includes the following items:
1 x IMBA-H110 single board computer
1 x I/O shielding
2 x SATA cable
1 x One Key Recovery CD
1 x QIG
1 x Utility CD
©2006 Copyright by IEI Integration corp.
All rights reserved.

2
Specifications
CPU:
LGA1151 socket supports 6th generation Intel® Core™ i7/i5/i3,
Celeron® and Pentium® processor
Chipset: Intel® H110
Memory:
Two 288-pin 2133 MHz dual-channel DDR4 SDRAM
unbuffered DIMMs support up to 64 GB
BIOS: UEFI BIOS
Graphic Engine:
Intel® HD Graphics Gen 9 engine with 16 low-power execution
units supports DX2015, OpenGL 5.X and OpenCL2.x, ES 2.0
Display Output:
Dual independent display
1 x DVI-I (up to 2560x1200@60Hz)
1 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to
4096x2304@60Hz)
Ethernet:
LAN1: Intel® I219V PHY
LAN2: Intel® I211 PCIe controller
External I/O Interface:
4 x USB 3.0
2 x USB 2.0
2 x RS-232
Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x USB 2.0 (type A)
2 x RS-232 (2x5 pin, P=2.54)
1 x RS-232/422/485 (2x5 pin, P=2.54)
1 x LPT (2x13 pin, P=2.54)

3
2 x USB 2.0 (2x4 pin, P=2.54)
4 x SATA 6Gb/s (support hot plug)
Audio:
Realtek ALC662 HD codec supports 5.1-channel
3 x Audio jacks (line-out, line-in, mic-in) on rear IO
1 x Front audio (2x5 pin)
Front Panel:
1 x Front panel (2x7 pin, power LED, HDD LED, speaker,
power button, reset button)
LEN LED: 2 x LAN LED (1x2 pin)
TPM: 1 x TPM (2x10 pin)
SMBus: 1 x SMBus (1x4 pin)
I²C: 1 x I²C (1x4 pin)
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA)
1 x PCIe x16 slot (Gen3)
6 x PCI slot
Watchdog Timer:
Software programmable support 1~255 sec. system reset
Digital I/O: 8-bit digital I/O (2x5 pin)
Fan Connector:
1 x CPU smart fan (1x4 pin)
1 x System smart fan (1x4 pin)
Power supply: ATX/AT power supply
Power Consumption:
3.3V@1.53A, [email protected], 12V@8.38A, 5VSB@3.2A
(Intel® Core™ i7 6700K 4.0GHz CPU with 16GB (two 8GB)
2133 MHz DDR4 memory)
Operation Temperature: -20°C ~ 60°C
Operation Humidity: 5% ~ 95%, non-condensing
Dimensions: 244mm x 305mm
Weight (GW/NW): 1200g/700g

4
Ordering Information
IMBA-H110-R10:
ATX motherboard supports 14nm LGA1151 6th Generation Intel®
Core™ i7/i5/i3, Celeron® and Pemtium® processor, DDR4, dual
independent displays DVI-I/HDMI/iDP, dual Intel® GbE LAN,
SATA 6Gb/s, USB 3.0, HD Audio and RoHS
19800-000049-RS: LPT cable, 25-pin (2x13) female, P=2.54
19800-000051-RS: RS-232 cable, 230mm (P=2.54)
19800-000075-RS: PS/2 KB/MS Y-cable with bracket, 220mm
32102-000100-200-RS:
SATA power cable, MOLEX 5264-4P to SATA15P
CF-1156A-RS-R11: High performance LGA1155/LGA1156 cooler kit,
1U chassis compatible, 73W
CF-1156C-RS:
LGA1155/1156 kit, 1U chassis compatible, 45W
CF-1156D-RS:
LGA1155/1156 kit, 1U chassis compatible, 65W
CF-1156E-R11:
High performance LGA1155/LGA1156 cooler kit, 95W
DP-DP-R10:
DisplayPort to DisplayPort converter board (For iEi IDP connector)
DP-DVI-R10:
DisplayPort to DVI-D converter board (For iEi IDP connector)
DP-HDMI-R10:
DisplayPort to HDMI converter board (For iEi IDP connector)
DP-LVDS-R10:
DisplayPort to 24 bit dual channel LVDS converter board
(For iEi IDP connector)
DP-VGA-R10:
DisplayPort to VGA converter board (For iEi IDP connector)
TPM-IN01-R11: 20-Pin Infineon TPM module, software management
tool, firmware V3.17

5
Jumpers setting and connectors
LABEL FUNCTION
J_ATX_AT1 AT/ATX mode select switch
J_CMOS1 Clear CMOS button
USB SW1, USB SW2 USB power setting
J_FLASH1 Flash Descriptor Security Override
F_PANEL1 PWR & RST Buttons and indicators
VIDEO1 DVI-I Connector
HDMI1 HDMI Connector
DP1 DP Connector
LAN1_USB1 RJ-45 LAN and USB 3.0 Connector
LAN2_USB2 RJ-45 LAN and USB 3.0 Connector
K/M_USB1 Keyboard & Mouse And USB 2.0 Connector
KBMS1 6 Pin-header Keyboard & Mouse Connector
USB1, USB2 Internal USB 2.0 Connectors
USB3-1 Internal USB3.0 Connector
COM1, COM2 External Serial Port DB-9 Connector
COM3, COM4 Internal Serial Port Connectors
COM5 Internal Serial Port RS-232/422485 Connector
AUDIO_CV1 HD Audio Connector
FRONT_PANEL1 Front Panel Audio Connector
SATA1
,
SATA2
SATA3, SATA4 Serial ATA 3.0 Connectors
MPCIE1 Mini PCI-E Card Connector
CPU_FAN1 CPU Fan Connector
SYS_FAN1, SYS_FAN2 System Fan Connectors
DIO1 Digital I/O Connector
ATX1 24-Pin ATX Power Source Connector
CPU12V1 +12V Power Source Connector
ATXPWR1 PCI-E Power Connector
TPM1 TPM Connector
CN1 EC Debug Port Connector
JSPI1 Flash SPI ROM
JSPI2 Flash EC ROM

6
SMB1 SMBUS Connector
I2C1 I2C Connector (to EC)
LED_LAN1 LAN1 LINK LED Connector
LED_LAN2 LAN2 LINK LED Connector
CHASSIS1 Chassis Status Connector
PCIE x16 Power: PCIEX16 channel mode setting
PCIE x16 DESCRIPTION
1 x16 PCIE (default) (Normal Operation)
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Chipset
Auto Power Button Status [Disabled(ATX)]
Restore AC Power Loss [Last State]
> PCI Express Configuration
> PCI Azalia Configuration
Power Saving Function(ERP) [Disabled]
PCIEX16 Power [1 x16 PCIE]
USB SW1 [+5V DUAL]
USB SW2 [+5V DUAL]
------------------
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
J_CMOS1: Clear CMOS button
PIN NO. DESCRIPTION
NC (default)
Keep CMOS Setup
(Normal Operation)
Press button Clear CMOS Setup
J_ATX_AT1: AT/ATX mode select switch
PIN NO. DESCRIPTION
Short 1 - 2 ATX Mode (default)
Short 2 - 3 AT Mode

7
F_PANEL1: PWR & RST buttons and indicators
PIN
DESCRIPTION PIN
DESCRIPTION
PWR
LED
1 +5V 2 BEEP_PWR SPKR
3 NC 4 IPMI ID_LED+
IPMI LED
5 GND 6 IPMI ID_LED-
PWR
BTN
7 PWRBTN_SW# 8 PC_BEEP SPKR
9 GND 10 NC
HDD
LED
11 +5V 12 EXTRST- RESET
13 SATA_LED# 14 GND
J_FLASH1: Flash descriptor security override
PIN NO. DESCRIPTION
Short 1 - 2 Disabled (default)
Short 2 - 3 Enabled
USB SW1, USB SW2: USB power setting
USB SW1 DESCRIPTION
+5V DUAL Normal Operation (default)
+5V
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Chipset
Auto Power Button Status [Disabled(ATX)]
Restore AC Power Loss [Last State]
> PCI Express Configuration
> PCI Azalia Configuration
Power Saving Function(ERP) [Disabled]
PCIEX16 Power [1 x16 PCIE]
USB SW1 [+5V DUAL]
USB SW2 [+5V DUAL]
------------------
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.

8
VIDEO1: DVI-I(Dual Link)
PIN NO.
DESCRIPTION PIN NO.
DESCRIPTION
C1 RED 10 DVI_DATA1
C2 GREEN 11 GND
C3 BLUE 12 N/C
C4 HS 13 N/C
C5 GND 14 +5V
C6 NC 15 GND
1 DVI_DATA2# 16 HPDET
2 DVI_DATA2 17 DVI_DATA0#
3 GND 18 DVI_DATA0
4 N/C 19 GND
5 N/C 20 N/C
6 DDC CLK 21 N/C
7 DDC DATA 22 N/C
8 VS 23 DVI_CLK
9 DVI_DATA1# 24 DVI_CLK#
VIDEO1: 15-pin Female Connector
PIN NO. DESCRIPTION PIN NO.
DESCRIPTION
V1 RED V2 GREEN
V3 BLUE V4 NC
V5 GND V6 GND
V7 GND V8 GND
V9 VCC V10 GND
V11 NC V12 DDCDA
V13 HSYNC V14 VSYNC
V15 DDCCLK

9
DP1 : Internal Connector
PIN NO.
DESCRIPTION PIN NO.
DESCRIPTION
1 +5V 11 AUXP
2 LANE1N 12 AUXN
3 LANE1P 13 GND
4 GND 14 LANE2P
5 LANE3N 15 LANE2N
6 LANE3P 16 GND
7 GND 17 LANE0P
8 AUX_CTRL_DET_D 18 LANE0N
9 GND 19 +3.3V
10 HPD
HDMI1: HDMI Connector
PIN NO.
DESCRIPTION PIN NO.
DESCRIPTION
1 HDMI_DATA2 13 N/C
2 GND 14 N/C
3 HDMI_DATA2# 15 HDMI_SCL
4 HDMI_DATA1 16 HDMI_SDA
5 GND 17 GND
6 HDMI_DATA1# 18 +5V
7 HDMI_DATA0 19 HDMI_HPD
8 GND 20 HDMI_GND
9 HDMI_DATA0# 21 HDMI_GND
10 HDMI_CLK 22 HDMI_GND
11 GND 23 HDMI_GND
12 HDMI_CLK#

10
LAN1_USB1: Ethernet and USB 3.0 connectors
USB1: External USB 3.0 connectors
PIN NO. DESCRIPTION PIN NO.
DESCRIPTION
1 VCC 10 VCC
2 USB_DATA- 11 USB_DATA-
3 USB_DATA+ 12 USB_ DATA+
4 GND 13 GND
5 USB3_RX- 14 USB3_RX-
6 USB3_RX+ 15 USB3_ RX+
7 GND 16 GND
8 USB3_TX- 17 USB3_TX-
9 USB3_TX+ 18 USB3_TX+
LAN1: RJ-45 LAN connector
PIN NO. DESCRIPTION PIN NO.
DESCRIPTION
20 LAN1_MDI0P 24 LAN1_MDI2P
21 LAN1_MDI0N 25 LAN1_MDI2N
22 LAN1_MDI1P 26 LAN1_MDI3P
23 LAN1_MDI1N 27 LAN1_MDI3N

11
LAN2_USB2: Ethernet and USB 3.0 connectors
USB2: External USB 3.0 connectors
PIN NO. DESCRIPTION PIN NO.
DESCRIPTION
1 VCC 10 VCC
2 USB_DATA- 11 USB_DATA-
3 USB_DATA+ 12 USB_ DATA+
4 GND 13 GND
5 USB3_RX- 14 USB3_RX-
6 USB3_RX+ 15 USB3_ RX+
7 GND 16 GND
8 USB3_TX- 17 USB3_TX-
9 USB3_TX+ 18 USB3_TX+
LAN2: RJ-45 LAN connector
PIN NO. DESCRIPTION PIN NO.
DESCRIPTION
20 LAN1_MDI0P 24 LAN1_MDI2P
21 LAN1_MDI0N 25 LAN1_MDI2N
22 LAN1_MDI1P 26 LAN1_MDI3P
23 LAN1_MDI1N 27 LAN1_MDI3N
K /M_USB1: PS/2 Keyboard & Mouse AND USB2.0 Port Connector
USB1: External USB2.0 Connector
PIN NO. DESCRIPTION PIN NO.
DESCRIPTION
1 VCC 5 VCC
2 USB_DATA- 6 USB_DATA-
3 USB_DATA+ 7 USB_DATA+
4 GND 8 GND
KB_MS1: PS/2 Keyboard and mouse connector
PIN NO. DESCRIPTION PIN NO.
DESCRIPTION
9 GND 10 KEYBOARD DATA
11 MOUSE DATA 12 VCC
13 KEYBOARD CLOCK
14 MOUSE CLOCK

12
COM2: External RS-232 serial port connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD2 2 RXD2
3 TXD2 4 DTR2
5 GND2 6 DSR2
7 RTS2 8 CTS2
9 RI2
COM1: External RS-232 serial port connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD1 2 RXD1
3 TXD1 4 DTR1
5 GND1 6 DSR1
7 RTS1 8 CTS1
9 RI1
USB3-1 : Internal USB 3.0 Connector
PIN NO.
DESCRIPTION PIN NO.
DESCRIPTION
1 VCC 11 USB_DATA+
2 USB3_RX- 12 USB_DATA-
3 USB3_RX+ 13 GND
4 GND 14 USB3_TX+
5 USB3_TX- 15 USB3_TX-
6 USB3_TX+ 16 GND
7 GND 17 USB3_RX+
8 USB_DATA- 18 USB3_RX-
9 USB_DATA+ 19 VCC
10 NC
KB_MS1: 6-pin header Keyboard/Mouse Connector
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 VCC 2 Mouse Data
3 Mouse Clock 4 Keyboard Data
5 Keyboard Clock
6 GND

13

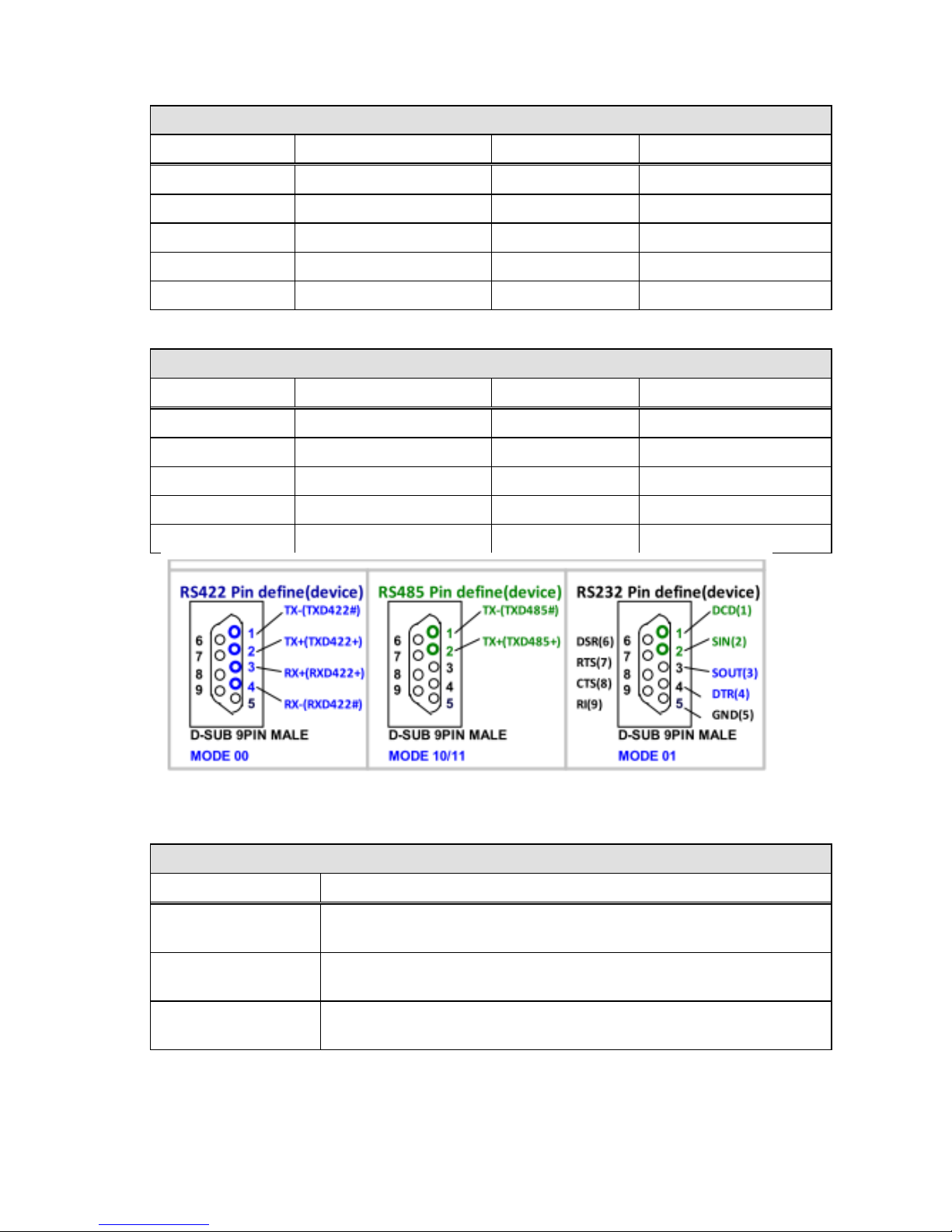

COM3, COM4: Internal RS-232 serial port connectors
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD 2 DSR
3 RXD 4 RST
5 TXD 6 CTS
7 DTR 8 RI
9 GND 10 GND
AUDIO_CV1 : Audio Line-In/Out MIC Connector
PIN NO. DESCRIPTION
Line_In
(Blue) CD/DVD or other audio source input port
Line_Out
(Green) Connect this port to headphone or speaker
Microphone
(Pink) Connect this port to microphone
COM5: Internal RS-232/422/485 serial port connectors
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD 2 DSR
3 RXD 4 RST
5 TXD 6 CTS
7 DTR 8 RI
9 GND 10 GND

14
SATA4 : Serial ATA 3.0 Connector or mSATA(MPCIE1)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 5 SATA_RX-
2 SATA_TX+ 6 SATA RX+
3 SATA_TX- 7 GND
4 GND 8 N/C
SATA1, SATA2, SATA3: Serial ATA 3.0 connectors
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 5 SATA_RX-
2 SATA_TX+ 6 SATA RX+
3 SATA_TX- 7 GND
4 GND 8 N/C
FRONT-PANEL1 : Audio Source Connector
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 MIC2-L 2 GND
3 MIC2-R 4 Presence#
5 LINE2-R 6 MIC2-JD
7 FRONT-IO 8 NC
9 LINE2-L 10 LINE2-JD

15
CN2: M-SATA card connector
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 PCIE_WAKE# 2 +3.3V
3 N/C 4 GND
5 N/C 6 1.5V
7 N/C 8 N/C
9 GND 10 N/C
11 MSATA_CLK# 12 N/C
13 MSATA _CLK 14 N/C
15 GND 16 N/C
17 PLTRST_N 18 GND
19 N/C 20 +3.3V
21 GND 22 PLTRST_N
23 SATA_RX+ 24 +3.3V
25 SATA_RX- 26 GND
27 GND 28 1.5V
29 GND 30 SMB_CLK
31 SATA_TX- 32 SMB_DATA
33 SATA_TX+ 34 GND
35 GND 36 USB_DATA-
37 GND 38 USB_DATA+
39 +3.3V 40 GND
41 +3.3V 42 N/C
43 +3.3V 44 N/C
45 CLINK_CLK 46 N/C
47 CLINK_DATA 48 1.5V
49 CLINK_RST# 50 GND
51 MSATA_DET 52 +3.3V
CPU_FAN1: CPU fan connector
PIN NO. DESCRIPTION
PIN NO. DESCRIPTION
1 GND 2 +12V
3 FANIO 4 PWM

16
ATX1: 24-pin ATX power source connector
PIN NO.
DESCRIPTION PIN NO.
DESCRIPTION
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 GND 15 GND
4 +5V 16 PS_ON
5 GND 17 GND
6 +5V 18 GND
7 GND 19 GND
8 Power good 20 -5V
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 GND
DIO1 : Digital Input / Output Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 VCC
3 Output 3 4 Output 2
5 Output 1 6 Output 0
7 Input 3 8 Input 2
9 Input 1 10 Input 0
SYS_FAN1, SYS_FAN2: System fan connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 FANIO 2 +12V (PWM)
3 GND
CPU12V1: +12V power source connector
PIN NO.
DESCRIPTION PIN NO.
DESCRIPTION
1 GND 2 GND
3 +12V 4 +12V

17
CN1: EC debug connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 EC_EPP_STB#
2 EC_EPP_AFD#
3 EC_EPP_PD0 4 NC
5 EC_EPP_PD1 6 EC_EPP_INIT#
7 EC_EPP_PD2 8 EC_EPP_SLIN#
9 EC_EPP_PD3 10 GND
11 EC_EPP_PD4 12 NC
13 EC_EPP_PD5 14 EC_EPP_BUSY
15 EC_EPP_PD6 16 EC_EPP_KSI5
17 EC_EPP_PD7 18 EC_EPP_KSI4
TPM1: Trusted Platform Module Connector
PIN NO. DESCRIPTION PIN NO.
DESCRIPTION
1 LCLK 2 GND
3 LFRAME# 4 KEY
5 LRERST# 6 +5V
7 LAD3 8 LAD2
9 +3.3V 10 LAD1
11 LAD0 12 GND
13 SCL 14 SDA
15 SB3V 16 SERIRQ
17 GND 18 GLKRUN#
19 LPCPD# 20 LDRQ#
ATXPWR1: Additional Power Source Connector
PIN NO.
DESCRIPTION PIN NO.
DESCRIPTION
1 +12V 2 GND
3 GND 4 VCC

18
SMB1: SMBus Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 SMB_DATA
3 SMB_CLK 4 +5V
JSPI2: Flash EC ROM connector
PIN NO.
DESCRIPTION PIN NO.
DESCRIPTION
1 +3.3V 2 SPI_CS#
3 SPI_SO 4 NC
5 GND 6 SPI_CLK
7 SPI_SI 8 NC
JSPI1: Flash SPI ROM connector
PIN NO.
DESCRIPTION PIN NO.
DESCRIPTION
1 +3.3V 2 SPI_CS#
3 SPI_SO 4 NC
5 GND 6 SPI_CLK
7 SPI_SI 8 NC
CHASSIS1: Chassis Status Connector
PIN DESCRIPTION PIN DESCRIPTION
1 +3.3VSB 2 CHASSIS OPEN
LED_LAN2: LAN Link LED Connector
PIN DESCRIPTION PIN DESCRIPTION
1 +3.3V 2 LAN2_LED_LNK#_ACT
LED_LAN1: LAN Link LED Connector
PIN DESCRIPTION PIN DESCRIPTION
1 +3.3V 2 LAN1_LED_LNK#_ACT
I2C1: I2C Connector (to EC)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1
GND 2 PCH_GP38
3
PCH_GP39 4 +5V

19
Board Layout: Jumper and Connector Locations
(Unit: mm)
