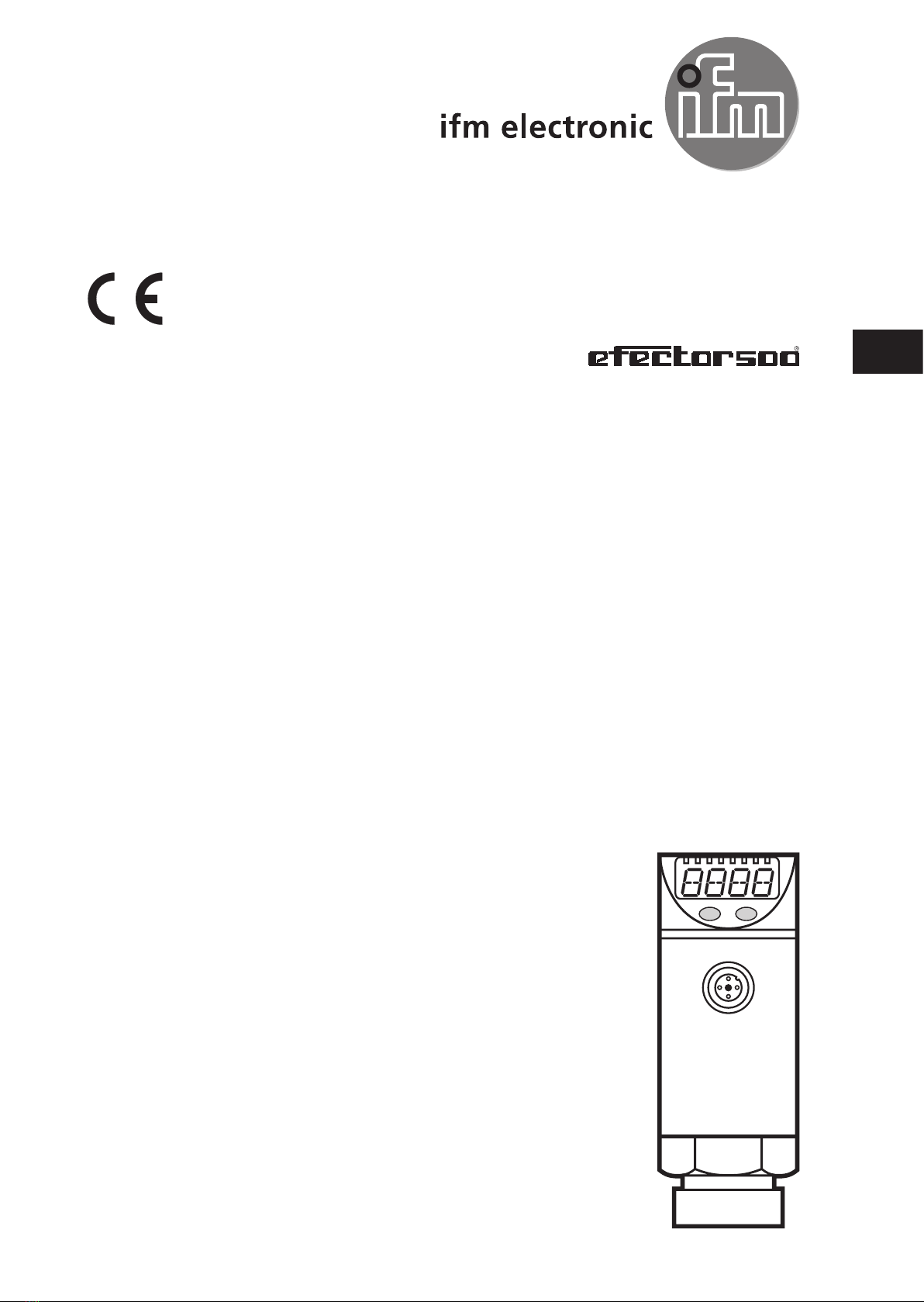

Ifm Efector500 py7102 User manual

Operating instructions

Electronic pressure sensor

PY7102

704322 / 00 05 / 2008

UK

2

Contents

1 Safety instructions �� 3

2 Function and features�� 4

3 Function�� 4

3�1 Switching function�� 4

4 Installation �� 5

5 Electrical connection�� 5

6 Operating and display elements�� 6

7 Menu�� 7

7�1 Menu structure�� 7

7�2 Menu explanation �� 8

8 Parameter setting �� 9

8�1 Parameter setting general �� 9

8�2 Setting the output signals �� 11

8�3 User settings (optional) �� 11

8�4 Service functions �� 12

9 Operation�� 13

9�1 Operation indication�� 13

9�2 Read the set parameter values �� 13

9�3 Fault indication �� 13

9�4 Diagnostic function �� 14

10 Scale drawing�� 14

11 Technical data�� 15

11�1 Setting ranges �� 16

12 Factory preset�� 16

3

UK

Preliminary note

In these instructions the operating elements are represented as follows:•

[Mode/Enter] = “Mode/Enter” button

The indications are represented as follows:•

[OU1] = parameter “OU1”, [Hno] = parameter value “Hno”

Aninstructiononhowtoactisindicatedby“►”.•

Example:►Checkthereliablefunctioningoftheunit.

A reaction to the action is indicated by “>”�•

Example: > LED 8 is lit�

1 Safety instructions

Please read the product description prior to installing the unit.•

Ensure that the product is suitable for your application without any•

restrictions.

If the operating instructions or the technical data are not adhered to,•

personal injury and/or damage to property may occur.

Please check for all applications that the product materials (see Technical•

data) are compatible with the media to be measured.

For gaseous media the application is limited to max. 25 bar / 2,5 MPa.•

For the scope of validity cULus: The device shall be supplied from an isolating

transformer having a secondary Listed fuse rated as noted in the following table�

Overcurrent protection

Control-circuitwiresize Maximum protective device rating [A]

AWG [mm2]

22 0�32 3

20 0�52 5

18 0�82 7

16 1�3 10

14 2�1 20

12 3�3 25

4

2 Function and features

The pressure sensor detects the system pressure�•

It shows the current system pressure on its display�•

It generates 2 output signals according to the set output configuration�•

OUT1: switching signal for system pressure�-

OUT2: switching signal for system pressure or diagnostic signal�-

Applications

Type of pressure: relative pressure

Order no. Measuring range Permissible

overload pressure

Bursting

pressure

PY7102

MPa 0��10 30 65

bar 0��100 300 650

PSI 0��1450 4350 9400

Static and dynamic overpressures exceeding the indicated overload pres-

surearetobeavoidedbytakingappropriatemeasures.

The indicated bursting pressure must not be exceeded� Even if the bursting

pressure is exceeded only for a short time, the unit can be destroyed�

NOTE:Riskofinjury!

For gaseous media the application is limited to max� 25 bar / 2,5 MPa�

3 Function

3.1 Switching function

OUTx changes its switching state when the set switching limits have not been

reached or have been exceeded (SPx, rPx)� The following switching functions can

be selected:

hysteresisfunction/normallyopen:[OUx]=[Hno](→fig.1).•

hysteresisfunction/normallyclosed:[OUx]=[Hnc](→fig.1).•

First the set point (SPx) is set, then the reset point (rPx) with the requested differ-

ence�

windowfunction/normallyopen:[OUx]=[Fno](→fig.2).•

windowfunction/normallyclosed:[OUx]=[Fnc](→fig.2).•

The width of the window can be set by means of the difference between SPx and

rPx� SPx = upper value, rPx = lower value�

5

UK













































1 2

P = system pressure; HY = hysteresis; FE = window (acceptable range)

4 Installation

Beforemountingandremovingthesensor,makesurethatnopressureis

applied to the system�

Insert the unit in a G¼ process connection�►

Tighten firmly�►

5 Electrical connection

The unit must be connected by a qualified electrician�

The national and international regulations for the installation of electrical

equipment must be adhered to�

Voltage supply to EN50178, SELV, PELV�

Disconnect power�►

Connecttheunitasfollows:►























































Corecoloursofifmsockets:

1=BN(brown),2=WH(white),3=BU(blue),4=BK(black).

6

6 Operating and display elements







 



1 - 8: Indicating LEDs

-LED1-LED3=systempressureinunitofmeasurementasindicatedonthelabel.

-LEDs4-6:notused.

-LED7,LED8=switchingstateoftherespectiveoutput.

9: 4-digit display

-Displayofthesystempressure.

-Displayofparametersandparametervalues.

10: Set pushbutton

Setting of the parameter values (scrolling by holding pressed, incremental by pressing-

briefly)�

11: Mode/Enter pushbutton

Selectionoftheparametersandacknowledgementoftheparametervalues.-

7

UK

7 Menu

7.1 Menu structure







































































8

7.2 Menu explanation

SP1/rP1 Upper / lower limit value for the system pressure at which output 1 changes

its switching status�

SP2/rP2 Upper / lower limit value for the system pressure at which output 2 changes

its switching status�

OU1 Output function for OUT1:

Switching signal for the limit values: hysteresis function [H ��] or window•

function [F ��], normally open [� no] or normally closed [� nc] each�

OU2 Output function for OUT2:

Switching signal for the limit values: hysteresis function [H ��] or window•

function [F ��], normally open [� no] or normally closed [� nc] each�

Diagnostic signal, [OU2] = [dESI]�•

EF Extended functions / Opening menu level 2�

Uni Standard unit of measurement for the system pressure�

HI Maximum value memory for the system pressure�

dS1 / dS2 Switch-ondelay/resetdelayforOUT1/OUT2.

dr1/dr2 Reset delay for OUT1 / OUT2

P-n Output polarity�

dAP Damping for the switching outputs

diS Update rate and orientation of the display�

9

UK

8 Parameter setting

During the parameter setting process the unit remains in the operating mode� It

continues its monitoring function with the existing parameters until parameter set-

ting has been terminated�

8.1 Parameter setting general

Each parameter setting requires 3 steps:

1Selecting parameter

Press [Mode/Enter] until the re-►

quested parameter is displayed�

 

2Setting the parameter value

Press[Set]andkeepthebuton►

pressed�

Currentsettingvalueoftheparam->

eter bit flashes for 5 s�

After 5 s: Setting value is changed:>

incremental by pressing briefly or

scrolling by holding pressed�

 

The numerical values are incremented continuously� If the value is to be reduced: Let

the display move to the maximum setting value� Then the cycle starts again at the

minimum setting value�

3Acknowledge parameter value

Press [Mode/Enter] briefly�►

The parameter is displayed again�>

The new setting value is stored�

 

Set more parameters:

Start again with step 1�►

Finishing parameter setting:

Press [Mode/Enter] several times until the current measured value is displayed►

or wait for 15 s� The unit returns to the operating mode if no button is pressed for

over15safteracknowledgementofthenewparametervalue.

10

Changingfrommenulevel1tomenulevel2:•

Press [Mode/Enter] until [EF] is►

displayed�

 

Press [Set] briefly�►

The first parameter of the submenu is>

displayed (here: [Uni])�

 

Ifthesubmenuisprotectedwithanaccesscode,“Cod1“flashesinthedisplay.

Press the „Set“ button and hold it pressed until the valid code no� is shown�►

Then briefly press the „Mode/Enter“ button�►

Delivery by ifm electronic: no access restriction�

Locking/unlocking•

Theunitcanbelockedelectronicallytopreventunintentionalwrongsettings.

Ensure that the unit is in the normal►

operating mode�

Press [Mode/Enter] + [Set] for 10 s�►

[Loc] is displayed�>

 



During operation: > [Loc] is displayed briefly when you try to change parameter values�

Forunlocking:

Press [Mode/Enter] + [Set] for 10 s�►

[uLoc] is displayed��>

 



Ondelivery:Unlocked.

Timeout:•

If no button is pressed for 15 s while the parameters are being set, the unit returns to

the operating mode with unchanged values�

11

UK

8.2 Setting the output signals

8.2.1 Setting the output function

Select [OU1] and set the switching function:►

[Hno] = hysteresis function / normally open,

[Hnc] = hysteresis function / normally closed,

[Fno] = window function / normally open,

[Fnc] = window function / normally closed�

Select [OU2] and set the output function:►

[Hno] = hysteresis function / normally open,

[Hnc] = hysteresis function / normally closed,

[Fno] = window function / normally open,

[Fnc] = window function / normally closed�

[dESI] = Output 2 is used as a diagnostic output�

8.2.2 Setting the switching limits

Select [SP1] / [SP2] and set the value at which the output switches�►

Select[rP1]/[rP1]andsetthevalueatwhichtheoutputswitchesback.►

rPx is always lower than SPx� The unit only accepts values which are lower

than SPx�

8.3 User settings (optional)

8.3.1 Setting the unit of measurement for the system pressure

Select [Uni] and set the unit of measurement:►

[bAr], [MPA], or [PSI]�

8.3.2 Configuring the display

Select [diS] and set update rate and orientation of the display:►

[d1]: Update of the measured value every 50 ms�

[d2]: Update of the measured value every 200 ms�

[d3]: Update of the measured value every 600 ms�

[rd1],[rd2],[rd3]:Displayliked1,d2,d3;rotatedby180°.

[OFF]: The display is deactivated in the operating mode��

12

8.3.3 Setting the delay time for the switching outputs

[dS1]/[dS2]=switch-ondelayforOUT1/OUT2.►

[dr1]/[dr2]=switch-offdelayforOUT1/OUT2►

Select [dS1], [dS2], [dr1] or [dr2] set value between 0�1 und 50 s (at 0�0►

the delay time is not active)�

8.3.4 Setting the damping for the switching outputs

Select [dAP], set value►

dAP-value=responsetimebetweenpressurechangeand

change of the switching status in ms�

The value for [dAP] defines the switching frequency (f) of the output:

dAP 3 6 10 17 30 60 125 250 500

f[Hz] 170 80 50 30 16 8 4 2 1

8.3.5 Setting the output logic

Select[P-n]andset[PnP]or[nPn].►

8.4 Service functions

8.4.1 Reading the max. value for the system pressure

Select [HI], press [Set] briefly�►

Delete memory:

Select [HI]�►

Press[Set]until[----]isdisplayed.►

Press [Mode/Enter] briefly�►

13

UK

9 Operation

After power on of the supply voltage the unit is in the Run mode (= normal opera-

tion)� It carries out its measurement and evaluation functions and generates output

signals according to the set parameters�

9.1 Operation indication



Numericalvalue+LEDs1-3 current system pressure in unit of measurement as

indicated on the label�

LED 7

LED 8

switching status of OUT2

switching status of OUT1

LEDs4-6:notused.

9.2 Read the set parameter values

Press [Mode/Enter] briefly to scroll the parameters�►

Press [Set] briefly to indicate the corresponding parameter value for 15 s� After►

another 15 s the unit returns to the Run mode�

9.3 Fault indication

[OL] overload pressure (measuring range exceeded)

[UL] underpressure range (measuring range below the minimum value)

[SC1] short circuit in OUT1*

[SC2] short circuit in OUT2*

[SC] short circuit in both switching outputs*

[Err] internal fault•

nominal pressure (final value of the measuring range) exceeded by 5•

times�

*The output concerned is switched off as long as the short circuit continues�

ThefaultsSC1,SC2,SC,Errareindicatedevenifthedisplayisdeactivated.

14

9.4 Diagnostic function

(according to DESINA specification)

Output 2 is used as a diagnostic output if OU2 = dESI�

Ifthereisnofault,theoutputisswitchedandcarriesUB+(ifP-n=PnP)or•

UB-(ifP-n=nPn).

In case of malfunctions the output becomes inactive� The following malfunc-•

tions are detected: Measuring cell defect; short circuit in output 1; exceeding

/ not reaching the limits of the measuring range, EEPROM fault, RAM fault,

processor fault�

10 Scale drawing

































1: display; 2: LED’s; 3: programming button

15

UK

11 Technical data

Operating voltage [V]��18...36DC1)

Currentconsumption[mA]�� < 50

Currentrating[mA] �� 250

Overvoltage protection �� up to 40 V

Short-circuitprot.,reversepolarityprot./overloadprot.,watchdog

Voltage drop [V] �� < 2

Power-ondelaytime[s]�� 0�3

Switchingfrequency[Hz]�� 170 �� 0,125

Accuracy / deviations (in% of the span)

-Accuracyofswitchpoint�� < ± 0�5

-Characteristicsdeviation �� < ± 0�5

-Hysteresis�� < ± 0�25

-Repeatability�� < ± 0�1

-Long-termstability(in%ofvalueofmeasuringrange/6months) �� < ± 0�05

-Temperaturecoefficients(TEMPCO)inthetemperaturerange

0...80°C(in%ofthespanper10K)

-greatestTEMPCOofthezeropoint/ofthespan �� < ± 0�2 / < ± 0�2

Materials (wetted parts) �� stainless steel (303S22); ceramics; FPM (Viton)

Housing material ��stainless steel (304S15); stainless steel (316S12);

  PC(Macrolon);PBT(Pocan);PEI;FPM(Viton);EPDM/X(Santoprene)

Protection, Protection class �� IP 67 III

Insulationresistance[MΩ]��>100(500VDC)

Shockresistance[g] �� 50(DIN/IEC68-2-27,11ms)

Vibration resistance [g] �� 20(DIN/IEC68-2-6,10-2000Hz)

Switching cycles min� �� 100 million

Operatingtemperature[°C] ��-20...80(beiUB<32V)

  -20...60(beiUB>32V)

Mediumtemperature[°C] �� -25...+0

Storagetemperature[°C]�� -40...+00

EMCEN61000-4-2ESD: ��4 / 8 KV

 EN61000-4-3HFradiated: �� 10 V/m

 EN61000-4-4Burst: ��2 KV

 EN61000-4-5Surge: ��0,5 / 1 KV

 EN61000-4-6HFconducted: �� 10 V

1) to EN50178, SELV, PELV

16

11.1 Setting ranges

SP1 rP1 ΔP

min max min max

PY7102

MPa 0�06 10�00 0�04 9�96 0�02

bar 0�6 100�0 0�4 99�6 0�2

PSI 12 1450 8 1440 4

ΔP=increments

12 Factory preset

Factory preset User setting

SP1 3.50

rP1 3.46

OU1 Hno

OU2 Hno

SP2 0.10

rP2 0.08

dS1 0.0

dr1 0.0

dS2 0.0

dr2 0.0

P-n nPn

dAP 60

diS d2

Uni MPA

IFM Efector500 PY7102 User manual

Popular Accessories manuals by other brands
