1 Preliminary note
This document is part of the device and contains information about the correct
handling of the product�
This document is intended for specialists� These specialists are people who are
qualified by their training and their experience to see risks and to avoid possible
hazards that may be caused during operation or maintenance of the device�
Read this document before use to familiarise yourself with operating conditions,
installation and operation� Keep this document during the entire duration of use of
the device�
1.1 Symbols used
►Instructions
→Cross-reference
Important note
Non-compliance may result in malfunction or interference�
Information
Supplementary note
2 Safety instructions
2.1 General
Observe the operating instructions� Non-observance of the instructions, operation
which is not in accordance with use as prescribed below, wrong installation or
incorrect handling can affect the safety of operators and machinery�
The installation and connection must comply with the applicable national and
international standards� Responsibility lies with the person installing the device�
The device must only be installed, connected and put into operation by a qualified
electrician as the safe function of the device and machinery is only guaranteed
when installation is correctly carried out�
Disconnect the device externally before handling it�
In case of malfunction of the device or uncertainties please contact the
manufacturer� Any tampering with the device can seriously affect the safety of
operators and machinery� This is not permitted and leads to the exclusion of any
liability and warranty claims�

5
UK
2.2 Radio equipment
In general, radio equipment must not be used in the vicinity of petrol stations, fuel
depots, chemical plants or blasting operations�
►Do not transport and store any flammable gases, liquids or explosive
substances near the device�
2.3 Interference of electronic and medical devices
Operation of the device can affect the function of electronic devices that are not
correctly shielded�
►Disconnect the device in the vicinity of medical equipment�
►Contact the manufacturer of the corresponding device in case of any
interference�
Because of the requirements for electromagnetic interference emissions, the
device is intended for use in industrial environments� The device is not suitable for
use in domestic areas�
The device may only be used under the operating conditions specified in
the data sheet�
3 Functions and features
In combination with the IO-Link master the read/write head DTI600 is used for
non-contact reading and writing of RFID tags that conform to the system (ID tags)�
The data is available as process data at the IO-Link interface�
4 Function
4.1 Operating principle
The ID tags are operated passively, i�e� without battery� The energy required for
operation is supplied by the read/write head�
The physical principle of the energy transfer is based on inductive coupling� The
integrated antenna coil in the read/write head generates a magnetic field which
partly penetrates the antenna coil of the ID tag� A voltage is generated by induction
that supplies the data carrier with energy�

6

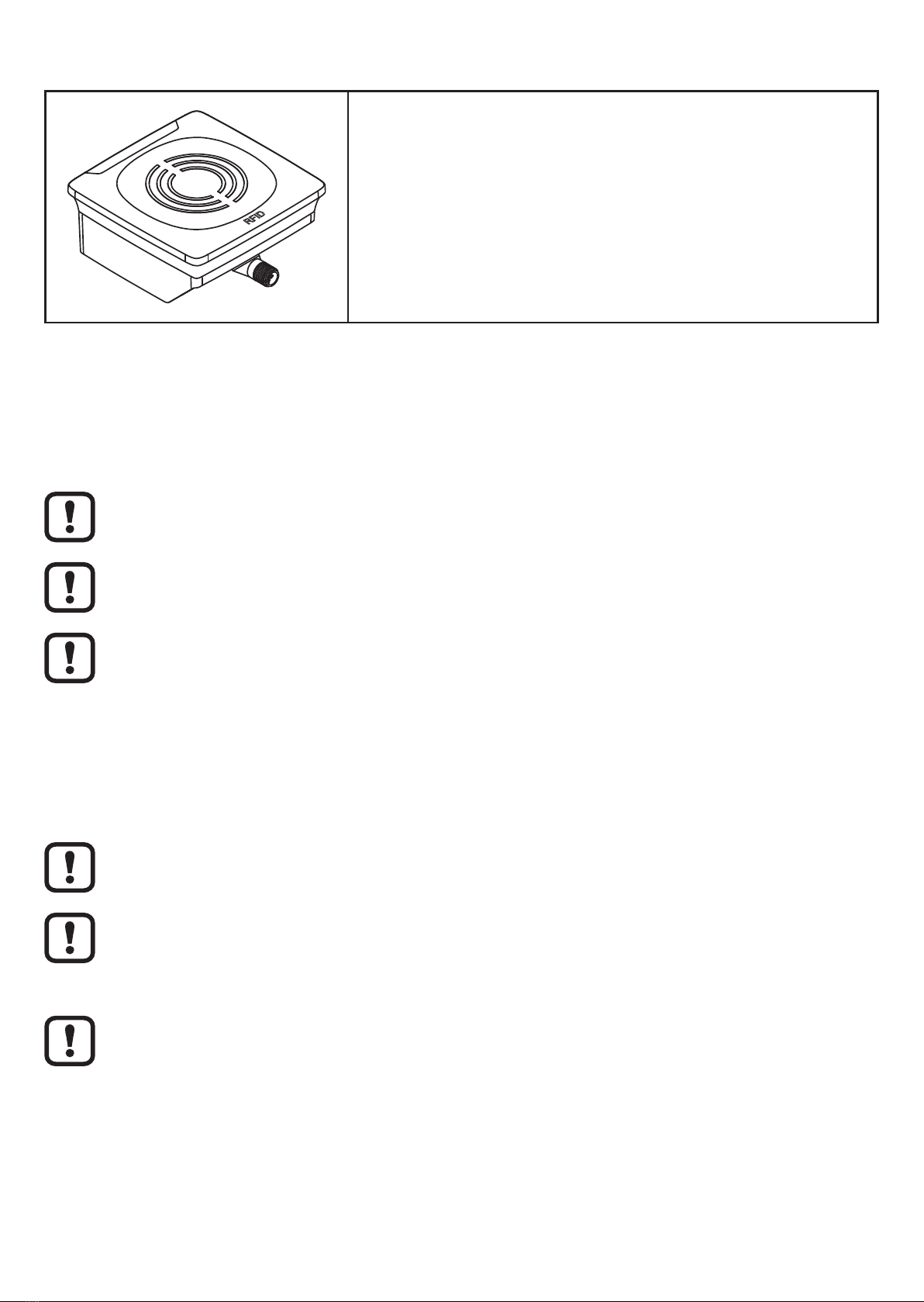

4.2 Overview
Art� no�:
Function:
Type designation:
Operating frequency:
Type:
Max� transmitter power:
DTI600
read/write head
DTRHF HLRWIOUS03
13�56 Mhz
rectangular
2 watts
5 Installation
5.1 General installation instructions
When mounting several read/write heads adhere to the minimum distances
between the systems�
Installing a read/write head in or on metal reduces the read and write
distance�
The immediate vicinity of powerful HF emission sources such as welding
transformers or converters can affect operation of the read/write heads�
Information on the available mounting accessories is available on our website at
www�ifm�com�
5.2 Notes on ID tag mounting
Installation of the ID tags in and on metal reduces the read and write
distances�
For positioning the ID tags the read/write heads are marked with an an-
tenna symbol on the active face� It designates the middle of the integrated
antenna coil and has to correspond with the middle of the ID tag�
The orientation of the read/write head axis must correspond with the axis of
the ID tag coil�

7
UK
5.3 Avoiding interference
The device generates a modulated electrical field with a frequency of 13�56 MHz�
To avoid interference of the data communication no other devices generating
interference emission in this frequency band must be operated in its vicinity� Such
devices are for example frequency converters and switched-mode power supplies�
5.4 Mechanical design
1
2
1: Sensing face
2: Connection (can be rotated by 270°)
5.5 Fixing
For installation, the following optional accessories are available�
The device can be mounted without the accessories� For installation,
please use the threaded sleeves on the back of the device� The necessary
screws are not supplied with the device�
5.5.1 Installation with angle bracket E80335

8
5.5.2 Installation with mounting device E80336
The mounting device is used to mount the device to a clamp� The following clamps
can be used:
● E21110 with a rod diameter of 12 mm
● E20795 with a rod diameter of 14 mm
● E21109 with a rod diameter of 14 mm
5.5.3 Installation with fixing bars E80337
►Fix the device with fixing screws to the designated location�

9
UK

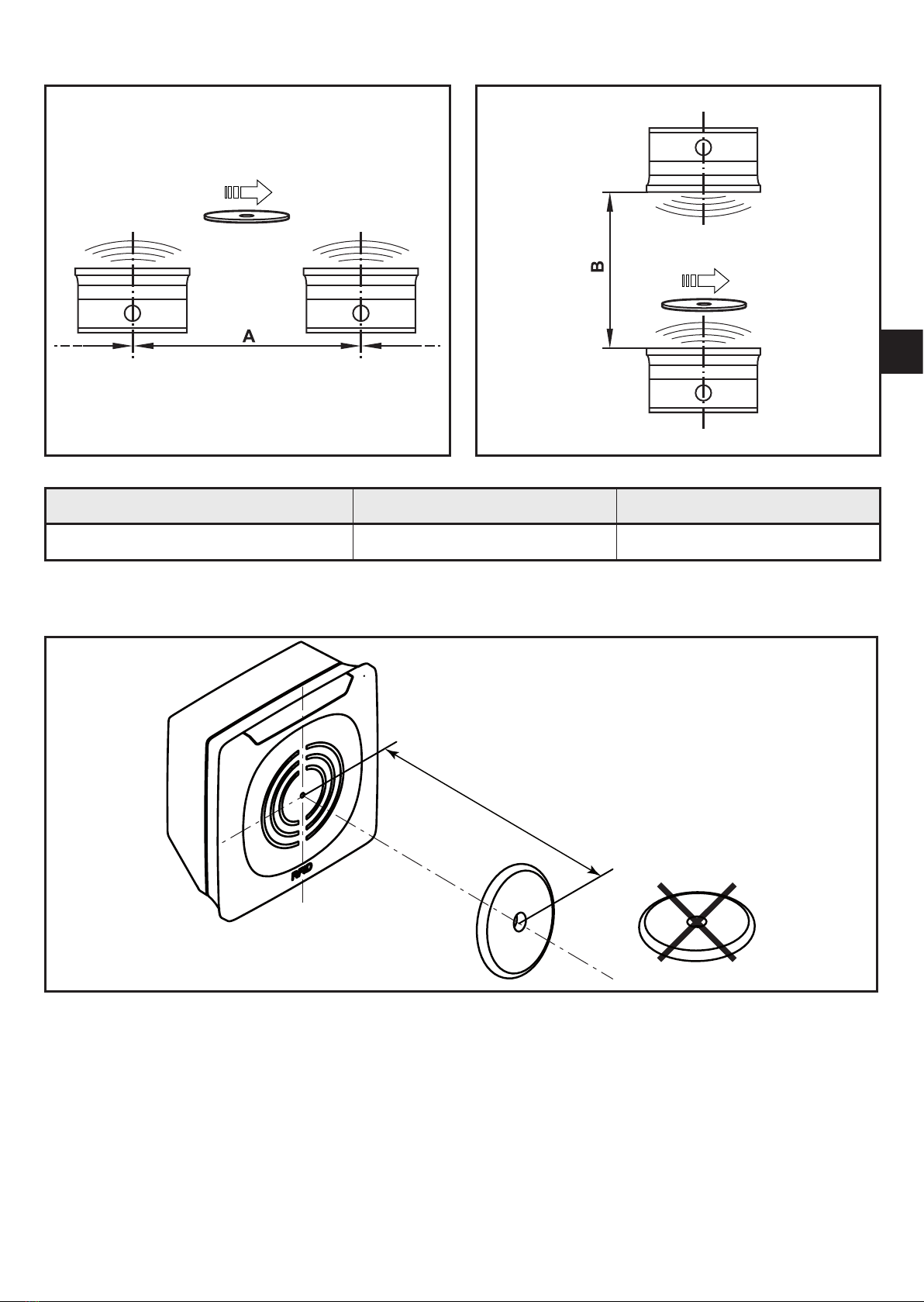

5.6 Mounting distances
Operating mode Distance side (A) Distance front (B)
For reading and writing ≥600mm ≥400mm
5.7 Positioning of the ID tags
D
►Align the ID tag on the antenna central axis�
> Distance D see data sheet

10
6 Electrical connection
Observe the following instructions before electrical installation�
NOTE
The device must be connected by a qualified electrician� Observe the electrical
data in the data sheet�
Device of protection class III (PC III)�
The electrical supply must only be made via PELV/SELV circuits�
►Disconnect power before connecting the device�
6.1 Wiring
►Connect the device to the IO-Link master using the M12 connector� Voltage is
supplied via the IO-Link master�
4
1
3
L+
1
3
4
L
IO-Link
A selection of sockets is available on our website at www�ifm�com�
6.2 cULus
If approval is granted the approval text of the respective countries applies
(→12Approvals/standards).
Information about the approvals granted: www�ifm�com
For devices with cULus approval and the cULus scope of validity :
►Supply the device from an isolating transformer having a secondary UL- listed
fuse rated:
a) 5 A at voltages of 0���20 V rms (0���28�3 V p )
b) 100/V p at voltages of 20���30 V rms (28�3���42�4 V p )

11
UK
7 Indicators
1
2
1: LEDs
2: Sensing face
LED Status Meaning
green ON operating voltage OK
OFF operating voltage missing
FLASHING SLOWLY deactivated
4 x yellow ON (permanently) ID tag detected
ON (pulse) ID tag read /written successfully
FLASHING QUICKLY error when reading/writing on ID tag
OFF no ID tag in the field or faulty ID tag in
the field or invalid ID tag in the field
green + 4x yellow FLASHING ALTERNATELY device fault
8 Operation
The read/write head is configured via the IO-Link master� You can find more
information about the operation in the manual at www�ifm�com�

12
9 Scale drawing
Original Scale Drawing (MTD)
P_MZ_190_0024
EPS Source
Product Scale Drawing
Frame Size: 80 mm x 31,5 mm
30% 333,4%
64 12,5
88
12,4
50
113
113
120
M12x1
1 2
64 12,5
88
12,4
50
113
113
120
M12x1
1 2
The max� tightening torque of the screws when mounting the device is
0�8 Nm�

13
UK
10 Technical data
The data sheets are available on our website at www�ifm�com�
10.1 Detection range with E80384
0-50-150
170
220
120
20
[mm]
[mm]
-100-200 50 100 150 200
70
Detection zone
All indications apply to static write operations� If not otherwise stated, they
refer to the installation of the device and of the ID tag in a non-metallic
environment�
11 Maintenance, repair and disposal
The operation of the device is maintenance-free� For perfect functioning: Keep the
sensing face and a clear space, if any, free from deposits and foreign bodies�
When replacing the device ensure that installation is done in the same way and
that the same type of device is used� It is not possible to repair the device� After
use dispose of the device in an environmentally friendly way in accordance with
the applicable national regulations�

14
12 Approvals/standards
If approval is granted the approval text of the respective countries applies
(→12Approvals/standards).
Information about the approvals granted: www�ifm�com
12.1 Radio approvals
12.1.1 Overview
The overview of the approval status of a unit is available on our website at www�
ifm�com�
12.1.2 Europe / EC declaration of conformity
ifm electronic gmbh hereby declares that the DTI600 radio system corresponds to
the directive 2014/53/EU�
You can find the EC declaration of conformity on our website at: www�ifm�com
12.1.3 USA
FCC note:
This device complies with Part 15 of the FCC Rules� Operation is subject to the
following two conditions:
1� This device must not cause harmful interference, and
2� this device must accept any interference received, including interference that
may cause undesired operation�
Changes or modifications made to this equipment not expressly approved by ifm
may void the FCC authorization to operate this equipment�
NOTE: This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to part 15 of the FCC Rules� These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment� This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio
communications� Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense�

15
UK
12.1.4 Canada
IC note:
This device complies with Industry Canada license-exempt RSS standards�
Operation is subject to the following two conditions:
1� The device may not cause interference, and
2� the user of the device must accept any interference received, including
interference that may cause undesired operation�
12.1.5 Taiwan
Administrative Regulations on Low Power Radio Wave Devices warning
Article 12
Unless granted permission by NCC, no company, firm, or user shall alter
the frequency, increase the transmitting power, or alter the original design
characteristics or operating functions of an approved low-power radio-frequency
device�
Article 14
Low-power radio-frequency devices shall not affect aircraft security nor interfere
with legal communications� If such interference occurs, the user shall immediately
cease operating the device until improvement is made and the interference no
longer exists�
Legal communications refers to the wireless telecommunication operations that
comply with the Telecommunications Act� Low-power radio-frequency devices
must accept any interference received from legal communications and ISM radio
wave devices�
Below are the Taiwanese legal regulations in Chinese�
低功率電波輻射性電機管理辦法:
● 第十二條
經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自
變更頻率、加大功率或變更原設計之特性及功能。
● 第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象
時,應立即停用,並改善至無干擾時方得繼續使用。
前項合法通信,指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

16
12.1.6 Australia
Use in Australia:
12.1.7 Singapore
Complies with
IDA Standards
DB 103032
The “Equipment Registration” is available on our website at: www�ifm�com
Other manuals for DTI600
1
Table of contents
