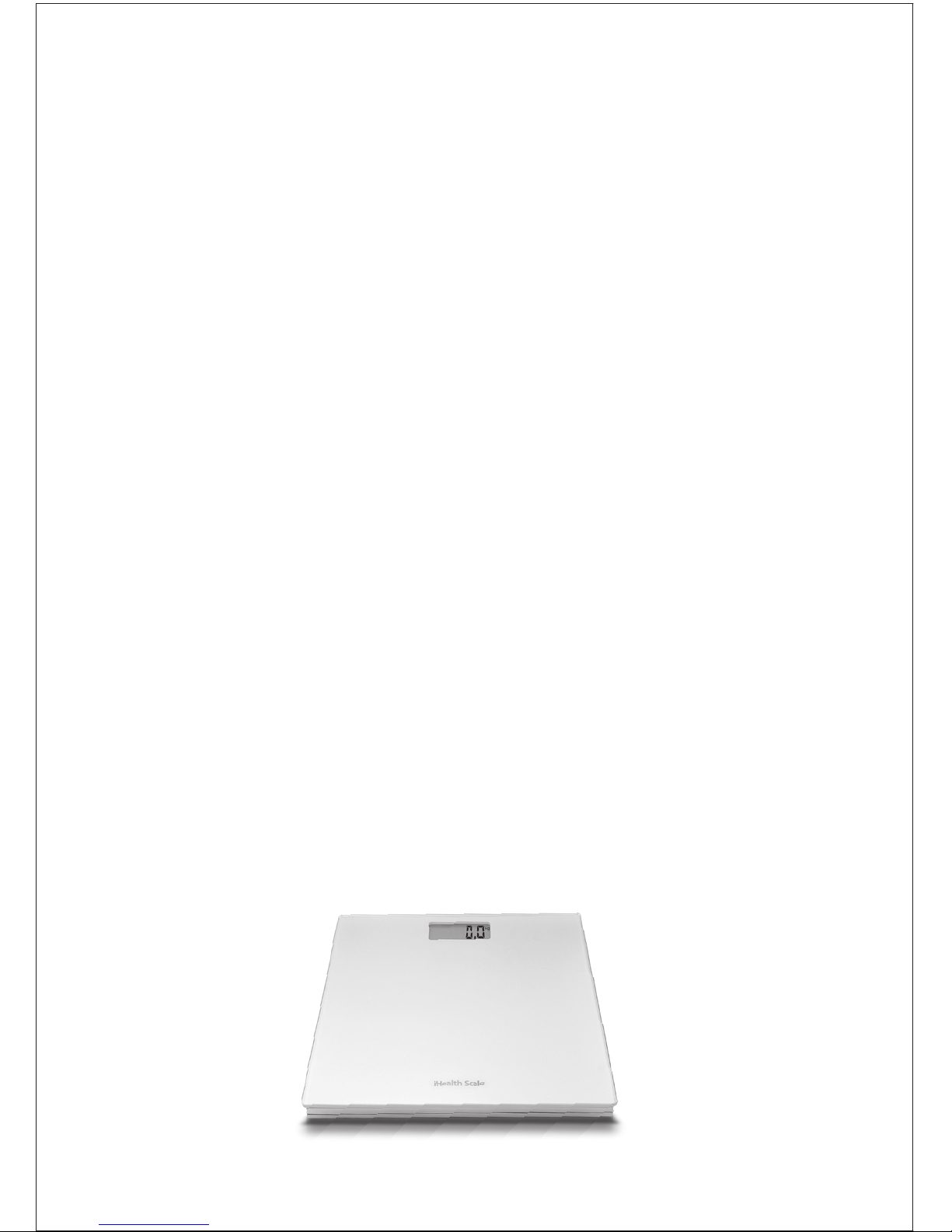

iHealth HS3 User manual

Wireless Scale (HS3)
Balance sans fil (HS3)
Bilancia wireless (HS3)
Báscula inalámbrica (HS3)
Drahtlose Waage (HS3)
Balança Sem Fios (HS3)
OWNER’S MANUAL
MODE D'EMPLOI
MANUALE DI ISTRUZIONI
MANUAL DE USUARIO
BEDIENUNGSANLEITUNG
MANUAL DO UTENTE

IMPORTANT INFORMATION
PACKAGE CONTENTS
INTENDED USE
IMPORTANT NOTE FOR USERS
PARTS AND DISPLAY INDICATORS
SET UP REQUIREMENTS
SET UP PROCEDURES
SET UP BLUETOOTH CONNECTION
MEASUREMENT PROCEDURES
SPECIFICATIONS
GENERAL SAFETY AND PRECAUTIONS
TROUBLESHOOTING
CARE AND MAINTENANCE
EXPLANATION OF SYMBOLS
INDEX
1
1
1
1
1
2
2
3
4
5
5
7
8
8
Wireless Scale (HS3)
OWNER’S MANUAL
EN

IMPORTANT INFORMATION
Thank you for purchasing the iHealth Wireless Scale. You will now
be able to measure, track and share weight results from the
comfort of your home.
This Manual will guide you through the setup procedures and
highlight the Scale’s key features. Please keep it handy for future
reference.
PACKAGE CONTENTS
• iHealth Wireless Scale
• Owner’s Manual
• Quick Start Guide
• 4 AAA Batteries
INTENDED USE
The iHealth Wireless Scale is a precision electronic instrument
intended for adult use.The measurements are displayed and stored
with a date and time stamp on an iOS device.
IMPORTANT NOTE FOR USERS
Always store the iHealth Wireless Scale in a dry place. To ensure
accurate results, keep the Scale away from magnetic fields as these
may adversely affect results or possibly damage the Scale.
PARTS AND DISPLAY INDICATORS
1

SET UP REQUIREMENTS
The iHealth Wireless Scale is designed to be used with the
following iOS models:
iPod touch (4th generation)
iPod touch (3rd generation)
iPhone 4S
iPhone 4
iPhone 3GS
iPad (3rd generation)
iPad2
iPad
The iOS version of these devices should be V5.0 or higher.
SET UP PROCEDURES
Download the Free iHeath MyVitals
Prior to first use, download and install the "iHealth MyVitals" from
the App Store. It is very important that Scale users follow the
on-screen instructions to register and complete a personal profile
because data points such as height and age are necessary to
measure BMI.
Install Batteries
Open the battery cover on the back
of the Scale and insert four AAA batteries.
If “Lo” appears on the display, replace
all the batteries.
Rechargeable batteries are not suitable
for this scale.
st
lb
kg
+ +
+
+
--
- -
!
!
2

To avoid damage as a result of battery leakage, remove the
batteries if the Scale is not going to be used for 3 months or more.
The Scale and batteries must be disposed of according to
local regulations at the end of their service life.
Select a weight unit by adjusting the switch under the
battery cover.
The Wireless Scale is now ready for use.
STEP 1: Turn on the iHealth Wireless Scale by stepping on it until
“0.0”is displayed.
STEP 2: Turn the Bluetooth Setting “On” on your mobile device.
The device will start searching for the Scale. (Note: it may
take up to 30 seconds for the device to detect the
Bluetooth signal).
STEP 3: Wait until the model name, “iHealth HS3xxxxx”, and “Not
Paired” appear on the device screen. Select the model
name “iHealth HS3xxxxx” to pair and connect. If
connection is successful, "Connected" appears on the
device screen.
Select Weight Unit
SET UP BLUETOOTH CONNECTION
!
st lb kg
3

After it has been used for the first time, the date and time of the
iHealth Wireless Scale will be synchronized with the iOS device.
The Scale can also be used without being connected to an iOS
device. In this case, the data is stored in the Scale’s memory and
can be uploaded to the iOS device when a connection is
re-established.
Taking Measurements Without an iOS Device
The iHealth Wireless Scale can store 200 weight results. When the
scale's memory is full, new measurements will overwrite the oldest
ones.
Offline Memory
For more detailed operating instructions, please visit
www.ihealthlabs.com or the FAQ section of the "iHealth MyVitals"
app on your iOS device.
Operating Instructions
The iHealth Wireless Scale shuts down automatically after 2
minutes following measurement completion. If a new measure-
ment is started or the Bluetooth connection is re-established
during this time, the shutdown is delayed by another two minutes.
If abnormal measurement data is present (such as low battery,
above maximum weight, etc.), the Scale will shut down within 3 to
9 seconds.
Automatic Shutdown Feature
a. Step on the iHealth Wireless Scale, the scale will connect to iOS
device.
b. Launch the "iHealth MyVitals App".
c. Once the Scale detects that there is no more movement, weight
information will display on the Scale display first and then
appear on the App screen.
MEASUREMENT PROCEDURES
4

SPECIFICATIONS
1. Product name: iHealth Wireless Scale
2. Model: HS3
3. Classification: internally powered
4. Product dimensions: 13” x 13” x 1.5”(330mm×330mm×39mm)
5. Weight: approx. 70 oz (2000 g)
6. Measuring method: automatic strain gauge measurement
7. Power: 4×1.5V AAA batteries
8. Measurement range: 11lbs-330lbs/5 kg-150 kg/11lbs-23st8lbs
9. Accuracy: ±5%
10. Operating temperature: 5℃- 40℃(41°F-104°F)
11. Operating humidity: 20 - 85%RH
12. Storage and transport temperature: -20℃-60℃(-4°F-140°F)
13. Storage and transport humidity: 10 - 95%RH
GENERAL SAFETY AND PRECAUTIONS
1. Read all of the information in the Owner’s Manual and other
included product information before operating this product.
2. Please stand on the Scale, keeping as still as possible, until the
result appears on the display.
3. Do not stand on the edge of the Scale as you may fall or
receive inaccurate measurements.
4. Do not use the Scale on a tile or wet floor as this may result
in a fall.
5. Ensure that the surface of the Scale is clean and dry before
you step onto it as it may become slippery when wet.
6. Treat your Scale with care. Do not drop it or jump on it. The
Scale is designed to be stepped on; misuse or abuse may
render it inoperative, cause you to fall, or adversely affect the
accuracy of measurements.
7. Never immerse the Scale in water. Clean the surface with a
damp cloth.
8. Do not use the Scale on an uneven floor, a soft surface, or a
carpet, as doing so may result in unreliable data.
9. To avoid damage as a result of battery leakage, remove the
batteries if the Scale is not going to be used for more than 3
5
!
!
!
!
!

months.
10. This Wireless Scale is designed for adults. Infants or young
children or any person who cannot stand still without
assistance, should not use it.
11. Avoid using this Scale near strong magnetic fields, such as
microwave ovens, etc.
12. The Scale may not perform accurately if it is stored or used
outside the specified temperature and humidity ranges cited
under Specifications.
13. This device complies with part 15 of the FCC Rules. Its
operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
14. Changes or modifications not expressly approved by iHealth
Lab Inc. invalidate the user’s warranty for this product.
15. This product has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This product generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
product does cause harmful interference to radio or television
reception, which can be determined by turning the product off
and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from
the one to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for
help.
16. This device complies with Industry Canada license-
exemptRSS standard(s). Operation is subject to the following
two conditions:
6
!

PROBLEM POSSIBLE CAUSE SOLUTION
iOS device can not
find the Scale
Bluetooth connection
failed
Bluetooth connection
failed
Bluetooth connection
failed
Make sure the scale is turned on
and restart iOS device.
iOS device can not
connect to the Scale
Connect again, Restart the iOS
device.
Bluetooth Signal
extinguishes in the
App.
Re-connect the Bluetooth and
restart the APP, if it is still not
working, restart iOS device.
The pairing was
unsuccessful
Turn on the scale by tapping it with
your foot until “0.0” is displayed.
Restart the iOS device, and pair
with scale.
Ensure the distance of the iOS
device is within 16.5 feet of the scale.
The Bluetooth icon
in the Start page is
not lit
The scale is not on.
The iOS device is too
far from the scale.
Turn on the scale by tapping it with
your foot until "0.0" is displayed.
Pair the iOS device
with the scale.
The scale doesn’t
turn on when
batteries are inserted
The scale is not on.
The Bluetooth
connection failed.
Check that the batteries are inserted
correctly.
Remove batteries and reinstall
batteries after one minute.
The scale displays
"Lo"
Incorrect operation.
Strong electromagnetic
interference.
Check that the batteries are inserted
correctly. Replace with new batteries.
The scale displays "E"
Low battery.
The scale supports up to 330lbs.The scale displays
"O-Ld"
Movement while
measurement was
in process.
Stand still while measuring and do
not move the scale while
measurements are being taken.
The scale displays
"Err"
Exceeds weight
capacity.
Calibration error. Place scale on a hard and flat surface.
Allow the scale to turn off and then
restart it.
TROUBLESHOOTING
7
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of the device.

The scale displays
"EE"
There are fluctuations
in the results
The APP displays
"Timeout" when
uploading
The communication
between the iOS
device failed.
Every time the scale is
moved, it must be
recalibrated.
The Bluetooth
connection is
interrupted.
Pair the iOS device
with the scale.
a) Place the scale on a hard and flat
surface, b) tap on the scale with your
foot to turn on the scale and c) the
scale is now calibrated.
Be sure Bluetooth is connected and
upload again.
EXPLANATION OF SYMBOLS
Symbol for “CAUTION”
!
Symbol for“ENVIRONMENT PROTECTION – Waste
electrical products should not be disposed of with house-
hold waste. Please recycle where facilities exist. Check
with your local Authority or retailer for recycling advice”.
Symbol for “THE OWNER’S MANUAL MUST BE READ”
Symbol for “TYPE BF APPLIED PARTS”
8
1. Avoid high temperatures and direct sunlight. Do not immerse
the Scale in water, as this will damage the Scale.
2. If the Scale is stored in near freezing or freezing temperatures,
allow it to acclimatize to room temperature before use.
3. Do not attempt to disassemble the Scale.
4. Remove the batteries if the Scale is not going to be used for
more than 3 months.
5. Clean the Scale with a soft damp cloth if dirty. Do not use
abrasive or solvent-based cleaners.
6. The Scale is essentially maintenance-free and requires no user
intervention.
7. The Scale will maintain its safety and performance features for
at least 10,000 measurements or two years of use.
CARE AND MAINTENANCE

Symbol for “MANUFACTURER”
Symbol for “KEEP DRY”
Symbol for “Year of Manufacture”
Manufactured for iHealth Lab Inc.
Mountain View, CA 94043, USA [phone]
www.ihealthlabs.com
iHealth is a trademark of iHealth Lab Inc.
Bluetooth®associated logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by iHealth Lab Inc.
is permitted under license.
“Made for iPod”, “Made for iPhone”, and “Made for iPad” mean
that an electronic accessory has been designed to connect
specifically to iPod, iPhone, or iPad, respectively, and has been
certified by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards. Please note that
the use of this accessory with iPod, iPhone, or iPad may affect
wireless performance. iOS device are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Other trademarks and trade names are those of their respective
owners.
Symbol for“COMPILES WITH RTTE
99/5/EC REQUIREMENTS”
ANDON HEALTH CO., LTD.
No. 3 Jinping Street, YaAn Road, Nankai District,
Tianjin 300190, China. Tel: [phone]
9
