IKEA GRILJERA User manual

GRILJERA
AU

ENGLISH 4
Please refer to the last page
of this manual for the full list
of IKEA appointed Authorized
Service Centre and relative
national phone numbers.

ENGLISH 4
Before rst use
Your safety and that of others is paramount.
Remove cardboard protection pieces,
protective lm and adhesive labels from
accessories.
Check the appliance for any transport
damage.
To avoid any damage do not place any
weights on the appliance. Do not expose
the appliance to atmospheric agents.
This manual and the appliance itself provide
important safety warnings, to be read and
observed at all times.
This is the attention symbol, pertaining
to safety, which alerts users to potential
risks to themselves and others.
All safety warnings are preceded by the
attention symbol and the following terms:
DANGER: indicates a hazardous
situation which, if not avoided, will
cause serious injury.
WARNING: Indicates a hazardous
situation which, if not avoided, could
cause serious injury.
All safety warnings give specic details
of the potential danger/warning present
and indicate how to reduce risk of injury,
damage and electric shock resulting from
improper use of the appliance. Carefully
observe the following instructions.
Precautions and general
recommendations
• The electrical installation and the
electrical connection must be carried
out by a qualied technician according
to the manufacturer’s instructions and
in compliance with the local safety
regulations. Do not repair or replace any
part of the appliance unless specically
stated in the user manual.
• The appliance must be disconnected
from the power supply before carrying
out any installation work.
• Earthing of the appliance is compulsory.
(required only for class I).
• The power cable must be long enough
for connecting the appliance, once
tted in its housing, to the power supply
socket.
• Do not pull the power supply cable in
order to unplug the appliance.
• The electrical components must not be
accessible to the user after installation.
• Do not touch the appliance with any wet
part of the body and do not operate it
when barefoot.
• The appliance is not intended for use
by persons (including children) with any
physical, sensory or mental impairment,
or without experience and knowledge
of the appliance, unless supervised or
previously instructed in its use by those
responsible for their safety.
• Do not repair or replace any part of the
appliance unless specically indicated
in the manual. All other maintenance
services must be carried out by a
specialised technician.
• Children must be supervised to ensure
they do not play with the appliance.
• When drilling through the wall pay
attention not to damage electric
connections and/or pipes.
• Air vents must always discharge to the
outside.
Safety information 4
Product description 7
Control panel 7
Cleaning and maintenance 8
What to do if ... 9
Technical data 10
Environmental concerns 11
IKEA GUARANTEE 12
Safety Information
Contents

ENGLISH 5
• The manufacturer rejects all
responsibilities for any damage caused
by improper use or wrong settings.
• Appropriate maintenance and cleaning
ensure the good working order and
the best performance of the appliance.
Regularly clean all stubborn surface dirt
to avoid grease build up. Remove and
clean or change the lter regularly.
• Never ame cook food (ambé) under
the appliance. Using free ames might
cause re.
• Failure to observe the instructions for
cleaning the hood and replacing the
lters may result in a re.
• Exhaust air must not be vented through
a ue used for removal of fumes
produced by gas combustion appliances
or other combustible materials, but must
have a separate outlet. All national
regulations governing extraction of
fumes must be observed.
• There shall be adequate ventilation if
the hood is being used at the same time
as other appliances using gas or other
combustible materials. The negative
pressure of the room must not exceed 4
Pa (4x 10-5 bars). For this reason ensure
that the room is well ventilated.
• Do not leave frying pans unattended
when frying, as the frying oil may catch
re.
• Before touching the light bulbs, ensure
that they are cold.
• Do not use or leave the hood without
the light bulb correctly tted, as this may
cause electric shock.
• The hood is not a work surface, therefore
do not place any objects on top of it or
overload it.
• During all installation and maintenance
operations wear appropriate working
gloves.
• This appliance is not suitable for outdoor
use.
WARNING: when the hob is in use,
accessible parts of the hood may
become hot.
Installation and connection
After unpacking the appliance, check for
any transport damage. In the event of
problems, contact the Authorized Service
Centre. To prevent any damage, only
remove the appliance from its polystyrene
foam packaging at the time of installation.
Preparing for installation
WARNING: this is a heavy product; the
hood should only be lifted and
installed by two or more people.
The minimum distance between the hob and
the bottom part of the hood must not be less
than 65 cm for burning gas or other fuels
and 50cm for electric cookers.
Before installation also check the minimum
distances stated in the manual of the cooker.
If the installation instructions for the cooker
specify a greater distance between cooker
and hood, this distance must be observed.
Electrical connection
Make sure the power voltage specied on
the appliance rating plate is the same as
the mains voltage.
This information can be found on the inside
of the hood, under the grease lter. Power
cable replacement (type H05 VV-F) must
be carried out by a qualied electrician.
Contact an authorized service centre.
If the hood is tted with an electric plug,
connect the plug to a socket complying with
current regulations, located in an accessible
place.
If no plug is tted (direct wiring to the
mains), or if the socket is not located in an
accessible place, a qualied electrician
should install a standardised double pole
power switch that will enable complete
isolation from the mains in case of category
III overvoltage conditions, in accordance
with wiring rules.

ENGLISH 6
Use
The hood has been designed to be installed
and used either as a “Exhausted model”, or
as a “Recirculation model”.
Exhausted model (see symbol in
installation booklet)
Cooking steam is sucked and channelled
outside the house through a discharge duct
(not supplied), tted to the hood steam
outlet.
Ensure that the discharge duct is correctly
tted to the air outlet, unit using an
appropriate connection system.
Important: If already installed, remove the
charcoal lter/s.
Where xing or mounting screws or other
xing devices are used, that penetrates into
the range hood with a accessible metallic
enclosure or class II construction, to attach
an accessory, the instructions shall indicate
the required location of these screws or
xing devices and include the substance of
the following warning.
Failure to install the screws or xing device
in accordance with these instructions may
results in electrical hazard.
Recirculation model (see symbol in
installation booklet)
The air is ltered through one or more the
charcoal lters, and then resent into room.
Important: Ensure appropriate air
circulation around the hood.
Important: If the hood is supplied without
charcoal lters, these must be tted before
the hood can be used. Filters are available
in shops.
The hood should be installed away from
particularly dirty areas, windows, doors and
heat sources.
The accessories for wall xing are not
included because walls made of different
materials require different types of xing
accessories. Use xing systems suitable for
the walls of your home and the weight of
the appliance. For more details, contact a
specialized dealer.
Keep this booklet for future consultation.

ENGLISH 7
Product description
1 Push/Pull knob.
2 LED light.
3 Grease lter.
1
23
Control panel
AOFF position
BLight ON
C Extraction power 1 with Light ON
D Extraction power 2 with Light ON
E Extraction power 3 with Light ON
F Extraction power 3
G Extraction power 2
H Extraction power 1
Push/Pull knob
To use this type of knob, press it in the
middle.
The knob comes out.
Turn it to the required position.
Once operation is over, turn the knob to 0
and press it again to restore it to its original
position.
Operation
Use the fastest speed setting for particularly
concentrated steam and fumes. It is
advisable to switch the hood on 5 minutes
before starting to cook and leave it running
for another 15 minutes at the end of
cooking.
To select the hood functions simply touch the
controls lightly.
0
A B C DE F G H

ENGLISH 8
WARNING:
- Never use steam cleaning equipment.
- Disconnect the appliance from the power
supply.
IMPORTANT: do not use corrosive or
abrasive detergents. If any of these products
accidentally comes into contact with the
appliance, clean immediately with a damp
cloth.
• Clean the surfaces with a damp cloth.
If it is very dirty, add a few drops of
washing up detergent to the water.
Finish off with a dry cloth.
IMPORTANT: do not use abrasive sponges
or metallic scrapers or scourers. Over time,
these can ruin the surface.
• Use detergents specically designed for
cleaning the appliance and follow the
manufacturer instructions.
IMPORTANT: clean the lters at least
monthly to remove any oil or grease
residuals.
To clean the grease lter
The metal grease lter has an unlimited life
and must be washed once a month by hand
or dishwasher at low temperature and with
a short cycle. With cleaning in a dishwasher
the grease lter may become dull; this does
not effect its ltering capacity.

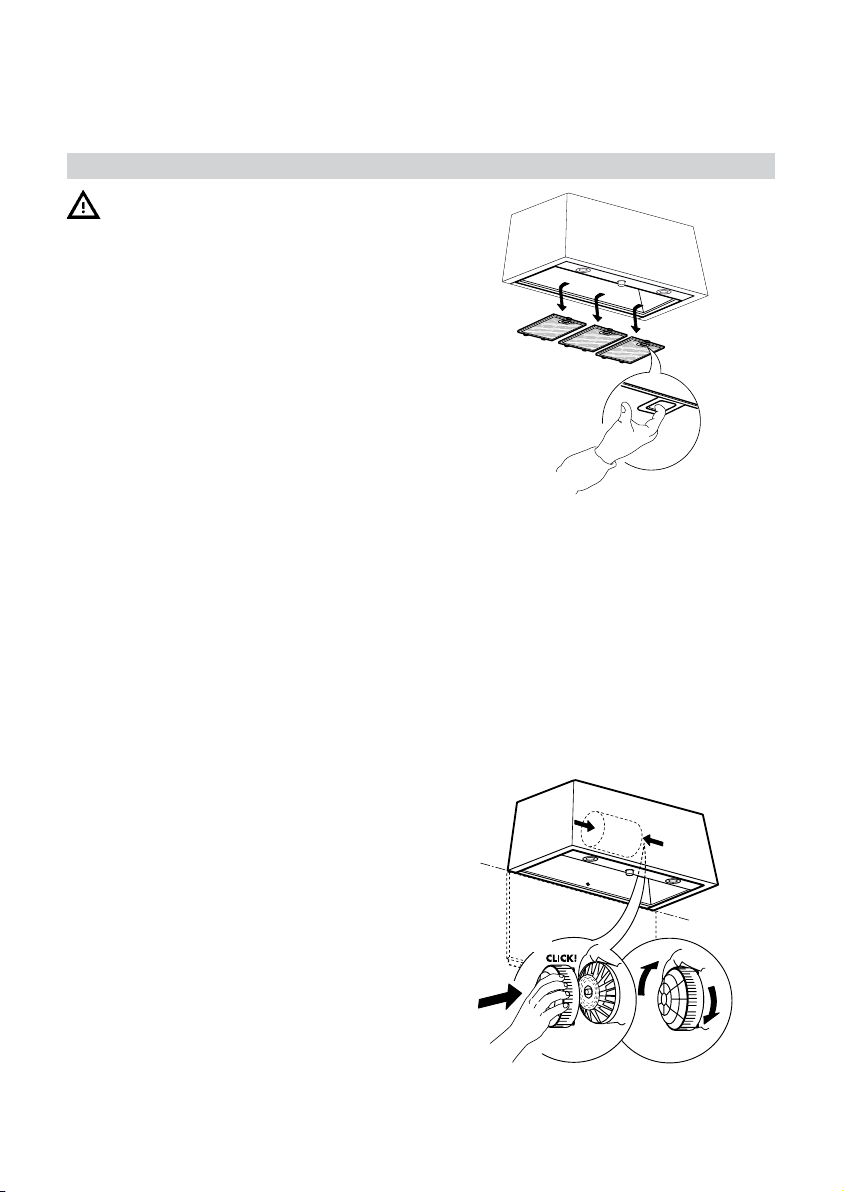

Grease lter maintenance:
1. Disconnect the hood from the electric
power supply.
2 Remove the grease lters: pull the spring
release handle downwards, then remove
the lter.
3. After cleaning the grease lter, remount
in reverse order ensuring the entire
extraction surface is covered.
Charcoal lter maintenance (if the hood is
installed in recirculation mode)
1. Remove the grease lter
2. Fix (bayonet attachment) 1 charcoal
lter each conveyour side.
3. Reverse the above procedure to remove
the charcoal lter.
4. Ret the grease lter.
Charcoal lter is neither lavable nor
regenerable.
Replace it every 4 months.
2x
Cleaning and maintenance

ENGLISH 9
Problem Possible cause Solution
The appliance does not work There is no mains
electrical power
Check for the presence of
mains electrical power.
Turn off the appliance and
restart it to see if the faults
persists.
The appliance is not
connected to the
electrical supply
Check if the appliance is
connected to the electrical
supply.
Turn off the appliance and
restart it to see if the faults
persists.
The hood’s suction level is not
enough
The suction speed is too
low
Check the suction speed and
adjust as necessary.
The metal lters are
dirty
Check that the lters are clean
If not, clean the lters in the
dishwasher.
The air vents are
obstructed
Check the air vents for any
obstructions and remove as
necessary.
The light does not work The LED is broken For replacement, contact the
Authorized Service Centre.
What to do if ...
LED light
The hood is equipped with a lighting system
based on LED technology.
The LEDs guarantee an optimum lighting,
a duration up to 10 times as long as the
traditional lamps and allow to save 90%
electrical energy.
For replacement, contact the Authorized
Service Centre.
Before contacting the Authorized Service
Centre:
Switch the appliance on again to see if the
problem has disappeared. If not, switch it
off again and repeat the operation after an
hour.
If your appliance still does not work properly
after carrying out the checks listed in the
troubleshooting guide and switching the
appliance on again, contact the Authorized
Service Centre, clearly explaining the
problem and specifying:
• the type of fault;
• the model;
• the type and serial number of the
appliance (given on the rating plate);
• the Service number (the number after the
word SERVICE on the rating plate inside
the appliance).

ENGLISH 10
Type of product Wall mounted hood
Dimensions
Width mm 898
Depth mm 499
Height min mm 360
Height max mm 360
Total power W265
Lamps info
Type Led
Number & Power W 2x2,5W
Socket Spotlight
Installation minimum height - gas hob mm 650
Installation minimum height - elec hob mm 500
Product Weight Kg 13 , 4
Additional Product Information compliant to commission regulation (EU) No 66/2014
Model identier GRILJERA 40316984
Annual Energy Consumption kWh/a 44,4
Time increase factor 0,8
Fluid Dynamic Efciency % 33,3
Energy Efciency Index 46,8
Measured air ow rate at best efciency point m³/h 368
Measured air pressure at best efciency point Pa 454
Maximum air ow m³/h 625
Measured electric power input at best efciency point W139,5
Nominal power of the lighting system W5
Average illumination of the lighting system on the cooking surface lux 145
Power consumption in standby mode W NA
Power consumption off mode W NA
A-waighted Sound Power Emission at maximum speed dB(A) 66
Technical data
The technical information is situated in
the rating plate on the internal side of the
appliance.

ENGLISH 11
Environmental concerns
Disposal of packing
The packing material is 100% recyclable
and is marked with the recycle symbol . The
various parts of the packing must therefore
be disposed of responsibly and in full
compliance with local authority regulations
governing waste disposal.
Scrapping the product
- This appliance is marked in compliance
with European Directive 2012/19/EU,
Waste Electrical and Electronic Equipment
(WEEE).
- By ensuring this product is disposed
of correctly, you will help prevent
potential negative consequences for
the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product.
The symbol on the product or on the
accompanying documentation indicates that
it should not be treated as domestic waste but
must be taken to an appropriate collection
centre for the recycling of electrical and
electronic equipment.
Scrapping of household appliances
• This appliance is manufactured with
recyclable or reusable materials. Dispose
of it in accordance with local waste
disposal regulations. Before scrapping, cut
off the power supply cable.
• For further information on the treatment,
recovery and recycling of household
electrical appliances, contact your
competent local authority, the collection
service for household waste or the store
where you purchased the appliance.
Energy saving tips
• Switch ON the hood at minimum speed
when you start cooking and kept it
running for few minutes after cooking is
nished.
• Increase the speed only in case of large
amount of smoke and vapour and use
boost speed(s) only in extreme situations.
• Replace the charcoal lter(s) when
necessary to maintain a good odour
reduction efciency.
• Clean the grease lter(s) when necessary
to maintain a good grease lter efciency.
• Use the maximum diameter of the
ducting system indicated in this manual to
optimize efciency and minimize noise.
Electrical connection for Australia
Power Cord and Plug: Declared Article –
Mandatory Approval Applies:
Current Australian Approval Certicates will
need to be forwarded, showing compliance
with applicable Australian Standards, as
noted below. Plug to have insulated pins.
Plug and Cord to have approval marking,
as required by the relevant Approval
Certicate
· AS/NZS 3112: 2004 with Amendment 1,
for Plug
· AS 3191: 2008, for Cord, or;
· ‘HAR’ Certication, for Cord

ENGLISH 12
How long is the IKEA guarantee valid?
This guarantee is valid for ve (5) years from
the original date of purchase of your
appliance at IKEA Pty Ltd,
ABN 84 006 270 757 or at Cebas Pty Ltd,
ABN 15 009 156 003, unless the appliance is
named LAGAN in which case two (2) years
of guarantee apply.
The original sales receipt, is required as
proof of purchase.
If service work is carried out under
guarantee, this will not extend the guarantee
period for the appliance.
Which appliances are not covered by the
IKEA ve (5) years guarantee?
The range of appliances named LAGAN .
Who will execute the service?
IKEA has appointed Whirlpool (Australia)
Pty Ltd as the authorised service network
partner.
• If you encounter any trouble with the
appliance and wish to register a call
with Whirlpool, please call:
Australia contact centre:
1300 363 344.
Or use the Contact Us form at the
website: www.whirlpool.com.au
The principal address and contact details
in Australia are:
www.IKEA.com.au or
• For Queensland, New South Wales and
Victorian customers please contact:
IKEA Pty Ltd
IKEA Service Ofce
L1 Clock Tower, 630 Princes Highway
Tempe, NSW 2044
Victoria: [phone]
New South Wales: [phone]
Queensland: [phone]
IKEA Perth: [phone]
IKEA Adelaide: [phone]
• For Western Australian and South
Australian cutomers please contact:
Cebas Pty Ltd
8c Sunray Drive,
Innaloo WA 6018 Australian
IKEA Perth: [phone]
IKEA Adelaide: [phone]
For after sales service, contact Whirlpool
(Australia) on 1300 363 344.
Or use the Contact Us form at the website:
www.whirlpool.com.au.
What does this guarantee cover?
The guarantee covers applicable faults of
the appliance, which have been caused by
faulty construction or material faults from
the date of purchase from IKEA.
This guarantee applies to domestic use only.
The products have been designed and
tested for domestic purposes only and this
guarantee does not cover damage arising
from use of the Product in a commercial
environment.
The exceptions are specied under the
headline “What is not covered under this
guarantee?” Within the guarantee period,
the costs to remedy the fault e.g. repairs,
parts, labour and travel will be covered,
provided that the appliance is accessible
for repair without special expenditure.
Replaced parts become the property of
IKEA.
The guarantee exists only if the appliance
complies and is installed in accordance with:
• The technical specications.
• The Assembly Instructions and user
manual Safety Information.
IKEA’s guarantee is subject to Australian
Consumer Law - see Schedule 2 to
Competition and Consumer Act, 2010.
This guarantee is in addition to (and does
not exclude, restrict or modify in any way)
any non-excludable statutory warranties in
Australia.
IKEA GUARANTEE

ENGLISH 13
What will IKEA do to correct the problem?
IKEA appointed service provider will
examine the product and decide, at its
sole discretion, if it is covered under this
guarantee. If considered covered, IKEA
service provider or its authorized service
partner through its own service operations,
will then, at its sole discretion, either repair
the defective product or replace it with the
same or a comparable product.
What is not covered under this guarantee?
• Normal wear and tear.
• Deliberate or negligent damage,
damage caused by failure to observe
operating and maintenance instructions,
incorrect installation or by connection
to the wrong voltage, damage caused
by chemical or electrochemical reaction,
rust, abrasion or scratching, corrosion or
water damage including but not limited
to damage caused by excessive lime in
the water supply, damage caused by
abnormal environmental conditions.
• Damage caused from the use of the
appliance in a manner other than
the use for which it was specically
designed.
• Damage caused by power outages,
electrical power surge or improper
supply voltage via connection to Supply
Authority mains or alternative supply
systems.
• Consumable parts including batteries
and lamps, removable wire, glass and
plastic trays and other accessories.
• Internal or external damage as a result
of excessive use of cleaning products or
cleaning agents.
• Non-functional and decorative parts
which do not affect normal use of the
appliance, including any scratches and
possible color differences.
• Accidental damage or blockages caused
by foreign objects, eg. coins, underwires,
nails, buttons or jewellery, or substances
and cleaning or unblocking of lters,
drainage systems or soap drawers
• Damage caused by vermin, insects or
pets.
• Note – internal or external cabinet
transport damage must be reported
within 7 days of purchase date.
• Damage to the following parts: ceramic
glass, accessories, crockery and cutlery
baskets, feed and drainage pipes, seals,
lamps and lamp covers, screens, knobs,
casings and parts of casings. Unless such
damages can be proved to have been
caused by production faults.
• Cases where no fault could be found
during a technician’s visit.
• Any consequential loss due to appliance
failure.
• Repairs not carried out by our
appointed service providers and/or an
authorized service contractual partner
or where non original parts have been
used.
• Repairs to parts or systems caused by
unauthorized modications made to
appliance.
• Repairs caused by installation which is
faulty or not according to specication.
• Problems caused by incorrect or
inadequate venting of the appliance.
• The use of the appliance in a non
domestic environment i.e. professional
use.
• Transportation damages. If a customer
transports the product to his home or
another address, IKEA is not liable for
any damage that may occur during
transport.
However, if IKEA delivers the product
to the customer’s delivery address, then
damage to the product that occurs
during this delivery will be covered by
IKEA.
• Cost for carrying out the initial
installation of the IKEA appliance.
However, if an IKEA appointed
Authorized Service Centre or its authorized
service partner repairs or replaces
the appliance under the terms of this
guarantee, the
Authorized Service Centre
or its authorized service partner will
reinstall the repaired appliance or install
the replacement, if necessary.

ENGLISH 14
• The benets conferred by this express
warranty are in addition to all other
conditions, warranties, guarantees,
rights and remedies expressed or
implied by the Trade Practices Act and
similar State and Territory laws and all
other obligations and liabilities on the
part of the manufacturer or supplier and
nothing contained herein shall restrict or
modify such rights, remedies, obligations
or liabilities.
How country law applies?
Our goods come with guarantees that
cannot be excluded under the Australian
Consumer Law (ACL).
You are entitled to a replacement or refund
for a major failure and for compensation for
any other reasonably foreseeable loss or
damage.
You are also entitled to have the goods
repaired or replaced if the goods fail to be
of acceptable quality and the failure does
not amount to a major failure.
This guarantee is not intended in any way
to limit or exclude such rights and remedies
that you may have under law.
You can nd out more information about
the Australian Consumer Law on the ACCC
website: www.accc.gov.au
Area of validity
The IKEA guarantee applies only to
products purchased and installed in
AUSTRALIA .
What you must do to make a claim under
the guarantee
To make a claim under the guarantee
contact IKEA Authorized Service Centre
at the above address, the IKEA catalogue
or refer to www.ikea.com.au for your local
store customer service phone number, online
email and opening times. Please describe
the problem that you are facing with the
appliance in detail along with your product
article number (8 digit code) and date of
purchase at the time of call registration.
Please do not hesitate to contact the
dedicated
Authorized Service Centre for
IKEA appliances to:
1. Make a service request under this
guarantee.
2. Ask for clarication on installation of the
IKEA appliance in the dedicated IKEA
kitchen furniture.
3. Ask for clarication on user manual
contents and specications of the IKEA
appliance.
To ensure that we provide you with the
best assistance, please read carefully the
Assembly Instructions and/or the User
Manual section of this booklet before
contacting us.
How to reach if you need our service
The Whirlpool call centre team will assist
you on the phone with basic trouble
shooting for your appliance at the time of
warranty call registration.
1300 363 344
Or use the Contact Us
form at the website:
www.whirlpool.com.au
Please describe the problem that you are
facing with the appliance in detail along
with your product model number, serial
number, date of purchase at the time of
call registration.
Please also always refer to the IKEA
article number (8 digit code) and 12 digit
service number placed on the rating plate
of your appliance.
SAVE THE SALES RECEIPT!
Kindly keep all these details and
original invoice of purchase handy
during the service technician’s visit to
enable him to carry out the job. It is
your proof of purchase and required
for the guarantee to apply.

400010869753
© Inter IKEA Systems B.V. 2016 AA-1875917-1
16069
400010869753
