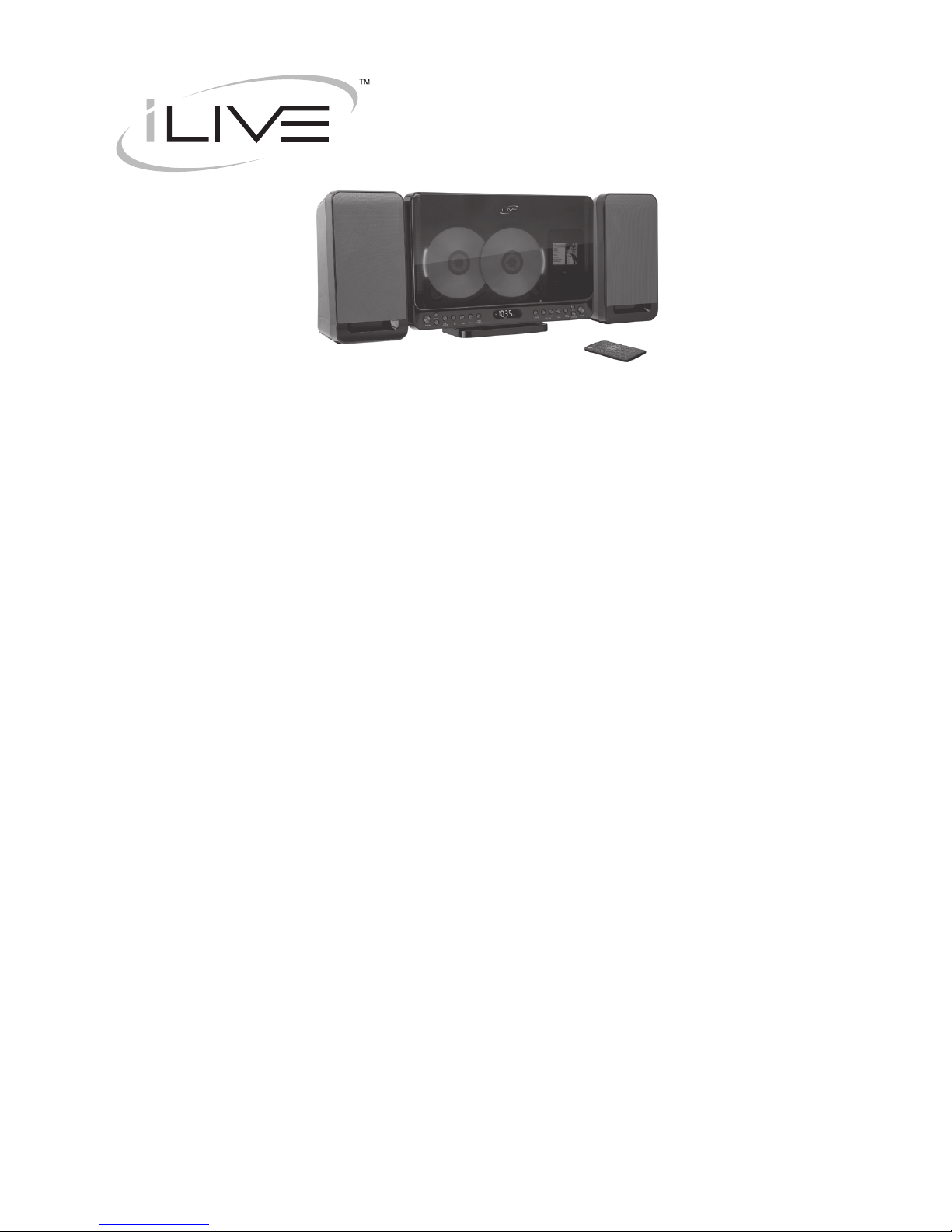

iLive IH328B User manual

INSTRUCTION MANUAL
IH328B
Contents
Warnings and Precautions ............................................................................... 2
Important Safety Instructions............................................................................ 3
In the Box & Features....................................................................................... 4
Powering the Unit & Connecting the Speakers ................................................ 5
Docking an iPod & Playing a docked iPod ....................................................... 6
Playing a CD & Programming a CD ................................................................. 7
Listening to the AM/FM Radio .......................................................................... 8
Saving AM/FM Radio Stations to the Unit’s Memory........................................ 8
Setting the Clock & Setting the Timer............................................................... 9
Using the Video Output .................................................................................. 10
Connecting to an Audio Player using the Aux Input ....................................... 10
Changing the Remote Battery .........................................................................11
Location of Controls & Control Denitions................................................. 12-19
Service Information......................................................................................... 20

2
This symbol, located on back or bottom of the unit, is
intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that
may be of sufcient magnitude to constitute a risk of
electric shock to persons.
This symbol, located on back or bottom of the unit, is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
This product utilizes a Class 1 laser to read Compact
Discs. This laser Compact Disc Player is equipped with
safety switches to avoid exposure when the CD door
is open and the safety interlocks are defeated. Invisible
laser radiation is present when the CD Player’s lid
is open and the system’s interlock has failed or been
defeated. It is very important that you avoid direct
exposure to the laser beam at all times. Please do not
attempt to defeat or bypass the safety switches.
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
To reduce the risk of electric shock, do not remove
cover (or back). There are no user-serviceable parts
inside. Please refer any servicing to qualied service
personnel.
WARNING: Changes or modications to this unit
not expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
WARNING: Danger of explosion if the remote
control’s batteries are incorrectly installed. Replace
only with the same or equivalent battery.
WARNING: The remote control’s button cell battery
contains mercury. Do not put in the trash, instead
recycle or dispose of as hazardous waste
WARNING: Use of this unit near uorescent lighting
may cause interference regarding use of the remote. If
the unit is displaying erratic behavior move away from
any uorescent lighting, as it may be the cause.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Warnings and Precautions
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO
RAIN OR MOISTURE.

1. Read Instructions - All the safety and operating instruction should be read
before the product is operated.
2. Retain Instructions - The safety and operating instruction should be
retained for future reference.
3. Heed Warnings - All warning on the product and in the operating
instructions should be adhered to.
4. Follow instructions - All operating and use instructions should be
followed.
5. Cleaning - Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6. Attachments - Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
7. Water and Moisture - Do not use this product near water - for example,
near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement,
or near a swimming pool, and the like.
8. Accessories - Do not place this product on an unstable cart, stand tripod,
bracket, or table. The product may fall, causing serious injury to a child
or adult, and serious damage to the product. Use only with a cart, stand,
tripod, bracket, or table recommended by the manufacturer, or sold with
the product. Any mounting of the product should follow the manufacturer’s
instructions, and should use a mounting accessory recommended by the
manufacturer.
9. A product and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the appliance and cart
combination to overturn.
10. Ventilation - Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the product and to protect it
from overheating, and these openings must not be blocked or covered. The
openings should never be blocked by placing the product on a bed, sofa,
rug, or other similar surface. This product should not be placed in a built-in
installation such as a bookcase or rack unless proper ventilation is provided
or the manufacturer’s instruction have been adhered to.
11. Power Sources - This product should be operated only from the type of
power source indicated on the marking label. If you are not sure of the type
of power supply to your home, consult your product dealer or local power
company. For products intended to operate from battery power, or other
sources, refer to the operating instruction.
12. Grounding or Polarization - This product may be equipped with a
polarized alternating-current line plug (a plug having one blade wider than
the other). This plug will t into the power outlet only one way. This is a
safety feature. If you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to t, contact your electrician
to replace your obsolete outlet. Do not defeat the safety purpose of the
polarizes plug.
Alternate Warnings - This product is equipped with a three-wire grounding-
type plug, a plug having a third (grounding) pin. This plug will only t into
a grounding-type power outlet. This is a safety feature. If you are unable
to insert the plug into the outlet, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the grounding-type
plug.
13. Power-Cord Protection - Power supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs, convenience
receptacles, and point where they exit from the product.
14. Protective Attachment Plug - The product is equipped with an
attachment plug having overload protection. This is a safety feature. See
Instruction Manual for replacement or resetting of protective device. If
replacement of the plug is required, be sure the service technician has
used a replacement plug specied by the manufacturer that has the same
overload protection as the original plug.
15. Outdoor Antenna Grounding - If an outside antenna is connected to
the receiver, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built-up static charges. Article 810 of
the National Electrical Code, ANSI/NFPA 70, provides information with
regard to proper grounding of the mast and supporting structure, grounding
of the mast and supporting structure, grounding of the lead-in wire to an
antenna-discharge unit, size of grounding conductors, location of antenna-
discharge unit, connection to grounding electrodes, and requirements for the
grounding electrode.
See gure:
16. Lightning - For added protection for this product during a lightning
storm, or when it is left unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the antenna or cable system.
This will prevent damage to the product due to lightning and power-line
surges.
17. Power Lines - An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or power circuits,
or where it can fall into such power lines or circuits. When installing
an outside antenna system, extreme care should be taken to keep from
touching such power lines or circuits as contact with them might be fatal.
18. Overloading - Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of re or electric shock.
19. Object and Liquid Entry - Never push objects of any kind into this
product through openings as they may touch dangerous voltage points or
short-out parts that could result in a re or electric shock. Never spill liquid
of any kind on the product.
20. Servicing - Do not attempt to service this product yourself as opening
or removing covers may expose you to dangerous voltage or other hazards.
Refer all servicing to qualied service personnel.
21. Damage Requiring Service - Unplug this product from the wall outlet
and refer servicing to qualied service personnel under the following
conditions:
a) When the power-supply cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating
instructions as an improper adjustment of other controls may result in
damage and will often require extensive work by a qualied technician to
restore the product to its normal operation.
e) If the product has been dropped or damaged in any way, and
f) When the product exhibits a distinct change in performance - this
indicates a need for service.
22. Replacement Parts - When replacement parts are required, be sure the
service technician has used replacement parts specied by the manufacturer
or have the same characteristics as the original part. Unauthorized
substitutions may result in re, electric shock, or other hazards.
23. Safety Check - Upon completion of any service or repairs to this
product, ask the service technician to perform safety checks to determine
that the product is in proper operating condition.
24. Wall or Ceiling Mounting - The product should be mounted to a wall or
ceiling only as recommended by the manufacturer.
25. Heat - The product should be situated away from heat sources such as
radiators, heat registers, stoves, or other products (including ampliers)
that produce heat.
Important Safety Instructions
3

4
In the Box
iPod Brackets (7)
2-CD Home Music
Docking System Speaker
Speaker
Remote Control
Features
Certied iPod Connector installed for
iPod docking
Recharge Circuit for iPod/mini/nano/
photo/video
Controls connected iPod players
iPod Authentication IC installed
CD Playback
Vertical-Load 2-Disc Player
Motorized Disc/iPod Dock Door
Plays CD/CD-R/CD-RW Audio Tracks
Programmable CD Tracks
Song Skip & Search
Repeat & Random Play
Disc Skip
Digital Tune AM/FM Stereo Radio
Station Memory Presets
Digital Volume Control
Preset EQ: Rock, Classic, Jazz, Pop
LCD Display with Backlit
Digital Clock
Full-Range Speakers
Video-Out Jack for iPod video & photo
versions, 480p
Aux-In L&R Jacks, RCA type
Stereo Headphone Jack
Remote Control controls docked iPod
and player
Uses CR2025 Battery
AC-Power: Built-in AC Line Cord
Remote Control, Remote Battery
included

Powering the Unit
5
Power the unit by connecting it to a standard AC outlet (120V ~ 60Hz)
via the attached AC cord.
Connecting the Speakers
Connect the speakers by inserting the speakers wires into the speaker
connection inputs. The color of the speaker wire needs to correspond
to the color of the connection input. Open the connection input for the
speaker wire by pushing down on the exposed plastic tab.

Docking an iPod
6
1. Locate the numbered Bracket that ts the iPod that will be docked.
Each included Bracket has a number on it, indicating which iPod model that
bracket is compatible with. See the separate bracket chart page to identify which
bracket is needed.
2. Press the Open/Close Button to open the CD/iPod door on the unit.
3. Snap the Bracket into place over the iPod connector in the Dock for iPod.
 AllBracketswillonlytonewayontotheDock.
WheninsertinganiPodnano(rstorsecondgeneration),slidetheDock
connectionontheunitsothatitmatchestheopeningontheiPodnano(rstor
secondgeneration).
4. Connect the iPod to the iPod connector inside the Dock for iPod.
Once an iPod is connected to the Dock for iPod, the unit will play and charge the
docked iPod.
Playing a docked iPod
1. Dock an iPod onto the Dock for iPod by following the “Docking an iPod”
instructions.
2. Press the Power Button to turn the unit on.
3. Press the iPod Button to switch the unit to iPod mode.
4. Press the Play/Pause/M+ Button to play the docked iPod.

7
Playing a CD
1. Press the Power Button to turn the unit on.
2. Press the Open/Close Button to open the CD/iPod door.
3. Load a CD into the CD player. Press the Open/Close Button to close the CD/iPod
door.
AlwaysloadtheCDintotheleftopeningrst.AsecondCDshouldonlybeloaded
intotheCDopeningontheright.
4. Press the Source Button to switch the unit to CD mode.
5. Press the Disc Select Button to switch between CD 1 and CD 2.
6. Press the Play/Pause/M+ Button to pause the selected CD.
Programming a CD
1. With a CD loaded and playing, press the Stop/AM/FM Button.
2. Press the Mem/Clk Adj Button.
3. Press the Skip/Search/Tune Buttonss to select a CD track to be programmed.
4. Press the Mem/Clk Adj Button to set the selected track to the next available
program slot.
5. Repeat steps 3 through 4 until the desired tracks are programmed.
6. Press the Play/Pause/M+ Button to begin playing the programmed tracks.

8
Listening to the AM/FM Radio
1. Press the Power Button to turn the unit on.
2. Press the Source Button to switch the unit to radio mode.
3. Press the Stop/AM/FM Button to switch between AM and FM radio.
4. Press the Skip/Search/Tune Buttonss to tune the AM or FM radio.
Saving AM/FM Radio Stations to the Unit’s Memory
1. After tuning the desired station, press and hold the Mem/Clk Adj Button.
2. Press the Skip/Search/Tune Buttonss to move through the available memory
slots.
3. After the desired memory slot is displayed on the LCD Display, press the Memory
Button.
4. To cycle through saved radio stations, press the Repeat/M Down and Play/Pause/
M+ Button

9
Setting the Clock
1. Press the Power Button to turn the unit off.
2. Press and hold the Mem/Clk Adj Button.
3. Press the Skip/Search/Tune Buttonss to select 12 hour or 24 hour.
4. Press the Mem/Clk Adj Button.
5. Press the Skip/Search/Tune Buttonss to adjust the hour.
6. Press the Mem/Clk Adj Button to set the hour.
7. Press the Skip/Search/Tune Buttonss to adjust the minute.
8. Press the Mem/Clk Adj Button to set the minute.
Setting the Timer
1. Press the Power Button to turn the unit off.
2. Press the Sleep/Timer Button on the remote.
3. Press and hold the Sleep/Timer Button to edit the hour for on timer.
4. Press the Skip/Search/Tune Buttonss to adjust the hour.
5. Press the Sleep/Timer Button to edit the minute for the on timer.
6. Press the Skip/Search/Tune Buttonss to adjust the minute.
7. Press the Sleep/Timer Button to set the on timer and to edit the hour for the off
timer.
8. Press the Skip/Search/Tune Buttonss to adjust the hour.
9. Press the Sleep/Timer Button to edit the minute for the off timer.
10. Press the Skip/Search/Tune Buttonss to adjust the minute.
11. Press the Sleep/Timer Button to edit the set the off timer.
When the set time for the on timer is reached, the unit will turn on.
When the set time for the off timer is reached, the unit will turn off.

Connecting to an Audio Player using the Aux Input
When connecting two products using an RCA Cable, match the colored ports with
thesamecoloredconnection.(RedtoRed,WhitetoWhite,andYellowtoYellow)
1. Press the Power Button to turn the unit on.
2. Press the Source Button to switch the unit to aux mode.
3. Audio played from the Mp3 Player or Other Audio Source will now be heard on
the unit.
If connecting to the headphone output of an audio source, the source’s volume
controls may need to be adjusted for optimal sound.
Using the Video Output
10
When connecting two products using an RCA Cable, match the colored ports with
thesamecoloredconnection.(RedtoRed,WhitetoWhite,andYellowtoYellow)
1. Connect an RCA Cable to the RCA Composite Video Output on the unit, and to the
video input on the Television.
2. Turn the unit on by pressing the Power Button.
3. Change the television to the correct video input setting.
4. Video played through the unit will now be seen on the connected television.
Note: Video output for iPod only.

11
Changing the Remote Battery
LITHIUM BATTERY
CR 2025
3V
CR2025
PUSH
OPEN
LITHIUM BATTERY
CR 2025
3V
CR2025
PUSH
OPEN
1. Push the Release Button and pull out the Battery Compartment to access the battery.
2. Replace the old battery with an equivalent new battery (CR2025).
3. The positive side of the battery, as indicated by a plus symbol, must be facing up when inserted into the
remote.
WARNING: Danger of explosion if the remote control’s batteries are incorrectly installed. Replace only
with the same or equivalent battery.

Location of Controls
12
6
5
4
3
2
1
713
11
12
10
9
8
14
1 Disc Repeat Button
Press the Disc Repeat Button consecutively in CD mode to repeat all discs.
Press the Disc Repeat Button to display the time in radio mode.
2 Disc Select Button
Press the Disc Select Button in CD mode to switch between disc 1 and disc 2.
3 Mem/Clk Adj Button
Press the Mem/Clk Adj Button to save a radio station to the units memory.
Press the Mem/Clk Adj Button to program a loaded CD.
Press the Mem/Clk Ad Button to set the clock.
Press the Mem/Clk Adj Button to move backwards through the menus on a docked
iPod.
Location of Controls

10
9
8
Control Denitions
13
4 Sleep/Timer Button
Press the Sleep/Timer Button consecutively to set the sleep timer between 10 and
90 minutes.
5 EQ Button (Rock, Classic, Jazz, Pop)
Press the EQ Button to switch between the units preset equalizer settings.
6 Volume Buttons
Press the Volume Buttons to adjust the volume of the unit.
7 Power Button
Press the Power Button to turn the unit off and on.
8 Repeat/M-
Press the Repeat/M- Button consecutively to repeat an album or an individual song
on a docked iPod.
Press the Repeat/M- Button to cycle through saved radio stations in radio mode.
9 Skip/Search/Tune Buttons
Press the Skip/Search/Tune Buttons to skip through tracks on a CD or iPod.
Press and hold the Skip/Search/Tune Buttons to search through an individual track
on a CD or iPod.
Press the Skip/Search/Tune Buttons to tune the AM or FM radio in radio mode.
10 Stop/AM/FM Button
Press the Stop/AM/FM Button to stop a CD during play.
Press the Stop/AM/FM Button to switch between AM and FM radio in radio mode.
11 Play/Pause/M+ Button
Press the Play/Pause/M+ Button to play or pause an loaded iPod or CD.
Press the Play/Pause/M+ Button to cycle through saved radio stations in radio
mode.
12 iPod Button
Press the iPod Button to switch the unit to iPod mode.
13 Open/Close Button
Press the Open/Close Button to open and close the CD/iPod door.
14 Source Button
Press the Source Button to switch between CD, radio, and aux mode.

Location of Controls
14
17
18
19
20
23
22
15
16 21

23
22
21
Control Denitions
15
15 External Speakers
The External Speakers connect to the unit to amplify music or radio played from
the unit.
16 Dual CD Player
The Dual CD Player allows two CDs to be loaded into the unit at the same time.
17 AC Power Cord
Use the AC Power Cord to plug the unit into a standard AC outlet (120V ~ 60Hz).
18 FM Wire Antenna
Adjust the FM Wire Antenna to improve the reception of the FM radio.
19 Headphone Jack
Use the headphone jack to connect a set of earbuds or headphones to the unit.
20 Video Output (Composite RCA)
Use the Video Output to send video from a docked iPod to a connected television.
21 Dock for iPod
Use the Dock for iPod to dock an iPod onto the unit.
22 External Speaker Connections
Use the External Speaker Connections to connect external speakers.
23 Auxiliary Input
Use the Auxiliary Input to connect an MP3 player or other audio source to the unit.

Location of Controls
16
25
26
28
29
31
32
34
35
33
24
27
30

Control Denitions
17
24 Sleep/Timer Button
Press the Sleep/Timer Button consecutively to set the sleep timer between 10 and
90 minutes.
25 Power Button
Press the Power Button to turn the unit off and on.
26 Mute Button
Press the Mute Button to mute the unit’s volume.
27 Play/Pause/M+ Button
Press the Play/Pause/M+ Button to play or pause an loaded iPod or CD.
Press the Play/Pause/M+ Button to cycle through saved radio stations in radio
mode.
28 FM ST. Button
Press the FM ST. Button to switch the FM radio mode from mono to stereo.
29 Mem/Clk Set/Menu Button
Press the Mem/Clk Set/Menu Button to save a radio station to the units memory.
Press the Mem/Clk Set/Menu Button to set the clock.
Press the Mem/Clk Set/Menu Button to move backwards through the menus on a
docked iPod.
30 Repeat/M-
Press the Repeat/M- Button consecutively to repeat an album or an individual song
on a docked iPod.
Press the Repeat/M- Button to cycle through saved radio stations in radio mode.
31 ShufeButton
Press the Shufe Button to play songs from iPod randomly.
32 Chapter Buttons
Press the Chapter Buttons to browse through chapters on an iPod.
33 Album Buttons
Press the Album Buttons to browse through albums on an iPod.
34 Display Button
Press the Display Button to view the clock on the LCD Display.
35 Disc Repeat Button
Press the Disc Repeat Button consecutively to repeat all discs.

Location of Controls
18
37
36
38
39
40
41
42
44
43

36
Control Denitions
19
36 Source Button
Press the Source Button to switch between CD, radio, and aux mode.
37 Open/Close Button
Press the Open/Close Button to open and close the CD/iPod door.
38 iPod Button
Press the iPod Button to switch the unit to iPod mode.
39 Stop/AM/FM Button
Press the Stop Button to stop a CD during play. Press the Band Button to select
AM or FM.
40 Skip/Search/Tune Buttons
Press the Skip/Search/Tune Buttons to skip through tracks on a CD or iPod.
Press and hold the Skip/Search/Tune Buttons to search through an individual track
on a CD or iPod.
Press the Skip/Search/Tune Buttons to tune the AM or FM radio in radio mode.
41 EQ Button (Rock, Classic, Jazz, Pop)
Press the EQ Button to switch between the units preset equalizer settings.
42 Volume Buttons
Press the Volume Buttons to adjust the volume of the unit.
43 Playlist Buttons
Press the Playlist Buttons to browse through playlists on a docked iPod.
44 Disc Select Button
Press the Disc Select Button in CD mode to switch between disc 1 and disc 2.

© 2008 Digital Products International (DPI, Inc.)
All other trademarks appearing herein are the property of their respective owners.
Service Information
Address: 2116 Carr Street, St. Louis MO, 63106
Phone: [phone]
Fax: [phone]
Email: [email protected]
Website: www.ilive.net
Version: v. 111808
Parts Information
Address: 2116 Carr Street, St. Louis MO, 63106
Phone: [phone]
Fax: [phone]
Email: [email protected]
To download this Instruction Manual in English, Spanish, or French visit the Support
section at www.ilive.net.
Para descargar este manual de instrucción en inglés, español, o francés visite la sección
de la ayuda en www.ilive.net.
Pour télécharger ce manuel d’instruction en anglais, espagnol, ou le Français visitez la
section de soutien à www.ilive.net.
