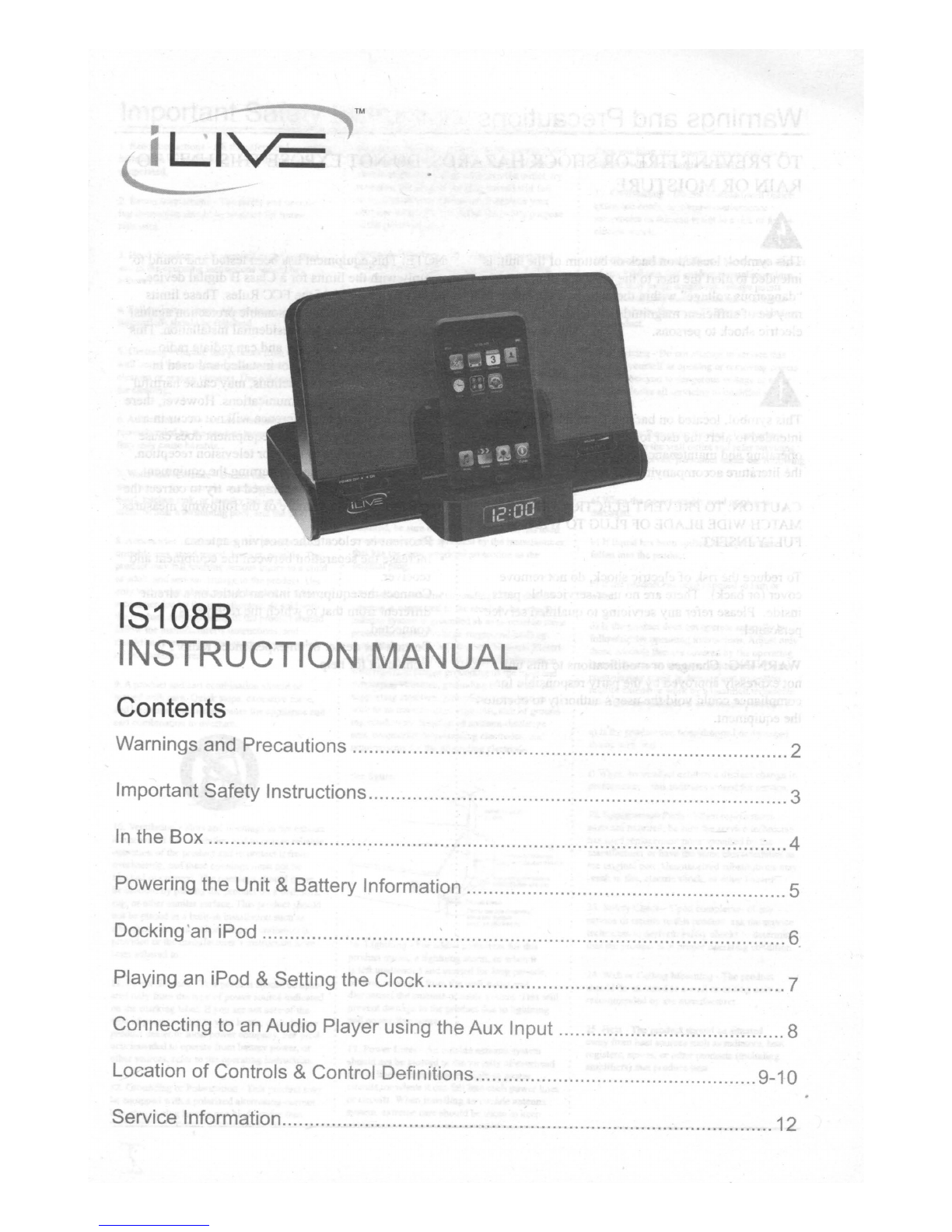

iLive IS1088 User manual

_--=~ TM
IS1088
INSTRUCTION MANUAL
Contents
Warnings and Precautions 2
Important Safety Instructions 3
In the Box : - 4
Powering the Unit &Battery Information 5
Docking an iPod 6

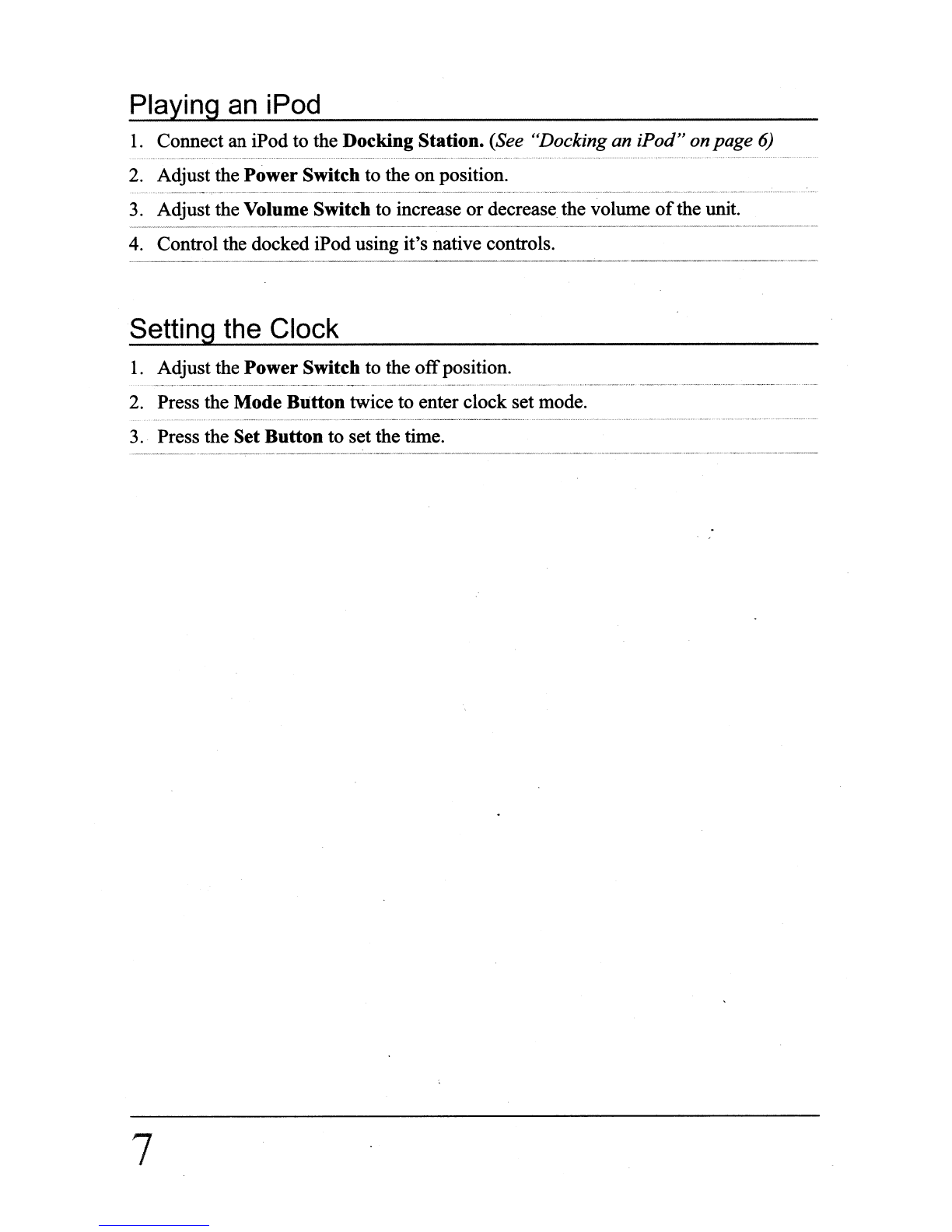

Playing an iPod &Setting the Clock 7

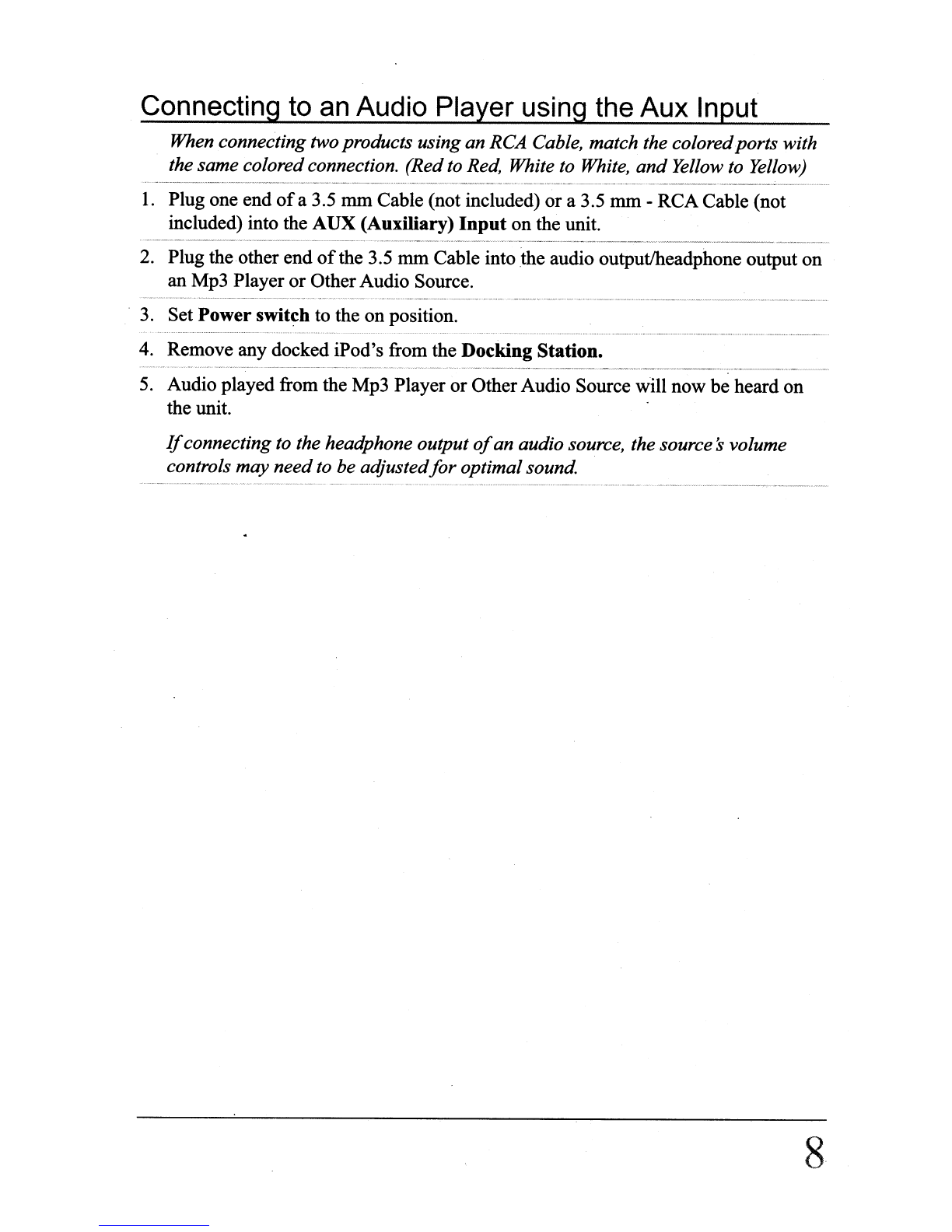

Connecting to an Audio Player using the Aux Input 8
Location
of Controls &Control Definitions 9-10

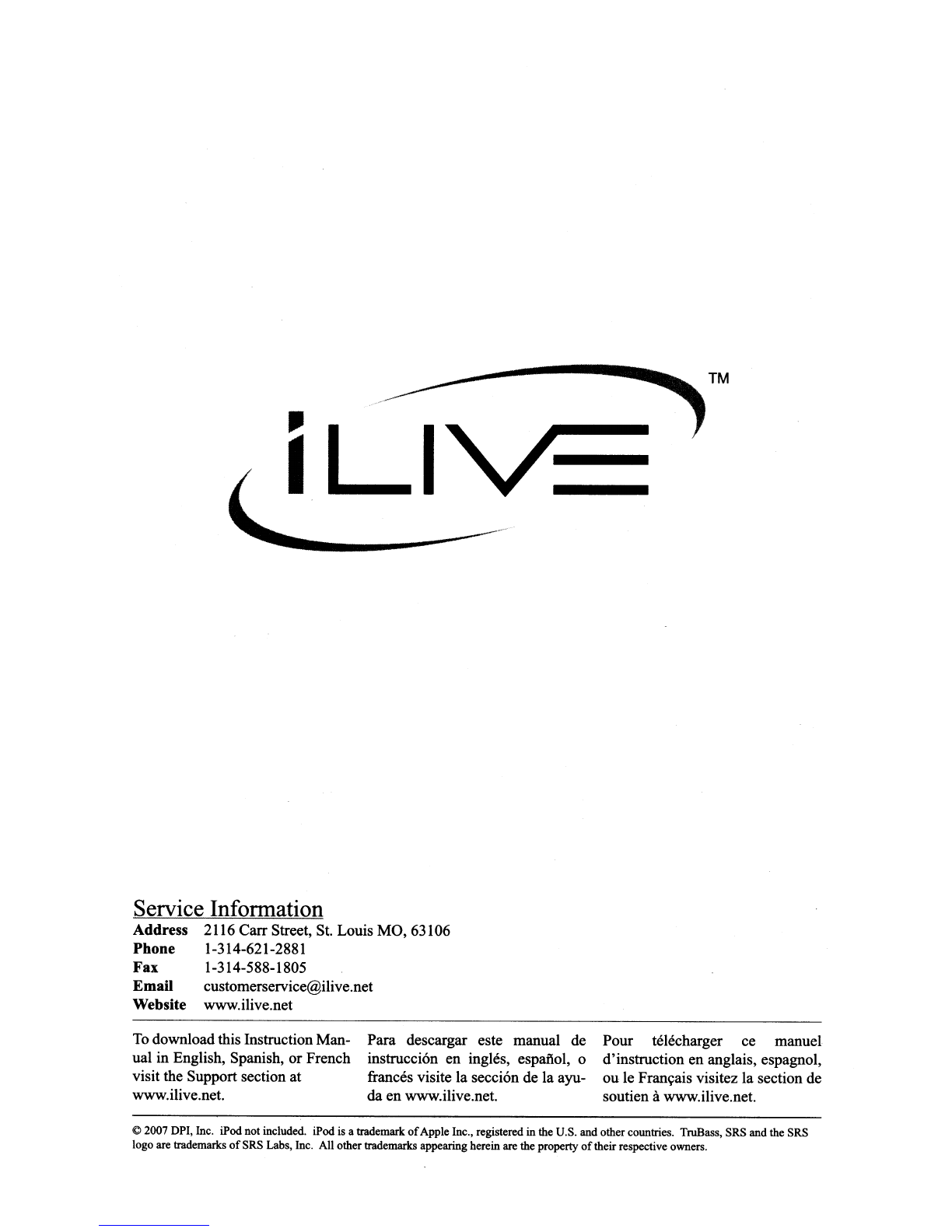

Service Information 12

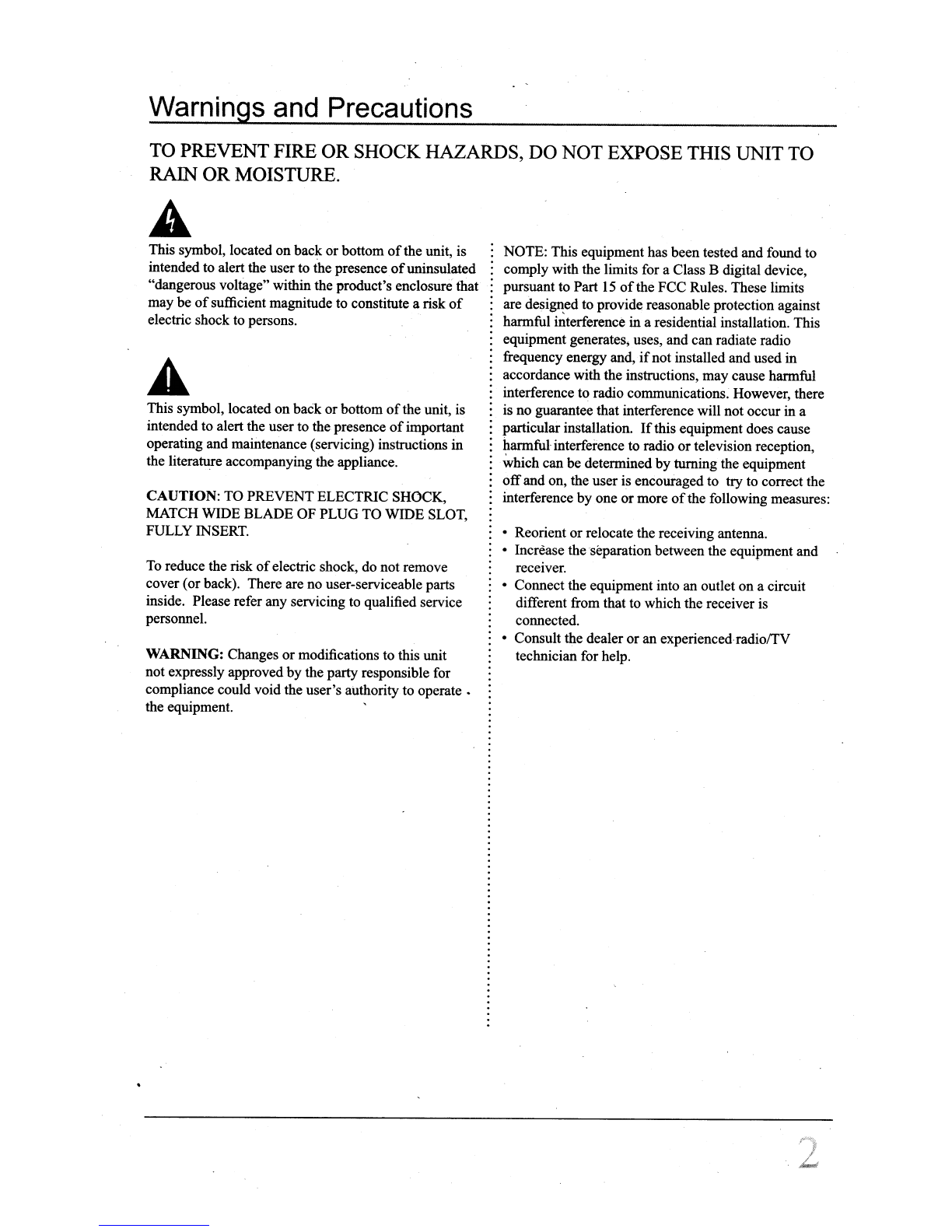

Warnings and Precautions
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO
RAlN
OR MOISTURE.
This symbol, located on back or bottom of the unit, is
intended to alert the user to the presence
of uninsulated
"dangerous voltage" within the product's enclosure that
may
be of sufficient magnitude to constitute arisk of
electric shock to persons.
This symbol, located
on back or bottom of the unit, is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE
OF PLUG TO WIDE SLOT,
FULLY INSERT.
To reduce the risk of electric shock, do not remove
cover
(or back). There are no user-serviceable parts
inside. Please refer any servicing to qualified service
personnel.
WARNING: Changes or modifications to this unit
not expressly approved by the party responsible for
compliance could void the
user's authority to operate.
the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for aClass Bdigital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful
i~terference in aresidential installation. This
equipment generates, uses, and can radiate radio
frequency energy and,
if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause
harmfulinterference to radio
or television reception,
which can
be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference
by one or more of the following measures:
•Reorient
or relocate the receiving antenna.
•Increase the separation between the equipment and
receiver.
•Connect the equipment into an outlet on acircuit
different from that to which the receiver is
connected.
•Consult the dealer
or an experienced radiorrv
technician for help.

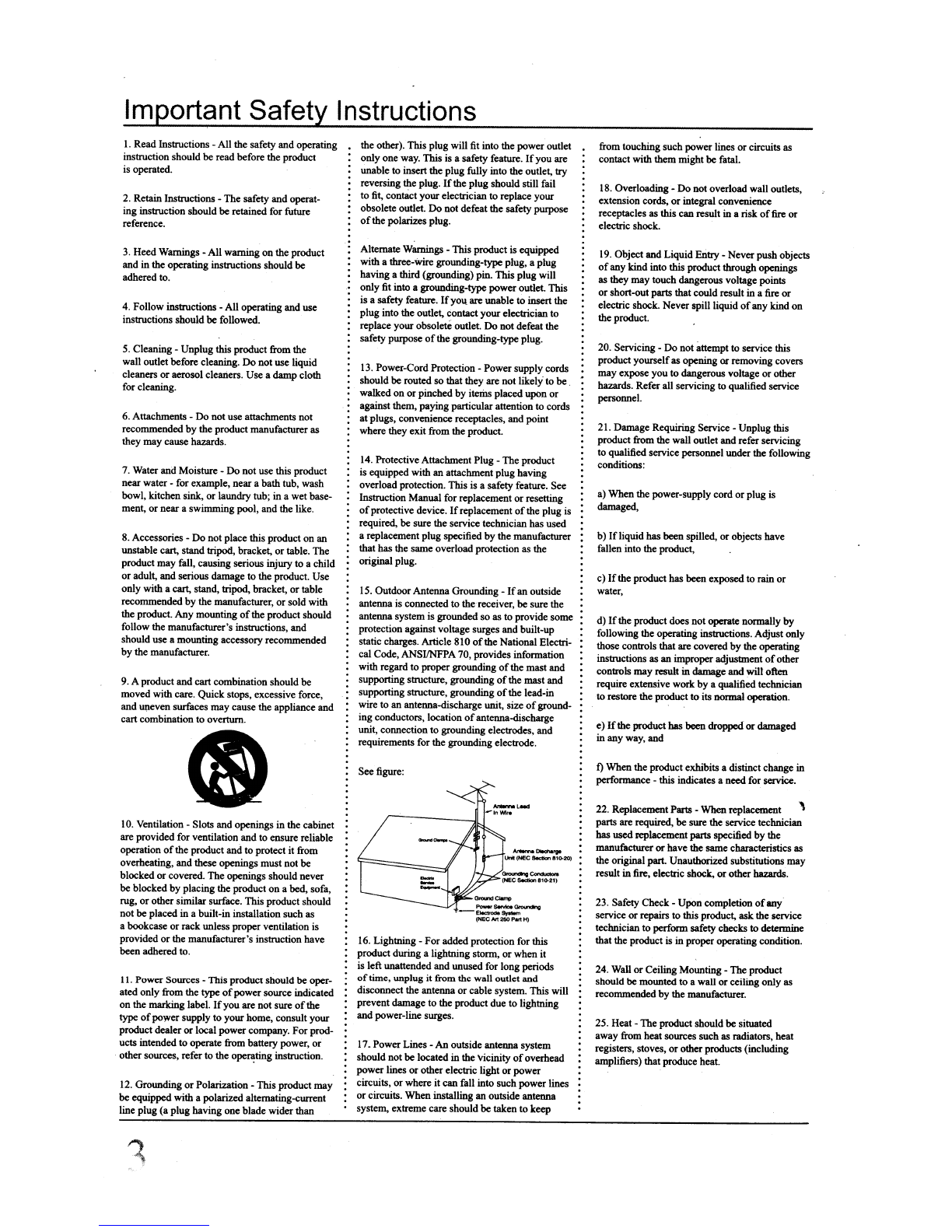

!!!!portant Safety Instructions
1. Read Instructions -All the safety and operating
instruction
should he read hefore the product
is operated.
2.
Retain Instructions - The safety and operat-
ing instruction should he retained for future
reference.
3.
Heed Warnings - All warning on the product
and in the operating instructions should he
adhered to.
4.
Follow instructions -All operating and use
instructions should he followed.
5.
Cleaning - Unplug this product from the
wall outlet hefore cleaning. Do not use liquid
cleaners
or aerosol cleaners. Use a damp cloth
for cleaning.
6.
Attachments -Do not use attachments not
recommended by the product manufacturer as
they may cause bazards.
7. Water and
Moisture -Do not use this product
near water -for example, near a bath tub, wash
bowl, kitchen sink, or laundry tub; in a wet base-
ment, or near a swimming pool, and the like.
8. Accessories -
Do not place this product on an
unstable cart, stand tripod, bracket, or table. The
product may fall, causing serious injury to achild
or adult, and serious damage to the product. Use
only with acart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with
the product. Any mounting of the product should
follow the manufacturer's instructions, and
should use a mounting accessory recommended
by the manufacturer.
9. A
product and cart combination should he
moved with care. Quick stops, excessive force,
and \I1leven surfaces may cause the appliance and
cart combination to overturn.
10. Ventilation -
Slots and openings in the cabinet
are provided for ventilation and to ensure reliable
operation of the product and to protect it from
overheating,
and these openings must not he
blocked or covered. The openings should never
he blocked by placing the product on a bed, sofa,
rug,
or other similar surface. This product should
not he placed in abuilt-in installation such as
a
bookcase or rack unless proper ventilation is
provided or the manufacturer's instruction have
heen
adhered to.
11.
Power Sources - This product should he oper-
ated only from the type of power source indicated
on the marking label. If you are not sure of the
type
of power supply to your home, consult your
product dealer or local power company. For prod-
ucts intended to operate from battery power, or
other sources, refer to the ope'"'!ting instruction.
12.
Grounding or Polarization - This product may
he equipped with apolarized alternating-current
line
plug (a plug having one blade wider than
the other). This plug will fit into the power outlet
only one way. This is a safety feature. If you are
Unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail
to fit, cont8ct your electrician to replace your
obsolete outlet. Do not defeat the safety purpose
of the polarizes plug.
Alternate Warnings -
This product is equipped
with athree-wire grounding-type plug, a plug
having a third (grounding) pin. This plug will
only fit into a grounding-type power outlet. This
is asafety feature. Ifyoq are unable to insert the
plug into the outlet, contact your electrician to
replace your obsolete outlet. Do not defeat the
safety
purpose of the grounding-type plug.
13.
Power-Cord Protection - Power supply cords
should be routed so that they are not likely' to be
walked on or pinched by items placed upon or
against them, paying particular attention to cords
at plugs, convenience receptacles, and point
wbere they exit from the product.
14. Protective
Attachment Plug - The product
is equipped with an attachment plug having
overload protection. This is asafety feature. See
Instruction Manual for replacement or resetting
of protective device. If replacement of the plug is
required,
be sure the service technician has used
a replacement plug specified by the manufacturer
that has the same overload protection as the
original plug.
15.
Outdoor Antenna Grounding - If an outside
antenna is connected to the receiver, be sure the
antenna system is grounded so as to provide some
protection against voltage surges and built-up
static charges.
Article 810 of the National Electri-
cal
Code, ANSlINFPA 70, provides information
with regard to proper grounding of the mast and
supporting structure, grounding of the mast and
supporting structure, grounding of the lead-in
wire to an antenna-discharge unit, size of ground-
ing conductors, location of antenna-discharge
unit,
connection to grounding electrodes, and
requirements for the grounding electrode.
See figure:
16.
Lightning - For added protection for this
product during alightning storm, or when it
is left
unattended and unused for long periods
of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will
prevent damage to the product due to lightning
and power-line surges.
17.
Power Lines - An outside antenna system
sbould not he located in the vicinity of overhead
power lines or other electric light or power
circuits, or where it can fall into such power lines
or circuits. When installing an outside antenna
system, extreme care should be taken to keep
from touching such power lines or circuits as
contact with them might be fatal.
18.
Overloading -Do not overload wall outlets,
extension cords, or integral convenience
receptacles
as this can result in a risk of fire or
electric shock.
19.
Object and Liquid Entry - Never push objects
of any kind into this product through openings
as they may touch dangerous voltage points
or short-out parts that could result in afire or
electric shock. Never spill liquid of any kind on
the product.
20.
Servicing -Do not attempt to service this
product yourself as Qpening or removing covers
may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service
personnel.
21.
Damage Requiring Service - Unplug this
product from the wall outlet and refer servicing
to qualified service
personnel under the following
conditions:
a)
When the power-supply cord or plug is
damaged,
b) If liquid has been spilled, or objects have
fallen into the product,
c) If the product has been exposed to rain or
water,
d) If the product does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions
as an improper adjustment of other
controls may resuh in damage and will often
require extensive worl< by aqualified technician
to restore the product to its normal operation.
e) If the product has been dropped or damaged
in any way, and
f) When the product exhibits adistinct change in
performance -this indicates a need for service.
22. Replacement Parts - When replacement ,
parts
are required, be sure the service technician
has used replacement parts specified by the
manufacturer or have the same characteristics as
the original part. Unauthorized substitutions may
result in fire, electric shock, or other hazards.
23. Safety
Check - Upon completion of any
service or repairs to this product, ask the service
technician
to perform safety cbecks to determine
that the product is in proper operating condition.
24. Wall
or Ceiling Mounting - The product
should be mounted to awall or ceiling only as
recommended by the manufacturer.
25.
Heat· The product should be situated
away from heat sources such as radiators, beat
registers, stoves, or other products (including
amplifiers)
that produce heat.

In the Box
•ISI08B
•iPod Docking Brackets
•AC/DC Adapter
•Documentation
~
iPod BRACKETS (7)
Features
•iPod® Docking Station
•Certified iPod Connector
installed for iPod docking
•Controls Connected iPod
players
•Stereo Speakers built in
•Aux-In Jack for Shuffle and
otherAudio Players
•Digital Clock
•DC-Powered
•Folds for easy carrying
4

Powering the Unit
o
Battery Information
oAC 120V -60Hz
Batteries power for Back-up only. Battery back-up will save the clock and alann times
in case
of apower outage.
=9
......
~o
r-.
o~
® .! ®.!
mrn
mrn
~ ~
iI
CD ® CD ®
••
(0
0) rIIl
0oII00
5

Docking an iPod
1. Locate the numbered Bracket that fits the iPod that will be docked.
Each includedBracket has anumber on it, indicating which iPodmodel that
bracket is compatible with. See the separate bracket chart
page to identify which
bracket is needed.
2. Snap the Bracket into place over the iPod connector in the Docking Station.
All Brackets will onlyfit one way onto the Dock.
When inserting an iPodnano (first
or secondgeneration), slide the Dock
connection on the unit so that it matches the opening on the iPodnano (first or
secondgeneration).
3. Connect the iPod to the iPod connector inside the Docking Station.
- - --_ ..... _. -_ ... --_ .. -. _ .. _. - ._ .. _ .. _-_ .. _ ... - _. _. -_ .. _ .. _ .. _. -_..._ .... _ .. _ .. _. --- ..
Once an iPod is connected to the Docking Station, the unit will play and charge
the docked iPod.
_._---------_.----_ ... - ------------------------
i5TI
'" ,:; ',;.-
,,~ v,;.:~:
-,,!."
_. _ "0_
,@,.-
-_0-' ~-
.; --' ~ .. ~ /
. :. ,... .... ·,.k
I
V
..-- ..•
--
( II
})
( 0000 ))
~.
..
LiLlY:
6

Playing an iPod
1. Connect an iPod to the Docking Station. (See "Docking an iPod" on page 6)
2. Adjust the Power Switch to the on position.
---------_._-- -- ----- ------ ._--
3. Adjust the Volume Switch to increase or decrease the volume of the unit.
---
4. Control the docked iPod using it's native controls.
Setting the Clock
1. Adjust the Power Switch to the off position.
2. Press the Mode Button twice to enter clock set mode. .-_
.. _-- -- -- - --_.. -_- ..
3.· Press the Set Button to set the time.
7

Connecting to an Audio Player using the Aux Inp_ut __
When connecting twoproducts using an RCA Cable, match the coloredports with
the same coloredconnection. (Red to Red, White to White,
and Yellow to Yellow)
1. Plug one end of a3.5 mm Cable (not included) or a3.5 mm -RCA Cable (not
included) into the AUX (Auxiliary)
Input on the unit.
-----------_._-_ .. _----_. __ ._-----_._---------------------_._------
2. Plug the other end ofthe 3.5 mm Cable into the audio output/headphone output on
an Mp3 Player or OtherAudio Source.
.
3. Set Power switch to the on position.
4. Remove any docked iPod's from the Docking Station.
~ ."_ .. ,, •... _._,'~~,,_,,~_, "._._, ,_.,, __ .'_'_"~ ,,~,~..... ~"'~'_"_'"'_.,.,.,._ .. _ .. ~_,._. __ ,_ ~ .. __ .. _~~. __ .N.,,,_ .. __ .. .... _"' __ ,_,,_.· __ .~~·.~.'" .. _. __ .,·_,· __ ,, ,,_,_ .. _ .. _ .. __
5. Audio played from the Mp3 Player or OtherAudio Source will now be heard on
the unit.
If connecting to the headphone output of an audio source, the sourcesvolume
controls may
need to be adjusted for optimalsound.
------ ._._----- _._----_ .. _- -- -------------- ------ - -------- -------
8

Location of Controls
1
...................
«I) )
--
10009} )
. 6
................................
2 7
..................................................... I> (I .
.,. --
ro
3
......................................................
lI0 0
:L:::::::::::::::::: ..... ~ ..... f' r
r-----,
o0I
9

Control Definitions
1Power Switch
Adjust the Power Switch to turn the unit off and on.
" .. ,.,' _." .. "',._",._"._, .. __ ,_._, .. __ ",~_ •. _' ,._ ..• __ ._. __ .,_ __ . __ ..•.. __ , __ ._. __ ._".~ •. _, __ ,_.,_._"_" .. __ . __ ,._". __ .•.. ~_._,_.~,.,._ _~ _,, __ .~M~'''~ .. __ ".M.,_",._., ~_ •. _ _. __ . .<_.,_.~._. __ ."._ .. ",_." ..
2Set Button
Press the Set Button to set the clock.
3Battery Compartment (Requires 4AA Batteries, not included)
4DC Power
Input
Connect the DC Power Input to astandardAC Outlet to power the
unit. (Requires anAC/DC adapter, included) .........................................
5Aux Input
Use the Aux Input to connect an MP3 player or other audio source to
the unit.
6Volume Switch
Adjust the Volume Switch to increase or decrease the volume of the
unit.
7Mode Button
Press the Mode Button twice to enter clock set mode.
--_ .. ------_._----------------
10

Service Information
Address 2116 Carr Street, St. Louis MO, 63106
Phone [phone]
Fax [phone]
Email [email protected]
Website www.ilive.net
To download this Instruction Man-
ual in English, Spanish, or French
visit the Support section at
www.ilive.net.
Para descargar este manual de
instrucci6n en ingles, espaiiol, 0
frances visite la secci6n de la ayu-
da en www.ilive.net.
Pour telecharger ce manuel
d'instruction en anglais, espagnol,
ou
Ie Fran~ais visitez la section de
soutien awww.ilive.net.
©2007 DPI, Inc. iPod not included. iPod is atrademark of Apple Inc., registered in the U.S. and other countries. TruBass, SRS and the SRS
logo are trademarks
of SRS Labs, Inc. All other trademarks appearing herein are the property of their respective owners.

ISI08B
Compatibility information and Chart
See manual for information on specific brackets that are included with
this unit, as well as for detailed information on using the video out func-
tion with compatible iPods.
Please note: For additional iPod brackets, please contact customer
service. Contact information for customer service can be found
on" the
back page
of the instruction manual.
C()mpatibilityChart

ISI08B
iPod Model
Play & Charge
Compatibility
Included
Bracket
~ iPodmini
e
@ 4GB 6GB
Ii] iPod e0
o4th generation
20GB
Ii] iPod eG
o4th generation
40GB
I~I iPod e0
o4th generation (color display)
20GB 30GB
[~I iPod eG
o4th generation (color display)
40GB 60GB
~
iPod shuffle
1st generation
512MB 1GB
;iPod nano e e
1st generation
1GB 2GB 4GB
I::l iPod e
f)
o5th generation (video)
30GB
I::l iPod e~
o5th generation (video)
60GB 80GB
~
iPod nano e0
@2nd generation (aluminum)
2GB 4GB '8GB
iPod shuffle
~
2nd generation
1GB
[~I iPod classic e0
@ 80GB
[~I iPod classic eG
@ 160GB
~ iPodnano
e
i)
.:r.. 3rd generation (video)
o 4GB 8GB
D ;P"".",'
e~
8GB 16GB
0
0;"°"'
4GB 8GB
0

Garantia Limitada 90 Dias
EI fabricante garantiza este producto al comprador inicial contra todo defecto de material yde fabricaci6n, bajo condiciones
nonnales, por un periodo de 90 dias apartir de Ia fecha de compra inicial. Un ano en partes comenzando del dia de compra. EI
fabricante Ie proporcion"" partes 5010 a los productos reparados en el Departamento de Servicios de iLive en St. Louis, MO y
costos de envio tienen que ser pagados por el c1iente en anticipo despues de 90 dias.
EI fabricante acepta, a su discreci6n durante el periodo de vigencia de esta garantia, reparar todo defecto de material 0 de fabri-
cacion 0reemplazar el producto defectuoso por el mismo producto sin costo adicional. Esta reparacion 6reemplazo esta sujetal
ala verificacion del defecto 0del mal funcionamiento del aparalo yprucba mostrando el mimero de modele de iLive en el recibo
original
de compras con la fecha.
Para obtener este servicio, envie su unidad asegurada y con el transporte PAGADO POR ADELANTADO a:
Consumer Service
2116 CARR STREET, ST. LOUIS, MO 63106
•Emhale la unidad en una caja de cart6n resistente, con rclleno protector.
•Adjunte
una capia de su recibo de venta para verificar 13 fecha de campTa del producto.
•Incluya
su nombre, direccion ymimero de telefono.
EI fabricante decidin\ reparar 0reemplazar el producto garantizado sin costo adicional.
NOTA: Esta garantia no cubre ninglin producto danado por causas de fuerza mayor, mala utilizacion, negligencia, accidente, abuso, uso
cornercial 0 modificacion de 0acualquier parte del producto, incluyendo la antena. Esta garantia no cubre tampoco los danos causados
a
medias externos como DVD, discos cornpactos, discos de larga duracion, cintas y/o aparatos de memoria oi tampoco el costo de
envio del producto para su reparacion. EI fabricante no es responsable, bajo ninguna circunstancia, de "erdidas (directas, indirectas,
secundarias, previslas, imprevistas. especiales) 0de
daDos que resulten de 0par el wo de este producto.
iPods
no son cubierto por esta garantia.
Es13 garantia po cubre los dailos que resulten de la utilizacion 0 del mantenimiento incorrecto, de la conexion a una fuente de
voltaje inapropiada 0 de un intento de reparaci6n realizado par personal no autorizado por el fabrieante , St. Louis, MO.
Esta garantia no cubre las unidades fabricadas nuevamente, los productos vendidos TAL CUAL 0productos de liquidaci6n.
Es13 garantia es valida unicamente en Estados Unidos yconticre derechos legales especificos. Usted puede tener otros derechos
que varian de Estado a Estado.
NOTA: Para los productos que contienen memoria interna para almacenar musica, infonnacion, etc., la canlidad de memoria que
su sistema operativo repom puede variar seglin la memoria qw.e este aparato indica.
IMPORTANTE: NO ENvtE ESTE PRODUCTO AL NEGOCIO EN QUE LO COMPRO PARA REPARACION. CON-
SULTE
ESTA GARANTiA PARA OBTENER INFORMACIONES AL RESPECTO.
Garantie Limitee 90 Jours
Le consttucteur garantit ce produit ill'acheteur initial contre tout defaut de materiel et de fabrication, en conditions nonnales, pour une
periode de 90 jours acompter de la date d'achat initial du produit. Un an sur des parties de jour d'achat. Le constructeur foumira des
pieces seulement pour @ Ie centre commercial service par produits de iLive a St Louis, MOIS. Le travail et les honoraires de S&H
doivent elre payes par Ie client apres 90~days, aI'avanee.
Le constructeur accepte il son choix, pendant la duree de cette garantie, de reparer tout defaut de materiel et de fabrication ou de
remplacer Ie produit defectueux par Ie meme produit sans frais. Cene reparation ou ce remplacement sera effectue moyennant la
verification du defaut ou du rnauvais fonctionnement de l'appareil et la presentation d'une preuve d'achat dans la forme d'un re9u de
vente original date en montrantle numero de type de iLive.
Pour obtenir ce service, envoyez Ie produit assure, avec fret PAYE D' AVANCE a:
Consumer Service
2116 CARR STREET, ST. LOUIS, MO 63106
•Emballez votre produit dans une boite de carton rembourree.
• Joignez une copie de votre rel'u de ventes pour verification de la date d'achat du produit.
• Indiquez votre nom, adresse et numero de telephone.
Le constructeur choisira de reparer ou de remplacer tout produit garanti, sans frais.
REMARQUE: Celte garantie ne couvre pas les produits endommages par cause de force majeure, mauvaise utilisation, negligence,
accident, mauvais traitement, utilisation comrnerciale au modification de ou il quelque part que ce soit de ces produits, ycompris
I'antenne.
Cette g31antie ne couvre pas non plus les dommages cawes aux medias exterieurs tels que des DVD, disques compacts,
albums, cassettes etlou appareils
de memoire ni Ie COllt d'envoi du produit pour sa reparation. En aucun cas, Ie constructeur oe sera
pas tenu responsable des pertes (directes, indirectes, secondaires, prevues. imprevues, speciales) ou des dommages qui decoulent de ou
en raison de I'utilisation de ce produit.
iPods ne sont pas couverture par cette garantie.
Sont exclus de cette garantie les defauts pouvant survenir par la suite de I'utilisation et de l'entretien anormaux, du raccordement il une
source de tension inadequate au des reparations effectuees par du personnel non autorise par Ie consttucteur, St. Louis, MO.
Cette garantie ne couvre pas ies produits fabriques il nouveau au les produits vendus TEL QUELS ou produits liquides.
Cette garantie n'est
valable qu'aux Etats·Unis et vous eonfere des droits legaux speeifiques. VOllS pouvez avoir d'autres droits en vertu
des lois etatiques.
REMARQUE: Pour les produits qui contiennent memoire interne pour stocker de Ia musique, infonnation, etc., la quantite de memoire
que votre systeme d' exploitation rapporte peut varier scion la mcmoire que eet appareil indique.
IMPORTANT: N'ENVOYEZ PAS CE PRODUIT AU DtTAILLANT POUR RtPARATlON. L1SEZ CETTE GARANTIE
POUR OBTENIR
DES INFORMATIONS SUR LES SERVICES FOURNIS.
2116 CARR STREET· ST. LOUIS, MO 63106· TEL: [phone]· FAX: [phone]

,~N
<..! LIY Limited 90 Day Warranty
The manufacturer warrants this product to the original purchaser to be free from defects in
material and workmanship, under normal conditions, for aperiod of90 days from date of
original purchase.
The manufacturer agrees, at its option during the warranty period, to repair any defect in
material or workmanship or to furnish an equal product in exchange without charge. Such
repair or replacement is subject to verification of the defect or malfunction and proofof
purchase
as confirmed by showing iLive Model number on original dated sales receipt.
To obtain service, return the unit insured and freight PREPAID to:
Consumer Service
2116 CARR STREET, ST. LOUIS, MO 63106
o Pack the unit in awell-padded, sturdy carton.
o Enclose a copy of your sales receipt to verify the date ofpurchase.
oInclude your name, address and phone number.
The manufacturer will elect to repair or replace properly warrantied product free o( charge.
NOTE: This warranty does not cover any product which has been subject to damage due
to an act of God, misuse, neglect, accident, abuse, commercial use, or modification of, or
to, any part of the product, including the antenna. Damage to external media such as DVD,
CD, LP, tape and/or memory devices are not covered nor is the cost incurred in shipping
the unit for warranty repair. Under no circumstances shall the manufacturer be liable for
any loss (direct, indirect, incidental, foreseen, unforeseen, special or consequential) or for
any damage arising out of, or in connection with, the use of this product.
iPods are not covered under this warranty.
This warranty does not cover damage due to improper operation or maintenance,
connection
to improper voltage supply, or attempted repair by anyone other than the
manufacturer, St. Louis, MO.
This warranty does not cover re-manufactured units, product sold AS 'IS or closeout
product.
This warranty is valid only in the United States and grants specific legal rights. You may
also have other rights which vary from state to state.
NOTE: For products that contain internal memory for storage of music, data, etc., the
amount
of memory your operating system reports may vary from the stated memory of
this device.
IMPORTANT NOTICE: DO NOT RETURN TIllS UNIT TO THE RETAIL
STORE
FOR SERVICE. INSTEAD, FOLLOW THE ABOVE WARRANTY
SERVICE INSTRUCTIONS.
2116 CARR STREET 0 ST. LOUIS, MO 63106 0TEL: [phone]· FAX: [phone]
iPod is atrademark of Apple Inc., registered in the U.S. and other countries.
