Immergas VICTRIX 24 kW X User manual

VICTRIX 24 kW
Instant wall-hung boilers
condensation-type
VICTRIX 24 kW
VICTRIX 24 kW X
VICTRIX 24 kW X
Condensation-type wall-hung
boiler for central heating only
or with an external
storage tank

1
STVkW ed 07/08 VICTRIX 24 kW Export
Technical Documentation Technical Documentation
VICTRIX 24 kW
Condensation wall hung room-sealed boiler for
central heating and the instant production of
domestic hot water.
VICTRIX 24 kW
VICTRIX 24 kW is an instantaneous wall-hung room-sealed
(type C) boiler with a nominal heating input of 24 kW (20640
kcal/h) for central heating and 26 kW (22337 kcal/h) for do-
mestic hot water which, thanks to the condensation technology,
stands out for its particularly high performance and ample
modulation range (from 20% to 100 % of the rated output).
e boiler is equipped with a total premix combustion system
that guarantees minimal polluting emissions and it can run on
either natural gas or L.P.G.
e VICTRIX 24 kW series of boilers is type-approved for in-
stallation outside the building in a partly sheltered location.
Note: By a partly sheltered location we mean a place where the
appliance is not exposed directly to the weather (rain, snow, hail,
etc.).
e boiler is adjusted and controlled by a microprocessor
controlled p.c.b. with continuous 2-sensor ame modulation
(d.h.w. and central heating), which, by means of a backlit dis-
play, shows boiler operating status (temperatures, safety devices,
etc.) and it also allows connection (optional) to the Remote
Control, to the external probe, to the zone control unit and
to the Multi-system Distribution Manifold.
e hydraulic circuit is equipped with a water-gas exchanger
with stainless steel heating coil and uses the new hydraulic unit
made in a composite material on which the devices to control
the hydraulic circuit are housed (the system’s absolute pressure
switch, 3-bar safety valve, automatic system by-pass, etc.), besides
the circulator and 3-way electric valve which allows, according
to requirements, the circulation of boiler water in the central
General features.
heating system or in a stainless steel plate exchanger for the
instant production of domestic hot water.
One of the boiler’s standard features is an antifreeze device
that protects against temperatures down to a minimum -5°C
(optional down to -15°C).
e VICTRIX 24 kW boiler must be installed using the intake/
outlet kits or ducting systems (60 mm Ø rigid, 80 mm Ø rigid
and 80 mm Ø exible) made of plastic and expressly conceived
and designed for Immergas condensation boilers.

2
STVkW ed 07/08 VICTRIX 24 kW Export
Technical DocumentationTechnical Documentation
VICTRIX 24 kW X
Condensation wall-hung boiler for central
heating only which can be connected to a sepa-
rate storage tank.
VICTRIX 24 kW X
VICTRIX 24 kW X is a wall-hung room-sealed (type C) boiler
with a nominal heating input of 24 kW (20640 kcal/h) for
central heating only and designed, thanks to a kit (optional)
to be connected to a separate Storage tank with an 80, 105,
120 or 200 litre capacity.
e boiler, thanks to the condensation technology, stands out
for its particularly high performance and ample modulation
range (from 20% to 100 % of the rated output). e boiler is
equipped with a total premix combustion system that guar-
antees minimal polluting emissions and can run on either
natural gas or L.P.G.
e VICTRIX 24 kW X series of boilers is type-approved for
installation outside the building in a partly sheltered loca-
tion.
Note: By a partly sheltered location we mean a place where the
appliance is not exposed directly to the weather (rain, snow, hail,
etc.).
e boiler is adjusted and controlled by a microprocessor
controlled p.c.b. with continuous ame modulation which,
by means of a backlit display, shows boiler operating status
(temperatures, safety devices, etc.) and it also allows connection
(optional) to the Remote Control (with which you can easily
control the boiler remotely), to the external probe, to the zone
control unit and to the Multi-system Distribution Manifold.
e hydraulic circuit is equipped with a water-gas exchanger
with stainless steel heating coil and uses the new hydraulic unit
made in a composite material on which, besides the circulator,
the devices to control the hydraulic circuit are housed (the
General features.
system’s absolute pressure switch, 3-bar safety valve, automatic
system by-pass, etc.).
One of the boiler’s standard features is a antifreeze device
that protects against temperatures down to a minimum -5°C
(optional down to -15°C).
e VICTRIX 24 kW X boiler must be installed using the
intake/outlet kits or ducting systems (60 mm Ø rigid, 80 mm
Ø rigid, and 80 mm Ø exible) made of plastic and expressly
conceived and designed for Immergas condensation boilers.

3
STVkW ed 07/08 VICTRIX 24 kW Export
Technical Documentation Technical Documentation

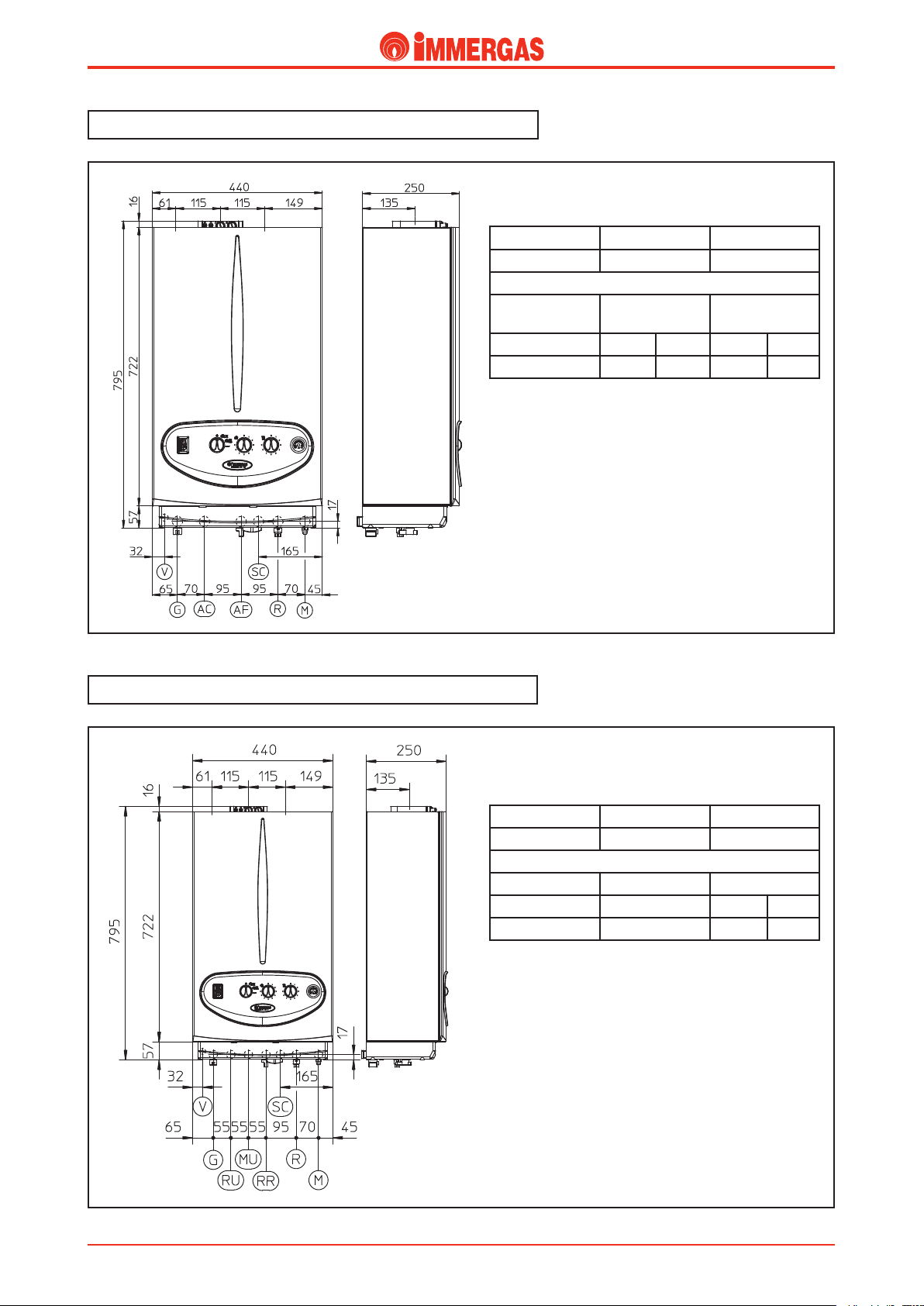

VICTRIX 24 kW main dimensions and connections.
Legend:
V - Electrical connection
G - Gas supply
AC - D.H.W. outlet
AF - D.W. inlet
SC - Condensation runo (minimum inside diameter 13 mm Ø)
R - System return
M - System delivery
VICTRIX 24 kW X main dimensions and connections.
Legend:
V - Electrical connection
G - Gas supply
RU - Storage tank return (optional)
MU - Storage tank delivery (optional)
RR - System lling cock
SC - Condensation runo (minimum inside diameter 13 mm Ø)
R - System return
M - System delivery
Height (mm) Width (mm) Depth (mm)
795 440 250
CONNECTIONS
GAS WATER SYSTEM
G RR R M
3/4”* 1/2” 3/4” 3/4”
Height (mm) Width (mm) Depth (mm)
795 440 250
CONNECTIONS
GAS DOMESTIC
WATER SYSTEM
GAC AF R M
3/4”* 1/2” 1/2” 3/4” 3/4”

4
STVkW ed 07/08 VICTRIX 24 kW Export
Technical DocumentationTechnical Documentation

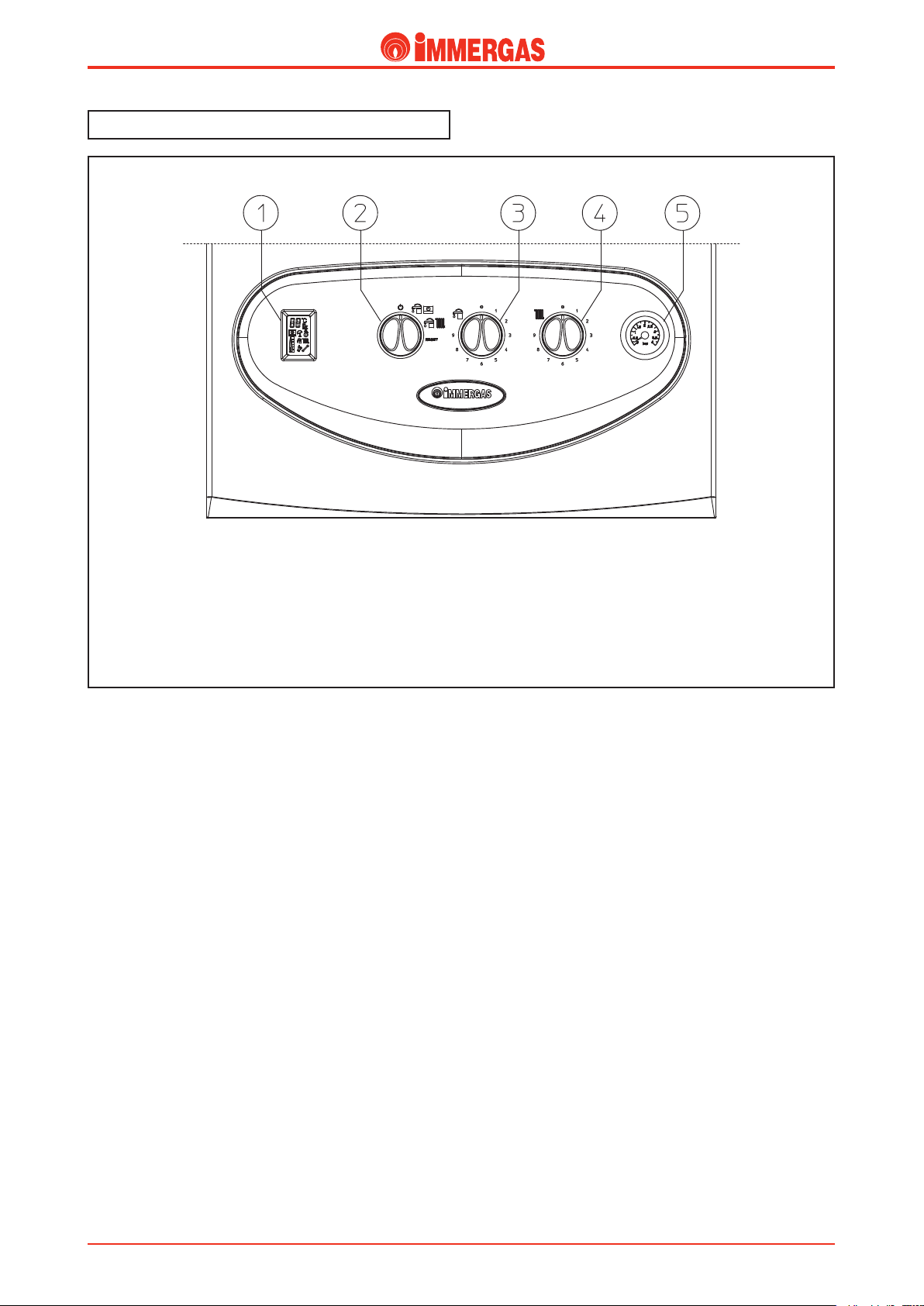

VICTRIX 24 kW control panel.
Legend:
1 - Boiler status indicator display
2 - Stand-by - D.H.W./Remote Control - D.H.W. and C.H. - Reset selector switch
3 - D.H.W. temperature selector switch
4 - C.H. temperature selector switch
5 - Boiler manometer

5
STVkW ed 07/08 VICTRIX 24 kW Export
Technical Documentation Technical Documentation

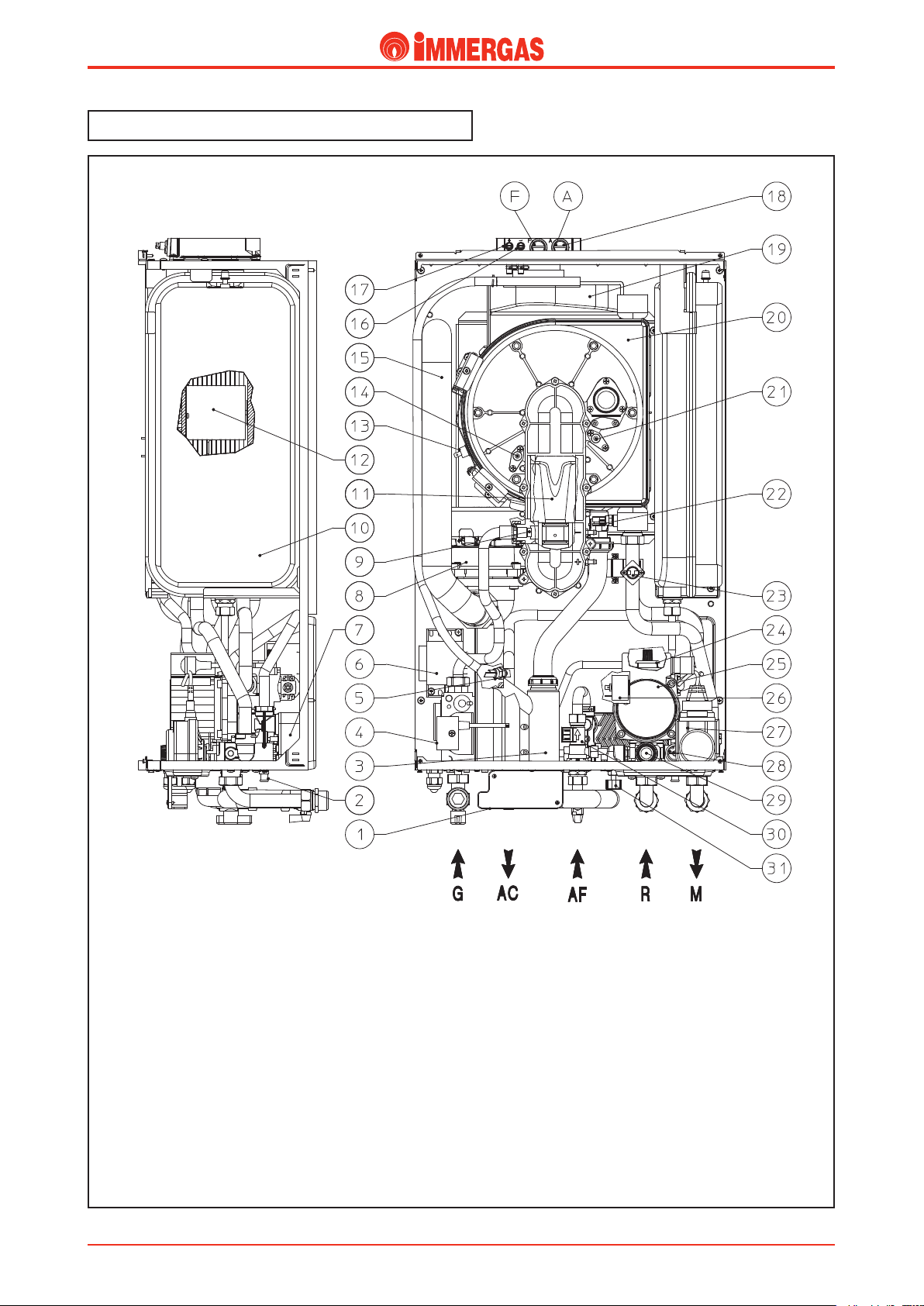

VICTRIX 24 kW main components.
Legend:
1 - Electrical connection terminal block
(extra low voltage)
2 - System draining cock
3 - Condensate siphon
4 - Gas valve
5 - D.H.W. probe
6 - Voltage transformer
7 - D.H.W. exchanger
8 - Fan
9 - Gas nozzle
10 - System expansion vessel
11 - Venturi
12 - Burner
13 - Flue safety thermostat
14 - Detection electrode
15 - Air intake pipe
16 - Pressure point, negative signal
17 - Pressure point, positive signal
18 - Testing holes (air A) - (fumes F)
19 - Draught diverter
20 - Condensation module
21 - Ignition electrodes
22 - Delivery probe
23 - Safety thermostat
24 - Automatic air vent
25 - Boiler circulator
26 - System pressure switch
27 - 3-way valve (motorised)
28 - Automatic by-pass
29 - 3-bar safety valve
30 - D.H.W. ow switch
31 - System lling valve

6
STVkW ed 07/08 VICTRIX 24 kW Export
Technical DocumentationTechnical Documentation
VICTRIX 24 kW X main components.
Legend:
1 - Electrical connection terminal block
(extra low voltage)
2 - System draining cock
3 - Condensate siphon
4 - Gas valve
5 - Voltage transformer
6 - Fan
7 - Gas nozzle
8 - System expansion vessel
9 - Venturi
10 - Burner
11 - Flue safety thermostat
12 - Detection electrode
13 - Air intake pipe
14 - Pressure point, negative signal
15 - Pressure point, positive signal
16 - Testing holes (air A) - (fumes F)
17 - Draught diverter
18 - Condensation module
19 - Ignition electrodes
20 - Delivery probe
21 - Safety thermostat
22 - Automatic air vent
23 - Boiler circulator
24 - System pressure switch
25 - Automatic by-pass
26 - 3-bar safety valve
27 - System lling valve

7
STVkW ed 07/08 VICTRIX 24 kW Export
Technical Documentation Technical Documentation
e hot water for heating and domestic use is produced by a
primary and secondary (D.H.W.) circuit that activated accord-
ing to the request made.
VICTRIX 24 kW hydraulic diagram.
Legend:
1 - Condensate siphon
2 - D.H.W. ow switch
3 - Flow limiter
4 - System lling valve
5 - D.H.W. probe
6 - Gas valve
7 - Gas valve outlet pressure point (P3)
8 - Venturi positive signal(P1)
9 - Venturi negative signal(P2)
10 - Venturi air/gas manifold
11 - Fan
12 - Gas nozzle
13 - Detection electrode
14 - Flue safety thermostat
15 - Air intake pipe
16 - Condensation module
17 - Draught diverter
18 - Air testing hole
19 - ∆p gas pressure point
20 - Flue testing hole
21 - Delivery probe
22 - Safety thermostat
23 - Ignition electrodes
24 - Burner
25 - Condensation module lid
26 - System expansion vessel
27 - Automatic air vent
28 - Boiler circulator
29 - System pressure switch
30 - D.H.W. exchanger
31 - 3-way valve (motorised)
32 - Automatic by-pass
33 - System draining cock
34 - 3-bar safety valve
G - Gas supply
AC - D.H.W. outlet
AF - D.W. inlet
SC - Condensation runo
R - System return
M - System delivery

8
STVkW ed 07/08 VICTRIX 24 kW Export
Technical DocumentationTechnical Documentation
VICTRIX 24 kW X hydraulic diagram.
Legend:
1 - Condensate siphon
2 - System lling valve
3 - Gas valve
4 - Gas valve outlet pressure point (P3)
5 - Venturi positive signal(P1)
6 - Venturi negative signal(P2)
7 - Venturi air/gas manifold
8 - Fan
9 - Gas nozzle
10 - Detection electrode
11 - Flue safety thermostat
12 - Air intake pipe
13 - Condensation module
14 - Draught diverter
15 - Air testing hole
16 - ∆p gas pressure point
17 - Flue testing hole
18 - Delivery probe
19 - Safety thermostat
20 - Ignition electrodes
21 - Burner
22 - Condensation module lid
23 - System expansion vessel
24 - Automatic air vent
25 - Boiler circulator
26 - System pressure switch
27 - Automatic by-pass
28 - System draining cock
29 - 3-bar safety valve
G - Gas supply
RU - Storage tank return (optional)
MU - Storage tank delivery (optional)
RR - System lling cock
SC - Condensation runo
R - System return
M - System delivery
e primary circuit and its control and safety devices start
working each time a central heating or antifreeze request is
made.

9
STVkW ed 07/08 VICTRIX 24 kW Export
Technical Documentation Technical Documentation
Primary circuit (boiler circuit).
e primary circuit with relevant control and safety devices
is triggered each time there is a request for either central
heating or domestic hot water.
Operation (see the VICTRIX 24 kW hydraulic
diagram).

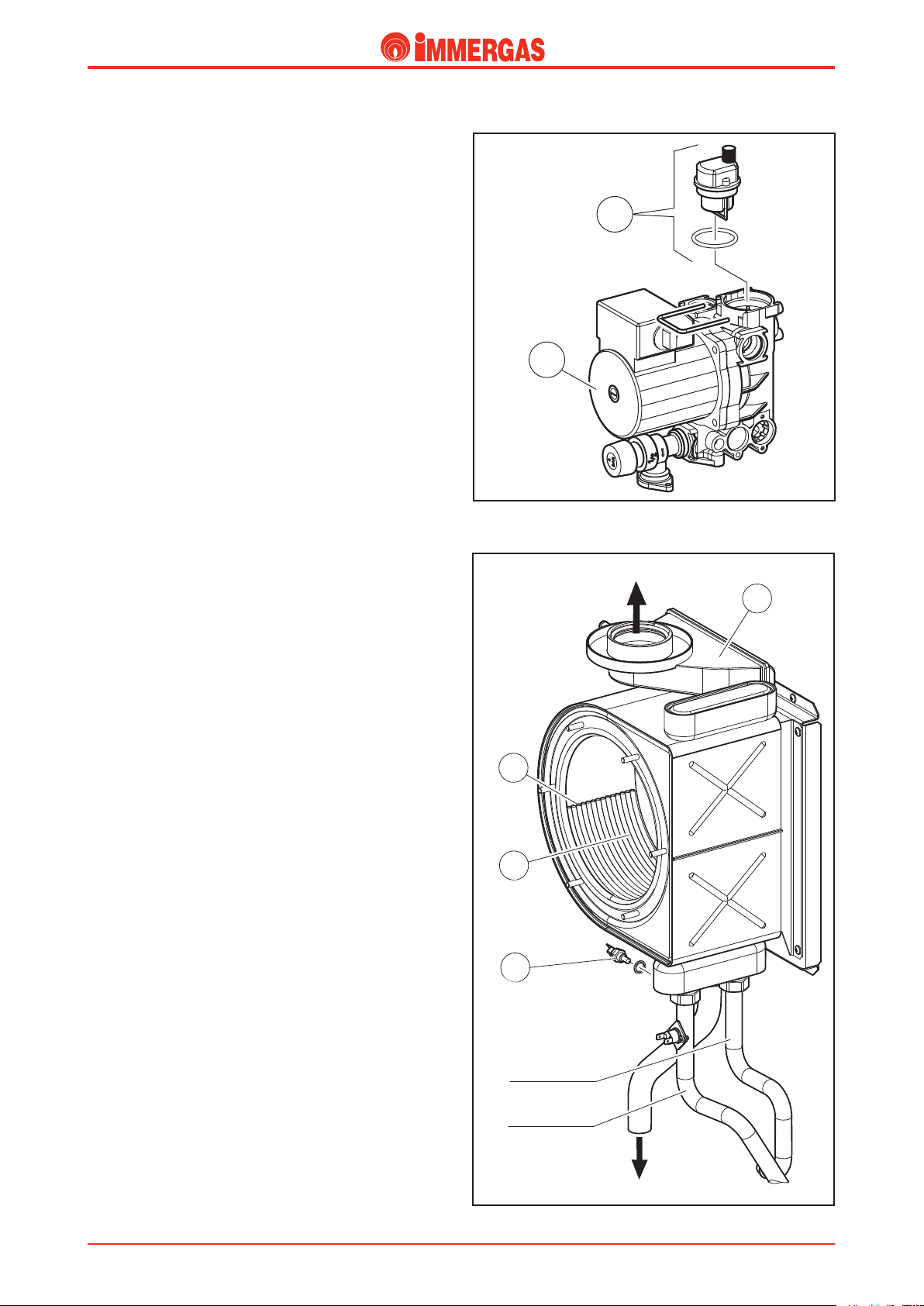

e heat contained in the fumes produced by combustion is
absorbed by the pipes of the water-gas coil exchanger tted in
the condensation module (16) which, in turn transfers it to the
water circulating inside thanks to the boiler pump (28).
e water is then transferred directly into the system or else
can be diverted inside a stainless steel instantaneous plate
exchanger (30).
Head (m H2O)
VICTRIX 24 kW - VICTRIX 24 kW X
Head (kPa)

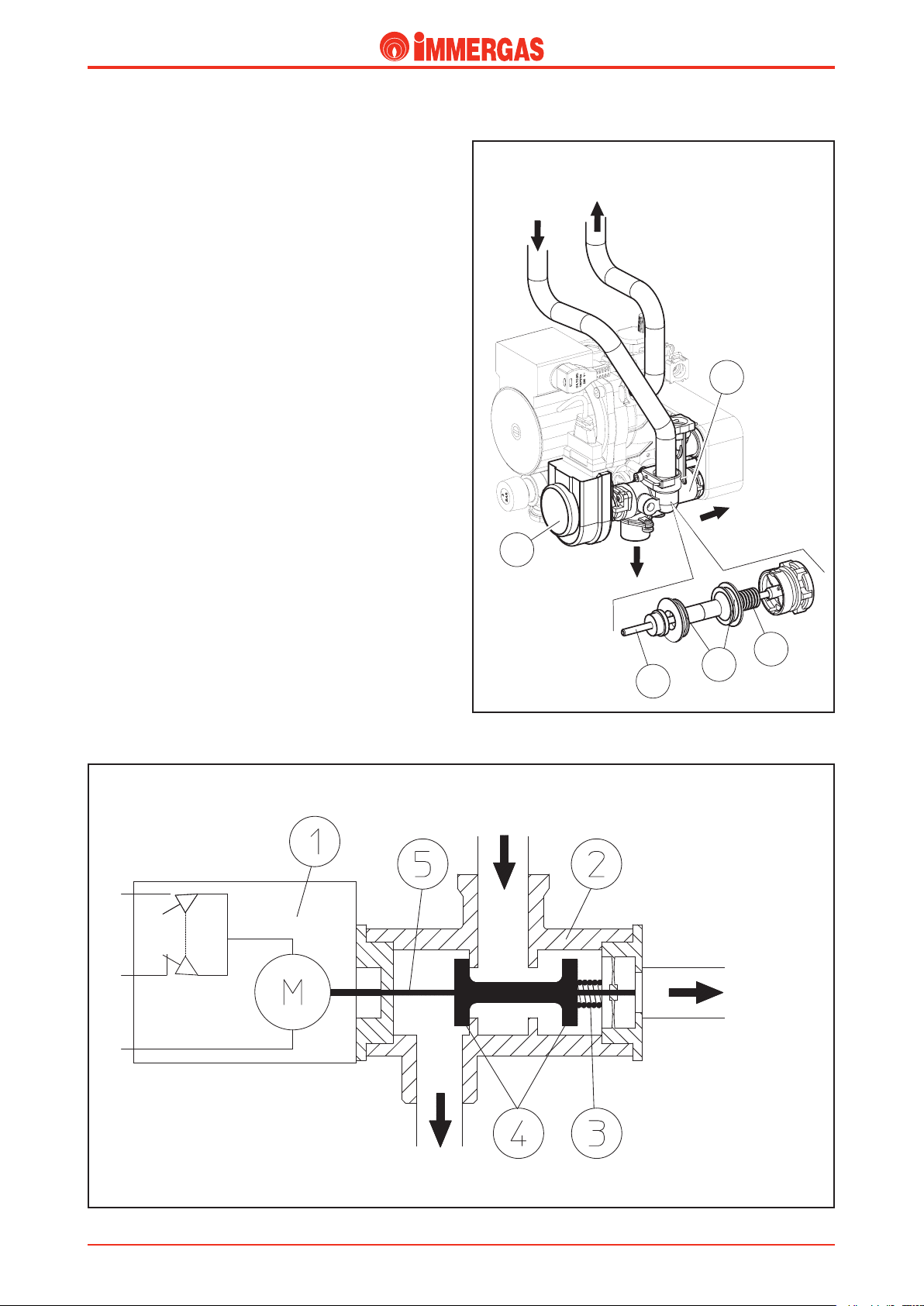

is depends on the position of the motorised 3-way valve (31)
which, when idle, permits ow to the d.h.w. exchanger (30)
while, when responding to a heating request, diverts the ow
to the system delivery (M) and return (R) pipes.
Flow-head graph.
e trend of the curve that represents the system ow-head
ratio depends on the speed at which the circulator is working
and whether or not the automatic system by-pass is on which
makes it possible to set the system for a bigger or small head.
e following graph shows the characteristic curves.
A = Head available to the system on maximum speed with the by-pass o
C = Head available to the system on maximum speed with the by-pass on
Flow Litres/h
A
B

10
STVkW ed 07/08 VICTRIX 24 kW Export
Technical DocumentationTechnical Documentation
Primary exchanger
(condensation module).
It consists of a casing containing 4 coil shaped elements.
In turn, each element consists of 5 elliptic pipe spirals (3).
e whole module is made of stainless steel and the inner
part is the sealed combustion chamber and condensation
chamber (2).
e rst three elements are involved directly in the action of
the cylindrical burner, tted on the front, while the fourth is
inside the condensation chamber which is separated from the
combustion chamber by a metal plate (see ue circuit).
To minimise head losses and increase the ow available to the
system, the delivery has the rst two elements connected in
parallel while the return has the last two elements connected
in parallel.
e exchanger inlet is connected to the circulator delivery and
the outlet, on which the NTC heating sensor (1) is positioned,
is connected to the primary circuit delivery.
e primary circuit’s delivery and return pipes are connected
by means of threaded ttings and a at seal.
e draught diverter (4) is connected at the back by means of
a seal locked by a metal ring.
Condensation is drained from the bottom.
Boiler circulator (1).
It works on the primary circuit return and is part of the pump
body made with a composite material.
e automatic air vent (2) is housed directly on the body.
1
2
DELIVERY
RETURN
2
1
4
FUMES
CONDENSATION
RUNOFF
3

11
STVkW ed 07/08 VICTRIX 24 kW Export
Technical Documentation Technical Documentation
Motorised 3-way valve for combined versions.
It consists of an electric motor (1) connected to the 3-way unit
(2) by means of a fork.
According to the request made (d.h.w. or central heating), this
valve allows boiler water to ow into the central heating system
or in the d.h.w. plate exchanger.
is depends on the position of the shutter (4) which closes
passage to the system while simultaneously opening it to the
d.h.w. exchanger (d.h.w. position) or vice versa (central heating
position).
e motor (1) is made to work by the electronic board and,
with each 180° rotation, the shutter (4) moves into both posi-
tions (d.h.w. or central heating).
e hydraulic part consists of a brass unit (2).
Operation in the central heating mode.
e shutter’s (4) contrasting spring (3) is not compressed
(central heating position), keeping passage to the d.h.w. plate
exchanger closed and passage to system delivery open.
Both the spring (3) and shutter (4) are located inside the 3-
way brass body (2).
Operation in the d.h.w. mode.
e hydraulic unit is always in the d.h.w. mode. e electric
motor (1) pushes the rod (5) to which the shutter (4) is con-
nected which closes passage to the system, simultaneously
opening it to the d.h.w. plate exchanger, the shutter’s (4)
contrasting spring (3) is compressed (d.h.w. position).
Both the spring (3) and shutter (4) are located inside the 3-
way brass body (2).
1
2
3
4
5
System
delivery
D.h.w.
exchanger
delivery
Exchanger
delivery
Exchanger
return
D.H.W.
EXCHANGER
DELIVERY
EXCHANGER
DELIVERY
SYSTEM
DELIVERY

12
STVkW ed 07/08 VICTRIX 24 kW Export
Technical DocumentationTechnical Documentation
Safety devices and checks for combined versions.
Automatic system by-pass (4).
is device guarantees the circulation of water in the primary
circuit (between delivery and return) also when it would be
prevented by the high resistance of the system.
It is mounted between the circulator body and the 3-way
unit.
It can be opened or closed by the screw (4) accessible at the
front: with the screwdriver slot horizontal the by-pass is on
(open), with the screwdriver cut vertical it is o (closed).
System lling cock (7).
It is positioned between the boiler circuit and the domestic cold
water inlet and is used to pressurise the heating system.
e lling unit is connected to the d.h.w. ow switch (6) by
means of a threaded tting and connected to the pump unit
(2) by means of an O ring.
System pressure switch (5).
It detects the pressure inside the primary circuit.
It is housed in the circulator body (2) and connected to a mi-
croswitch that prevents the burner working when the pressure
measured is lower than 0.3 bar.
It prevents the primary exchanger from overheating.
Automatic air vent (1).
It automatically expels any gaseous substances there may be
in the boiler circuit.
It is mounted on the circulator delivery directly on the circula-
tor body (2).
3-bar safety valve (3).
It prevents the safety pressure (3 bar) from being exceeded in
the primary circuit.
It is at the front of the circulator body (2) and xed with a
fork.
When this valve trips it causes water to come from the boiler
return.
System expansion vessel (8).
It osets volume variations resulting from water heating thus
restricting pressure variations.
It has an 8-litre capacity (5.7 actual litres) and a pre-load pres-
sure of 1.0 bar.
It is located on the right side of the boiler, by the side of the
combustion chamber and a copper pipe connects it to the cold
water inlet manifold.
8
6
7
2
5
34
1
2

13
STVkW ed 07/08 VICTRIX 24 kW Export
Technical Documentation Technical Documentation
EXCHANGER
DELIVERY
SYSTEM
DELIVERY
CAP
Motor for the 3-way valve (optional) for central
heating versions only.
It is an electric motor (1) connected to the 3-way unit (2) and
locked by a fork that allows, according to the request made
(d.h.w. or central heating) boiler water to ow into the central
heating system or in the d.h.w. exchanger (separate Storage Tank
with a 80, 105, 120 or 200 litre capacity).
is depends on the position of the shutter (4) which closes
passage to the system while simultaneously opening it to the
d.h.w. exchanger (d.h.w. position) or vice versa (central heating
position).
e shutter (4) is moved in either position by powering the
motor (1) (optional).
e hydraulic part consists of a brass unit (2).
Operation in the central heating mode.
e hydraulic unit is always in the system heating mode posi-
tion; the shutter’s (4) contrasting spring (3) is not compressed
(central heating position), keeping passage to the d.h.w. ex-
changer (storage tank heating coil) closed and passage to system
delivery open.
Both the spring (3) and shutter (4) are located inside the 3-
way brass body (2).
Operation in the d.h.w. mode.
e electric motor (1) pushes the rod (5) to which the shutter
(4) is connected which closes passage to the system, simultane-
ously opening it to the d.h.w. exchanger (storage tank heating
coil), the shutter’s (4) contrasting spring (3) is compressed
(d.h.w. position).
Both the spring (3) and shutter (4) are located inside the 3-
way brass body (2).
1
2
3
4
5
System
delivery
Storage
tank
heating coil
delivery
Exchanger
delivery
Exchanger
return

14
STVkW ed 07/08 VICTRIX 24 kW Export
Technical DocumentationTechnical Documentation
Safety devices and checks for central heating
versions only.
Automatic system by-pass (4).
is device guarantees the circulation of water in the primary
circuit (between delivery and return) also when it would be
prevented by the high resistance of the system.
It is mounted between the circulator body and the 3-way
unit.
It can be opened or closed by the screw (4) accessible at the
front: with the screwdriver slot horizontal the by-pass is on
(open), with the screwdriver cut vertical it is o (closed).
System lling cock (7).
It is a ball cock positioned between the boiler circuit and the
domestic cold water inlet and is used to pressurise the heating
system.
e cock is connected to a ll-up coupling (6) which, in turn,
is connected to the circulator body (2).
System pressure switch (5).
It detects the pressure inside the primary circuit.
It is housed in the circulator body (2) and connected to a mi-
croswitch that prevents the burner working when the pressure
measured is lower than 0.3 bar.
It prevents the primary exchanger from overheating.
Automatic air vent (1).
It automatically expels any gaseous substances there may be
in the boiler circuit.
It is mounted on the circulator delivery directly on the circula-
tor body (2).
3-bar safety valve (3).
It prevents the safety pressure (3 bar) from being exceeded in
the primary circuit.
It is at the front of the circulator body (2) and xed with a
fork.
When this valve trips it causes water to come from the boiler
return.
System expansion vessel (8).
It osets volume variations resulting from water heating thus
restricting pressure variations.
It has an 8-litre capacity (5.7 actual litres) and a pre-load pres-
sure of 1.0 bar.
It is located on the right side of the boiler, by the side of the
combustion chamber and a copper pipe connects it to the
ll-up tting (6) which, in turn, is connected to the circula-
tor body (2).
8
34
1
2
5
6
7
2

15
STVkW ed 07/08 VICTRIX 24 kW Export
Technical Documentation Technical Documentation
1
3
2
5
4
Operation.

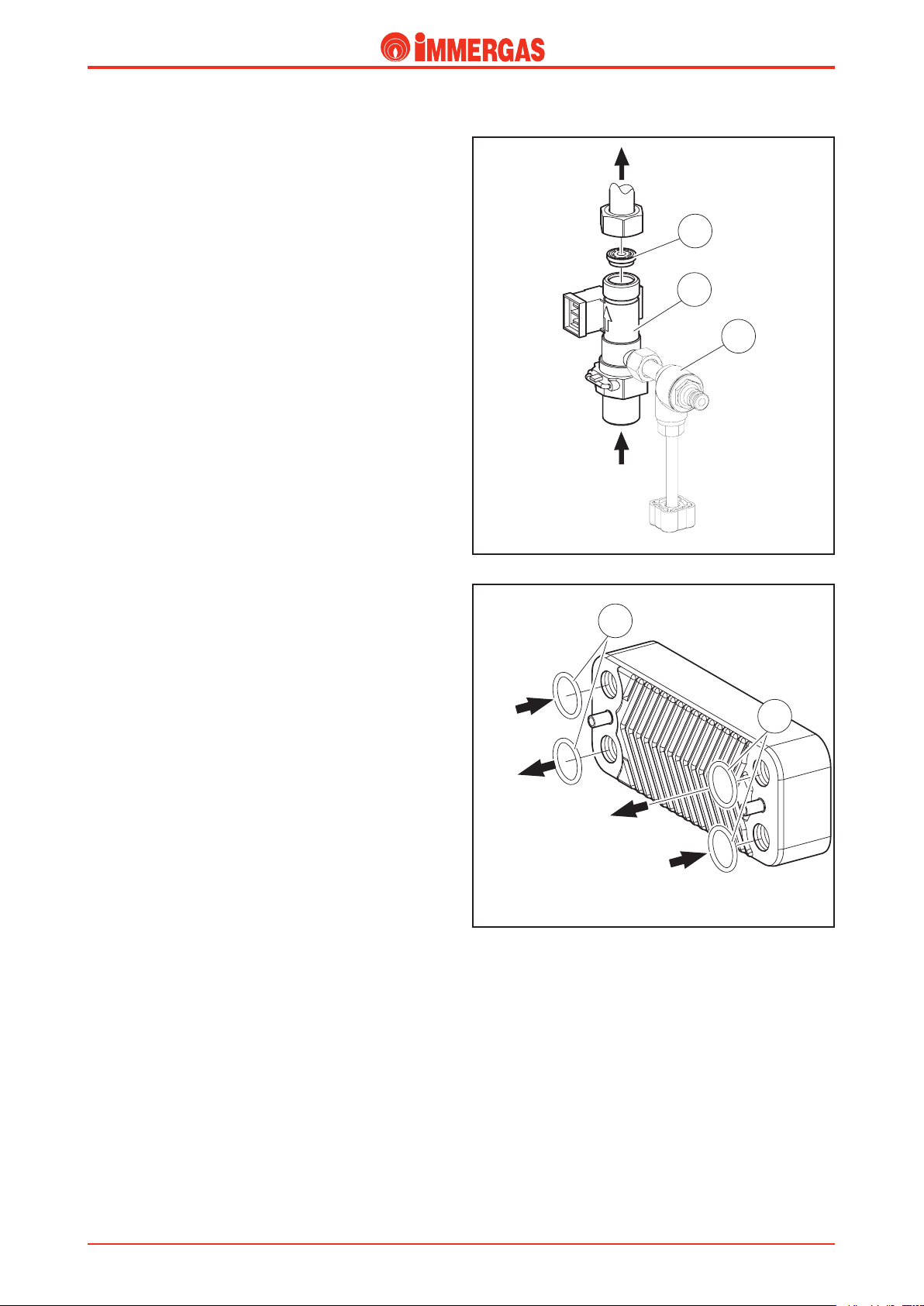

When domestic water is drawn, cold water ows inside the
d.h.w. ow switch (1) which closes the electrical contact cou-
pled to it (see the electrical circuit).
As a result, the integrated board starts the d.h.w. priority phase
that ignites the burner and, if there’s an ongoing central heating
request, switches the 3-way valve (2) moving it into the working
position (see operation of the hydraulic 3-way valve).
is causes the delivery pipe (M) to close and simultaneously
opens passage to the d.h.w. exchanger (3).
In this way circulation in the central heating system is pre-
vented while it is allowed in the plate exchanger, inside which
the domestic cold water absorbs the heat from the primary
circuit water (see d.h.w. exchanger).
So in this phase central heating is o, domestic hot water
having priority.
e water/water heat exchange takes place inside the d.h.w.
exchanger (3) which is fastened to the d.h.w. inlet (1) and
outlet (2) body with screws.
e top of the body on the left allows cold domestic water to
enter, while at the bottom it allows primary circuit return.
Likewise, the top part of the body on the right allows the outlet
of domestic hot water while at the bottom it allows primary
circuit delivery.
e d.h.w. probe (4) is mounted on the d.h.w. outlet pipe (5)
which allows the integrated board to measure the temperature
of the domestic hot water.
Secondary circuit (D.H.W. Circuit) only for combined versions.
Domestic cold
water inlet
Primary
circuit delivery
Primary
circuit return
Domestic hot
water outlet
Domestic hot
water outlet

16
STVkW ed 07/08 VICTRIX 24 kW Export
Technical DocumentationTechnical Documentation
1
1
Primary
circuit
delivery
Primary
circuit
return
D.H.W. ow switch (2).
Whenever domestic hot water is drawn at a rate of at least 1.5
l/min and with a dynamic pressure of 0.3 bar, the ow switch
(2) enables the boiler to work in the d.h.w. mode.
is is done by means of a magnet that, rising when hit by the
ow of domestic cold water, moves near to an electrical contact
(reed relay) causing it to move thanks to the magnetic eect.
When the contact closes, located outside the pipe through
which the water ows, it enables the adjustment board to start
the domestic hot water priority phase.
It consists of two parts (one in brass and one in plastic) that are
coupled together and locked with a pin.
e G1/4” thread on its body connects it to the system lling
cock (3).
A 7.0 l/min (at 2 bar) ow limiter (1) is installed on the ow
switch output.
D.H.W. exchanger.
It is a water-water exchanger made in stainless steel with 16
plates one on top of the other and on whose surface the boiler
circuit water and the domestic cold water ow in counter cur-
rent and through which heat exchange takes place between the
two lots of water.
e hydraulic coupling is done using four O rings (1) so it
can be connected directly to the d.h.w. inlet and d.h.w. outlet
bodies.
D.h.w.
outlet
D.c.w.
inlet
1
2
3
D.c.w.
inlet

17
STVkW ed 07/08 VICTRIX 24 kW Export
Technical Documentation Technical Documentation
Air-gas circuit.
e circuit consists of a total premix combustion system com-
posed of a fan (5), a pneumatic gas valve (7), a Venturi pipe
(3) and a special cylindrical burner (8) that operates inside the
condensation module.
Functioning.
e fan (5) is controlled by the integrated P.C.B. that varies
its speed depending on the output requested.
Its functioning allows to withdraw combustion agent air from
outside of the sealed chamber and introduce it into a pipe
where a Venturi pipe is inserted (3).
At the inlet to the Venturi (3) there is a positive pressure signal
(P1) variable in a directly proportional manner to the amount
of air taken in by the fan (5) and which is detected by a pressure
point connected to the pneumatic gas valve (7).
e electric power supply of the valve main coils causes both
internal shutters to open and allows the passage of gas, whose
outlet pressure is regulated by the same pneumatic valve in a
1:1 ratio to pressure “P1”.
e gas is injected at the entry of the Venturi pipes (3) through
a nozzle (4), where the premix starts with the combustion
agent air.
e mixture obtained in this way is ignited on the surface
of the cylindrical burner (8) by the discharge of the ignition
electrodes (9).
Gas valve.
e gas valve is equipped with two main coils controlled by
the electric circuit and with a pneumatic unit that modulates
the outlet gas pressure in 1:1 ratio to the pressure (P1) detected
on the inlet of the Venturi pipe.
e calibration of the ratio between the air and gas pressures
are carried out on the valve (o-set) (see gas regulations).
Electrical coils (4).
ere are two ON-OFF coils that are powered (230 V AC) by
an integrated P.C.B. when the burner must be ignited.
ey are connected in series and powered by the mains voltage
rectied by means of a jumper of diodes arranged inside the
connector (3).
Pneumatic unit (2).
Allows to vary the outlet pressure in 1:1 ratio with the pressure
(P1) detected at the inlet of the Venturi pipe that is taken back
to the valve using a small silicone pipe (1).
anks to this system, the percentages in the air-gas mixture
are maintained constant at optimal values on the entire range
of modulation, thus guaranteeing a more or less constant
combustion eciency.
e air-gas ratio calibration can be performed using the o-set
adjusting screw (2).
is is necessary only when, after having performed ue
analysis, incorrect combustion parameter values are detected
(see air-gas ratio regulation).
1
2
3
4
1
2
34
Dungs
VK 4115

18
STVkW ed 07/08 VICTRIX 24 kW Export
Technical DocumentationTechnical Documentation

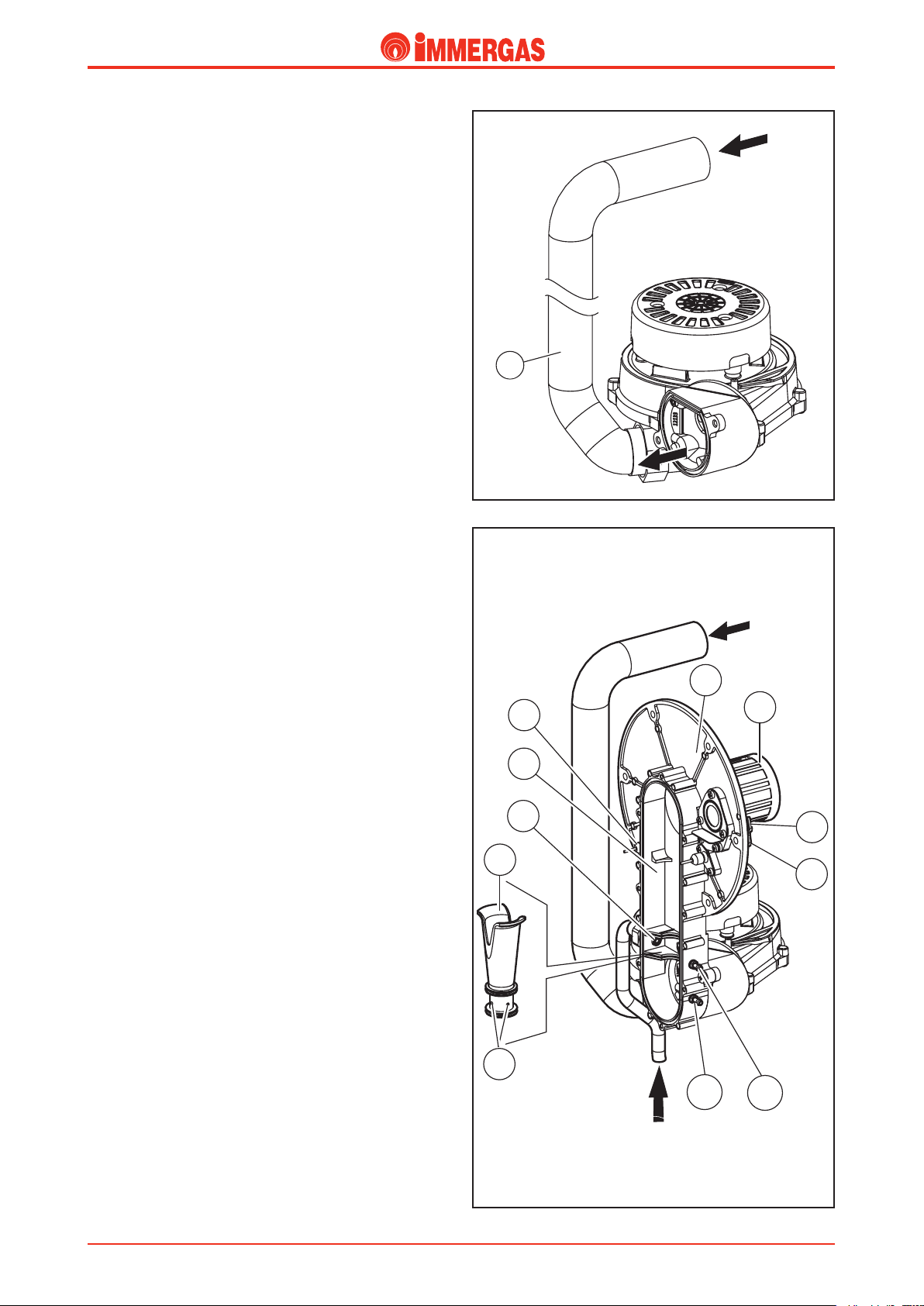

Fan.
Operates upstream from the combustion chamber and is
positioned under the condensation module.
It is controlled by the integrated P.C.B. with a positive square
wave signal with variable ON-OFF ratio (duty-cycle).
Its speed is adjusted (from about 1100 to about5100 rpm)
depending on the power requested and is controlled using a
sensor with Hall eect, which detects the number of revs.
e fan withdraws the combustion agent air in the upper
part of the sealed chamber through a plastic pipe (1), which
contributes to reducing the noise and optimises burner
ignition.
e variation of the air ow rate that s introduced into the
mixing pipe, leads to the change of the pressure signal (P1) at
the inlet of the Venturi pipe and allows the pneumatic valve
to regulate the pressure of the outlet gas.
Venturi.
e Venturi pipe (1) is inserted into a sealed pipe, inside which
the combustion agent air and the gas are mixed.
e air is introduced by the fan in the lower area of the pipe,
while the gas exiting the valve is injected by a nozzle (2) in
correspondence with the Venturi pipe inlet (1).
e passage of air in the pipe creates a depression (“Venturi
eect”) which, through the 4 holes (3) present at its base, allow
to “drag” the gas inside and to mix it with the air.
e nozzle (2) has a dierent diameter depending on whether
natural gas or LPG is used as, working with both gases with
more or less constant pressure, its section establishes the correct
gas ow rate.
ere are two pressure points at the ends of the Venturi pipe,
used to detect the inlet (P1) and outlet (P2) signals.
Using two small silicon pipes, these signals are taken respectively
to the pneumatic gas valve, which must regulate the gas pressure
and to the negative pressure point (P2) arranged in the upper
part of the sealed chamber.
Burner.
It is a cylindrical burner (5) made up from 2 concentric sheet
steel sections, appropriately perforated and built using a
special steel that is particularly resistent to high temperatures
and corrosion.
It is inserted inside the condensation module, in a sealed
combustion chamber closed by a ange (4) onto which the
burner is xed, which in the meantime guarantees its direct
connection to the air-gas mixing pipe (6).
e premixing, the lack of secondary air and the construction
features of the burner ensure high combustion eciency and
particularly reduced pollutant emissions (see technical data).
e material's high resistance to temperature, allows to work
with a very low ame to a minimum power of 4.7 kW (4,042
kcal/h) (20 % of the heat output).
Ignition takes place by means of an integrated P.C.B. that
controls the ignition (7) and detection electrodes (9).
1
GAS
ARIA
1
2
3
6
9
P1 P2
7
8
4
5
AIR
