ImpediMed SOZO User manual

a. Place the handplate on the top of
the SOZOsupport Stand with the
mounting screws facing up.
b. Using the hex key (10), attach the
handplate with the remaining
screws provided.
Screw the footplate (5) into
the base of the SOZOsupport
Stand (1).
*NOTE: It is recommended that two
people take part in assembling the
stand in order to make the process
quicker, easier and safer.
Have one person hold the stand with
the base upward. Have the second
person hold the footplate on the stand
while the first person attaches the
plate using the hex key (10).
Lace the SOZOconnect
cable (7) through the
SOZOsupport Stand (1).
Feed the SOZOconnect cable
through the droplet hole on the
back of the stand and out the front
hole at the base of the stand.
*NOTE: The connector cable port is
identical on both the hand plate and
foot plate.
.............................................................
.......................................................
Screw the handplate (3) into
the top of the SOZOsupport
Stand (1).
1
3
4
5

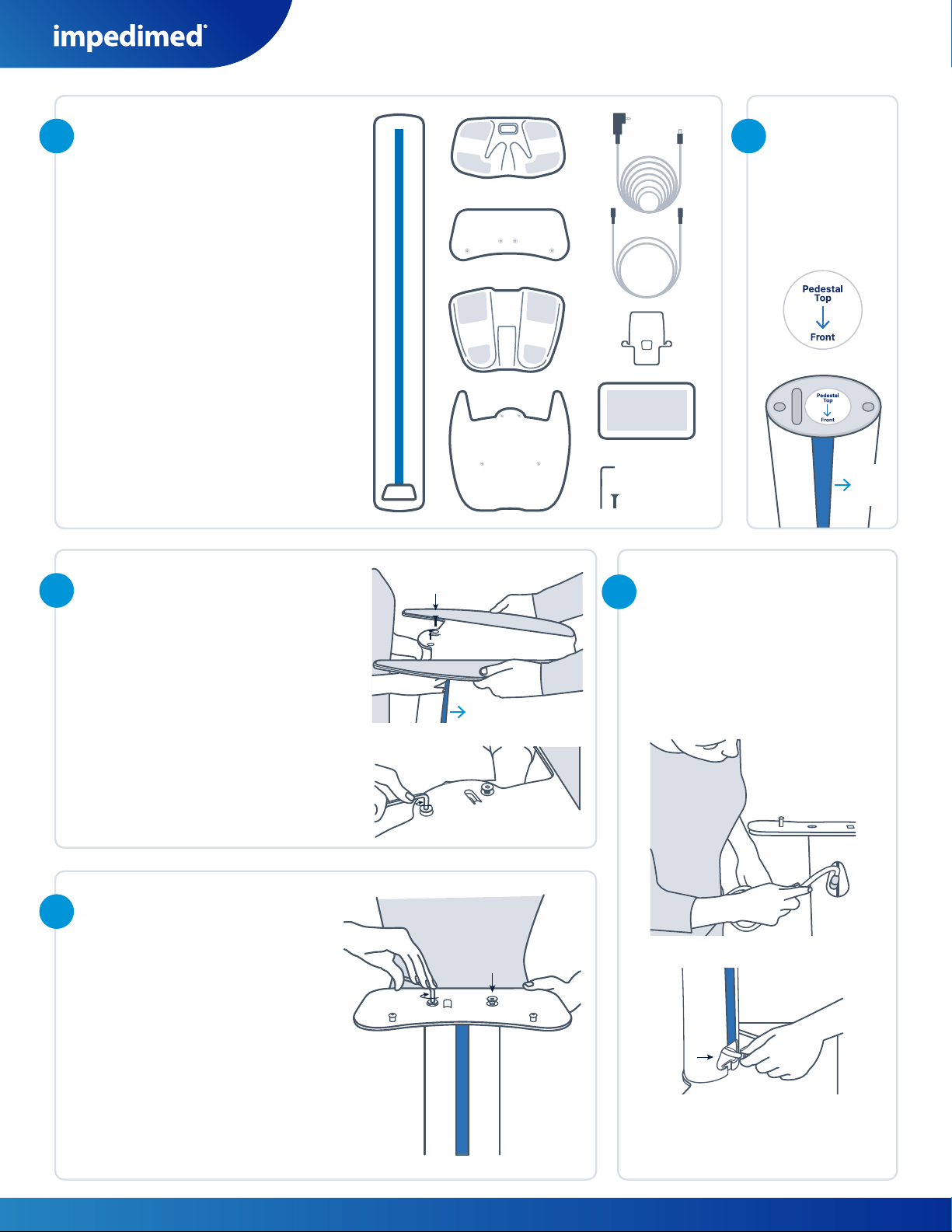

Identify components Identifying
which end is
the top of the
pedestal
BOTTOM VIEW
TOP
TOP
1. SOZOsupport Stand
2. SOZOtouch
3. Handplate
4. SOZOstep
5. Footplate
6. Power Adaptor
7. SOZOconnect Cable
8. SOZOcradle
9. Tablet including the SOZO application
10. Screws and hex key for stand
(1) (2)
(6)
(3)
(4)
(7)
(8)
(9)
x4
(10)
(5)
*NOTE: Once both plates are connected to the
SOZOsupport Stand, the large drop hole should
be near the top opposite of the blue stripe as
shown in top graphic of step 4.
SOZO®QUICK START GUIDE
Copyright © 2020 for ImpediMed®
LBL-503-US Rev F
2
Bottom Plate
Rear View
Front View
Bottom Front View
Blue Insert (Front)
Blue
Insert
(Front)

....................................................................................
Attach the SOZOtouch (2) to
the handplate (3).
Place the SOZOtouch onto the
mounting screws and push forward
to lock into place.
Attach the SOZOconnect
cable (7) to the
SOZOtouch (2).
Attach the SOZOconnect
cable (7) to the
SOZOstep (4).
Attach the SOZOstep (4) to the footplate (5).
a. Place the SOZOstep onto the mounting screws
and push forward to lock into place.
Attach the SOZOcradle (8)
to the SOZOtouch (2).
Set-Up Complete.
Once the cradle is secure,
place the tablet (9) in a
landscape position on the
SOZOcradle.
Connect the power cord (6) to the
SOZOstep (4).
*NOTE: Ensure the SOZOconnect cable is plugged
into both the SOZOtouch and SOZOstep before
connecting the power cord to the SOZOstep.
Locate the power supply port on the back of the
SOZOstep. Feed the corresponding end of the
power supply cable through the openings in the
bottom of the stand and connect it into the port.
.................................................
Ensure the screw on the
connector cable is
facing upwards before
attaching it to the
SOZOtouch.
Ensure the screw on the
connector cable is facing
upwards before attaching
it to the SOZOstep.
12
9 10
67
8
11
b. Once the SOZOstep is in place, plug the power
cord into the wall.
*NOTE: Please ensure there is 4 inches or 10 centime-
ters between the backside of SOZOtouch and any wall.
For further instruction on use and operation of the device, see the SOZO Instructions for Use available at www.impedimed.com
