1. Introduction for BP170(B)
2. Operating BP170(B)
A. Preparation for Measurement
B. Blood Pressure Measurement
C. Saving Measurement Results
D. Check the Stored Blood Pressure
3. Storage
4. Frequently Asked Questions (FAQ)
A. Regarding the Measurement
B. Regarding Error
5. Others
A. Safety Information
B. Optional Equipment
C. Safety Information
 D.Classication
 E.Specications
Warranty
4
6
9
13
14
15
16
19
20
24
24
24
25
User’s Manual Contents
BP170 / BP170B
Automatic Blood Pressure Monitor

6
1. Introduction for BP170(B)
InBody BP170(B) is a compact and easy-to-use automatic blood pressure monitor.
BP170(B) uses an oscillometric method and adopts downward exhaust type, which measures
blood pressure by exhausting air from the pressurized cuff.
Main users are ordinary people who need regular blood pressure management.
* Product Components
❶Main Body (1EA)
❷Cuff (1EA)
❸AA Size Alkaline Batteries (4EA)
❹User᾿sManual(1EA)
❺Storage Pouch (1EA)
❻Dedicated AC Adaptor
(Optional)
* Names of Main Unit Parts
Storing Button 1
Decrease Button
Storing Button 2
Cuff connection
Increase Button
Start / Stop Button
AC adaptor connection
Rear mount
Battery tray
❶❷
❸❹
❺
❻

7

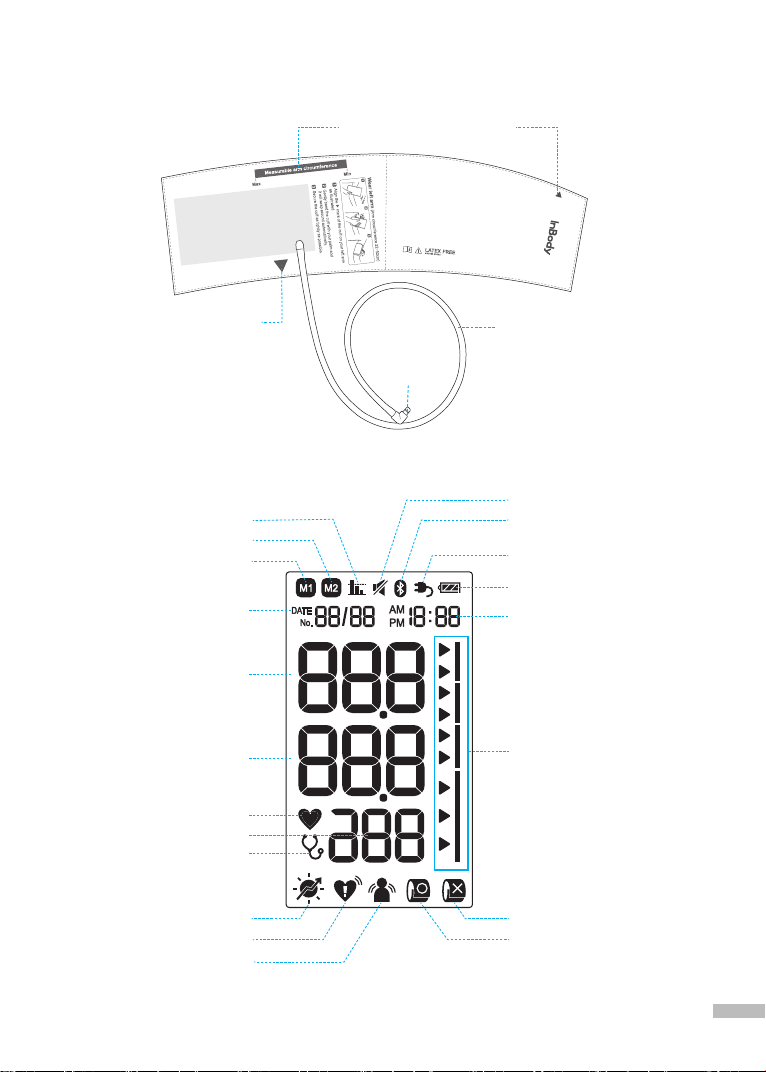

* Names of Cuff Parts
Checking mark for the
available arm circumference
Wearing location mark
Air inlet
(Connection with
main body)
Air tube
* Display Screen Parts Name
Faulty in cuff worn state
Blood pressure state display
Time
Remaining battery indicator
Mute
Bluetooth connection
(Option for BP170B only)
AC adaptor connection indicator
Normal in cuff worn state
Systolic Blood Pressure
Date
Diastolic Blood Pressure
Storing location 1
Storing location 2
Average blood pressure
Heartbeat detection
Pulse Rate
Manual Pressurization
Morning Surge
Hypertension detection
Irregular heartbeat detection
Movement detection

8
2. Operating BP170(B)
A. Preparation for Measurement
* If BP170(B) has been stored in a hot or cold environment, keep it in a room temperature for
at least one hour.
(1) Inserting / replacing the batteries
❶Remove the battery cover.
❷Insert four(4) AA size batteries in the correct direction.
❸Close the battery cover.
• Be careful with the polarity + and - of the batteries during insertion.
• Dispose the used batteries only in designated location.
• Use 1.5V AA-size alkaline or manganese batteries.
• Use all four(4) batteries of the same company and same model in the time of replacement.
Cautions
-
-
-
: The capacity of the batteries is sufficient.
: The batteries are soon be exhausted.
: The batteries have been completely exhausted.
Please replace with new batteries.
(2) Remaining battery indicator
- User may check the remaining battery level in the upper right corner of the screen
while BP170(B) is in use.
- Battery level is not displayed when the AC adapter is used.
Instead, AC adapter icon ( ) appears.
Instead, AC adapter icon ( ) appears.

9
(3)Use of the dedicated AC adaptor (Optional)
❶Connect the dedicated AC adapter plug to the main body of BP170(B).
❷Connect the dedicated AC adaptor to the outlet.
• When disconnecting the AC adapter, disconnect the AC adapter from the outlet first, and then
disconnect the AC adapter from the main body of BP170(B).
Caution
❶
❷
(4)Mute
Press and buttons at the same time and hold for 2-3 seconds to turn off the sound.
BP170(B) should be turned off when doing so.
Mute Icon

10
(5) Date/Time Setting

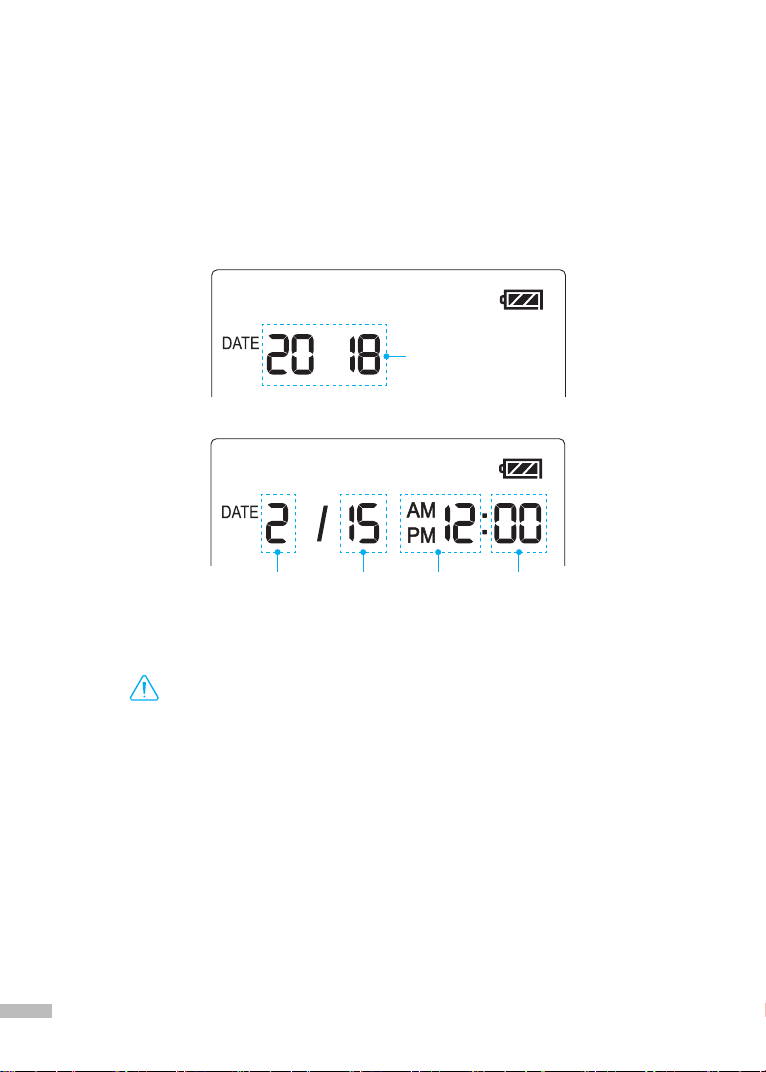

❶Upon the insertion of four(4) batteries or connection with the dedicated AC adapter,
user may set the clock after BP170(B) turns on automatically.
❷The order of time and date is year, month, day, hour followed by minute.
(The number being set flashes.)
❸Usethe▲or▼buttontoselectyear,andpresstheStart/Stopbuttontosettheyear.
❹Repeat step ❸to set month, day and minute.
Month Day Hour
*AM: before noon PM: afternoon
Minute
Year
• For a proper management of your blood pressure data, set the date and time prior to
operating BP170(B).
• If the time is set wrong, Morning Surge Hypertension function may be inaccurate.
• Clock is formatted upon removal of batteries. To reset the clock, remove all four
batteries and insert them again after waiting for 10 seconds.
• For BP170B, clock is automatically set by connecting data through application.
(However, the time of previously measured data cannot be amended.)
Cautions

11
B. Blood pressure Measurement
(1) How to wear one-touch cuff
• If the user is dressed in thick clothes, please take off the clothes. (It is recommended to
measure at bare skin)
• Please sit down on a chair in front of a desk.
• Connect air inlet of the cuff into the main body of BP170(B).
The connection piece is located in the left side of the main body of BP170(B).
• Please wear the cuff in the following order.
• For correct measurement, please wear the cuff properly.
• Blood pressure value may not be accurate if the cuff is too loose.
• M-size cuff is recommended for users with arm circumference between 22 to 32cm.
If your arm circumference exceeds 32cm, please use L-size cuff(optional equipment).
• Blood pressure may be affected by the measuring environment, posture, prior and/or
current physical activity, as well as psychological state of the user. If you feel that your
blood pressure is incorrect, please consult with physician.
Cautions

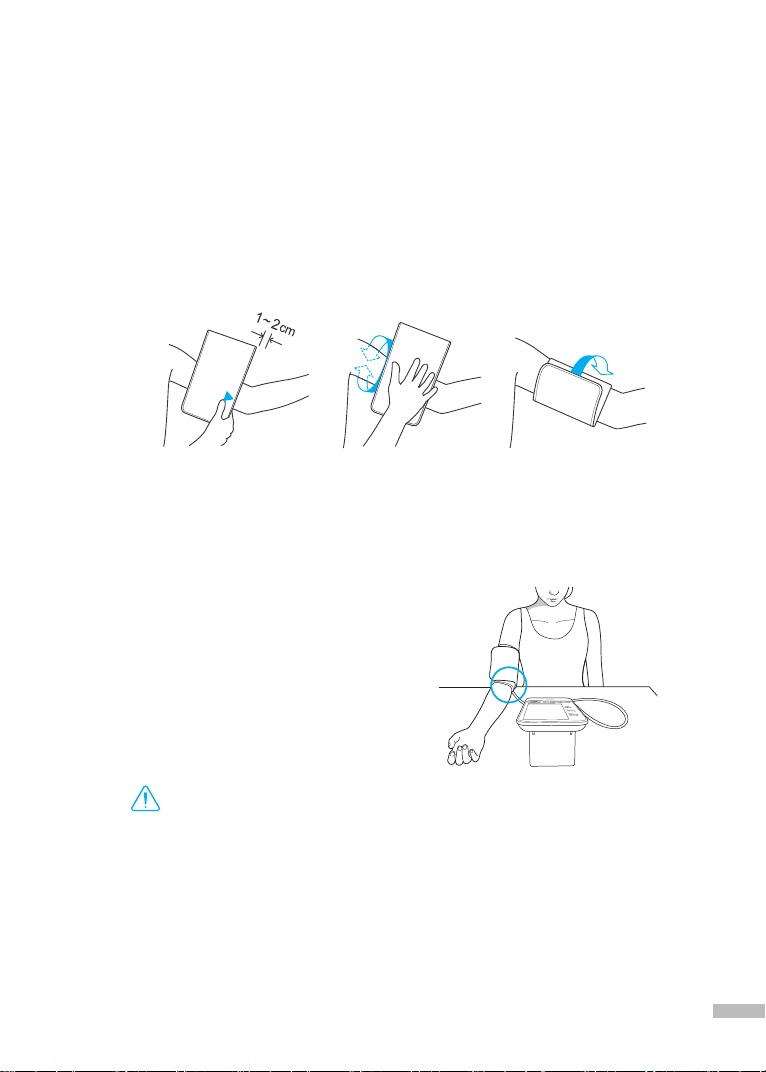

❶Place the ▼mark of the cuff on the left arm as the figure above.
❷Gently bend the cuff with your palm. The cuff will wrap around your arm automatically.
❸Please wind the cuff as tightly as possible.
❶❷ ❸
※Caution for right arm measurement
The cuff should be worn in a way that the Air Tube
is placed on the inner arm.

12

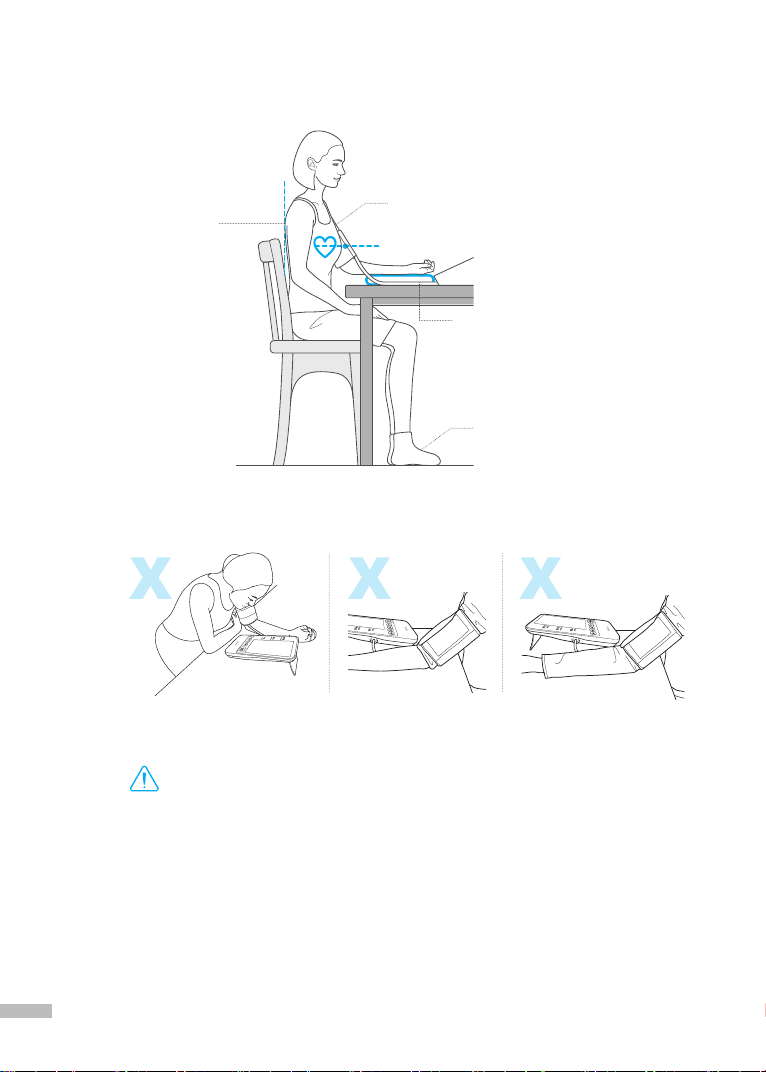

(2) Proper Measurement Posture
(3) Improper Measurement Posture
Bending the upper body Rolling up the sleeve Dressed in thick clothes
• Measurement posture may affect the blood pressure values.
• Please keep the proper measurement posture for accurate measurement.
• If the arm position is too low, place a towel or cushion under the elbow.
• Be in a resting state for at least 5 minutes prior to measurement in order for your body
in a stable state.
Caution
Measure at bare skin or thin clothing.
Cuff should be aligned at the
same height as the user’s heart.
Use a cushion or pillow for correct
alignment.
Back is straight
Put feet on flat the floor without
twisting legs.

13

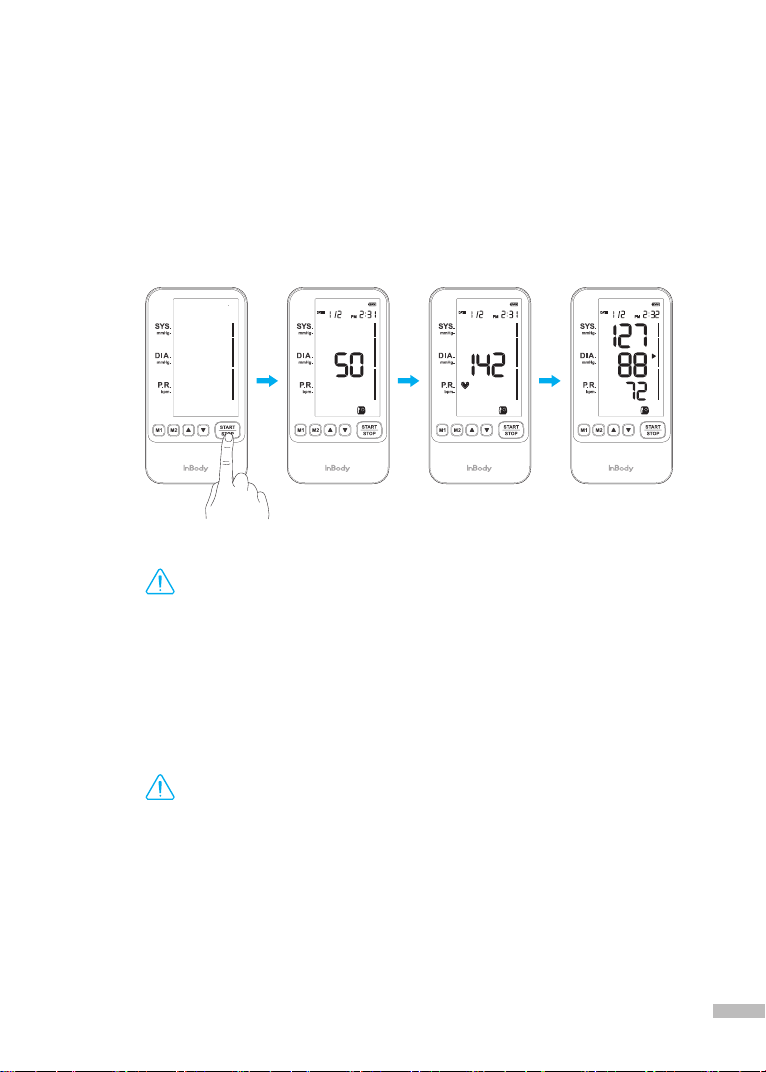

(4) Start Measurement
❶Check once again that the cuff is tight and the measurement posture is proper.
❷Press the Start / Stop button to start the blood pressure measurement.
❸BP170(B) begins to pressurize the cuff, and upon reaching a certain pressure, it slowly
depressurizes to measure the blood pressure.
❹When the measurement is complete, the blood pressure is displayed on the screen.
• Theusercanadjustthepressureasdesiredbypressing▲or▼buttonsduringpressurization.
• Target pressure value during pressurization is displayed in the pulse rate area.
• If you are aware that your systolic blood pressure is 210mmHg or higher, set the target pressure
to be 30-40mmHg higher than your systolic blood pressure.
• If an error number is shown on the screen during measurement (E1 to E7 or Lo) and thus
measurement has failed, please refer to page 19.
Note
• Do not pressurize more than necessary.
• Pain may occur if/when cuff is pressurized too much.
• Do not talk or move during measurement.
• If user is in pain or has any problem during the measurement, press the Start / Stop button.
If pressing the start / stop button does not lead to automatic rapid exhaust, remove the air tube
from the main body of BP170(B) or unwind the cuff on your arm.
Caution
Start Pressurize Depressurize Measurement
completed

14

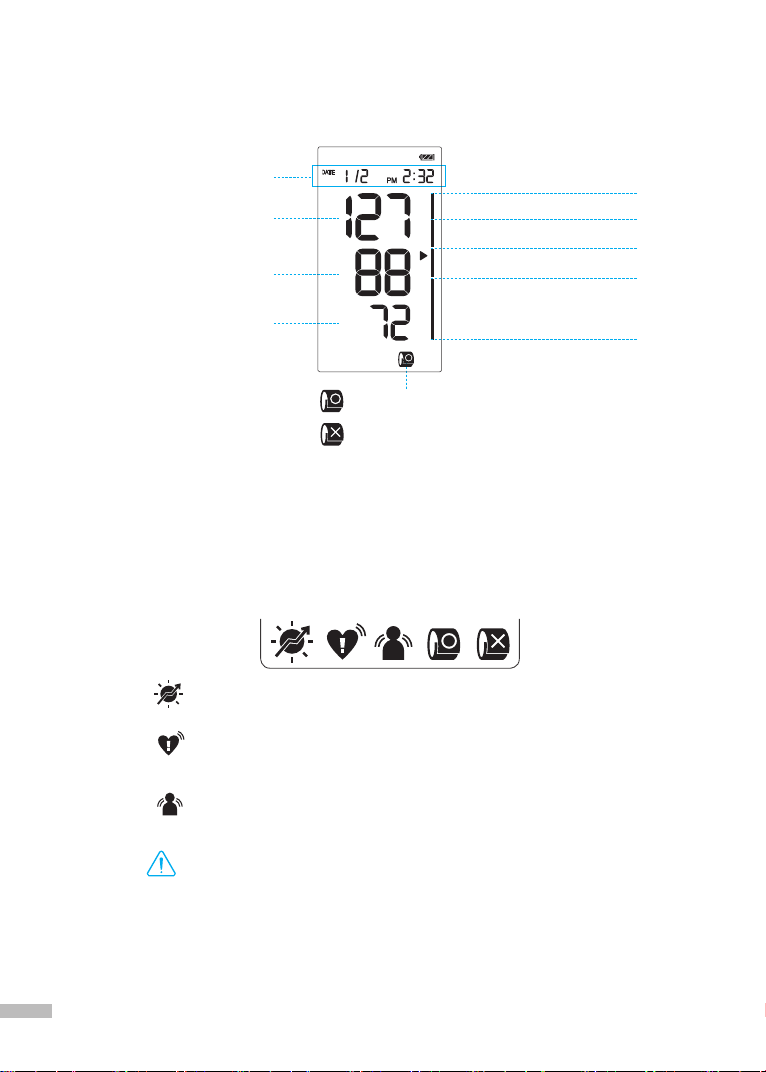

(5) Check the measured values
❶Check the basic information of the blood pressure and proper cuff status.
Measurement date/time
Systolic blood pressure
Diastolic blood pressure
Pulse rate
Red: Stage 2 hypertension
Orange: Stage 1 hypertension
Yellow: Pre-hypertension
Green: Normal
The standard of classification:
National Institutes of Health, NIH
The cuff was properly worn.
The cuff was worn too loosely.
Please wear properly and measure again.
In the case of wearing thick clothes, please take them
off before measuring again.
❷Check for Morning Surge Hypertension, Irregular heartbeat and Detected Motion.
The user can know the blood pressure values or peculiar items of the measurement through
icons in the lower part of the blood pressure monitor screen.
Icons will be shown to inform user
Morning Surge Hypertension:
High blood pressure in the morning.
Irregular heartbeat detection:
Irregular heartbeat was detected. Please measure again. If Irregular Heart Beat Icon
shows continuously, check the average blood pressure value of three measurements.
Motion detection:
Motion was detected during the measurement. Please measure again.

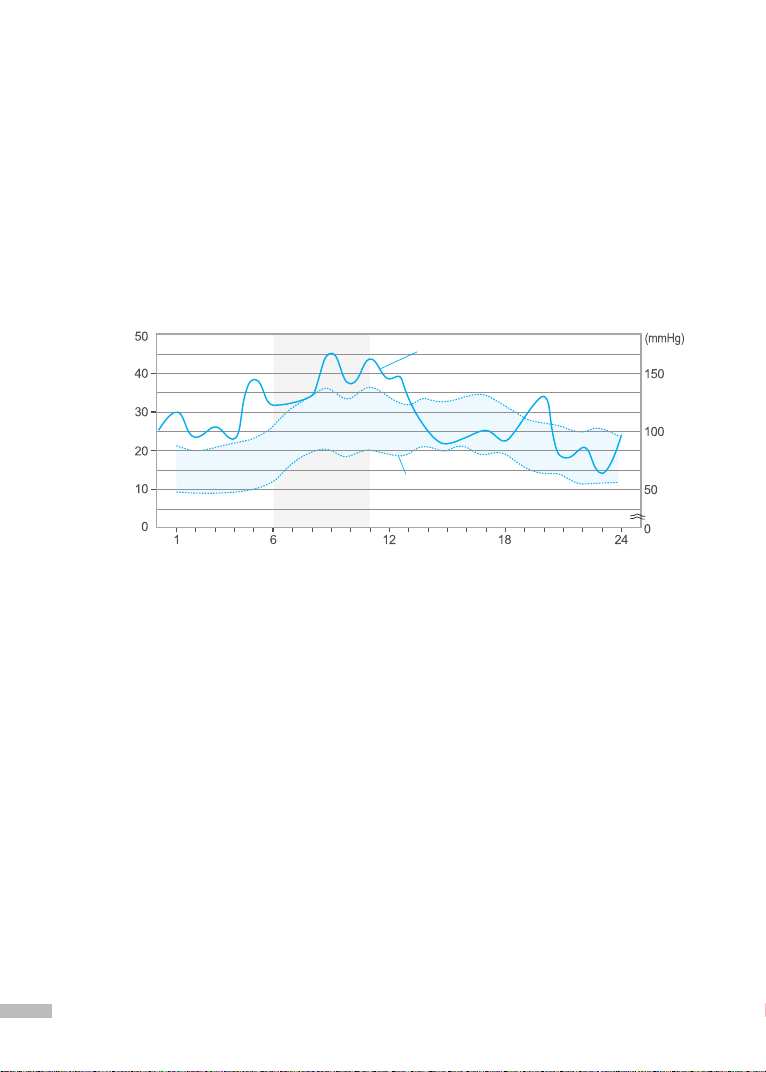

• Morning Surge Hypertension is detected when measured between 4a.m. and 10a.m.,
having systolic blood pressure over 135mmHg and/or diastolic pressure over 85mmHg.
• Irregular heartbeat is detected when there is a difference in the pulse of more than 25%
of the reference pulse compared.
• Irregular heartbeat may be detected by physical movement during measurement.
Notes

15
C. Saving Measurement Results

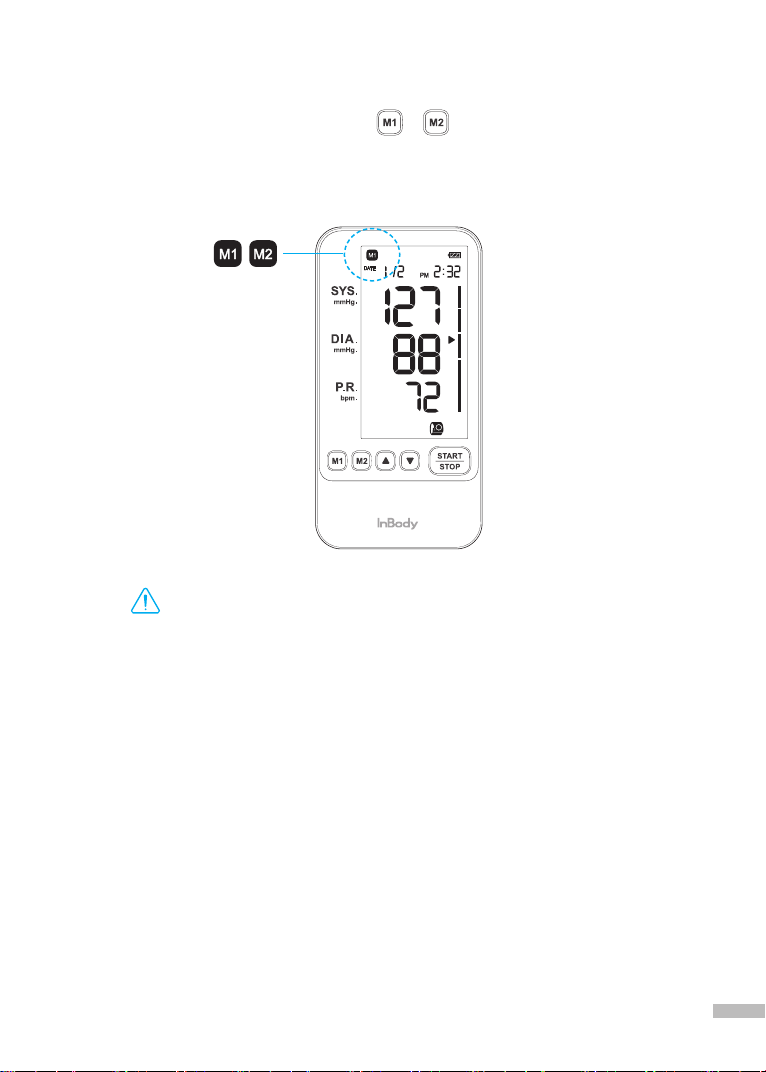

(1)When measurement is finished, press or button to save the results in the
corresponding location. The button pressed will be shown as an icon on the top row of
the screen.
(2)Press the Start / Stop button to save and BP170(B) will be turned off automatically.
• M1 and M2 can each store up to 100 measurement values. Oldest data will be automatically
deleted for saving of measured value over 100 times.
• BP170(B) will be turned off automatically if idle for one minute after the last measurement.
• BP170B provides Health Device Profile function. BP170B can save the measured blood
pressure values using the compatible application.
Notes

16
: Go to past measured values
: Go to recent measured values
D. Check the stored blood pressure
(1) Have BP170(B) turned off and press or button to check the blood pressure results
stored in the corresponding location.
(2) The average blood pressure for the last three times is displayed. press or button
to check the stored results.
Average Blood Pressure Icon
Display Stored Blood PressureDisplay Average Blood Pressure
• Deleting blood pressure measurement result from memory.
- In order to delete the result, press the save button (M1 or M2) and the Start / Stop button at
the same time and hold for 3 seconds.
- All records in the corresponding storage space (M1 or M2) will be deleted.
• The average blood pressure will not be displayed if the number of stored measurement is
less than three.
Notes

17
3. Storage
(1) Always maintain BP170(B) in a clean state.
(2) Use a smooth, lint-free cloth when removing any stain on the main body.
(3) Unfold the one-touch cuff and put it in a storage pouch with the main body.
In order to store or transport BP170(B) safely, the following criteria must be fulfilled.
Temperatures range -10to70˚C
Relative humidity 10 to 90% RH (No Condensation)
Atmospheric pressure range 50 to 106 kPa
• Do not store the tube with the tube bent or folded severely.
• Do not place any object on BP170(B). Keep away from water, damp environment, direct ray
of light, dust, bleach, eroding gas, etc. during storage.
• Do not store in a place subject to vibration or impact.
• Do not use volatile liquids, benzene thinner, etc. when cleaning the main body or cuff.
• Cuffs cannot be washed. Keep cuff away from water.
• Do not bend or press cuff with force. Cuff may be damaged.
Cautions
• Hold both sides of the one-touch
cuff and stretch them to the opposite
direction of the winding direction.
Note

18
4. Frequently Asked Questions (FAQ)
A. Regarding the Measurement
This section has collected frequently asked questions regarding BP170(B).
Please contact the InBody Customer Center if the user has any questions after checking the
information below.
Question 1. The blood pressure values are different per every measurement.
Answer 1.Bloodpressureuctuatesevenwithinadayasshowninthechartabove.
For the appropriate blood pressure management, measure at the same time daily.
Answer 2. Blood pressure may change as following cases
• Within 1 hour after meals
• After drinking alcohol or taking caffeinated beverage such as coffee or black tea.
• After smocking
• After taking a bath
• After exercising
• After urination and defecation
• When talking during the measurement
• When being anxious or not relaxed
• When the place of measurement is different from usual
Reference: New England journal of medicine Vol. 313.
No. 21 1315p to 1337p 0028-4793 SCI(E)
Number of
patients
Blood pressure
values
Fluctuation of blood pressure during the day
N=5 (Normal Blood Pressure)
Time zone in incidence of myocardial infarction
N=703
(people)
(hour)

19
Question 2. Blood pressure is lower than when measured in hospital.
Answer 1. Due to mental and psychological stability, blood pressure may be lower by
20-30 mmHg than measurement taken in hospital. It is important to be aware of the
blood pressure when taken at home in a stable state.
Answer 2. If the cuff position is is higher than the heart during measurement, the measured
blood pressure value may be shown to be lowered. In such case, place a pillow or
cushion under the measuring arm.
Question 3. Blood pressure is higher than when measured in hospital.
Answer 1. If cuff is too loose during measurement, blood pressure may be measured too high
because the cuff pressure is not transmitted to the pulse. Tighten the cuff so that there is
no gap between the cuff and the measuring arm.
Answer 2. If the cuff position is lower than the heart during measurement, blood pressure may be
heightened. Check the measurement posture once again.
Answer 3. Has user taken antihypertensive drugs (or hypotensive drugs) from hospital? If user
has taken antihypertensive drugs, blood pressure may be heightened as the drug effect
drops down gradually. Please consult with physician.
Question 4. When is a good time to measure blood pressure?
Answer 1. It is recommended to measure blood pressure after waking up and urination but before
breakfast. In case of measuring in the evening, it is recommended to measure blood
pressure before sleeping.
Answer 2. It is recommended to measure blood pressure every day at the same time, for changes
in blood pressure may vary from 30 to 50 mmHg throughout the day.
Question 5. Blood pressure values are strange.
Answer 1.Incaseofseverearrhythmia,itisdifculttohaveaccuratemeasurementvalues.
In case of severe arrhythmia, check the average blood pressure value after measuring
at least three times.
Answer 2. Measurement results may be inaccurate if the user moves during the measurement.
Refrain from moving and measure again in the correct posture.
Answer 3. If user is not in a psychologically stable state, the measured values may be inaccurate.

20
Question 6. Exhaust is too fast.
Answer 1. When the cuff is too loose, exhaust may be faster. Please wear the cuff properly,
and measure again.
Question 7. No response when button is pressed.
Answer 1. Check the battery insertion polarity.
Answer 2. This may be the power consumption problem in batteries.
If the battery level is not displayed at the top of the screen, replace them with new ones.
Question 8. Pressurization is lower than systolic blood pressure.
Answer 1. If systolic blood pressure is higher than 210 mmHg, refer to “(3) Start measurement”
on page 11 and pressurize manually.
Question 9. No sound heard from BP170(B).
Answer 1. The buzzer sound of BP170(B) can be turned on or off. Press M1 and
M2 buttons long at the same time.
