inbody BPBIO210 User manual

User’s Manual
BPBIO210/220

Please note the important information below before reading this manual.
Failure to observe these precautions can result in personal injury or equipment damage.
Warning
Caution
Failure to comply with safety precautions can damage the equipment.
Note
Referring to notes can help improve equipment use.
©2019 InBody Co., Ltd. All rights reserved. BM-ENG-K6-A-190812
InBody Co., Ltd. Headquarters [HEAD OFFICE]
InBody Bldg., 625, Eonju-ro, Gangnam-gu, Seoul 06106 KOREA
TEL: [phone]
FAX: [phone]
Website: https://www.inbody.com
E-mail: [e-mail]
©2019 InBody Co., Ltd. All rights reserved.
Reproduction, adaptation, or translation of this manual is prohibited without prior written consent from InBody
Co., Ltd. under the copyright laws. This manual may be printed incorrectly and subject to change without notice.
InBody Co., Ltd. shall not be liable for any errors, incidental, or consequential damages that occurred by not
complyingwiththecontentoftheUser᾽sManual.
Visit our website (www.inbody.com) to view and download additional information about the BPBIO320/320n.
InBody Co.,Ltd. reserves the right to modify the appearance, specifications, etc. of this product to improve its
quality, without prior notice.

Representative & Sponsor Information
InBody Europe B.V.
Gyroscoopweg 122, 1042 AZ, Amsterdam, The Netherlands
TEL: [phone] FAX: [phone] Website: https://nl.inbody.com E-mail: [email protected]
Australian Sponsor. [AUSTRALIA]
Emergo AUSTRALIA. Level 20, Tower II, Darling Park, 201 Sussex Street, Sydney, NSW 2000, AUSTRALIA
TEL: [phone] FAX: [phone] Website: https://www.emergogroup.com E-mail: [email protected]
Customer Service Information
InBody [USA]
13850 Cerritos Corporate Dr., Unit C, Cerritos, CA 90703, USA
TEL: [phone] FAX : [phone] Website: https://inbodyusa.com E-mail: [email protected]
InBody Japan Inc. [JAPAN]
Tani Bldg., 1-28-6, Kameido, Koto-ku, Tokyo 136-0071 JAPAN
TEL: [phone] FAX : [phone] Website: https://www.inbody.co.jp E-mail: [e-mail]
InBody China. [CHINA]
904, Xing Di Plaza, No. 1698 Yishan Road, Shanghai, 201103, CHINA
TEL: [phone] FAX : [phone] Website: https://inbodychina.com E-mail: [email protected]
InBody India. [INDIA]
Unit No. G-B 10, Ground Floor, Art Guild House, Phoenix Market City, L.B.S. Marg, Kurla (West), Mumbai – 400070, India.
TEL: [phone] FAX: [phone] Website: http://www.inbody.in E-mail: [e-mail]
InBody Asia. [ASIA]
Unit 3A-11, Oval Damansara, 685 Jalan Damansara Kuala Lumpur, WP KL, Malaysia 60000
TEL: [phone] FAX: [phone] Website: https://inbodyasia.com E-mail: [email protected]

User’s Manual Contents
BPBIO210/220
1. BPBIO210
I. Product Installation
A. Product Components and 4
External Appearance
B. Installation Environment 7
C. Installation Instructions 7
D. Features and Functions 10
II. Blood Pressure Measurement
A. Precautions before Measurement 11
B. Measurement Instructions 11
C. Storage 15
2. BPBIO220
I. Product Installation
A. Product Components and 16
External Appearance
B. Installation Environment 19
C. Installation Instructions 19
D. Features and Functions 22
II. Blood Pressure Measurement
A. Precautions before Measurement 23
B. Measurement Instructions 23
C. Storage 27
3. BPBIO210/220 Common
I. FAQ
A. Error code 56
B. Regarding the Equipment 56
II. Others
A. Optional Equipment 57
B. Safety Information 57
 C.ProductClassication 59
 D.ProductSpecications 59
E. EMC environment guidance 60

6
1. BPBIO210
I. Product Installation
A. Product Components and External Appearance
BPBIO210 can be used by medical professionals to check patient's blood pressure by using
the auscultation method with stethoscope and pressure indicator bar displayed on the LCD.
The back-light function on the LCD enables blood pressure monitoring even in a dark
environment.

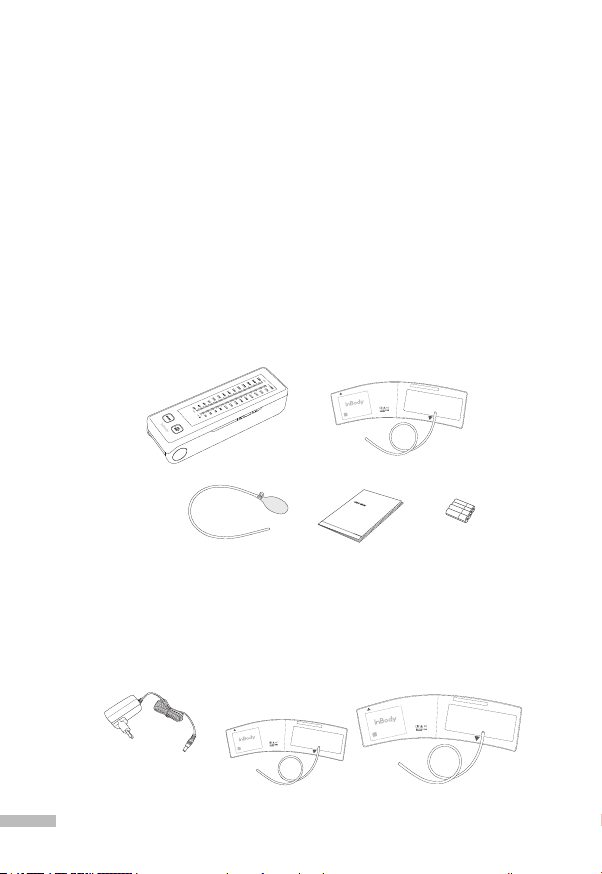

*Basic Components
❶Main Unit (1EA)
❷M-Size Cuff (1 EA) - Arm Circumference of 22-32cm
❸Air Bulb Unit (1 EA)
❹User's Manual (1 EA)
❺AA-Size Alkaline Batteries (4EA)
ARTERY
M
22~32(cm), 9~13(inch)
RANGE
MIN MAX
BPBIO210/220/210T/220T
❷
ARTERY
M
22~32(cm), 9~13(inch)
RANGE
MIN MAX
BPBIO210/220/210T/220T
❹
ARTERY
M
22~32(cm), 9~13(inch)
RANGE
MIN MAX
BPBIO210/220/210T/220T
❺
ARTERY
M
22~32(cm), 9~13(inch)
RANGE
MIN MAX
BPBIO210/220/210T/220T
❸
ARTERY
M
22~32(cm), 9~13(inch)
RANGE
MIN MAX
BPBIO210/220/210T/220T
❶
*Optional Components
❻Dedicated AC Adapter
- Input Power: AC 100-240V, 50/60Hz, 0.5A
- Output Power: DC 6.0V, 2.0A
❼S, L size Cuffs (S: Suitable for arm circumference between 17-22cm, L: Suitable for arm
circumference between 32-42cm)
❻
ARTERY
L
32~42(cm), 13~17(inch)
RANGE
MIN MAX
ARTERY
S
17~22(cm), 7~9(inch)
RANGE
MIN MAX
❼
[L]
ARTERY
L
32~42(cm), 13~17(inch)
RANGE
MIN MAX
ARTERY
S
17~22(cm),7~9(inch)
RANGE
MIN MAX
[S]
ARTERY
L
32~42(cm), 13~17(inch)
RANGE
MIN MAX
ARTERY
S
17~22(cm),7~9(inch)
RANGE
MIN MAX

7

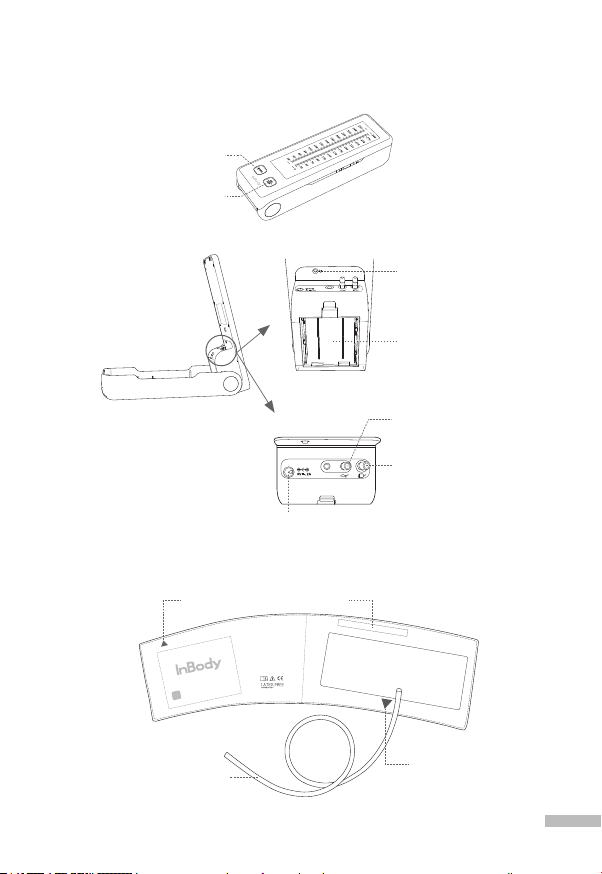

*Main Unit Parts
Backlight Button
Battery Insertion
Dedicated AC Adapter Connection
Air Bulb Tube Connection
Cuff Tube Connection
ARTERY
M
22~32(cm), 9~13(inch)
RANGE
MIN MAX
BPBIO210/220/210T/220T
'MARK' Button
On / Off Button
*Cuff Parts
ARTERY
M
22~32(cm), 9~13(inch)
RANGE
MIN MAX
BPBIO210/220/210T/220T
Wearable Arm Circumference Indicator
Cuff Tube
Arterial Location When Worn

8

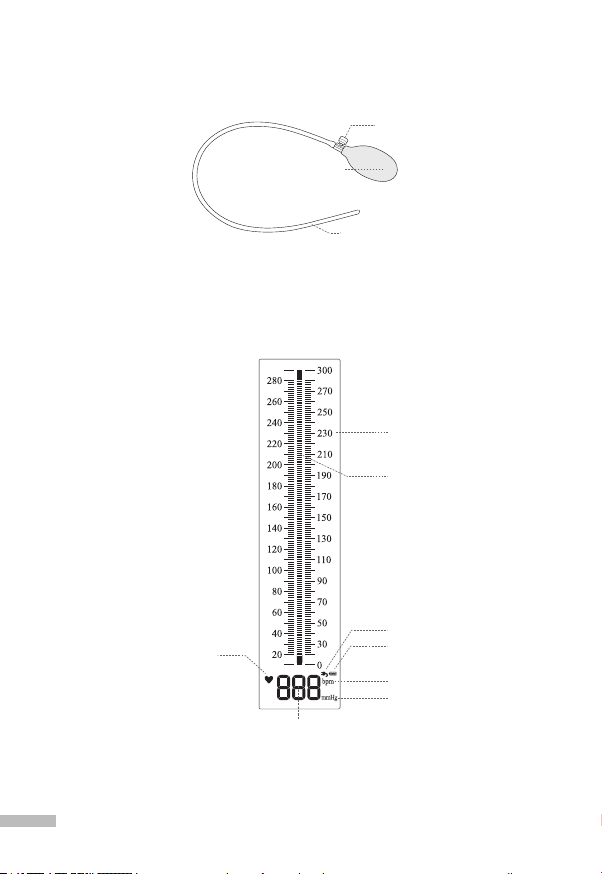

Exhaust Valve
Air Bulb
Air Bulb Tube
*Air Bulb Unit Parts

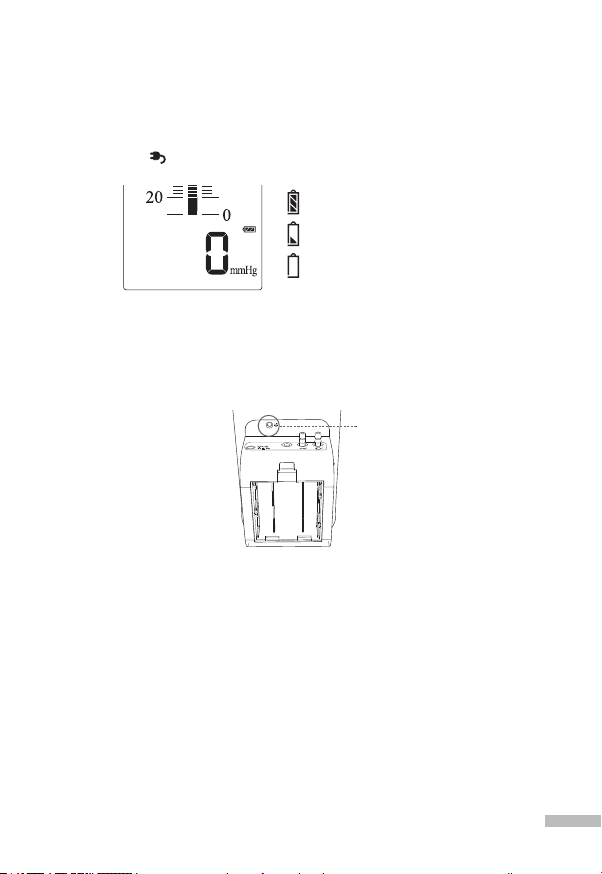

*Display Parts
Pressure Guide
Unit for Pulse Rate
Unit for Pressure
Pressure Display Bar
AC Adapter Indicator
Pulse Icon Battery Level Indicator
Pressure/Pulse Value

9
B. Installation Environment
Check for proper surrounding environment before installing BPBIO210.
 Thefollowingrequirementsmustbefullledifbeinginstalledintheoutdoors.
Temperatures range 10 ~ 40 ˚C
Relative humidity 30 ~ 85% RH
Atmospheric pressure range 70 ~ 106kPa
• Do not inflict excssive force when opening BPBIO210.
• The Main Unit of BPBIO210 cannot be bent over a certain angle. Opening BPBIO210 with
excessive force may incur a damage to the device.
Caution
C. Installation Instructions
(1) Unboxing BPBIO210
After opening BPBIO210 from the box package, take it out from the air cap buffer and
the vinyl package. Open BP210 and take out the Cuff and Air Bulb from the vinyl package.
Packing box
BPBIO210
Buffer
Vinyl Package
Cuff and Air Bulb Unit

10

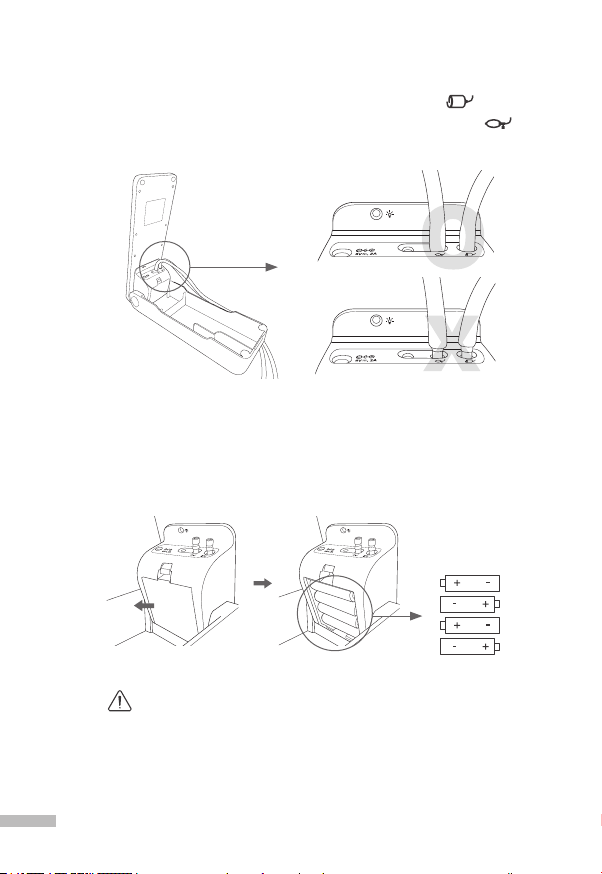

(2) Connecting Cuff and Air Bulb Unit
1. Plug the Cuff Tube into the Cuff Tube Connection of the Main Unit. ( ).
2. Plug the Air Bulb Tube into the Air Bulb Tube Connection of the Main Unit. ( ).
3. Please plug the tube tightly to the end.
• Use AA sized Alkaline or Manganese batteries.
• Do not mix new and used batteries. Replace all four AA batteries at once when replacing.
• Do not insert batteries with wet hands.
• Make sure that the polarities (+) and (-) are correct.
Warning
(3) Inserting / Replacing Batteries
1. Remove the battery cover.
2. AA sized batteries in the correct direction as indicated below.
3. Close the battery cover.

11
• Remove the batteries from the battery compartment when it will not be is use for long period.
• Dispose used batteries only in designated locations.
• Improper use of batteries may cause degradation of the performance of BPBIO210 and
may cause fire.

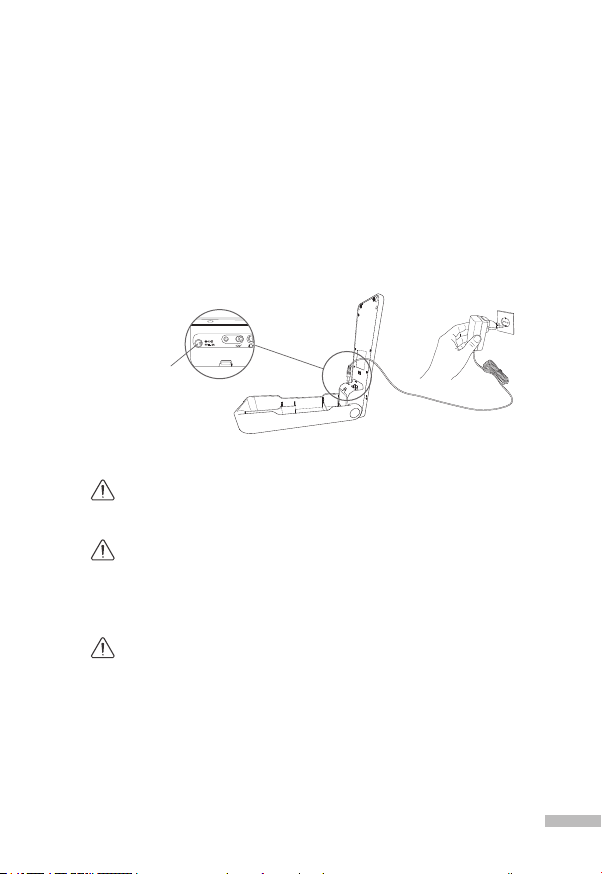

(4) Using a Dedicated AC Adapter (Optional Accessory)
*Input Power: AC 100–240V, 50/60Hz, 0.5A
Output Power: DC 6.0V, 2.0A
1. Connect the dedicated AC Adapter to the Main Unit in the designated port as shown
in the image below
2. Plug in the dedicated AC Adapter to the power outlet.
❶
❷
Dedicated AC Adapter
• Do not connect or disconnect the AC Adapter with wet hands.
• Do not put heavy objects on the AC Adapter cable.
• Do not use the AC Adapter if it is damaged.
Warning
• The dedicated AC Adapter is an optional accessory which can be purchased separately.
Note
• Plug the AC Adapter into the power outlet securely.
• When unplugging the AC Adapter, grasp the body of the adapter and pull out.
• Disconnect the AC Adapter in the sequence of power outlet then the Main Unit.
• Do not apply excessive force to the AC Adapter and the plug.
• Keep the AC Adapter plug away from foreign objects which can cause any kind of damage.
• Use only the AC Adapter provided by InBody.
•
Do not use the dedicated AC adapter for any other purposes other than for the operation of BPBIO210.
Caution

12
D. Features and Functions
(1) Automatic Power Off
• Main Unit will switch off automatically if idle for more than 2 minutes to prevent
battery drain.
• Main Unit will not switch off if connected to the AC Adapter.
(2) Protection from Excessive Pressurization
• If the pressure of the Cuff is pressurized above 320mmHg, it will automatically and
forcedly exhaust the pressure to protect the patient.
(3) Residual Air Detection
• When the power is switched on, 'E1' error code will be displayed on the screen when any
residual air in the cuff is detected.
• Make sure to exhaust all the air in the Cuff before switching on to obtain accurate
measurement.
(4) Heart Rate Measurement
• Measurement of the pulse is conducted when the pressure is over 50mmHg. Heart Rate
is checked only when the pulse is detected more than 5 times.
• When the decompressing is performed too quickly, the heart rate may not be checked.
Decompress at the rate of 2~4mmHg/sec. to detect the pulse.
• The measured pulse is displayed when the pressure decreases to less than 20 mmHg.
• The measured heart rate will be displayed when the pressure is less than 20mmHg.,
“- - -” will be displayed.
(5) Backlight
• The backlight turns on or off automatically depending on the brightness of the surroundings.
• The backlight can be manually operated with the Backlight Button.
• If the backlight is operated manually with the backlight button, the backlight will not turn
on or off automatically. When the product is turned off and on, the backlight automatically
turns on or off again depending on the brightness of the surrounding environment.

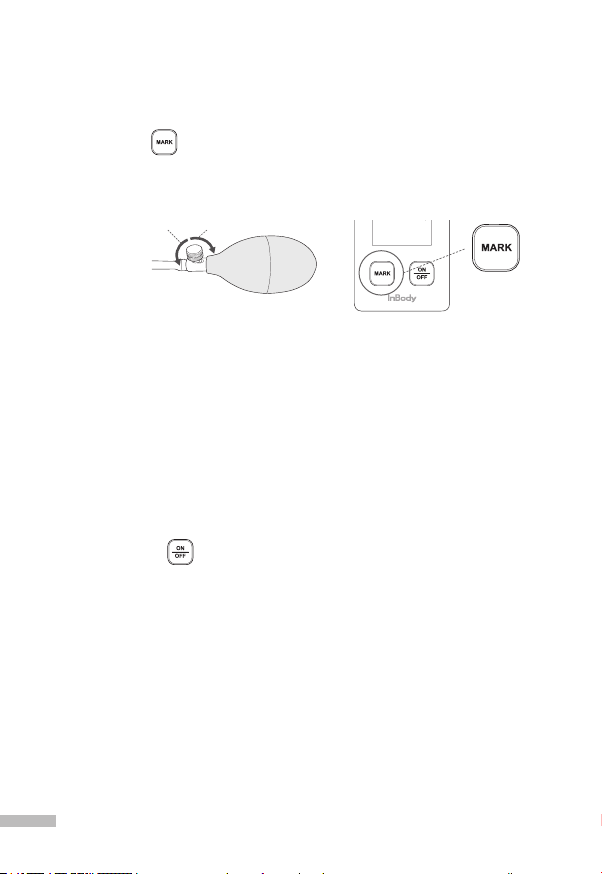

(6) MARK
• MARK function allows to display the measured value on the screen momentarily once the
[MARK] button is pressed.
• Up to five marks can be displayed.

13
Blood Pressure Measurement
A. Precautions Before Measurement
Caution
• BPBIO210 has to be operated by skilled persons who are well trained of the auscultation
method to measure blood pressure.
• Do not operate BPBIO210 which has been unused for a along time under the
  environmentwherethetemperaturewaslessthen10˚Corhigherthen40˚C.
• Do not use BPBIO210 in highly humid area.
• Do not use tBPBIO210 near any equipment which generates strong magnetic fields,
electrostatic, or high frequency.
• Patients with artificial heart or lungs may obtain inaccurate results.
• Do not wrap the Cuff on an injured arm. Injury may worsen or can be infected.
• Do not wrap the Cuff in an arm with the intravenous injection or IV plugged in.
• Please consult a doctor before using the blood pressure monitor if you have any
cardiovascular diseases.
• Do not wrap the Cuff around your neck.
• Do not wrap the Cuff Tube around your neck.
• Do not wrap the Air Bulb Tube around your neck.
Warning
II.
B. Measurement Instructions

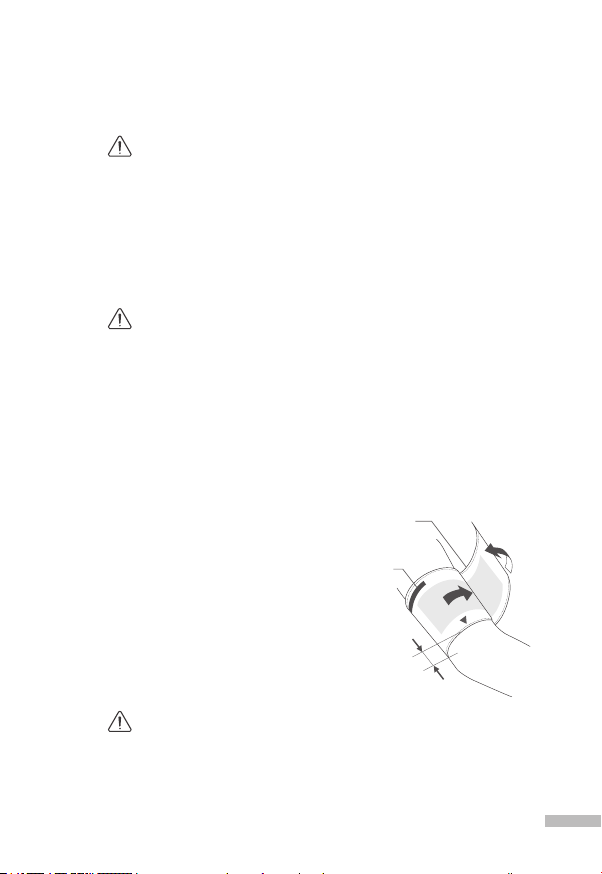

(1) How to wear the Cuff
❶Wrap the cuff around the arm, about 2-3 cm
above the elbow.
❷ Makesurethattheindex(▲)ontheCuffis
within the RANGE bar. Replace the Cuff with
the right size if the INDEX is not within
the RANGE.
❸ PlacetheCuffsothattheARTERY(▼)isat
the proper arterial position.
❹ Do not wrap the Cuff too tightly. Leave a margin
of a finger to get the best result.
ARTERY
INDEX(▲)
RANGE
CUFF
2~3 cm
• The Cuff provided will be M-sized Cuff which is suitable for individuals with an arm circumference
of 22 to 32cm. If the arm circumference exceeds 32cm, use the L-size Cuff. If the arm circumference
is smaller than 22cm, use the S-size Cuff.
• L-size or S-size cuff is sold separately.
Note

14
• The measurement posture may affect the result.
• Be aware of your posture for every measurement.
Caution

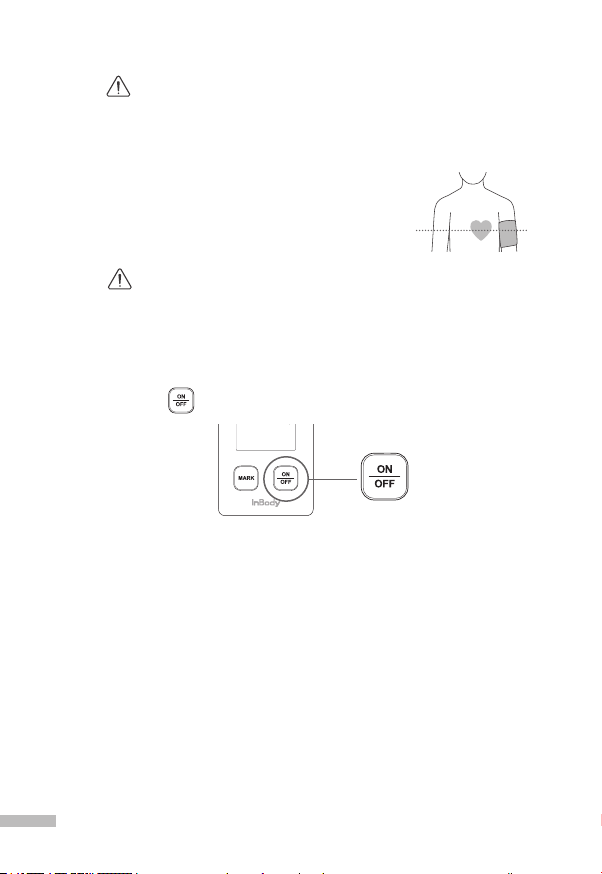

Height of the heart
(2) Proper Measurement Posture
❶ Place the arm so that the center of the Cuff is
leveled with the patient's heart position.
❷ Be relaxed during the measurement.
(3) Turning the Power On
❶ Press the button to turn on the power.
❷ Icons on the screen and backlight are turned on and off with a sound of a beep.
❸ Blood pressure can be measured when the number “0” is is displayed on the screen and
there is no change in the pressure of the cuff. If the pressure of the cuff is not stabilized
within 20 seconds, the error code ‘E1’ will be displayed in the pressure / pulse rate display
column on the screen.
ON / OFF button
• Wear the Cuff properly for accurate measurement.
• If the Cuff is too loose, measurement result may not be accurate.
Caution

15
(4) Checking the Battery Level
❶The remaining Battery level can be checked from the lower right area when the product
is switched on.
❷If the AC Adapter is used, the battery level will not be displayed, but instead, AC Adapter
Icon ( ) will be displayed.
(5) Adjusting the Backlight
❶ The backlight turns on and off automatically depending on the brightness of the surroundings.
❷ Press the backlight button to manually turn the backlight on and off.
(6) Pressurization
❶ Rotate the exhaust valve clockwise to ensure that the valve is fully closed.
❷ Press the Air Bulb repeatedly to pressurize.
❸ The current pressure value is immediately displayed in the pressure bar on the screen in units
of 1 step / 2 mmHg, and is displayed as a number in the Pressure / Pulse Rate Display
on the screen.
❹ Stop pressurization when it reaches the targeted inflation pressure.
* The maximum pressurization can be up to 320mmHg, and if pressurized at a higher rate, it will depressurize
automatically and ‘---’ will be displayed in the Pressure / Pulse Rate Display on the screen.
: The battery level is sufficient.
: The battery level is low.
: The batteries are drained.
Replace with new AA batteries
*Refer to “Inserting / Replacing Batteries” on page 8.
Backlight Button

16
(8) Completing the Measurement
❶When the blood pressure measurement is completed, open the exhaust valve and exhaust
the air compressed in the Cuff completely.
❷ When the pressure drops below 20mmHg, the pulse rate will be displayed in the
Pressure / Pulse Rate Display on the screen.
The pulse rate is measured when the pressure is reduced at a rate of 2 to 4 mmHg/sec.
If the pulse is not detected or unstable, ‘- - -’ is displayed on the screen.
*Please review ‘B. Measurement related - Pulse rate has not been measured’ on page 56.
(9) Turning the Power Off
❶ Press the Button to switch off the power.
(7) Depressurization
❶Rotate the exhaust valve counterclockwise to open the valve. Proceed with blood pressure
measurement at a proper exhaust rate.
❷ If the button on the main body is pressed at a certain pressure value, the pressure
marking will be displayed accordingly.
* The marking can be displayed up to 5 times. When marking more than 5 times, the marking is erased consecutively.
MARK button
Exhaust valve closedExhaust valve open

17
C. Storage
(1) Wipe the stains on the Main Unit with a smooth cloth.
(2) Place the Cuff and Air Bulb unit as shown below.
BPBIO210 should be transported or stored under the following conditions.
Temperature Range − 20~60˚C
Relative Humidity 10 ~ 85% RH (No Condensation)
Atmospheric Pressure Range 50 ~ 106 kPa

18
I. Product Installation
A. Product Components and External Appearance
BPBIO220 can be used by medical professionals to check patient's blood pressure by using
auscultation method with stethoscope and pressure indicator bar displayed on the LCD.
The back-light function on the LCD enables blood pressure monitoring even in a dark
environment.
You may easily control the speed of the exhaust by using the grabbable controller, and mark
the systolic and diastolic blood pressure values on the pressure-bar display.
*Basic Components
❶Main Unit (1EA)
❷M-Size Cuff (1 EA) - Arm Circumference of 22-32cm
❸Controller (1 EA)
❹User Manual (1 EA)
❺AA-size Alkaline Batteries (4EA)
2. BPBIO220
ARTERY
M
22~32(cm), 9~13(inch)
RANGE
MIN MAX
BPBIO210/220/210T/220T
❷
ARTERY
M
22~32(cm), 9~13(inch)
RANGE
MIN MAX
BPBIO210/220/210T/220T
❹
ARTERY
M
22~32(cm), 9~13(inch)
RANGE
MIN MAX
BPBIO210/220/210T/220T
❺
❸
ARTERY
M
22~32(cm), 9~13(inch)
RANGE
MIN MAX
BPBIO210/220/210T/220T
❶
ARTERY
M
22~32(cm), 9~13(inch)
RANGE
MIN MAX
BPBIO210/220/210T/220T
*Optional Components (Sold Separately)
❻Dedicated AC Adapter
- Input Power: AC 100-240V, 50/60Hz, 0.5A
- Output Power: DC 6.0V, 2.0A
❼S and L Size Cuffs (S: Suitable for arm circumference between 32-42cm, L: Suitable for
32 to 42cm of arm circmuference)
❻
ARTERY
L
32~42(cm), 13~17(inch)
RANGE
MIN MAX
ARTERY
S
17~22(cm), 7~9(inch)
RANGE
MIN MAX
❼
[L]
ARTERY
L
32~42(cm), 13~17(inch)
RANGE
MIN MAX
ARTERY
S
17~22(cm),7~9(inch)
RANGE
MIN MAX
[S]
ARTERY
L
32~42(cm), 13~17(inch)
RANGE
MIN MAX
ARTERY
S
17~22(cm),7~9(inch)
RANGE
MIN MAX

19
Dedicated AC Adapter Connection
Controller Tube Connection
Controller 4-Pole Plug Connection
Cuff Tube Connection
*Cuff Parts
*Main Unit Parts
Backlight Button
Battery Insertion
ARTERY
M
22~32(cm), 9~13(inch)
RANGE
MIN MAX
BPBIO210/220/210T/220T
MARK Button
On / Off Button
ARTERY
M
22~32(cm), 9~13(inch)
RANGE
MIN MAX
BPBIO210/220/210T/220T
Cuff Tube
Wearable Arm Circumference Indicator
Artery Indicator When Worn

20
*Controller Parts
*Display Parts
Pressure Guide
Unit for Pulse Rate
Unit for Pressure
Pressure Display Bar
AC Adapter Indicator
Pulse Icon Battery Level Indicator
Pressure/Pulse Value
Exhaust Valve
Air Bulb
Controller Tube
Controller 4-Pole Plug Connector
Wheel Switch
