I.Product Introduction
- This product is a professional automatic blood pressure monitor used by medical professionals.
5 measurement modes can be selected according to various medical environments.
Rechargeable batteries can be used without replacing batteries. The User can measure blood
pressure even in dark environments.
- This blood pressure monitor has cuffs of various size. So, Users can measure the blood pressure
and pulse rate of a children and adult users whose arm circumferences are between 17 cm and 42 cm.
- Do not use this blood pressure monitor on pregnant women and newborn babies.
* Product Components
❶BPBIO250
❷M-sized Cuff
(only for the arm-circumference of 22 to 32 cm)
❸Lithium-ion Battery
(DC 3.63 V, 2600 mAh, 9.438 Wh)
❹Dedicated AC Adapter
(Input power: AC 100-240 V 0.5 A, 50-60Hz
Output power: DC 6.0 V, 2.0 A)
❺User’s Manual
* Optional Components
❻Stand
❼S and L sized Cuff
(S: 17-22 cm only, L: 32-42 cm only)
❽AA Batteries
(1.5 V, 4 EA)
❻ ❼
❽
❷
❶
❸
❹
❺

7

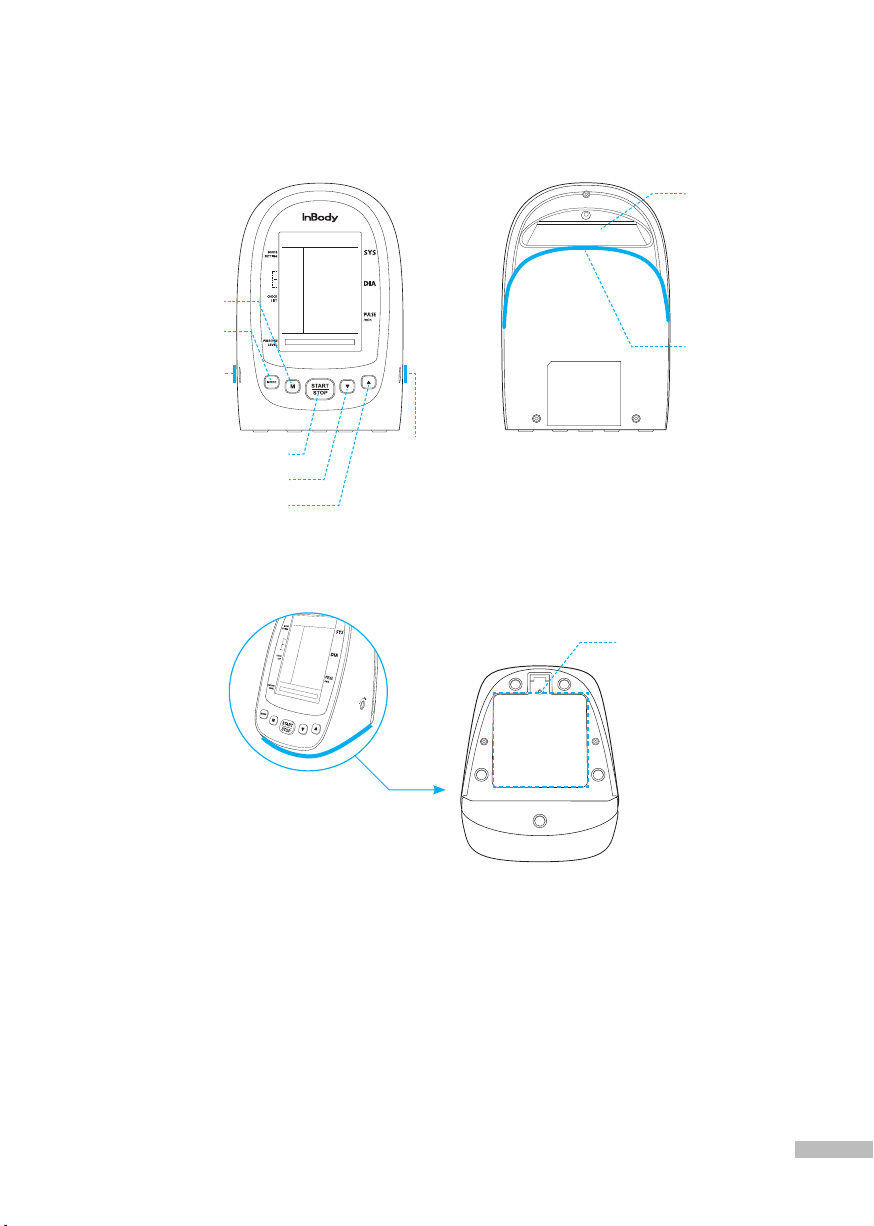

* Main Unit Parts
<Front>
AC Adapter
Connection
[START/STOP] Button
[▼] Button
[▲] Button
[M] Button
[MODE] Button
Cuff Connection
<Rear>
Cuff Rack
Handle
<Bottom>
Battery Cover

8
* Cuff Parts
Checking mark for the
available Arm Circumference Range Indicator
Artery Indicator When Worn
Air Inlet
(To Cuff Connector)
Cuff Tube
* Display Parts
Sequence Number
Cuff Status Detection
Movement Detection
Irregular Pulse Detection
Pressurization Value
Memory Mode AC Adapter Connection
Bluetooth
Date Time
Mute
Battery Level Indicator
Blood Pressure
Pulse
Pulse Detection
Measurement Mode

9
∙ Makesurethelithium-ionbatteryisinsertedbeforeinstallingtheStand.
∙ TheBracketandsixsetscrewsareenclosedintheStandBox.
∙Pleasechecktheassemblymanualformoredetails.
Note
❶
❷
* Installation for optional stand
∙TheStandcanbeinstalledontheMainUnit.
 ∙VarioussizeCuffcanbestoredintheStandBox.
 ∙TheStandcanbeinstalledinthefollowingsequence.
❶Fix the Main Unit with the bracket.
❷Fix the Bracket with the Stand using four screws.

10
Blood Pressure Measurement Method
A. Non-Invasive Blood Pressure Measurement Principles
Oscillometric method
Blood pressure is a measurement of changes in the pressure on the blood vessels. Blood pressure
can be measured by direct or indirect measurement. This equipment supports indirect
 measurementusingacuff.Thisequipmenttracksandanalyzesthebloodowoscillationsunder
 thepressureusingthecufffromthehighesttothelowestpressureasshownbythegure 
below when the minute pressure speed is determined by the heartbeat. This equipment adopts
oscillometric method using a cuff for blood pressure measurement. It determines the systolic,
 diastolicandaveragepressureonthebasisofthebloodowoscillationsmeasuredthroughthe
 cuff.Thepointwherethemaximumamplitudeofthebloodowoscillationappearedisthe
average pressure, the points where the 70% and 60% amplitudes appeared are the systolic and
the diastolic pressure respectively.
II.
0
60
120
180

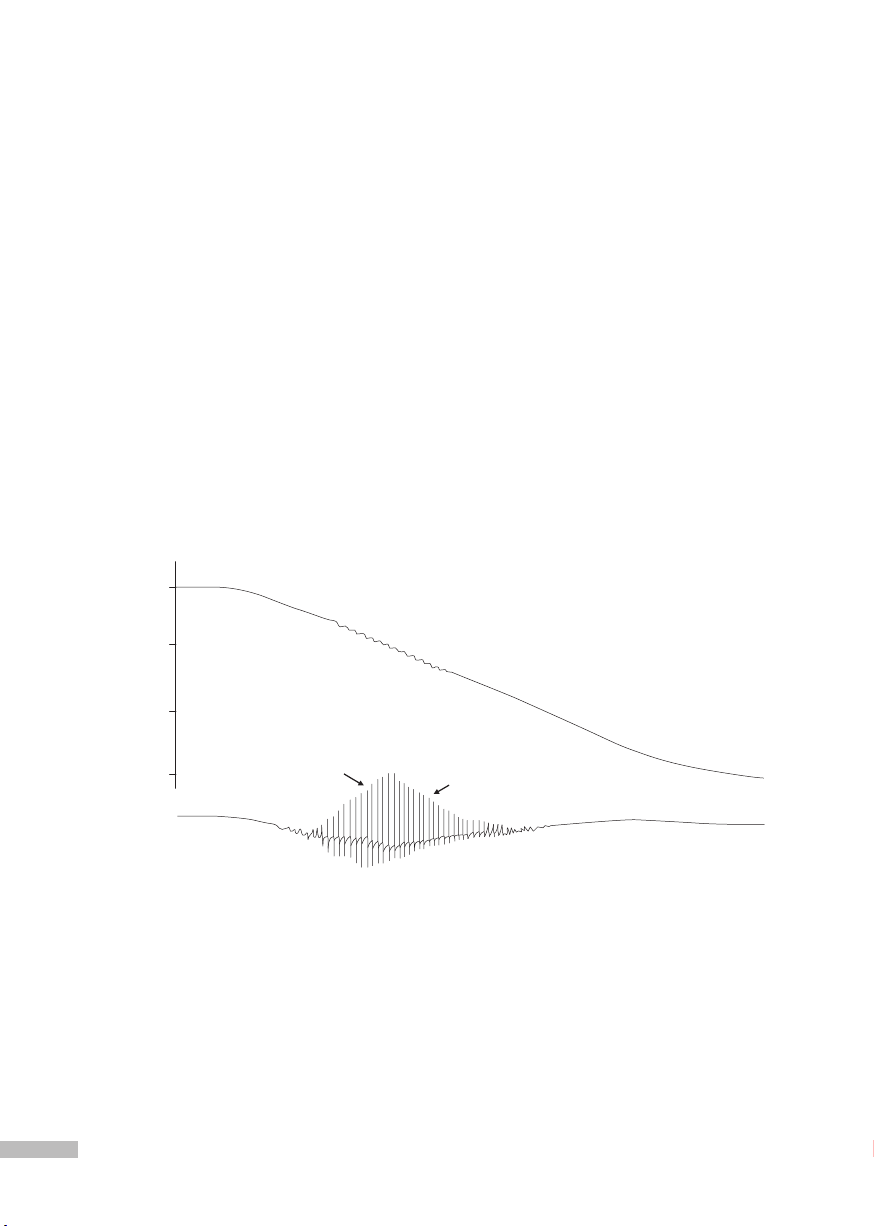

Cuffpressure
(mmHg)
Oscillations in Cuffpressure
Diastolic
Systolic

11
B. Precautions Before Measurement
1. Do not use blood pressure monitor near Magnetic Resonance Imaging (MRI) equipment.
If MRI is to be performed, remove the Cuff from the patient.
2. Do not use the blood pressure monitor near the equipment that generates noise, such as equipments
which uses frequencies or electric scalpel. Otherwise, it may cause failure and malfunction.
3. Do not use blood pressure monitor together with the defibrillator. Otherwise, it may cause
an electric shock.
4. Do not use blood pressure monitor together with the high pressure oxygen therapy equipment.
5. Do not use blood pressure monitor at the same time with other medical devices or electronic
devices.
6. Do not use blood pressure monitor near radios or mobile phone.
7. Do not use blood pressure monitor in an environment where flammable gas is generated
or chemicals are stored.
8. Do not use blood pressure monitor in an environment where there is moisture or risk of
gas or flame.
9. Do not use blood pressure monitor in an unstable environment such as area with vibration
such as an emergency helicopter or an ambulance.
10. Do not use blood pressure monitor for newborns or pregnant women. The measured
value may be incorrect.
11. Sanitize the Cuffs when used in patients with skin disorders.
12. Check the condition of a mastectomy patient if the blood pressure monitor was used.
13. Check the condition of the patient regularly if the patient needs to use the Cuff for a long time.
14. Do not measure blood pressure on the arm that is on intravenous injection, transfusing,
or dialysis.
15. Do not measure blood pressure on the arm attached to a catheter, oxygen saturation
concentration (SpO2) sensor, or other equipments.
16. measured result is thought to be inaccurate due to various factors, check the blood pressure
of the patient by using the facilitation method or the ausculatory method. The patient's
condition may deteriorate.
17. Measured results can only be interpreted by experienced healthcare professionals and
cannot be used for diagnosis, medication or other treatment performed at the consumer’s
discretion without a prescription.
18. Do not connect multiple blood pressure monitors simultaneously on one patient.
19. Do not move the main unit by holding the AC Adapter or Cuff. There is a danger of device
falling to the patient if a cable or cuff is removed from the Main Unit.
Warning

12
20. Do not give strong impact to the main unit. Otherwise, it may cause failure and malfunction.
21. There is a possibility of death due to injury or suffocation if the air tube is wrapped
around the neck.
1. Do not use the blood pressure monitor without wrapping the Cuff on the arm.
2. Do not use or store the blood pressure monitor in an environment where the Cuff and the
Air Tube are pressed by heavy objects or the Cuff and the Air Tube can be pressed.
3. Please note that the cuff and air tube can be damaged by a sharp bite.
4. Excessive repeated measurements may cause temporary internal bleeding (bruising) due to
the compresseion.
5. Take a sufficient amount of resting for at least 5 minutes before taking the measurement.
6. Excessively high or low temperatures, humidity and pressure may affect the operation of the
equipment and may cause malfunction. Use blood pressure monitor within the range
specified in the product specifications.
7. Measured values may be inaccurate in the following cases. Check the following list
before using the device:
- A patient with arrhythmia
- A patient with aortic disease
- A patient with tremor
- A patient using artificial heart or artificial lung
- A patient whose body temperature is significantly low or whose circulation is poor
- When the other equipments are attached to the arm to which the Cuff is wrapped
- When an improperly sized Cuff is wrapped around the arm
- When measuring blood pressure while wearing thick clothes
- When measuring blood pressure with sleeves rolled up
- When talking or moving during the measurement
- When the position of the cuff is lower or higher than the heart
8. Do not use blood pressure monitor in a place where the Main Unit can fall easily.
9. If blood pressure monitor was not used for a long time, always test before use.
10. Do not disassemble or modify the equipment.
11. Use only the dedicated Cuff for accurate measurements.
12. Keep away from children and infants.
13. Stop the measurement immediately when the patient feels severe pain during the
measurement or feels an abnormality.
14. Packing material and other wastes should be disposed according to the relevant
laws and regulations.
Caution

13
15. Repair and inspection can be done only by the authorized staff of InBody Co., Ltd. For
repair and inspection, please contact InBody Co., Ltd.
16. Operation of a radio equipment may interfere with the measurement.
17. Please note the following when using the Bluetooth function of BPBIO250.
- This product is compatible with Android 4.3(Jellybean) with BLE or newer and
iPhone 4S/iOS7 or newer.
- Connect only the devices or programs provided by the InBody.

14
C. Preparation For Measurement
(1) Inserting/replacing lithium-ion battery

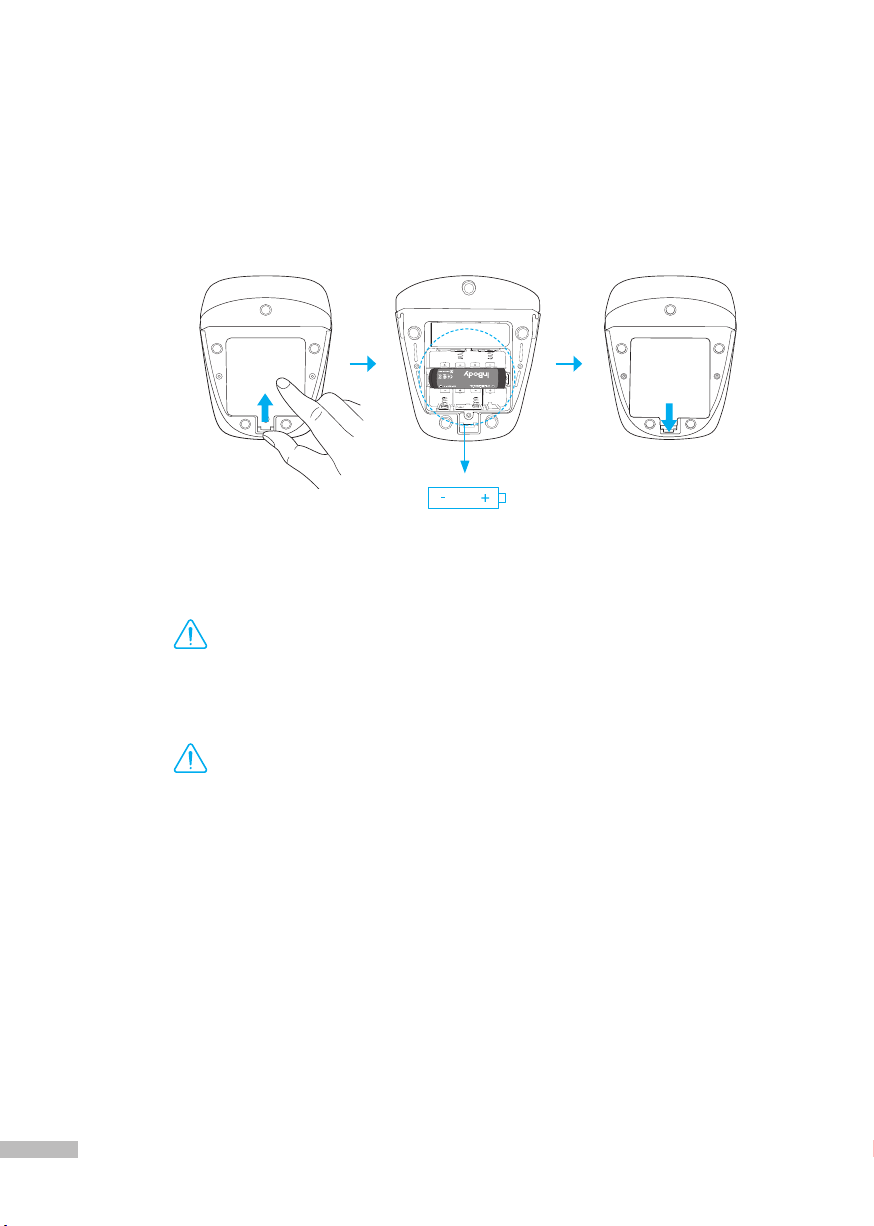

❶Remove the battery cover on the bottom of the product.
❷Insert the lithium-ion battery in the right direction.
❸Close the battery cover.
∙Thelithium-ionbatteryisprovidedasthebasiccomponentofBPBIO250.
AA size battery can also be used if a lithium-ion battery is unavailable.
Note
∙Donotinstallbatterieswithwethands.
∙Makesurethatthepolarities(+)and(-)arecorrectwhenlithium-ionbatteryisinstalled.
∙Useonlydedicatedlithium-ionbatteryforBPBIO250.
∙Usebatteryonlyforthebloodpressuremeasaurments.
∙Removethelithium-ionbatteryfrombatterycompartmentwhenitwillbenotusedforalongtime.
∙Washthoroughlywithrunningwaterifthebatteryfluidgetsonyourskinorclothes.
∙Disposeofthelithium-ionbatteryaccordingtothelocalregulation.
∙Usingawronglithium-ionbatterymaycausethedeviceperformancetodeteriorateor
damage the device and cause a fire.
Caution

15
(2) Inserting/replacing the AA batteries

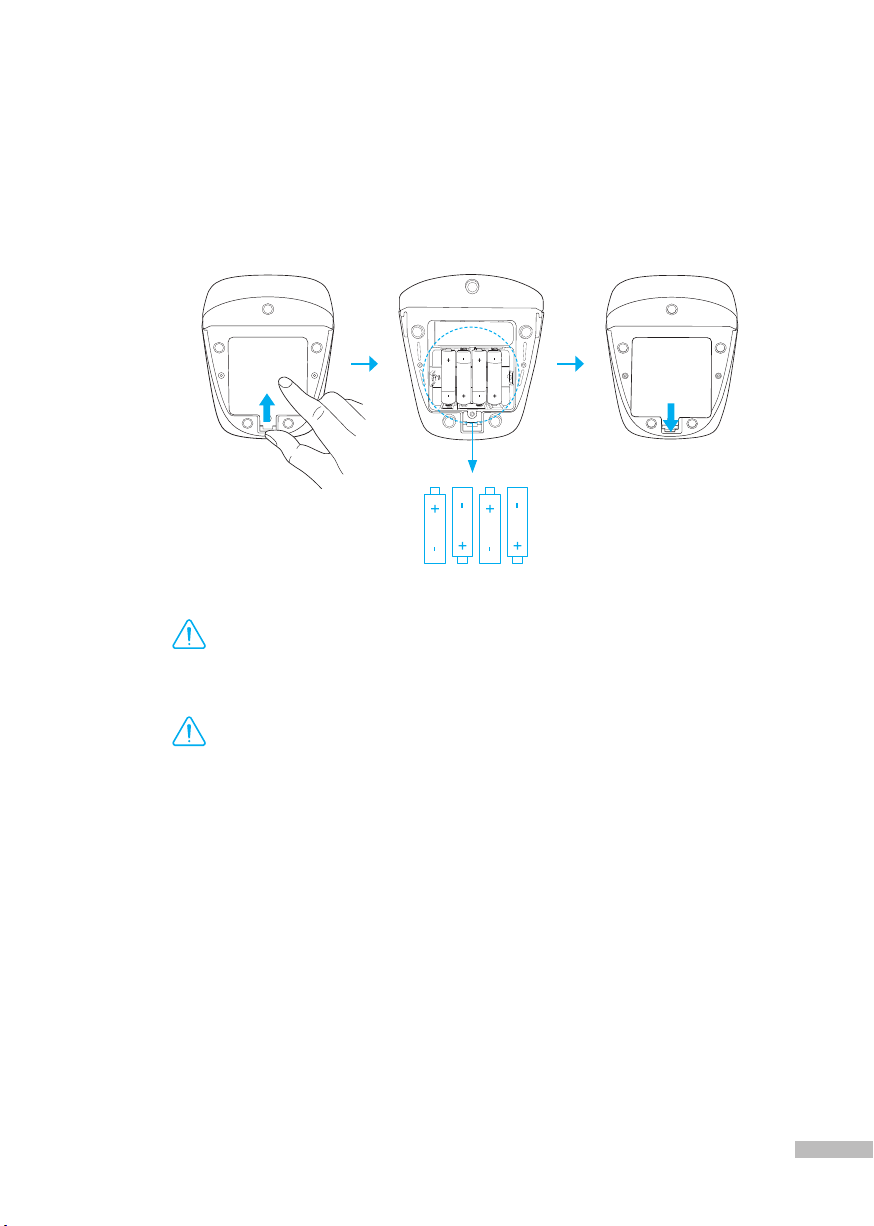

❶Remove the battery cover on the bottom of the product.
❷Insert four AA size batteries in the right direction.
❸Close the battery cover.
∙AAbatteriesandlithium-ionbatteriescannotbeusedatthesametime.
Note
∙Donotinstallbatterieswithwethands.
∙Makesurethatthepolarities(+)and(-)arecorrectwhenbatteriesareinstalled.
∙Use1.5VAA-sizealkalineormanganesebatteries.
∙Donotusenewandusedbatteriestogether.
∙ReplaceallfourAAbatteriesatoncewhenreplacingbatteries.
∙Removethebatteriesfromthebatterycompartmentwhenitwillnotbeuseforlongperiod.
∙Disposeusedbatteriesatdesignatedlocations.
Caution

16
∙DonotconnectordisconnecttheACAdapterwithwethands.
∙DonotputheavyobjectsabovetheACAaptercable.
∙DonotusetheACAdapterifitisdamaged.
Warning
∙PlugtheACAdapterintothewalloutletsecurely.
∙WhenunpluggingtheACAdapter,grasptheadapterbodyandpullitout.
∙DisconnecttheACAdapterinsequencefromwalloutlettoBPBIO250.
∙DonotapplyexcessiveforcetoACAdapterbodyandplug.
∙KeeptheACAdapterConnectorawayfromforeignobjects.
∙UseonlytheACAdapterprovidedbyInBodyCo.,Ltd.
∙Donotuseitforotherpurposesexceptthebloodpressuremeasurement.
∙DonotplacetheBPBIO250inanareawhereitisdifficulttodisconnecttheACAdapter.
Caution
(3) Using the dedicated AC adapter
❶Connect the dedicated AC Adapter Connector to the AC Adapter Connection of
the Main Unit of the blood pressure monitor.
❷Connect the dedicated AC adapter to the power outlet.
Manufacturer XP Power Limited
Model Name VEP15US06-XA1122A
Rated Input: 100-240 V~, 0.5 A, 50/60 Hz Output: 6.0 Vd.c., 2.0 A
Type Class II, Direct Plug-in Type
Approval IEC 60601-1: 2005 + A1: 2012
*AC Adapter’s Specification

17
(4) Connecting cuff
❶Insert the Air Inlet of the Cuff into the Cuff Connection on the Main Unit.
❷Press lightly as shown in A and turn it clock-wist as shown in B to tighten the
connection.
∙Toremovethecuff,presstheairinletofthecuffslightlyinthedirectionofthearrow
A and turn it in the opposite direction of the arrow B.
Note
A
B

18
D. Blood Pressure Measurement
(1) Wearing the Cuff

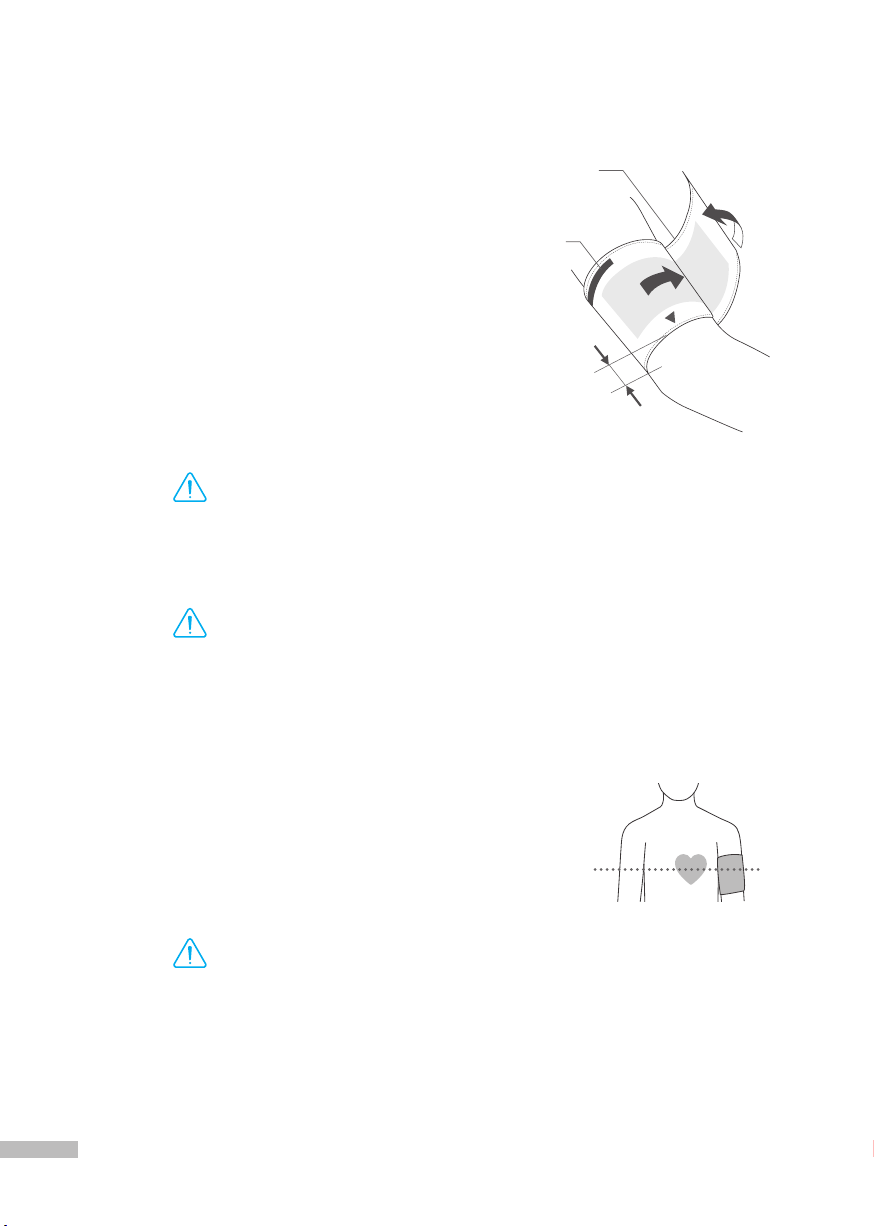

❶ Wrap the Cuff around the arm, about 2-3 cm
above the elbow.
❷MakesurethattheIndex(▲)ontheCuff
is within the RANGE bar, and replace the
cuff with the proper size if the index
deviates from the RANGE.
❸ PlacetheCuffsothattheARTERY(▼)is
on the arterial position.
❹ Slightly loosen the Cuff where you can fit
one finger.
(2) Proper Measurement Posture
❶ Place the left arm so that the middle of the
cuff is at the patient’s heart position.
❷ Please allow the patient to relax in a
comfortable posture.
ARTERY
INDEX(▲)
RANGE
Cuff
2~3cm
∙ThebasicallyprovidedCuffistheM-SizedCuff,anditisfor22to32cminarmcircumference.
If arm circumference is bigger or smaller, use L-sized (32 to 42 cm) or S-sized (17 to 22 cm)
Cuff.
Note
∙Forcorrectmeasurement,wraptheCuffproperly.
∙IftheCuffislooselywrapped,theresultcanbeinaccurate.
If you have a wound in your arm, follow your doctor’s instructions.
Note
∙Themeasurementposturemayaffectthebloodpressuremeasurement.
∙Pleasetakecorrectpostureforaccuratebloodpressuremeasurement.
∙Measurebloodpressurewithyourbackandarmssupported.
∙Wheninseatedposition,keepyourfeetonthegroundwithouttwistingthelegs.
Caution
Height of the Heart

19
(3) Turning the Power On/Off
- The blood pressure monitor will be turned on by pressing any of the five buttons on
the Main Unit.
- The blood pressure monitor will be turned off by pressing and holding the
[START/STOP] button.
- BPBIO250 provides power saving function
If there is no operation within 5 minutes, the blood pressure monitor automatically turns off.
(4) Checking Battery Level
- The battery level can be checked on the upper right corner of the screen when the
machine is switched on.
- If the AC Adapter icon will be displayed instead of the Battery Level Indicator if the
AC Adapter ( ) is plugged in.

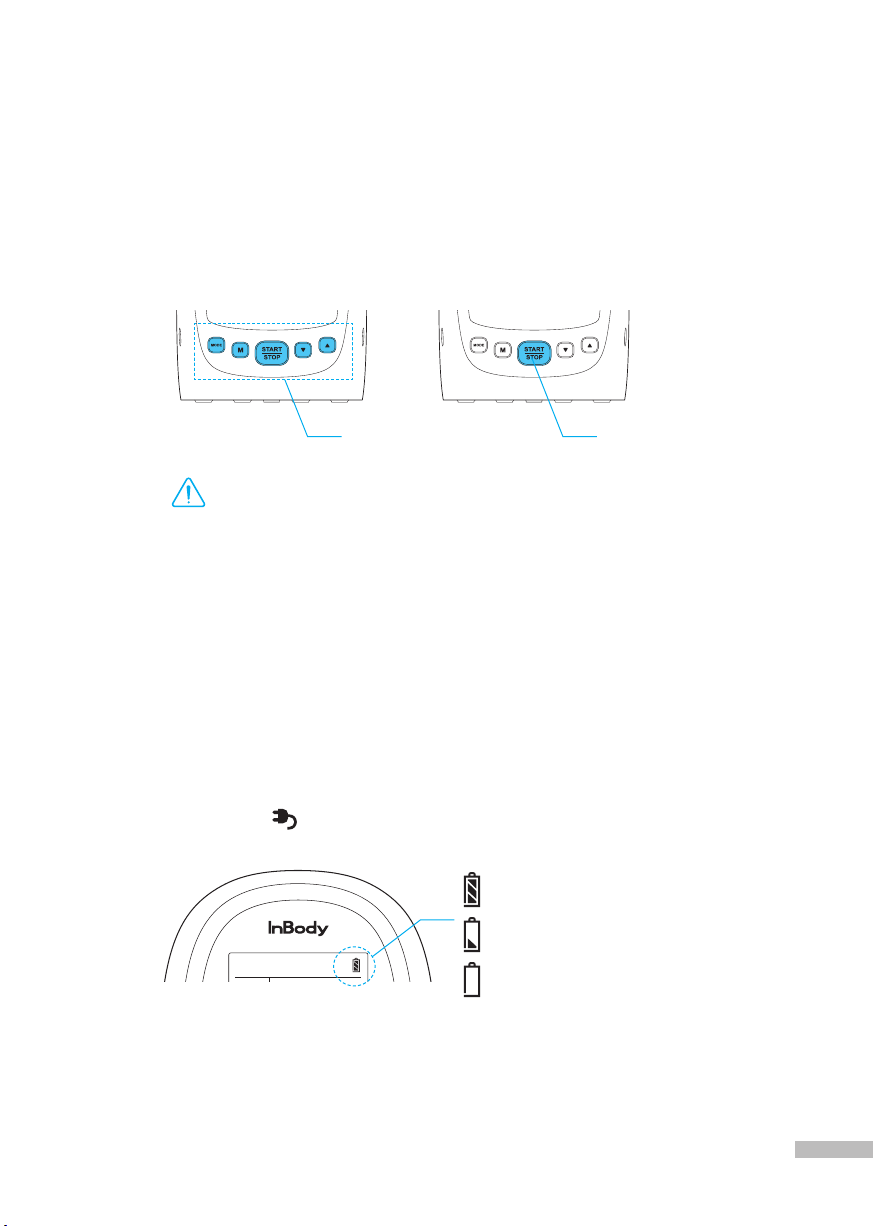

∙Theoperationofthebloodpressuremonitorwillbedifferentdependingonwhichbutton
is pressed to switch on the device.
 [MODE],[▼],[▲]buttons:Turningon→NORMALmodestandbyscreen
 [M]button:TurningON→MEMORYmodescreen
 [START/STOP]button:TurningON→StartingmeasurementinNORMALmode
Note
: The battery level is sufficient.
: The batteries will soon be drained.
: The batteries have been completely
drained. Charge the lithium-ion
batteries or replace with new AA batteries.
The power is turned on by
pressing and holding the button.
The power is turned off by
pressing and holding the button.

20
(5) Charging the Lithium-Ion Batteries
- Lithium-Ion Batteries can be charged with Dedicated AC Adapter.
- When the Lithium-Ion Batteries are drained, charge it (4 hours for full charge)
before using it.
❶ Make sure the Lithium-Ion Batteries are inserted in the Main Unit.
❷ Connect the dedicated AC Adapter Connector to the AC Adapter Connection of the
Main Unit.
❸ Plug the Dedicated AC Adapter to the power outlet.
❹ After a while, the following indication will appear and charging begins.
(6) LCD Backlight
- The LCD backlight function allows the user to measure blood pressure even in dark
conditions.
- The LCD backlight turns on automatically by pressing buttons.
- The LCD backlight turns off after one minute when buttons are not operated.
When Button
is Operated
After one
minute
: The batteries are being charged.
: The batteries are fully charged.
∙ AAbatterieswillnotbechargedevenifthededicatedACAdapterispluggedin.
∙ ChargetheLithium-IonBatteriesonceamonthevenifthebloodpressuremonitorisnot
being used.
Caution
