Mode Selection - FAN ONLY
This selection allows circulation of the air inside the sleeper
compartment.
With the system ON:
Rotate MODE knob (A) to FAN position.
Rotate FAN SPEED knob (C) to set desired fan speed.
NOTE: LED’s will illuminate to represent the selected fan speed.
Mode Selection - HEAT
This selection provides sleeper compartment heat.
With the system ON:
Rotate MODE knob (A) to HEAT position.
Rotate TEMP knob (B) to raise/lower desired temperature.
NOTE: OFF is the default and recommended fan speed setting.
Heated air will be provided by the heater’s internal fan.
AC
A
C
AB
A
B
TK-54482-19-PC (02/10) ©2010 Ingersoll-Rand Company Printed in U.S.A.
Contact your local Thermo King Dealer

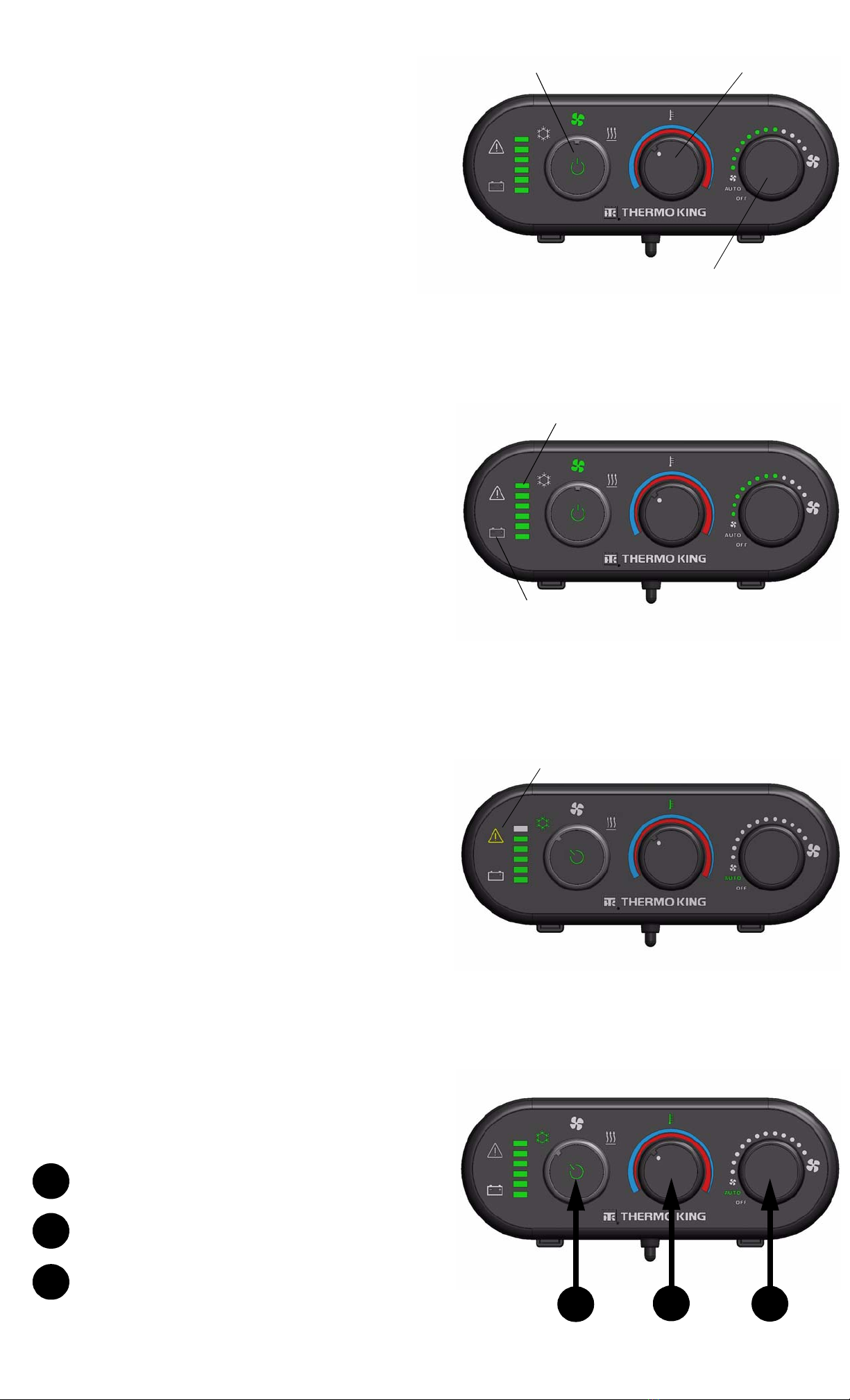

HMI CONTROLLER FUNCTIONS
ON/OFF MODE SELECTION
Press and hold the Mode Selection knob:
•1 second - turns the system ON.
•3 second - turns the system OFF.
NOTE: Pressing the Mode Selection knob quickly for less than 1
second will display the battery level bars, battery icon and alarm icon.
Rotate the Mode Selection knob to choose between COOL, FAN or
HEAT.
TEMPERATURE SELECTION
Rotate the Temperature Selection knob to raise or lower the
temperature.
FAN SPEED SELECTION
Rotate the Fan Speed Selection knob to set desired fan speed.
NOTE: LED’s will illuminate to represent the selected fan speed.
BATTERY LEVEL BARS
When the system is ON, battery level bars will illuminate indicating the
amount of auxiliary battery power available.
The bars will illuminate and continuously scroll from the bottom to the top
while the truck is running and the batteries are charging.
•6 GREEN BARS = 100%
•5 GREEN BARS = 70-90%
•4 GREEN BARS = 50-70%
•3 YELLOW BARS = 30-50%
•2 YELLOW BARS = 15-30%
•1 RED BAR = less than 15%
•NO BARS = no auxiliary battery power available.
BATTERY ICON
When the system is ON:
• The battery icon will illuminate RED when auxiliary battery power has
been depleted and no battery level bars are illuminated.
• The system will automatically turn off.
ALARM ICON
When th e system is ON:
•YELLOW alarm icon indicates a CHECK ALARM code has been set.
The system will still operate when this alarm has been set.
•RED alarm icon indicates a SHUTDOWN alarm code has been set.
The system will shutdown and can not be operated until the alarm has
been cleared.
ADVANCED FEATURES
See your TriPac-e Operators Manual (TK-54621-19-OP) for additional HMI
advanced features and settings for:
• Clearing Alarms
• Changing HMI Brightness
• Enabling Shore Power Charging
Mode Selection - COOL
This selection provides sleeper compartment air conditioning.
With the system ON:
Rotate MODE knob (A) to COOL position.
Rotate TEMP knob (B) to raise/lower desired temperature.
NOTE: LED’s will illuminate to represent the selected fan speed.
ON/OFF and Mode Selection
Fan Speed Selection
Temperature Selection
Battery Icon
Battery Level Bars
Alarm Icon
ABC
A
B
AUTO is the default and recommended fan speed setting for
best temperature and power management. Rotate FAN
SPEED knob (C) if a different fan speed is desired.
C
