L-Series Service Manual
i
Contents
Introduction ................................................................................................................................................................................1
Standard Features*.....................................................................................................................................................................1
Lock Assembly Drawing Index .................................................................................................................................................3
Trim Assemblies ................................................................................................................................................................ 15-34
Single Dummy Trim: L0170 .......................................................................................................................................................15
Double Dummy Trim: L0172......................................................................................................................................................16
L400-Series Deadbolt Trim: L460, L462, L463, L464, L480, L496 ...........................................................................................17
Passage Latch Trim: L9010.......................................................................................................................................................18
Emergency Button x Turn Trim: L9040, LV9040, L9440, LV9440 ..............................................................................................19
Privacy x Turns Both Sides Trim: L9040 x XL11-446, LV9040 x XL11-446...............................................................................20
Coin Turn Outside x Turn Trim: L9044, LV9044, L9444, LV9444 ...............................................................................................21
Cylinder x Turn Trim: L9050, LV9050, L9056, LV9056, L9453, LV9453, L9456, LV9456, L9473 ..............................................22
Double Cylinder Trim: L9060, LV9060, L9071, LV9071, L9077, LV9077, L9082, LV9082, L9457, LV9457,
L9462 x XL11-886, L9466 ........................................................................................................................................................23
Cylinder Outside Trim: L9070, LV9070, L9076, LV9076, L9080, LV9080, L9080EL/EU,
LV9080EL/EU, L9080EL/EU-RX, L9464 x XL11-886, L9465....................................................................................................24
Electrically Locked/Unlocked Both Sides Trim: L9082EL/EU ....................................................................................................25
Active Double Dummy Trim: L9110 x XL11-741........................................................................................................................26
Single Dummy with Case Trim: L9175, L9177 (Discontinued) ..................................................................................................27
Double Dummy with Case Trim: L9176, L9178 (Discontinued).................................................................................................28
L9000-Series Deadbolt Trim: L9460, L9462, L9463, L9464 .....................................................................................................29
Deadbolt with Fixed Double Dummy Trim: L9460 x XL11-635..................................................................................................30
Fixed Outside x Turn Trim: L9460 x XL11-886, L9480, LV9480, L9485, LV9485 ......................................................................31
Institution Deadbolt Trim: L9482 x XL11-543, LV9482 x XL11-543...........................................................................................32
Prison Lock Trim: L9485 x XL11-557 ........................................................................................................................................33
Hotel with Indicator Trim: L9486, LV9486, L9486 x L583-375, LV9486 x L583-375, L9496, LV9496........................................34

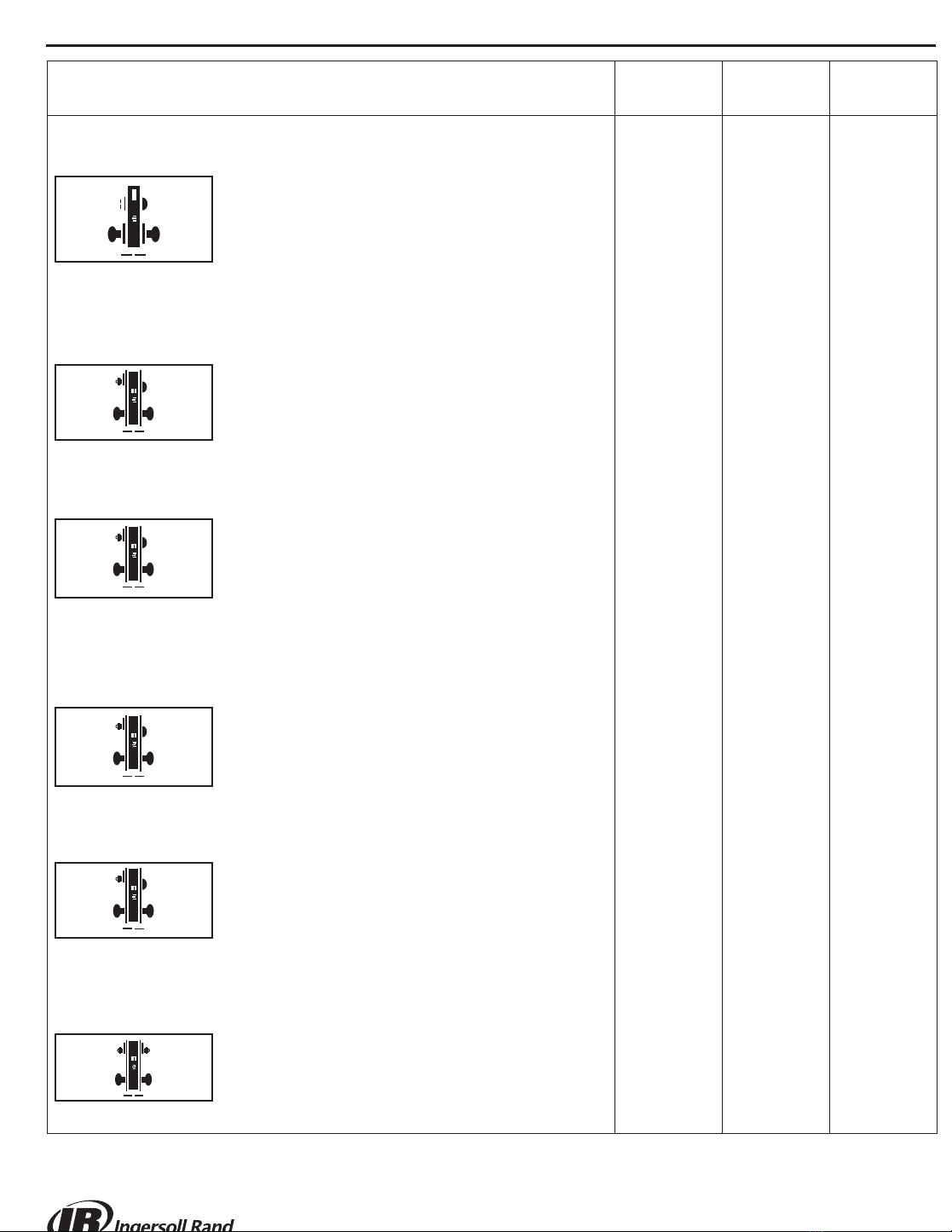

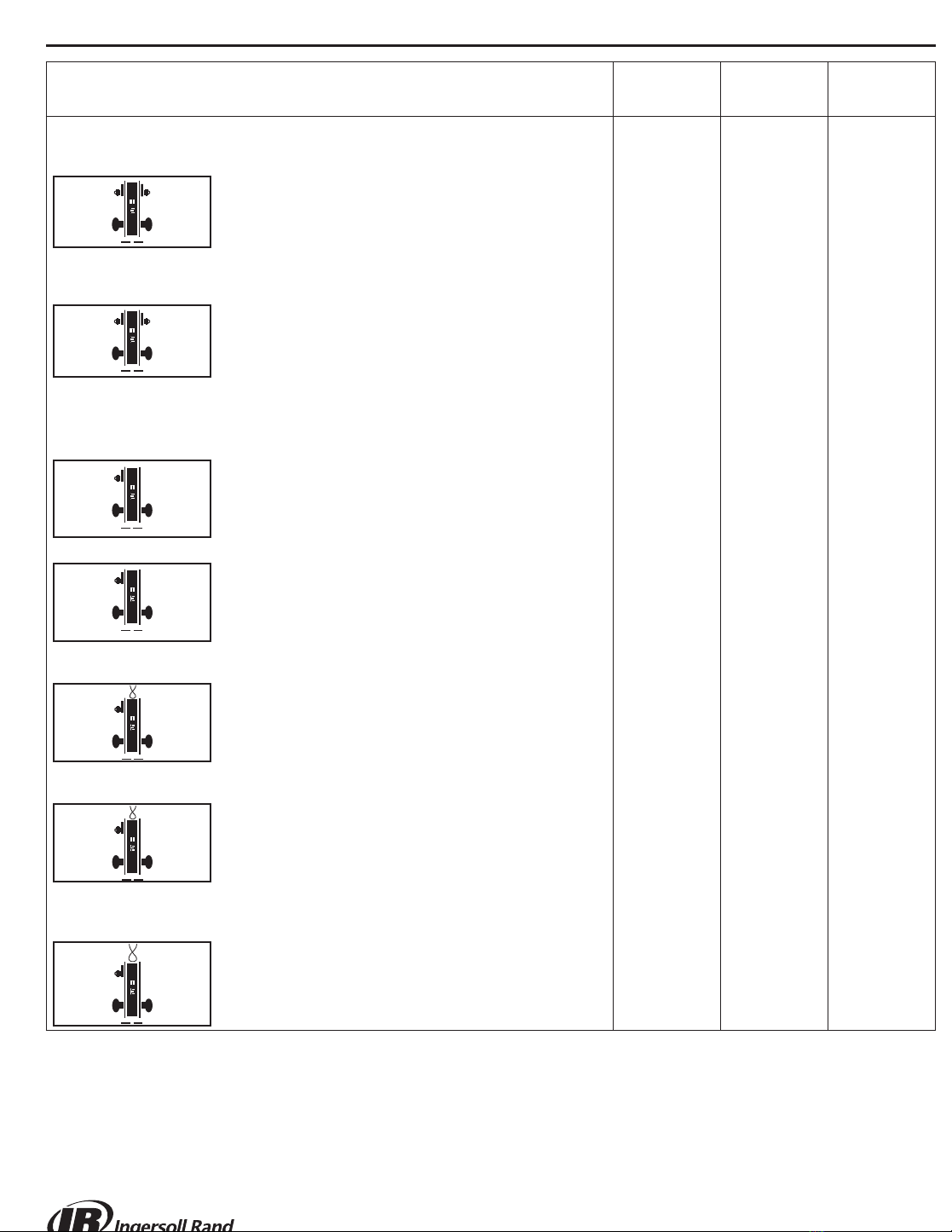

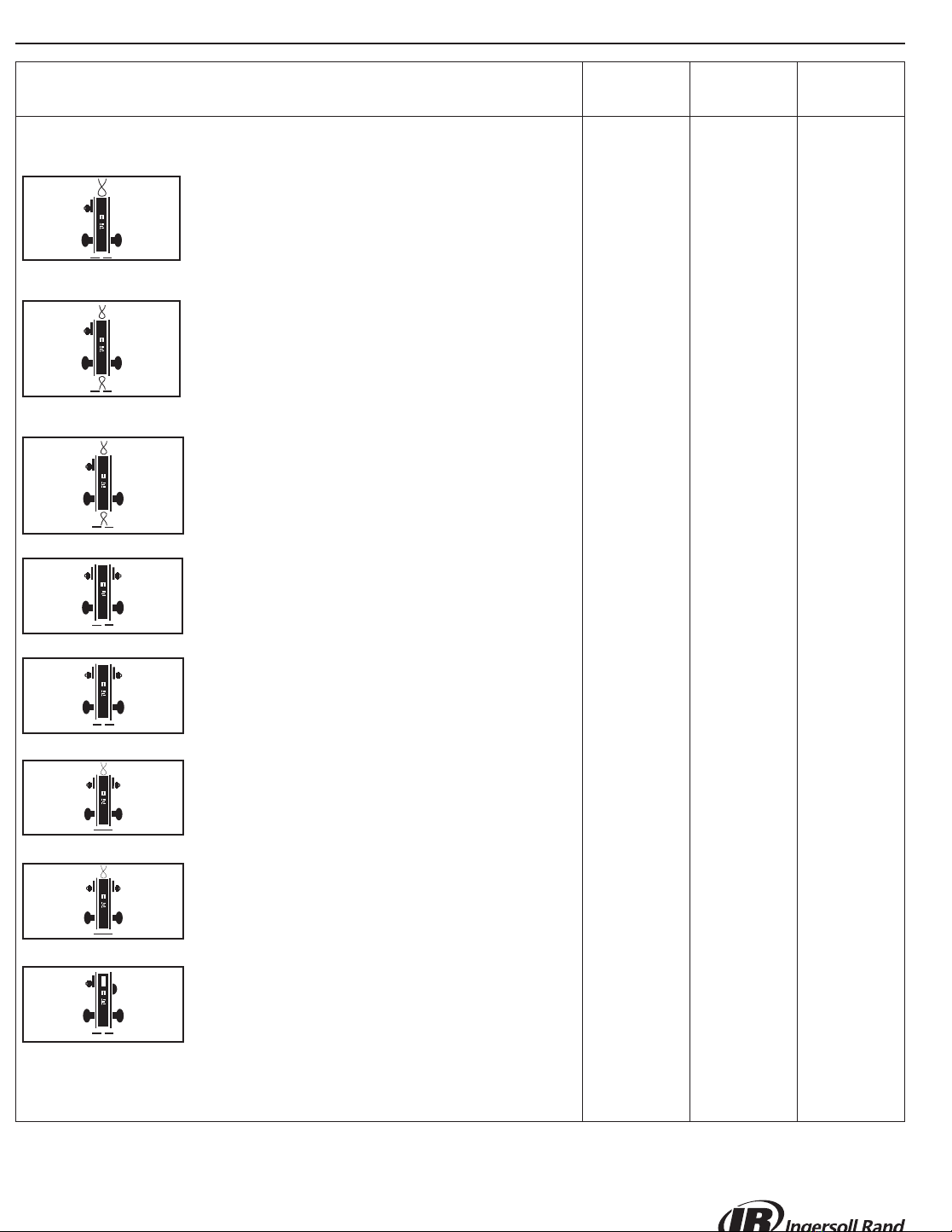

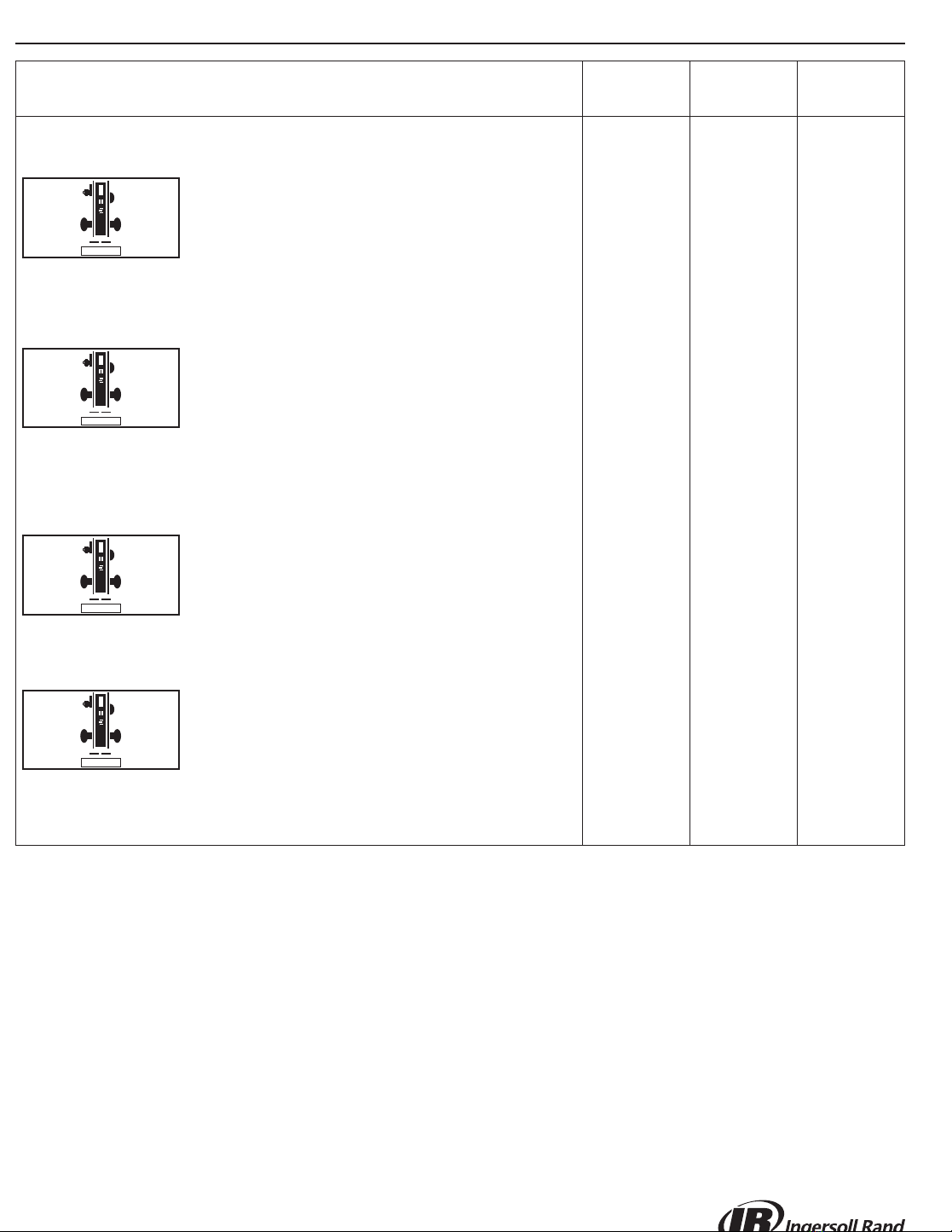

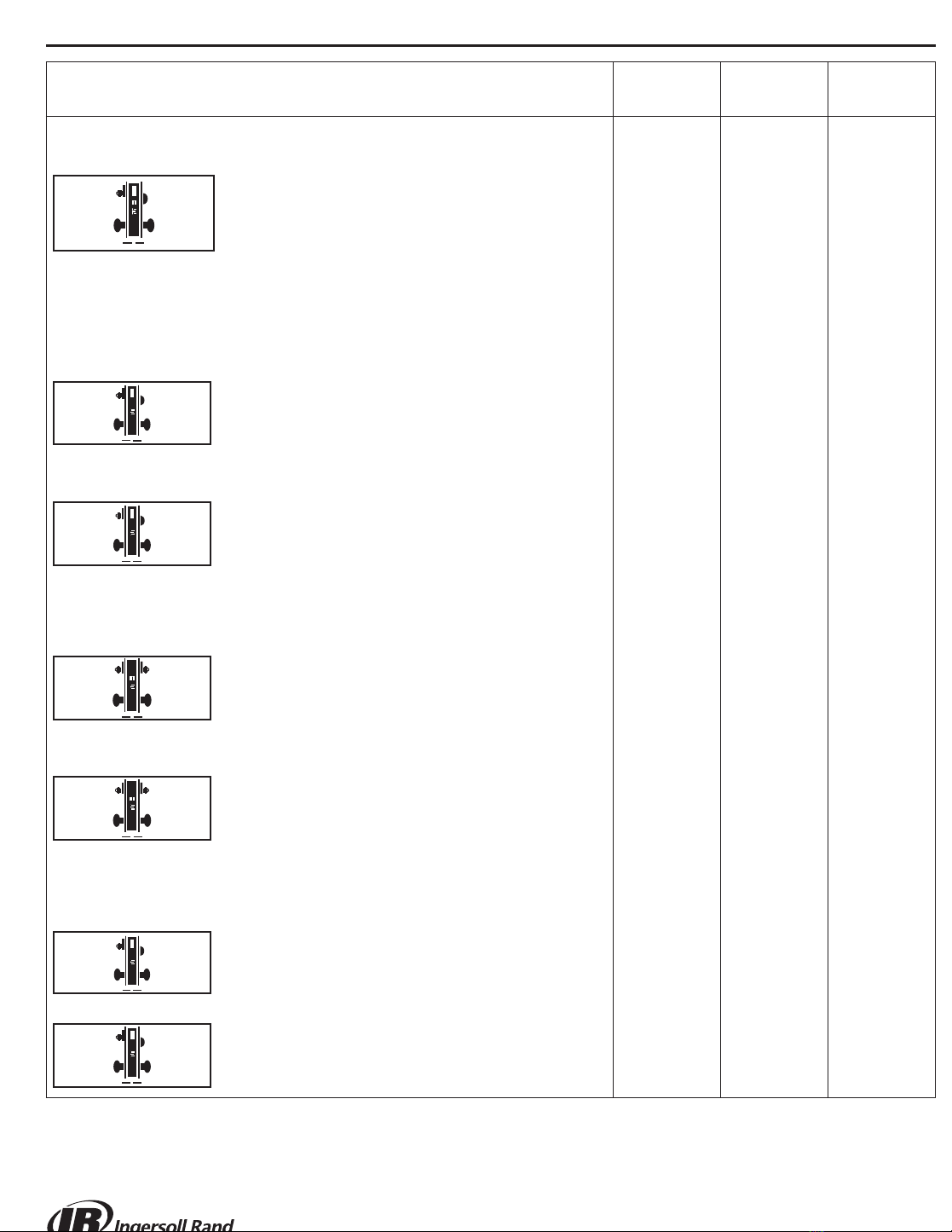

Trim Assemblies Chart ...................................................................................................................................................... 36-47
Lock Case Assemblies ...................................................................................................................................................... 48-85
L460, L462, L463, L464, L480, L496........................................................................................................................................48
L9010........................................................................................................................................................................................49
L9040, L9040 x XL11-446, L9044 ............................................................................................................................................50
LV9040, LV9040 x XL11-446, LV9044 ......................................................................................................................................51
L9050, L9060, L9070, L9071....................................................................................................................................................52
LV9050, LV9060, LV9070, LV9071............................................................................................................................................53
L9056........................................................................................................................................................................................54
LV9056......................................................................................................................................................................................55
L9076, L9077............................................................................................................................................................................56
LV9076, LV9077........................................................................................................................................................................57
L9080........................................................................................................................................................................................58
LV9080......................................................................................................................................................................................59
L9080EL, L9080EL-RX.............................................................................................................................................................60
LV9080EL .................................................................................................................................................................................61
L9080EU, L9080EU-RX............................................................................................................................................................62
LV9080EU.................................................................................................................................................................................63
L9082........................................................................................................................................................................................64
LV9082......................................................................................................................................................................................65
L9082EL ...................................................................................................................................................................................66

L-Series Service Manual
ii
L9082EU...................................................................................................................................................................................67
L9110 x XL11-741 ....................................................................................................................................................................68
L9175........................................................................................................................................................................................69
L9176........................................................................................................................................................................................70
L9440, L9444............................................................................................................................................................................71
LV9440, LV9444........................................................................................................................................................................72
L9453........................................................................................................................................................................................73
LV9453......................................................................................................................................................................................74
L9456, L9457, L9496................................................................................................................................................................75
LV9456, LV9457, LV9496 .........................................................................................................................................................76
L9460, L9462, L9463, L9464....................................................................................................................................................77
L9460 x XL11-635 ....................................................................................................................................................................78
L9460 x XL11-886, L9462 x XL11-886, L9464 x XL11-886......................................................................................................79
L9465, L9466, L9473................................................................................................................................................................80
L9480, L9485, L9486, L9486 x L583-375.................................................................................................................................81
LV9480, LV9485, LV9486, LV9486 x L583-375.........................................................................................................................82
L9482 x XL11-543 ....................................................................................................................................................................83
LV9482 x XL11-543 ..................................................................................................................................................................84
L9485 x XL11-557 ....................................................................................................................................................................85
Lock Case Assembly Compatibility .......................................................................................................................................86
Assembly of Lock Case Parts........................................................................................................................................... 87-88
Trim Options.............................................................................................................................................................................89
Cast or Forged Lever Designs ..................................................................................................................................................89
Rose Trim A or B ......................................................................................................................................................................91
L Escutcheon Trim ...................................................................................................................................................................92
N Escutcheon Trim...................................................................................................................................................................94
Decorative Trim ........................................................................................................................................................................95
danmark Stainless Steel Levers .............................................................................................................................................96
Trim Options.............................................................................................................................................................................97
Coin Turn...................................................................................................................................................................................97
Coin Turn and Plug ...................................................................................................................................................................97
"Do Not Disturb" Indicator.........................................................................................................................................................97
"Occupied" Indicator .................................................................................................................................................................97
Thumbturn ................................................................................................................................................................................97
ADA Cylinder Turn ....................................................................................................................................................................97
Cylinder Turn.............................................................................................................................................................................97
"EZ" Thumbturn (ADA) for Rose Trim........................................................................................................................................97
"EZ" Thumbturn (ADA) x Knob/Lever with L or N Escutcheon..................................................................................................97
"EZ" Thumbturn (ADA) x Blank with L Escutcheon...................................................................................................................97
Emergency Turn........................................................................................................................................................................98
Emergency Button ....................................................................................................................................................................98
Modified Inside and Outside 03 Lever for Folger Adam Co.®Lever Trak™ .............................................................................98
Tactile Warning (Knurling).........................................................................................................................................................98
Trim Assembly Parts................................................................................................................................................................99
Escutcheon Thru-Bolt/Screws...................................................................................................................................................99
Standard Screw Packs..............................................................................................................................................................99
Tamper Resistant Torx Screw Packs.........................................................................................................................................99
Drivers to Operate Occupancy Indicator...................................................................................................................................99

L-Series Service Manual
iii
Mounting Posts .......................................................................................................................................................................100
Spindles and Springs..............................................................................................................................................................100
Mounting Plate for Trim One Side Only...................................................................................................................................100
Armor Fronts ..........................................................................................................................................................................101
Strikes.....................................................................................................................................................................................102
Cylinder Specifications .........................................................................................................................................................103
Full Face Cylinders ................................................................................................................................................................104
Concealed Cylinders .............................................................................................................................................................106
Full Size Interchangeable Cores...........................................................................................................................................108
Small Format Interchangeable Core ....................................................................................................................................111
Blocking and Compression Rings .......................................................................................................................................113
Dimensions for Blocking Rings ...............................................................................................................................................113
Full Size Core Blocking Ring Requirements, L-Series and LV-Series ....................................................................................113
SFIC Blocking Ring Requirements, L-Series and LV-Series...................................................................................................113
Special Options......................................................................................................................................................................114
Solid Latchbolt ........................................................................................................................................................................114
Armor Front with Deadbolt Hole .............................................................................................................................................114
L9000 Lead Lining XL11-515..................................................................................................................................................114
L400 Lead Lining XL12-216....................................................................................................................................................114
Anti-Ligature Knob Trim ..........................................................................................................................................................114
Anti-Ligature Thumbturn .........................................................................................................................................................114
Anti-Ligature Conversion Kits .................................................................................................................................................114
Special Cylinder Applications .................................................................................................................................................114
Installation Tools and Kits.....................................................................................................................................................115
40-054 Maintenance Kit Contents ..........................................................................................................................................115
Electrically Locking ...............................................................................................................................................................116
L9080 EL Electrically Locked (Fail Safe): ...............................................................................................................................116
L9080 EU Electrically Unlocked (Fail Secure): .......................................................................................................................116
Request to Exit (RX) Feature*:................................................................................................................................................116
L9082 EL or EU Electrically Locked or Unlocked Both Sides: ................................................................................................116
Replacement Kit:.....................................................................................................................................................................116
Electrical Requirements:.........................................................................................................................................................116
Typical Installation:..................................................................................................................................................................116
Lubrication Specifications ....................................................................................................................................................117
Door Handing .........................................................................................................................................................................118
Changing the Lock Hand ........................................................................................................................................................118
Changing Cylinder Turn Hand.................................................................................................................................................118
L9000-Series Installation Sheet–Page 1 ...................................................................................................................... 119-134
L400-Series Installation Sheet–Page 1 ........................................................................................................................ 135-136
Ordering Procedures .............................................................................................................................................................137
Finishes ..................................................................................................................................................................................138
Finish Codes and Descriptions ...............................................................................................................................................138
Limited Warranty ....................................................................................................................................................................139

L-Series Service Manual
iv

L-Series Service Manual
1
Introduction
This manual contains a complete listing of parts and assemblies for L-Series mortise locks manufactured by Schlage
Lock Company. This edition lists components of L-Series locks manufactured after June, 2001. All lock case covers
are labeled with dates to identify year of manufacture. Example: 12507 = the 125th day of 2007.
Exploded views of each lock function and trim assembly are provided with accompanying charts to identify parts for
replacement purposes. Exploded views of trim are shown with parts for standard size doors. In addition, this manual
provides lock trim ordering procedures, cylinder length charts by door range, and all auxiliary components of the
L-9000/LV-9000 and L400-Series mortise locks.

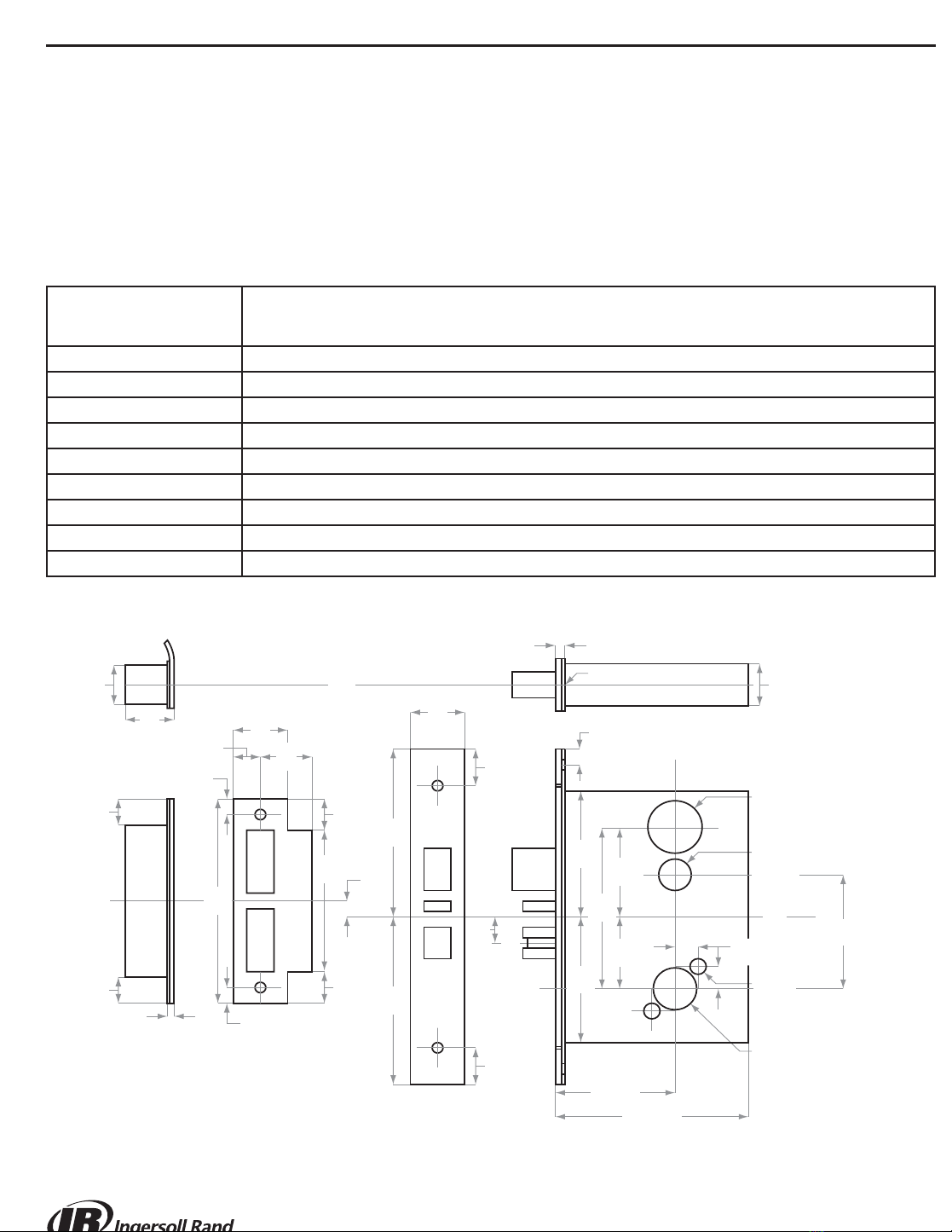

Standard Features*
Certifications L/LV9000: ANSI A156.13, 1994, Series 1000, Grade 1 Operational, Grade 1 Security, UL Listed for
3 hour fire door (except L9076 and L9077). With Interchangeable Core Cylinders: Grade 2 Security
L400: ANSI A156.5, 2001, Grade 1, UL Listed for 3 hour fire door.
Case Size 4⁷⁄₁₆" x 6¹⁄₁₆" x 1"; L400: 4⁷⁄₁₆" x 3⁵⁄₈" x 1"
Armor Front L/LV9000: 1¹⁄₄" x 8"; L400: 1¹⁄₄" x 5¹⁹⁄₃₂"
Deadbolt 1" Throw stainless steel
Latchbolt ¹⁄₂" Throw stainless steel with anti-friction tongue
Strike L/LV9000: 1¹⁄₄" x 4⁷⁄₈", Square corner, 1³⁄₁₆" lip, box; L400: 1¹⁄₈" x 3⁵⁄₈", Square corner, box
Backset 2³⁄₄"
Cylinder 6-Pin solid brass, keyed 6-pin, C123 keyway, keyed different (KD)*
Door Range 1³⁄₄" and up
Keys Two nickel silver cut keys per lock, 6-pin, C123 section*
* Items specified in C keyway will be furnished with cylinders keyed 5-pin and with 5-pin keys unless otherwise specified.
NOTE: Locks are furnished with standard features unless otherwise specified.
Strike
1¹⁄₄" (32)
or
1¹⁄₁₆"
(27)
1¹⁄₄"
(32)
1³⁄₁₆"
(30)
⁵⁄₈"
(16)
³⁄₈"
(10)
³⁄₈"
(10)
⁵⁄₈"
(16)
³⁄₈"
(10)
⁵⁄₃₂"
(4)
3"
(76) 2⁹⁄₆₄"
(54)
1²³⁄₃₂"
(44)
Cylinder
cut-out
Height
Line
2²³⁄₃₂"
(69)
¹⁵⁄₁₆"
(24)
1¹⁄₈"
(29)
⁷⁄₃₂"
(6)
1" (25)
Bevel ¹⁄₈" in 2" (3 in 51)
2³⁄₄" (70)
Backset
4⁷⁄₁₆" (113)
⁵⁄₈"
(16)
³⁄₄"
(19)
³⁄₄"
(19)
⁵⁄₈"
(16) Lock
Front
C
L
¹⁷⁄₃₂"
(14)
Mounting
Holes
Knob or Lever
Cut-out
Turn Piece
and
Occupancy
Indicator
3⁵⁵⁄₆₄"
(98)
3"
(76)
4"
(102)
4⁷⁄₈"
(124)
⁷⁄₈"
(22)
⁷⁄₈"
(22)
C
L
³⁄₈"
(10)
C
L
4"
(102)
C
L
C
L
3³⁄₈"
(86)
(Standard)
(Optional)

L-Series Service Manual
2
Introduction
Dot Charts
• = (1) Part
2 = (2) Parts
Example:
P/N Description
L9110/XL11-741
L9175 L9176
L9177 (disc) L9178 (disc) L9410 (disc)
L9440
LV9440
L9444*
LV9444*
L9453
LV9453
L9456
LV9456
L9457
LV9457
L9460
L9460/XL11-635 L9460/XL11-886
L9462
L9462/XL11-886
L9463 L9464
L9464/XL11-886
L9465 L9466 L9473 L9480
LV9480
L9482/XL11-543
LV9482/XL11-543
L9485
LV9485
L9485/XL11-557**
LV9485/XL11-557
L9486***z
LV9486***z
L9496
LV9496
30-001 Classic Mortise
Cylinder
• ••••22•••22••••2•••22•• ••
All parts shown in dot charts are standard. Additional options may be available. See current Schlage Price Book for
available options, pricing and ordering procedures.
Lock Assembly Drawing Index
The Lock Assembly Drawing Index provides representations and descriptions of available functions. Page numbers for
full trim and chassis drawings are referenced.
Outside Inside
Emergency Turn
Latchbolt
Coin Turn
Deadbolt
Thumbturn
Cylinder Auxiliary
Latch
Electrified
Cylinder
Cylinder Turn
Occupancy
Indicator
Two-piece Spindle
Solid Spindle
One-piece Outside Spindle
DO NOT DISTURB
RX

L-Series Service Manual
3
Lock Assembly Drawing Index
FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Trim
Assembly
Page Number
Lock
Assembly
Page Number
Lock Case
Page Number
Non-Keyed Locks
SCHLAGE ANSI
L0170
Single Dummy Trim
Knob/lever on one side is fixed by mounting bar.
15 – –
L0172
Double Dummy Trim
Knob/lever on both sides is fixed by mounting bar.
16 ––
L9010 F01
Passage Latcha
Latchbolt is always retracted by knob/lever from either side.
18 49 L283-131
L9040 F22
Bath/Bedroom Privacy Lock
Latchbolt is retracted by knob/lever from either side unless out-
side is locked by inside thumbturn. Turning inside knob/lever or
closing door unlocks outside knob/lever. To unlock from outside,
remove emergency button, insert emergency turn in access
hole and rotate.
19 50 L283-132
LV9040
Bath/Bedroom Privacy Lock with Vandlgard®
Latchbolt is retracted by knob/lever from either side unless
outside is locked by inside thumbturn. Turning inside knob/
lever or closing door unlocks outside knob/lever. To unlock from
outside, remove emergency button, insert emergency turn in
access hole and rotate. Vandlgard function allows exterior lever
to rotate freely down while remaining securely locked.
19 51 L283-171
L9040 x XL11-446
Privacy with Turns Both Sides
Latchbolt is retracted by knob/lever from either side unless
outside is locked by inside or outside thumbturn. Turning inside
knob/lever or closing door unlocks outside knob/lever.
Specify per XL11-446.
20 50 L283-132
LV9040 x XL11-446
Privacy with Turns Both Sides with Vandlgard®
Latchbolt is retracted by knob/lever from either side unless
outside is locked by inside or outside thumbturn. Turning inside
knob/lever or closing door unlocks outside knob/lever.
Vandlgard function allows exterior lever to rotate freely down
while remaining securely locked. Specify per XL11-446.
19 51 L283-171
L9044
Privacy with Coin Turn Outside
Latchbolt is retracted by knob/lever from either side unless
outside is locked by inside thumbturn or outside coin turn.
Operating inside knob/lever, closing door, rotating inside
thumbturn or outside coin turn unlocks outside knob/lever.
Available in rose trim only. Specify per L283-056 for Torx
screws. (Previously XL11-868).
21 50 L283-132
Not sold separately as a part.
aAvailable with Request to Exit feature.

L-Series Service Manual
4
FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Trim
Assembly
Page Number
Lock
Assembly
Page Number
Lock Case
Page Number
Non-Keyed Locks
SCHLAGE ANSI
LV9044
Privacy with Coin Turn Outside with Vandlgard®
Latchbolt is retracted by knob/lever from either side unless outside
is locked by inside thumbturn. Operating inside knob/ lever,
closing door, rotating inside thumbturn or outside coin turn unlocks
outside knob/lever. Available with rose trim only. Vandlgard function
allows exterior lever to rotate freely down while remaining securely
locked. Specify per L283-056 for Torx screws.
21 51 L283-171
L9110 x XL11741
Double Dummy with Active Trim
Knob/lever is always active on both sides. Includes lock case
and armor front. Specify XL11-741 for use on active door, or
specify XL11-743 for use on inactive door (furnished with armor
front with cutout to receive deadbolt).
26 – –
L9175
Single Dummy with Lock Case
Inoperable knob/lever on one side. Includes lock case and
armor front.
27 69 L283-144
L9176
Double Dummy with Lock Case
Inoperable knob/lever on both sides. Includes lock case and
armor front.
28 70 L283-145
L9440
Privacy with Deadbolt
Latchbolt is retracted by knob/lever from either side. Deadbolt
is thrown or retracted by inside thumbturn. Throwing deadbolt
locks outside knob/lever. Rotating inside knob/lever simultane-
ously retracts deadbolt and latchbolt and unlocks outside knob/
lever. To unlock from outside, remove emergency button, insert
thumbturn in access hole and rotate. (Previously XL11-761).
19 71 L283-062
LV9440
Privacy with Deadbolt with Vandlgard®
Latchbolt retracted by knob/lever from either side.Deadbolt is
thrown or retracted by inside thumbturn. Throwing deadbolt
locks outside knob/lever. Rotating inside knob/lever simultane-
ously retracts deadbolt and latchbolt and unlocks outside knob/
lever. To unlock from outside, remove emergency button, insert
thumbturn in access hole and rotate. Vandlgard function allows
exterior lever to rotate freely down while remaining securely
locked.
19 72 L283-181
L9444
Privacy with Deadbolt and Coin Turn
Latchbolt is retracted by knob/lever from either side. Deadbolt
is thrown or retracted by inside thumbturn or outside coin turn.
Throwing deadbolt locks outside knob/lever. Rotating inside
knob/lever simultaneously retracts deadbolt and latchbolt and
unlocks outside knob/lever. Rotating outside coin turn retracts
deadbolt and unlocks outside knob/lever. Available with rose
trim only. Specify per L283-056 for Torx screws.
(Previously XL11-868).
21 71 L283-062
Not sold separately as a part.

L-Series Service Manual
5
FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Trim
Assembly
Page Number
Lock
Assembly
Page Number
Lock Case
Page Number
Keyed Locks
SCHLAGE ANSI
LV9444
Privacy with Deadbolt and Coin Turn with Vandlgard®
Latchbolt is retracted by knob/lever from either side. Deadbolt
is thrown or retracted by inside thumbturn or outside coin turn.
Throwing deadbolt locks outside knob/lever. Rotating inside
knob/lever simultaneously retracts deadbolt and latchbolt and
unlocks outside knob/lever. Rotating outside coin turn retracts
deadbolt and unlocks outside knob/lever. Available with rose
trim only. Vandlgard function allows exterior lever to rotate
freely down while remaining securely locked.
Specify per L283-056 for Torx screws.
21 72 L283-181
L9050 F04
Office and Inner Entry Lock a
Latchbolt is retracted by knob/lever from either side unless
outside is made inoperative by key outside or inside thumbturn.
When outside is locked, latchbolt is retracted by key outside or
by knob/lever inside. Outside knob/lever remains locked until
thumbturn is returned to vertical position or unlocked by key.
Auxiliary latch deadlocks latchbolt when door is closed. Inside
knob/lever is always free for immediate exit.
22 52 L283-133
LV9050
Office and Inner Entry Lock with Vandlgard®a
Latchbolt is retracted by knob/lever from either side unless
outside is made inoperative by key outside or inside thumbturn.
When outside is locked, latchbolt is retracted by key outside or
by knob/lever inside. Outside knob/lever remains locked until
thumbturn is returned to vertical position or unlocked by key.
Auxiliary latch deadlocks latchbolt when door is closed. Inside
knob/lever is always free for immediate exit. Vandlgard function
allows exterior lever to rotate freely down while remaining
securely locked.
22 53 L283-170
L9056
L9050 with Automatic Unlocking a
Latchbolt is retracted by knob/lever from either side unless
outside is made inoperative by key outside or inside thumbturn.
Outside knob/lever is unlocked by key outside or thumbturn.
Rotating inside knob/lever simultaneously retracts latchbolt and
unlocks outside knob/lever. Auxiliary latch deadlocks latchbolt
when door is closed. Inside knob/lever is always free for
immediate exit. (Previously XL11-776).
22 54 L283-126
LV9056
LV9050 with Automatic Unlocking with Vandlgard®a
Latchbolt is retracted by knob/lever from either side unless
outside is made inoperative by key outside or inside thumbturn.
Outside knob/lever is unlocked by key outside or thumbturn.
Rotating inside knob/lever simultaneously retracts latchbolt and
unlocks outside knob/lever. Auxiliary latch deadlocks latchbolt
when door is closed. Inside knob/lever is always free for
immediate exit. Vandlgard function allows exterior lever to
rotate freely down while remaining securely locked.
22 55 L283-180
L9060 F09
Apartment Entrance Lock a
Latchbolt is retracted by knob/lever from either side unless
outside is locked by key from inside. When locked, latchbolt
is retracted by key outside or knob/lever inside. Auxiliary latch
deadlocks when door is closed. Inside knob/lever is always free
for immediate exit.
23 52 L283-133
Not sold separately as a part.
aAvailable with Request to Exit feature.

L-Series Service Manual
6
FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Trim
Assembly
Page Number
Lock
Assembly
Page Number
Lock Case
Page Number
Keyed Locks
SCHLAGE ANSI
LV9060
Apartment Entrance Lock with Vandlgard®a
Latchbolt is retracted by knob/lever from either side unless
outside is locked by key from inside. When locked, latchbolt
is retracted by key outside or knob/lever inside. Auxiliary latch
deadlocks when door is closed. Inside knob/lever is always free
for immediate exit. Vandlgard function allows exterior lever to
rotate freely down while remaining securely locked.
23 53 L283-170
L9070 F05
Classroom Lock a
Latchbolt is retracted by knob/lever from either side unless
outside is locked by key. Outside is unlocked by key. Inside
knob/lever is always free for immediate exit. Auxiliary latch
deadlocks latchbolt when door is closed.
24 52 L283-133
LV9070
Classroom Lock with Vandlgard®a
Latchbolt is retracted by knob/lever from either side unless out-
side is locked by key. Outside is unlocked by key. Inside knob/
lever is always free for immediate exit. Auxiliary latch deadlocks
latchbolt when door is closed. Vandlgard function allows exterior
lever to rotate freely down while remaining securely locked.
24 53 L283-170
L9071
Classroom Security Lock a
Latchbolt is retracted by knob/lever from either side unless
locked by key from either side. When locked, latchbolt is
retracted by key outside or knob/lever inside. Inside knob/lever
is always free for immediate exit. Auxiliary latch deadlocks
latchbolt when door is closed.
23 52 L283-133
LV9071
Classroom Security Lock with Vandlgard®a
Latchbolt is retracted by knob/lever from either side unless
locked by key from either side. When locked, latchbolt is
retracted by key outside or knob/lever inside. Inside knob/lever
is always free for immediate exit. Auxiliary latch deadlocks
latchbolt when door is closed. Vandlgard function allows exterior
lever to rotate freely down while remaining securely locked.
23 53 L283-170
L9076 F06
Classroom Holdback Lock* a
Latchbolt is retracted by knob/lever from either side unless
locked by key outside. When locked, latchbolt is retracted by
key outside or knob/lever inside. Inside knob/lever is always
free for immediate exit. Auxiliary latch deadlocks latchbolt when
door is closed. Turn/depress inside knob/lever and turn key
360° for holdback feature.
24 56 L283-039
LV9076
Classroom Holdback Lock* with Vandlgard®a
Latchbolt is retracted by knob/lever from either side unless
locked by key outside. When locked, latchbolt is retracted by
key outside or knob/lever inside. Inside lever is always free for
immediate exit. Auxiliary latch deadlocks latchbolt when door
is closed. Turn/depress inside knob/lever and turn key 360° for
holdback feature. Vandlgard function allows exterior lever to
rotate freely down while remaining securely locked.
24 57 L283-172
* Locks with holdback feature are not UL listed. Installation should be in accordance with existing codes only.
Not sold separately as a part.
aAvailable with Request to Exit feature.

L-Series Service Manual
7
FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Trim
Assembly
Page Number
Lock
Assembly
Page Number
Lock Case
Page Number
Keyed Locks
SCHLAGE ANSI
L9077
Classroom Security Holdback Lock* a
Latchbolt is retracted by knob/lever from either side unless
locked by key from either side. When locked, latchbolt is retract-
ed by key outside or knob/lever inside. Auxiliary latch deadlocks
latchbolt when door is closed. Turn/depress inside knob/lever
and turn key 360° for holdback feature.
23 56 L283-039
LV9077
Classroom Security Holdback Lock* with Vandlgard®a
Latchbolt is retracted by knob/lever from either side unless
locked by key from either side. When locked, latchbolt is retract-
ed by key outside or knob/lever inside. Auxiliary latch deadlocks
latchbolt when door is closed. Turn/depress inside knob/lever
and turn key 360° for holdback feature. Vandlgard
function allows exterior lever to rotate freely down while
remaining securely locked.
23 57 L283-172
L9080 F07
Storeroom Lock a
Latchbolt is retracted by key outside or by knob/lever inside.
Outside knob/lever is always inoperative. Auxiliary latch dead-
locks latchbolt when door is closed. Inside knob/lever is always
free for immediate exit.
24 58 L283-134
LV9080
Storeroom Lock with Vandlgard®a
Latchbolt is retracted by key outside or by knob/lever inside.
Outside knob/lever is always inoperative. Auxiliary latch dead-
locks latchbolt when door is closed. Inside knob/lever is always
free for immediate exit. Vandlgard function allows exterior lever
to rotate freely down while remaining securely locked.
24 59 L283-173
L9080EL
Electrically Locked (Fail Safe) a
Outside knob/lever is continuously locked. Latchbolt is retracted
by key outside or by knob/lever inside. Switch or power failure
allows outside knob/lever to retract latchbolt. Auxiliary latch
deadlocks latchbolt when door is closed. Inside knob/lever is
always free for immediate exit.
24 60 L283-142
LV9080EL
Electrically Locked (Fail Safe) with Vandlgard®a
Outside knob/lever is continuously locked. Latchbolt is retracted
by key outside or by knob/lever inside. Switch or power failure
allows outside knob/lever to retract latchbolt. Auxiliary latch
deadlocks latchbolt when door is closed. Inside knob/lever is
always free for immediate exit. Vandlgard function allows exterior
lever to rotate freely down while remaining securely locked.
24 61 L283-174
L9080EU
Electrically Unlocked (Fail Secure) a
Outside knob/lever is continuously unlocked. Latchbolt is
retracted by key outside or by knob/lever inside. Inside knob/
lever is always free for immediate exit. Auxiliary latch deadlocks
latchbolt when door is closed.
24 62 L283-143
Not sold separately as a part.
aAvailable with Request tho Exit feature.

L-Series Service Manual
8
FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Trim
Assembly
Page Number
Lock
Assembly
Page Number
Lock Case
Page Number
Keyed Locks
SCHLAGE ANSI
LV9080EU
Electrically Unlocked (Fail Secure) with Vandlgard®a
Outside knob/lever is continuously unlocked. Latchbolt is retract-
ed by key outside or by knob/lever inside. Inside knob/lever is
always free for immediate exit. Auxiliary latch deadlocks latchbolt
when door is closed. Vandlgard function allows exterior lever to
rotate freely down, while remaining securely locked.
24 63 L283-175
L9080EL-RX
Request to Exit Electrically Locked (Fail Safe)
Same as L9080EL function. In addition, a microswitch
positioned inside the lock case is activated when either inside
or outside knob/lever is rotated. The switch signals the use of
that opening to security systems, allowing a non-disruptive
means of immediate exit. Specify L283-263.
(Previously XL11-807)
24 60 L283-142
per L283-263
L9080EU-RX
Request to Exit Electrically Unlocked (Fail Secure)
Same as L9080EU function. In addition, a microswitch posi-
tioned inside the lock case is activated when either inside or
outside knob/lever is rotated. The switch signals the use of that
opening to security systems, allowing a non-disruptive means
of immediate exit. Specify L283-263. (Previously XL11-807).
24 62 L283-143
per L283-263
L9082
Institution Lock*
Latchbolt is retracted by key on either side. Knob/lever on both
sides is always inoperative. Auxiliary latch deadlocks latchbolt
when door is closed.
23 64 L283-146
LV9082
Institution Lock* with Vandlgard®
Latchbolt is retracted by key on either side. Inside and outside
knob/lever are always inoperative. Auxiliary latch deadlocks
latchbolt when door is closed. Vandlgard function allows exterior
lever to rotate freely down while remaining securely locked.
23 65 L283-182
L9082EL
Electrically Locked (Fail Safe) Both Sides a
Outside and inside knob/lever are continuously locked. Latchbolt
is retracted by key on either side. Switch or power failure allows
inside and outside knob/lever to retract latchbolt. Auxiliary latch
deadlocks latchbolt when door is closed. (Previously XL11-452).
25 66 L283-085
L9082EU
Electrically Unlocked (Fail Secure) Both Sides* a
Outside and inside knob/lever are continuously unlocked.
Latchbolt is retracted by key on either side. Switch or power
failure prevents retraction of latchbolt by inside and outside
knob/lever. (Previously XL11-452).
25 67 L283-086
L9453 F20
Entrance Lock a
Latchbolt is retracted by knob/lever from either side unless out-
side is locked by 20° rotation of thumbturn. Deadbolt is thrown or
retracted by 90° rotation of thumbturn. When locked, key outside
or knob/lever inside retracts deadbolt and latchbolt simultane-
ously. Outside knob/lever remains locked until thumbturn is re-
turned to vertical position. Throwing deadbolt automatically locks
outside knob/lever. Auxiliary latch deadlocks latchbolt when door
is closed. Inside knob/lever is always free for immediate exit.
22 73 L283-137
*Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
Not sold separately as a part.
aAvailable with Request to Exit feature.

L-Series Service Manual
9
FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Trim
Assembly
Page Number
Lock
Assembly
Page Number
Lock Case
Page Number
Keyed Locks
SCHLAGE ANSI
LV9453
Entrance Lock with Vandlgard®a
Latchbolt is retracted by knob/lever from either side unless
outside is locked by key outside or 20º rotation of thumbturn.
Deadbolt is thrown or retracted by 90º rotation of thumbturn.
When locked, key outside or knob/lever inside retracts deadbolt
and latchbolt simultaneously. Outside knob/lever remains
locked until thumbturn is returned to vertical position. Throwing
deadbolt automatically locks outside knob/lever. Auxiliary latch
deadlocks latchbolt when door is closed. Vandlgard function
allows exterior lever to rotate freely down while remaining
securely locked.
22 74 L283-176
L9456 F13
Corridor Lock a
Latchbolt is retracted by knob/lever from either side. Deadbolt is
operated by key outside or inside thumbturn. Throwing deadbolt
locks outside knob/lever. Turning inside knob/lever simultane-
ously retracts deadbolt and latchbolt and unlocks outside knob/
lever. Inside knob/lever is always free for immediate exit.
22 75 L283-138
LV9456
Corridor Lock wtih Vandlgard®a
Latchbolt is retracted by knob/lever from either side. Deadbolt is
operated by key outside or inside thumbturn. Throwing deadbolt
locks outside knob/lever. Turning inside knob/lever simultane-
ously retracts deadbolt and latchbolt and unlocks outside knob/
lever. Inside knob/lever is always free for immediate exit. Vandl-
gard function allows exterior lever to rotate freely down while
remaining securely locked.
22 76 L283-177
L9457
Classroom Security Lock a
Latchbolt is retracted by knob/lever from either side. Deadbolt
is operated by key from either side. Throwing deadbolt locks
outside knob/lever. Turning inside knob/lever simultaneously
retracts deadbolt and latchbolt and unlocks outside knob/lever.
Inside knob/lever is always free for immediate exit.
23 75 L283-138
LV9457
Classroom Security Lock with Vandlgard®a
Latchbolt is retracted by knob/lever from either side. Deadbolt
is operated by key from either side. Throwing deadbolt locks
outside knob/lever. Turning inside knob/lever simultaneously
retracts deadbolt and latchbolt and unlocks outside knob/lever.
Inside knob/lever is always free for immediate exit. Vandlgard
function allows exterior lever to rotate freely down while remain-
ing securely locked.
23 76 L283-177
L9460 x XL11-635
L9460 with Fixed Dummy Trim
Knob/lever is always fixed on both sides. Deadbolt is operated
by key outside or thumbturn inside. Specify per XL11-635.
30 78 XL11-635
L9460 x XL11-886
Deadbolt with Retraction by Inside Knob/Lever
Deadbolt is operated by key outside or thumbturn inside. Rotat-
ing inside knob/lever retracts deadbolt. Outside knob/lever is
always fixed. Specify per XL11-886.
31 79 –
Not sold separately as a part.
aAvailable with Request to Exit feature.

L-Series Service Manual
10
FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Trim
Assembly
Page Number
Lock
Assembly
Page Number
Lock Case
Page Number
Keyed Locks
SCHLAGE ANSI
L9462 x XL11-886
Double Cylinder Deadbolt with Retraction by Inside
Knob/Lever
Deadbolt is operated by key on either side. Rotating inside
knob\lever retracts deadbolt. Outside knob/lever is always
fixed. Specify per XL11-886.
23 79 –
L9464 x XL11-886
Single Cylinder Deadbolt with Retraction by Inside
Knob/Lever
Deadbolt is operated by key outside. Rotating inside knob/lever
retracts deadbolt. Outside knob/lever is always fixed. Specify
per XL11-886.
24 79 –
L9465
Closet/Storeroom Lock
Latchbolt is operated by knob/lever from either side. Deadbolt is
operated by key outside.
24 80 L283-140
L9466
Storeroom/Utility Room Lock*
Latchbolt is operated by knob/lever from either side. Deadbolt is
operated by key from either side.
23 80 L283-140
L9473
Dormitory/Bedroom Lock
Latchbolt is operated by knob/lever from either side. Deadbolt is
operated by key outside or thumbturn inside.
22 80 L283-140
L9480
Storeroom Lock with Deadbolt
Latchbolt is operated by key outside or by knob/lever inside.
Outside knob/lever is always fixed. Deadbolt is operated by key
outside or thumbturn inside. Turning inside knob/lever simul-
taneously retracts both deadbolt and latchbolt. Auxiliary latch
deadlocks latchbolt when door is closed. Inside knob/lever is
always free for immediate exit. (Previously XL11-591).
31 81 L283-141
LV9480
Storeroom Lock with Deadbolt with Vandlgard®
Latchbolt is operated by key outside or by knob/lever inside.
Outside knob/lever is always inoperative. Deadbolt is operated
by key outside or thumbturn inside. Turning inside knob/lever
simultaneously retracts both deadbolt and latchbolt. Auxiliary
latch deadlocks latchbolt when door is closed. Inside knob/lever
is always free for immediate exit. Vandlgard function allows
exterior lever to rotate freely down while remaining securely
locked. (Previously XL11-591).
31 82 L283-178
L9482 x XL11-543
Institution Lock with Deadbolt*
Latchbolt is operated by key from either side. Knob/lever on
both sides is always fixed. Deadbolt is operated by key on
either side. Auxiliary latch deadlocks latchbolt when door is
closed. Specify per XL11-543.
32 83 –
*Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
Not sold separately as a part.

L-Series Service Manual
11
FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Trim
Assembly
Page Number
Lock
Assembly
Page Number
Lock Case
Page Number
Keyed Locks
SCHLAGE ANSI
LV9482 x XL11-543
Institution Lock with Deadbolt* with Vandlgard®
Latchbolt is operated by key from either side. Inside and out-
side knob/lever are always inoperative. Deadbolt is thrown or
retracted by key on either side. Auxiliary latch deadlocks latch-
bolt when door is closed. Vandlgard function allows exterior
lever to rotate freely down while remaining securely locked.
Specify per XL11-543.
32 84 –
L9485
Hotel or Restroom Lock
Latchbolt is operated by key outside or by knob/lever inside.
Outside knob/lever is always fixed. Deadbolt is thrown or
retracted by inside thumbturn. When deadbolt is thrown all keys
become inoperative except emergency keys. Turning inside
knob/lever simultaneously retracts both deadbolt and latchbolt.
Auxiliary latch deadlocks latchbolt when door is closed.
31 81 L283-141
LV9485
Hotel or Restroom Lock with Vandlgard®
Latchbolt is retracted by key outside or by knob/lever inside.
Outside knob/lever is always inoperative. Deadbolt is thrown
or retracted by inside thumbturn. When deadbolt is thrown, all
keys become inoperative except emergency or display keys.
Turning inside knob/lever simultaneously retracts both deadbolt
and latchbolt. Auxiliary latch deadlocks latchbolt when door is
closed. Vandlgard function allows exterior lever to rotate freely
down while remaining securely locked.
31 82 L283-178
L9485 x XL11-557
Prison Lock
Latchbolt is operated by key outside or by knob inside. Out-
side knob is always free spinning. Inside knob is fixed when
deadbolt is thrown. Deadbolt is thrown or retracted by guard’s
key. Prisoner’s key retracts latchbolt. Furnished with tamper-
resistant Torx screws. Specify per XL11-557.
33 85 –
L9486 F15
DO NOT DISTURB
Hotel Lock with “Do Not Disturb” Indicator
Latchbolt is operated by key outside or by knob/lever inside.
Outside knob/lever is always fixed. Deadbolt is thrown or
retracted by inside thumbturn. When deadbolt is thrown, “DO
NOT DISTURB” plate is displayed. Deadbolt thrown by inside
thumbturn shuts out all keys except emergency keys. Inside
knob/lever simultaneously retracts both deadbolt and latchbolt.
Auxiliary latch deadlocks latchbolt when door is closed.
34 81 L283-141
LV9486
DO NOT DISTURB
Hotel Lock with “Do Not Disturb” Indicator with Vandlgard®
Latchbolt is operated by key outside or by knob/lever inside.
Outside knob/lever is always inoperative. Deadbolt is thrown or
retracted by inside thumbturn. When deadbolt is thrown, “DO
NOT DISTURB” plate is displayed. Deadbolt thrown by inside
thumbturn shuts out all keys except emergency keys. Inside
knob/lever simultaneously retracts both deadbolt and latchbolt.
Vandlgard function allows exterior lever to rotate freely down
while remaining securely locked.
34 82 L283-178
*Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
Not sold separately as a part.

L-Series Service Manual
12
FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Trim
Assembly
Page Number
Lock
Assembly
Page Number
Lock Case
Page Number
Keyed Locks
SCHLAGE ANSI
L9486 x L583-375
OCCUPIED
Hotel Lock with “Occupied” Indicator
Latchbolt is operated by key outside or by knob/lever inside.
Outside knob/lever is always inoperative. Deadbolt is thrown or
retracted by inside thumbturn. When deadbolt is thrown,
“OCCUPIED” plate is displayed.Deadbolt thrown by inside
thumbturn shuts out all keys except emergency keys. Inside
knob/lever simultaneously retracts both deadbolt and latchbolt.
Auxiliary latch deadlocks latchbolt when door is closed. Specify
per L583-375. (Previously XL11-580).
34 81 L283-141
LV9486 x L583-375
OCCUPIED
Hotel Lock with “Occupied” Indicator with Vandlgard®
Latchbolt is operated by key outside or by knob/lever inside.
Outside knob/lever is always inoperative. Deadbolt is thrown or
retracted by inside thumbturn. When deadbolt is thrown,
“OCCUPIED” plate is displayed. Deadbolt thrown by inside
thumbturn shuts out all keys except emergency keys. Inside
knob/lever simultaneously retracts both deadbolt and latchbolt.
Auxiliary latch deadlocks latchbolt when door is closed. Vandl-
gard function allows exterior lever to rotate freely down while
remaining securely locked. Specify per L583-375.
34 82 L283-178
L9496
OCCUPIED
Privacy Lock with “Occupied” Indicator a
Latchbolt is operated by knob/lever on either side. Deadbolt is
thrown or retracted by key outside (retraction by key required
in the event of an emergency) or inside thumbturn. Throwing
deadbolt locks outside knob/lever and displays “OCCUPIED”
plate. Rotating inside knob/lever simultaneously retracts both
deadbolt and latchbolt and unlocks outside knob/lever. (Previ-
ously XL11-885).
34 75 L283-138
LV9496
OCCUPIED
Privacy Lock with “Occupied” Indicator a
Latchbolt is operated by knob/lever on either side. Deadbolt is
thrown or retracted by key outside (retraction by key required
in the event of an emergency) or inside thumbturn. Throwing
deadbolt locks outside knob/lever and displays “OCCUPIED”
plate. Rotating inside knob/lever simultaneously retracts both
deadbolt and latchbolt and unlocks outside knob/lever. Vandl-
gard function allows exterior lever to rotate freely down while
remaining securely locked.
34 76 L283-177
Not sold separately as a part.
aAvailable with Request to Exit feature.

L-Series Service Manual
13
FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Trim
Assembly
Page Number
Lock
Assembly
Page Number
Lock Case
Page Number
Keyed L9000-Series Deadbolts
SCHLAGE ANSI
L9460 F17
Cylinder by Thumbturn Lock
Deadbolt is operated by key outside or thumbturn inside.
29 77 L283-139
L9462 F16
Double Cylinder Lock*
Deadbolt is operated by key on either side.
29 77 L283-139
L9463
Classroom Lock
Deadbolt is operated by key on outside. Inside cylinder turn
retracts deadbolt but cannot extend it.
29 77 L283-139
L9464 F18
Cylinder Lock
Deadbolt is operated by key on one side. No trim on opposite
side. Available with rose trim only.
29 77 L283-139
*Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.

L-Series Service Manual
14
FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Trim
Assembly
Page Number
Lock
Assembly
Page Number
Lock Case
Page Number
Keyed L400-Series
SCHLAGE ANSI
L460 E06071
Cylinder by Thumbturn Lock
Deadbolt is operated by key outside or thumbturn inside.
17 48 L283-099
L462 E06061
Double Cylinder Lock*
Deadbolt is operated by key on either side.
17 48 L283-099
L463 E06091
Classroom Lock
Deadbolt is operated by key on outside. Inside cylinder turn
retracts deadbolt but cannot extend it.
17 48 L283-099
L464 E06081
Cylinder Lock
Deadbolt is operated by key on one side. No trim on opposite
side. Available with rose trim only.
17 48 L283-099
L496
Deadbolt with “Occupied” Indicator
Deadbolt is operated by key outside or thumbturn inside.
Furnished with 09-611 per L583-375 indicator. When deadbolt
is thrown “OCCUPIED” plate is displayed. Available with rose
trim only. (Previously XL11-911).
17 48 L283-099
Non-Keyed L400-Series
SCHLAGE ANSI
L480 F14
Door Bolt
Deadbolt is operated by thumbturn on one side. No trim on
opposite side.
17 48 L283-099
*Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
