Innova ITX9688 User manual

Owner’s Manual Version:200822JJ
Questions/Comments
Innova Products Inc. is committed to providing the best quality and customer satisfaction
for all products we distribute. If you are dissatisfied with your purchase or need assistance,
please do not hesitate to contact us. Phone: [phone]
Monday through Friday
8:00 am –4:00 pm Pacific Time
Email: [e-mail]
WARNING:
BE SURE to read this manual in its ENTIRETY
prior to installing and using the inversion table.
DO NOT USE inversion table without the approval
of a licensed physician. Some medical conditions
may not be suitable for use with this product.
CAREFULLY READ all Warnings and Instructions
before using this inversion table. Misuse of this
equipment may result in serious injury.
BODY WEIGHT will put pressure on ankles while
inverting. New users are advised to start at lower
settings (15 or 30) and to wear athletic shoes.
DO NOT let children under the age of 13 use the
inversion table.
DO NOT allow children, bystanders, or pets
around while using this equipment.
DO NOT put hand or fingers inside the Protective
Cover for the Angle Selector Pin.
TO PREVENT unauthorized usage, it is strongly
recommended you purchase a lock to fasten the
Height Adjustment Tube to the Cross Bar.
KEEP FINGERS, feet, clothing, and hair free of all
moving parts.
TIGHTEN ALL nuts, bolts, and screws BEFORE
using equipment.
LEAVE adequate space to invert.
THIS EQUIPMENT is for indoor, household and
non-institutional use only.
Note: This product is designed
to adjust from 4’10” to 6’6” with a
Maximum User Weight of
300 LBS
Images may be slightly different
from actual product.
Heavy Duty Deluxe Inversion Table
Model ITX9688

PRODUCT WARRANTY
One-Year Limited Liability
Innova Products Inc. warrants that this product will be free from defects in materials and workmanship for a
period of one year from date of purchase. This warranty applies only to the original purchaser when
purchase of the product is from an authorized retailer and is for personal or household use. Warranty is
void when the sale of the product is for institutional use. This warranty is non-transferable.
EXCEPT FOR THE LIMITED EXPRESS WARRANTY STATED HEREIN, INNOVA PRODUCTS INC.
DISCLAIMS ALL OTHER EXPRESS OR IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO
THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
Innova Products Inc., will not be liable for any loss or damage, including incidental or consequential
damages of any kind, whether based upon warranty, contract or negligence and arising in connection with
the sale, use or repair of the product.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO
YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE.
In the event of failure of this product to conform to this warranty during the warranty period, please call
Innova Products Inc. Customer Service Department at [phone] for assistance in the repair or
replacement of the product or any covered part. Innova Products Inc. will repair or replace, at its own
option, the product or any covered part. This warranty does not cover damage caused by but not limited to
accident (including transit), repairs or attempted repairs by any person not authorized by Innova Products
Inc., or by vandalism, misuse, abuse, or alteration. The Warranty Period is based on the purchase date of
the product validated by the Authorized Retailers Register Receipt or valid copy of transaction statement.
If you require service under this warranty, please call or email our Customer Service Department at:
[e-mail] or [phone]
2
WARNINGS AND PRECAUTIONS
DO NOT use inversion table without a licensed physician’s approval. This product
may not be appropriate for use with certain medical conditions. If you believe you
experience any of the following conditions, consult with your physician before using
this product.
PLEASE NOTE: This list is for reference only and it is not a complete listing.
· Acutely swollen joints · Overweight / Extremely Obese
· Bone weakness (osteoporosis) · Pregnancy
· Cerebral sclerosis · Recent or unhealed fractures
· Conjunctivitis · Recent stroke or transient ischemic attack
· Glaucoma · Retinal detachment
· Heart or circulatory disorders · Spinal injury
· Hiatal hernia · Surgically implanted orthopedic supports
· High blood pressure · Use of anticoagulants
· Hypertension (including high doses of aspirin)
· Medullary pins · Ventral hernia
· Middle ear infection · Weak ankles and/or feet
Importer Address: Innova Products Inc.1289 HammerwoodAvenue, Sunnyvale, CA94089

WARNINGS AND PRECAUTIONS
To reduce the risk of serious injury:
·All users should read and understand all important precautions, instructions, and warnings
in this manual before using the inversion table. It is your responsibility to familiarize yourself
with the proper use of the inversion table and the inherent risks of the inversion table (ex.
falling on your head/neck, pinching, equipment failure, etc.).
·It is the responsibility of the owner to ensure that all users of the device are fully informed
about the proper use of the equipment and all warnings and safety precautions.
·Users can also read the condensed version of the Warnings and User’s Guidelines on the
back of the Backrest.
·Innova Products Inc. assumes no responsibility for personal injury or property damage
sustained by or through the improper use of the Inversion Table.
3
Item Dimensions:
46 in x 27.25 in x 60-61.50 in
116.84 cm x 69.22 cm x 152.4-156.2cm
Item Weight:
57 lbs (26.00 kg)
BEFORE USING THE INVERSION TABLE:
·The empty space surrounding the inversion table should
be at least 2 feet (0.6 meters) on the left and right sides
and at least 3 feet (0.92 meters) on the front and back
sides. This area must also include adequate space for
emergency dismount. See image at the right.
· The inversion table must be free standing on a stable
and leveled surface.
· Make sure the Safety Pin (Part # 26) is locked into place.
· Make sure the Protective Cover is secured on the right
handlebar.
· Be sure to secure your ankles to the ankle holders so
that your feet are locked snugly into place before inverting.
· The safety level of the inversion table can be
maintained only if it is examined regularly for
damage and wear and tear from regular usage.
· Please replace all missing or defective
components or worn out parts immediately
and/or keep the inversion table out of use
until item has been replaced or repaired.
· Parts most susceptible to wear and tear:
1) Foam Rollers (Part #13)
2) U-Shape Holder (Part #52)
2 ft
3 ft
2 ft
3 ft
Pinch Warning Label
on Side Cover
Angle Selector
Pin Warning
Ankle Lock and
Other Warnings
User's Warning &
Weight Capacity Height Adjustment
Knob Label
User's Guidelines
& Warning
on the back of
Backrest
WARNING LABELS
Call us to replace warning labels if damaged,
illegible or removed.
Headrest
Adjustment Label
Pinch Warning Label
WARNING: Maximum Weight Capacity is 300 LBS

manual
STEP 2
PART#20/19/21
M8*55
M8*65
STEP 1
PART#32
STEP 1
PART#20/19/21 STEP 1
PART#54
STEP 2
PART#26
STEP 3
PART#29/19/21
STEP 3
PART#14
STEP 4
PART#20/19/21
0 inch 1 2 3 4 5 6 7 8 9
0 cm 1 2 3 4 5 6 7 9 10 1 2 3 4 5 6 7 8 9 20 1 2 3 48
?INNOVA PRODUCTS INC.2018
PART#
22/19
ITX9700BK
M8*40
M8*45
M8x55
STEP 5
PART#41/55
PART#19/21/39/40/42
PART#
68
2/47/48
8L/9L/11L8R/9R/11R
1
12
31
3/43L/43R
4
52/53
5
7
659 6063
STEP 3 ComponentSTEP 1 Components
STEP 4 Components
STEP 2 Components
STEP 5 Components
Protruding
Metal
Piece
13
64
STEP 6 Components
Hardware Pack & Manual
Components For Assembly
4

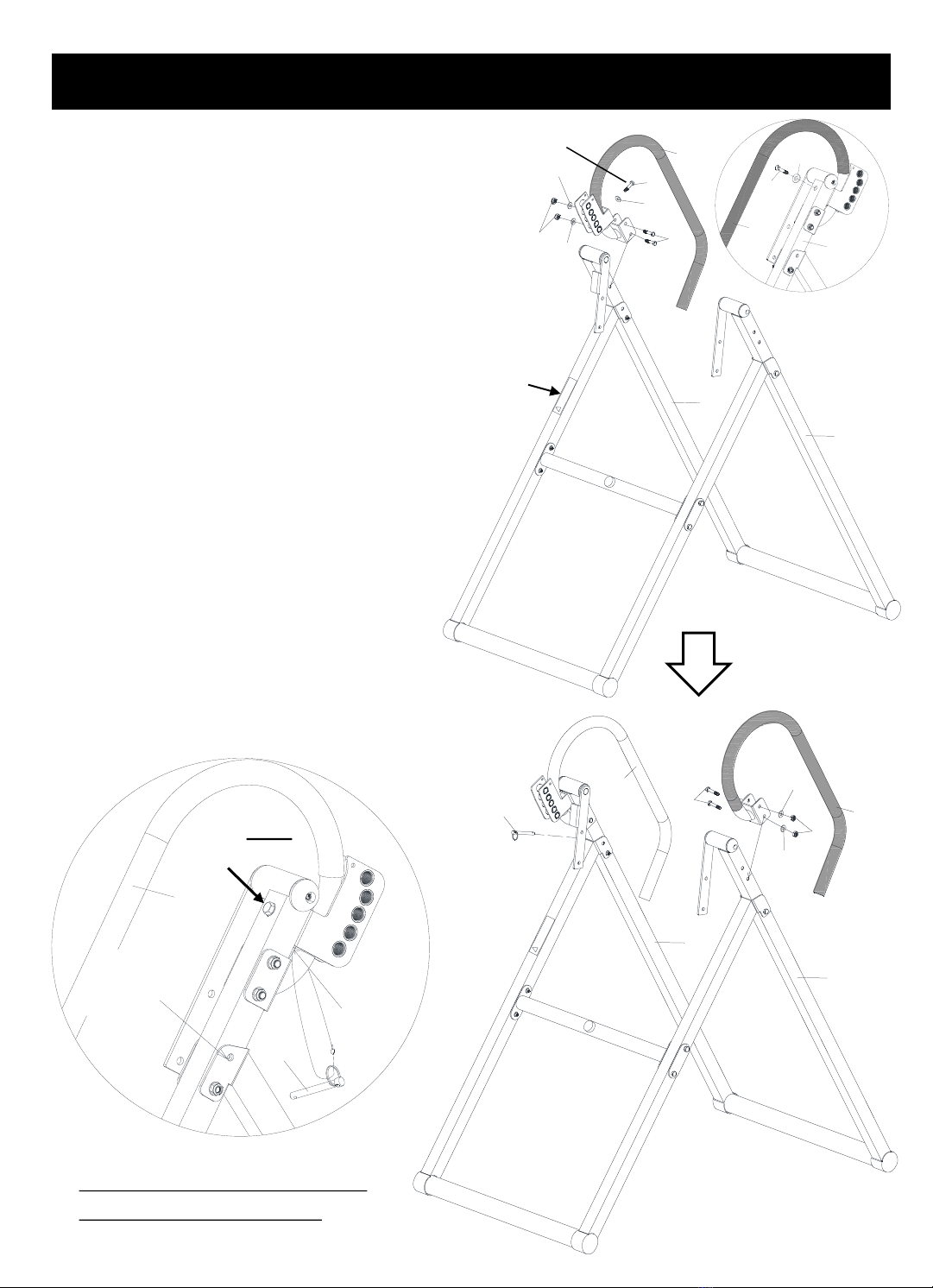

Step 1 –Base Frame Assembly
5
PLEASE NOTE:
RIGHT (R) Indicates right side while using the
inversion table, not facing it.
LEFT (L) Indicates left side while using the
inversion table, not facing it.
NUTS (21) are Nylon Lock Nuts. To tighten,
you need two wrenches.
Make sure the Stopper (34) on the
Cross Bar (12) is facing out and attach
the Cross Bar (12) to the Front Base
Frame (9R&9L) using 4 Bolts (20), 2
Metal Support Plates (54), 4 Flat
Washers (19) and 4 Lock Nuts (21).
NOW Tighten all Bolts (32&20).
Insert 4 Base Frame End Caps (31)
into both Bottom Tubes (1).
Unfold the Front Base Frame (9R&9L)
from the Rear Base Frame (8R&8L)
and let it stand on the floor.
Lay the Right Base Frame (8R&9R) and
the Left Base Frame (8L&9L) on the floor
with the Connecting Brackets (11R&11L)
facing each other. Make sure the
indented holes on the Bottom Tubes (1)
are facing downward and attach one
Bottom Tube (1) to the Front Base Frame
(9R&9L) using 2 Bolts (32). Attach the
other Bottom Tube (1) to the Rear Base
Frame (8R&8L) using 2 Bolts (32).
DO NOT tighten Bolts (32) until the
Cross Bar (12) is attached.
Installation Guidance Video DOES NOT replace Owner’s Manual.
Please be sure to read the Owner’s Manual in its entirety.
http://innovaproductsinc.com/innova9688/
or search “Innova ITX9688 Installation Guide” on YouTube.com
Indented
hole
32
32
32
32
Right Left
1
! Warning
Rear
8L
8R
9R
9L
11R
11L
Front
1
11R&11L
facing each other
Warning
Label
31
20 19
21
19
21 19
19
20
Right Left
1
! Warning
Front
Rear
8L
8R
9R
9L
31
31 31
12
54
54
34
Stopper
is facing out 20
21
21

8R
6
22
19
20
19
21
19
19
8L
8R
22
6
Front
Rear
! Warning Label
21
19
20
8L
8R
7
26
19
Front
Rear
! Warning Label
6

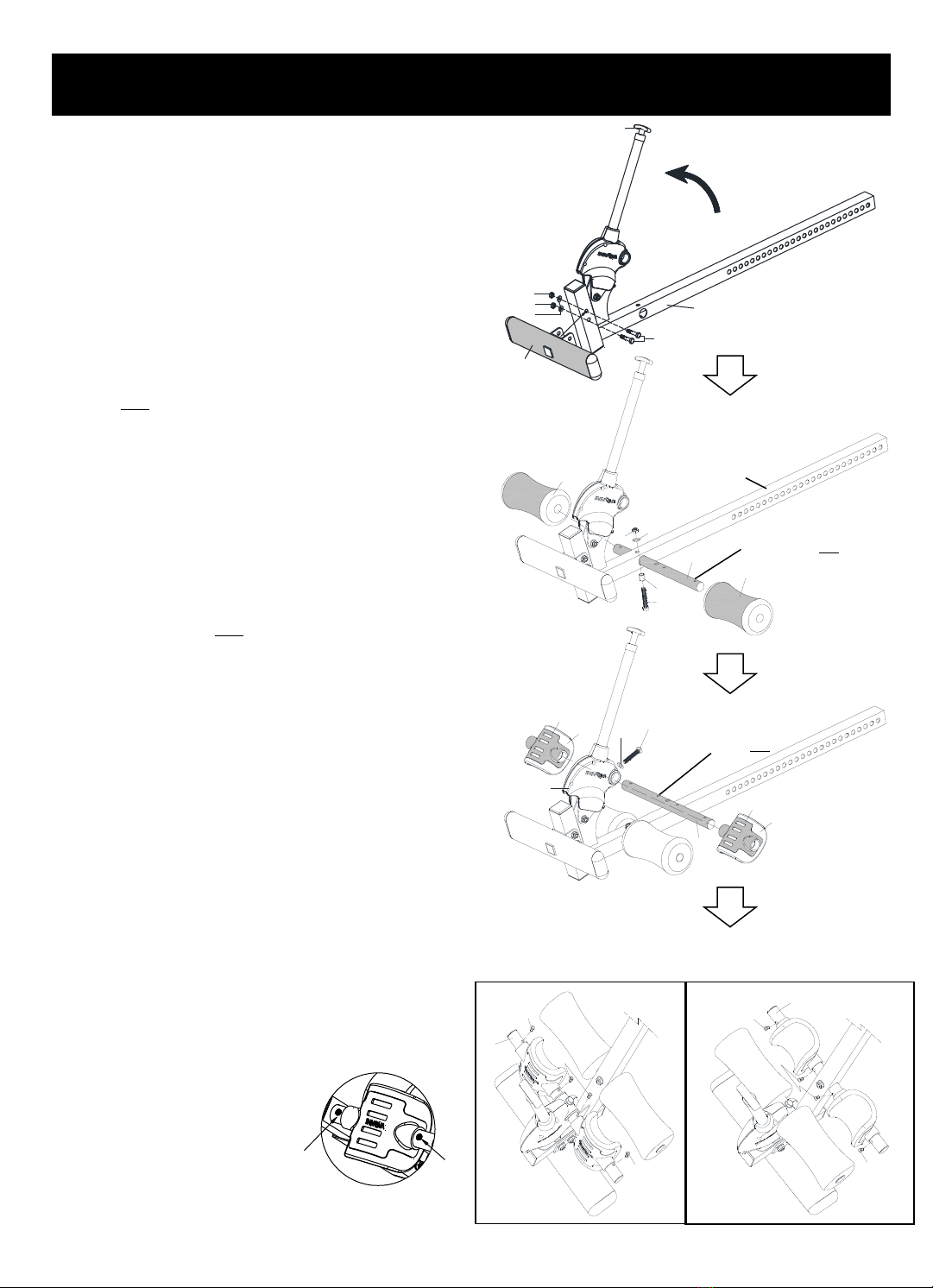

Step 2 –Handlebars Assembly
6
TIGHTEN ALL NUTS AND
BOLTS AT THIS TIME
Bolt 22 must
be installed
Warning
Label
1. Attach the Right Handlebar (6) to the
Rear Base Frame (8R) using 2 Bolts (20),
2 Flat Washers (19), and 2 Lock Nuts (21).
Be sure to insert Bolts (20) from the
inside of the frame. The Flat Washers
(19) and Lock Nuts (21) will be on the
outside of the frame.
DO NOT tighten Bolts (20) until Bolt (22) is
installed. Use Bolt (22) and Flat Washer
(19) to secure the Right Handlebar (6) to
the Rear Base Frame (8R).
Tighten Bolt (22) and Bolt (20) at this time.
2. Attach the Left Handlebar (7) to the
Rear Base Frame (8L) using 2 Bolts (20),
2 Flat Washers (19), and 2 Lock Nuts (21).
Unlock the chain that comes with the
Safety Pin (26) and secure the Safety Pin
(26) to the Right Handlebar (6) with the
chain provided. Insert the Safety Pin (26)
through the hole on the right side between
the 2 frames (8R&9R) to lock the Base
Frame open. See detailed picture.
Insert
Safety
Pin here
Secure
Chain
Here
6
26
CAUTION:
Bolt 22 must
be installed

48
40
2
48
40
2
48
40
2
47 48
! Warning
Front
Rear
Installed
Correctly
2
21
21
19
21
19 19
21 29 29
14
11R 11L
! Warning
47
48
Front
Rear

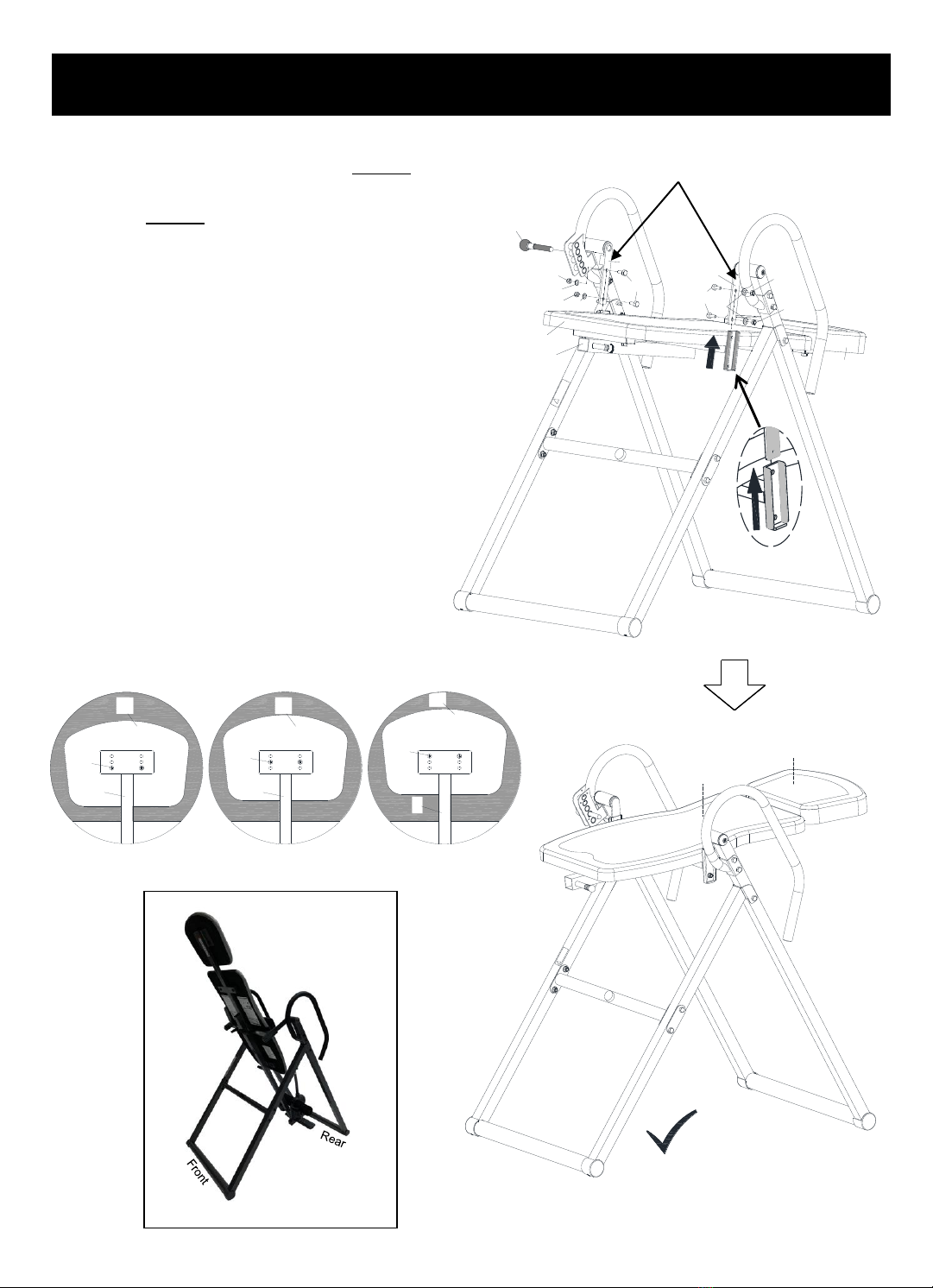

Step 3 –Pre-Installed Backrest to Base Frame
7
Low Position Middle Position High Position
Headrest Adjustment: To adjust the
Headrest (48), unscrew 2 Bolts (40) and 2
Flat Washers (57) and remove it from the
Backrest Support Tube (2). Move the
Headrest (48) to the position desired on
the Backrest Support Tube (2) and screw
2 Bolts (40) and 2 Flat Washers (57) to
secure the Headrest (48) into place.
TIGHTEN ALL NUTS, BOLTS, AND
SCREWS AT THIS TIME
Attach the Pre-Installed Backrest
(2&47&48) to the Connecting Brackets
(11R&11L) using 4 Bolts (29), 4 Flat
Washers (19) and 4 Lock Nuts (21).
Screw the Angle Selector Pin (14) into
the Incline Position 15 hole and tighten.
Before Installation, Please NOTE:
Connecting Brackets (11R&11L) MUST be
pointing downward and the Pre-Installed
Backrest MUST be attached from below
and up into the connecting brackets or the
table will not invert properly.
Connecting Brackets Must Point Downward
WhenAttaching the Pre-Installed Backrest
Installed Incorrectly
X

5
41
41
41
41
41
41
5
5
52
53
52
53 70
19
43L/R
5
19
21
56
51
13
13
19
21
21
20
4
3
37
Nylon
Snap Nylon
Snap
Step 4 –Height Adjustment Tube and Ankle Holders
8
TIGHTEN ALL NUTS AND
BOLTS AT THIS TIME
1. Install the Footrest (4) into the Height
Adjustment Tube (3) using 2 Bolts (20), 2
Washers (19), and 2 Lock Nuts (21).
For easier installation, pull up on the T Knob (37)
and push the bar away from the Height
Adjustment Tube (3).
Alternate Ankle
Holding Setting
2. Insert the Ankle Holding Tube (5) into the
Height Adjustment Tube (3) with the holes
facing UP. Insert the Bolt (51) with the Metal
Bushing (56) into the big hole at the bottom
of the Height Adjustment Tube (3) and tighten
them with a Flat Washer (19) and a Lock Nut
(21). Slide the Foam Roller (13) into each side
of the Ankle Holding Tube (5).
3. Insert the other Ankle Holding Tube (5)
into the hole on Plastic Cover (43L/R) with
the holes facing UP and secure it with Bolt
(70) and Flat Washer (19).
Slide the U-Shape Holder (52) with Plastic
Cover (53) into both sides of theAnkle
Holding Tube (5).
4. Insert 4 Nylon Snaps (41) into the holes
on the Ankle Holding Tube (5). You must
push the Nylon Snaps all the way into the
Tube so that it blocks the U-Shape Holder
from sliding out. See detailed picture below.
Recommended Ankle
Holding Setting
3
Holes face UP
Holes face UP
NOTE: The U-Shape Holder
(52) with Plastic Cover (53)
and the Foam Rollers (13)
can trade places with each
other. If you prefer this
Ankle Holding System, be
sure to use the Nylon Snaps
(41) to lock the U-Shape
Holders (52/53) into place.

64
65 66
60
62
62
59
6
59
63
61
659
63
59
61
6
59
6
61
61 59
60
62
61
61
63
38
2
6
3
Front
Rear
2-188
1-185
6ft-183
Step 5 –Height Adjustment Tube & Protective Cover Assembly
9
Unlock Locked
Pull the Height Adjustment Knob (38) and at the
same time slide the Height Adjustment Tube (3) into
the Backrest Support Tube (2) to your desired height
number and release the Height Adjustment Knob
(38). Make sure the Height Adjustment Knob (38)
locks securely into a hole on the HeightAdjustment
Tube (3).
Attach the Protective Cover (59) to the Right Handlebar (6) with two Screws (61), one on
each side of the Cover. Attach and snap the Front Shield for Cover (63) to the Protective
Cover (59) and secure it onto the Right Handlebar (6) with two Screws (61). Then attach
the Side Shield for Cover (60) to the Protective Cover (59) using three Screws (62).
Step 6 –Installing Lumbar Support
Attach the Lumbar Pad (64)
Wrap the straps around the
backside of the Backrest
(47) to secure it into place.
NOTE: Lumbar Pad (64)
position can be moved up or
down to fit under your
lumbar area or to your
desired position.

PREPARING TO INVERT 1:
INVERSION ANGLE AND HEIGHT SETTING
ADJUST TO YOUR HEIGHT SETTING
Photos shown may not represent actual product
10
NOTE: IT IS STRONGLY RECOMMENDED THAT SOMEONE BE WITH YOU AT
ALL TIMES DURING INVERSION. ALTHOUGH THE INVERSION TABLE IS
EASY TO USE, HAVING SOMEONE NEARBY TO SPOT YOU WILL PROVIDE
EXTRA SAFETY AND SUPPORT TO THE INVERSION PROCESS.
To Adjust Height: Pull the Height Adjustment Knob (38) and
at the same time slide the Height Adjustment Tube (3) up or
down to your desired height number and release the Height
Adjustment Knob (38). Make sure the HeightAdjustment
Knob (38) locks securely into a hole on the HeightAdjustment
Tube (3).
NOTE: Before starting, make sure the inversion table is
at the correct setting to match your height and weight
distribution. Since each individual’s body type is
different, you will need to find your own height setting.
SELECT INVERSION ANGLE
Familiarize yourself with the Angle Selector
Pin located on the Right Side of the Inversion
Table. The positioning of the pin will determine
the slope of the inversion.
The 6 selections are:
15 - Slight Inversion
30 - Moderate Inversion
45 - Intermediate Inversion
60 - Enhanced Inversion
85 - Intense Inversion
90 - Vertical Inversion (Insert the Angle
Selector Pin into the hole on top of the cover)
For your safety, the Angle Selector Pin
MUST be in secured in one of the Angle
Slots at all times.

PREPARING TO INVERT 2:
SECURING YOUR ANKLES
WARNING: Always wear ATHLETIC SHOES with top laces to help relieve
the ankle pressure while using the inversion table and to help protect your feet
while exercising.
Always make sure that the U-SHAPE HOLDERS and FOAM ROLLERS are
secured snugly against your ankles and that the T-KNOB is fully tightened and
locked into place before you use the inversion table.
Step 1- Expand the AdjustableAnkle Holding
Tube by pulling up on the T-Knob and at the same
time, push theAdjsutableAnkle Holding Tube
away from the Height Adjustment Tube.
Step 2- Slide your feet between
the U-Shape Holders and the
Foam Rollers.
NOTE: The back of your ankles
MUST lean all the way back and
touch the Foam Rollers.
Step 3- Contract U-Shape Holders so it is snugly against your ankles by
pulling up on the T-Knob and making sure it securely “Locks” into place as
photo B.
NOTE: ALWAYS lock the T-Knob into place before using the inversion table.
See images below.
AB
11
Locked
Unlocked
NO GAP
√
Photos shown may not
represent actual product

12
Before inversion, you should:
1) Adjust the Height Adjustment Tube to your height number,
2) Tighten the Angle Selector Pin,
3) Make sure your feet are secured snugly,
4) Lie flat on the backrest.

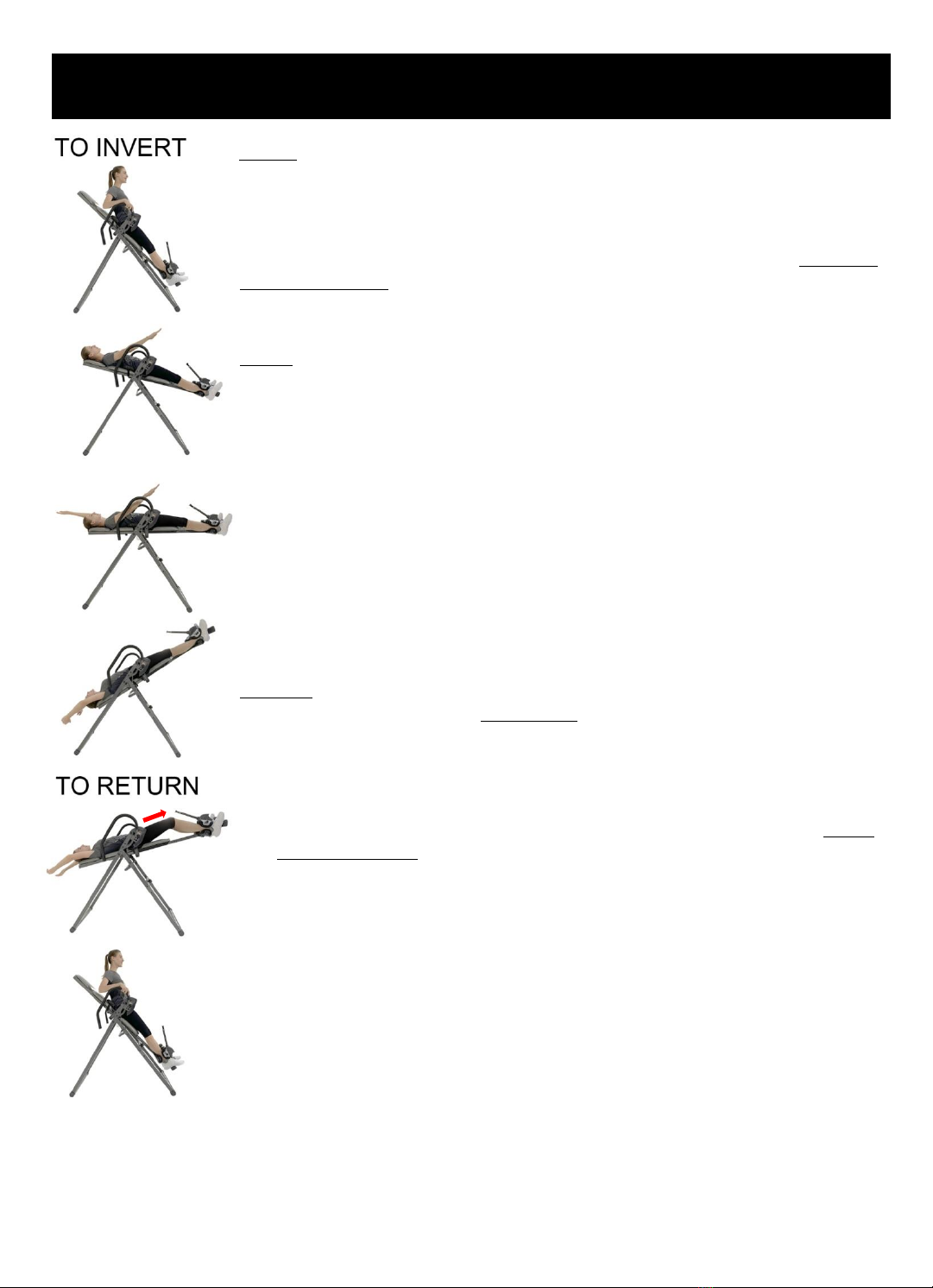

TO INVERT the inversion table, slowly raise one arm and move it up and
over your head. The inversion table should begin to tilt back slowly. Then,
slowly raise your other arm and move it up over your head. The inversion
table will safely invert. Rest your arms over the head and relax.
If the inversion table does not invert, set the Height Adjustment Tube
upwards one position at a time. If the inversion table inverts too quickly, set
the Height Adjustment Tube downwards one position at a time until you find
the desired height setting.
With the proper inversion and height setting, the inversion table should
invert safely and smoothly.
TO RETURN to upright position, slowly move your arms back to your thighs
and bend your knees a little. To prevent dizziness, do not return to the
upright position too quickly. Be sure to move your arms slowly and pause
for a while at the horizontal level to allow your body to re-adjust to the
upright position.
Try to rely on your center of gravity to return upright. DO NOT lift your head,
try to sit up, or just rely on the handlebars to return upright.
CAUTION: By slowly moving your arms back to the starting
position, the inversion table should return to the upright position. If
it does not, use the built-in handlebars to slowly help pull yourself
back upright. Lower the Height Adjustment Tube downward one
position at a time to accommodate your height and body type.
Photos shown may not represent actual product
To be able to invert smoothly and easily, you will need to find your personal
center of gravity. To help each individual find his/her center of gravity and
for the most comfortable inversion, there are two adjustable settings: 1) the
Height Adjustment Tube and 2) the Headrest.
NOTE: The center of gravity may vary from person to person due to height
and weight distribution. Your height setting may or may not be your actual
height.
NOTE: Body weight will put pressure on ankles while inverting.
New users are advised to start at lower settings (15 or 30) and to
wear athletic shoes. Starting at a lower setting may also help you get
use to the pressures applied to your feet/ankles while inverting.
HOW TO INVERT

13
1. How can I tell which is the Right Base Frame (8/9R) vs. Left Base Frame (8/9L)?
There is a Warning sticker on the Right Front Base Frame (9R). There is also a protruding
metal piece on the Right Connecting Bracket (11R). In this manual, Right indicates the right
side while using the inversion table, not facing it. Left indicates the left side while using the
inversion table, not facing it. When installing the inversion table, the Connecting Brackets
(11R/11L) will need to face each other in the middle.
2. My bolts do not tighten. What is wrong?
We use Nylon Lock Nuts to provide extra security for the inversion table. You will not be able to
fully tighten the bolts using just your hands (it will only go a couple of threads). You will need to
use two wrenches to tighten the nuts. Use one wrench to hold the bolt into place and use the
second wrench to turn the nut.
3. I cannot invert or return. How do I find my Center of Gravity for a smoother inversion?
To be able to invert smoothly and easily, you will need to find your personal center of gravity.
The center of gravity may vary from person to person due to height and weight distribution.
Your height setting may or may not be your actual height. Please thoroughly read the “How to
Invert” page in the Owner’s Manual for additional information. Contact us if it still doesn’t work.
4. What Inversion Setting (slope) should I use?
We highly recommend all new users begin at a low setting (15 or 30). For many, this is
something you will need to gradually get use to doing. Starting at a lower position may also help
you get use to the pressures applied to your feet/ankles while inverting. Based on reviews and
customer feedback, many users suggest that using the Inversion Setting of 30 or 45 provides
sufficient results.
5. How long should I invert?
A general rule of thumb is to listen to your body. Do not overexert yourself and only do what you
are comfortable with. Most people start with 1-2 minutes per session. As your body gets use to
inverting, you may choose to slowly add more minutes to each session. Frequency is typically
more important than duration. If you still have additional questions, you should contact your
doctor for additional information.
6. My feet / ankles feel discomfort while I’m inverting. What can I do?
Hanging upside-down or in a position where your feet are above your head will put a lot of
pressure to your ankles. For many, this is something you will need to gradually get use to doing.
Starting at a lower Inversion Setting (slope) and inverting for shorter periods of time may also
help the body get use to the pressures applied to the feet/ankles while inverting. Here are a
couple of tips that can help:
-Wear proper footwear with top laced shoes can help provide extra cushion and support for
your feet / ankles.
-Adjust the Ankle System so that it is snug enough to secure you. Do not tighten the Ankle
System too tight against your ankles / legs. This can restrict your blood flow and cause
discomfort.
-Contact us and we will help you.
7. My feet move from the Footrest when I invert. Is this normal?
As gravity works, you will move a little and your shoes may no longer touch the Footrest. Your
feet / ankles will then hold your entire body weight. You may need to start at a lower Inversion
Setting to allow your body (and yourself) to get use to inverting and hanging upside-down.
Frequently Asked Questions (FAQs)

14
Parts Listing
Part# Description QTY Part# Description QTY
1 Bottom Tube 2 34 Stopper 1
2Backrest Support Tube 135 EVA Space Pad 1
3Height Adjustment Tube 136 Round End Cap - Ankle Tube 4
4Footrest 137 T-Knob 1
5Ankle Holding Tube 238 Height Adjustment Knob 1
6Right Handlebar 140 Bolt - M8x16mm 2
7Left Handlebar 141 Nylon Snap 4
8L Rear Base Frame - Left 142 Cap Nut M20 1
8R Rear Base Frame - Right 143L Plastic Cover - Left 1
9L Front Base Frame - Left 143R Plastic Cover - Right 1
9R Front Base Frame - Right 144 Spring 1
10 Screw ST2.9x10mm 445 Plastic Washer - ￠20x￠9.5x1.2 4
11L Connecting Bracket - Left 1 46 Round End Cap - Handlebars 2
11R Connecting Bracket - Right 147 Backrest 1
12 Cross Bar 1 48 Headrest 1
13 Foam Roller 2 49 Wrench - #13/#17 2
14 Angle Selector Pin - ￠13.8x88mm 1 50 Hex Wrenches 1
15 Adjustable Ankle Holding Tube 151 Bolt - M8x45mm 1
16 Long Pin 152 U-Shape Holder 2
17 Spacer - Base Frame 4 53 Plastic U-Shape Cover 2
18 Round End Cap - Base Frame 254 Metal Support Plate - 100x38x2.5mm 2
19 Flat Washer - ￠16x￠8.5x1.5 19 55 Square End Cap - Footrest 1
20 Bolt - M8x55mm 10 56 Metal Bushing - 8x8mm 1
21 Lock Nut - M8 17 57 Flat Washer - ￠22x￠8.5x1.5 6
22 Bolt - M8x50mm 1 58 Axis M10 x 52mm 1
23 Bolt - M8x30mm 4 59 Protective Cover 1
24 Square End Cap - Backrest Tube 5 60 Side Shield for Cover 1
25L Left Handlebar Grip 161 Screw - M5x10mm 4
25R Right Handlebar Grip 162 Screw - M4x16mm 3
26 Safety Pin - ￠8x64mm 163 Front Shield For Cover 1
27 Bolt - M8x60mm 264 Lumbar Pad 1
28 Hexagonal Bolt - M8x20mm 265 Buckle-Male 1
29 Bolt - M8x20mm 4 66 Buckle-Female 1
30 Oval End Caps - Footrest Plate 2 67 Nut M10 2
31 Base Frame End Cap 4 68 Flat Washer ø20xø10.5x1.5 2
32 Hexagonal Bolt - M8x65mm 4 69 Plastic Bushing ø22 2
33 Square End Cap 2 70 Bolt-M8x40mm 1

59
61
31
31
31
31
20
19
21
19
07
21
19
20
22
06
25L
25R
57
40
24
24
47
19
21
24
23
57
24
19
21
8L
9R
02
17
11L
17 18
28
11R
17
18
17
28
29
29
27
45
19
21
19 21
27
14
45
26
23
57
57
23
46
46
32
32
1
32
32
54
20
19
19
21
19
19
21
12
34
54
20
1
8R
9L
50
49
35
62
38
61
60
24
48
55 04
03
15
5
5
16
44
19
19
21
21
20
30
30
33
33
36
36
36
36
37
56
51
21
70
19
43L
43R
13
69
10
10
69
52
53
52
53
67
68
58
67
68
42
41
41
63 61
19
19
13
64
65 66
15
Exploded View

Innova Products Inc.
1289 HammerwoodAvenue, Sunnyvale, CA 94089
Email: [e-mail]
Phone: [phone]
www.innovaproductsinc.com
When contacting customer service, please provide the following information:
1) Model Number for your item
2) PC Code for your item (front page of this manual)
3) Part number or installation step number in question
© Copyrighted 2020 Innova Products Inc.
STORAGE & MAINTENANCE
Customer Service Contact Information
Remove Safety Pin (26) from the tip of the Base Frame
(8&9). Pull up on the Handlebars (6/7) to fold the Base
Frame (8&9). Re-insert Safety Pin into the hole near the
tip of the Base Frame (9).
Be sure to leave the Base Frame (8&9) wide enough to
remain stable or secure it to a wall to prevent tipping.
There are other storage options for this inversion table.
Be sure the inversion table is stored safely and make
sure it does not slam, fall, or tip over.
WARNING: Do not allow anyone to use the inversion
table while it is in storage mode. Use the inversion
table only when the base frame is fully extended. Be
sure all parts of the inversion table are not left unstable
(easily moved) when not in use. Be sure the device is
completely secured to prevent tripping or blocking.
NOTE: Use a lock (NOT included) to secure the Height
Adjustment Tube (3) to the Cross Bar (12) to prevent
unauthorized usage of the inversion table.
To CLEAN, wipe your inversion table with a
damp cloth. DO NOT use abrasive cleaners or solvents.
Installation Guidance Video DOES NOT replace Owner’s Manual.
Please be sure to read the Owner’s Manual in its entirety.
http://innovaproductsinc.com/innova9688/
or search “Innova ITX9688 Installation Guide” on YouTube.com
To Store, Insert the Safety Pin (26)
at tip of right Base Frame (9R)
9
8
9
