Inoksan BYM102 User manual

MODEL NO
TARIH/DATE
REV.
SAYFA/PAGE
: BYM 102
: 18.11.2016
: ST-08/86-2016
: 01 / 24

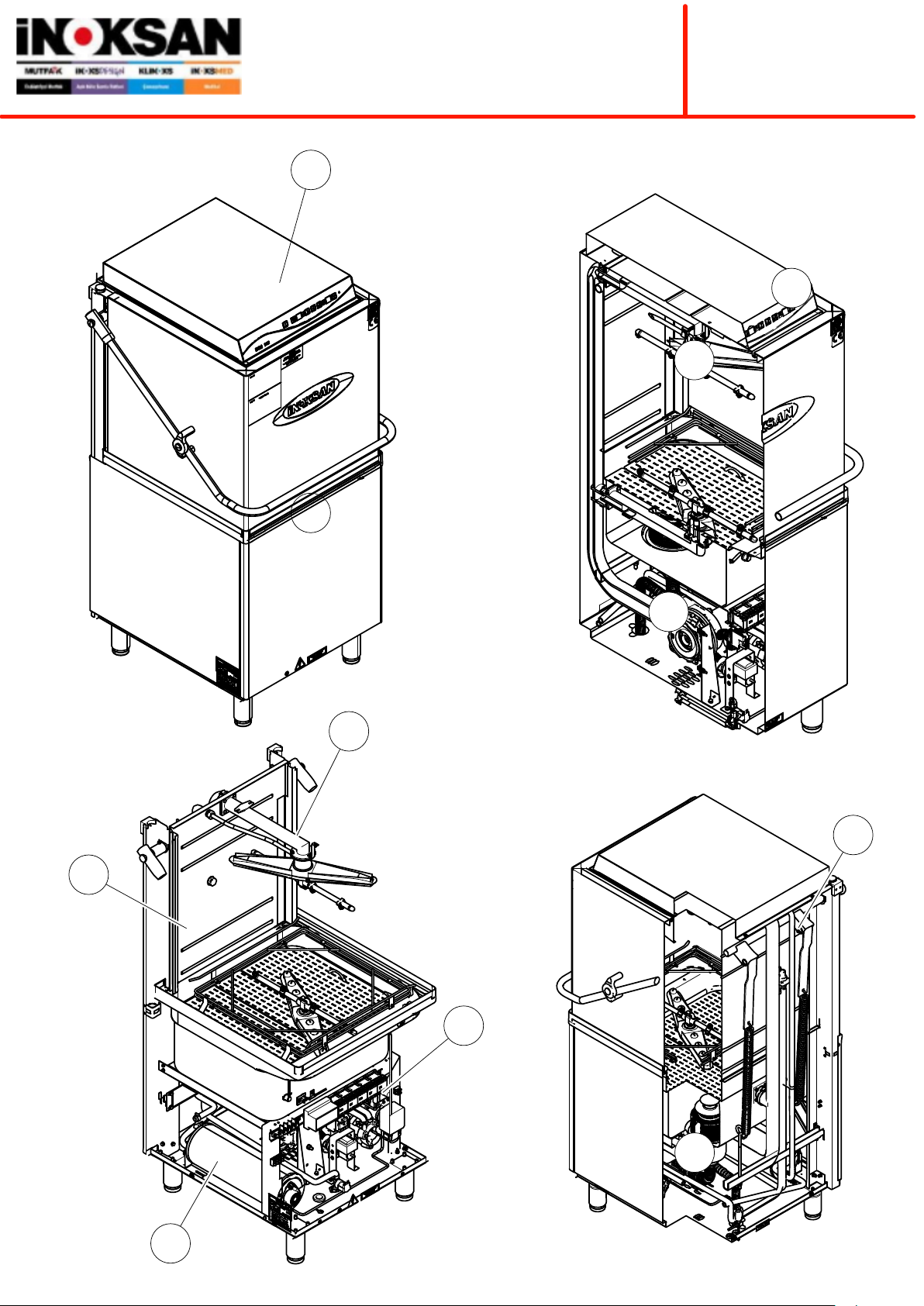

BYM 102 KOMPLE / BYM 102 COMPLETE
BULASIK YIKAMA MAKINASI
SERViS MANUELi/SERVICE MANUAL
DISWASHER
1
2
3
4
5
6
7
8
9
10
11

MODEL NO BYM 102
TARİH/DATE 18.11.2016
REV ST-08/86-2016
SAYFA /PAGE 02 / 24
S.NO PARÇA ADI PART NAME ADET
1BYM 102 KOMPLE 1
2PANEL KOMPLE PANEL COMPLETE 1
3KABLO DEMETİ KOMPLE HARNESS COMPLETE 1
4ŞASE KOMPLE CHASSIS COMPLETE 1
5YIKAMA DURULAMA BÖLÜMÜ WASHING RINSING SECTION 1
6BOYLER VE TANK ISITICILARI BOILER AND TANK HEATER 1
7ALT ÜST YIKAMA BORU GRUBU LOWER UPPER EASHING PIPE ASSEMBLY 1
8YIKAMA VE DURULAMA FISKİYELERİ WASHING AND RINSING JET 1
9TAHLİYE POMPA GRUBU KOMPLE DISCHARGE PUMP ASSEMBLY COMPLETE 1
10 KAPAK KALDIRMA MEKANİZMASI COVER BOOST MECHANISM 1
11 DIS SACLAR OUTER SHEETS 1
2100 0770
2100 0750
SERVİS MANUELİ/SERVICE MANUEL
BULAŞIK YIKAMA MAKİNASI / DISWASHER
BYM 102 KOMPLE / BYM 102 COMPLETE
PARÇA NO
4110 0000
BYM 102 COMPLETE
----
2100 8101
----
----
2100 0700
----
---
2100 6151

MODEL NO
TARIH/DATE
REV.
SAYFA/PAGE
: BYM 102
:18.11.2016
: ST-08/86-2016
: 03 / 24
PANEL KOMPLE / PANEL COMPLETE
BULASIK YIKAMA MAKINASI
SERViS MANUELi/SERVICE MANUAL
DISWASHER
1
2
3
4

MODEL NO BYM 102
TARİH/DATE 18.11.2016
REV ST-08/86-2016
SAYFA /PAGE 04 / 24
S.NO PARÇA ADI PART NAME ADET
11
2ELEKTRONİK KART GRUBU EXPANSION CARD COMPLETE 1
3GÖVDE KAPAK SACI BODY COVER SHEET 1
4KAPI BANDI D PROFİL DOOR BAND 2,4 mt
0406 0002
2120 7035
2100 0742
SERVİS MANUELİ/SERVICE MANUEL
BULAŞIK YIKAMA MAKİNASI / DISWASHER
PANEL KOMPLE / PANEL COMPLETE
PARÇA NO
2100 9302
BYM-102 SERİGRAF
BYM 102 PANEL SERIGRAPH

MODEL NO
TARIH/DATE
REV.
SAYFA/PAGE
: BYM 102
: 18.11.2016
: ST-08/86-2016
: 05 / 24

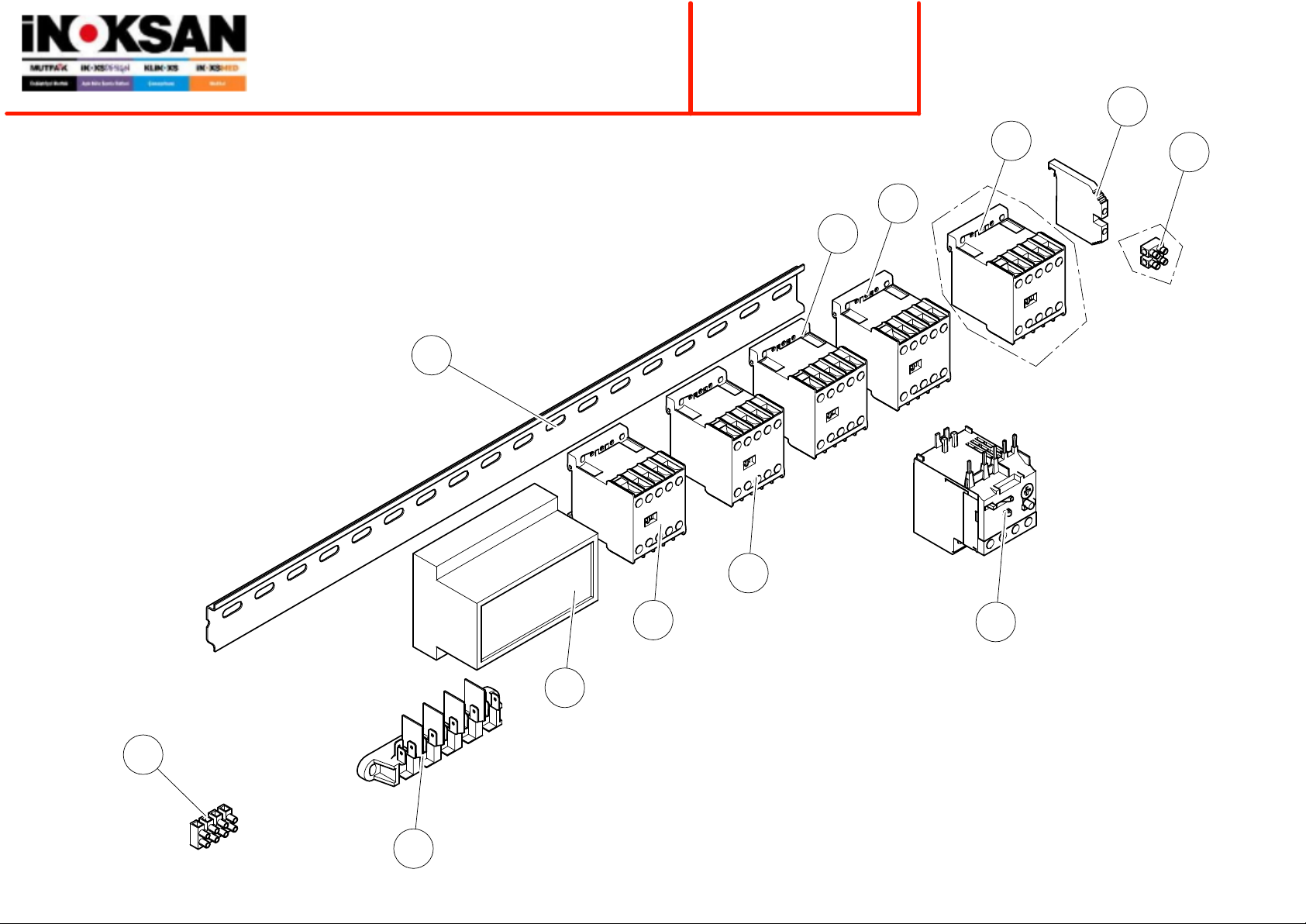

KABLO DEMETI KOMPLE / HARNESS COMPLETE
BULASIK YIKAMA MAKINASI
SERViS MANUELi/SERVICE MANUAL
DISWASHER
1
2
3
4
5
6
7
8
9
Opsiyonel
Durulama Pompasi
ile kullanilir.
4
3
3
Opsiyonel
Deterjan Pompasi
ile kullanilir.
Optional
Used with
rinse pump
Optional
Used with
detergent pump

MODEL NO BYM 102
TARİH/DATE 18.11.2016
REV ST-08/86-2016
SAYFA /PAGE 06 / 24
S.NO PARÇA ADI PART NAME ADET
10,5 mt
21
33
4
2
5
1
6
1
1
71
81
91
KLEMENS 1000'LİK 2ARA
NC1-1810M CONTACTOR
THERMAL RELAY
CONNECTOR RAIL
STOPPER FOR CONNECTOR
CONTACTOR 4KW CHINT (1 NUMBER OPTIONAL)
CONNECTOR 5 BLOCK TERMİNAL
CONNECTOR 1000V-4 POLE
CONNECTOR 1000V-2 POLE
POWER BOX
KONTAKTÖR 4KW CHINT ( 1 adedi opsiyonel )
NC1-1810M KONTAKTÖR
POVER BOX
TERMİK RÖLE EATON ( 30.03.2015)
KLEMENS 5'Lİ BLOK TERMİNAL
THERMAL RELAY
KLEMENS 1000'LİK 4ARA
TERMİK RÖLE
SERVİS MANUELİ/SERVICE MANUEL
BULAŞIK YIKAMA MAKİNASI / DISWASHER
PARÇA NO
2210 7105
KLEMENS RAYI
KABLO DEMETİ KOMPLE / HARNESS COMPLETE
KD 4 GRİ VİDASIZ DURDURUCU
1009 0047
1004 0025
2401 7012
2120 7013
1004 0049
1006 0253
1006 0252
2120 7034
1009 0048

MODEL NO
TARIH/DATE
REV.
SAYFA/PAGE
: BYM 102
: 18.11.2016
: ST-08/86-2016
: 07 / 24

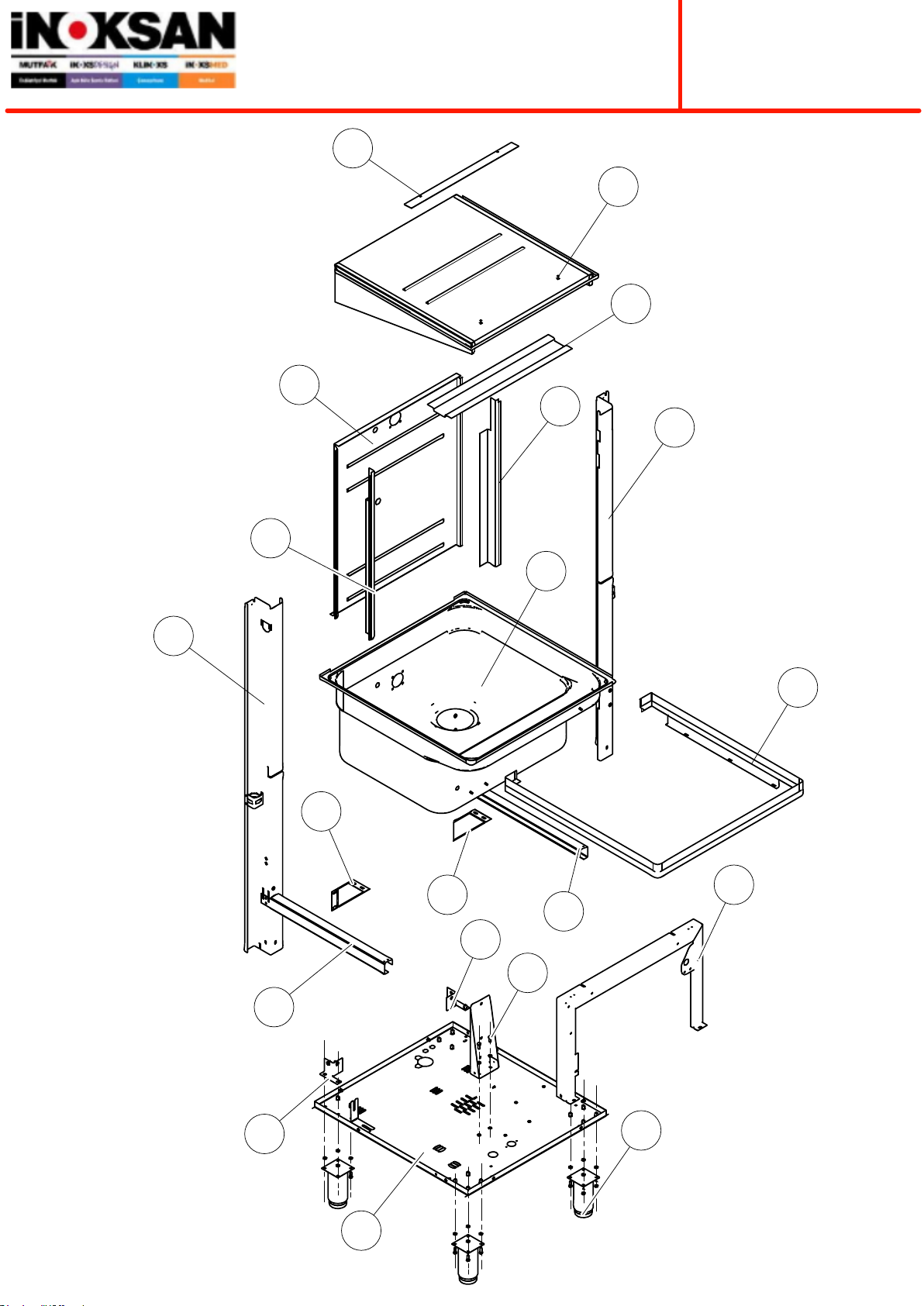

SASE KOMPLE / CHASSIS COMPLETE
BULASIK YIKAMA MAKINASI
SERViS MANUELi/SERVICE MANUAL
DISWASHER
1
2
3
4
5
7
8
9
10
6
11
12
13
14
15
16
17
18
19
20

MODEL NO BYM 102
TARİH/DATE 18.11.2016
REV ST-08/086-2016
SAYFA /PAGE 08 / 24
S.NO PARÇA ADI PART NAME ADET
11
2UPPER BONNET COMPLETE 1
3
POOL LOWER BODY SUPPORT PLATE
1
4POOL REAR PLATE 1
5POOL WATER LEAKTIGHTNESS PLATE RIGHT 1
6POOL WATER LEAKTIGHTNESS PLATE LEFT 1
7REAR FOOT PLATE RIGHT COMPLETE 1
8REAR FOOT PLATE LEFT COMPLETE 1
9POOL PLATE PRESS FIT 1
10 POOL ROOF BAR PLATE 1
11 POOL SUPPORT PLATE LEFT 1
12 POOL SUPPORT PLATE RIGHT 1
13 POOL SUPPORT PLATE LEFT 1
14 POOL SUPPORT PLATE RIGHT 1
15 POOL FOOT FRONT PLATE 1
16 FOOT CONNECTION PLATE REAR RIGHT 1
17 FOOT CONNECTION PLATE REAR LEFT 1
SERVİS MANUELİ/SERVICE MANUEL
BULAŞIK YIKAMA MAKİNASI / DISWASHER
ŞASE KOMPLE / CHASSIS COMPLETE
PARÇA NO
2100 0743
ÖN PANEL BAĞLANTI SACI
FRONT PANEL CONNECTION PLATE
2100 0108
2100 0720
2100 0721
2100 0705
2100 0711
2100 0737
2100 0706
2100 0107
2100 0119
2100 0708
2100 0739
2100 0738
ÜST ŞAPKA KOMPLE
HAVUZ ÜST GÖVDE DESTEK SACI
HAVUZ ARKA SACI
HAVUZ SU SIZDIRMAZLIK SACI SAĞ
2100 0103
2100 0707
2100 0709
2100 0712
2100 0118
HAVUZ KEMER SACI
HAVUZ DESTEK SACI SOL
HAVUZ DESTEK SACI SAĞ
HAVUZ DESTEK SACI SOL
HAVUZ SU SIZDIRMAZLIK SACI SOL
ARKA AYAK SACI SAĞ KOMPLE
ARKA AYAK SACI SOL KOMPLE
HAVUZ SACI PRES BASKILI
POMPA BAĞLAMA SACI
HAVUZ DESTEK SACI SAĞ
HAVUZ AYAK ÖN SACI
AYAK BAĞLAMA SACI ARKA SAG
AYAK BAĞLAMA SACI ARKA SOL
17 FOOT CONNECTION PLATE REAR LEFT 1
18 PUMP CONNECTION PLATE 1
19 CHASSIS PLATE 1
20 INOXIDABLE FOOR Ø60 4
1314 0111
2100 0738
2100 0103
2100 0702
POMPA BAĞLAMA SACI
ŞASE SACI
PASLANMAZ AYAK Ø60
AYAK BAĞLAMA SACI ARKA SOL

MODEL NO
TARIH/DATE
REV.
SAYFA/PAGE
: BYM 102
: 18.11.2016
: ST-08/86-2016
: 09 / 24

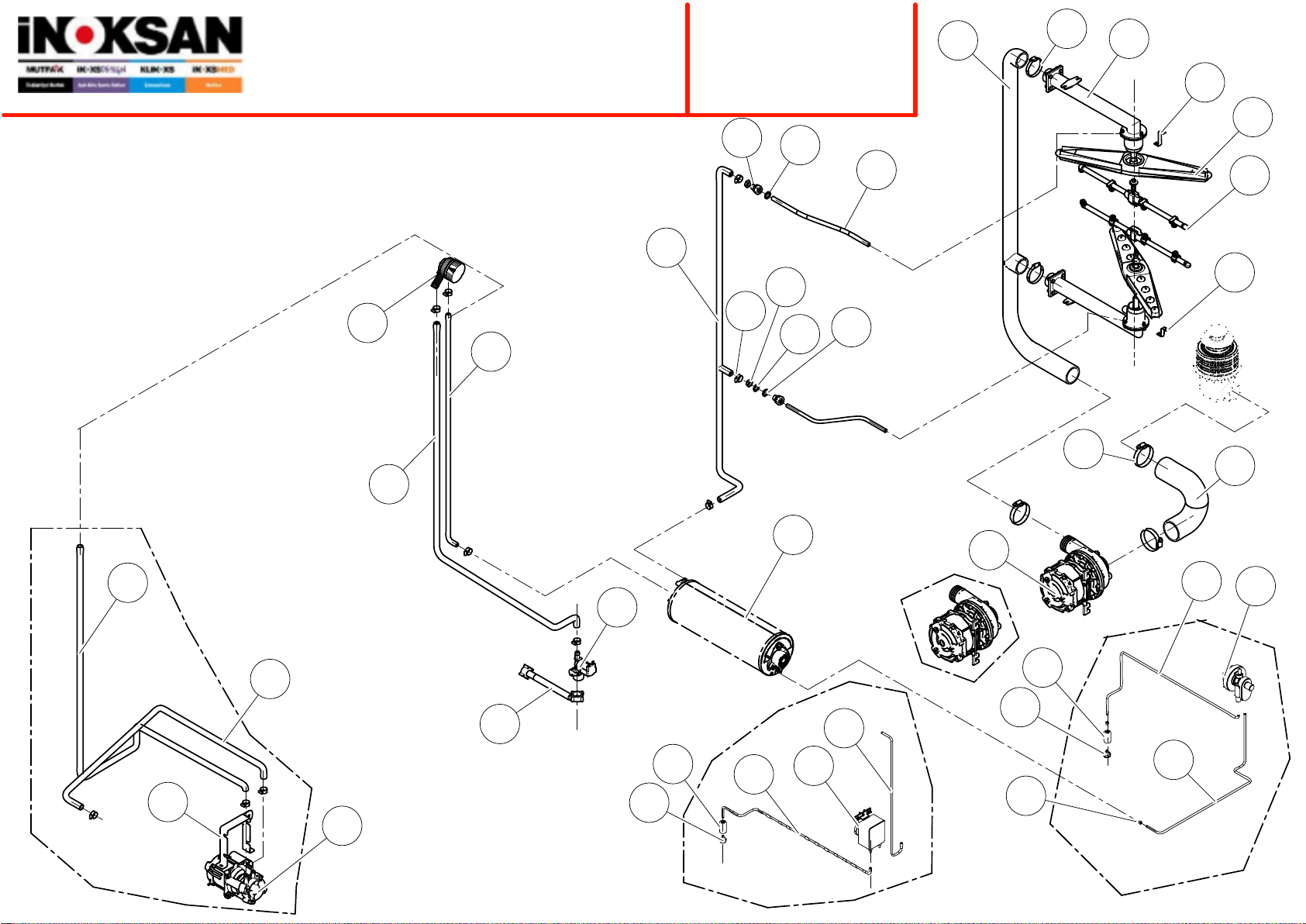

YIKAMA DURULAMA BOLUMU / WASHING RINSING SECTION
BULASIK YIKAMA MAKINASI
SERViS MANUELi/SERVICE MANUAL
DISWASHER
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
25
25
27
28
29
30
31
32
33
34 35
Opsiyonel / Optional
Opsiyonel / Optional
Opsiyonel / Optional
Opsiyonel / Optional

MODEL NO BYM 102
TARİH/DATE 18.11.2016
REV ST-08/86-2016
SAYFA /PAGE 10 / 24
S.NO PARÇA ADI PART NAME ADET
12
21
31
42
52
61
74
82
91
10 1
11 2
12 2
13 2
14 1
15 6
16 1
DURULAMA REKOR YAYI
KELEPÇE
DURULAMA HORTUMU
BOYLER 8100W
KELEPÇE
POMPA EMİŞ HORTUMU
BORU Ø12x379.5
KİLİNGRİT CONTA Ø19/Ø25x2
YIKAMA POMPASI
DURULAMA ÇIKIŞ REKOR 929076
YIKAMA HORTUMU
FISKİYE ÜST BAĞLANTI SACI MONTAJ
YIKAMA FİSKİYESİ
DURULAMA FİSKİYESİ
SÜZGEÇ FISKİYE BAĞLANTI SACI ALT
KELEPÇE
2100 6305
2100 0750
1209 0028
1209 0001
SERVİS MANUELİ/SERVICE MANUEL
BULAŞIK YIKAMA MAKİNASI / DISWASHER
PARÇA NO
2100 6151
ALT ÜST YIKAMA BORU GRUBU
YIKAMA DURULAMA BÖLÜMÜ / WASHING RINSING SECTION
LOWER UPPER WASHING PIPE ASSEMBLY
2100 8034
1209 0026
2100 0741
1310 0005
1310 0007
2100 6306
1203 0005
2100 3340
1209 0025
2100 8025
1310 0012
2100 6308
WASHING HOSE
JET UPPER CONNECTION PLATE ASSEMBLY
WASHING JET
RINSING JET
PIPE Ø12x379.5
CYLINDER SEAL Ø19/Ø25x2
DRAINER JET CONNECTION PLATE LOWER
CLAMP
CLAMP
PUMP SUCKING HOSE
WASHING PUMP
BOILER 8100W
RINSING OUTPOT REKOR
RINSING REKOR SPRING
CLAMP
RINSING HOSE
16 1
17 1
18 1
19 1
20 1
21 1
22 1
23 1
24 0,5MT
25 8MT
26 1
27 2
28 2
29 1
30 1
31 0.75 MT
32 1
33 1
34 1
35 1
PARLATICI SÜZGEÇİ
POMPA 130120 DURULAMA
PARLATICI POMPASI
ŞEFFAF HORTUM
O-RİNG
DETERJAN POMPASI
DURULAMA POMPA HORTUMU
POMPA BOYLER ARASI HORTUM
DURULAMA POMPA SACI
ŞEFFAF HORTUM
HORTUM KELEPÇESİ
PARLATICI HORTUM AĞIRLIĞI
DURULAMA HORTUMU
BOYLER 8100W
ÇEKVALF
KİLİNGRİT CONTA
SU GİRİŞ HORTUMU KISA
BOYLER GİRİŞ HORTUMU
SELENOİD VALF
HORTUM ŞEBEKE
2100 3340
2140 6040
2100 6307
2100 6322
2100 6308
1207 0011
1203 0030
2100 6304
2100 6303
2100 0733
0405 0020
1310 0014
1203 0098
1203 0099
1203 0008
1207 0005
1202 0004
1206 1000
1203 0028
0405 0202
BOILER 8100W
CHECK VALVE
WATER PORT HOSE SHORT
BOILER PORT HOSE
RINSING HOSE
TRANSLUCENT HOSE
HOSE CLAMP
RINSE HOSE WEIGHT
RINSE DRAINER
SELONOID VALVE
HOSE MESHWORK
RINSE PUMP
TRANSLUCENT HOSE
RINSING PMUP
CYLINDER SEAL
O RING
DETERGENT PUMP
RINSING PUMP HOSE
PUMP BOILER INTER HOSE
RINSING PUMP PLATE

MODEL NO
TARIH/DATE
REV
SAYFA/PAGE
: BYM 102
: 18.11.2016
: ST-08/86-2016
: 11/24

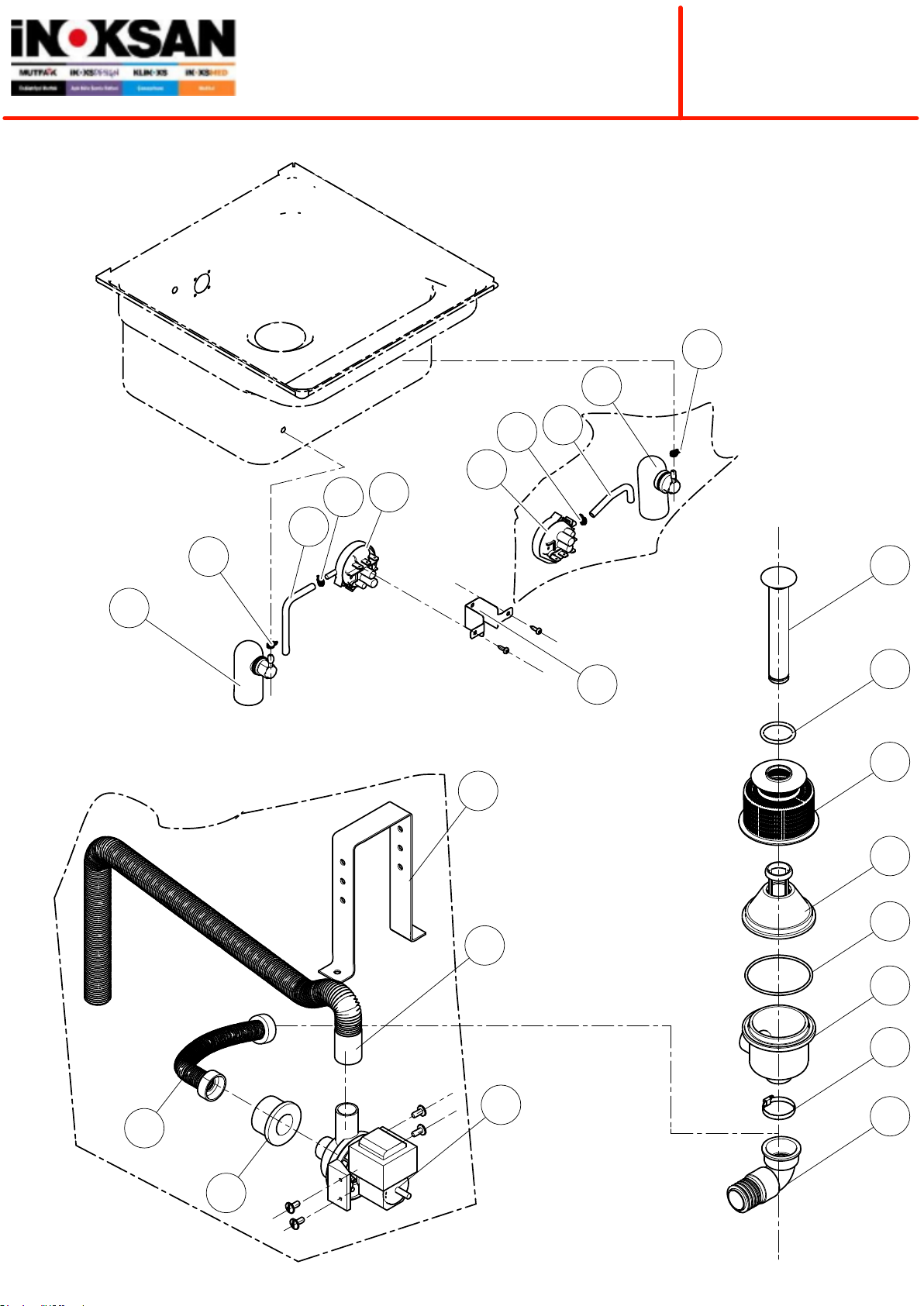

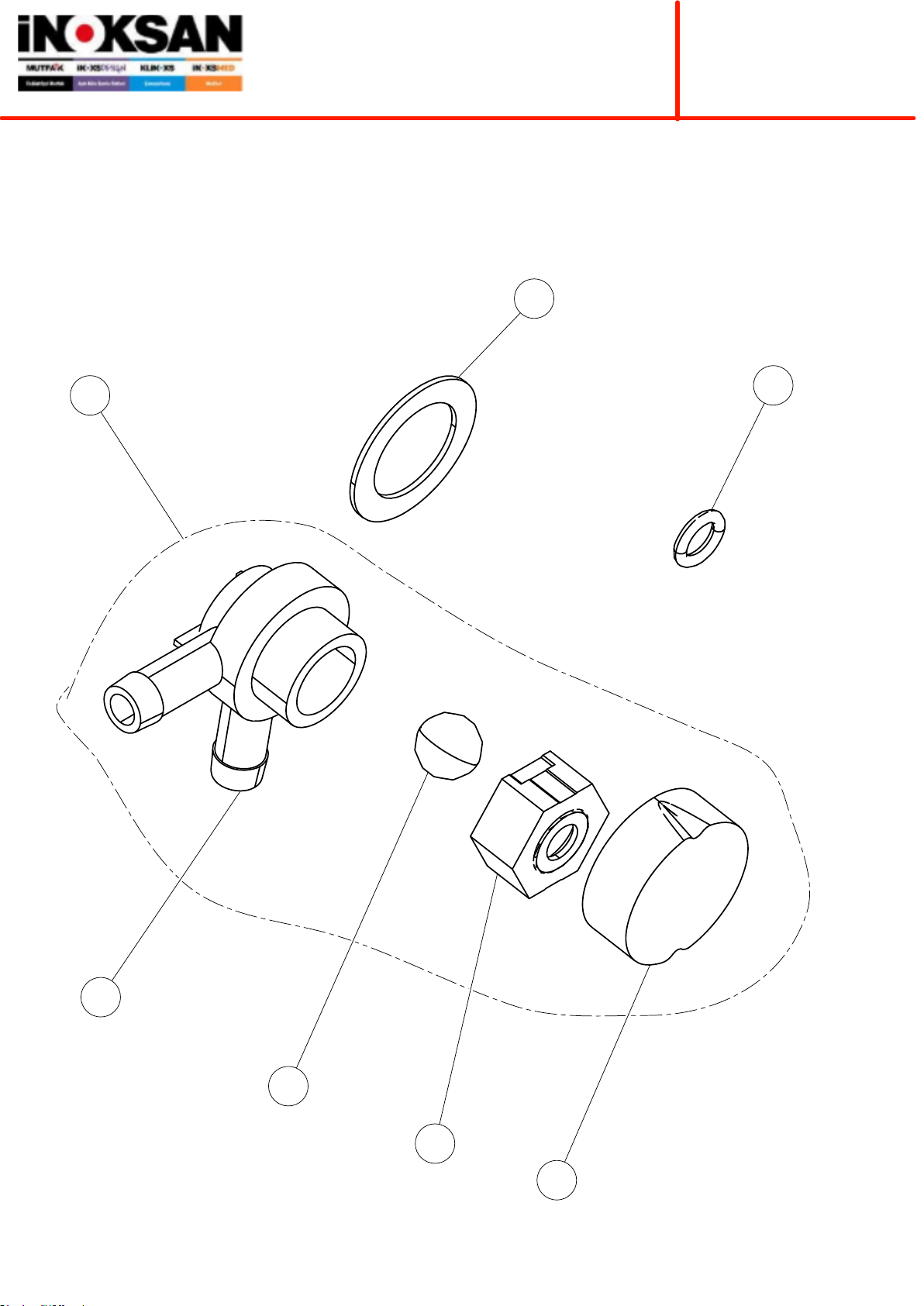

VALF KOMPLE / VALVE COMPLETE
BULASIK YIKAMA MAKiNESi/DISWASHER
SERViS MANUELi/SERVICE MANUAL
1
2
3
4
5
6
7

MODEL NO BYM 102
TARİH/DATE 18.11.2016
REV ST-08/086-2016
SAYFA /PAGE 12 / 24
S.N. PARÇA ADI PART NAME
ADET
PCS
ACHECK VALVE INSTALLATION 1
1ORING 1
2RUBBER SEALS 1
3CHECK VALVE CHASSIS 1
4CHECK VALVE PART OF WATER IN OUT 1
5TEFLON BALL 1
6CHECK VALVE NUT 1
7CHECK VALVE COVER 1
2140 6027
2140 6030
2140 6025
2140 6029
2140 6026
2140 6028
SERVİS MANUELİ/SERVICE MANUEL
BULAŞIK YIKAMA MAKİNASI / DISWASHER
YIKAMA VE DURULAMA BÖLÜMÜ
WASHING AND RINSING DEPARTMENT
PARÇA NO
PART N.
2140 6040
ÇEKVALF MONTAJ
ORING
KAUÇUK CONTA
ÇEKVALF GÖVDE
ÇEKVALF SU GİRİŞ ÇIKIŞ PARÇASI
TEFLON BİLYA
ÇEKVALF SOMUN
ÇEKVALF KAPAK
2140 6032

MODEL NO
TARIH/DATE
REV.
SAYFA/PAGE
: BYM 102
: 18.11.2016
: ST-08/86-2016
: 13 /24

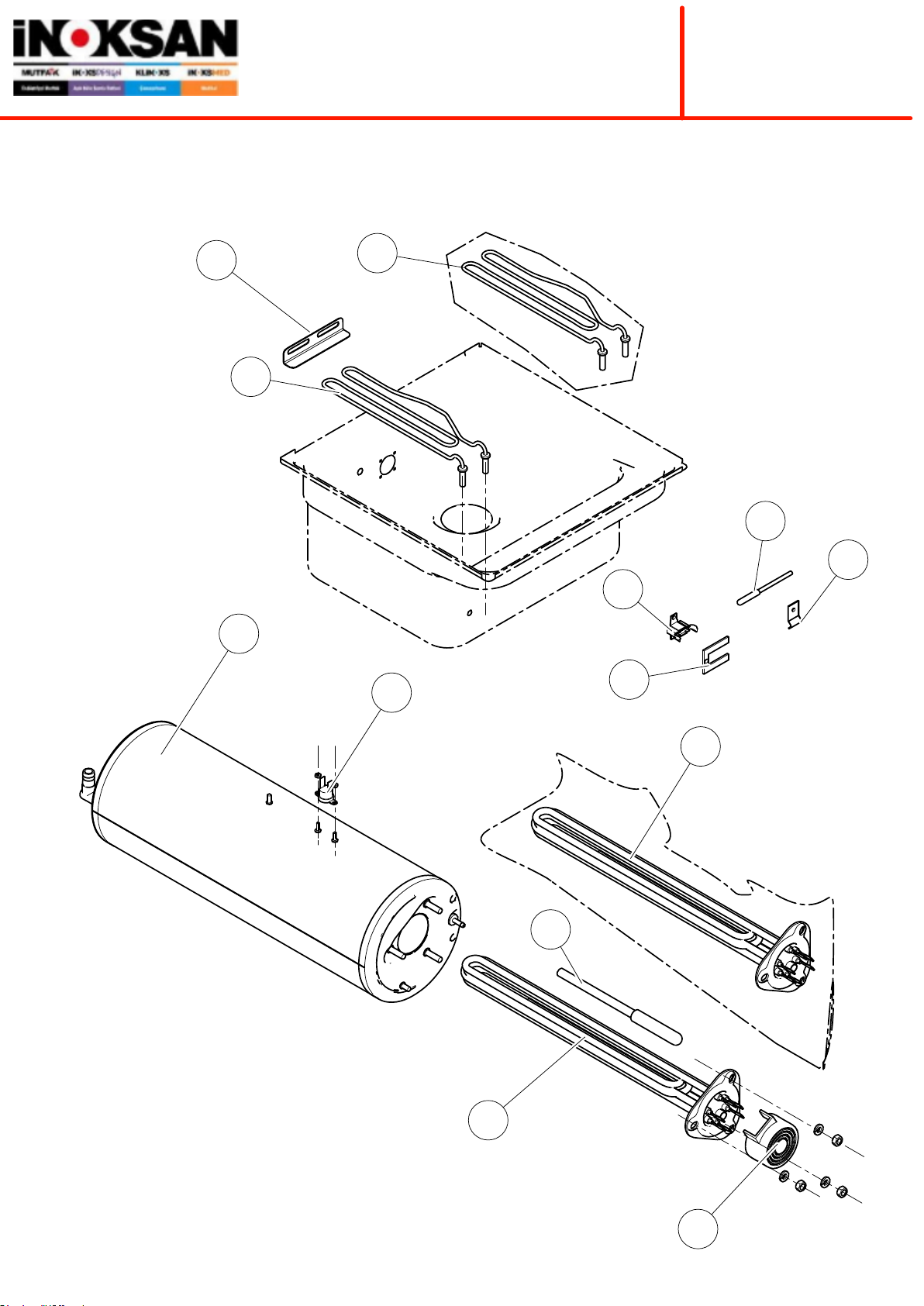

BOYLER ve TANK ISITICILARI / BOILER AND TANK HEATER
BULASIK YIKAMA MAKINASI
SERViS MANUELi/SERVICE MANUAL
DISWASHER
1
2
3
4
5
Opsiyonel
Opsiyonel
6
7
8
9
10
11
12
Optional
Optional
13

MODEL NO BYM 102
TARİH/DATE 18.11.2016
REV ST-08/86-2016
SAYFA /PAGE 14 / 24
S.NO PARÇA ADI PART NAME ADET
11
21
31
41
51
61
71
81
91
10 1
11 1
12 1
13 1
THERMOSTAT MOUNT PLATE
HEATER WASHING TANK 2700W 220V
HEATER WASHING TANK 2700W 208V
BOILER THERMISTOR
THERMOSTAT LIMIT
THERMOSTAT LIMIT SAFETY
BOILER HEATR 8000W 208V
BOILER HEATR 8000W 230V
HEATER COVER
THERMOCOUPLED MOUNT PLATE
2120 7037
1010 0053
2100 0566
2020 0552
LİMİT TERM,85C
TERMOSTAT TUTTURMA SACI
TERMOKOPUL TUTTURMA SACI
TANK TERMİSTÖR
TANK THERMISTOR
SERVİS MANUELİ/SERVICE MANUEL
BULAŞIK YIKAMA MAKİNASI / DISWASHER
PARÇA NO
2100 3331
BOYLER GÖVDESİ KAYNAKLI
BOYLER VE TANK ISITICILARI / BOILER AND TANK HEATER
BOILER BODY SEAM
1209 0007
1007 0019
1007 0010
ISITICI YIKAMA TANKI 2700W 208V
1007 0011
BOYLER ISITICISI 8000W 230V
ISITICI KAPAĞI
TANK HEATER PLATES
ISITICI YIKAMA TANKI 2700W 220V
1209 0031
EMN. LİMİT TERMOSTAT
BOYLER ISITICISI 8000W 208V
2100 0746
TANK ISITICI DESTEK SACI
2120 7038
BOYLER TERMİSTÖRÜ
1007 0018

MODEL NO
TARIH/DATE
REV.
SAYFA/PAGE
: BYM 102
: 18.11.2016
: ST-08/86-2015
: 15 / 24

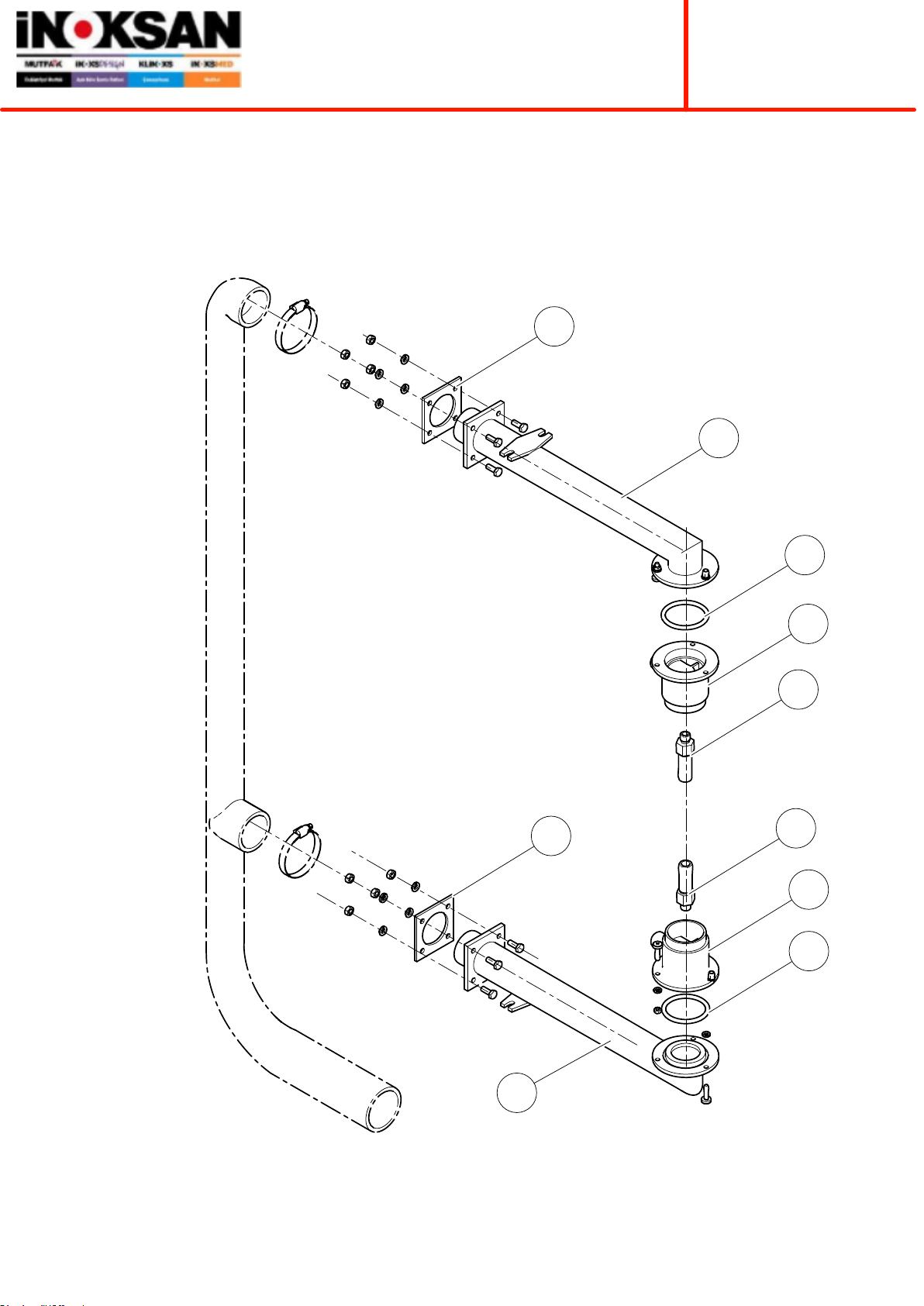

ALT UST YIKAMA BORU GRUBU / LOWER UPPER WASHING PIPE ASSEMBLY
BULASIK YIKAMA MAKINASI
SERViS MANUELi/SERVICE MANUAL
DISWASHER
1
2
3
4
5
5
4
3
1
2

MODEL NO BYM 102
TARİH/DATE 18.11.2016
REV ST-08/86-2016
SAYFA /PAGE 16 / 24
S.NO PARÇA ADI PART NAME ADET
11
2WASHING PIPE SEAL 1
3CYLINDER SEAL 1
4WASHING ADAPTOR 1
5WASHING JET SHAFTS 1
1209 0019
1207 0011
1209 0022
2100 3313
YIKAMA BORUSU CONTASI
KLİNGRİT CONTA
YIKAMA ADAPTÖRÜ
YIKAMA FISKİYE MİLİ
SERVİS MANUELİ/SERVICE MANUEL
BULAŞIK YIKAMA MAKİNASI / DISWASHER
PARÇA NO
1209 0020
YIKAMA BORUSU
ALT ÜST YIKAMA BORU GRUBU / LOWER UPPER WASHING PIPE ASSEMBLY
WASHING PIPE

MODEL NO
TARIH/DATE
REV.
SAYFA/PAGE
: BYM 102
: 18.11.2016
: ST-08/86-2015
: 17 / 24
YIKAMA VE DURULAMA FISKIYELERI / WASHING AND RINSING JET
BULASIK YIKAMA MAKINASI
SERViS MANUELi/SERVICE MANUAL
DISWASHER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

MODEL NO BYM 102
TARİH/DATE 18.11.2016
REV ST-08/86-2016
SAYFA /PAGE 18 / 24
S.NO PARÇA ADI PART NAME ADET
11
21
31
41
52
61
71
81
91
10 1
11 2
12 2
13 1
14 1
15 3
16 1
17 1
RINSING JET HUB CONNECTION PART
JET END
RINSING JET BODY
RINSING JET LOWER PLATE
RINSING JET PIPE-1
RINSING JET COVER
RINSING JET COVER NOZZLE
RINSING JET NUT
RINSING JET NOZZLE
RINSING JET HUB NUT M4
2100 6316
1209 0040
1209 0044
1209 0046
WASHING JET MAIN PART
WASHING JET CHANNEL NUT
WASHING JET CHANNEL
RINSING PIN
RINSING JET HUB
RINSING JET PIPE-2
2100 3307
2100 6314
2100 6315
1209 0042
1209 0043
2100 3309
2100 3312
2100 6319
2100 6318
1209 0029
2100 6313
2100 3308
SERVİS MANUELİ/SERVICE MANUEL
BULAŞIK YIKAMA MAKİNASI / DISWASHER
PARÇA NO
2100 6317
YIKAMA FİSKİYESİ GÖBEK BİLEZİĞİ
YIKAMA VE DURULAMA FISKİYELERİ / WASHING AND RINSING JET
WASHING JET HUB COLLET
DURULAMA FİSKİYE GÖBEĞİ
DURULAMA FİSKİYE BORUSU -2
DURULAMA FİSKİYE BORUSU -1
DURULAMA FİSKİYE KAPAMA
YIKAMA FİSKİYE ANA PARÇA
YIKAMA FISKIYESİ YATAK SOMUNU
YIKAMA FİSKİYE YATAĞI
DURULAMA PİMİ
DURULAMA FİSKİYE GÖBEĞİ BAĞLAMA PARÇASI
FİSKİYE UCU
DURULAMA FİSKİYE GÖVDE
DURULAMA FİSKİYE ALT SACI
DURULAMA FİSKİYE KAPAMA NOZULLU
DURULAMA FİSKİYE SOMUNU
DURULAMA FİSKİYE NOZUL
DURULAMA FİSKİYE GÖBEĞİ SOMUNU M4
17 1
RINSING JET LOWER PLATE
1209 0046
DURULAMA FİSKİYE ALT SACI

Opsiyonel /
MODEL NO
TARIH/DATE
REV.
SAYFA/PAGE
: BYM 102
: 18.11.2016
: ST-08/86-2016
: 19 / 24
TAHLIYE POMPA GRUBU KOMPLE / DISCHARGE PUMP ASSEMBLY COMPLETE
BULASIK YIKAMA MAKINASI
SERViS MANUELi/SERVICE MANUAL
DISWASHER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
17
15
16
16
16
Optional
Opsiyonel / Optional

MODEL NO BYM 102
TARİH/DATE 18.11.2016
REV ST-08/86-2016
SAYFA /PAGE 20 / 24
S.NO PARÇA ADI PART NAME ADET
11
21
31
41
51
61
71
81
91
10 1
11 1
12 1
13 1
14 1
15 2
16 4
17 0,20 MT
DRAIN MID HOSE 0.35
PROCESS
PROCESS CONNECTION PLATE
EXPANSION CONTAINER
WIRE CLAMP
TRANSPARENT HOSE
CLAMP
DISCHARGE HOSE
DISCHARGE PUMP PLATE
DISCHARGE HOSE SPIRAL
BOILER DISCHARGE PUMP HANYU 50-60Hz.
DISCHARGE PUMP CONNECTION PART
PRESOSTAT
PRESOSTAT BAGLAMA SACI
GENLEŞME KABI
TEL KELEPÇE
ŞEFFAF HORTUM
DRAIN PLUG SEAL
SUCTION FILTER
PUMP SUCTION HOLE
O-RING
DISCHARGE CONTAINER
TAHLİYE HORTUMU
BOŞALTMA POMPASI SACI
TAHLİYE HORTUMU SPİRAL
BOYLER BOŞALTMA POMPASI HANYU 50-60Hz.
BOŞALTMA POMPASI BAĞ. PARÇASI (HANYU)
GİDER ARA HORTUMU 0.35
GİDER TAPA CONTASI
EMİŞ FİLTRESİ
POMPA EMİŞ AĞZI
O-RING
TAHLİYE HAZNESİ
KELEPÇE
SERVİS MANUELİ/SERVICE MANUEL
BULAŞIK YIKAMA MAKİNASI / DISWASHER
PARÇA NO
1209 0008
TAŞMA BORUSU
TAHLİYE POMPA GRUBU KOMPLE / DISCHARGE PUMP ASSEMBLY COMPLETE
CARRYING PIPE
1209 0013
1310 0005
1209 0014
2100 0734
2100 6025
1209 0009
1209 0012
1207 0014
1202 0102
2100 0732
1209 0006
1310 0008
0405 0202
2120 6008
1203 0023
2120 6164
1209 0156
16 4
17 0,20 MT
18 2
PROCESS
WIRE CLAMP
TRANSPARENT HOSE
PRESOSTAT
TEL KELEPÇE
ŞEFFAF HORTUM
1202 0102
1310 0008
0405 0202
