Quick Start Guide

HELPFUL

INFORMATION

• Prior to opening your shipment,check and

conrm the room is completely ready to

receive the furniture (see “Room Readiness

Checklist” on next page).

• Place the parts in the room in order of

assembly sequence, if possible. This will

ensure quick and organized success

assembling your Sofa-WallBed.

• The Hardware Box is located on the pallet

and labeled “Hardware”

• Hardware is packed by STEP #,not PART #

• All Cabinetry and Sofa parts are labeled for easy

identication

• Labels will not be seen once the Bed is completely

assembled;the part label is a sticker and can be

removed if desired.

• Each page of the assembly includes a “QR Code”,

which is linked to a video for each step.To view,

open the camera app on any smart phone and

direct the camera toward the QR code. You will

then be redirected to the assembly video.

Tech support is readily available if needed

Email: [email protected]

Phone: 866.528.2804

Sofa-WallBed|ASSEMBLY MANUAL

PLEASE NOTE: Your Bed may look dierent

than what is shown in the pictures and

Videos throughout this manual

Tech support is readily availableif needed

Email: [email protected]

Phone: 866.528.2804

Sofa-WallBed|ASSEMBLY MANUAL

PLEASENOTE: Your Bedmay look different

than what is shown in the pictures and

Videos through out this manual

ROOM READINESS

CHECKLIST

•Check room to conrm the ceiling, oor, and

walls in the room are nished and completed

•Select the wall and location in which the Bed

will be placed

•Measure the length of the wall and height of

ceiling to conrm the Bed will t

•Locate any electrical outlets on the wall that

may be covered up by the Bed

•Clear out any items in the room so you have a

clear path to the wall and an open area to

assemble the Bed

•If the ooring is hard, lay down some furniture

blankets, sheets of cardboard, or other

cushioning material to prevent parts from being

scratched

•Locate the hardware box and open it.

Organize the hardware bags numerically and

alphabetically.

•Locate the mattress that will be used with this

Bed; the mattress is required for proper

adjustment of the Bed and completion of the

assembly and should be no thicker than 11”.

TIP: Depending on your unit, you may want to

remove existing baseboard that is located on the

wall where the Bed will be installed. By removing

the baseboard, it will allow for a tighter t against

the wall (units may already have a notch for

baseboard – see shop drawings (if applicable)

Quick Start Guide

Tech support is readily availableif needed

Email: [email protected]

Phone: 866.528.2804

Sofa-WallBed|ASSEMBLY MANUAL

PLEASE NOTE: Your Bed may look dierent

than what is shown in the pictures and

Videos throughout this manual

TOOLS NEEDED:

Electric Power Drill

#2 Phillips Bit (provided)

#3 Phillips Bit (provided)

#2 Square Bit (provided)

4mm Allen Wrench

4mm Allen Bit (provided)

Pozi Drive Bit (provided)

T27 Torx Bit (provided)

1/2” Wrench

#2 Phillips Screwdriver

Hammer

Pliers

Utility Knife

Vise Grips

Masking Tape

Flashlight

Optional: Smart Phone with a

camera to scan video instruction

QR Codes

HARDWARE LIST:

Bolts:

H-068 Panel Bolts, 2”

H-112 Flange Head Bolts, 5/16” x 2”

H-162 Panel Bolts, 30mm

H-235 Hex Head, 5/16” x 2-3/4”

H-244 Button Head 1/4”-20 x 1/2”

H-417 Cap Screw 5/16”-18 x 1”

H-461 Panel Bolt, 3/4”

H-738 Flange Bolts 5/16” x 1-1/2”

Screws:

H-019 Machine Screws, 10-32 x 3/4”

H-016 Sheet Rock Screw 2-1/2”

H-065 Panel Screws, 50mm

H-073 Euro Screws, 5/16”

H-087 Pan Head Screws, 5/8”

H-088 Machine Screws, 1/4”-20 x 1/2”

H-107s Euro Screws, 13mm

H-115 Euro Screw, 18mm

H-491 Machine Screw, 3/4”

Nuts:

H-086 Flange Nuts, 5/16”

H-767 Nylock Nuts, 5/6”

Other:

H-003 Wood Dowels

H-011Minix Pins

H-062 Double-Ended Minix Pin

H-067 Washers, 3/4”OD x 5/16” ID

H-073 Pozi Euro Screws, 14mm

H-077 Wide Angle Brackets

H-085 Mending Plates

H-120 Roller Bearing

H-231 Type 2 Fix Connector

H-233 Door Bumper

H-285 Pivot Bracket

H-783 Mending Plate

Quick Start Guide

Sofa-WallBed | Assembly Manual

How It Works

Tech support is readily available if needed

Email: [email protected]

Phone: 866.528.2804

Sofa-WallBed|ASSEMBLY MANUAL

PLEASE NOTE: Your Bed may look dierent

than what is shown in the pictures and

Videos throughout this manual

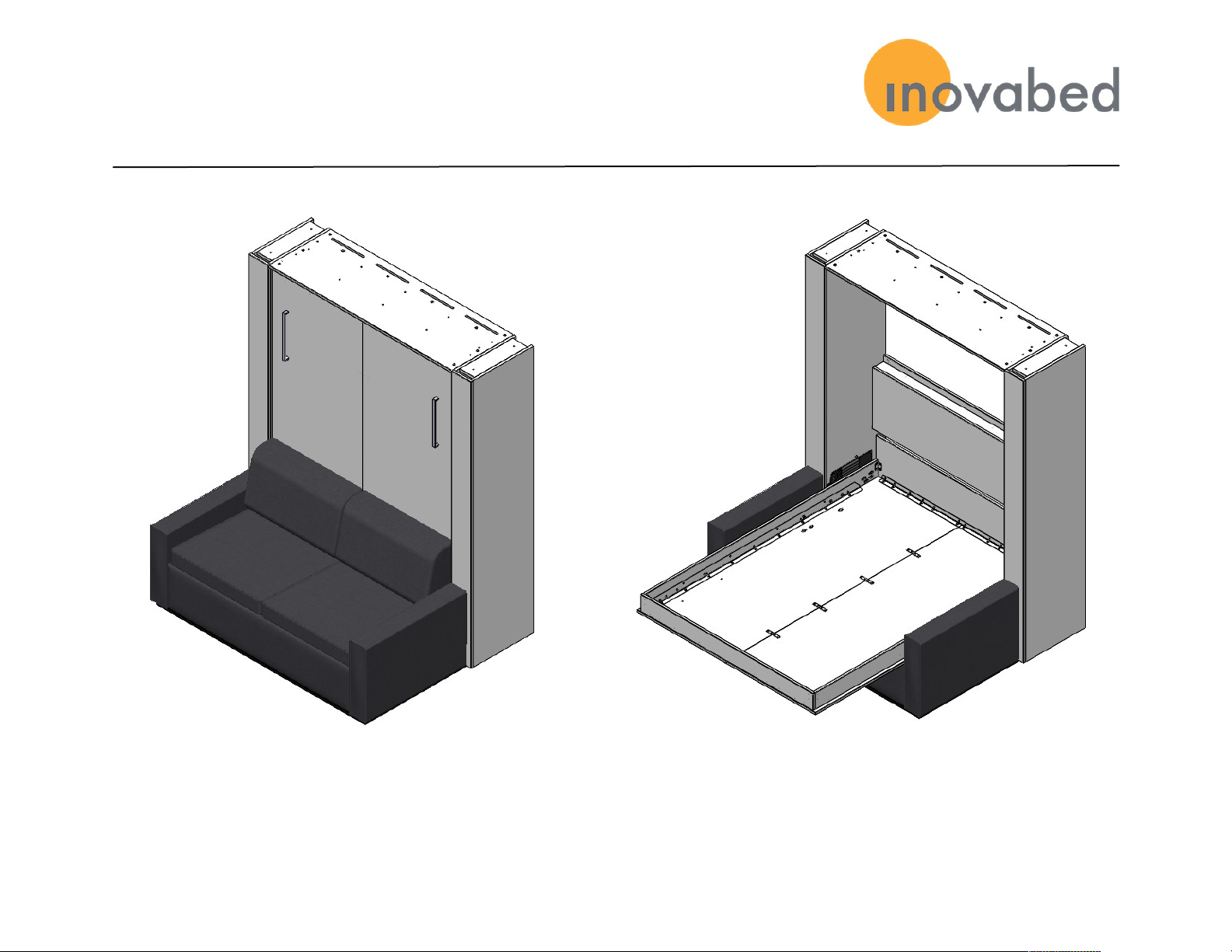

HOW IT MOVES UP

AND DOWN:

The mechanisms that allow the Sofa-

WallBed to move up and down are spring-

loaded and located on the inside face of each

Pier.

As the Sofa-WallBed is lowered down,

gravity is naturally starting to pull it down.

The springs “kick in” and provide enough

resistance to avoid it from coming down

too quickly.

TO LOWER THE SOFA-WALLBED:

Handles are located on the outside of the

Bed Cabinet (on the Bed Platform) to open

and lower the Bed Platform.

TO RAISE THE SOFA-WALLBED:

At the corner of the Bed Platform, place

hands underneath and lift. Start walking

toward the Bed Cabinet to close. Once at

half-way, grab a handle and guide the Bed

Platform into the Bed Cabinet.

Tech support is readily available if needed

Email: [email protected]

Phone: 866.528.2804

Sofa-WallBed|ASSEMBLY MANUAL

PLEASE NOTE: Your Bed may look dierent

than what is shown in the pictures and

Videos throughout this manual

1. To adjust the number of springs,you will need to temporarily “walk” the

cabinet and sofa forward until it is around two feet from the wall. Do not

move the unit by grabbing the sofa arms as it may damage it. Use the

cabinet instead.

2. Working behind the cabinet, ALWAYS adjust the springs when the Bed is

in the CLOSED POSITION to add or remove springs from the spring

mechanisms as needed. The nal arrangement of springs should be

symmetrical above and below the center of the mechanism. for example,if

you start with (8) springs, the center space will be empty. If you remove a

spring, you should take it o the top, but you should also move the bottom

spring to the center space. Ideally, the left and right spring mechanism should

have the same number of springs.

3. Push the cabinet and sofa back in place against the wall and test the

raising and lowering of the bed.

HOW TO

ADJUST TENSION: STEPS FOR ADJUSTMENT:

To adjust the tension of the Sofa-WallBed:

The factory has installed the proper number of springs

based on our estimated weight of typical mattresses.

Your mattress weight may vary from these estimates.

With the springs provided, the Bed Platform should be

very easy to raise and lower.

If it is too light, it will oat up a little instead of staying

down in the bed position. In this case you will need to

remove one of the springs.

If it is too heavy,it will be too dicult to lift and you will

need to add a spring.

How It Works

Sofa-WallBed | Assembly Manual

Troubleshooting

Tech support is readily availableif needed

Email: [email protected]

Phone: 866.528.2804

Sofa-WallBed|ASSEMBLY MANUAL

PLEASENOTE: Your Bedmay look different

than what is shown in the pictures and

Videos throughout this manual

TROUBLESHOOTING

HOW CAN I ACCESS

BEHIND THE SOFA-WALLBED?

If you need to access to the area behind the

Bed,you most likely do not have to remove it

from the wall. The Headboard does release,

allowing access behind the Bed.

TO LOWER THE HEADBOARD:

Simply pull the upper lip of the Headboard away

from the shelf. This will require a bit of force to

do because of the button x clips used to keep

the Headboard in place.

REMOVING BED FROM WALL:

With another person,“walk” each side of the Bed

Cabinet away from wall.

TIP: You may want to place moving pads

underneath the Bed Cabinet (with another

person, tip the Bed Cabinet slightly to place

pad).

MY SOFA-WALLBED IS MAKING A

CREAKING NOISE

If any of the hinges or other parts of the

mechanism on Sofa-WallBed creak, spray

them with a dry silicone-type lubricant,

available at most hardware stores. Although

this type of lubricant should not damage the

wood panels,be careful not get any on the bed

covers or mattress.

I CAN’T RAISE OR LOWER THE BED

PLATFORM

If there is any binding or diculty raising or

lowering the bed,it is possible that a foreign

object has become lodged in the sofa

mechanism. Remove the seat cushions, and

look between the sofa arm and sofa seat for any

obstructions. If there is no obvious culprit,call

Inova customer service for assistance in

troubleshooting the issue.

Tech support is readily availableif needed

Email: [email protected]

Phone: 866.528.2804

Sofa-WallBed|ASSEMBLY MANUAL

PLEASENOTE: Your Bedmay look different

than what is shown in the pictures and

Videos throughout this manual

TROUBLESHOOTING (CONT.)

HOW DO I RETRIEVE SOMETHING

THAT FELL UNDERNEATH THE SEAT

DECK?:

It is possible to lift up the Seat Deck and get full

access underneath,without removing the sofa

Skirt. The process will be easier with two

people but it can be done with one. First,

remove the Seat Cushions from the Seat Deck.

While tucking your hands between the Back

Cushions and the back of the Seat Deck,

carefully lift the Seat Deck rear. While lifting, be

careful to tuck all portions of the Back Cushions

behind the seat deck back. Once the seat deck

is completely free,you’ll have access

underneath. In order to get the seat deck back

underneath the Back Cushions,you’ll need to

carefully tuck all portions of the Back Cushions

over the seat portions of the Back Cushions

over the Seat Deck while your hands are over

the top of the seat deck back. Once the seat

deck is underneath the Back Cushions, you’ll

need to reset the Rear Support mechanisms

by cycling the Bed open and closed once.

CARE & MAINTENANCE

INFORMATION

Please refer to your Welcome Booklet for

detailed information on Care & Maintenance.

NEED TO DISASSEMBLE AND

MOVE THE SOFA-WALLBED

Reverse assembly steps from manual

TIP: Bag and label hardware per Step. This

will be very helpful when reassembling the

Sofa-WallBed.

I HAVE A BROKEN PART THAT

NEEDS TO BE REPLACED

Locate your order # (label located inside Bed

Platform) Take photos of broken part and Bed

overall Upload and Email Us with description of

issue, photos, and include your order # for easy

identication. If you bought your Bed directly

from our website please include the order

number on your receipt.

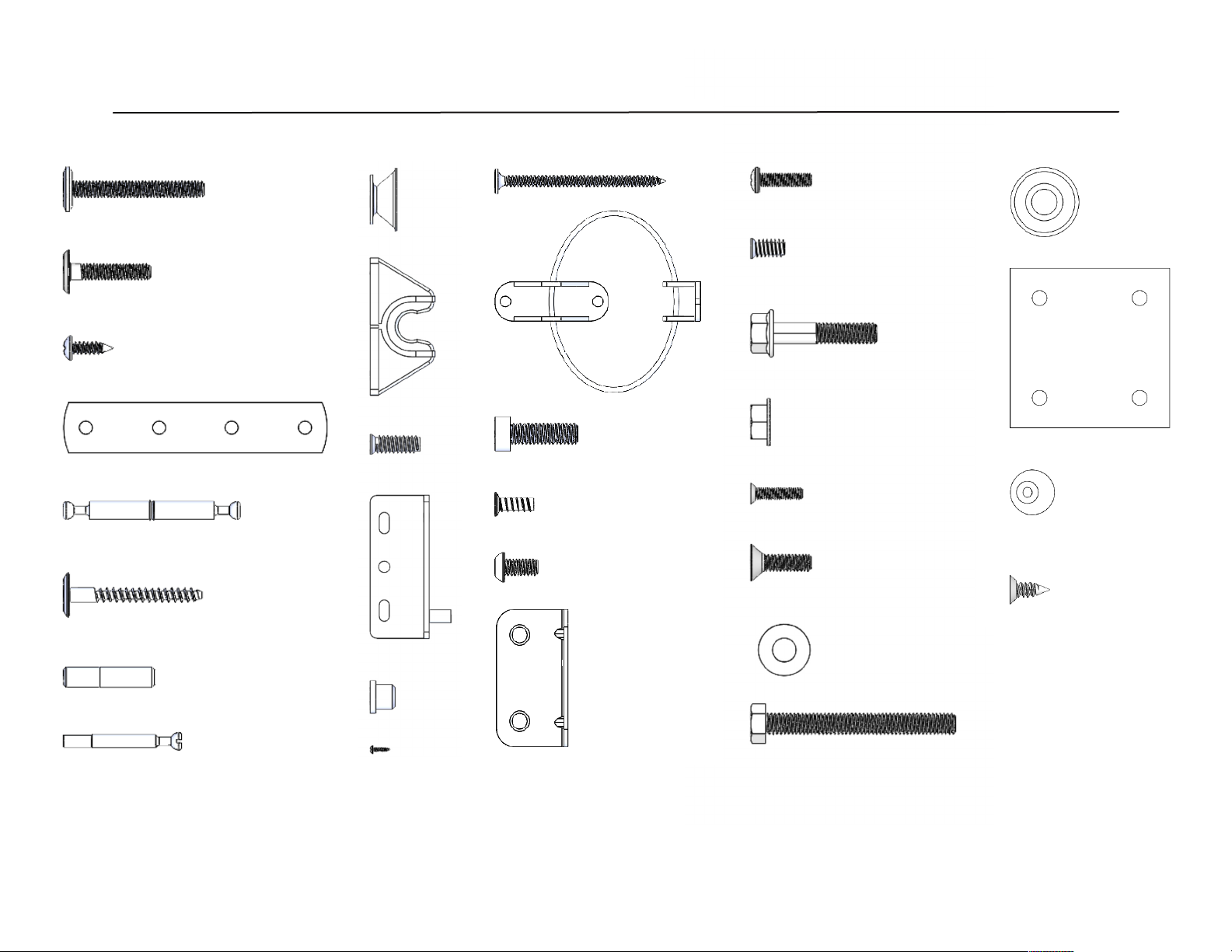

Sofa-WallBed: Hardware Overview

The illustrations drawn are general representations of your products hardware.

H-068

H-231a

H-231b

H-115

H-016 H-019

H-120

H-783

H-233

H-934

H-107

H-738

H-086

H-491

H-493

H-067

H-235

H-508

H-417

H-073

H-244

H-077

H-285a

H-285b

H-285c

H-162

H-087

H-085

H-062

H-065

H-003

H-011

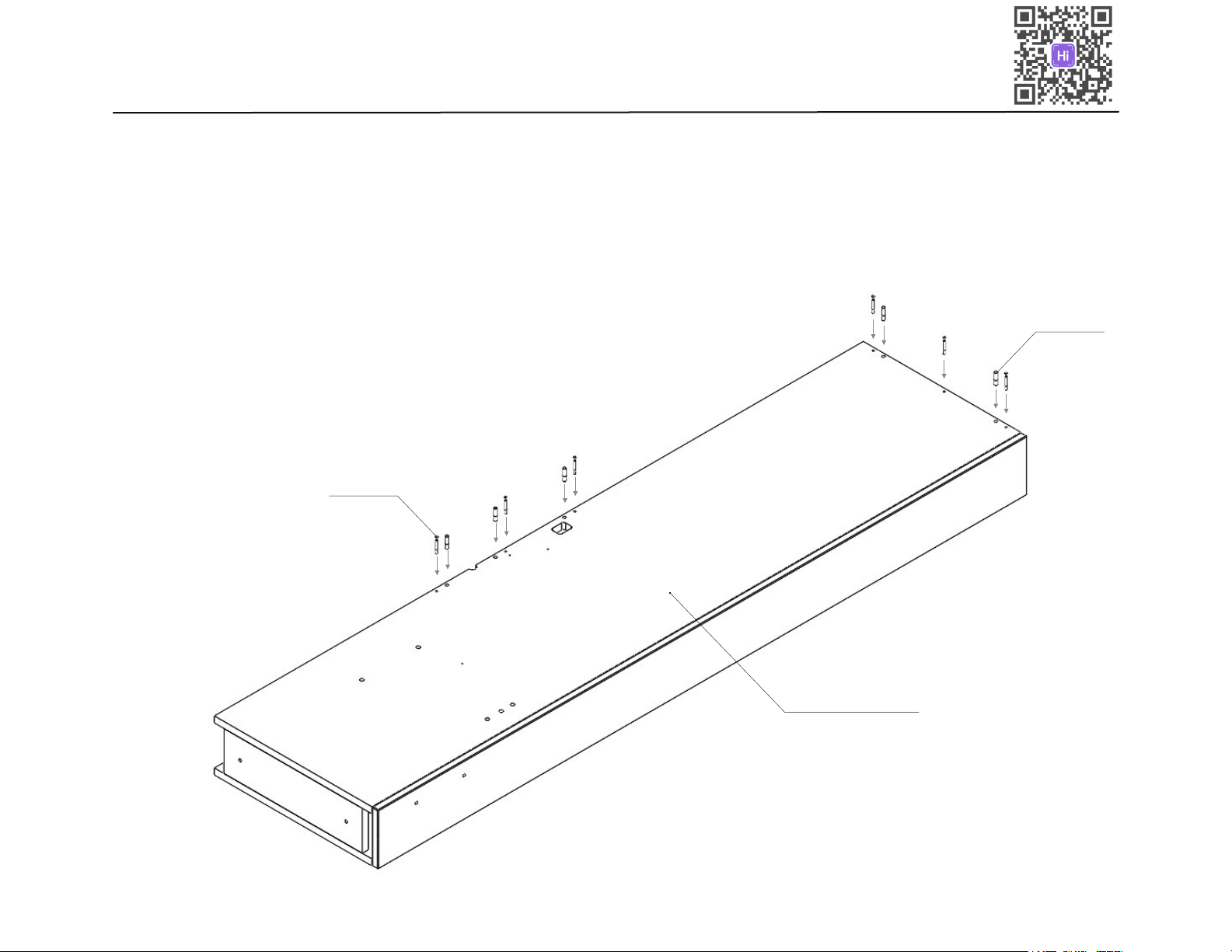

Step 1: Prepare the Right Pier

The illustrations drawn are general representations of your product’s parts and hardware.

Right Pier

A. Lay the Right Pier on the floor as shown (padding or carpet is suggested to be underneath the pier to avoid scratching).

B. Screw the H-011 minifix pins into the small holes using the H-333 square tip driver.

C. Tap the H-003 wood dowels into the larger holes using a mallet.

H-011

H-003

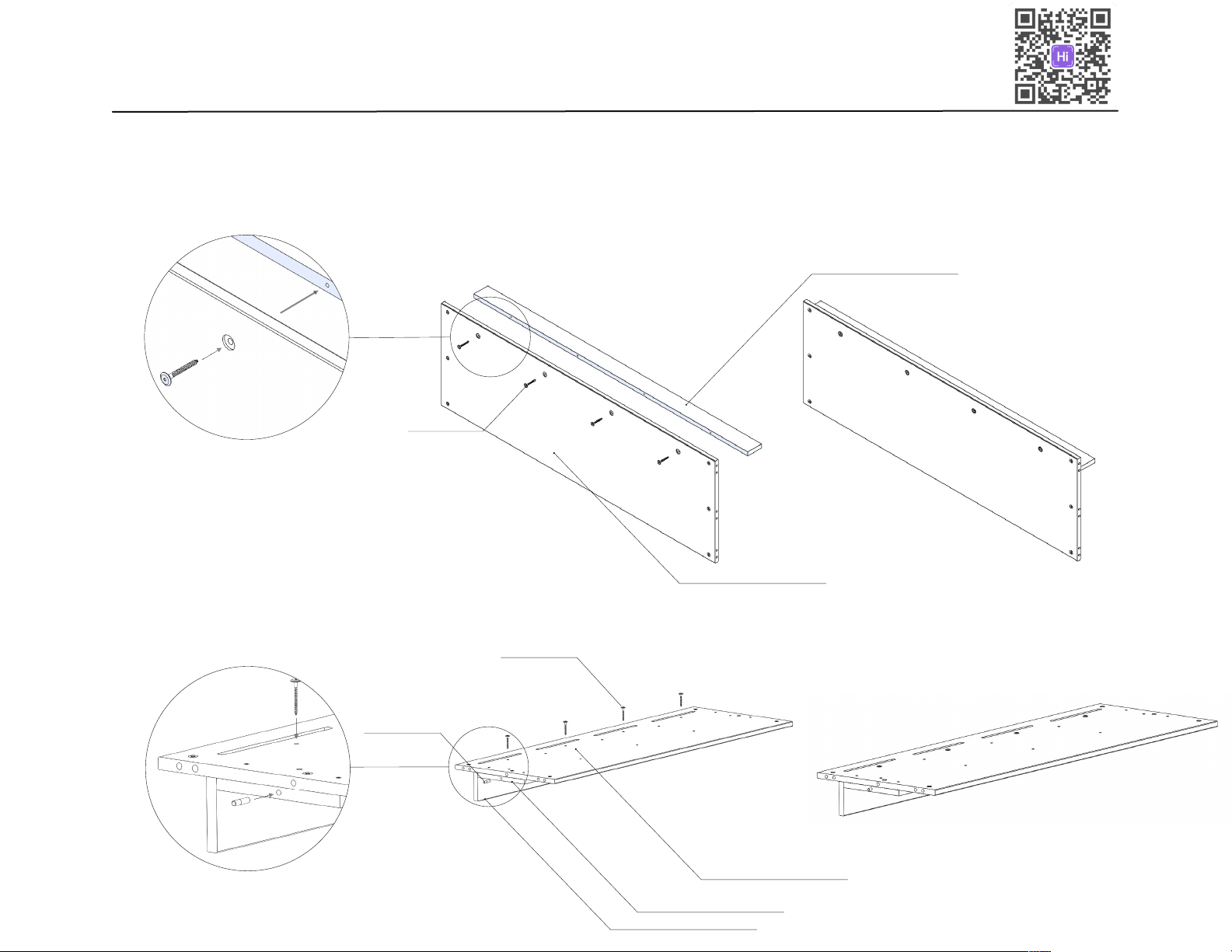

Step 2: Prepare the Cabinet Back and Cabinet Top

The illustrations drawn are general representations of your product’s parts and hardware.

A. Attach the Shelf to the Cabinet Back using the provided H-065 panel screws and 4mm hex driver.

B. Attach the Valance to the Cab Top/Sub Top assembly using the provided H-065 panel screws and insert the H-003 dowels into both ends of the sub top.

Cabinet Top

Cabinet Back

Valance

Sub Top

H-065

H-003

Shelf

H-065

Enlarged view

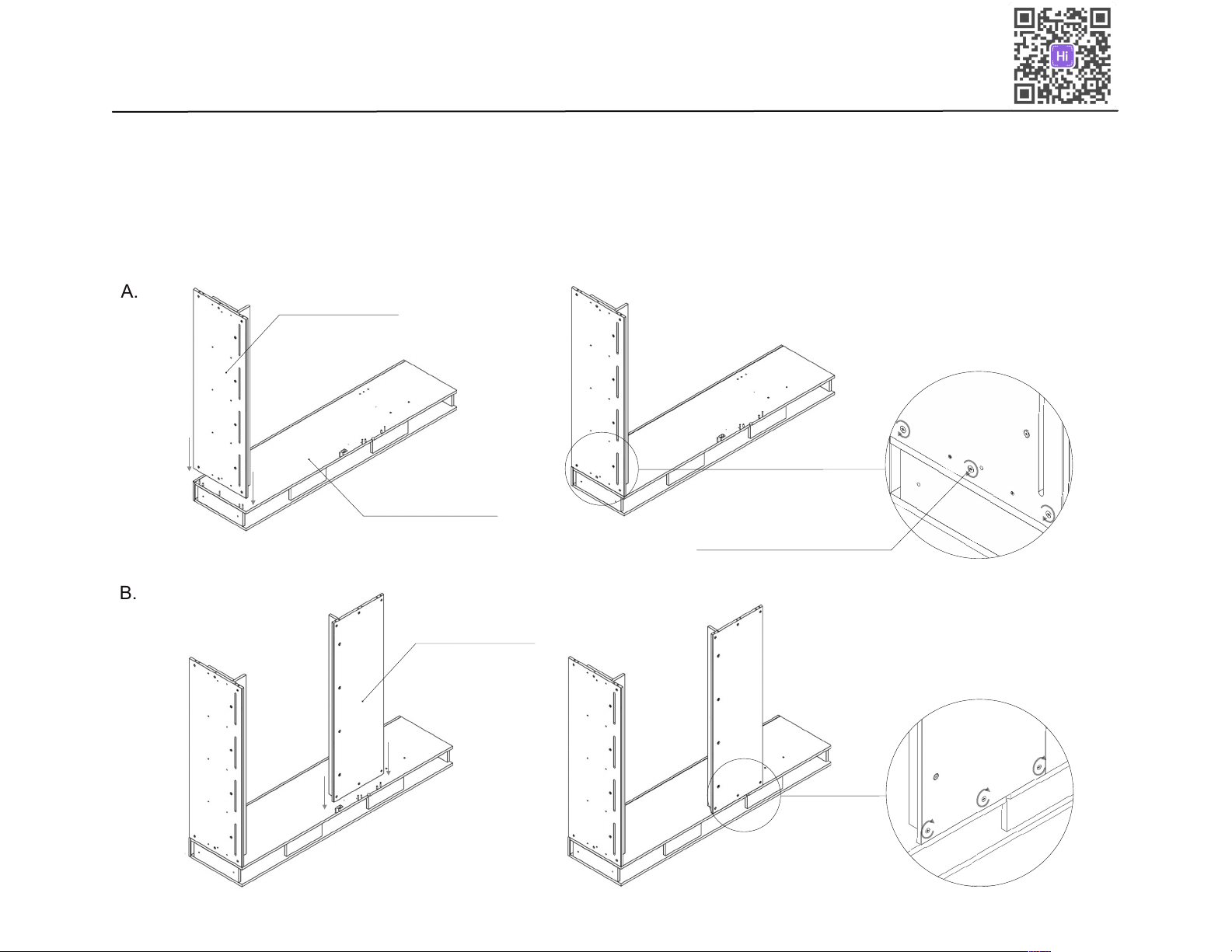

Step 3: Cabinet Back and Cabinet Top to Right Pier

The illustrations drawn are general representations of your product’s parts and hardware.

A. Lay the Right Pier on its side if it is not already (padding or carpet is suggested to be underneath the pier to avoid scratching).

B. Align the Cabinet Top with the hardware fastened to top edge of the Right Pier as shown, then tighten the cam locks (H-004) with the #3 phillips tip provided (clockwise rotation).

C. Align the Cabinet Back to the hardware fastened to the back of the Right Pier in the same manor as the Cabinet Top, then tighten the cams locks (H-004).

Right Pier

Cabinet Top

Cam Lock (H-004)

Cabinet Back

Enlarged view

Step 4: Prepare The Left Pier

The illustrations drawn are general representations of your product’s parts and hardware.

A. Lay the Left Pier on the floor as shown (padding or carpet is suggested to be underneath the pier to avoid scratching).

B. Screw the H-011 Minifix Pins into the small holes using the H-333 square tip driver.

C. Tap the H-003 Wood Dowels into the larger holes using a Mallet.

Left Pier

H-003

H-011

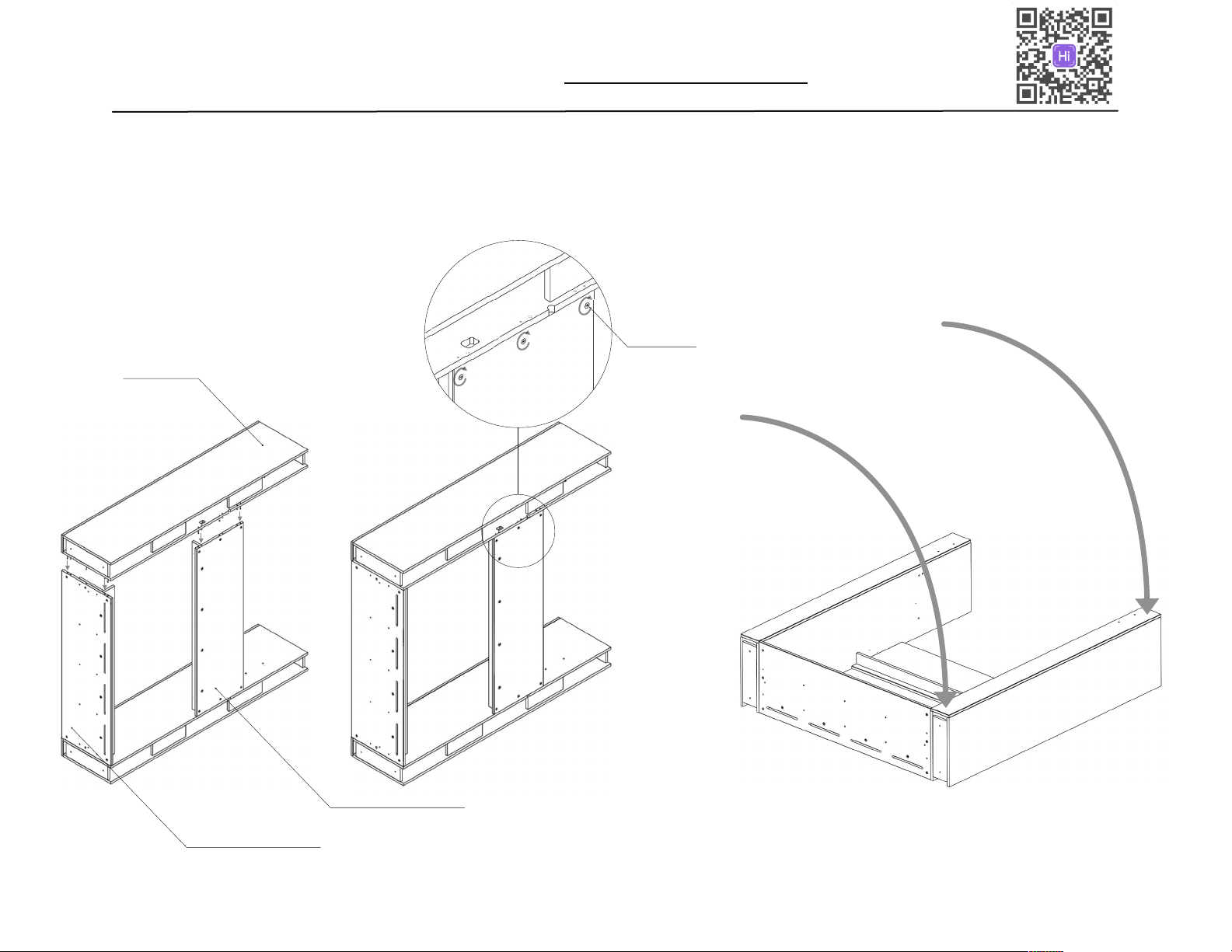

Step 5: Assemble The Bed Cabinet

The illustrations drawn are general representations of your product’s parts and hardware.

A. No hardware is needed for this step. With another person, lift and flip the Left Pier with one person at the top end and the other at the bottom end.

( the hardware previously installed is facing toward the floor now ).

B. Gently lower the Left Pier onto the Cabinet Top and Cabinet Back assuring that the hardware on the left Pier aligns with the corresponding holes as shown below.

C. With one person still supporting the bottom end of the Left Pier, the other can now tighten the cams locks (H-004) on the Cabinet Top and Cabinet back.

D. Lay the Bed Cabinet on its back as shown.

TWO PERSON LIFT!

B. D.

Left Pier

Cabinet Top

Cabinet Back

H-004

Spreader

H-162

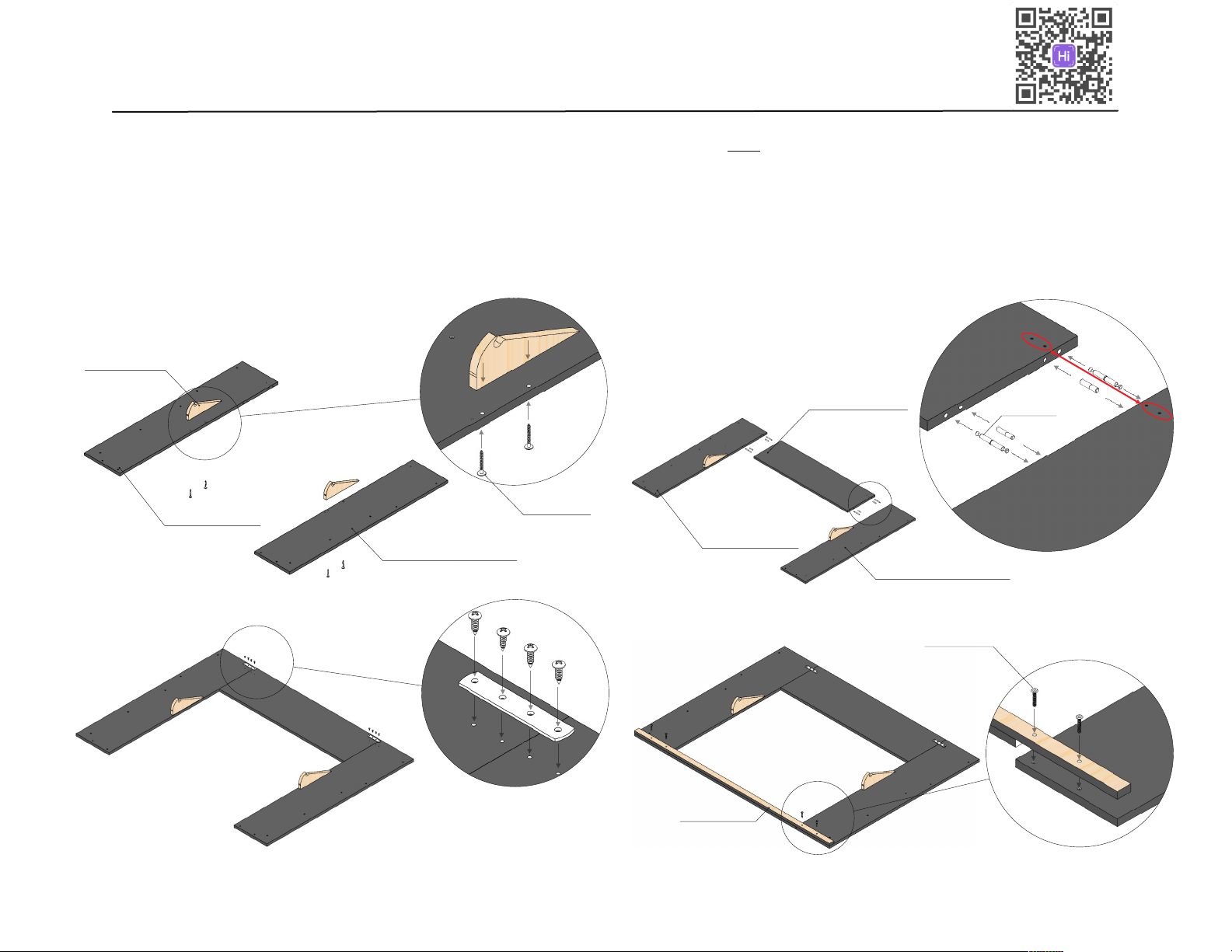

Step 6: Assemble The Base Plate

The illustrations drawn are general representations of your product’s parts and hardware.

A. Attach the Rear Ramps to the Left and Right Base Pads using the H-065 panel screws provided. ( Important: MUST be fully tightened so that the Rear Ramps butt up to the Base Pads).

B. Arrange the Base Plate Assembly parts as shown, then insert the H-003 Dowels and H-062 double end pins into their corresponding holes and tighten the H-004 cam locks. Make sure the holes

circled in red below line up.
