Inova TableBed User manual

TableBed |ASSEMBLY MANUAL
Inova LLC 2 Van Buren Blvd. Guilderland Center, NY 12085

TableBed |ASSEMBLY MANUAL Inova LLC 2 Van Buren Blvd. Guilderland Center, NY 12085
The Inova TableBed is fully protected under U.S. Patents #6, 401,276, and #6, 691, 342.
QUEEN SIZE

QUICK START GUIDE
TableBed |ASSEMBLY MANUAL

Tech support is readily available if needed
Email: support@inovabed.com
Phone: 866.528.2804
TableBed |ASSEMBLY MANUAL
PLEASE NOTE: Your Bed may look different
than what is shown in the pictures and
videos throughout this manual
QUICK START GUIDE
HELPFUL
INFORMATION
• Prior to opening your shipment, check and
confirm the room is completely ready to
receive the furniture
(see “Room Readiness Checklist” below).
• Place the parts in the room according to the
sequence of the assembly steps to avoid
double handling
• The Hardware Box is located on the pallet
and labeled “Hardware”
• Hardware is packed by STEP #, not PART #
• A large, contractor’s garbage bag is included the
Hardware Box for trash removal
• All parts are labeled for easy identification
• Labels will not be seen once the Bed is
completely assembled; the part label is a sticker
and can be removed if desired.
• Each page of the assembly includes a “QR Code”,
which is linked to a video for each step. To view,
download a compatible QR Code App to view
videos or go directly to YouTube (include link).

Tech support is readily available if needed
Email: support@inovabed.com
Phone: 866.528.2804
TableBed |ASSEMBLY MANUAL
PLEASE NOTE: Your Bed may look different
than what is shown in the pictures and
videos throughout this manual
ROOM READINESS
CHECKLIST
• Check room to confirm the ceiling, floor,
and walls in the room are finished
and completed
• Select the wall and location in which the
Bed will be placed
• Measure the length of the wall and height
of ceiling to confirm the Bed will fit
TIP: You may want to remove existing
baseboard that is located on the wall where
the Bed will be installed. By removing the
baseboard, it will allow for a tighter fit
against the wall (custom units may already
have a notch for baseboard – see shop
drawings, if applicable).
• Locate any electrical outlets on the wall
that may be covered up by the Bed
• Clear out any items in the room so you
have a clear path to the wall and an open
area to assemble the Bed
• If the flooring is hard, lay down some
furniture blankets, sheets of cardboard, or
other cushioning material to prevent parts
from being scratched.
• Locate the maress that will be used with
this Bed; the specific maress is required
for proper adjustment of the Bed and
completion of the assembly
QUICK START GUIDE (CONT.)

Tech support is readily available if needed
Email: support@inovabed.com
Phone: 866.528.2804
TableBed |ASSEMBLY MANUAL
PLEASE NOTE: Your Bed may look different
than what is shown in the pictures and
videos throughout this manual
QUICK START GUIDE (CONT.)
TOOLS NEEDED:
Electric Power Drill
#2 Phillips Bit
#3 Phillips Bit (provided)
#2 Square Bit (provided)
4mm Allen Wrench (provided)
4mm Allen Bit (provided)
9/16” Wrench
#2 Phillips Screwdriver
Hammer
Pliers
Utility Knife
Vise Grips
Flashlight
QR Code Scanner App
(To view videos)
HARDWARE LIST:
Bolts:
H-020 Panel Bolts, 25 mm
H-021 Panel Bolts, 40 mm
H-060 Pan Head Machine Bolts
Screws:
H-014s Euro Screws
H-019 Machine Screws
H-039 Wood Screws
H-065 Panel Screws
H-107s Flat Head Euro Screws
H-425 Machine Screws
Other:
H-003 Wood Dowels
H-008 Leveler Feet
H-011 Minifix Pins
H-035 Clevis Pin
H-077 Wide Angle Brackets
H-928 Coer Pin
M-36 Cam Roller


Tech support is readily available if needed
Email: [email protected]
Phone: 866.528.2804
Use this version of Step 1 if your TableBed is an Open Back Model
A.Lay the Right Cabinet Side on the floor as
shown.
B. Screw the H-011 Minifix Pins into the small
holes.
C. Tap the H-003 Wood Dowels into the larger
holes.
D. Screw the H-008 Leveler Feet into the boom
edge of the Cabinet Side.
STEP 1: Prepare Right Cabinet Side
Cabinet Side, Right
H-003
H-011
H-008

Tech support is readily available if needed
Email: [email protected]
Phone: 866.528.2804
Use this version of Step 1 if your TableBed is a Closed Back Model
STEP 1: Prepare Right Cabinet Side
Cabinet Side, Right
H-003
H-011
H-008
A.Lay the Right Cabinet Side on the floor as
shown.
B. Screw the H-011 Minifix Pins into the small
holes.
C. Tap the H-003 Wood Dowels into the larger
holes.
D. Screw the H-008 Leveler Feet into the boom
edge of the Cabinet Side.

Tech support is readily available if needed
Email: [email protected]
Phone: 866.528.2804

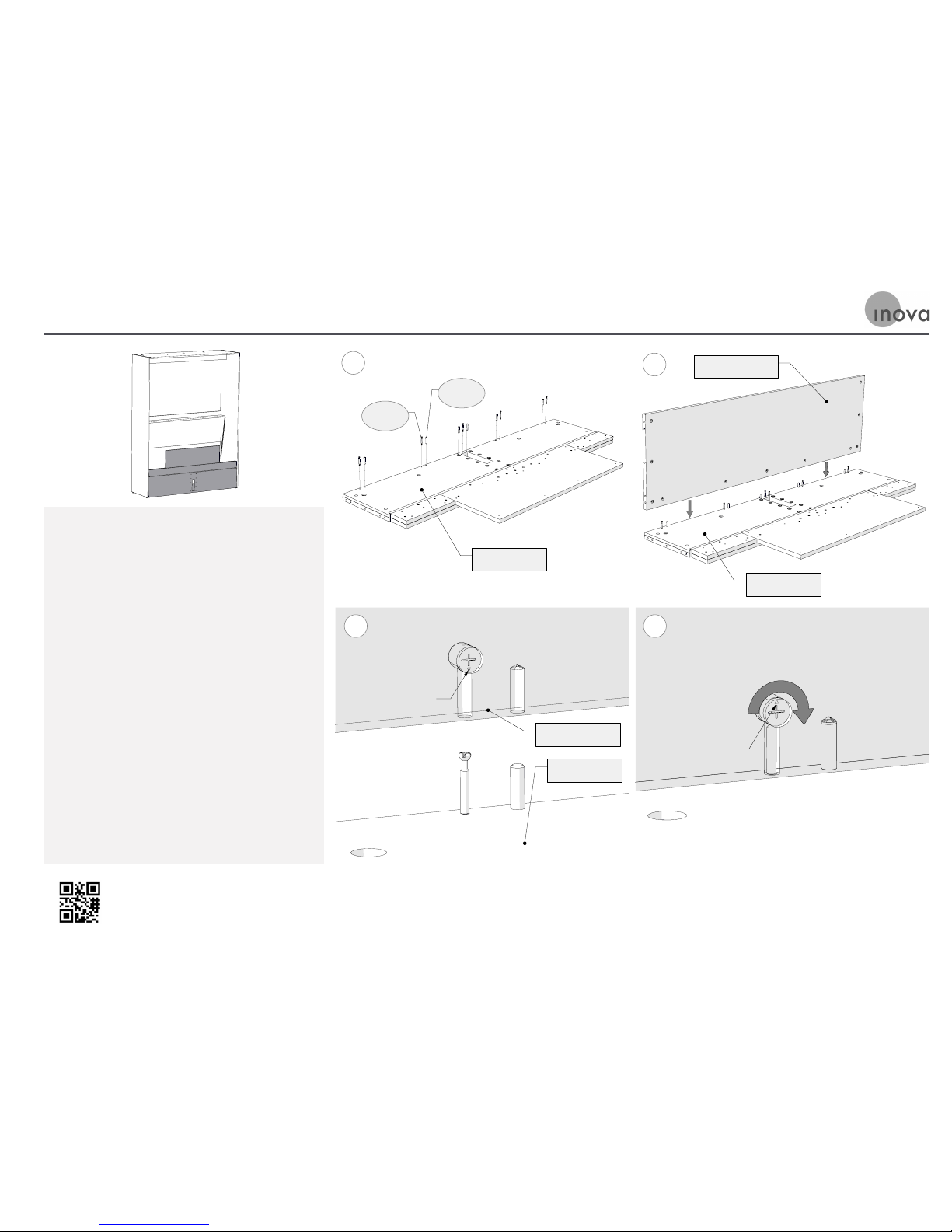

A.Lay the Cabinet Front on the floor and screw
the H-011 Minifix Pins into the small holes
of the Cabinet Front. Tap the H-003 Wood
Dowels into the larger holes of the Cabinet
Front.
B. Prepare to aach Cabinet Boom to Cabinet
Front.
C. Make sure all the Minifix Cams in the Cabinet
Boom have their arrows pointing towards
the outside edge of the panel to allow the
pins to slide into the Cams, as shown.
D. Slide the Cabinet Boom onto the Minifix
Pins and Wood Dowels in the Cabinet Front,
then tighten the Minifix Cams in the Cabinet
Boom.
Use this version of Step 2 if your TableBed is an Open Back Model
STEP 2: Attach Cabinet Front to Cabinet Bottom
A
H-003
H-011
Cabinet Front
BCabinet Bottom
Cabinet Front
Cabinet Bottom
Minifix Cam Arrow
C
Cabinet Front
Minifix Cam Arrow
D

Tech support is readily available if needed
Email: [email protected]
Phone: 866.528.2804
Use this version of Step 2 if your TableBed is a Closed Back Model
STEP 2: Attach Cabinet Front to Cabinet Bottom
A.Lay the Cabinet Front on the floor and screw
the H-011 Minifix Pins into the small holes
of the Cabinet Front. Tap the H-003 Wood
Dowels into the larger holes of the Cabinet
Front.
B. Prepare to aach Cabinet Boom to Cabinet
Front.
C. Make sure all the Minifix Cams in the Cabinet
Boom have their arrows pointing towards
the outside edge of the panel to allow the
pins to slide into the Cams, as shown.
D. Slide the Cabinet Boom onto the Minifix
Pins and Wood Dowels in the Cabinet Front,
then tighten the Minifix Cams in the Cabinet
Boom.
A
H-003
H-011
Cabinet Front
BCabinet Bottom
Cabinet Front
Cabinet Bottom
Minifix Cam Arrow
C
Cabinet Front
Minifix Cam Arrow
D

Tech support is readily available if needed
Email: [email protected]
Phone: 866.528.2804

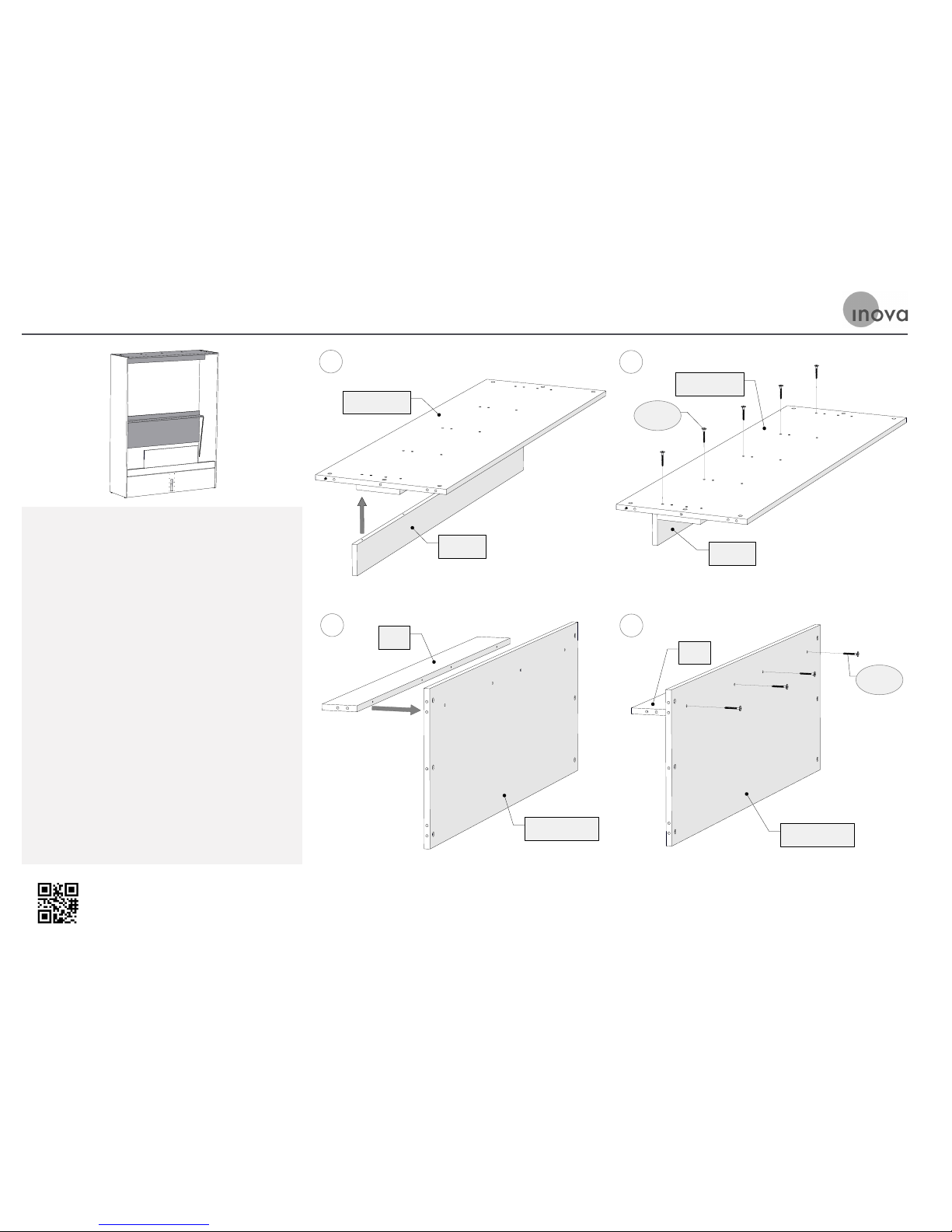

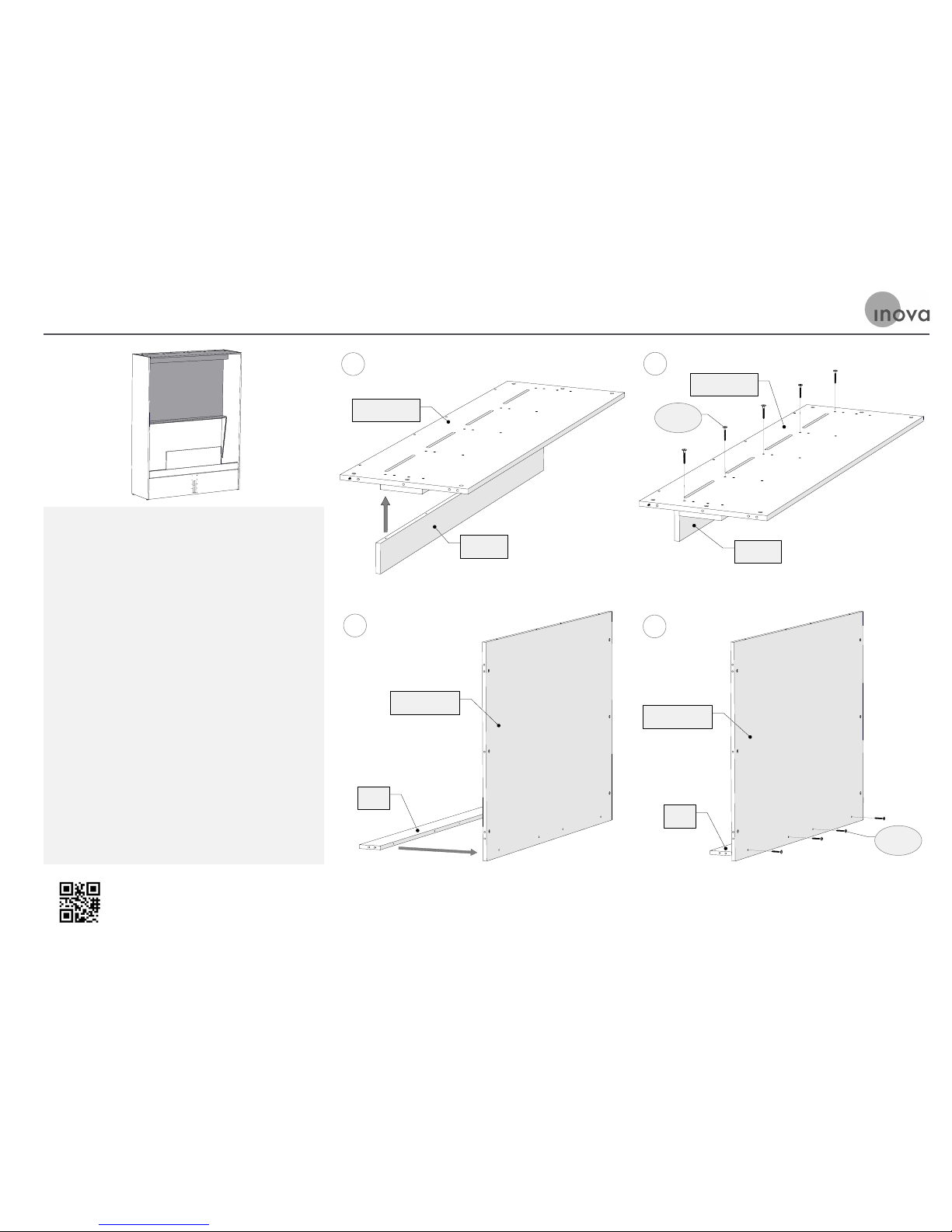

A.Hold the Valance next to the Cabinet Top.
B. Screw the Valance to the Cabinet Top with
H-065 Panel Screws using a 4mm Allen
Wrench.
C. Hold the Shelf next to the Cabinet Back
D. Screw the Shelf to the Cabinet Back using
H-065 Panel Screws using a 4mm Allen
Wrench.
STEP 3: Attach Valance to Cabinet Top & Attach Shelf to Cabinet Back
Use this version of Step 3 if your TableBed is an Open Back Model
A
Cabinet Top
Valance
B
Cabinet Top
H-065
Valance
CShelf
Cabinet Back
D
H-065
Cabinet Back
Shelf

Tech support is readily available if needed
Email: [email protected]
Phone: 866.528.2804
A.Hold the Valance next to the Cabinet Top.
B. Screw the Valance to the Cabinet Top with
H-065 Panel Screws using a 4mm Allen
Wrench.
C. Hold the Shelf next to the Closed Back
D. Screw the Shelf to the Closed Back using
H-065 Panel Screws using a 4mm Allen
Wrench.
STEP 3: Attach Valance to Cabinet Top & Attach Shelf to Closed Back
Use this version of Step 3 if your TableBed is a Closed Back Model
A
Cabinet Top
Valance
B
Cabinet Top
H-065
Valance
C
Shelf
Closed Back
D
H-065
Shelf
Closed Back

Tech support is readily available if needed
Email: [email protected]
Phone: 866.528.2804

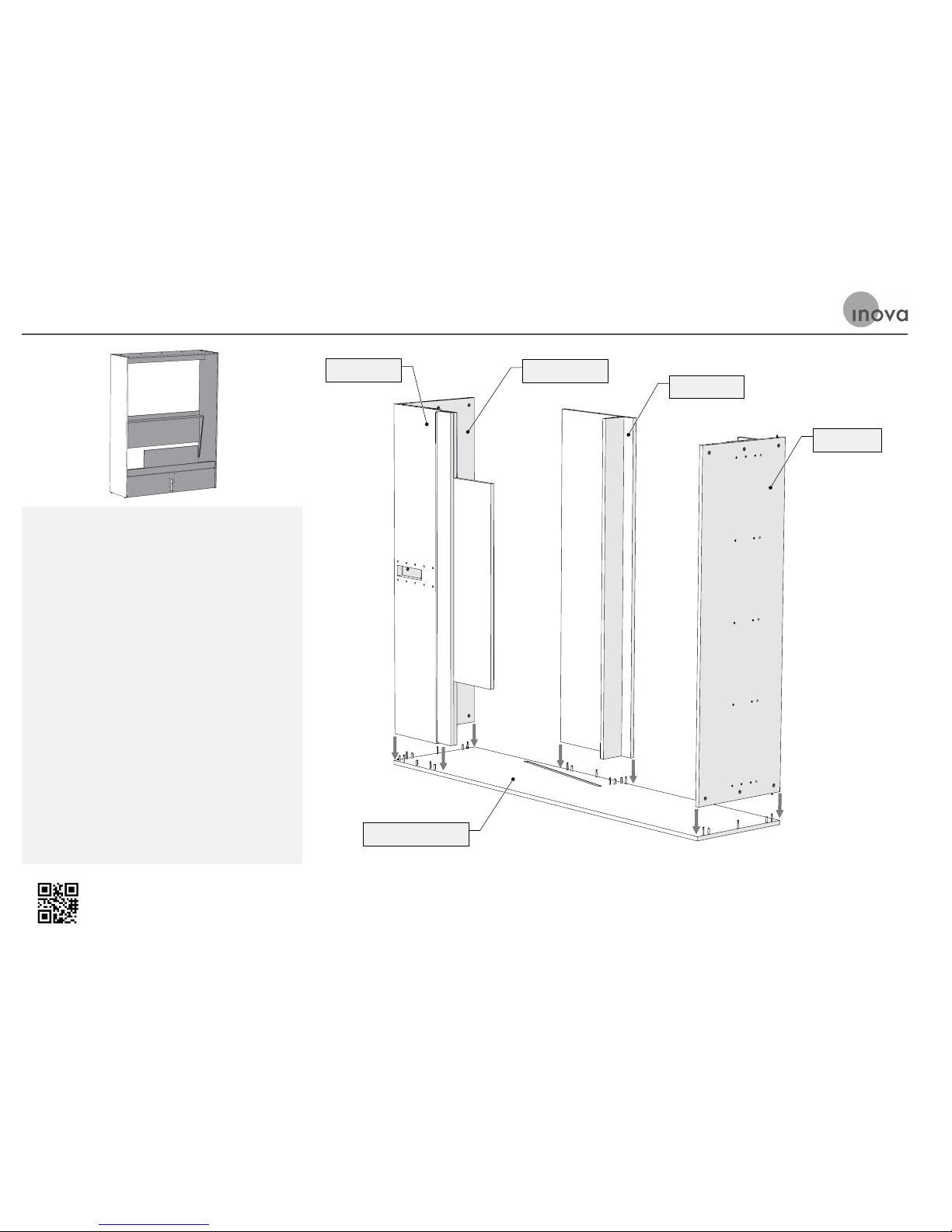

A.Lay the Right Cabinet Side from Step 1 on the
floor as shown, using padding to protect it
from geing scratched.
B. Slide the Cabinet Front/Boom Assembly
onto the fiings in the Right Cabinet Side
and tighten the Minifix Cams.
C. Slide the Cabinet Back/Shelf Assembly onto
the fiings in the Right Cabinet Side and
tighten the Minifix Cams.
D. Slide the Cabinet Top Assembly onto the
fiings in the Right Cabinet Side and tighten
the Minifix Cams.
STEP 4: Attach Bottom Assembly, Cabinet Top & Cabinet Back to Right Cabinet Side
Use this version of Step 4 if your TableBed is an Open Back Model
Cabinet Bottom
Cabinet Side, Right
Cabinet Front
Cabinet Back
Cabinet Top

Tech support is readily available if needed
Email: [email protected]
Phone: 866.528.2804
STEP 4: Attach Bottom Assembly, Cabinet Top & Closed Back to Right Cabinet Side
Use this version of Step 4 if your TableBed is a Closed Back Model
A.Lay the Right Cabinet Side from Step 1 on the
floor as shown, using padding to protect it
from geing scratched.
B. Slide the Cabinet Front/Boom Assembly
onto the fiings in the Right Cabinet Side
and tighten the Minifix Cams.
C. Slide the Cabinet Back/Shelf Assembly onto
the fiings in the Right Cabinet Side and
tighten the Minifix Cams.
D. Slide the Cabinet Top Assembly onto the
fiings in the Right Cabinet Side and tighten
the Minifix Cams.
E. Screw the Cabinet Top to the Closed Back
using H-065 Panel Screws using a 4mm Allen
Wrench.
Cabinet Bottom
Cabinet Side, Right
Cabinet Front
Closed Back
Cabinet Top
H-065

Tech support is readily available if needed
Email: [email protected]
Phone: 866.528.2804
A.Lay the Le Cabinet Side on the floor as
shown.
B. Screw the H-011 Minifix Pins into the small
holes.
C. Tap the H-003 Wood Dowels into the larger
holes.
D. Screw the H-008 Leveler Feet into the boom
edge of the Cabinet Side.
STEP 5: Prepare Left Cabinet Side
Use this version of Step 5 if your TableBed is an Open Back Model
H-008
H-003
H-011

Tech support is readily available if needed
Email: [email protected]
Phone: 866.528.2804
STEP 5: Prepare Left Cabinet Side
Use this version of Step 5 if your TableBed is a Closed Back Model
A.Lay the Le Cabinet Side on the floor as
shown.
B. Screw the H-011 Minifix Pins into the small
holes.
C. Tap the H-003 Wood Dowels into the larger
holes.
D. Screw the H-008 Leveler Feet into the boom
edge of the Cabinet Side.
H-008
H-003
H-011

Tech support is readily available if needed
Email: [email protected]
Phone: 866.528.2804
A.Make sure all the Minifix Cams have their
arrows pointing to the nearest edge of the
panels.
B. Li the Le Cabinet Side, flip it over, and
place it on the partly assembled cabinet
as shown. You may need to shi the parts
slightly to get the dowels and pins to line up
with the holes.
C. Tighten all the Minifix Cams as in Step 4.
D. The Bed Cabinet is now complete and ready
to stand up.
STEP 6: Attach Left Cabinet Side to the Cabinet Assembly
Use this version of Step 6 if your TableBed is an Open Back Model
Cabinet Bottom
Cabinet Front
Cabinet Back Cabinet Side, Left
Cabinet Top

Tech support is readily available if needed
Email: [email protected]
Phone: 866.528.2804
STEP 6: Attach Left Cabinet Side to the Cabinet Assembly
Use this version of Step 6 if your TableBed is a Closed Back Model
A.Make sure all the Minifix Cams have their
arrows pointing to the nearest edge of the
panels.
B. Li the Le Cabinet Side, flip it over, and
place it on the partly assembled cabinet
as shown. You may need to shi the parts
slightly to get the dowels and pins to line up
with the holes.
C. Tighten all the Minifix Cams as in Step 4.
D. The Bed Cabinet is now complete and ready
to stand up.
Cabinet Bottom
Cabinet Front
Closed Back
Cabinet Side, Left
Cabinet Top

Tech support is readily available if needed
Email: [email protected]
Phone: 866.528.2804
A.It is recommended this step is done by two
people for safety. Carefully lay the Cabinet
over as shown, using padding on the floor
to protect the cabinet from being scratched.
Guide the Flipper as the Cabinet is lowered.
B. Raise the Cabinet as shown. The Flipper
will naturally trail along with the Cabinet.
Make sure the Flpper does not pivot and fall
down when the Cabinet gets to its standing
position.
C. Carefully “walk” the standing Cabinet so that
it is about two feet from the wall where it
will be placed when it is finished. Guide the
Flipper as it remains in its vertical position.
ST EP 7: Lay the Cabinet Over on its Back and then Stand it Up
AFlipper
B
Flipper
C
Flipper
Table of contents
Other Inova Indoor Furnishing manuals
Popular Indoor Furnishing manuals by other brands

Wholesale Beds
Wholesale Beds MONACO Assembly instructions

SAUTHON easy
SAUTHON easy NEW OPALE KP105A Technical manual

BLACK RED WHITE
BLACK RED WHITE STYLIUS B169-LUS125 Assembly instructions

R82
R82 wombat basic user manual

Otto
Otto Tisch rund/104 Assembly instructions

Cooper Lighting
Cooper Lighting HALO L1742 Specifications
