Inova WallBed User manual

WallBed |ASSEMBLY MANUAL
Inova LLC 2 Van Buren Blvd. Guilderland Center, NY 12085

WallBed |ASSEMBLY MANUAL Inova LLC 2 Van Buren Blvd. Guilderland Center, NY 12085
QUEEN SIZE

QUICK START GUIDE
WallBed |ASSEMBLY MANUAL

Tech support is readily available if needed
Email: [e-mail]
Phone: [phone]
WallBed |ASSEMBLY MANUAL
PLEASE NOTE: Your Bed may look different
than what is shown in the pictures and
videos throughout this manual
QUICK START GUIDE
HELPFUL
IN F ORMAT ION
• Prior to opening your shipment, check and
confirm the room is completely ready to
receive the furniture
(see “Room Readiness Checklist” below).
• Place the parts in the room according to the
sequence of the assembly steps to avoid
double handling
• The Hardware Box is located on the pallet
and labeled “Hardware”
• Hardware is packed by STEP #, not PART #
• A large, contractor’s garbage bag is included in
the Hardware Box for trash removal
• All parts are labeled for easy identification
• Labels will not be seen once the Bed is
completely assembled; the part label is a sticker
and can be removed if desired.
• Each page of the assembly includes a “QR Code”,
which is linked to a video for each step. To view,
download a compatible QR Code App to view
videos or go directly to YouTube (include link).

Tech support is readily available if needed
Email: [e-mail]
Phone: [phone]
WallBed |ASSEMBLY MANUAL
PLEASE NOTE: Your Bed may look different
than what is shown in the pictures and
videos throughout this manual
ROOM READINESS
CHECKLIST
• Check room to confirm the ceiling, floor,
and walls in the room are finished
and completed
• Select the wall and location in which the
Bed will be placed
• Measure the length of the wall and height
of ceiling to confirm the Bed will fit
TIP: You may want to remove existing
baseboard that is located on the wall where
the Bed will be installed. By removing the
baseboard, it will allow for a tighter fit
against the wall (custom units may already
have a notch for baseboard – see shop
drawings, if applicable).
• Locate any electrical outlets on the wall
that may be covered up by the Bed
• Clear out any items in the room so you
have a clear path to the wall and an open
area to assemble the Bed
• If the flooring is hard, lay down some
furniture blankets, sheets of cardboard, or
other cushioning material to prevent parts
from being scratched.
• Locate the maress that will be used with
this Bed; the specific maress is required
for proper adjustment of the Bed and
completion of the assembly
QUICK START GUIDE (CONT.)

Tech support is readily available if needed
Email: [e-mail]
Phone: [phone]
WallBed |ASSEMBLY MANUAL
PLEASE NOTE: Your Bed may look different
than what is shown in the pictures and
videos throughout this manual
QUICK START GUIDE (CONT.)
TOOLS NEEDED:
Electric Power Drill
#2 Phillips Bit
#3 Phillips Bit (provided)
#2 Square Bit (provided)
4mm Allen Wrench (provided)
4mm Allen Bit (provided)
9/16” Wrench
#2 Phillips Screwdriver
Hammer
Pliers
Utility Knife
Vise Grips
Flashlight
QR Code Scanner App
(To view videos)
HARDWARE LIST:
Bolts:
H-075 Flat Head Bolts, 5/16” x 1-1/2”
H-738 Flange Bolts 5/16” x 1-1/2”
Screws:
H-014s Euro Screws, 30mm
H-016 Course Thread Screws, 2-1/2”
H-019 Machine Screws, 10-32 x 3/4”
H-065 Panel Screws, 50mm
H-076 Flat Head Screws, 3/4”
H-087 Pan Head Screws, 5/8”
H-088 Machine Screws, 1/4”-20 x 1/2”
H-107s Euro Screws, 13mm
H-184 Auger Screws, 1”
H-358 Buon Head Screws, 5/16”
H-425 Machine Screws, 25mm
H-739 Cap Screws, 5/16” X 1-1/4”
Nuts:
H-086 Flange Nuts, 5/16”
H-308 Acorn Nut, 5/16”
Other:
H-003 Wood Dowels
H-008 Leveler Feet
H-011 Minifix Pins
H-067 Washers, 3/4”OD x 5/16” ID
H-073 Pozi Euro Screws, 14mm
H-074 Angle Brackets, 50mm
H-077 Wide Angle Brackets
H-085 Mending Plates
H-146 Angle Brackets, 45mm
H-210 Angle Bracket, 1”
H-364 Sleeve Bearings
Headoard Guides

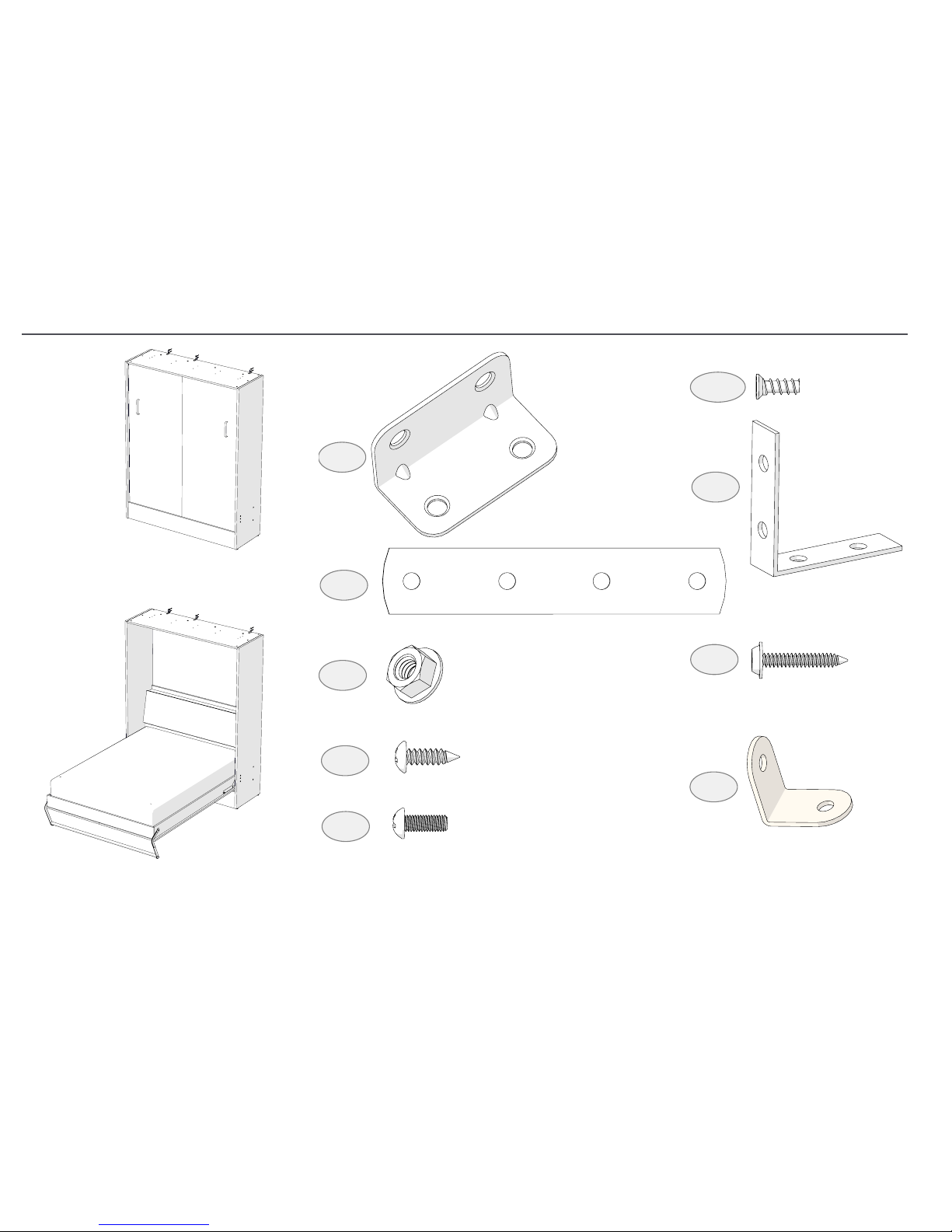

The illustrations drawn are general representations of your product’s hardware.
WallBed: Hardware Overview
H-016
H-076
H-011
H-075
H-067
H-065
H-014s
H-003
H-073
H-019
H-008
H-074

The illustrations drawn are general representations of your product’s hardware.
WallBed: Hardware Overview, cont.
H-077
H-210
H-107s
H-085
H-184
H-088
H-087
H-146
H-086

The illustrations drawn are general representations of your product’s hardware.
WallBed: Hardware Overview, cont.
H-425
H-739
H-358
H-738
H-364
H-308
Headboard Guide

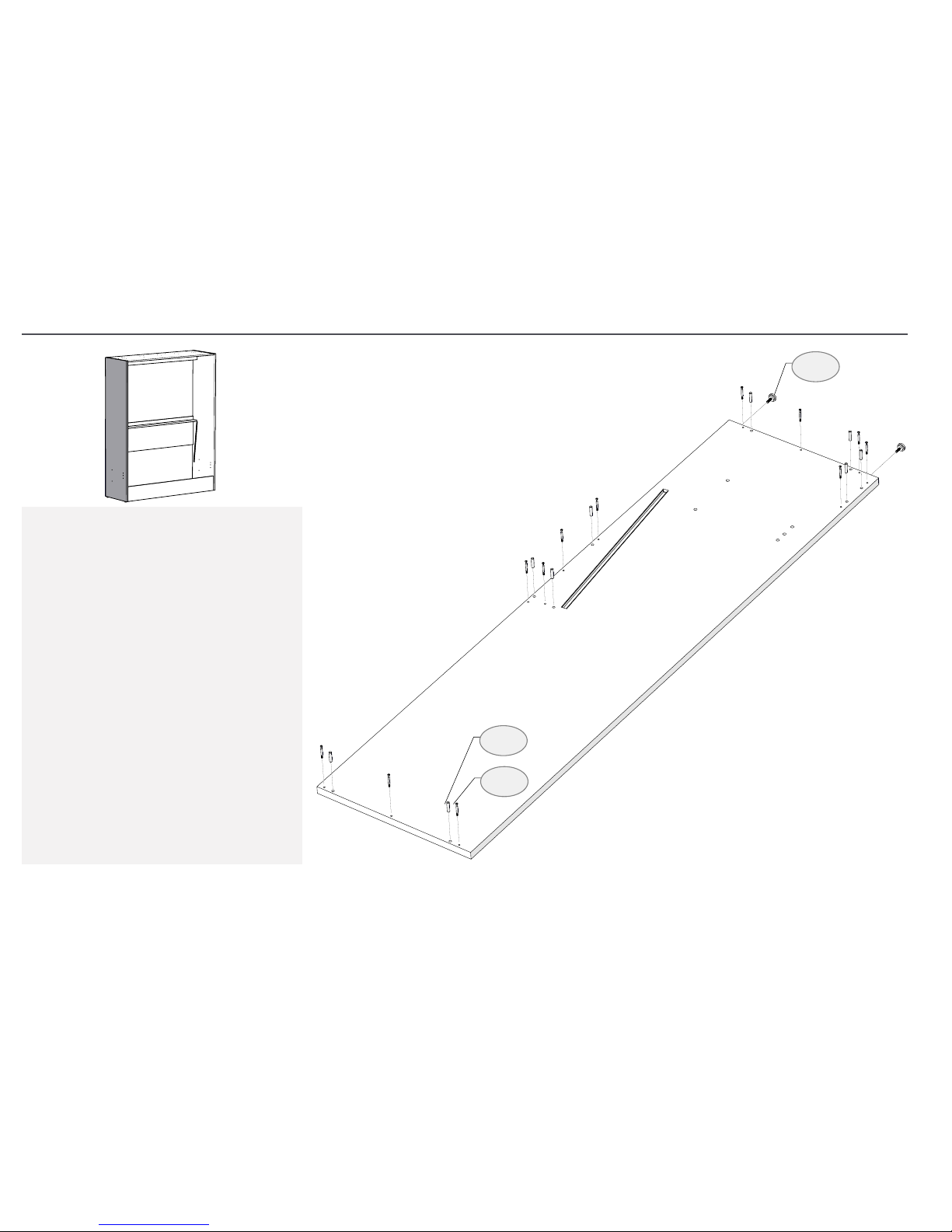

A.Lay the Right Cabinet Side on the floor as
shown.
B. Screw the H-011 Minifix Pins into the small
holes.
C. Tap the H-003 Wood Dowels into the larger
holes.
STEP 1 OPEN BACK: Prepare Right Cabinet Side
H-008
H-003
H-011
Use this version of Step 1 if your WallBed is an Open Back Model

A.Lay the Right Cabinet Side on the floor as
shown.
B. Screw the H-011 Minifix Pins into the small
holes.
C. Tap the H-003 Wood Dowels into the larger
holes.
STEP 1 CLOSED BACK: Prepare Right Cabient Side
Use this version of Step 1 if your Sofa-WallBed is a Closed Back Model
H-008
H-003
H-011

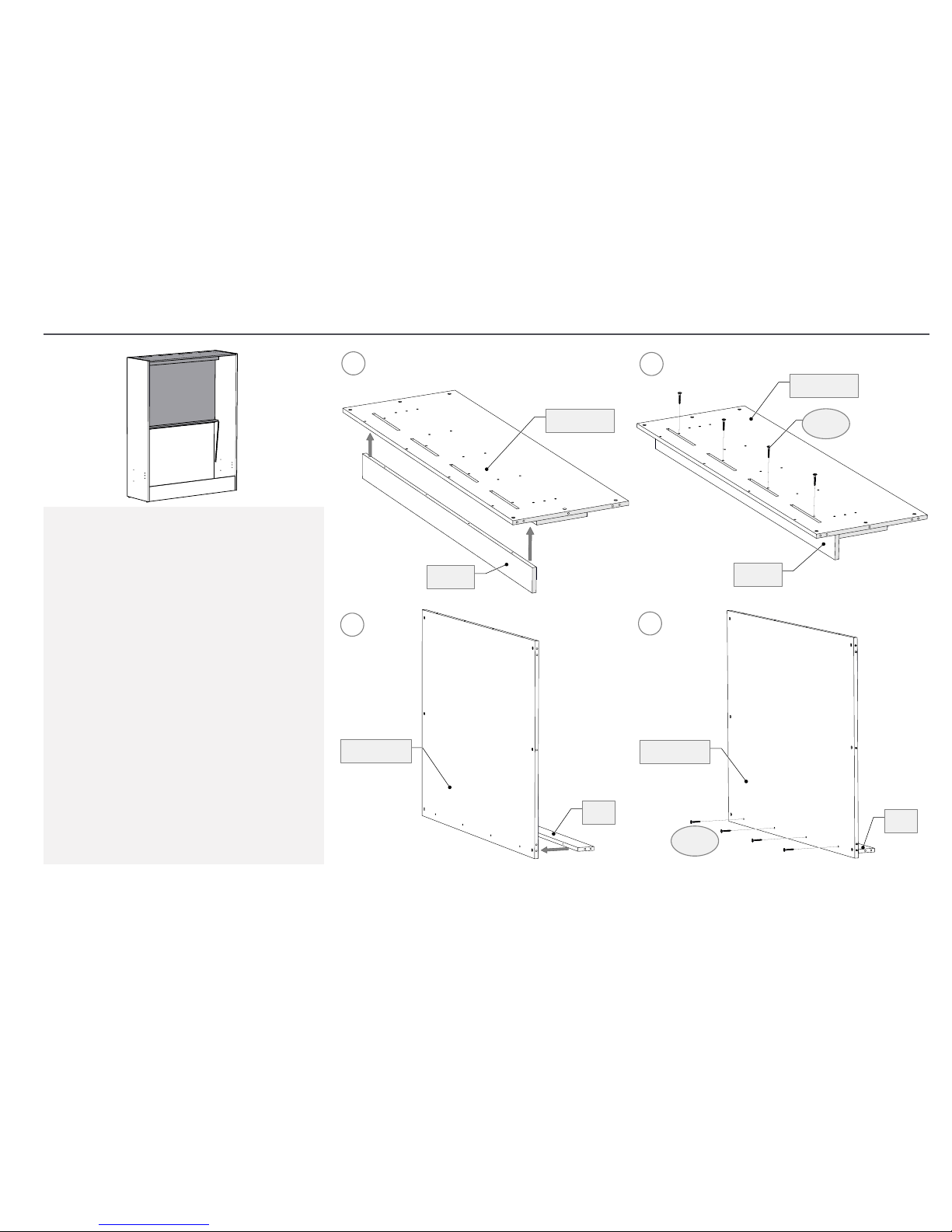

A.Lay the Cabinet Front on the floor and screw
the H-011 Minifix Pins into the small holes of
the Cabinet Front. Tap the H-003 Wood Dowels
into the larger holes of the Cabinet Front.
B. Prepare to aach Cabinet Boom to Cabinet
Front.
C. Make sure all the Minifix Cams in the Cabinet
Boom have their arrows pointing towards
the outside edge of the panel to allow the pins
to slide into the Cams, as shown.
D. Slide the Cabinet Boom onto the Minifix
Pins and Wood Dowels in the Cabinet Front,
then tighten the Minifix Cams in the Cabinet
Boom.
STEP 2: Attach Cabinet Front to Cabinet Bottom
D
Cabinet Front
C
H-003
H-011
B
A
D
C
Cabinet Bottom
Cabinet Front
A
B
Cabinet Bottom
D
C
Cabinet Front
Minifix Cam Arrow
AB
Minifix Cam Arrow
D
C
AB

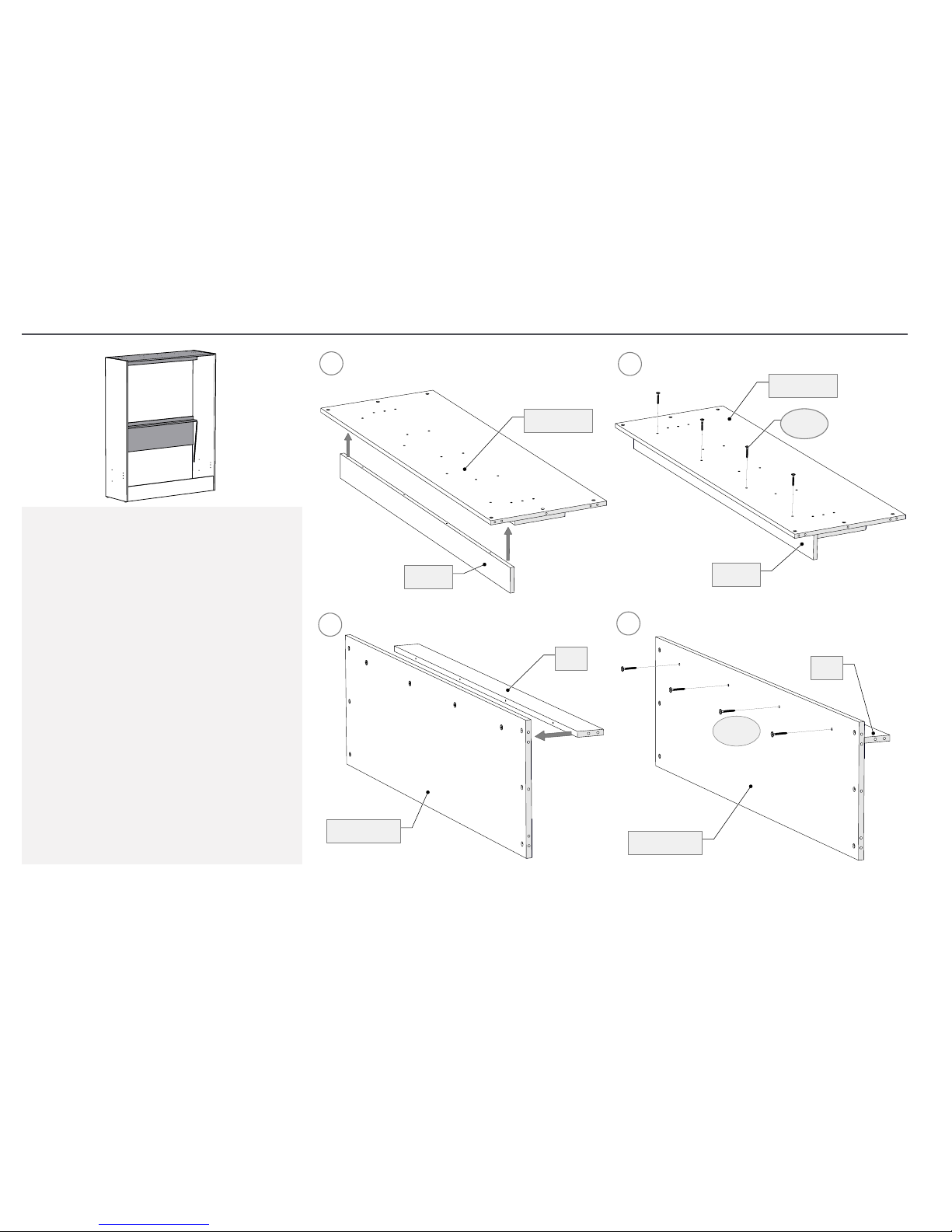

STEP 3 OPEN BACK: Attach Valance to Cabinet Top & Attach Shelf to Cabinet Back
Use this version of Step 3 if your WallBed is an Open Back Model
D
A
B
Valance
Cabinet Top
D
C
A
B
Cabinet Top
H-065
Valance
D
C
Shelf
Cabinet Back
AB
D
C
B
Cabinet Back
A
Shelf
H-065
A.Hold the Valance next to the Cabinet Top
B. Screw the Valance to the Cabinet top with
H-065 Panel Screws using a 4mm Allen
Wrench.
C. Hold the Shelf next to the Cabinet Back.
D. Screw the Shelf to the Cabinet Back with
H-065 Panel Screws using a 4mm Allen
Wrench.

STEP 3 CLOSED BACK: Attach Valance to Cabinet Top & Attach Shelf to Closed Back
Use this version of Step 3 if your WallBed is an Closed Back Model
D
C
A
B
Valance
Cabinet Top
D
C
A
B
Cabinet Top
H-065
Valance
D
C
B
Closed Back
A
Shelf
D
C
Closed Back
B
A
Shelf
H-065
A.Hold the Valance next to the Cabinet Top
B. Screw the Valance to the Cabinet top with
H-065 Panel Screws using a 4mm Allen
Wrench.
C. Hold the Shelf next to the Closed Back.
D. Screw the Shelf to the Closed Back with H-065
Panel Screws using a 4mm Allen Wrench.

STEP 4 OPEN BACK: Attach Bottom Assembly, Cabinet Top & Back to Right Cabinet Side
Use this version of Step 4 if your WallBed is an Open Back Model
Cabinet Bottom
Cabinet Side, Right
Cabinet Front
Cabinet Back
Cabinet Top

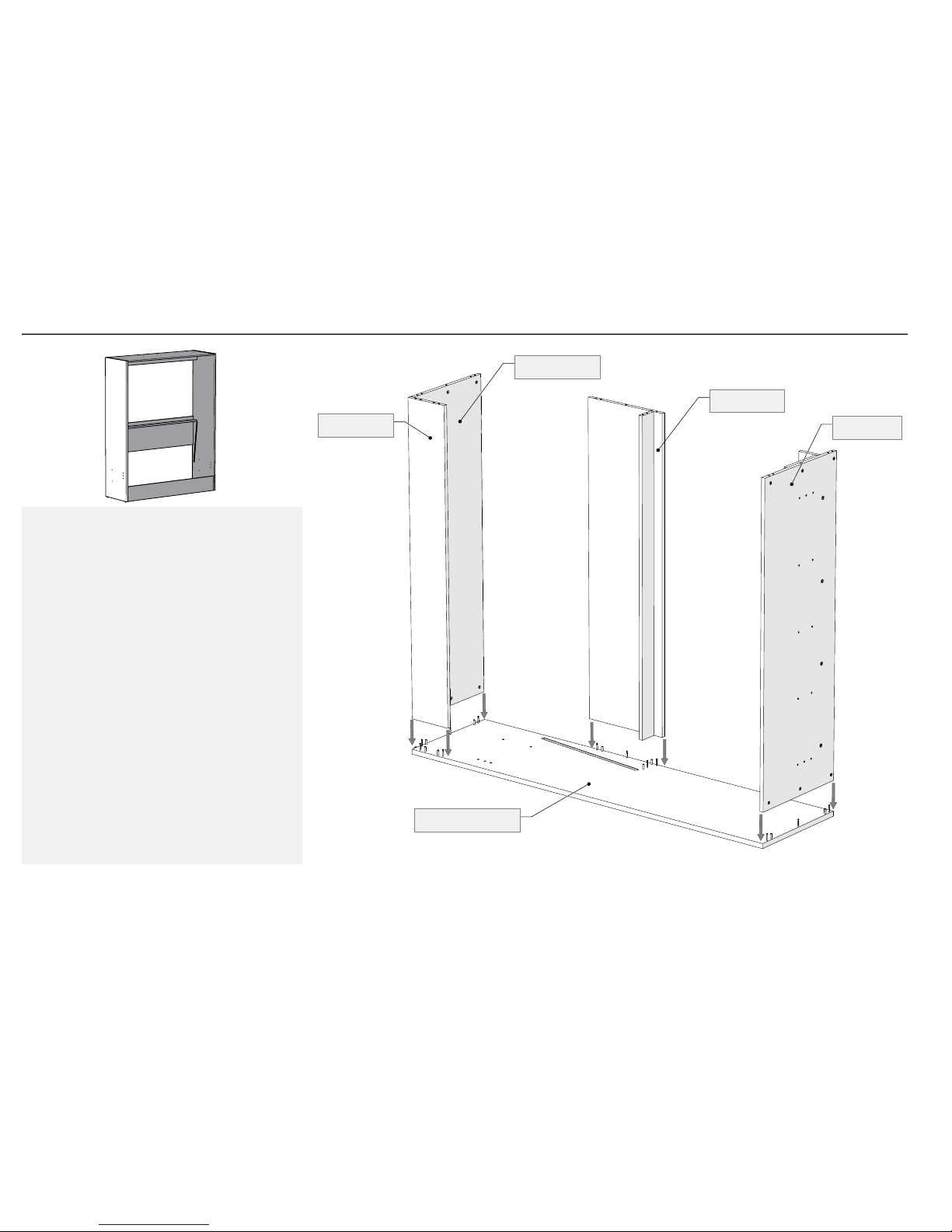

A.Lay the Right Cabinet Side from Step 1 on the
floor as shown, using padding to protect it
from geing scratched.
B. Slide the Cabinet Front/Boom Assembly
onto the fiings in the Right Cabinet Side and
tighten the Minifix Cams.
C. Slide the Cabinet Back/Shelf Assembly onto
the fiings in the Right Cabinet Side and
tighten the Minifix Cams.
D. Slide the Cabinet Top Assembly onto the
fiings in the Right Cabinet Side and tighten
the Minifix Cams.

STEP 4 CLOSED BACK: Attach Bottom Assembly, Cabinet Top & Back to Right Cabinet Side
Use this version of Step 4 if your WallBed is an Closed Back Model
Cabinet Bottom
Cabinet Side, Right
Cabinet Front
Cabinet Back
H-065
Cabinet Top
A.Lay the Right Cabinet Side from Step 1 on the
floor as shown, using padding to protect it
from geing scratched.
B. Slide the Cabinet Front/Boom Assembly
onto the fiings in the Right Cabinet Side and
tighten the Minifix Cams.
C. Slide the Closed Back/Shelf Assembly onto the
fiings in the Right Cabinet Side and tighten
the Minifix Cams.
D. Slide the Cabinet Top Assembly onto the
fiings in the Right Cabinet Side and tighten
the Minifix Cams.
E. Screw the Cabinet Top to the Closed Back
using H-065 Panel Screws using a 4mm Allen
Wrench.

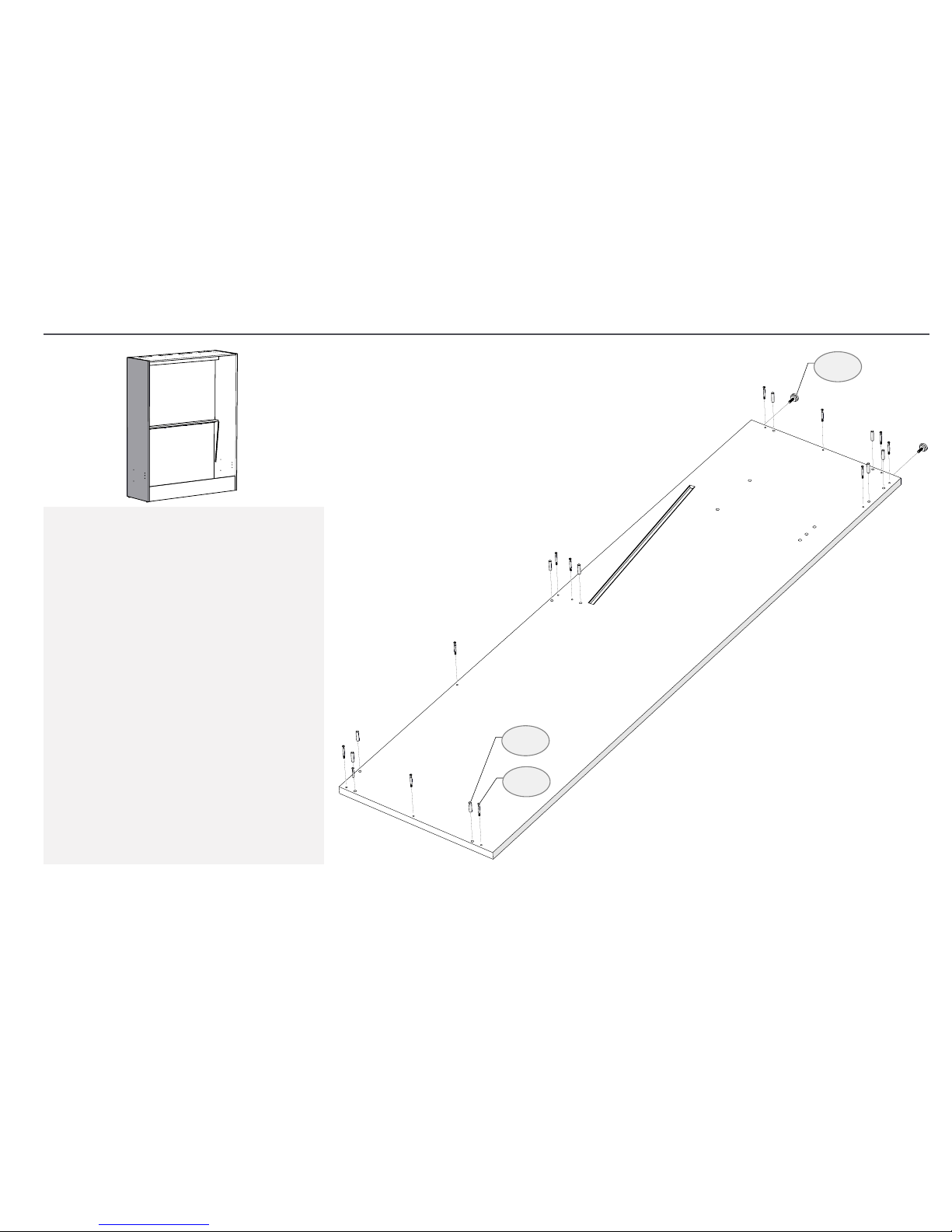

A.Lay the Le Cabinet Side on the floor as
shown.
B. Screw the H-011 Minifix Pins into the small
holes.
C. Tap the H-003 Wood Dowels into the larger
holes.
STEP 5 OPEN BACK: Prepare Left Cabinet Side
H-008
H-011
H-003
Use this version of Step 5 if your WallBed is an Open Back Model

A.Lay the Le Cabinet Side on the floor as
shown.
B. Screw the H-011 Minifix Pins into the small
holes.
C. Tap the H-003 Wood Dowels into the larger
holes.
STEP 5 CLOSED BACK: Prepare Left Cabinet Side
Use this version of Step 5 if your Sofa-WallBed is a Closed Back Model
H-008
H-003
H-011

A.Make sure all the Minifix Cams have their
arrows pointing to the nearest edge of the
panels.
B. Li the Le Cabinet Side, flip it over, and place
it on the partly assembled cabinet as shown.
You may need to shi the parts slightly to get
the dowels and pins to line up with the holes.
C. Tighten all the Minifix Cams as in Step 4.
D. The Bed Cabinet is now complete and ready to
stand up.
STEP 6 OPEN BACK: Attach Left Cabinet Side to the Cabinet Assembly
Cabinet Bottom
Cabinet Front
Cabinet Back Cabinet Side, Left
Cabinet Top
Use this version of Step 6 if your WallBed is an Open Back Model
