INOXPA HYGINOX SE Manual

INSTALLATION, SERVICE AND
MAINTENANCE INSTRUCTIONS
HYGINOX SE
INOXPA, S.A.
c/Telers, 54 Aptdo. 174
E-17820 Banyoles
Girona (Spain)
Tel. : (34) 972 - 57 52 00
Fax. : (34) 972 - 57 55 02
email: [e-mail]
www.inoxpa.com
01.011.30.05EN
(0) 2015/01
01.011.32.0001

EC Declaration of Conformity
The manufacturer: INOXPA, S.A.
c/ Telers, 57
17820 Banyoles (Girona), Spain
herewith declares that the machine:
HYGINOX SE centrifugal pump
with the serial number: ________________
conforms to the relevant provisions of the following directives:
Machinery Directive 2006/42/EC (RD 1644/2008)
Low voltage Directive 2006/95/EC
Electromagnetic Compatibility Directive 2004/108/EC
Applicable harmonised Standards:
UNE-EN ISO 12100:2012
UNE-EN 809:1999+A1:2010
Identification of the person empowered to draw up the Declaration on behalf of the manufacturer, and qualified to
compile the technical file established by the Community:
Banyoles, 20 February 2014
David Reyero Brunet
Technical Office Manager

2015/01 1.Safety 3
1. Safety
1.1. INSTRUCTION MANUAL
This manual contains information regarding the reception, installation, operation, assembly, disassembly and
maintenance of the HYGINOX SE pump.
The information published in the instruction manual is based on updated data.
INOXPA reserves the right to modify this instruction manual without prior notice.
1.2. INSTRUCTIONS FOR START-UP
This instruction manual contains essential and useful information for the correct handling and maintenance of your
pump.
Carefully read the instructions prior to starting the pump, familiarise yourself with the installation, operation and
correct use of the pump and strictly follow the instructions. These instructions should be kept in a safe location near
the installation area.
1.3. SAFETY
1.3.1. Warning symbols
Safety hazard for people in general
Danger of injury caused by rotating
equipment parts
Electric hazard
Danger! Caustic or corrosive agents.
Danger! Suspended loads
Danger for the correct operation of the
equipment
Mandatory to ensure safety
at the workplace
Mandatory use of safety goggles
1.4. GENERAL SAFETY INSTRUCTIONS
Read the instruction manual carefully before installing and starting the pump. Contact INOXPA in case of
doubt.
1.4.1. During the installation
The Technical Specifications of Chapter 8 should always be observed.
Never start the pump before connecting it to the lines.
Do not operate the pump if the pump cover is not fitted.
Check for proper specifications of the motor, especially if its working conditions create an explosion hazard.
During the installation, all the electric work should be carried out by authorised personnel.

4 1.Safety 2015/01
1.4.2. During operation
The Technical Specifications of Chapter 8 should always be observed. Under no circumstances can the
specified limit values be exceeded.
NEVER touch the pump or the pipework during operation if the pump is being used for transferring hot
liquids or during cleaning.
The pump contains moving parts. Never place your fingers inside the pump during operation.
NEVER operate with the suction and discharge valves closed.
NEVER spray water directly on the elec
trical motor. The standard motor protection is IP-
55: protection
against dust and water spray.
1.4.3. During maintenance
The Technical Specifications of Chapter 8 shall always be observed.
NEVER disassemble the pump until the pipes have been emptied. Remember that liquid will remain inside
the pump’s
casing
(if does not have a purge). Bear in mind that the pumped liquid may be hazardous or
extremely h
ot. Consult the regulations in effect in each country for these cases.
Do not leave loose parts on the floor.
ALWAYS disconnect the electrical power to the pump prior to carrying out any maintenance. Remove the
fuses and disconnect the cables from the
motor’s terminals.
All electrical work must be carried out by authorised personnel.
1.4.4. Compliance with the instructions
Not following the instructions may impose a risk for the operators, the environment and the machine, and may result
in the loss of the right to claim damages.
This non-compliance may result in the following risks:
·Failure of important machine/plant functions.
·Failure of specific maintenance and repair procedures.
·Possible electrical, mechanical and chemical hazards.
·Risk to the environment due to the type of substances released.
1.4.5. Warranty
Any warranty will be void immediately and lawfully; additionally, INOXPA will be compensated for any civil liability
claims submitted by third parties, in the following cases:
·The service and maintenance work have not been carried out in accordance with the service instructions, the
repairs have not been carried out by our personnel or have been carried out without our written authorisation;
·Modifications have been carried out on our material or equipment without written authorisation;
·The parts or lubricants used are not INOXPA genuine parts;
·The material or equipment has been improperly used, has been used negligently, or has not been used
according to the instructions and their intended;
·The pump parts are damaged because they have been subjected to high pressure due to not having used a
safety valve.
The General Conditions of Delivery already in your possession are also applicable.

2015/01 1.Safety 5
The machine may not undergo any modification without prior approval from the manufacturer. For your
safety, only use original spare parts and accessories.
The usage of other parts will relieve the manufacturer of any liability.
Changing the service conditions can only be carried out wi
th prior written authorisation from INOXPA
Please do not hesitate to contact us in case of doubts or if further explanations are required regarding specific data
(adjustments, assembly, disassembly, etc.).

6 2.Table of contents 2015/01
2. Table of contents
1. Safety
1.1. Instruction manual.........................................................................................................3
1.2. Instructions for start-up..................................................................................................3
1.3. Safety...........................................................................................................................3
1.4. General safety instructions..............................................................................................3
2. Table of contents
3. General Information
3.1. Description....................................................................................................................7
3.2. Application ....................................................................................................................7
4. Installation
4.1. Reception of the pump ...................................................................................................8
4.2. Transport and storage ....................................................................................................9
4.3. Location........................................................................................................................9
4.4. Pipes ............................................................................................................................9
4.5. Electrical installation.....................................................................................................10
5. Starting the pump
5.1. Start-up ......................................................................................................................11
6. Operating problems
7. Maintenance
7.1. General considerations .................................................................................................13
7.2. Storage.......................................................................................................................13
7.3. Cleaning......................................................................................................................13
7.4. Assembly / disassembly of the pump .............................................................................15
8. Technical Specifications
8.1. Technical Specifications ................................................................................................ 17
8.2. Tightening torques.......................................................................................................17
8.3. Cross section HYGINOX SE ...........................................................................................18
8.4. HYGINOX SE parts list ..................................................................................................19

2015/01 3.General Information 7
3. General Information
3.1. DESCRIPTION
HYGINOX SE is a range of close-coupled centrifugal pumps with hygienic design, suitable for use in the dairy,
beverage, and food industry in general.
This single-stage horizontal pump has a circular casing with axial suction and tangential discharge. The main pump
components are: pump casing, impeller, cover, lantern and a shaft which is rigidly coupled to the motor shaft.
The standard IEC motor of type IM B34 is protected by a stainless steel shroud and provided with height adjustable
stainless steel legs.
3.2. APPLICATION
As a general rule, HYGINOX SE pumps in their standard version are used in the food industry mainly to transfer
liquids.
For each type of the pump, the hydraulic performance is given by the choice of impeller diameters and speeds. The
characteristic curves also show the power and NPSH requirements. The intended use of the pump is defined by its
characteristic curve and operating limits provided in the Technical Specifications section.
Misuse of the pump or its use beyond the operating limits may be dangerous or cause permanent damage
to the equipment.

8 4.Installation 2015/01
01.011.32.0002
01.011.32.0014
4. Installation
4.1. RECEPTION OF THE PUMP
INOXPA will not be liable for any deterioration of the material due to transport or unpacking. Visually
check that the packaging has not been damaged.
The following documentation is included with the pump:
·Shipping documents.
·Instructions and Servicing manual for the pump.
·Instructions and Servicing manual for the motor (*).
·(*) If the pump has been supplied with a motor from INOXPA.
Unpack the pump and check the following:
·The suction and discharge connections on the pump,
removing any remaining packaging material.
·
Check that the pump and motor have not suffered any
damage.
·
If not in good material condition and/or if not all the parts
are included, the shipping carrier should submit a report
as soon as possible.
4.1.1. Identification of the pump
Each pump has a nameplate with the basic data required to identify the model.
Pump plate
0
1.011.32.0002
Serial number

2015/01 4.Installation 9
4.2. TRANSPORT AND STORAGE
The
HYGINOX SE pumps are often too heavy to be stored manually.
Lift the pump as indicated below:
4.3. LOCATION
Place the pump in a position that allows enough space around it to provide access to the pump as well as to the
motor. (Refer to Section 8
. Technical Specifications for dimensions and weights.
Place the pump on a flat and level surface.
Install the pump so that it can be properly ventilated.
If the pump is installed outdoors, it must be sheltered under a roof. Its location must allow for easy access
during any inspection or maintenance tasks.
4.4. PIPES
·As a general rule, install the suction and discharge lines in straight sections, with the minimum possible number of
elbows and fittings in order to reduce any pressure losses that may be caused by friction.
·Make sure that the pump’s ports are properly aligned with the pipework and have a diameter similar to that of the
pump connections.
·Place the pump as close as possible to the suction tank and whenever possible below the liquid level, or even below
the tank level in order to achieve the largest possible static head for suction.
·Install support brackets for the lines as close as possible to the pump's suction and discharge ports.
4.4.1. Shut-off valves
The pump may be isolated for maintenance. To accomplish this, shut-off valves must be installed and connected to
the pump's suction and discharge connections.
These valves must ALWAYS be open during operation of the pump.
ATTENTION!
Always remove the motor
shroud before hoisting.
01.011.32.0003

10 4.Installation 2015/01

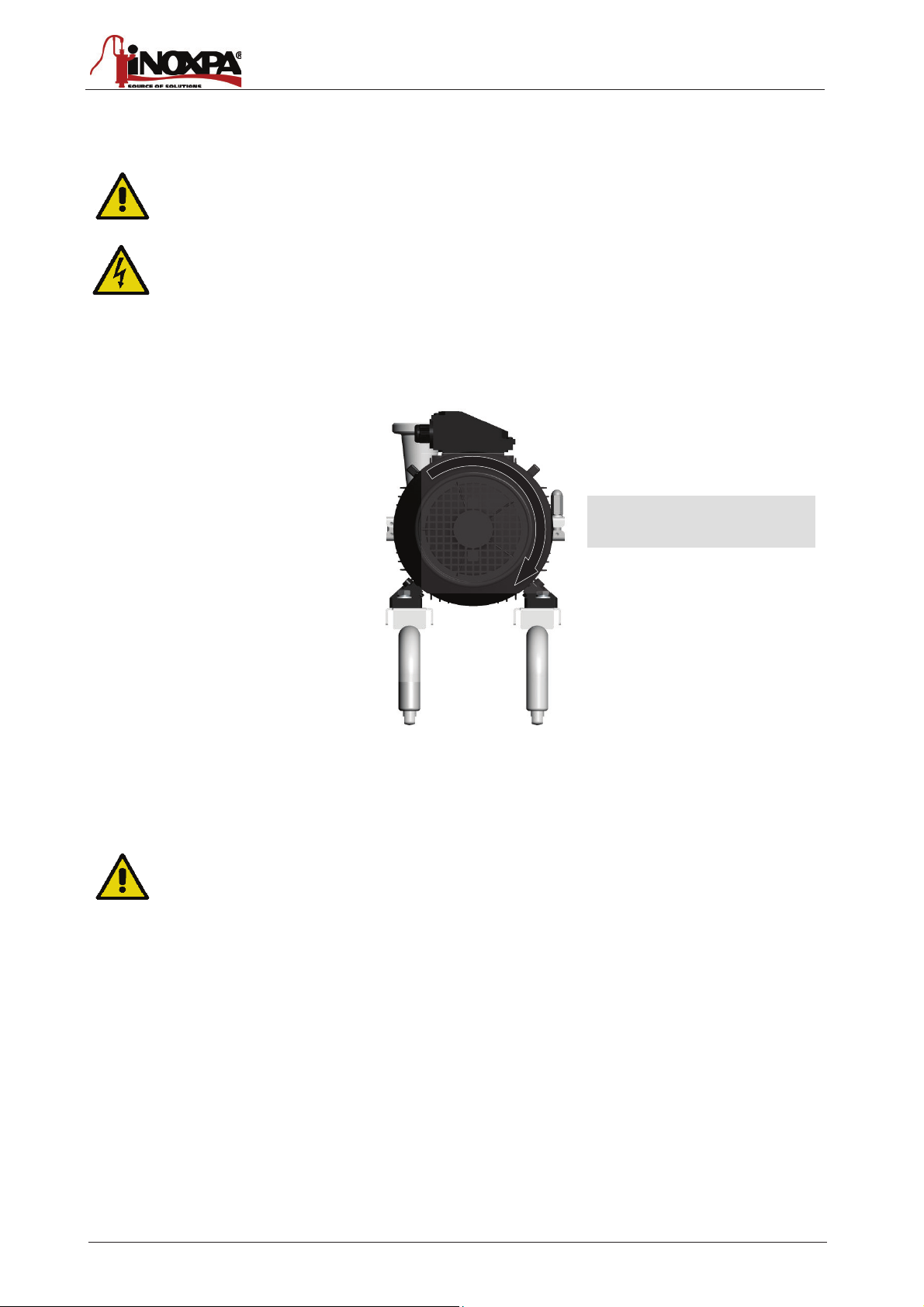

4.5. ELECTRICAL INSTALLATION
Only qualified personnel can connect the electric motors.
Take the necessary measures to prevent damage to cables and connections.
Electrical equipment, terminals and components of the control systems may still carry current when they
are disconnected. Contacting them may impose a hazard to operators or cause irreparable material
damage.
Prior to handling the pump, make sure that the electrical panel is disconnected.
·Connect the motor in accordance with the instructions supplied by the motor manufacturer.
·Check the direction of rotation.
Start and stop the pump motor momentarily. Make sure, looking at the pump from behind, that the motor fan
rotates in a clockwise direction.
A
LWAYS check the direction of rotation of the motor with liquid inside the pump.
ATTENTION!
See indicator label on the pump.
Seen from the rear of
the motor.

2015/01 5.Starting the pump 11

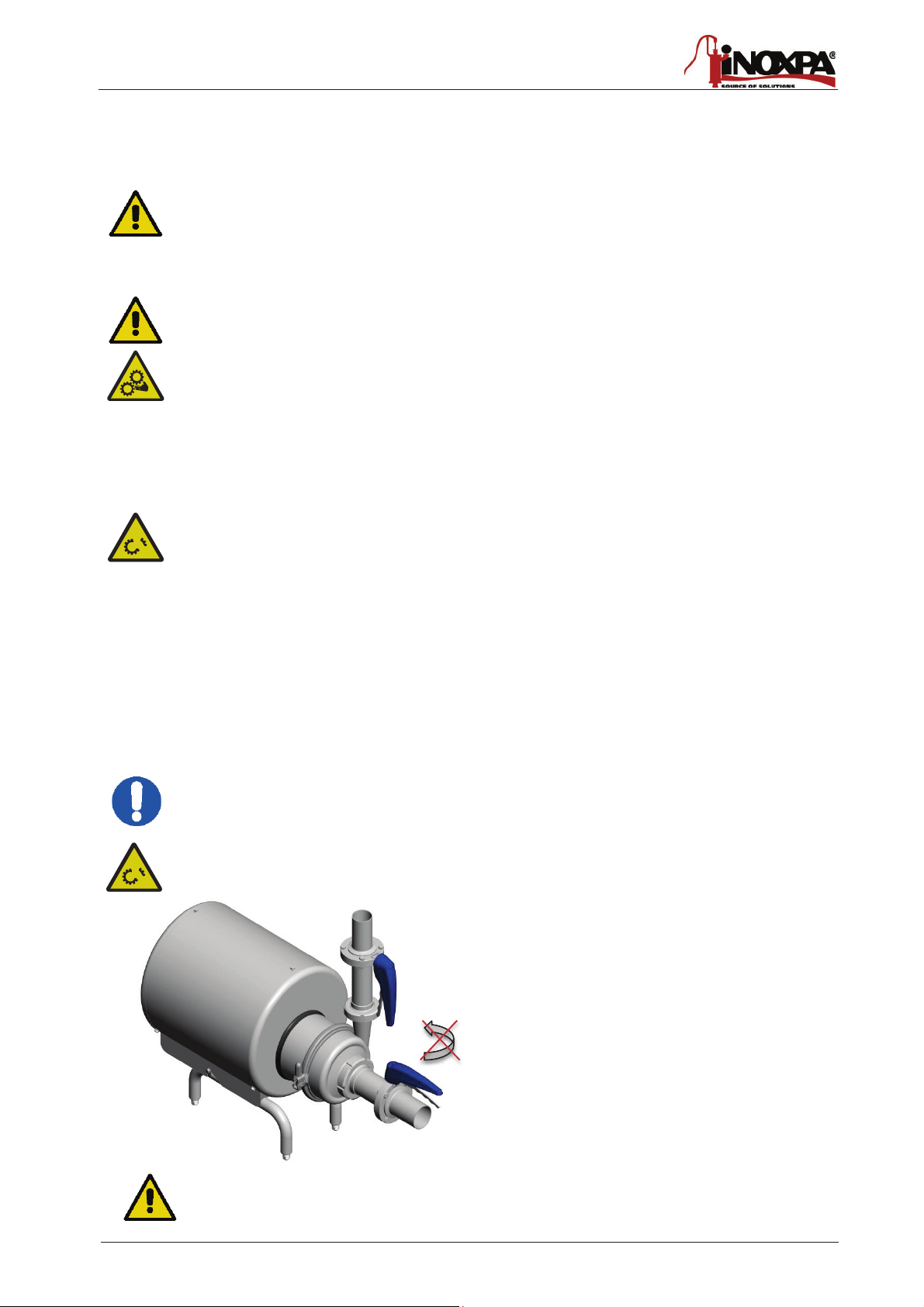

5. Starting the pump
Prior to starting the pump, carefully read the instructions in Section 4.
49H Installation .
5.1. START-UP
Carefully read Section 8.
H
Technical Specifications . INOXPA will not be liable for improper use of the
equipment.
NEVER touch the pump or the lines if hot liquids are being pumped.
5.1.1. Checks before starting the pump
·Completely open the shut-off valves on the suction and discharge lines.
·If liquid does not flow towards the pump, fill it with the liquid to be pumped.
The pump must never turn dry.
·Check that the direction of rotation of the motor is correct.
5.1.2. Checks when starting the pump
·Check that the pump is not making any strange noises.
·Check if the absolute inlet pressure is sufficient to prevent cavitation in the pump. Check the curve to obtain the
minimum required pressure above the vapour pressure (NPSHr).
·Control the discharge pressure.
·Check for leaks in the sealing areas.
A shut
-off valve shall not be used to regulate the flow in the suction line. All shut-
off valves must be fully
open during operation.
Control the motor consumption to prevent an electrical overload.
Reduce the flow rate and the electrical power
consumed by the motor:
·
by regulating the pump's discharge flow.
·
by decreasing the motor speed.
Use special protection when the
sound pressure in the operation area exceeds 80 dB(A).
01.011.32.0005

12 6.Operating problems 2015/01
6. Operating problems
The attached table lists solutions to problems that may arise while operating the pump. It is assumed that the pump
has been properly installed and that is has been selected correctly for the specific application.
Contact INOXPA if technical assistance is required.
Motor overload
ò
The pump flow or pressure is insufficient.
ò
There is no pressure on the discharge side.
ò
Irregular discharge flow rate / pressure.
ò
Noise and vibrations.
ò
The pump gets clogged.
ò
Pump overheated.
ò
Abnormal wear.
ò
Leak through the mechanical seal.
ò
PROBABLE CAUSES SOLUTIONS
•
•
Wrong direction of rotation.
Reverse the direction of rotation .
•
•
•
•
Insufficient NPSH
Raise the suction tank.
Lower the pump.
Reduce the
vapour pressure.
Widen the diameter of the suction pipe.
Shorten and simplify the suction line.
•
Pump not purged
Purge or fill.
•
•
•
•
Cavitation.
Increase the suction pressure.
•
•
•
•
The pump sucks in air.
Check the suction line and all of its
connections.
•
•
•
Suction pipe obstructed
Check the suction line and the filters, if
available.
•
•
Discharge pressure too high
If necessary, reduce the pressure losses,
for example, by increasing the pipe
diameter.
•
•
•
Flow rate too high
Reduce the flow by means of a
diaphragm.
Partially close the discharge valve.
Trim the impeller.
Decrease speed.
•
•
•
•
•
•
Viscosity of the liquid too high.
Reduce the viscosity, for example, by
heating the liquid.
•
•
•
•
•
Liquid temperature is too high
Decrease the temperature by cooling the
liquid.
•
Mechanical seal worn or damaged.
Replace the seal.
•
Inadequate O
-rings for the liquid.
Install the correct O-rings after
consulting the supplier.
•
•
•
•
The impeller scrapes
Lower the temperature.
Reduce the suction pressure.
Adjust the impeller/cover play.
•
•
•
•
Tension in the lines.
Connect the pipes to the pump without
tension.
•
•
•
•
Foreign matter in the liquid.
Install a filter
in the suction pipe.
•
Mechanical seal spring tension is too
low.
Adjust as indicated in this manual.

2015/01 7.Maintenance 13
7. Maintenance
7.1. GENERAL CONSIDERATIONS
This pump, just like any other machine, requires maintenance. The instructions contained in this manual cover the
identification and replacement of spare parts. The instructions are aimed at maintenance personnel and those
responsible for the supply of spare parts.
Carefully read Chapter 8.
H
Technical Specifications .
All replaced material should be duly disposed of/recycled according to the directives in force in each area.
ALWAYS disconnect the pump before beginning any maintenance work.
7.1.1. Check the mechanical seal
Periodically check that there are no leaks around the shaft. If leakage is detected through the mechanical seal, replace
it following the instructions in the section Assembly and Disassembly.
7.2. STORAGE
Before storing the pump it should be completely drained. Prevent as far as possible exposing the parts to excessively
humid environments.
7.3. CLEANING
The use of aggressive cleaning products such as caustic soda and nitric acid may burn the skin.
Use rubber gloves during the cleaning process.
Always use protective goggles.
7.3.1. CIP (Clean-in-Place) cleaning
If the pump is installed in a system with a CIP process, its removal will not be required. If an automatic
cleaning process is not available, disassemble the pump as indicated in the section
Assembly and Disassembly .
Cleaning solutions for CIP processes.
Only use clear water (chlorine-free) to mix with the cleaning agents:
a) Alkaline solution: 1% by weight of caustic soda (NaOH) at 70ºC (150ºF)
1 kg NaOH + 100 litres of water = cleaning solution
or
2.2 litres of 33% NaOH + 100 litres of water = cleaning solution
b) Acid solution: 0.5% by weight of nitric acid (HNO3) at 70ºC (150ºF)
0.7 litres of 53% HNO3+ 100 litres of water = cleaning solution

14 7.Maintenance 2015/01
Check the concentration of the cleaning solutions; incorrect concentrations may lead to deterioration of
the pump seals.
To remove any traces of cleaning products, ALWAYS perform a final rinse with clean water at the end of the cleaning
process.
7.3.2. SIP (Sterilization-in-Place) cleaning
Sterilization with steam is applied to all equipment including the pump.
Do NOT use the equipment during the steam sterilization process.
The parts/materials will not be damaged if
the indications specified in this manual are observed.
Make sure that no cold liquid enters the system until the temperature of the pump is lower than 60°C
(140°F).
The pump generates an important pressure loss through the sterilization process. We recommend the
use of a branch circuit with a discharge valve to ensure that steam / superheated water sterilizes the
integrity of the circuit.
Maximum conditions during the SIP process with steam or overheated water
a) Max. temperature: 140°C / 284°F
b) Max. time: 30 min.
c) Cooling: Sterile air or inert gas
d) Materials: EPDM
FPM

2015/01 7.Maintenance 15

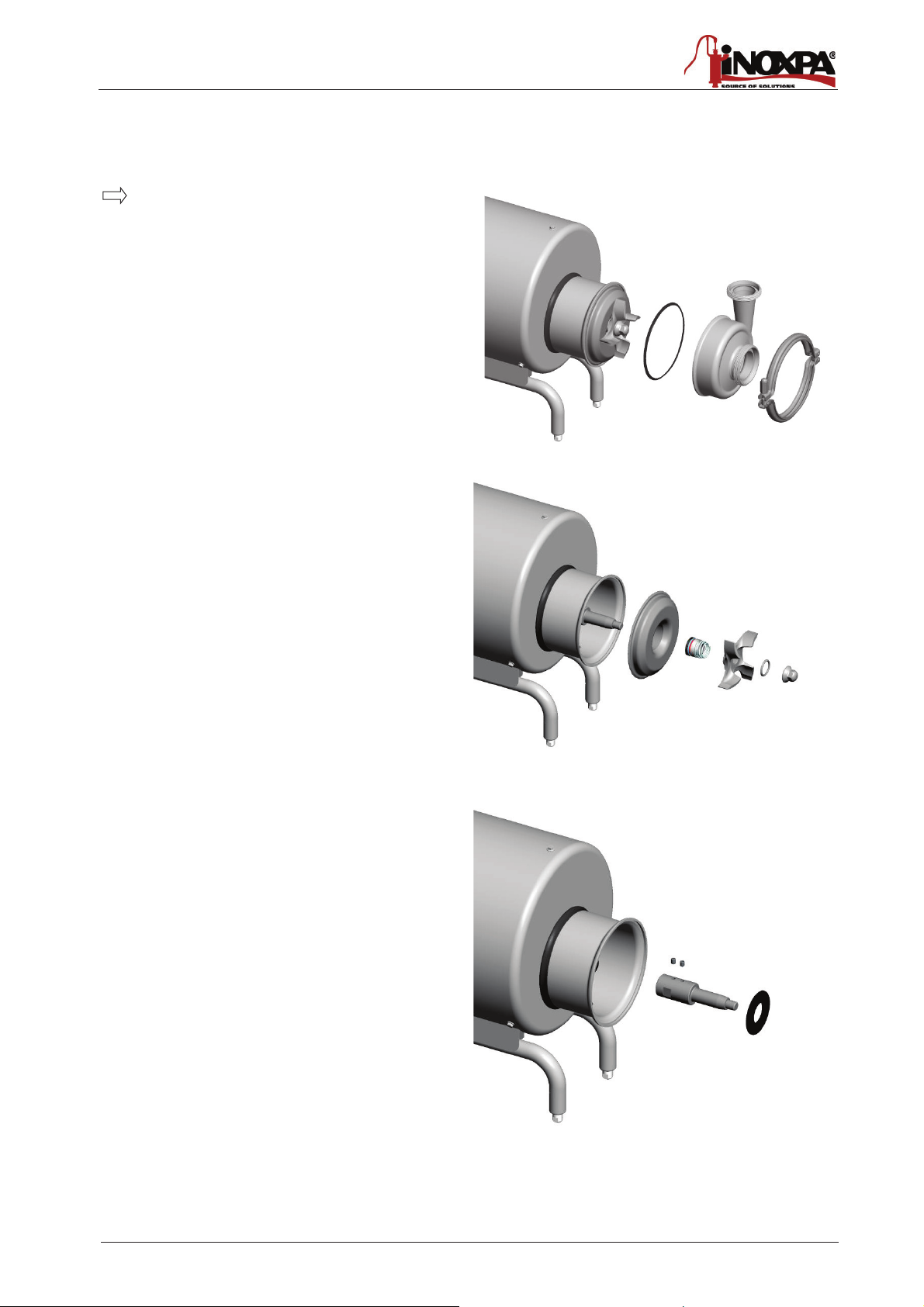

7.4. ASSEMBLY / DISASSEMBLY OF THE PUMP
7.4.1. Pump and single mechanical seal
Disassembly
1. Remove the clamping ring (15) and
disassemble
the pump casing (01).
2. Check the condition of the O-
ring (80) on the
pump casing and replace if damaged.
3. Place an open-
end wrench on the flat sides of
the shaft (05) to prevent it from rotating.
4. Remove the impeller nut (45) and the O-
ring
(80A).
5.
Pull out the impeller (02). If necessary, hit it with
a dead blow using a plastic mallet in order to
disengage the cone.
6.
Remove the rotating part of the seal (08) from
the rear side of the impeller (02).
7. Remove the
pump cover (03) from the lantern
(04).
8.
Manually remove the stationary part of the seal
(08) which is located in the pump cover (03).
9. Remove the splash ring (82)
10. Loosen the studs (55) from the shaft (05)
and
take it off from the motor (93).
01.011.32.0007
01.011.32.0008
01.011.32.0006

16 7.Maintenance 2015/01

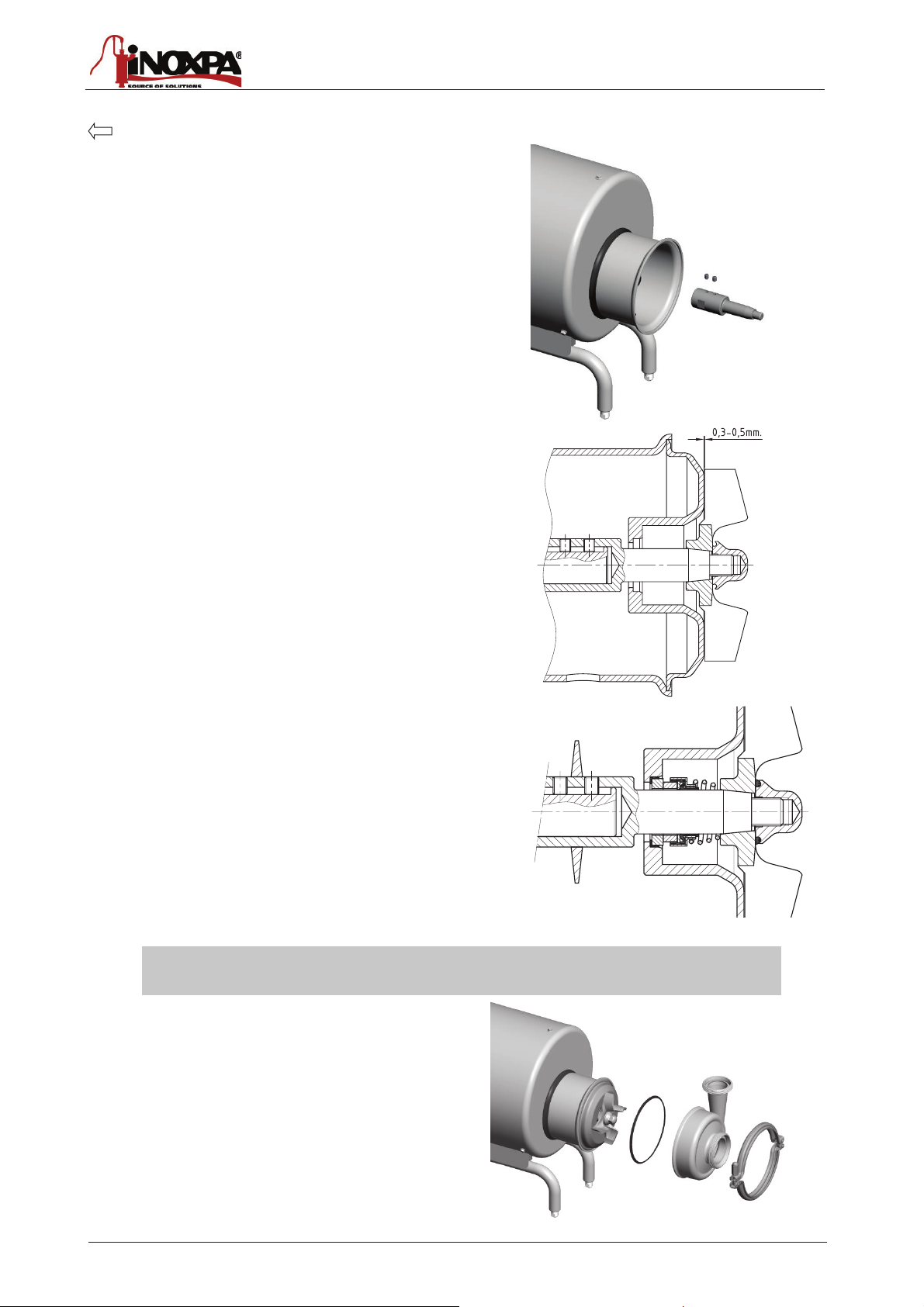

Assembly
1. Place the shaft (05) on the motor (93).
2.
Fix the shaft (05) with the studs (55) to the
motor (93) leaving it to
gauge the impeller (02)
with the pump cover (03).
3. Enter the pump cover (03) on the
centering
lantern (04).
4.
Put the impeller (02) on the shaft, tighten the
cap nut (45) and gauge according the picture.
5. Now,
tighten the studs (55) strongly that fix the
shaft (05) to the motor (93).
6. Untighten the cap nut (45) and
quit the impeller
(02) and the pump cover (03).
7. Place the splash ring (82) in the shaft (05).
8.
Fit the stationary part of the seal (08) on the
pump cover (03) with the fingers.
9. Put the pump cover (03) on the lantern (04).
10. Fit the rotating part of the
mechanical seal (08)
in the shaft (05) and place the impeller (02).
11. Place the O-ring (80D) in
the impeller nut (45)
and i
nsert the impeller (02) on the pump shaft
(05) and secure with the nut (45).
1. Mount the o-ring (80A) on the pump cover
(03)
taking care that it is not twisted.
2. Put the pump casing (01) and s
ecure it on the
lantern (04) by the casing clamp
(15) and
tighten the clamp nut tightly.
ATTENTION! When installing the new seal, use soapy water when fitting the different parts and
gaskets to allow them to slide better;
apply to the stationary as well as the rotating parts.
01.011.32.0008
01.011.32.0010
01.011.32.0011
01.011.32.0006

2015/01 8.Technical Specifications 17
8. Technical Specifications
8.1. TECHNICAL SPECIFICATIONS
Maximum operating pressure 1000 kPa (10 bar)
Temperature range -10 to 120 °C (EPDM)
Maximum speed 3000 rpm (50 Hz)
3600 rpm (60 Hz)
Materials
Parts in contact with the product AISI 316L (1.4404)
Other steel parts AISI 304L (1.4306)
Gaskets in contact with the product EPDM (standard)
FPM (other materials available upon request)
Other gaskets EPDM
Exterior surface finish Bright polished
Interior surface finish Polished Ra<0,8 m
Mechanical seal
Type Single internal seal
Material of rotating part Graphite (C) (standard)
Silicon carbide (SiC)
Material stationary part Silicon carbide (SiC) (standard)
Gasket material EPDM (standard)
FPM
Motor
Type Three-phase asynchronous motor, IEC B34 type, 2 or 4 poles, IP55
protection, Class-F insulation
Power 0.37 to 11 kW
Voltage and frequency 220-240 V Δ / 380-420 V Υ, ≤ 4 kW
380-420 V Δ / 660-690 V Υ, 5.5 kW
8.2. TIGHTENING TORQUES
If not stated otherwise, the torques listed in the following table should be applied on the nuts and bolts of this pump.
Size Nm lbf·ft
M6 10 7
M8 21 16
M10 42 31
M12 74 55
M16 112 83

18 8.Technical Specifications 2015/01
8.3. CROSS SECTION HYGINOX SE
Pump detail for motor 132/160
01.011.32.0009

2015/01 8.Technical Specifications 19
8.4. HYGINOX SE PARTS LIST
Position
Description
Quantity
Material
01
Pump casing
1
AISI 316L
02
Impeller
1
AISI 316L
03
Pump cover
1
AISI 316L
04
Lantern
1
AISI 304
05
Shaft
1
AISI 316L
07
Motor leg
2
AISI 304
07A
Adjustable leg
4
AISI 304
08
Mechanical seal
1
-
14
Shroud
1
AISI 304
15
Casing clamp
1
AISI 304
45
Cap nut
1
AISI 316L
51
Allen screw
4
A2
51C
Screw with flange
2
A2
52A
Hexagonal screw
2
A2
52B
Hexagonal screw
4
A2
53B
Grower washer
4
A2
53C
Flat washer
8
A2
53D
Grower washer
4
A2
54A
Hexagonal nut
4
A2
55
Stud
2
A2
80A
O-ring
1
EPDM
80B
O-ring
4
EPDM
80D
O-ring
1
EPDM
81
Lantern joint
1
EPDM
82
Splash ring
1
EPDM
93
Motor
1
-
Parts only for pumps with motor sizes 132 and 160
23
Counterflange
1
LM4
52
Hexagonal screw
4
A2
53
Flat washer
4
A2
