Before using your new product, please read these instructions to prevent any damage.

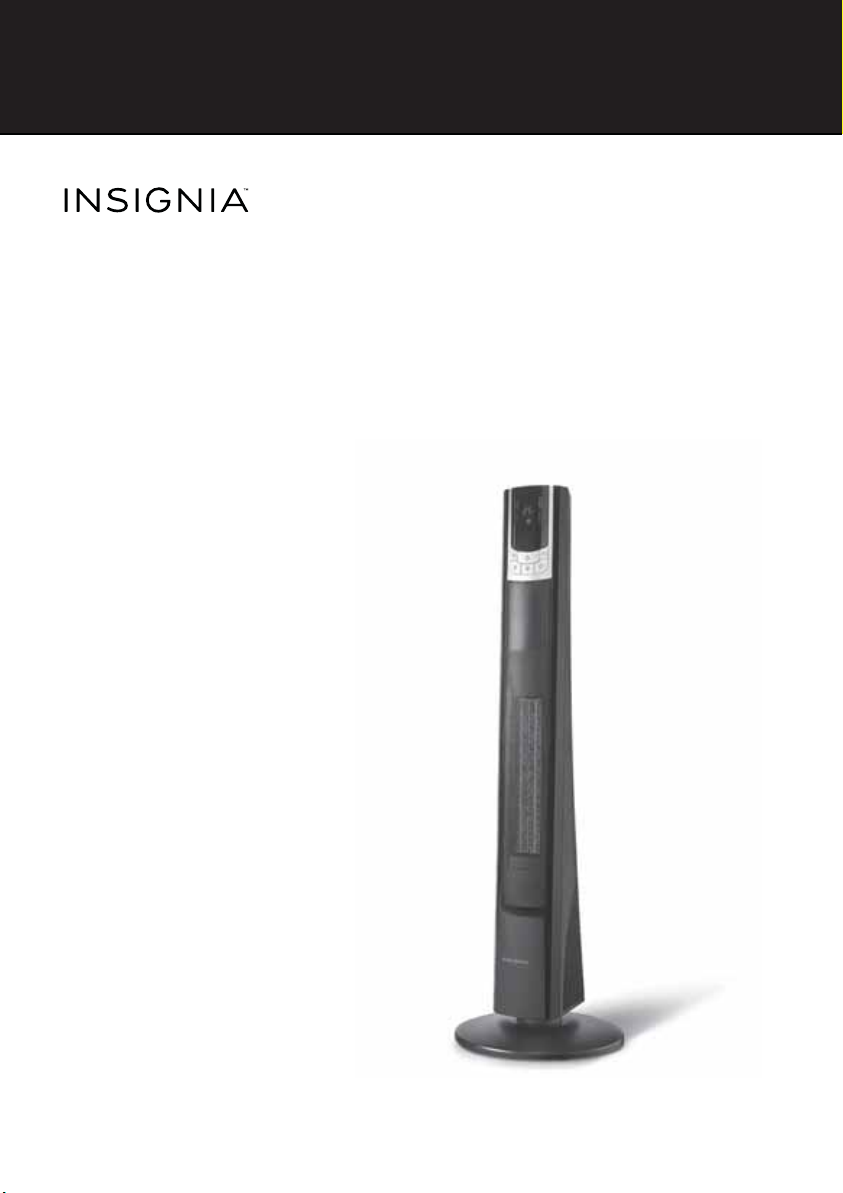

USER GUIDE
Ceramic Tower Heater
NS-HTTCBK6
NS-HTTCBK6_15-0373_MAN_V1_ENG.fm Page 1 Friday, May 8, 2015 11:03 AM

2
Insignia Ceramic Tower Heater
www.insigniaproducts.com
Insignia Ceramic Tower Heater
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Main features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Display/control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Assembling your heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Using your heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Cleaning and maintaining your heater . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
ONE-YEAR LIMITED WARRANTY - INSIGNIA . . . . . . . . . . . . . . . . . . . . . . .13
Introduction
Congratulations on your purchase of a high-quality Insignia product. Your
NS-HTTCBK6 represents the state of the art in ceramic heater design and is
designed for reliable and trouble-free performance.
IMPORTANT INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous voltage
constituting a risk of electric shock is present
within your heater.
This symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying your heater.
NS-HTTCBK6_15-0373_MAN_V1_ENG.fm Page 2 Friday, May 8, 2015 11:03 AM

3
Insignia Ceramic Tower Heater
www.insigniaproducts.com
When using the heater, basic precautions should always be followed to
reduce the risk of fire, electric shock, and injury to persons, including the
following:
1Read all instructions before using this heater.
2This heater is hot when in use. To avoid burns, do not let bare skin
touch hot surfaces.
3Use handles when moving this heater. Keep combustible materials,
such as furniture, pillows, bedding, papers, clothes, and curtains at
least 3 feet (0.9 m) from the front of the heater and keep them away
from the sides and rear.
4Extreme caution is necessary when the heater is used by or near
children or invalids and whenever the heater is left operating and
unattended.
5Always unplug the heater when not in use.
6Do not operate the heater with a damaged cord or plug or after the
heater malfunctions, has been dropped or damaged in any manner.
Discard the heater, or return it to an authorized service facility for
examination and/or repair.
7Do not use outdoors.
8This heater is not intended for use in bathrooms, laundry areas and
similar indoor locations. Never locate the heater where it may fall into
a bathtub or other water container.
9Do not run the cord under carpeting. Do not cover the cord with throw
rugs, runners, or similar coverings. Do not route the cord under
furniture or appliances. Arrange the cord away from traffic area and
where it will not be tripped over.
10 To disconnect the heater, turn the controls to off, then remove the
plug from the wall outlet.
11 Prior to cleaning or other maintenance, the heater must be
disconnected from the wall outlet.
12 Do not insert or allow foreign objects to enter any ventilation or
exhaust opening as this may cause an electric shock or fire, or damage
the heater.
13 To prevent a possible fire, do not block air intakes or exhaust in any
manner. Do not use on soft surfaces, like a bed, where openings may
become blocked.
14 A heater has hot and arcing or sparking parts inside. Do not use it in
areas where gasoline, paint, or flammable liquids are used or stored.
15 Use this heater only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, or
injury to persons.
16 Always plug heaters directly into a wall outlet/receptacle. Never use
with an extension cord or relocatable power tap (outlet/power strip).
NS-HTTCBK6_15-0373_MAN_V1_ENG.fm Page 3 Friday, May 8, 2015 11:03 AM

4
Insignia Ceramic Tower Heater
www.insigniaproducts.com
17 This heater is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless the have been given supervision or instruction
concerning use of the appliance by a person responsible for their
safety.
18 Children should be supervised to ensure that they do not play with the
heater.
19 CAUTION: Some parts of this product can become very hot and cause
burns. Particular attention has to be given where children and
vulnerable people are present.
20 WARNING: In order to avoid overheating, do not cover the heater.
21 This heater draws up to 1500 W during operation. To prevent
overloading a circuit, do not plug the heater into a circuit that already
has other appliances working.
22 It is normal for the plug to feel warm to the touch, however, a loose fit
between the wall outlet and plug may cause overheating and
distortion of the plug. Contact a qualified electrician to replace loose
or worn outlets.
23 The output of this heater may vary and its temperature may become
intense enough to burn exposed skin. Use of this heater is not
recommended for persons with reduced sensitivity to heat or an
inability to react to avoid burns.
24 Do not leave the heater on unattended.
25 This appliance has a polarized plug (one blade is wider than the other).
To reduce the risk of electric shock, this plug is intended to fit in a
polarized outlet only one way. If the plug does not fit fully into the
outlet, reverse the plug. If is still does not fit, contact a qualified
electrician. Do not attempt to defeat this safety feature.
26 If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent, or similarly qualified persons in order
to avoid a hazard.
27 The heater must not be located immediately below a socket-outlet.
28 Do not use this heater near a bath, a shower, or a swimming pool.
29 Do not spray pesticide or any other flammable spray around the
heater. It could damage the heater.
30 Stop using the heater and unplug it immediately if any unusual smell
or sounds come from the heater.
31 Do not cover the heater when in use or when not allowed to cool
completely.
SAVE THESE INSTRUCTIONS
NS-HTTCBK6_15-0373_MAN_V1_ENG.fm Page 4 Friday, May 8, 2015 11:03 AM

5
Insignia Ceramic Tower Heater
www.insigniaproducts.com
WARNING
Electric Shock Hazard
Failure to follow these instructions can result in electric shock, fire, or
death.
Features
• PTC heater with 1500W power
• Electronic button control with LED display
• Digital temperature control from 59° F to 95° F
•12-hourtimer
• Easy-carry handle
• Detachable plastic base
• Tip-over protection
• Double over-heating protection
Package contents
• Ceramic Tower heater
•Heaterbase
• Remote control (with pre-installed battery)
•UserGuide
NS-HTTCBK6_15-0373_MAN_V1_ENG.fm Page 5 Friday, May 8, 2015 11:03 AM

6
Insignia Ceramic Tower Heater
www.insigniaproducts.com
Main features
Display panel
Control panel
Front mesh
Front cover
Swing
base
Back grill
NS-HTTCBK6_15-0373_MAN_V1_ENG.fm Page 6 Friday, May 8, 2015 11:03 AM

7
Insignia Ceramic Tower Heater
www.insigniaproducts.com
Display/control panel
On/Off indicator
Time and temp display
Swing indicator
High power
indicator
Temp or Time indicator
Low power indicator
Power button
Timer and Temp + (up)
button
Low power/High
power button
SET button
Timer and Temp – (down)
button
Swing button
NS-HTTCBK6_15-0373_MAN_V1_ENG.fm Page 7 Friday, May 8, 2015 11:03 AM

8
Insignia Ceramic Tower Heater
www.insigniaproducts.com
Remote control
Assembling your heater
1Remove the package contents from the box, then remove the bubble
wrap from the heater, the base, and the remote control.
2Carefully place your heater face-up on a cushioned, clean surface to
prevent scratches.
3Unscrew the nut from the threaded piece on the bottom of the heater.
NS-RCHTTCBK6
Power button
Timer and Temp + (up)
button
Low power/High
power button
SET button
Timer and Temp – (down)
button
Swing button
NS-HTTCBK6_15-0373_MAN_V1_ENG.fm Page 8 Friday, May 8, 2015 11:03 AM

9
Insignia Ceramic Tower Heater
www.insigniaproducts.com
4Fit the base onto the threaded piece on the bottom of the heater, then
secure it with the nut you removed previously.
5Place the heater upright on a stable and level surface.
Using your heater
1Firmly grab the pull-tab on the remote control battery and pull it to
remove it from the remote control.
2Make sure that neither the heater nor the power cord has been
damaged in any way during transportation.
3Place the heater on a firm, level surface, at least three feet (0.9 m) away
from any wall or other objects such, as furniture, curtains, plants, or
combustible material.
4Fully unwrap the power cord and plug it into a standard wall plug
(120 VAC~60 Hz).
5Press the power button to turn the heater on. The display shows
the current room temperature in °F with the °F icon turned on. The
default temperature setting is 77° F and the heater is on low power
with the low power indicator turned on.
If the ambient temperature is 2° lower than the set temperature, the
heater turns on after 10 seconds and remains on until the set
temperature is reached, then the heater, fan, and swing turn off.
Caution
Never leave an operating heater unattended.
NS-HTTCBK6_15-0373_MAN_V1_ENG.fm Page 9 Friday, May 8, 2015 11:03 AM

10
Insignia Ceramic Tower Heater
www.insigniaproducts.com
6To change the settings when the heater is turned on, do the following:
7Press the power button to turn the heater off (go to standby mode).
When you turn the heater back on, the settings remain the same as
when you turned it off.
Cleaning and maintaining your heater
• Always remove the plug from the wall socket and allow the heater to
cool before cleaning.
• Wipe the heater with a soft, damp cloth. Use a mild detergent if
necessary. DO NOT USE solvents or harsh cleaners or you may damage
the finish.
• Vacuum the grill with your vacuum's brush attachment every few
weeks for optimal performance.
• If the heater will not be used for an extended period of time, store it in
a dry place.
Safety features
The heater is equipped with double over-heating protection, which
causes the unit to stop operating in the event that the internal
temperature exceeds the normal operating temperature. It also includes
tip-over protection, which turns the heater off in case it is tipped over.
If the heater shuts down:
To switch between low and
high power setting
• Press . The high or low power indicator turns on.
To increase or decrease the
temperature setting
1. Press twice.
2. Press the + (up) or –(down). The temperature setting changes by
1°C each time you press the button and is shown on the display.
3. Press again to confirm. The display returns to the current
room temperature. The heater turns on and stays on until the set
temperature is reached, then the heater, fan, and swing turn off.
To turn the oscillator on to
circulate the heat
• Press . The swing indicator turns on and the heater begins to
oscillate. Press again to turn it off.
To set how long the heater
stays on
1. Press . The time indicator turns on.
2. Press the + (up) or –(down). The timer setting changes by one
hour each time you press the button and is shown on the display.
3. Press to confirm. The heater stays on until the set time
reaches 0, then the heater returns to standby mode.
Note
The display remains bright for one minute after changes are
made, then the display dims. Press any button to return the
display to normal.
SET
SET
NS-HTTCBK6_15-0373_MAN_V1_ENG.fm Page 10 Friday, May 8, 2015 11:03 AM

11
Insignia Ceramic Tower Heater
www.insigniaproducts.com
1Turn off and unplug the heater.
2Put the heater in the upright position, if necessary.
3Wait for at least 10 minutes until the heater cools.
4Plug the heater into the power outlet and then turn it on. The heater
resumes its normal operation.
Replacing your remote control battery
1Squeeze then pull the battery holder out of the remote control.
2Insert the battery into the battery holder with the positive (+) side
toward the front of the remote control.
3Push the battery holder into the remote control.
Squeeze together then pull out.
Squeeze together then pull out.
Positive (+)
toward front.
Insert battery
NS-HTTCBK6_15-0373_MAN_V1_ENG.fm Page 11 Friday, May 8, 2015 11:03 AM

12
Insignia Ceramic Tower Heater
www.insigniaproducts.com
Troubleshooting
Specifications
Caution
Do not try to repair your heater yourself. Doing so invalidates the
warranty.
Problem Possible cause Possible solution
Your heater shuts
off unexpectedly
or fails to operate
There is no power. Make sure that the heater is plugged in and that the electrical outlet
is working.
The set temperature is lower than
the current room temperature.
Set the desired temperature higher than the current temperature to
restart the heater.
Room temperature has reached
the temperature set on the
temperature control dial.
• This is normal. The heater restarts when room temperature is
lower than the set temperature.
• Adjust the temperature control dial setting if it's not set to your
desired temperature.
One of the safety protection
devices was activated to prevent
overheating.
1. Place the heater in an upright position.
2. Check for any obstructions. If you find an obstruction, turn the
heater off.
3. Unplug the heater and wait at least 10 minutes for it to cool down.
4. Carefully remove the obstruction. Plug the heater in and restart it
as described in “Using your heater” on page 9.
5. If you still notice the same problem, remove the plug from the wall
and have the heater checked by an authorized service person.
The room is not
warm enough
The room is too large or a window
is open.
• Turn on the main heat source for the room.
• Use more portable heaters.
•Closethewindow.
The temperature is set too low. • Increase the temperature setting.
The power setting is too low. • Select a higher power setting.
Model number NS-HTTCBK6
Voltage 120 VAC
Frequency 60 Hz
Power 1500 Watts
Noise level ≤50 dB
Dimensions 9.8 x 9.8 x 31.5 in. (250 x 250 x 800 mm)
Remote control battery CR2302 Lithium button
NS-HTTCBK6_15-0373_MAN_V1_ENG.fm Page 12 Friday, May 8, 2015 11:03 AM

13
Insignia Ceramic Tower Heater
www.insigniaproducts.com
ONE-YEAR LIMITED WARRANTY - INSIGNIA
Definitions:
The Distributor* of Insignia branded products warrants to you, the original purchaser of this new
Insignia-branded product (“Product”), that the Product shall be free of defects in the original
manufacturer of the material or workmanship for a period of one (1) year from the date of your purchase
of the Product (“Warranty Period”).
For this warranty to apply, your Product must be purchased in the United States or Canada from a Best
Buy or Future Shop branded retail store or online at www.bestbuy.com, www.bestbuy.ca, or
www.futureshop.com and is packaged with this warranty statement.
How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your purchase
date is printed on the receipt you received with the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is
determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its
sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with
new or rebuilt comparable products or parts. Products and parts replaced under this warranty become
the property of Insignia and are not returned to you. If service of Products or parts are required after the
Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own
your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise
transfer the Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy or Future Shop retail store location, please take your original
receipt and the Product to any Best Buy. Make sure that you place the Product in its original packaging or
packaging that provides the same amount of protection as the original packaging. If you purchased the
Product from a Best Buy or Future Shop online web site (www.bestbuy.com, www.bestbuy.ca, or
www.futureshop.com), mail your original receipt and the Product to the address listed on the web site.
Make sure that you put the Product in its original packaging or packaging that provides the same amount
of protection as the original packaging.
To obtain warranty service, in the United States call 1-888-BESTBUY, Canada call 1-866-BESTBUY. Call
agents may diagnose and correct the issue over the phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to
the original purchaser of the product in the county where the original purchase was made.
What does the warranty not cover?
This warranty does not cover:
• Customer instruction/education
•Installation
•Setupadjustments
• Cosmetic damage
• Damage due to weather, lightning, and other acts of God, such as power surges
•Accidentaldamage
•Misuse
•Abuse
•Negligence
NS-HTTCBK6_15-0373_MAN_V1_ENG.fm Page 13 Friday, May 8, 2015 11:03 AM

14
Insignia Ceramic Tower Heater
www.insigniaproducts.com
• Commercial purposes/use, including but not limited to use in a place of business or in communal
areas of a multiple dwelling condominium or apartment complex, or otherwise used in a place of
other than a private home.
• Modification of any part of the Product, including the antenna
• Display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage or power supply
• Attempted repair by any person not authorized by Insignia to service the Product
• Products sold “as is” or “with all faults”
• Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)
• Products where the factory applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product
• Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly illuminated)
grouped in an area smaller than one tenth (1/10) of the display size or up to five (5) pixel failures
throughout the display. (Pixel based displays may contain a limited number of pixels that may not
function normally.)
• Failures or Damage caused by any contact including but not limited to liquids, gels or pastes.
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH
OF WARRANTY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT
LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA
PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND
IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES
OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR
IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO
NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION
MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Insignia:
For customer service please call 1-877-467-4289
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Registered in some countries.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2015 Best Buy. All rights reserved.
Made in China
NS-HTTCBK6_15-0373_MAN_V1_ENG.fm Page 14 Friday, May 8, 2015 11:03 AM

www.insigniaproducts.com
1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico)
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Registered in some countries.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2015 Best Buy. All rights reserved.
Made in China.
V1 ENGLISH
15-0373
NS-HTTCBK6_15-0373_MAN_V1_ENG.fm Page 16 Friday, May 8, 2015 11:03 AM
