INSYS 336 4.1 User manual

Operating Manual
INSYS Modem
INSYS Modem 336 4.1
INSYS Modem 56k 4.1
INSYS Modem 56k UL
File E239995
July 06

Copyright © July 06 INSYS MICROELECTRONICS GmbH
Any duplication of this manual is prohibited. All rights on this documentation
and the devices are with INSYS MICROELECTRONICS GmbH Regensburg.
Restrictions of guarantee
This handbook contains a concise description. The compilation of the text has
been made with the utmost care. Despite all efforts, there may be deviations
compared with the actual functions. No guarantee can therefore be given for
the accuracy of the contents. We can neither take over a legal responsibility nor
any liability for incorrect information and their consequences. Suggestions for
improvements and comments are gladly accepted.
Trademarks
The use of a trademark not shown below is not an indication that it is freely
available for use.
MNP is a registered trademark of Microcom Inc.
IBM PC, AT, XT are registered trademarks of International Business Machine Corporation.
INSYS ® is a registered trademark of INSYS MICROELECTRONICS GmbH.
Windows™ is a registered trademark of Microsoft Corporation.
Publisher:
INSYS MICROELECTRONICS GmbH
Waffnergasse 8
93047 Regensburg, Germany
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
Internet: http://www.insys-tec.de
Subject to technical changes as well as correction.
Date: July 06
Item number: 31-22-03.034 english

INSYS Modem 336/56k 4.1 (UL) Contents
1SCOPE OF DELIVERY....................................................7
2GENERAL.....................................................................7
3NOTES REGARDING THE USE OF THE MANUAL..........8
4DESCRIPTION..............................................................9
4.1 FRONT PANEL ............................................................................9
4.2 TOP.........................................................................................9
4.3 BOTTOM ................................................................................10
4.4 USER PROFILE..........................................................................10
4.5 CONFIGURATION SOFTWARE HSCOMM .......................................11
4.6 INSTALLATION INSTRUCTIONS.....................................................14
5FUNCTIONS...............................................................17
5.1 CONFIGURATION .....................................................................17
5.2 SERIAL DATA TRANSMISSION .....................................................19
5.3 ERROR CORRECTION .................................................................23
5.4 DATA COMPRESSION ................................................................24
5.5 SELECTIVE CALL ANSWER...........................................................26
5.6 SWITCH OUTPUT .....................................................................27
5.7 ALARM INPUT .........................................................................28
5.8 SEND MESSAGES .....................................................................30
5.9 REMOTE CONFIGURATION (REMOTE CONTROL).............................32
July 06 3

Contents INSYS Modem 336/56k 4.1 (UL)
5.10 REMOTE SWITCHING AND REMOTE QUERY VIA DTMF....................34
5.11 ACCESS CONTROL ....................................................................36
5.12 DATA TRANSMIT CONTROLLER (IDLE CONNECTION CONTROL)..........38
5.13 PRIORITY CIRCUIT FOR MODEMS WITH PHONES CONNECTED IN SERIES
39
6OPERATION WITH A PLC...........................................42
7FIRMWARE UPDATE .................................................43
7.1 FLASHCOM.EXE .......................................................................43
7.2 TERMINAL PROGRAM................................................................44
8AT COMMAND SET ...................................................46
8.1 OVERVIEW AT COMMANDS.......................................................47
8.2 OVERVIEW FAX AND VOICE COMMANDS .....................................73
8.3 AT MESSAGES.........................................................................73
9S REGISTRY ...............................................................76
9.1 OVERVIEW SREGISTRY .............................................................76
9.2 DESCRIPTION SREGISTRY ..........................................................77
10 SENDING OF SMS AS FAX OR E-MAIL .......................86
10.1 SMS AS FAX ...........................................................................86
10.2 SMS AS E-MAIL ......................................................................87
11 FAQ...........................................................................88
4Juli 06

INSYS Modem 336/56k 4.1 (UL) Contents
12 SAFETY INSTRUCTIONS.............................................90
12.1 GENERAL ................................................................................90
12.2 SMS .....................................................................................90
12.3 CLEANING...............................................................................90
13 TECHNICAL DATA......................................................91
13.1 MECHANICAL FEATURES............................................................91
13.2 POWER SUPPLY .......................................................................91
13.3 SERIAL INTERFACE ....................................................................92
13.4 POSSIBLE INTERFACE SPEEDS ......................................................92
13.5 TELEPHONE INTERFACE..............................................................93
13.6 STANDARDS............................................................................94
13.7 RESET ....................................................................................95
13.8 DIGITAL INPUTS AND OUTPUTS ..................................................95
13.9 CERTIFICATIONS.......................................................................95
14 COUNTRY CODES......................................................96
July 06 5

INSYS Modem 336/56k 4.1 (UL) Scope of Delivery
1Scope of Delivery
Before you begin with the initial operation, please check if all accessories are in-
cluded in the box.
¾INSYS Modem 336 4.1, INSYS Modem 56k 4.1, or INSYS Modem 56k 4.1 UL
¾2 phone cords (TAE-N at RJ12 and RJ12 at RJ12), not for version UL.
¾PC connection cable 9/9-pin (RS232 cable)
¾User Guide
In case the content is not complete please contact your supplier. Please also check
the modem for shipping damage. Please also refer to your supplier if damage ex-
ists.
Please keep the packaging material for possible future dispatch or storage.
2General
The INSYS Modem 336/56k 4.1 (UL) is suitable for the analogue phone network. It
has a very compact design and very robust plastic housing. The modem supports
the following functions, which are described in detail in the following:
¾Establishing a data connection
¾Automatic call
¾Alarm inputs and outputs for SMS dispatch and to establish an alarm data
connection
¾Pulse input to send up to 10 SMS messages
¾Fax dispatch at alarm release
¾Local or remote configuration
¾Usage in 87 countries
¾Auto answer
¾Data flow control
¾Data compression
¾Error correction
¾Idle connection control
¾Flash update
¾Security callback
July 06 7

Notes Regarding the Use of the Manual INSYS Modem 336/56k 4.1 (UL)
3Notes Regarding the Use of the Manual
¾This manual uses the symbol for especially important notes. Further notes
will be marked accordingly.
¾All factory settings are marked “default”.
Example (Chap. 5.7.3): Enter old password (default: QWERTY)
¾In Chapters 4 to 6 the description consists of two columns. Individual func-
tions are described on the left side. The according AT commands and the mo-
dem responses can be found in the right column.
Function description AT command
Example (Chap. 5.2.7):
After the hardware reset, load the user profile 1 ATZ1
¾All AT commands start with the letters AT and end with a “Return” (Carriage
Return - CR). AT commands can be entered in capital or small letters. The
command is evaluated as soon as the modem received a return.
¾In the following, the used syntax is explained:
cATDT AT command (font: Courier, bold)
d<Term> Input of a parameter (font: Courier, bold)
e[Term] Input of an optional parameter (font: Courier, bold)
fTerm Response from the modem (font: italic)
Examples:
cATDT<n> Dialing the phone number <n>
ATDT1234 Dialing the phone number 1234
d+eAT+MS=<Modulation>, [Automode] Select modulation type
AT+MS=V92 Select modulation type
V.92
AT+MS=V92,1 Select modulation type
V.92 with automatic
adjustment
fConnect Connection to the remote terminal has been
established.
> Input prompt during the remote configuration.
8July 06

INSYS Modem 336/56k 4.1 (UL) Description
4Description
4.1 Front panel

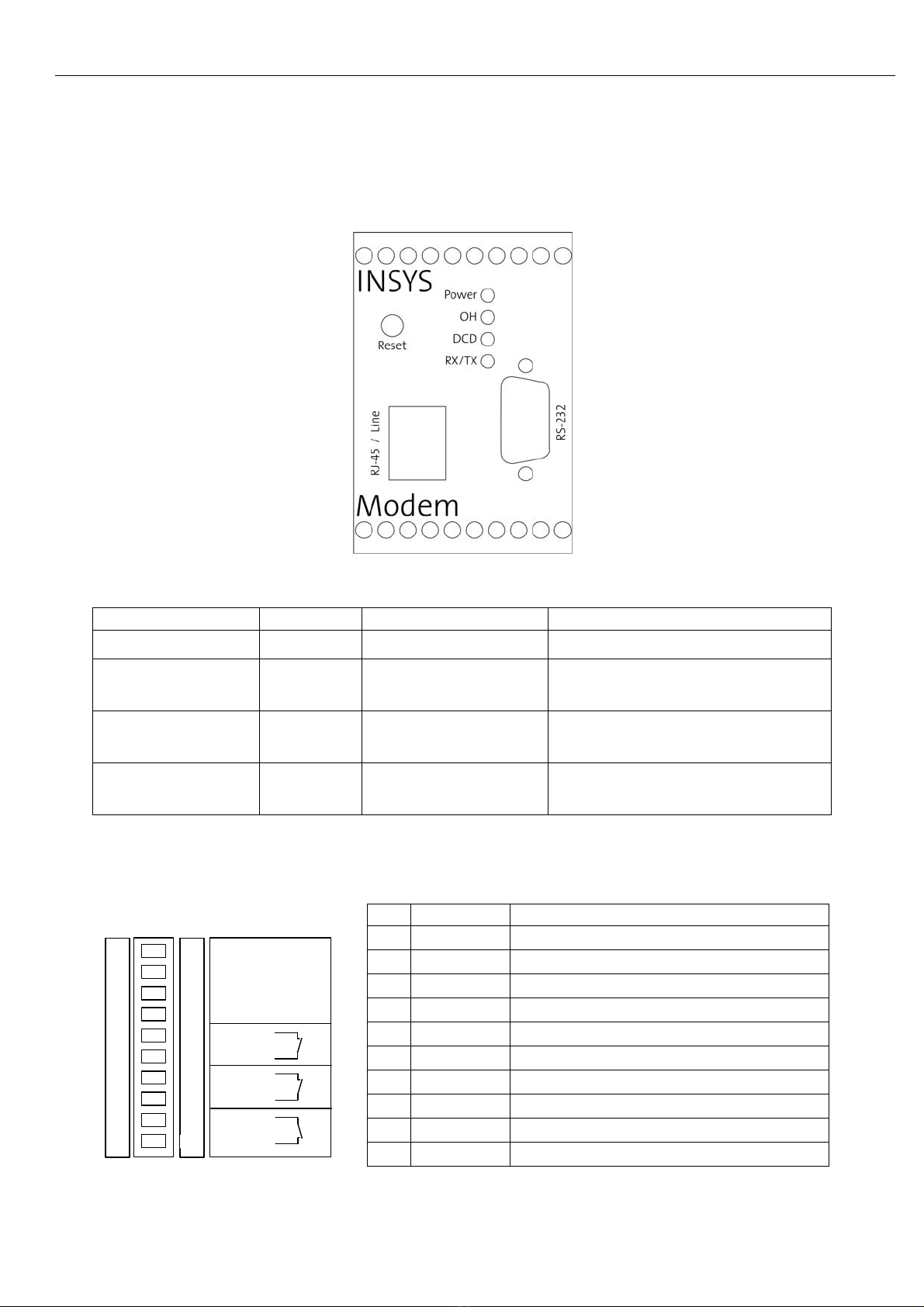

The INSYS Modem 336/56k 4.1 (UL) has four LED’s to indicate the operating state.
Name Color LED off LED on
Power Green No supply voltage Supply voltage available
OH
(Off Hook)
Yellow Modem is offline Modem is hooked to the phone line
(online)
DCD
(Data Carrier Detect)
Yellow No connection is estab-
lished
The connection to the remote terminal
is established (Carrier detected)
RX/TX
(Receive / Transmit)
Green No data exchange Date is exchanged via the modem
4.2 Top
Terminal Meaning
1 GND Ground
2 X1 Reserved
3 10 ... 60VDC Power supply 10V - 60V DC
4 GND Ground
5 GND Ground
6 Reset Reset input
7 GND Ground
8 Input 1 Alarm input 1
9 Input 2 Alarm input 2
1
2
4
5
6
7
8
9
10
3
GND
GND
X1
GND
Reset
GND
Input 1
Input 2
GND
10...60 VDC
1
2
4
5
6
7
8
9
10
3
Power
supply IN 1 IN
Ext.
Reset 2
10 GND Ground
July 06 9

Description INSYS Modem 336/56k 4.1 (UL)
4.3 Bottom

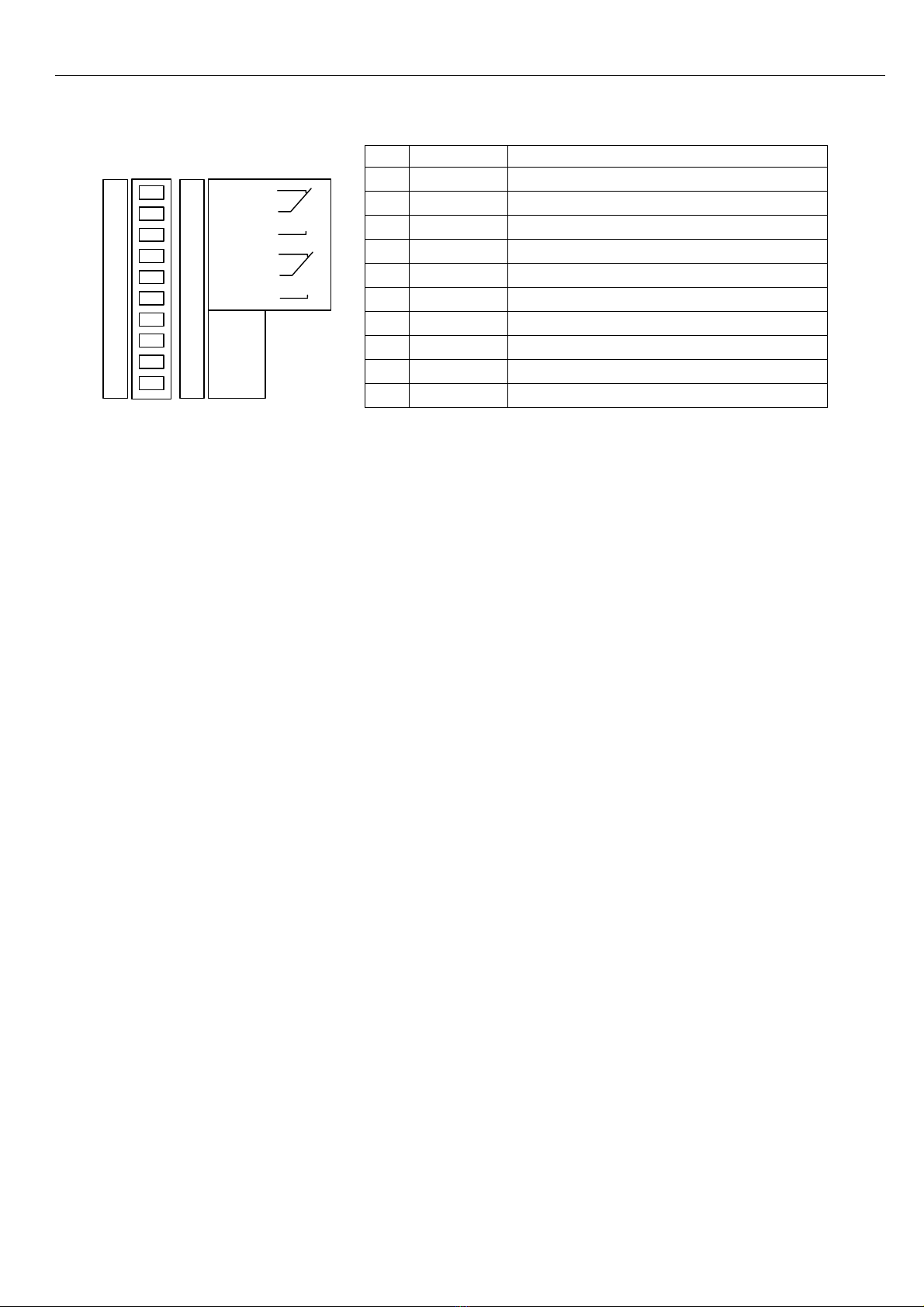

Terminal Meaning
11 OUT1NC Output 1 normally closed
12 OUT1 Output 1
13 OUT1NO Output 1 normally open
14 OUT2NC Output 2 normally closed
15 OUT2 Output 2
16 OUT2NO Output 2 normally open
17 b2 Looped-through telephone connection
18 b1 Phone line to network provider
19 a1 Phone line to network provider
OUT 1-NC
OUT 1
OUT 2-NC
OUT 2
OUT 2-NO
OUT 1-NO
b2
b1
a1
a2
Line
20
19
11
12
13
14
15
16
17
18
11
12
13
14
15
16
17
18
19
20
20 a2 Looped-through telephone connection
a1 and b1 are the incoming phone lines (e.g. outside line or private branch ex-
change).
a2 and b2 are used to connect a phone in series. In idle state, they are connected
to a1 and b1 via a loop current connector. a2 and b2 are disconnected as soon as
the modem occupies the line.
For the INSYS Modem 56k 4.1 UL, the following applies:
Attention!
All devices which are connected to a1, b1, a2 and b2, must comply with the re-
quirements of UL 60950-1, Section 6. The used phone cords must have the type
AWG 26.
4.4 User Profile
The modem offers a choice of profiles:
¾Default factory setting:
The default factory settings enable you to achieve a fixed
defined basic state of the modem. Starting with this “ba-
sis”, you can customize the modem according to your re-
quirements.
¾User profiles 0 and 1:
You can save configurations in the user profile, which may be
re-used for certain purposes.
A part of the S registry is saved in each profile. In the descrip-
tion, the affected registries are marked with an “*” in the S
registry.
10 July 06
