Integra Xmart ACC-XSI-CHGR-3KW60 User manual

MPPT CHARGER 3KW
www.xmart-ups.com VER. 2212.20_ESP 1
VER. 2212.20
ENGLISH
MPPT SOLAR CHARGER 3KW
▪Technical information on this manual is property of XMART® . This manual Information cannot be copied or distributed
totally or partially without written approval of XMART.
▪XMART can introduce modifications in their products or manuals without further notice.
▪XMART is not responsible of mistakes or missing information in this manual.
▪XMART is not responsible for wrong use a third part can do of this information.
▪Trademarks and logos in this manual are property of their owners.
USER MANUAL
MPPT SOLAR CHARGER

MPPT CHARGER 3KW
www.xmart-ups.com VER. 2212.20_ESP 2
1. SAFETY INSTRUCTIONS
SIMBOLS
Warning Symbol: Shows an important WARNING
"ELECTRIC SHOCK RISK" Symbol
Describes electric shock risks related to this product
It is required to read and understand this manual. Follow all instructions given in this manual for starting up and
operating this product. Only qualified technician must start-up, operate and maintain this product. Keep manuals
as a guide for future consults.
WARNING: This product operates with dangerous voltages. It must be installed, operated, and maintained ONLY
by qualified technicians trained for this kind of products. Service personnel MUST know and understand very
well all electric risks related to this product. Manufacturer is not responsible for accidents due to lack of
qualification, imprudence, or misunderstanding of this manual.
WARNING: If you are not qualified technician do not try to install, operate, or repair this product.
WARNING: This unit is locks and protected by screws, therefore there is no accidental access inside the
product. Do not try to access inside this equipment.
WARNING: To handle this equipment, keep al safety instructions to reduce battery related risks (Dangerous
voltages, contact with acid, etc.).
DANGER - ELECTRIC SHOCK RISK
DANGER: There might be dangerous voltages in power outlets and/or terminal blocks of this unit, even though
the unit is off.
DISPOSAL OF OLD APPLIANCES
This product is recommended to be disposed according to directives in each country. When disposing this
product, these pieces must be properly managed either to avoid potential environmental damage or for internal
material to be recycled

MPPT CHARGER 3KW
www.xmart-ups.com VER. 2212.20_ESP 3
2. SAFETY STANDARDS / QUALITY / PERFORMANCE
SAFETY - LOW VOLTAGE DIRECTIVE (2014/35/EU)
Household and similar appliances –Safety part 1: General requirements
EN 60335-1:2002 +A11:2004 +A1:2004 +A12:2006 +A2:2006 +A13:2008 +A14:2010 +A15:2011
in conjunction with:
Household and similar appliances –Safety part 2-29: Particular requirements for battery chargers:
EN 60335-2-29: 2004
ELECTROMAGNETIC COMPATIBILITY - EMC DIRECTIVE (2014/30/EU)
Generic standards-Emission standard for residential, commercial and light-industrial environments:
EN 61000-6-3: 2007+A1: 2011+AC: 2012
Generic standards-Immunity standard for residential, commercial and light-industrial environments:
EN 61000-6-2: 2005+AC: 2005 (EN 61000-4-2: 2009, EN 61000-4-3: 2006+A2: 2010, EN 61000-4-
4: 2012, EN 61000-4-5: 2014, EN 61000-4-6: 2014, EN 61000-4-11: 2004, EN 61000-4-8: 2010)
IP PROTECTION: IP31 static
QUALITY MANAGEMENT: ISO 9001: 2000
ENVIRONMENTAL MANAGEMENT: ISO 14001: 2004
WARNING: Modifications made on the product or the use of this product as a part of a more complex system not expressly
approved by the party responsible for compliance could void the user’s authority to operate the equipment. It also coul d affect
its performance and the compliance of regulations. XMART is not responsible of modifications made after manufacturing.
This product is designed for domestic and commercial environments. CE standards apply for 230Vac products.

MPPT CHARGER 3KW
www.xmart-ups.com VER. 2212.20_ESP 4
3. PRODUCT DESCRIPTION
MPPT 3KW Solar Charger by XMART is a device capable of receiving power from solar panels and using it to
manage system battery charging. This is achieved by MPPT (Maximum Power Point Tracking) technology,
allowing a highly efficient performance (>96%) of peak power generated by photovoltaic panels.
Another advantage of our MPP chargers is having a wide DC Input range compared to PWM chargers. This
feature allows them to adapt to different types of solar panels. Also, this charger can charge battery banks of
12V, 24V, and 48V automatically detecting the Battery Bank voltage and adjusting the charge tension.
ACC-XSI-CHGR-3KW60:
This 3KW model is designed to recharge 12V, 24V, and 48V Battery Banks. For proper operation, Solar Input
must remain in 60V-115V range, with Maximum Open Voltage of 145V.
1.- LCD
2.- LED ON / Charging
3.- LED: Fault / Warning
4.- LED: Wiring Fault
5.- Push Button ON / MENU
6.- Solar Input Terminal Block
7.- Output Terminal Block (Batteries)
8.- Remote Temp. Sensor Terminal Block
9.- Battery Voltage Sensor Terminal Block
10.- Terminals Cover
11.- RS232 Port
12.- Smart Slot for Communication Cards
13.- Ground Terminal

MPPT CHARGER 3KW
www.xmart-ups.com VER. 2212.20_ESP 5

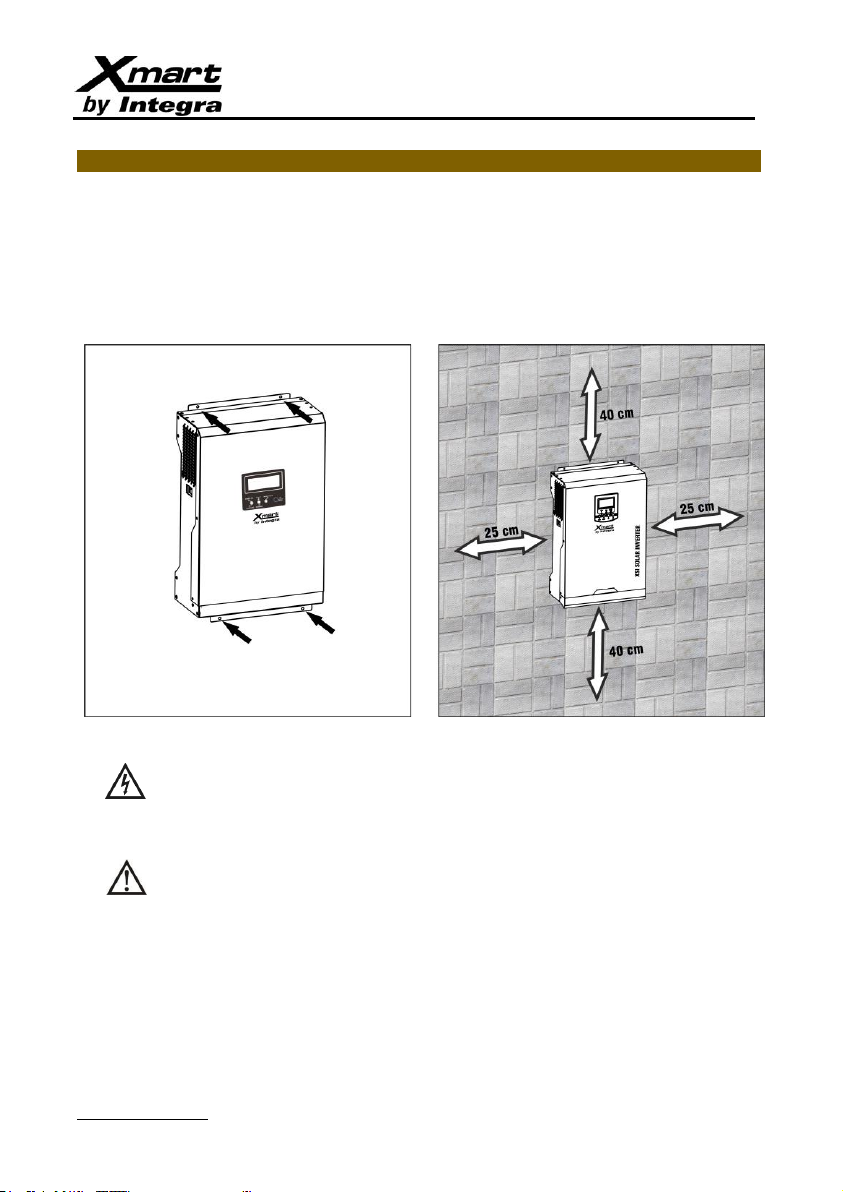

4. INSTALLATION
▪Install this unit in controlled environments (IP31) with air free of dust, corrosive vapors, and conductive
contaminants.
▪Do not install this unit in locations where temperature and humidity limits described by this manual are
exceeded.
▪Avoid direct sunlight exposition, as well as installing close to either humidity or heat sources.
▪Ideal installation is on non-Inflammable walls. Drill holes on the wall and fasten with appropriate screws
according to the unit’s weight. Respect indicated distances.
IMPORTANT NOTES:
▪Before making any connection, make sure there are no dangerous voltages between wires. Cover Solar
Panels from the sunlight before handling cables connected to panels.
▪Connect Ground cable and then Input Cables and Output Cables according to indications.
▪Use required wire gauge according to Max. Expected Current for each case (see next page).
▪Make sure of using either a DC breaker or a DC Fusible DC in Positive Wires of Solar Input and DC Output
of this unit.
▪Make sure the charger is connected to a voltage source compatible with its voltage specifications
according to product Rating Label and this manual.
▪Voltage in Batteries and equipment connected to Charger’s output must be compatible selected charger’s
DC Voltage.
▪Wrong wiring (reverse polarity) may cause permanently damage to this unit.

MPPT CHARGER 3KW
www.xmart-ups.com VER. 2212.20_ESP 6
MPPT 3KW CHARGER / CONNECTION TERMINALS: SOLAR PANELS & BATTERIES
Recharge voltage: 12VDC, 24VDC, or 48VDC (Autodetection)
OPTIONAL SENSORS
RTS: This charger can (optionally) use a Remote Temperature Sensor (RTS) located near batteries. This is
used to compensate recharge voltage by temperature.
BVS: Battery Voltage can be measured more precisely by Battery Voltage Sensor (BVS) Input. This input can
be connected to batteries keeping polarity (+) y (-). On this input, current is quite low (unlike Charging
Terminals). Therefore, battery tension can be measured more accurately.

MPPT CHARGER 3KW
www.xmart-ups.com VER. 2212.20_ESP 7

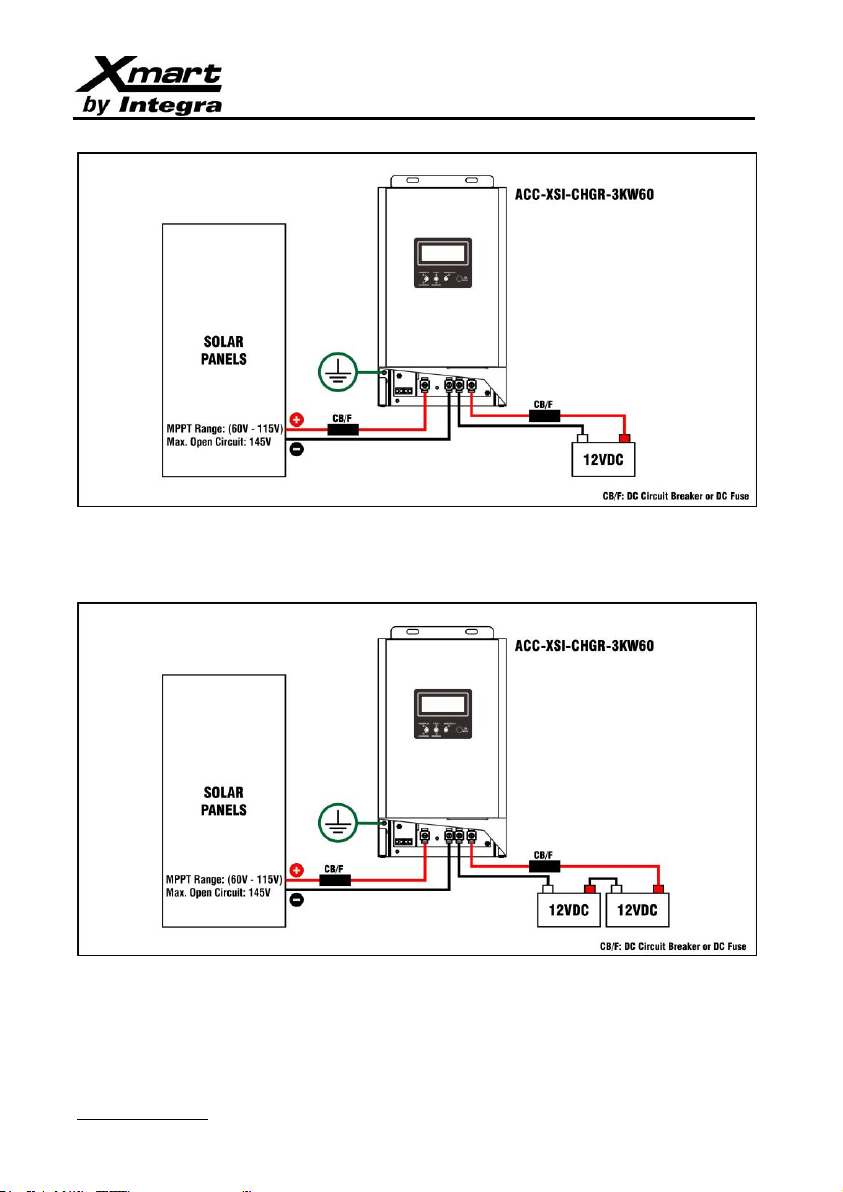

MPPT CHARGER 3KW / 12VDC
MPPT CHARGER 3KW / 24VDC

MPPT CHARGER 3KW
www.xmart-ups.com VER. 2212.20_ESP 8
MPPT CHARGER 3KW / 48VDC

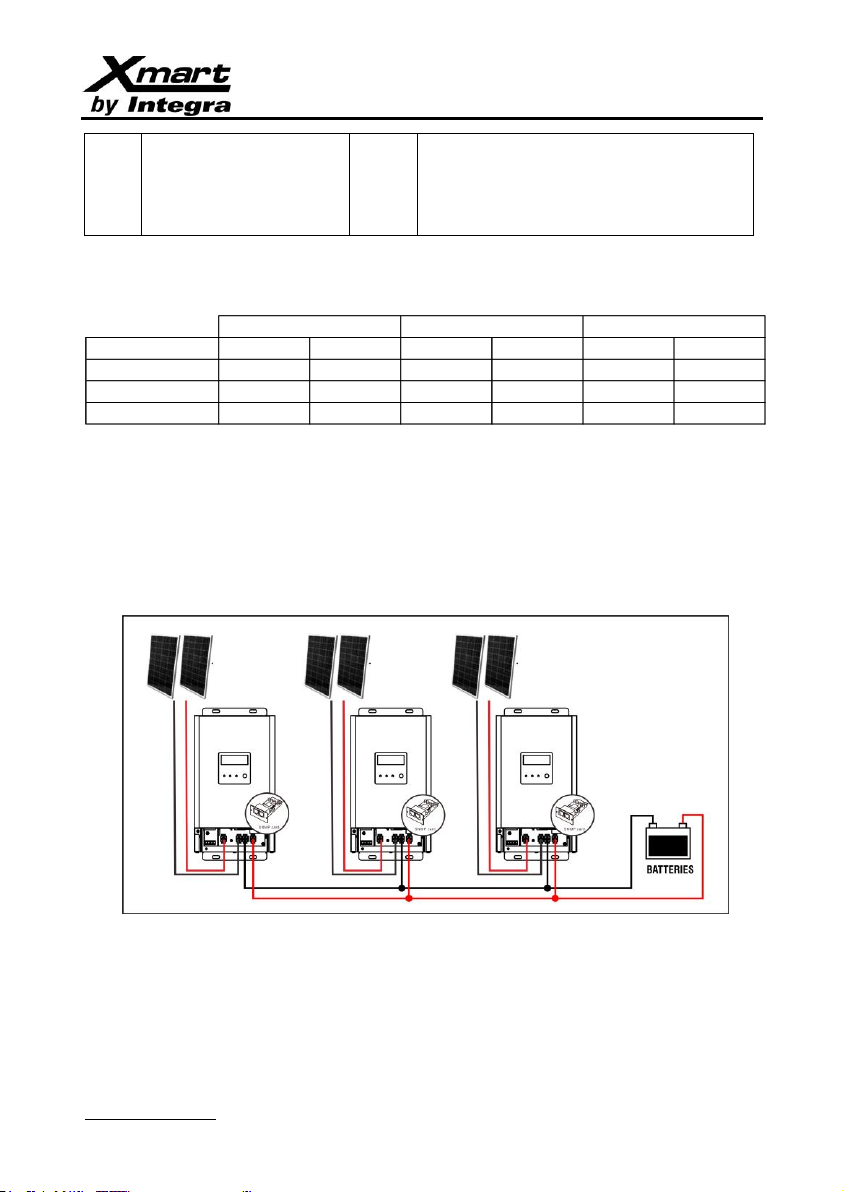

COMMUNICATIONS
This charger has a built-in communication RS232 port. Additionally, it also includes a Smart Slot where COMM
cards can be installed, such as: SNMP, USB Port, or MODBUS.
RECOMMENDED WIRING GAUGE (*)
MODEL BATTERIES VDC AMPS. MAX. W. MAX. AWG mm2
ACC-XSI-CHGR-3KW60 12V 60 A 800 AWG 6 16 mm2
ACC-XSI-CHGR-3KW60 24V 60 A 1600 AWG 6 16 mm2
ACC-XSI-CHGR-3KW60 48V 60 A 3200 AWG 6 16 mm2
(*) Minimum recommended gauge. Gauge could be increased according to wires temperature and distance.
OVERCURRENT PROTECTION (*)
It is highly recommended installing Breakers in DC lines coming from solar panels and batteries. It is also
recommended selecting Breakers rated for 125% of Maximum expected value. For instance: 60A x 1.25 = 75A

MPPT CHARGER 3KW
www.xmart-ups.com VER. 2212.20_ESP 9
5. OPERATION
For correct operation, this unit needs wires from Solar Panels and Batteries to be properly connected to correct
terminals. Any misconnection will avoid proper operation and even cause permanent damage to charger.
Charger Will not operate until batteries are detected.

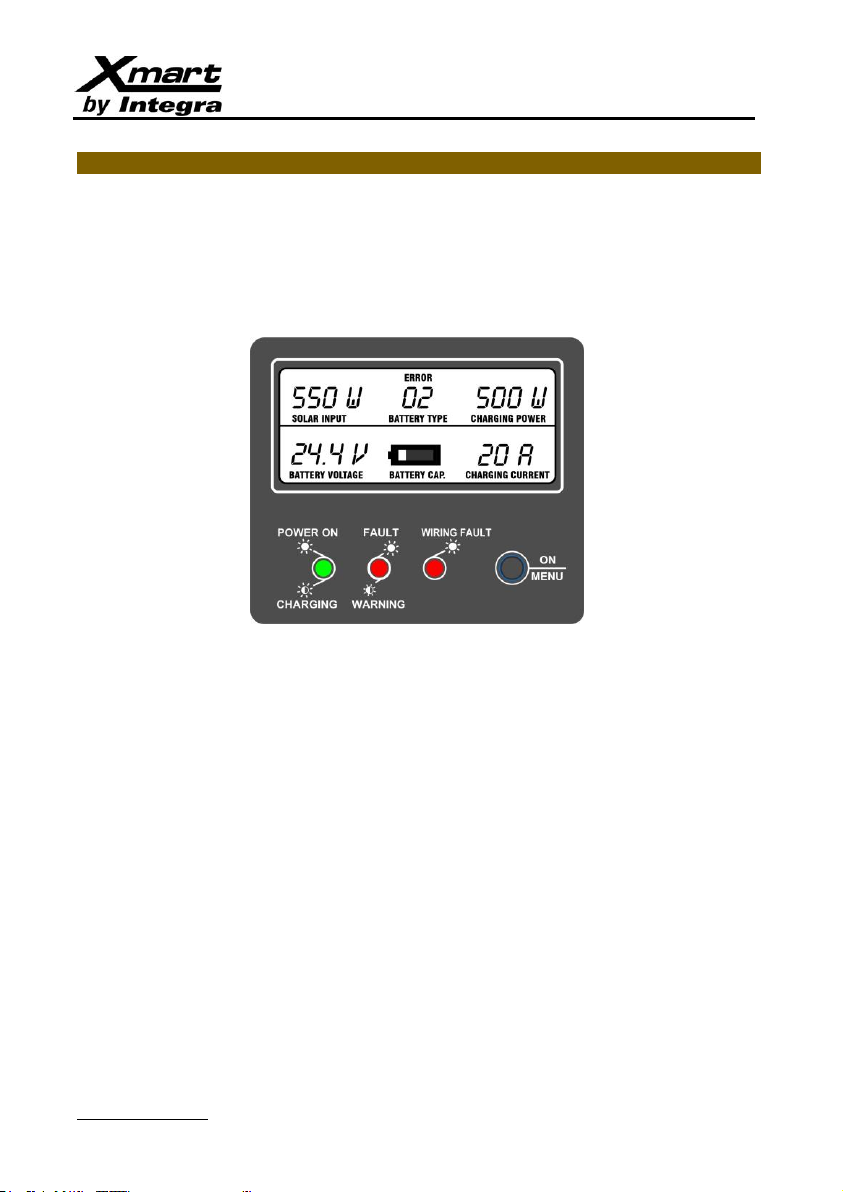

OPERATION PANEL
It consists of an LCD screen, 3 LED, and an ON/MENU button.
LCD SCREEN
The LCD screen is divided into 6 areas:
1- SOLAR INPUT: Shows power received from solar panels
2- BATTERY TYPE/WARNING/ERROR: Displays selected battery type. In case of Fault or Warning, it shows
a code related to detected issue
3- CHARGING POWER: Displays recharge power supplied to batteries
4- BATTERY VOLTAGE: Shows battery voltage
5- BATTERY CAPACITY: Indicates battery charge level
-4 blinking bars: indicates voltage < 12V per battery
-1 bar ON: Voltage between 12V & 12.49V per battery
-2 bars ON: Voltage between 12.50V y 13.00V per battery
-3 bars ON: Voltage over 13.00VDC per battery
-4 bars ON: Batteries fully charged in floating stage
6- CHARGING CURRENT: Shows recharge current supplied to batteries

MPPT CHARGER 3KW
www.xmart-ups.com VER. 2212.20_ESP 10
PUSH-BUTTON ON / MENU:
▪1s Push: Turns on the charger
▪3s Push, while charger is working: Opens Configuration Menu.
▪While in Configuration Menu: 1 short push goes to next function, sequentially, one by one.
▪While on required function, push button for 1.5s to select it.
▪Then, parameter setting can be changed with short pulses.
▪To save modifications and return to Main Menu, push button for 1.5s
▪After 10s without pressing pushbutton, charger automatically returns to Main Screen.
STATUS LED:
POWER ON / CHARGING:
Green On: Charger is On.
Flashing Green: Batteries are being recharged
-Flashing Green every 0.5s: Constant Current Stage (Bulk)
-Flashing Green every 1s: Constant Voltage Stage (Absorption)
-Flashing Green every 5s: Floating Stage
-Flashing Green every 3s: Equalizing
FAULT/WARNING:
Red On: Fault Status
Flashing Red: Alarm Status
WIRING FAULT:
Red On: Wrong battery connection polarity
WARININGS Y FAULTS:
ALARM CODES
20
Low Solar Input Voltage
21
High Solar Input Voltage
22
Output power derated for high temperature
23
Low battery temperature warning
FAULT CODES
01
Too High Recharge Current
02
Too High Temperature
03
Too Low Battery Voltage
04
Too High Battery Voltage
05
Too High Solar Input Voltage
06
Too Low Battery Temperature
07
Too High Battery Temperature

MPPT CHARGER 3KW
www.xmart-ups.com VER. 2212.20_ESP 11
6. SETTING
To open Configuration Menu, press push-button for 3 seconds while charger is working. Once inside, press
push-button shortly (less than 0.5 seconds) to go from one function to the next. After reaching desired function,
press push-button for 1.5 seconds to enter modification mode, then select desired value by shortly pushing the
push-button. After selecting required value, press push-button for 1.5 seconds save change.
IMPORTANT - INITIAL CONFIGURATION:
First operation must be checking battery type connected to the unit. This charger can manage 3 different battery
types. Each battery type requires specific recharge parameters. Any mistake selecting battery type could
damage batteries.
Default battery type is set up to VRLA/AGM/GEL. If installed batteries are not this type, it is necessary to change
battery type (in Configuration Menu) before start operating the unit.
Configuration Menu count on 14 functions listed in next table:
Function
Description
Options
Operation
00
Exit from Configuration Menu
ESC
Select to exit from Configuration Menu
01
Recharge Max. current
60A
Sets Max. Recharge current from 10A up to 60A (default)
02
Battery type
AGM
Selects battery type:
AGM: VRLA & GEL type (default)
FLD: Liquid electrolyte liquid
USE: User defined
03
Voltage for constant voltage stage
(Absorption)
14.1
Available only if USE battery type has been chosen in
function 02. Range: 12.0 to 15.00
04
Voltage for Floating stage
13.5
Available only if USE battery type has been chosen in
function 02. Range: 12.0 to 15.00
05
Batteries Rating Voltage
AUO
Sets battery voltage. Options: 12V / 24V / 48V / AUO
Option AUTO (AUO, default) allows the charger to select
automatically actual battery bank voltage
06
Recharge duration in constant
voltage stage (Absorption)
150
Sets Max. Time in Constant Voltage stage
Range: 5 to 900 min. Default: 150 min.
07
Temperature compensation factor
0.0
Using a Battery Tempe. Sensor (BTS), recharge voltage
can be compensated, decreasing as battery temperature
increases.
Range: 0mV to 60mV. Default: 0mV
Compensation Formula: (BTS-25ºC) * Factor
08
Batteries equalization
E9E
Enables or Disables equalization function.
Enable = E9E
09
Equalizing voltage
14.6
Range: 12.0 to 15.5 V per battery
10
Equalizing Max. Current
15A
Range: 5A to 60A. Default: 15A
11
Equalizing time
60
Range: 5 to 900 min. Default: 60 min.
12
Equalizing time out
120
Range: 5 to 900 min. Default: 120 min.
13
Equalizing period
30d
Range: 0 to 90 días. Default: 30 días

MPPT CHARGER 3KW
www.xmart-ups.com VER. 2212.20_ESP 12
14
Equalizing immediate start
Ads
AEN
If equalizing function is enabled (function 08) equalization
can be either started or stopped immediately selecting one
of these options:
ADS: Stops equalization
AEN: Starts equalization
Code E9 will be displayed during equalization is in process.
RECHARGE VOLTAGES ACCORDING TO BATTERIES TYPE (VDC)
BATTERY TYPE Absorption Floating Absorption Floating Absorption Floating
VRLA-AGM-GEL 14,1 13,5 28,2 27 56,4 54
Flooded 14,6 13,5 29,2 27 58,4 54
Otro Config. Config. Config. Config. Config. Config.
12V BATTERY BANKS
24V BATTERY BANKS
24V BATTERY BANKS
PARALLEL OPERATION
This charger can operate in parallel with other chargers of the same type if chargers are controlled by
“MPPTracker” software.
Requirements:
1- Each charger must include its own SNMP Card.
2- All chargers must be synchronized from a PC using “MPPTracker” software.
3- Each charger must have its own Solar Panels array (Solar Panels can’t be shared)
4- All chargers must recharge the same battery bank, according to next figure:

MPPT CHARGER 3KW
www.xmart-ups.com VER. 2212.20_ESP 13
7. RECHARGE TECHNOLOGY
To improve batteries lifespan, this charger counts on a smart 3 steps algorithm:
1- Constant Current (Bulk)
During first charging stage, charger injects a constant current while batteries increase their voltage. During
this stage batteries recover up to 90% of their total capacity. This stage takes 60% of total recharging time.
Once setting voltage is reached, charger goes to following stage.
2- Constant Voltage (Absorption)
In this stage charger provides stable voltage while current slowly decreases. In this stage batteries recover
100% of capacity. When recharging current drops down to 10% of Max. Recharge Current, charger goes to
third stage.
3- Floating
In this stage, charger reduces voltage & current to keep batteries charged for long time. This is a
maintenance stage.
Recharge Curve

MPPT CHARGER 3KW
www.xmart-ups.com VER. 2212.20_ESP 14
8. SOPORTE Y GARANTIA
Support: If a failure or problem is detected please check troubleshooting section in user manual. If problem cannot be solved,
please contact authorized service center or authorized dealer.
Batteries: Rechargeable batteries can be charged and discharged hundreds of times. However, they will eventually wear out.
This is not a defect or failure so that batteries wear out is not covered by this warranty.
Battery lifetime will depend on operative conditions like working temperature, type and frequency of discharging cycles. Higher
the temperature shorter will be the lifetime. Frequent and deep discharging cycles also will short lifetime. For critical applications
batteries should be revised and replaced periodically. Long storage (longer than 6 months) without required recharging will wear
out batteries. This situation is not covered by this limited warranty since this is not considered as a defect. Check recharging
instructions on user manual.
Conditions - Limited Warranty
1.- Subject to the conditions of this limited warranty, this product is warranted to be free from defects in materials and
workmanship at the time of XMART supplies the product.
▪In Europe, warranty time is 2 years on electronic parts and 2 years on internal batteries from XMART invoice date.
▪In America, standard warranty times could vary depending on country/region or can be extended by purchasing
warranty options. Please check warranty plans and extensions with your local distributor.
2.- If during the warranty period, this product fails to operate under normal use and service, due to defects in materials or
workmanship, authorized distributor or service center will, at their option, either repair or replace the product in accordance with
terms and conditions stipulated herein. Transportation expenses are not covered by this limited warranty.
3.- Warranty is valid only if the original purchasing document, specifying date of purchase, serial number, and name of the
dealer, is presented with the product to be revised. XMART and authorized partners reserve the right to refuse warranty service if
any of this information has been removed, changed, or missing in original invoice document.
4.- If product is repaired or replaced, repaired or replaced product will be warranted for the remaining time of the original
warranty or for 90 days on repaired part from date of repair, whichever is longer.
5.- XMART or their distribution/service partners reserve the right to charge handling fee if returned product is free of failure or it
is out of warranty because any of the reasons described in this warranty.
6.- If product is out of warranty a reparation proposal will be sent to the user for his approval. If proposal is not accepted,
service center will keep product available for the user during 60 continuous days. After this period product would be disposed
and user will not be able to rise any claim.
7.- This warranty does not cover product failures caused by installations, modifications or repair performed by non-authorized
person. If product is open by not authorized technician warranty will be considered void. This warranty does not cover failure
caused by inadequate installation or maintenance, misuse, accidents, fire, or floods.
8.- This product can include protection devices like input fuse or input breaker. Activation of this kind of devices is not a failure it
is caused by an improper product installation. Input fuse or breaker reset, or replacement is not covered by this warranty.
9.- This warranty does not cover damages produced during transportation from user to technical service caused by improper
packing of the product by user.
10.- There might be Warranty Extension Plans in your country/region. Contact your authorized dealer to get information about
official XMART Warranty Extensions Plans or consult our web site: www-xmart-ups.com.
11.- Warranty terms and conditions cannot be modified or extended by third parties without written approval of XMART.
Limited Warranty
the maximum liability of XMART under this limited warranty is expressly limited to the lesser of the price you have paid for the
product or the cost of repairing or replacement of any hardware components that malfunction in conditions of normal use.
- In no event will XMART be liable for any damages caused by the product or the failure of the product to perform, including an y
lost profits or savings or special, incidental, or consequential damages. XMART is not liable for any claim made by a third party
to XMART or to final user.
- XMART is not responsible for damage that occurs as a result of your failure to follow the instructions intended for this
hardware product.

MPPT CHARGER 3KW
www.xmart-ups.com VER. 2212.20_ESP 15
9. SPECIFICATIONS
XSI-CHGR-3KW60 MPPT 3KW60
Capacity / Capacidad 3.000W
MPPT Range / Rango MPPT (60V - 115V)
Max. Open Circuit V / V Max. En Abierto (Voc) 145V
Max. Input Current / Corriente Max. 60A
Nominal Battery Voltage / Voltaje de Baterías 12V / 24 / 48V (Auto)
Max. Charging Current / Corriente Max. Recarga 60A
Battery Type / Tipos de batería VRLA-GEL / Flooded / Custom
Recharging Voltage per batt. / Voltaje de Recarga por batería
Bulk / Floating
- VRLA-AGM-GEL 14.1 / 13.5 V
- Flooded 14.6 / 13.5 V
- Custom Config. / Config.
Power On / Charging // Encendido/Cargando
Green LED / LED Verde:
ON = Charger ON / Encendido = Cargador Encendido
Blinking every 0.5s = Constant current stage / Etapa de corriente constante (Bulk)
Blinking every 1s = Constant voltage stage / Etapa de voltaje constante (Absortion)
Blinking every 5s = Floating stage / Etapa Flotante (Floating)
Blinking every 3s = Battery equalizing / Ecualizando baterías
Fault / Warning // Falla/Alarma
Red LED / LED Rojo:
ON = Fault / Encendido = Falla
On Blinkng = Warning / Encendido intermitente = Alarma
Wiring Fault // Falla de Cableado
Red LED: On = Wrong battery connection polarity
LED Rojo: Encendido = Polaridad incorrecta en conexión de baterías
Dimensions / Medidas 13.5*16.5*13.0 cm
Weight / Peso 4.5 Kg
Humidity / Humedad 0 - 90% RH (Non condensing)
Operating Temperature / Temp. Operación - 0ºC to 55ºC
Storage Temp / Temp. Almacenaje - 40ºC to 75ºC
Safety & Standards / Normativas y Estándares
Household and similar appliances – Safety part 1 /
Electrodomésticos y similares - Seguridad parte 1
EN 60335-1 (General Requirements / Requerimientos Generales)
Household and similar appliances – Safety part 2-29 /
Electrodomésticos y similares - Seguridad parte 2-29
EN 60335-1-29 (Particular Requirements for Batt. Chargers / Requerimientos
particulares para cargadores de baterías)
Emissions Standards / Estándares para emisiones
EN 61000-6-3 (for residential, commercial & light-industrial env. / para
instalaciones domésticas, comerciales y PYME)
Immunity Standards / Estándares para Inmunidad
EN 61000-6-2 (for residential, commercial & light-industrial env. / para
instalaciones domésticas, comerciales y PYME)
Degree of protection / Grado de Protección IP31 (para interiores)
Quality and Enviroment RoHS / ISO9001 & ISO14001
Dimensions-Weight / Características Físicas
Environment / Condiciones de Operación
Input / Entrada
Output / Salida
Batteries / Baterías
LEDs-Indications / Indicaciones LEDs

USA
Miami, FL33196
Florida, USA
[e-mail]
EUROPE
Sabadell, 08202
Barcelona, SPAIN
[e-mail]
LATAM
Santiago de Chile, 8330669
Chile, CHILE
[e-mail]
