Intelbras IVP 8000 EX User manual

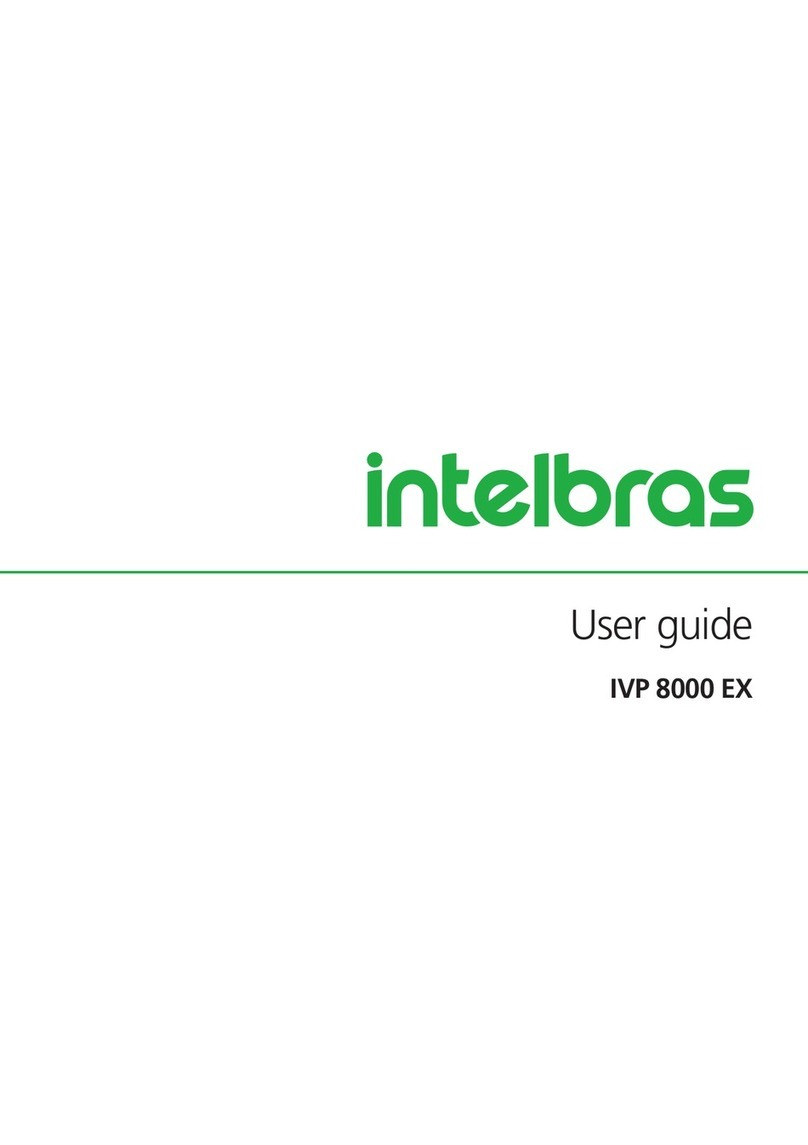

User guide
IVP 8000 EX
English

IVP 8000 EX
Infrared passive sensor
Congratulations, you have just purchased a product with Intelbras quality and security.
The IVP 8000 EX sensor has dust, water protection¹ white light immunity, making it perfect for the harshest environments,
and can be installed indoors, semi-open or outdoors. Its lens is specially built for long life, containing materials resistant to
sunlight.
The presence of the digital accelerometer ensures that the position of the sensor is not changed after installation, avoiding
sabotage in the security system.
The sensor also has an integrated temperature sensor, to offer the same detection sensitivity and reliability in different en-
vironments (from - 10 °C to + 50 °C), low energy consumption circuit, providing a long battery life, communication status
on the sensor via LED, low battery indication, tamper switch for tamper protection and Articulated support2, in order to
guarantee the best detection angle in the most diverse environments. The IVP 8000 EX sensor is suitable for environments
with the presence of pets up to 30 kg. Read the product introductory information carefully for the correct use of the sensor.
1Read item
2. Features of this manual.
2 Read item
12. Articulated bracket of this manual

Care and security
The sensor is compatible with AMT 8000 control panel versions 1.2.1 or higher.
» LGPD - General Law for the Protection of Personal Data: Intelbras does not access, transfer, capture, or perform any other
type of treatment of personal data from this product.
» Follow all instructions in the manual for assembling and installing the product;
» Fix the sensor on stable surfaces, where there is no ickering;
» Do not use the sensor in areas with sudden changes in temperature, such as near air conditioners and heaters, fans,
refrigerators and ovens. Do not expose the sensor to direct or reected sunlight;
» Wireless communication technology, when exposed to environments with high power irradiation, may suffer interference
and have its performance degraded. Example: locations near TV towers, AM/FM radio stations, amateur radio stations,
routers, etc.;
» Do not touch the surface of the infrared (PIR) sensor. If necessary, use a soft cloth for cleaning;
» The recommended installation height varies from 2 m to 2.2 m depending on the installation environment.
» Do not place objects in front of the sensor. Keep the detection area clear of moving objects such as bushes, clotheslines,
cars or any objects that block scanning. Do not exceed the installation height of the sensor (2.2 m).
» The sensor must be installed where a possible intruder is easily detected, that is, where a person makes the greatest
possible movement across the detection beams when entering the environment (see the gure below);

» It is important to note that the Pet function is designed for low-growing animals weighing up to 30kg. If the animal is
on top of a bench, for example, the Pet function can be canceled.
Obs.: before starting the installation, it is necessary to dene the height at which the sensor will be positioned, which can
vary from 2 to 2.2 m. If the sensor is installed at a height of less than 2.0 m or is tilted downwards, the Pet function will be
compromised.
1.1. Scan
0 2 4 6 8 10 12 (m)
8 (m)
6
4
2
0
2
4
6
8
Upper view
1.2. Detection range
1.2 4 6 8 10 12m
2.2m
2,2 m
1,2 4 6 8 10 12 m
zone
zero
Side view

Índice
1.Technical specications 6
2.Features 6
3.Product 6
4.Sensor opening 7
5.Sensor stabilization 7
6.Registering the IVP 8000 EX sensor 7
6.1. Deleting the sensor register ...................................................................7
7.Identifying the best place for installation 8
8.Installation 8
8.1. Anti-Sabotage Function ......................................................................8
9.Conguring the IVP 8000 EX sensor 9
9.1. Conguring the sensor through the keyboard ......................................................9
9.2. Disable Anti-Sabotage function1................................................................9
9.3. Information on sensor settings ................................................................10
9.4. Information about LED operation and mode of operation ............................................10
9.5. Conguring the sensor through the application ...................................................10
10.Battery 12
11.Homologation 12
12.Articulated bracket 12
12.1. Care and security.........................................................................12
12.2. Technical specications ....................................................................12
12.3. Product ................................................................................13
12.4. Features................................................................................13
12.5. Installation with IVP 8000 EX base with internal nut housing ........................................14
12.6. Installation with the base of the IVP 8000 EX without drilling........................................15
Warranty term 18

6
1.Technical specications
Operating voltage 3 Vdc
Operating current 20 µA
Frequency band 915 MHz to 928 MHz
Modulation DSSS BPSK 40 Kbps
Maximum transmission power 11 dBm
Battery LITHIUM CR123A 3 V
Angle of detection 110°
Detection range 12 m
Method of detection Double PIR
Animal immunity Up to 30 Kg
Startup time 60 seconds
Operating temperature -10 °C ~ +50 °C
RF Range 1000 meters without barrier
2.Features
» IPX4 protection against water and dust.
» Position anti-sabotage (accelerometer);
» Communication status check via LED;
» Wireless communication with range of up to 1000 meters with direct open eld view;
» Supervised wireless communication;
» Encrypted transmission;
» Micro controlled sensor;
» Sensor operation adjustment through the AMT Remote Mobile application;
» Inmunidad a los animales rastreros que pesen menos de 30 kg;
» White light immunity up to 20,000 lux;
» High RFI/EMI immunity;
» Antimanipulación (tecla de manipulación);
» Easy installation.
3.Product
4
2
5
3
7
6
8
1
1. LEDs
2. PIR sensor
3. Battery connector
4. Synchronism button
5. Tamper key
6. Fresnel lens
7. LED light conductor
8. Product base

7
4.Sensor opening
To access the 8000 EX IVP board for registering, changing batteries or to unregister it from the center unit, simply remove
the screw from the bottom with the help of a Philips wrench and remove its front cover. This way the board is exposed and
ready to be handled. See the picture:
5.Sensor stabilization
After inserting the battery, the sensor goes into stabilization mode and the blue LED ashes for a few seconds. When
stabilization is complete, the blue LED will stop ashing.
6.Registering the IVP 8000 EX sensor
The sensor registration can be performed through the AMT 8000 Desktop Programmer software, remote AMT mobile
application, keyboard commands and synchronization button on the alarm center.
Follow the procedure below for registration through the synchronization button on the control panel.
In this type of registration, the address of the sensors follows the registration sequence, Example: rst sensor will be
registered in zone 1, the second sensor in zone 2 and so on. For other forms of registration, please consult the complete
manual of the AMT 8000 control panel.
1. Press the alarm control panel synchronization button;
2. LED 3 on the control unit stays on for 3 minutes, indicating that it is waiting for the sensor to register;
3. Insert the battery and wait for the sensor to stabilize;
4. Press the sensor synchronization key;
5. The status LED will ash green indicating the correct registration. If it ashes red, the registration was not carried out
and the procedure must be repeated.
6.1. Deleting the sensor register
To remove the device from the control panel, two steps are necessary, one directly on the sensor and the other on
the control panel.
» Sensor: press and hold the sensor timing switch for approximately 10 seconds, watching the status LED blink red
twice slowly.
» Alarm control panel: enter the programming mode and type the command below:
Enter Enter
01 to 64
Zone number71+ + +
For other ways to remove the sensor from the control panel, please consult the complete manual of the AMT 8000 control
panel.

8
7.Identifying the best place for installation
The IVP 8000 EX sensor has communication signal level indications with the AMT 8000 center, this will help you choose
the best installation location. Follow the procedure:
1. Once properly registered, take the sensor to the environment you wish to protect;
2. Check the position where the sensor can cover the whole environment, respecting the installation height, according to
the table in item 1.2. Detection range.
3. Once chosen, position the sensor in the exact place where it will be installed and perform a transmission through a
detection or tamper opening;
4. Observe the color that the LED will light up and check in the following table if the sensor can be installed in this location;
LED status Communication level
Green Excellent signal level (Recommended installation location)
Orange Regular signal level Not recommended location for installation (communication failure may occur)
Red No communication (Do not install on site)
Blue Intrusion detection
5. If the signal level is not excellent, reposition the sensor and perform the procedure again.
8.Installation
Once the best installation location has been identied, set the height of the sensor.
We recommend that this sensor be installed at a height of 1.8 m to 2.2 m and positioned so that the intruder performs
movements transverse to the sensor’s detection radius. It is not recommended to install the sensor tilted up or down as this
may impair the functioning of its PET function.
Check that the sensor is rmly xed and not subject to icker, in order to avoid unwanted triggering. The Articulated Bra-
cket can be used to ensure greater exibility to the installation, adapting to most scenarios and installation angles. Follow
all the mounting instructions in the manual for maximum benet.
8.1. Anti-Sabotage Function
The Anti-Sabotage function prevents the sensor from having its position changed after installation, sending a Tamper shot
to the central, thus preventing its detection eld from being changed and keeping the area always protected.
Operation
To understand how it works, see the examples below:
Examples of operation
» Example 1: describes the operation of the sensor under the following conditions:
» During the initial 15 minutes after registration;
» During the initial 15 minutes after pressing the registration key;
» Or during the Wireless Sensor Test congured on the keyboard (programming: Enter + 52 + Enter ).
1. Register the sensor in an AMT 8000 control panel (check item 6. Registering the IVP 8000 EX sensor ).
2. With the sensor enrolled, close the front cover and keep the sensor in a xed position.
3. Change the position of the sensor (vertically or horizontally) and keep it in the modied position. Pay attention to mes-
sages on the keyboard or conguration applications.
4. Check on the keyboard if the Tamper message of the zone in which the sensor was registered will appear. The time for
sending a tamper can take up to 45 seconds.
5. The tamper will automatically reset after 1 minute, clearing the keypad message.
» Example 2: describes the operation of the sensor under the following conditions:
» 15 minutes after registration;
» 15 minutes after the registration key is pressed;
» 15 minutes after the Wireless Sensors Test congured on the keyboard (programming: Enter + 52 + Enter ).

9
6. Change the position of the sensor (vertically or horizontally) and keep it in the modied position.
7. Check on the keyboard if the Tamper message of the zone in which the sensor was registered will appear.Tamper sending
time can take up to 45 seconds.
8. At this stage the tamper will not be automatically restored.
Option 1: pressing the sensor registration key once. Restoration is immediate.
Option 2: keyboard command (in programming mode: Enter + 52 + Enter ). Stay at least two minutes on the schedule.
Option 3: test Wireless Sensors command. Spend at least two minutes in test mode.
Option 41: command via keyboard (in programming mode: Enter + 543 + 2-digit sensor zone number + Enter ).
Restore will take up to 2 minutes.
1 Option available from sensor version 2.0.0 and AMT 8000 central version 2.0.0.
9.Conguring the IVP 8000 EX sensor
The sensor settings can be adjusted in two ways, below we present the step by step of each one.
9.1. Conguring the sensor through the keyboard
Using the keyboard of the AMT 8000 alarm center, go into the programming mode with the installer password, then type
the following command:
Enter EnterZone LED Operation mode
0 = Off
1 = On
0 = Economy
1 = Continuous
From 0 to 3
see the table below
Zone in which the sensor
is registered, from 01 to 64
Sensitivity66+ + + ++ +
Note: on the EX 8000 IVP, the Operation Mode will not inuence its operation .
9.2. Disable Anti-Sabotage function1
Enter EnterG79+ + +
G - Group of zones from 0 to 6
After entering the command, using the keyboard keys, select which zone you want to disable the Anti-Sabotage function
and press the Enter key to conrm.
1
Available from version 2.0.0 of the sensor and version 2.0.0 of the AMT 8000 control panel.

10
9.3. Information on sensor settings
Sensitivity adjustment table.
Level Condition
0Minimum sensitivity
1Normal sensitivity
2Intermediate sensitivity (factory default)
3Maximum sensitivity
Sensitivity adjustment table
9.4. Information about LED operation and mode of operation
LED
» Off: with the LED off option checked, the sensor will turn on the LED in the rst 15 minutes after inserting the battery
and after activating the AMT 8000 control panel (factory default).
» On: with the LED function on, battery life can be drastically reduced.
Operation mode
» Activated control panel: the sensor transmits all detections to the alarm control panel, lighting the detection and
communication status LEDs regardless of the LED conguration.
» Central deactivated: the sensor performs an intelligent analysis of movement in the environment. This way, the
detections occur in a variable period between 1 and 5 minutes adjusted automatically, according to the proportion of
movements of the place. Lighting of the detection and communication status LEDs depends on the sensor conguration
(default - LED off).
Note: the initial 15 minutes after inserting the battery into the sensor, detections occur regardless of the status of the
control panel (activated/deactivated) and the respective LEDs light up at each detection.
After activation of the AMT 8000 control panel, it is necessary to wait a time of up to 2 minutes for synchronization between the
IVP 8000 EX and the AMT 8000 control panel. During this period, the sensor does not detect movement.
After synchronization, which can take up to 2 minutes, the sensor will detect normally.
9.5. Conguring the sensor through the application
1. After the application is properly connected to the alarm center, select Congure center on the main screen of the APP;
Menu
Congure Center >
Online >
Events >
2. After that, select sensors;
Settings
General >
Zones >
Passwords >
Communication >
Event codes >
IP monitoring >
Ethernet/Wi-Fi >
GPRS >
Programed activation/deactivation >
Sensors >

11
Once you have done this, select the sensor you wish to congure, for example:
Sensor 1
Sensors
Sensor 1 >
Sensor 2 >
Sensor 3 >
Sensor 4 >
Sensor 5 >
Sensor 6 >
Sensor 7 >
Sensor 8 >
Sensor 9 >
...Sensor 64 >
After selecting the sensor, the following adjustment screen will open.
Sensor 1
Sensitivity
Level 0 (minimum sensitivity)
Level 1 (normal sensitivity, factory default)
Level 2 (intermediate sensitivity)
Level 3 (maximum sensitivity)
LED
Always Off
On when triggered
Modo de operação
Economy mode
Continuous mode
Discard changes Save
Note: for conguring the settings, check the sensitivity table, the explanations of LED operation and the Operation
mode in item 9.2. Information on the sensor settings .

12
10.Battery
Use only quality batteries with the correct sizing for the device, and with the typical use of the device, the battery life forecast
is 3 to 5 years and can be inuenced by the number of triggering, weather conditions and conguration mode.
The battery model should be CR123A 3 V, being used one (1) battery per sensor.
We recommend replacing batteries with the same brand and industrial model as purchased from factory products.
This product has an internal battery. After their useful life, the batteries must be delivered to an authorized Intelbras technical
assistance department or directly disposed of in an environmentally appropriate manner, avoiding environmental and health
impacts. If you prefer, the battery, as well as other unused Intelbras brand electronics, can be discarded at any Green Eletron
collection point (electronic waste manager with which we are associated). If you have any questions about the reverse logistics
process, please contact us by telephone [phone] or 0800 704 2767 (Monday to Friday from 8am to 8pm and Saturdays
from 8am to 6pm) or via email -mail [e-mail].
11.Homologation
05326-18-00160
05326-18-00160
This equipment is not entitled to protection against harmful interference and may not cause interference to
duly authorized systems. This is a product approved by Anatel, the approval number can be found on the
product label, for queries, visit the website: https://www.gov.br/anatel/pt-br.
12.Articulated bracket
The articulated bracket was built to t perfectly in most of the presence sensors available in the market, besides having a
large steering angle, support for wiring passage and UV protection for indoor or outdoor installation.
12.1. Care and security
» Follow all instructions in the manual for product assembly and installation.
» Make sure that both the sensor and the bracket are securely attached to the installation site to avoid changes in the
detection angle of the product.
» Make sure the installation site is stable and not subject to icker.
12.2. Technical specications
General characteristics
Material Plastic with UV protection
Weight 44 g
Load capacity 1.5 Kg
Installation environment Indoors / outdoors
Dimensions (W × H × D) 99 × 58 × 64
Horizontal movement angle 160°
Vertical movement angle 160°

13
12.3. Product
Mounted support
Components
1Axis
2Cover
3Ring
4Base
5Nut
6Connector
7Screw 3.5 x 9.5 mm
12.4. Features
» Built in UV-protected material;
» Easy installation;
» Wide application scenario;
» Discreet and robust.

14
12.5. Installation with IVP 8000 EX base with internal nut housing
» Insert the shaft into the cover (piece 1 and piece 2);
+=
12
» Pass the ring through the assembly above (piece 3);
3
+=
» Screw the ring onto the base of the articulator (piece 4);
4
+
=
» Remove the plate and make a hole at the indicated location on the base using a drill or whatever tool you deem ap-
propriate, check that the hole made allows the passage of the support shaft. Then, insert the nut in the housing located
inside the base;
Alojamento
para porca
Furo
Porca
Screw
Hole
Screw nut
housing

15
» Insert the shaft through the hole, turning it clockwise.
12.6. Installation with the base of the IVP 8000 EX without drilling
» Insert the shaft into the cover (piece 1 and piece 2);
+=
12
» Pass the ring through the assembly above (piece 3);
3
+=
» Insert the nut in the connector (pieces 5 and 6); Installation using the articulator:

16
» Fix the connector on the base of the sensor using the two screws as shown in gure 1, observe the existing hole in the
base, then insert the shaft through the hole, rotating it clockwise as shown in gure 2.
Figure 1 Figure 2
» If the sensor is installed on a at surface, use the four innermost holes in the base for mounting. If the sensor is used on
a 90° corner, use the four outermost holes on the base;
Wall mounted Mounted in the corner of the wall
Passage for the screw
Passage for the screw
» After denitively xing the base, direct the sensor to the desired detection eld, always respecting its specications. Lock
the sensor position by turning the xing ring clockwise until you feel that it is rm.

17
Installation without using the articulator
» For installation directly on the wall, or in the corner of the wall, remove the plate and break the seals indicated for the
holes in the rear xing cover.
Attention!
Garanta que a pelagem esteja de acordo com o tamanho da ação, pois uma furação pode ser acionada para o interior do
produto.
Wall mounted Mounted in the corner of the wall
Passage for the
screw
Passage for the
screw
Passage for the
screw
Passage for
the screw

18
Warranty term
It is expressly stated that this contractual warranty is given subject to the following conditions:
Name of customer:
Signature of the customer:
No. of the invoice:
Date of purchase:
Model: Serial No:
Reseller:
1. All parts and components of the product are under warranty against possible manufacturing defects, which may present,
for a period of one (1) year, – comprising 90 (ninety) days of legal warranty and 9 (nine) months of contractual warranty,
–, counted from the date of purchase of the product by the Consumer, as stated in the invoice of purchase of the product,
which is part of this Term throughout the national territory. This contractual warranty includes the express exchange of
products that are defective in manufacture. In case no manufacturing defect is found, but aw(s) from inappropriate use,
the Consumer will bear these expenses.
2. Product installation must be done in accordance with the Product Manual and/or Installation Guide. If your product
needs to be installed and congured by a qualied technician, look for a suitable and specialized professional, and the
costs of these services are not included in the value of the product.
3. If the defect is found, the Consumer should immediately communicate with the nearest Authorized Service listed by the
manufacturer, – only they are authorized to examine and remedy the defect during the warranty period provided herein.
If this is not respected, this guarantee will lose its validity, as the violation of the product will be characterized.
4. In the event that the Customer request home care, he/she should refer to the nearest Authorized Service for the technical
visit fee. If the need for withdrawal of the product is found, the expenses arising, such as transportation and safety to
and from the product, are under the responsibility of the Consumer.
5. The warranty will totally lose its validity in the event of any of the following: a) if the defect is not of manufacture, but cau-
sed by the Consumer or by third parties alien to the manufacturer; b) if the damage to the product comes from accidents,
claims, agents of nature (lightning, oods, landslides, etc.. ), humidity, mains voltage (overvoltage caused by accidents or
excessive mains uctuations), installation/use in disagreement with the user manual or due to natural wear of parts and
components; c) if the product has been inuenced by chemical, electromagnetic, electrical or animal (insects, etc.); d) if
the product’s serial number has been tampered with or erased; e) if the device has been tampered with.
6. This warranty does not cover loss of data, so it is recommended that the Consumer make a regular backup of the data
on the product.
7. Intelbras is not responsible for the installation of this product and also for any attempts of fraud and/or sabotage on its
products. Keep software and application updates, if any, up to date, as well as network protections necessary to pro¬tect
against hackers. The equipment is guaranteed against aws within its normal conditions of use, and it is important to
be aware that, since it is an electronic equipment, it is not free from frauds and scams that may interfere with its correct
functioning.
Since these are the conditions of this complementary Warranty Term, Intelbras S/A reserves the right to change the general,
technical and aesthetic characteristics of its products without prior notice.
All images in this manual are illustrative.

04.23
Made in Brazil
Customer Support: (48) 2106 0006
Forum: forum.intelbras.com.br
Support via chat: chat.intelbras.com.br
Support via e-mail: [e-mail]
Customer Service: 0800 7042767
Where to buy? Who installs it? 0800 7245115
Produced by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira
Rodovia BR 459, km 124, nº 1325 – Distrito Industrial – Santa Rita do Sapucaí/MG – 37540-000
CNPJ 82.901.000/0016-03 – www.intelbras.com.br
