You have purchased a i-Lift assisted access lift. Providing the unit is installed correctly and properly
maintained, it will furnish you with many years of trouble free use. It is important to read this entire
manual prior to beginning assembly or operation.
Shipping Information:
Each lift will arrive partially assembled in one box. Before accepting the lift from the carrier, inspect for
visible damage and match the contents with those listed below. Inter-Fab is not responsible for lost or
damaged freight.
The box will contain all structural components and hardware. The following is a list of the components
included with your shipment from Inter-Fab. Use Components and Hardware Figure, page 3, as a
reference to identify each item listed.
- 1 - Mast & Boom assembly - 2 - Seat Halves
- 1 - Actuator - 1 - Footrest assembly
- 1 - Seat Belt - 1 - Battery
- 1 - Seat pole assembly - 1 - Wireless Transmitter
- 1 - Charger assembly - 1 - Anchor Assembly
- 1 - General hardware

1.800.737.5386 • www.Inter-Fab.com
3
COMPONENTS AND HARDWARE

1.800.737.5386 • www.Inter-Fab.com
4
INSTALLATION OVERVIEW
Read all instructions before attempting to assemble or install the i-Lift .
Clear Deck Space:
To be compliant with ADA guidelines, the lift must be installed in a
location that is clear from obstacles and other hazards. Clear deck

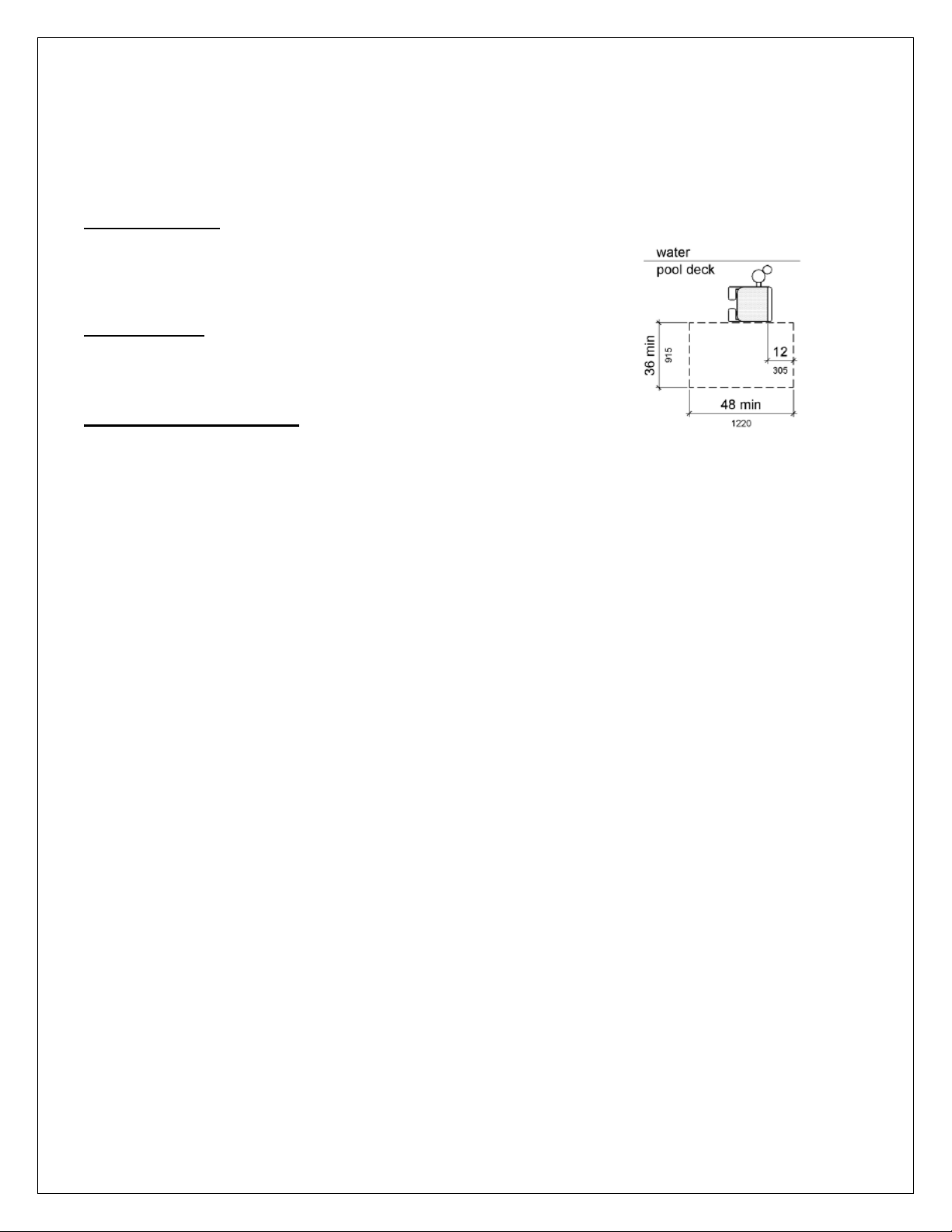

space is defined by the figure to the right. This rectangle is 48” long
(along the pool wall) and 36” wide.
Pool/Spa Depth:
To comply with ADA guidelines the i-Lift must be installed where the
water depth does not exceed 48”. If the entire pool is deeper than 48"
this requirement does not apply.
Anchor Location/Installation:
The i-Lift anchor centerline must be no less than 6”, but no greater than
22” from the pool/spa wall (or any feature that sticks out past the pool/spa wall, such as a coping). The i-Lift is
installed in a single 2.375” I.D. anchor.
New Construction Anchor Installation
a. Place the anchor in the desired location following above guidelines.
b. Locate a bonding source to bond (ground) the anchor. The steel rebar-bonding grid of the pool deck is the
best choice for bonding the anchor. Attach a No. 8 solid copper wire (NEC Section 680-22) from the bonding
bolt on the base of the anchor to the bonding grid.
c. Secure anchor in place –proper height –mud may be used to hold anchor in place. Set the anchor so that
the finished top is 1/8” to ¼” below finished deck level – allowing for anchor cap to be put in place when the lift
is not in use.
d. Use the carpenter’s level to level the anchor making sure the i-Lift mast will be vertically straight up and down
(perpendicular to the deck) in all directions. It is important that the mast be vertically straight to ensure ease
of rotation when the lift is fully loaded.
e. Place tape over the anchor hole before pouring concrete deck –not allowing concrete to enter anchor
opening.
f. Pour concrete deck and finish.
Allow the concrete to cure for at least 7-days before installing and using the lift.
Existing Facility Anchor Installation
a. From the center of the desired anchor location, using a marking pen or chalk, mark a 12” x 12” square. This
is the concrete to be removed to accommodate the installation of the lift’s anchor. It is recommended that the
anchor be located at least 6” from any expansion joint, crack, drain, or similar structure in the concrete deck.

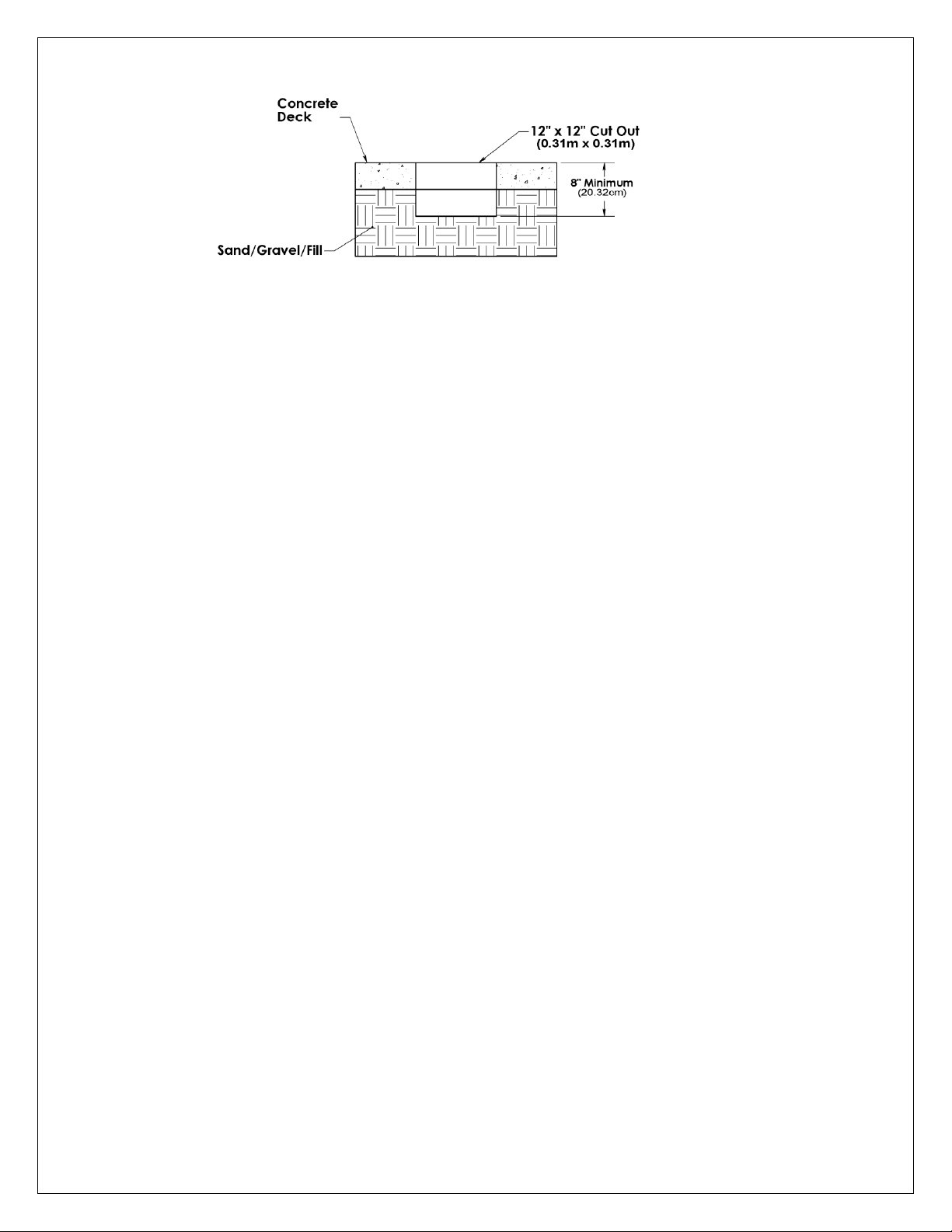

b. Use a concrete cutting saw; cut the 12” x 12” square out of the existing concrete deck. Using a heavy/sledge
hammer to break the cut section of concrete –remove the section of concrete from the deck. See Figure 1.
Note: If the concrete deck is less than 6” thick, dig out the bottom of the hole to about 8” below the deck surface.

1.800.737.5386 • www.Inter-Fab.com
5
c. Locate a bonding source to bond (ground) the anchor. The steel rebar-bonding grid of the pool deck is the
best choice for bonding the anchor. Attach a No. 8 solid copper wire (NEC Section 680-22) from the bonding
bolt on the base of the anchor to the bonding grid.
Note: If the concrete deck is 8” thick or more, an alternative anchor installation method may be used. In lieu of
saw cutting the concrete deck, a concrete core drill may be employed to cut a 4” diameter hole at the desired
anchor installation location. Epoxy or hydraulic cement may be used to secure the anchor in place. Make sure
the anchor is properly bonded.
d. Place tape over the anchor hole before pouring concrete –not allowing concrete to enter anchor opening.
e. Fill the hole in the deck around the anchor with non-expanding concrete. Set the anchor so that the finished
top is 1/8” to ¼” below finished deck level – allowing for anchor cap to be put in place when the lift is not in
use.
f. Use a carpenter’s level, to level the anchor making sure that the i-Lift mast will be vertically straight - up and
down (perpendicular to the deck) in all directions. It is important that the mast be vertically straight to ensure
ease of rotation when the lift is fully loaded.
Allow the concrete to cure for at least 7-days before installing and using the lift.
ASSEMBLY INSTRUCTION
The following tools will be required to complete assembly and installation of the lift:
- 9/16” ratchet and open-end wrench
- 1/2” ratchet or open-end wrench
- 3/16” socket wrench (allen wrench)
LIFT ASSEMBLY

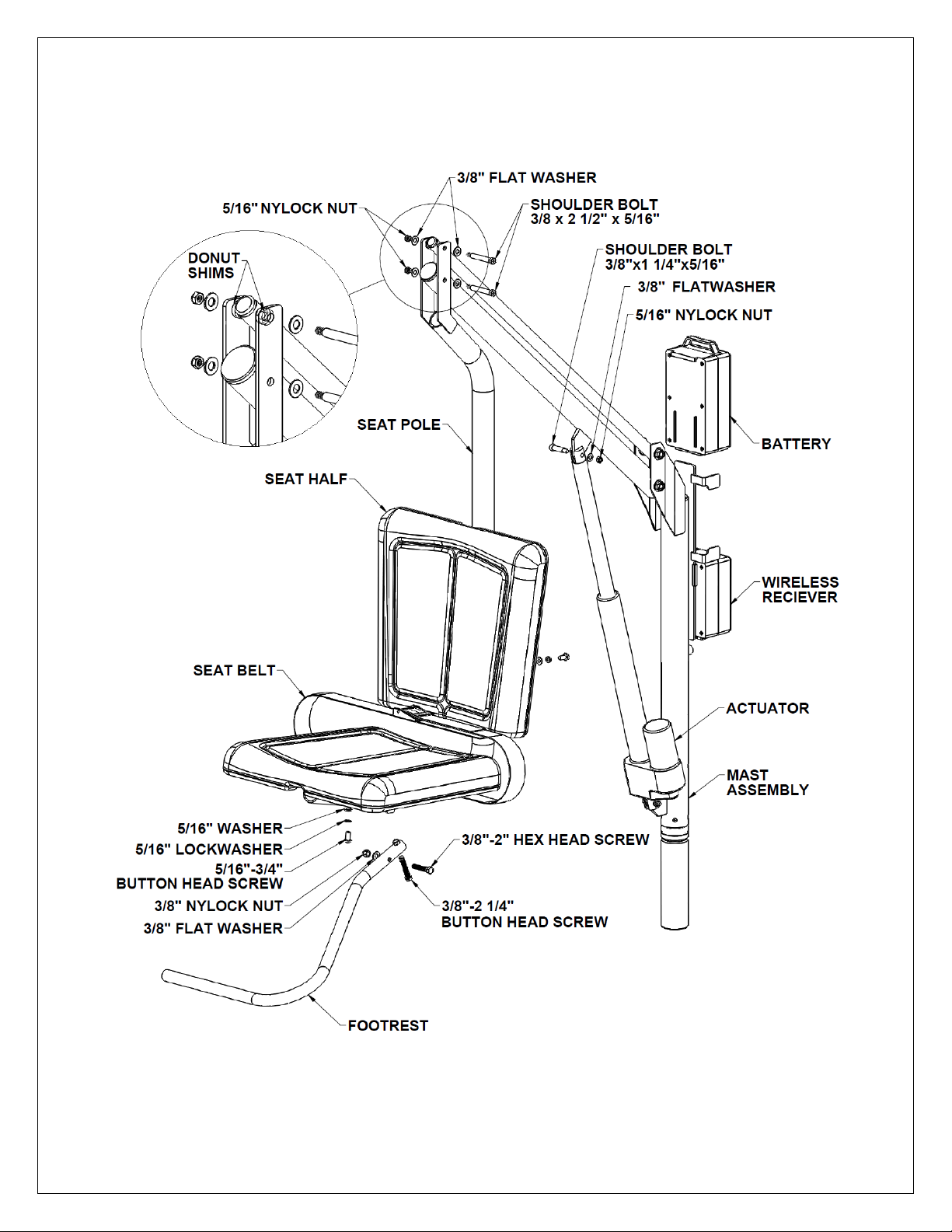

NOTE: All steps reference the exploded view on page 3.
!CAUTION!
Do not rotate the actuator end fitting –handle with care.
a. Stand the mast assembly up in the anchor that is installed in the pool/spa deck.
b. Carefully remove shrink wrap holding the actuator to the mast assembly.
Figure 1

1.800.737.5386 • www.Inter-Fab.com
6
c. Attach the actuator end fitting as shown on page 3 using:
1 - 3/8” Shoulder Bolt 1 ¼” x 5/16” - 18
1 - 3/8” Flat washers
1 - 5/16” - 18 Nylock nut
d. Slide the battery down until it mates with the Wireless Receiver, and locks into place. When properly
installed the battery will sit flush against the top of the Wireless Receiver. The Control Box should
indicate a fully charged Battery (Green Light).
e. Test lift operation by pushing the up and down toggle switch on the Wireless Receiver to ensure the lift is
operational (See page 8 for instructions on using Wireless Transmitter). Then run the actuator into the fully
extended position by pressing the up button until the actuator stops moving. Leave the lift in this position
for the next steps.

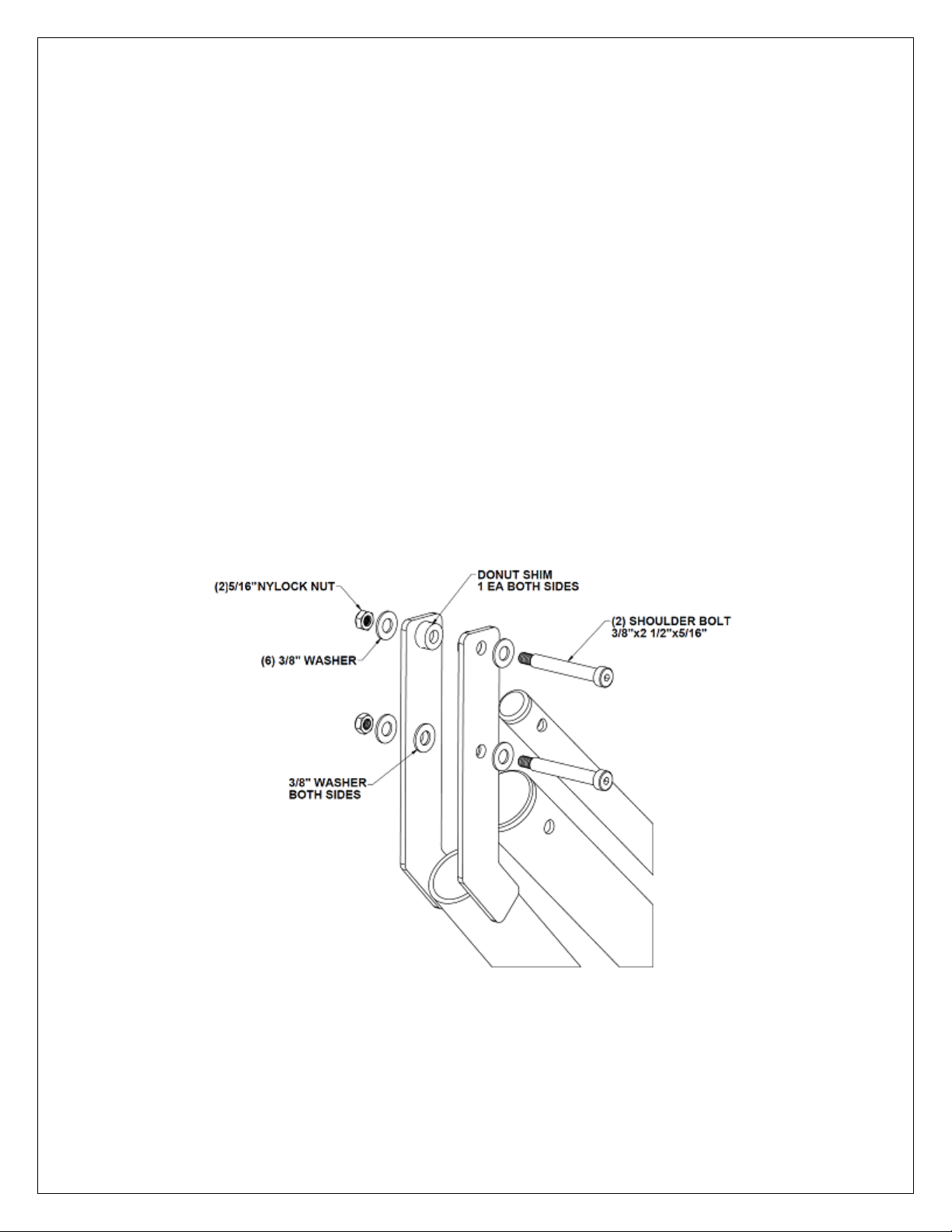

f. Join the seat arm to the mast assembly using:
2 - 3/8” Shoulder 2 1/2” x 5/16” Thread
4 - 3/8” Flat washers
2 - 5/16” - 16 Nylock nut
4 - Donut Shims

1.800.737.5386 • www.Inter-Fab.com
7
g. Attach the seat half and the seat belt to the mounting plate of the seat arm using:
2 - 5/16"-18 x 1”
2 - 5/16"-18 x ¾”
4 - 5/16" Flat Washers
4 - 5/16" Lock Washers

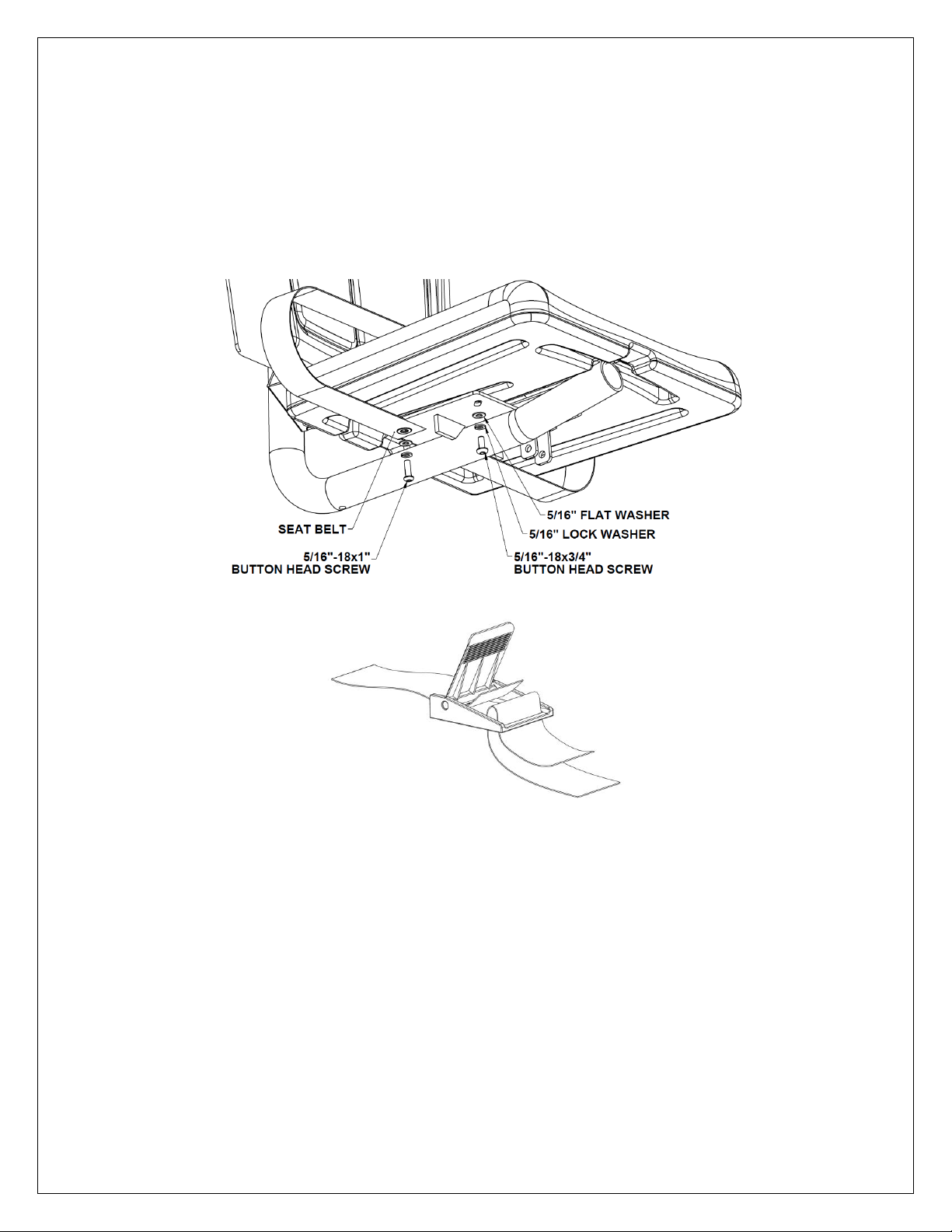

Note: When attaching the seat belt use 5/16"-18 x 1" as shown below.
h. The below image shows the proper way to assemble the seat belt.
i. Attach the other seat half to the back rest mounting plate using:
4 - 5/16"-18 x ¾”
4 - 5/16" Flat Washers
4 - 5/16" Lock Washers
j. Attach the footrest to the seat arm assembly using:
1 - 3/8" –Hex Bolt 2”
1 - 3/8" Flat Washers
1 - 3/8" Nylock Nut
Tighten the bolt until the flat washers are snug, and then back off until the Footrest pivots freely. Adjust
footrest to desired height using installed 3/8" - Button Head Bolt.
k. Test the lift for proper operation.

1.800.737.5386 • www.Inter-Fab.com
8
OPERATOR’S GUIDE
Lift Operation
WARNING! Read all operating instructions before operating the lift. Make sure that all individuals using
the lift have read the instructions and have been made aware of all safety precautions.
WARNING! Operate the lift exactly as described in the instructions above. Failure to do so may result in
damage to the lift or personal injury.
WARNING! Do not exceed the maximum lifting capacity of 350 lbs. This may result in damage to the lift or
personal injury.
WARNING! Do not rotate the lift directly into the deck or pool/spa wall. This may result in damage to the
lift or personal injury.
WARNING! Unless operating in an emergency, Lift should not be forced to rotate. This will cause damage
to the rotational components of the lift.
Basic Principals of Lift operation

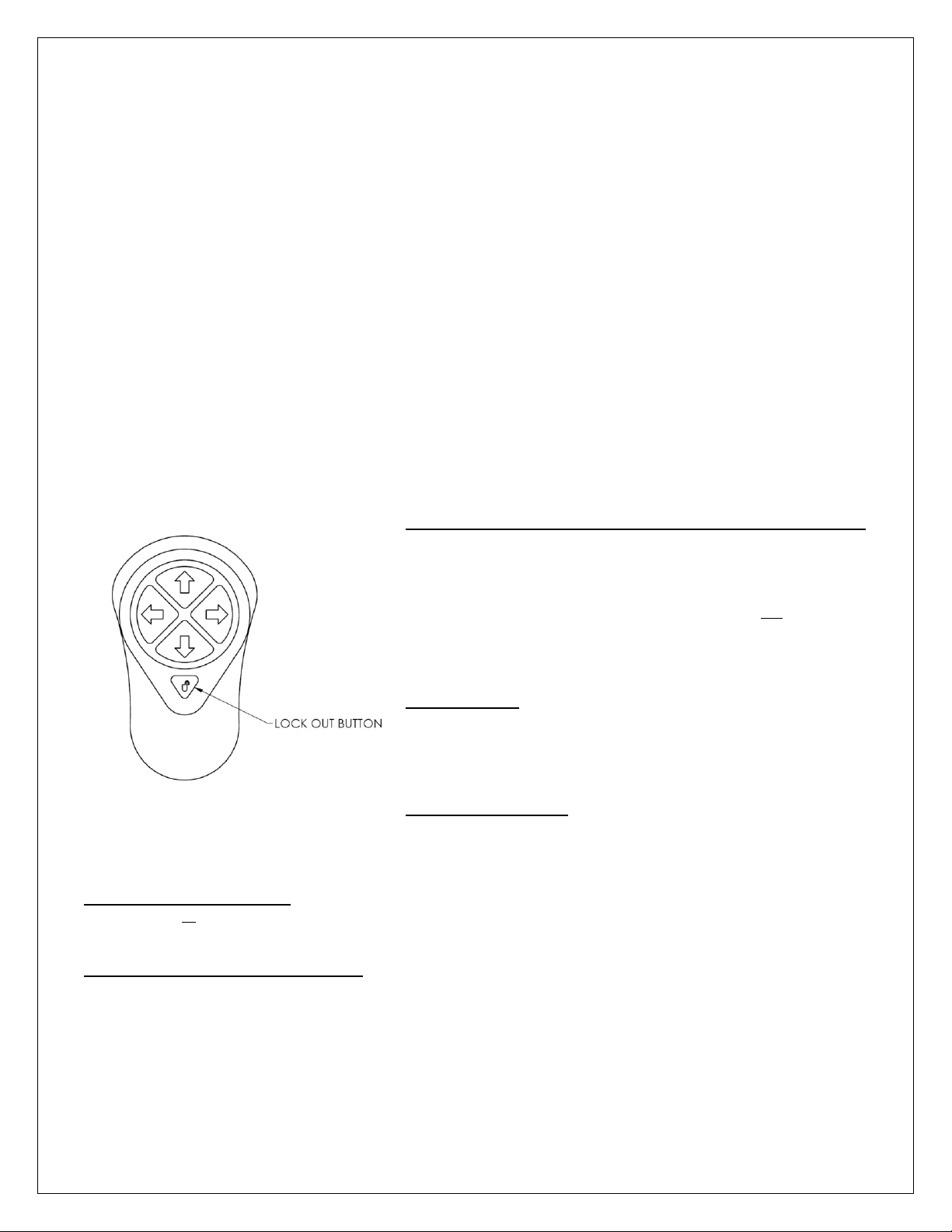

Activation of the Transmitter (Bottom Button, with a lock on it)
As a safety feature of this transmitter, there is a lockout button that
is just below the four directional arrows. To activate the transmitter
(wake from sleep mode), the lockout button needs to be pushed
and held for a full 2 seconds. If the transmitter is not used within
two minutes after the transmitter has been activated, it will go back
into sleep mode.
Lifting (UP)():
Pressing the () button causes the seat to rise. The seat will
continue to rise as long as the button is pressed, or until the lift
reaches its highest extent. Releasing the button at any time during
travel will also cause the lift to stop.
Lowering (DOWN)():
Pressing the () button causes the seat to lower. The seat will continue to lower as long as the button is
pressed, or until the lift reaches its lowest extent. Releasing the button at any time during travel will also cause
the lift to stop.
Rotation (CLOCKWISE)( ):
Pressing the () button causes the lift to rotate clockwise. The lift will continue to rotate in this direction as long
as the button is pressed. Releasing the button at any time during rotation will stop the lift from rotating.
Rotation (COUNTERCLOCKWISE)():
Pressing the () button causes the lift to rotate counterclockwise. The lift will continue to rotate in this direction
as long as the button is pressed. Releasing the button at any time during rotation will stop the lift from rotating.
*Note: If the lift is overloaded at the seat, a clutch in the actuator will ratchet, this will be evident by a
very noticeable clanking noise and the lift will shake but not move. After weight is taken off of the seat,
the lift will resume normal operation. If this happens check the lift and pivots for structural damage
before resuming a safe lifting procedure at or under the 350# working load limit.

1.800.737.5386 • www.Inter-Fab.com
9
PROGRAMMING A NEW TRANSMITTER TO THE RECIEVER
*Note –The Transmitter will be programmed to the lift when you receive it; the only time you will have to
follow this procedure is if you replace a Transmitter or buy an extra Transmitter.
To Program a new transmitter to the lift, first remove the battery from the lift. Hold the lockout button on the
transmitter for two full seconds. Then press and hold the up button on the Transmitter to be programmed, while
replacing the battery on the lift. Continue holding the up button on the Transmitter until the lift clicks once or
moves up (the lift is most likely at the top of its range, so you may try either rotation button and watch for lift
movement). If the lift does not work with the new transmitter, try the procedure again; making sure that the
transmitter is unlocked. If you are not able to program the new Transmitter to your lift, please call Inter-Fab
Customer Service at 1-800-737-5386 ext 121.
BATTERY CHARGING & INSTALLATION
The battery comes fully charged, but will need charging after the first several hours of use. Charging time is
approximately twelve hours for the first few charges, six hours after the first four battery cycles at which point the
battery will reach maximum capacity. The i-Lift comes with a battery charger, bracket, and a spacer for wall
mounting (in a dry location). For wall mounting, use three #8 or #10 wall anchors spaced 5 ½-inches apart
(vertically). Charge the battery as follows:
Plug the battery charger into a standard* outlet. The green LED on the charger will light up, indicating
that the charger is on.
Slide the battery onto the bracket and onto the charger. The green LED will change to yellow, indicating
that the battery is being charged. If the battery is very low the LED will be red, if the red LED does not
change to yellow within 4 hours, the battery is bad.
The yellow LED will turn Green when the battery is fully charged. You will prolong the life of your charger
if you disconnect the battery after 24 hours of charging time.
Unplug the charger when it is not connected to the battery, if it is left plugged in for an extended period of
time while not charging a battery, damage to the charger may occur.
*Charger accepts 110 VAC

1.800.737.5386 • www.Inter-Fab.com
10
When the battery is fully charged, remove it from the battery charger and install the battery on the i-Lift. The
Battery Capacity Indicator on the receiver will show a green LED, indicating that the battery is fully charged and
installed properly. When the LED changes to amber the lift is still OK to use. However when the LED changes to
red, or an audible tone is heard during a lift cycle, the battery pack needs to be recharged. To keep the battery
from discharging to the point of causing damage, it is important to charge the battery at least once every
3 months, even if the battery has not been installed on the lift.
The battery should last at least 90 cycles at the full 350# load rating of the lift before it needs recharging. The battery will
need to be replaced after 500 to 800 charge cycles or 3-4 years if taken care of properly (20,000 plus lifting cycles).
To activate the Emergency Up/Down rocker switch (located on the left side of the receiver), rock the switch and the lift will
move in the direction indicated. These buttons can be used if the transmitter battery dies, or in the event of an
emergency.
CHANGING A TRANSMITTER BATTERY
To change the transmitter battery, turn the transmitter over and unscrew four small Phillips head screws. Carefully open
the transmitter case and remove the battery. This battery is stocked at most stores where coin batteries are sold, it is a
3V lithium Type 2032. Under normal operating conditions this battery should last at least two years.
Care and Maintenance
The following should be performed periodically to ensure safe and dependable use.
1. Remove any discoloration with a 3M scratch pad (stainless steel components only). Wipe clean with a
sponge dampened with Spectra Clean. Repeat these steps several times to passivate the stainless
steel. Spectra Clean kits are available from Inter-Fab (Part Number 202050-00). Do not spray with
high-pressure water, only clean with non-chlorinated water.
2. Check all electrical connections –Check any external electrical cables for wear and/or breakage in the
outer insulation.
3. Check all mechanical connections –inspect the Nylock Nuts on all moving parts and make sure they
are snug. Lubricate all pivot points with light oil (3-1).
4. To maintain the battery properly, the battery must be fully charged at least every 3 months. If the
battery goes for longer than 3 months without a charge, the battery will have reduced capacity.

1.800.737.5386 • www.Inter-Fab.com
11
Troubleshooting
Problem:
Cause:
Solution:
1. Lift will not operate at all:
Low Battery (Lift) –Red or
amber LED on the receiver
Damaged Battery (Lift) –Red
LED on the receiver
Dead Battery (Transmitter)
Remote Locked
Battery Fuse blown
Recharge Battery
Replace Battery*
Replace Battery
3V Lithium 2032
Push unlock button for
2 seconds
Replace Battery Fuse
2. The seat will not raise or lower.
The seat will not rotate.
Low battery (Amber LED on
Receiver)
Battery not installed properly
Receiver malfunction
Recharge battery
Reinstall battery
Replace Receiver*
3. The seat’s motion isn’t smooth or sticks at a
certain point during travel.
Excessive wear to bearings
Excessive wear to Actuator
Replace bearings*
Replace Actuator*
4. The seat travels much slower than normal.
Low battery
Defective or worn-out battery
Recharge battery
Replace battery*
5. The lift makes much more noise or unusual
noises during operation.
Excessive wear to bearings
Pivot points galling
Replace bearings*
Oil pivots with light oil
(3-1)
6. Battery will not charge:
Charger Fuse Blown
Bad Battery (red LED on
charger –not turning orange
or green in 4 hours or less)
Replace Charger Fuse
Replace Battery*
* Please contact your local distributor or Inter-Fab Customer Service to order parts 1-800-737-5386 x121
