Inter-m EP-616 User manual

Emergency Panel
EP-616

CONTENTS
Specifications ................................................................................. 1
Electrical Parts List ........................................................................ 2
Top and Bottom View of P.C. Board .............................................. 5
Wiring Diagram .............................................................................. 7
Block Diagram ............................................................................... 8
Schematic Diagram ....................................................................... 9
Exploded View of Cabinet Chassis/Mechanical Parts List ........... 10

SPECIFICATIONS
EP-616
Operating Modes Auto, Test
Siren Frequency 800Hz(Oscillating siren tone)
Program Exchange Mode EMG.
Operation Temperature -10°C ~ +40°C
Power Source 24V DC
Power Consumption 720mA
Weight (SET) 4.6kg/10.1lb
Dimensions (SET) 482(W)x88(H)x380(D)mm/19(W)x3.5(H)x15(D)in
* Specifications and design are subject to change without notice.
1

2
ELECTRICAL PARTS LIST
Ref. Part No. Description Value
CN4 CN8 111357 CON WAFER,BOX(M),2P,ST WAFER 2P
CN2 111358 CON WAFER,BOX(M),3P,ST WAFER 3P
CN10 111415 04P/B4P-VH/3.96,B4PVH-04P LPH01-04
CN1 111416 CON WAFER,LOCK(M),5P,ST WAFER 5P
CN7 111417 CON WAFER,LOCK(M),6P,ST WAFER 6P
CN9 111419 CON WAFER,LOCK(M),8P,ST WAFER 8P
RLY1-4 RLY9-10 112724 RELAY,DPDT,24V,1A,125VAC,502N1-2C-S-24V 502N1-2C-S-24V
RLY5 RLY8 112680 RELAY,SPDT,24V,15MA,125VAC,JS1 JS1-DC24
IC8 102825 IC,VOLT REG,9V,7809,TO-220IS 7809
IC9 103061 IC,VOLT REG,12V,1A,MC7812CTG,TO-220AB MC7812CTG
IC2 102828 IC,VOLT REG,18V,7818,TO-220IS KIA7818
CR9 105782 CAP,CE,SEMI,Y5V,0.022UF,50V,Z,AX,TA 0.022U
C6 C49 105777 CAP CE Y 100000PF 50V Z AXIAL 100000P
CR13 105672 CAP,CE,HI-DI,Y5V,0.1UF,50V,Z,RA,TA 0.1U
CR1 CR3-5 CR12 CR14 105665 CAP CE B 100PF 50V K AXIAL 100P
CR6-8 105678 CAP,CE,HI-DI,Y5P,150PF,50V,K,AX,TA 150P
CR2 105758 CAP,CE,TEMP,SL,27PF,50V,J,AX,TA 27P
CR10 105724 CAP,CE,HI-DI,Y5P,680PF,50V,K,AX,TA 680P
CN6 110151 CON ASS’Y,DS,6P,CH0640,5395,100MM ASS’Y 6P
D1-12 D15 102659 DIODE,RE,1A,800V,1N4006,DO-41,TA 1N4006
D13-14 D16-17 102687 DIODE,SW,100MA,75V,1N4148M,DO-34M,TA 1N4148M
C18 105441 CAP,E,SM,SG,85C,0.1UF,50V,M,5P,TA 0.1/50
C3-5 C8-9 C17 C35-36 C45 105423 CAP,E,SM,SG,85C,100UF,50V,M,8P,TA 100/50
C11 C19 C28 C43 105405 CAP,E,SM,SG,85C,10UF,50V,M,5P,TA 10/50
C27 105445 CAP,E,SM,SG,85C,1UF,50V,M,5P,TA 1/50
C2 C21 C37 C42 105474 CAP,E,SM,SG,85C,220UF,50V,M,10P,TA 220/50
C20 C38-39 105463 CAP,E,SM,SG,85C,22UF,50V,M,5P,TA 22/50
C7 C10 C12-14 C22 C24 C26 105498 CAP,E,SM,SG,85C,3.3UF,50V,M,5P,TA 3.3/50
C1 105375 CAP,E,SM,SG,85C,330UF,50V,M,13P 330/50
C15-16 C31 105487 CAP,E,SM,SG,85C,33UF,50V,M,6P,TA 33/50
C30 105543 CAP,E,SM,SG,85C,4.7UF,50V,M,5P,TA 4.7/50
C40 105384 CAP,E,SM,SG,85C,470UF,50V,M,13P 470/50
C51 105504 CAP,E,SM,SG,85C,47UF,25V,M,6P,TA 47/25
C23 C25 C29 C33-34 C41 105511 CAP,E,SM,SG,85C,47UF,50V,M,6P,TA 47/50
F1-2 111857 FUSE CLIP 5*20 PIN1.2M FC-510J
HS2 114265 HEAT SINK(30MM) REG TR HEAT SINK
IC6 102789 IC,POW AMP,1.2W AUDIO,TBA820M,DIP8 TBA820M
2J2 J1-14 J17-26 J28-40 102394 JUMP WIRE(0.5/52M/M) JUMP WIRE
J42-74 J76-80 J82-84
VR2 105197 VR,ROT,HOR,1U,L25,10K,A 10K
C46-48 105820 CAP,FILM,POLYESTR,0.01UF,100V,J,TA 0.01U
C32 105846 CAP,FILM,POLYESTR,0.022UF,100V,J,TA 0.022U
IC3-5 IC7 102816 IC,OP AMP,NJM4558D,DIP8 NJM4558D
Q1-9 Q11 Q13 Q16 102525 TR,SG,NPN,150MA,50V,KTC3198Y,TO-92,TA KTC3198Y
Q17 102527 TR,SW,NPN,150MA,50V,KTC3206,TO-92L,TA KTC3206
Q10 Q12 Q15 Q20 102578 TR,PW,NPN,3A,60V,KTD2058,TO-220AB KTD2058
TER1 111590 TERMINAL,DC,2P,19MM,AN,V-0 B30290110N
Q14 102526 TR,SG,PNP,150MA,50V,KTA1266Y,TO-92,TA KTA1266Y
R24 104256 RES,MF,1.5K,1/5W,5%,AX N,TA 1.5K
R33 R38 R76 104269 RES,MF,1.8K,1/5W,5%,AX N,TA 1.8K
WR5-6 WR8 104528 RES,MF,100,2W,5%,RA R,TA 100 2W
R10 104235 RES,MF,100,1/5W,5%,AX N,TA 100
R1 R6-7 R11-12 R21-22 104238 RES,MF,100K,1/5W,5%,AX N,TA 100K
R52-53 R58 R83 R93 R101
WR1 104518 RES,MF,10,2W,5%,RA R,TA 10 2W
MAIN B’D

3
ELECTRICAL PARTS LIST
Ref. Part No. Description Value
R25 R37 R46 R49 R67 R69-70 104237 RES,MF,10K,1/5W,5%,AX N,TA
10K
R80 R85 R96
R100 104257 RES,MF,15K,1/5W,5%,AX N,TA
15K
R17 104270 RES,MF,18K,1/5W,5%,AX N,TA
18K
R61 R1J/A,1
R2 R31 R39 R68 R79 R86 104236 RES,MF,1K,1/5W,5%,AX N,TA
1K
R55 104239 RES,MF,1M,1/5W,5%,AX N,TA
1M
R98 104281 RES,MF,2.2K,1/5W,5%,AX N,TA
2.2K
R9 104295 RES,MF,2.7K,1/5W,5%,AX N,TA
2.7K
R97 104296 RES,MF,27K,1/5W,5%,AX N,TA
27K
R90 104274 RES,MF,2K,1/5W,5%,AX N,TA
2K
R20 R23 R27 R30 R35 R75 104308 RES,MF,3.3K,1/5W,5%,AX N,TA
3.3K
R73 104317 RES,MF,3.9K,1/5W,5%,AX N,TA
3.9K
WR2 WR4 WR7 104634 RES MO 330 2W JN RADIAL
330 2W
R45 R50 R57 104307 RES,MF,330,1/5W,5%,AX N,TA
330
R56 R87 R95 104309 RES,MF,33K,1/5W,5%,AX N,TA
33K
R72 R74 R77 104319 RES,MF,39K,1/5W,5%,AX N,TA
39K
R5 R13-14 R41 R44 R66 R71 104332 RES,MF,4.7K,1/5W,5%,AX N,TA
4.7K
R82 R84 R99
R81 123476 RES MF 43 K 1/8W JN
43K
R40 104329 RES,MF,470,1/5W,5%,AX N,TA
470
R26 R78 104334 RES,MF,470K,1/5W,5%,AX N,TA
470K
R51 R63-64 104333 RES,MF,47K,1/5W,5%,AX N,TA
47K
R34 R54 R62 R65 104346 RES,MF,5.6K,1/5W,5%,AX N,TA
5.6K
WR3 104676 RES,MF,560,2W,5%,RA R,TA
560
R60 104343 RES,MF,56,1/5W,5%,AX N,TA
56
R3-4 R8 R15-16 R18 R36 104347 RES,MF,56K,1/5W,5%,AX N,TA
56K
R42-43 R47-48 R91-92
R19 R32 104361 RES,MF,6.8K,1/5W,5%,AX N,TA
6.8K
R29 104362 RES,MF,68K,1/5W,5%,AX N,TA
68K
R28 104373 RES,MF,82K,1/5W,5%,AX N,TA
FIRE B’D
SWITCH B’D

4
ELECTRICAL PARTS LIST
Ref. Part No. Description Value
82K
R59 104375 RES,MF,910,1/5W,5%,AX N,TA 910
SW2 112107 SW,SLIDE,HOR,DPDT,NS,L9MM SV10020F-0202-9T-SN
TER3 111895 TERMINAL/4P,4P
ANN-IN PRE-IN 111895 TERMINAL,SCREW,4P,10MM,ST KNL7704
RM1-2 TIMER
PREOUT 110896 JACK,XLR(M),1U,3P,AN,E503A0130N E503A0130N
ZD3-4 102735 DIODE,ZN,500MW,BM,10V,DO-35,TA 1N5240B
ZD2 2058502180 DIODE,ZN,500MW,BM,18V,DO-35,TA 1N5248B
AN8 107064 CON ASS’Y,DS,2P,5264,5395,300MM ASS’Y 2P
CN11 111357 CON WAFER,BOX(M),2P,ST WAFER 2P
CN3 111358 CON WAFER,BOX(M),3P,ST WAFER 3P
AN1 107061 CON ASS’Y,DS,5P,CHW0640,5395,280MM ASS’Y 5P
VR3 105081 VR,ROT,VER,1U,L25,10K,B,CC 10K
LED9 103244 LED,RND 3MM,RED,CLR,1U,AN5,TA ML3BHD2F-EAA-T
LED10 103245 LED,RND 3MM,GRN,CLR,1U,AN5,TA LTL-1CHGE-021A
R88-89 104295 RES,MF,2.7K,1/5W,5%,AX N,TA 2.7K
S3 112204 S/W TACTIL (LS4.5X8MM) SKHJACA010
CN5 111357 CON WAFER,BOX(M),2P,ST WAFER 2P
AN4 107062 CON ASS’Y,DS,6P,CHW0640,5395,420+470MM ASS’Y 6P
R94 104361 RES,MF,6.8K,1/5W,5%,AX N,TA 6.8K
SW1 112126 SW,PUSH,HOR,DPDT,NS,1U,BKT,L18 SPUN12X1H131
AN5 107095 CON ASS’Y,DS,2P,5264,5395,100MM ASS’Y 2P
LED11 103252 LED,RND,3.1MM,BLU,CLR,1U,ST2.5 LTL1CHTBK1
VR B’D
AN11 107095 CON ASS’Y,DS,2P,5264,5395,100MM ASS’Y 2P
LED1-8 103278 LED,RND 5MM,RED,DIF,1U,ST2.5 LTL-307E-012A
FUSE 112578 FUSE,20MM,T,500MA,250V,K/U/CS DOM , E, R
ASS’Y 106993 CON ASS’Y,DS,1P,1050MM DOM , E
110154 CON ASS’Y,DS,9P DOM , E
107375 CON ASS’Y,DS,8P,5395,210MM DOM , E, R
110152 CON ASS’Y,DS,2P,250T08,5264,150MM DOM , E, R
112378 MIC,UNIT,CONDENSOR,1K,CON ASSY 2P 300MM DOM , E, R
112274 SPEAKER,UNIT,FULL,3,16OHM,1W,PA-2100RC DOM , E, R
ASS’Y
LED B’D

5
TOP & BOTTOM VIEW OF P.C BOARD

6
TOP & BOTTOM VIEW OF P.C BOARD

7
WIRING DIAGRAM

8
BLOCK DIAGRAM

9
SCHEMATIC DIAGRAM

10

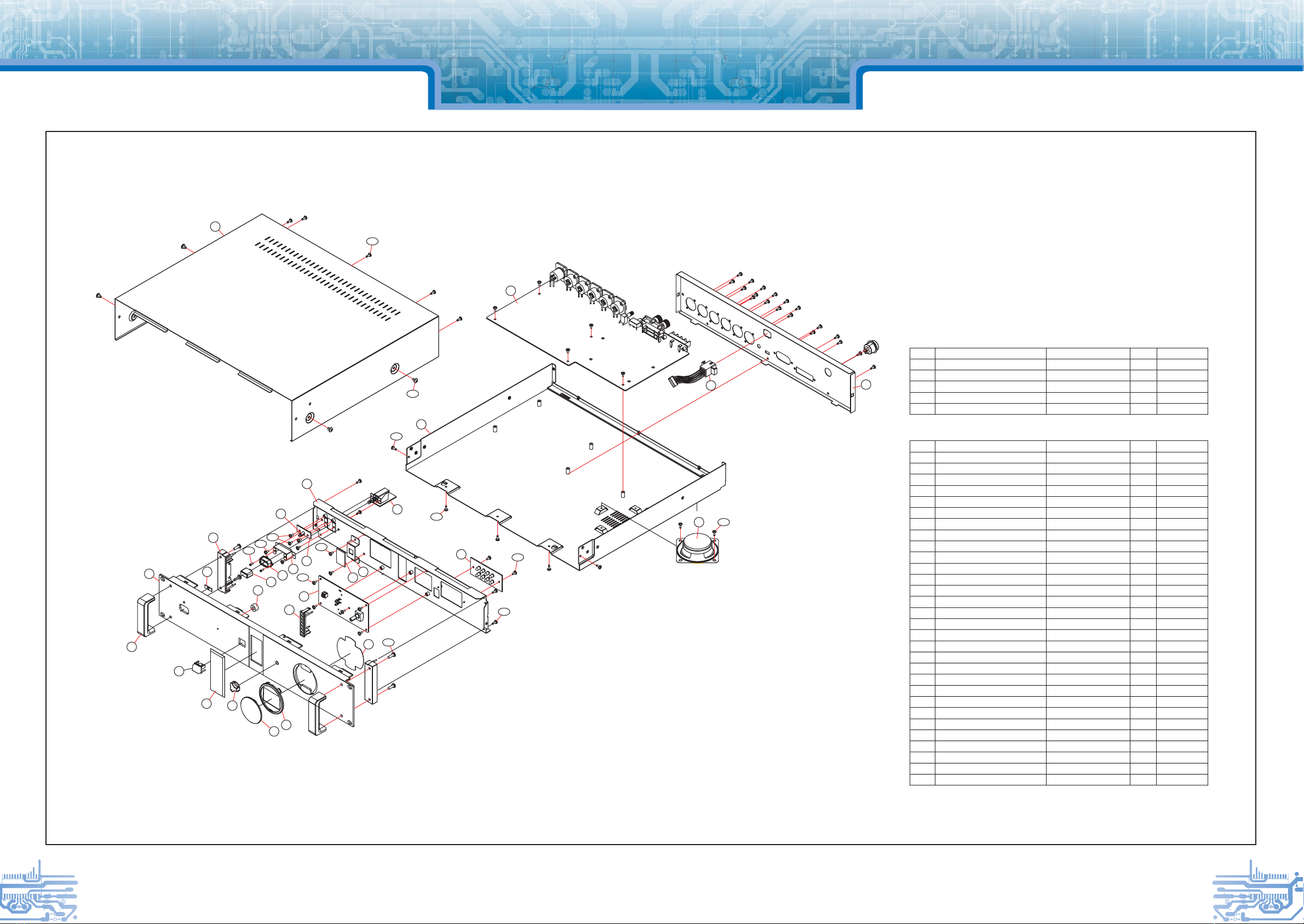

EXPLODED VIEW OF CABINET & CHASSIS/
MECHANICAL PARTS LIST
No PART NAME Q'TYPART NUMBER REMARK
13
12
11
10
8
3
1
2
6
5
4
7
9BACK CHASSIS
MAIN CHASSIS
FRONT PANEL
CENTER PLATE
TOP COVER
HANDLE
HANDLE GUIDE
FRONT CHASSIS
8603988810
6121670210
8543004800
048575002013
2
1
1
2
1
1
1
1
1
8602001500
6122001600
6171001800
6102002400
1
LED HOUSING 8545003300
14
15
16
17
18
BEZEL BKT 6505002400
1
Supporter Con Mic 6715000200
1
BKT SWITCH 6505945710
1
M-FIRE B'D 400000441A
1
M-LED8 B'D 400000444A
1
SP Unit 3" 16ohm, 1W 5008000210
1
S4
S3
S2
BM 3*6N 188109340063R
S1
품 명No, 수량규 격
CONTROL KNOB(D) 048543004500
1
S5
1
2
3
4
5
6
7
8
9
17
16
15
18
19 20
21
22
23
24
25
26
10
11
12
13
27
28
19
20
21
22
23
24
25
26
27
28
29
8545003010
TACT KNOB
14
29
WINDOW DECO 048543972429
WINDOW FIRE 048575985217
8595000100
FILTER
POWER KNOB 048545981010
DECO KNOB POWER 048545980916
LED B'D
LED LIMITER 8545993390
400000443A 1
1
POWER SW B'D 400000442A
LED LENS 8575995010 1
Condensor Mic Unit 5010001000 1
1
MAIN B'D 400000440A
Connector Ass'y 4353987210
FELT 6735991510
30
1
1
1
1
1
1
1
2
S1
S4
S1
S1
S2
S1
S3
S4
S4
S4
S4
S5
S4
11
EXPLODED VIEW OF CABINET & CHASSIS/
MECHANICAL PARTS LIST

www.inter-m.com
MADE IN KOREA
2008. 7 90
