Inter-m RM-8000 User manual

RM-8000 Remote MIC Station
Operation
Manual

RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
This symbol is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the user to the presence of
important operation and maintenance (servicing) instructions
in the literature accompanying the appliance.
Caution: These servicing instructions are for use by qualified service
personnel only. To reduce the risk of electric shock, do not any
perform any servicing other than that contained in the operating
instructions unless you are qualified to do so.
Attentions: Pour prévenir les chocs électriques ne pas utiliser cette fiche
polarisée avec un prolongateur, une prise de courant on une
autre sortie de courant, sauf si les lames peuvent étre
insérées à fond sans en laisser aucune partie à découvert.
Warning
*Do not install this equipment in a confined space such as a book case or
similar unit.
*The apparatus shall not be exposed to dripping or splashing and no
objects filled with liquids, such vases, shall be placed on the apparatus.
*Worded: “WARNING FOR YOUR PROTECTION PLEASE READ THE
FOLLOWING-WATER AND MOISTURE: Unit should not be used near
water(e.g. near a bathtub, washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool, etc). Care should be taken so than
objects do not fall and liquids are not spilled into the enclosure through
openings.”
NOTE : This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.
* It can be heated up if you use this product in closed box or ill-ventilated place.

1
RM-8000(REMOTE MIC STATION)
Contents
Welcome ................................................................2
Unpacking ..............................................................2
Short Form Instructions ..........................................2
Installation
Environment.........................................................4
Important Safety Instructions ...............................4
Features .................................................................6
Front Panel.............................................................7
Rear Panel .............................................................9
Priority of Broadcasting ........................................11
Operation..............................................................11

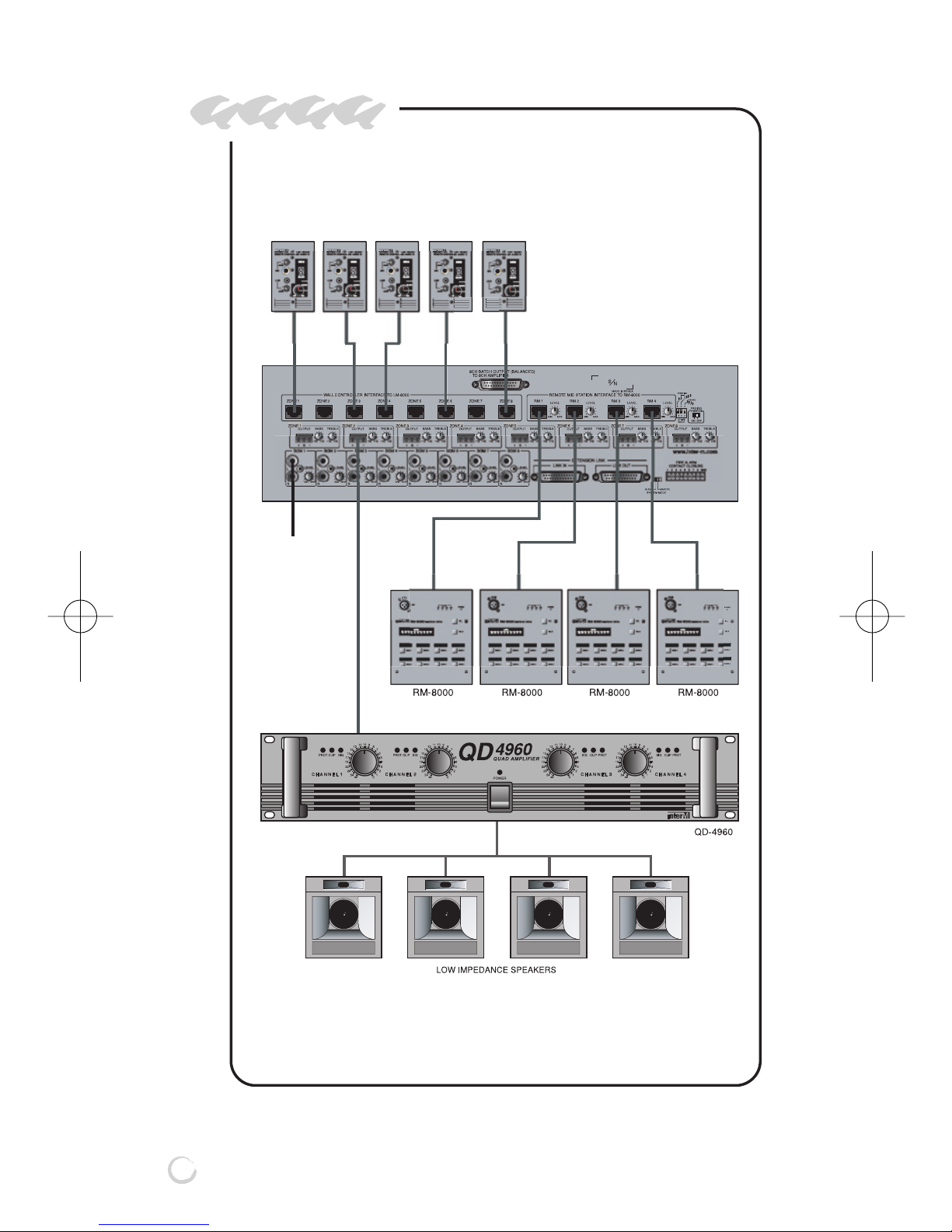

Connection ...........................................................14

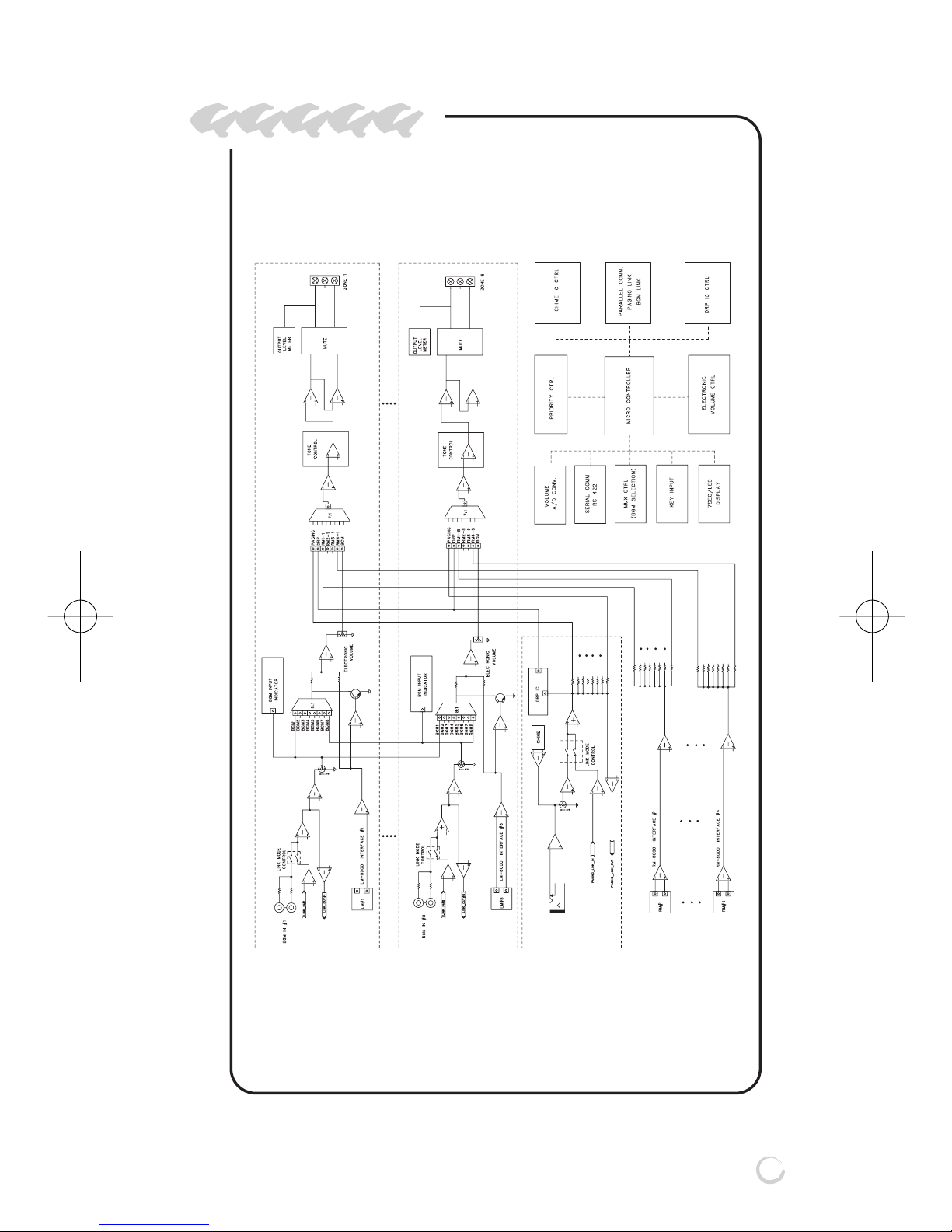

Block Diagram ......................................................15
Specifications .......................................................16
Service
Procedures.........................................................17
Schematic ..........................................................17
Parts List ............................................................17
Warranty...............................................................17

2RM-8000(REMOTE MIC STATION)
Unpacking
Please take a few minutes to read this manual to
familiarize yourself with important information
regarding installation, product features, and operation.
As with most electronic devices, ORIGINAL
PACKAGING (OR EQUAL) IS REQUIRED in the
unlikely event that the product needs to be returned
for servicing.
Short Form Instructions
1. Do not connect the unit to the AC mains until some
preliminary settings are completed. AC mains
should only be switched on later in this procedure.
Ensure that the AC mains power and phantom
power switches are in the OFF position.
2. Set all the output volume lever down to the minimum.
Welcome
A personal welcome to you from the management
and employees of Inter-M
All of the co-workers here at Inter-M are dedicated
to providing excellent products with inherently
good value, and we are delighted you have
purchased one of our products.
We sincerely trust this product will provide years
of satisfactory service, but if anything is not to
your complete satisfaction, we will endeavor to
make things right.
Welcome to Inter-M, and thank you for becoming
part of our worldwide extended family!

3
RM-8000(REMOTE MIC STATION)
3. Connect each zone OUTPUT of the PX-8000 to the
corresponding zone of an amplified loudspeaker system.
4. Connect the LOCAL AUDIO SOURCES (tape deck,
CD player, tuner, etc..) to the BGM inputs on the
PX-8000 and turn the input gain control knobs (on
the rear panel) to half way.
5. Connect the AC mains power cord to the PX-8000
and switch the AC mains power to the ON position.
Switch ON the PHANTOM POWER if condenser
microphones will be used with this system.
6. Press the BGM select button located on the front panel
until the illuminated number displays the desired input
channel number for the local audio source.
7. Slowly side the output volume lever up on the front
panel to increase the volume being sent to the
amplifier for the loudspeaker system until the
desired level is reached. Obviously, if there is
distortion, feedback, or other cause for concern,
reduce the signal level of the input or the output.
8. Connect one or more LM-8000 to each of the
ZONE connectors as needed. There is no need to
set the address. Connect a remote audio source or
remote microphone to the LM-8000. Use the gain
and BGM select button on the unit instead of the
ones located on the PX-8000. The LM-8000 has a
higher priority than the PX-8000 and will override
the gain and BGM Selection of the PX-8000.
9. Connect one or more (maximum 4) RM-8000 units
to the remote mic input connector on the back of
the PX-8000. Connect a microphone to each RM-
8000. Select one or more zones using the
selectors on the front of the RM-8000. Speak into
the microphone and adjust the signal level.
10. Set the level for each zone as desired by using
the zone gain control on the PX-8000 or by using
the gain control of the LM-8000, if so
equipped.the PX-8000 to the corresponding zone
of an amplified loudspeaker system.

4RM-8000(REMOTE MIC STATION)
Installation
Environment
Never place this product in an environment which
could alter its performance or reduce its service life.
Such environments usually include high levels of
heat, dust, moisture, and vibration.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by
the manufacturer.
12. Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with
the apparatus. When a cart is
used, use caution when moving
S3125A

5
RM-8000(REMOTE MIC STATION)
the cart/apparatus combination to avoid injury from
tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
- AVOID EXCESSIVE HEAT, HUMIDITY, DUST AND
VIBRATION
Keep the unit away from locations where it is likely to
be exposed to high temperatures or humidity-such as
near radiators, stoves, etc. Also avoid locations
which are subject to excessive dust accumulation, or
to vibration that could cause mechanical damage.
- AVOID PHYSICAL SHOCKS
Strong physical shocks to the unit may cause
damage. Handle the unit with care.
- DO NOT OPEN THE CASE OR ATTEMPT REPAIRS
OR MODIFICATIONS YOURSELF
This product contains no user-serviceable parts.
Refer all maintenance to qualified Inter-M service
personnel. Opening the case and/or tampering with
internal circuitry voids the warranty.
- ALWAYS POWER OFF BEFORE MAKING CONNECTIONS
Always turn the AC mains OFF before connecting or
disconnecting cables. This is important to prevent
damage to the unit itself as well as other connected
equipment.
- HANDLE CABLES CAREFULLY
Always plug and unplug cables (including the AC
mains power cord) by gripping the connector, not the
cord.
- CLEAN WITH A SOFT DRY CLOTH
Never use solvents such as benzine or paint thinner
to clean the unit. Wipe clean with a soft, dry cloth.

6RM-8000(REMOTE MIC STATION)
Features
■
■
Convenient installation and construction without need
of ID setting.
■■
■
Selection of various Chime broadcastings for MIC
broadcasting (PRE/POST).
■
■
Convenient priority broadcasting.
■■
■
Adoption of output signal level display.
■
■
Adoption of RS-422 communication method to
support a long distance.

7
RM-8000(REMOTE MIC STATION)
2 3
7
6
1
5
4
Front Panel
11
11.LEVEL METER
Displays level of the output volume in MIC broadcasting.
22
22.MIC JACK
A terminal to connect Condenser MIC.
Dynamic MIC can be used.
33
33. IN-USE LED
Displays the using status of 4 Remote MIC Stations.
44
44.POWER LED
If power supply is applied, the Power LED turns on.
55
55.ALL
Has toggle function as a switch to select all broadcasting
areas.

8RM-8000(REMOTE MIC STATION)
66
66.TALK
Broadcasts with the button pressed, as a switch to
start broadcasting after selecting the broadcasting
area. Release the button to end broadcasting. During
broadcast, "R" is displayed on the relevant display of
both PX-8000 and LM-8000.
77
77.AREA SELECTION BUTTON
Turns on if pressing the switch to select the area to
broadcast and turns off if pressing it again.

11
11.MODULAR JACK
Terminal to connect to PX-8000 using CAT5.
22
22.OUTPUT VOLUME
Volume to adjust sound volume of MIC and chime
broadcasting.
33
33.MONITOR SPEAKER VOLUME
MON SPK (Monitor Speaker): Volume to adjust sound
volume of the built-in Monitor Speaker.
9
RM-8000(REMOTE MIC STATION)
4
321
Rear Panel
PIN Number
1
2
3
4
5
6
7
8
Functions Color
Tx- BLU
Tx+ BLU/WHT
Rx- GRN
Rx+ GRN/WHT
GND ORG
VCC ORG/WHT
Audio+ BRN
Audio- BRN/WHT

10 RM-8000(REMOTE MIC STATION)
44
44.CHIME MODE DIP S/W
Switch to select Chime Mode. Setting and operation is
same as PAGING MIC chime function of PX-8000.
A. SWITCH1 ON : Chime increased by 2 tones for
starting is broadcast when
pressing the TALK button.
B. SWITCH2 ON : Chime increased by 4 tones for
starting is broadcast when
pressing the TALK button.
C. SWITCH3 ON : Chime decreased by 4 tones for
ending is broadcast when
releasing the TALK button.
D. SWITCH1, 2 ON : Same as for SWITCH1 ON.

11
RM-8000(REMOTE MIC STATION)
Priority of Broadcasting
This system broadcasts according to following priority:
PAGING MIC > FIRE ALARM (REC&PLAY IC) >
RM-8000 MIC > LM-8000 > PX-8000 BGM
Operation
■
■
RM-8000 CONNECTION
- Connect to the RM-8000 connection hole on the rear
side of PX-8000 using a CAT5 (UTP) wiring material.
- Immediate broadcasting is allowed without separate
ID setting.
- 4 sets of RM-8000 can be connected.
- If powering on, buttons sequentially turn ON/OFF
simultaneously with power LED turned on.
- Flashing of buttons mean defect of the unit or
connection status, thus check connection status and
the unit.
■■
■
RM-8000 MIC BROADCASTING
- Connect a MIC to the MIC input jack. Both dynamic
MIC and condenser MIC can be used.
- Set the Chime Mode Switch on the rear side of
RM-8000.
1) SWITCH1 ON : Chime increased by 2 tones for
starting broadcast is emitted
when pressing the TALK button.
PX-8000 RM-8000

12 RM-8000(REMOTE MIC STATION)
2) SWITCH2 ON : Chime increased by 4 tones for
starting broadcast is emitted
when pressing the TALK button.
3) SWITCH3 ON : Chime decreased by 4 tones for
ending broadcast is emitted
when releasing the TALK button.
4) SWITCH1, 2 ON : Same as for SWITCH1 ON.
- The button turns on if pressing the relevant button of
the area to broadcast. All zones of the PX-8000,
where the relevant RM-8000 is connected, are
selected if pressing the ALL button.
- MIC broadcasting is done with the TALK button
pressed. In this case, perform broadcasting after
checking start of Chime broadcasting using a built-in
monitor speaker.
- Adjust MIC output volume of RM-8000 and input
volume of PX-8000 while listening to broadcasting
volume or checking the level meter.
- “R” is displayed on the BGM display window of PX-
8000 and LM-8000 of the broadcasting area.
- Release the TALK button pressed to end
broadcasting. TALK button is on PTT method.
- Check ending of Chime broadcasting using a built-in
monitor speaker.
■■
■
RM-8000 PRIORITY BROADCASTING
- Broadcasting of any RM-8000 is allowed in the non-
broadcasting area.
- Zone being broadcasting has priority with the
order of RM1 > RM2 > RM3 > RM4.
- If the relevant area button turns off when pressing
the broadcasting area button and then pressing

13
RM-8000(REMOTE MIC STATION)
TALK button, other RM is already broadcast in the
same area, and the user can know which RM-8000
is broadcasting with the [IN-USE LED] turned on.
- If the area button selected during broadcasting turns
off and the other [IN-USE LED] turns on, the other
RM-8000 with a high priority is broadcasting in the
same area.
■■
■
RM-8000 BROADCASTING IN LINKED SYSTEM
If using the PX-8000 together, MIC broadcasting of
the RM-8000 is not allowed to the output area of the
other PX-8000. Broadcasting is allowed to only the
output area of PX-8000 where the RM-8000 is
connected.

14 RM-8000(REMOTE MIC STATION)
Local BGM
PX-8000
LM-8000 LM-8000 LM-8000 LM-8000 LM-8000
Connections

15
RM-8000(REMOTE MIC STATION)
Block Diagram

16 RM-8000(REMOTE MIC STATION)
Specifications
RM-8000
Audio Input MIC -50dB(Balanced)
Frequency Response (100Hz ~ 10kHz) ±3dB
S/N Better than 65dB
T.H.D. Less than 0.05%
Serial Communication Speed 9600 bps
Interface
Communication Distance
Maximum 300m
(RS-422)(using UTP Cat5)
Operation Temperature -10℃~ +40℃
Power Source DC 24V, 300mA
Weight (SET) 1.5kg/3.2lb
Dimensions (SET)
200(W)x70(H)x206(D)mm
7.9(W)x2.8(H)x8.1(D)in
* Specifications and design subject to change without notice.

Service
Procedures
Ensure the problem is not related to operator error, or
external system devices, Once it is certain that the
problem is related to the product contact your warranty
provider as described in the warranty section of this
manual.
Schematic
A Schematic is available by contacting your warranty
provider.
Parts List
A Parts List is available by contacting your warranty
provider.
Warranty
Warranty terms and conditions vary by country and may
not be the same for all products. Terms and conditions of
warranty for a given product may be determined first by
locating the appropriate country which the product was
purchased in, then by locating the product type.
To obtain specific warranty information and available
service locations contact Inter-M directly or the authorized
Inter-M Distributor for your specific country or region.
17
RM-8000(REMOTE MIC STATION)

MADE IN KOREA
www.inter-m.com
August 2007 9000004020
Inter-M, Ltd. (Korea) began operations in 1983.
Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.
Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).
The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in Japan, Europe, and the U.S.A.
With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.
INTER-M AMERICAS, INC.
13875 ARTESIA BLVD. CERRITOS, CA 90703 USA
TEL : [phone], FAX : [phone]
Home Page : http://www.inter-m.net, E-mail : [email protected]
INTER-M Corporation
SEOUL OFFICE:653-5 BANGHAK-DONG, DOBONG-KU, SEOUL, KOREA
TEL : [phone]~8, FAX : [phone]
Home Page : http://www.inter-m.com, E-mail : [email protected]
