Installation
Unpacking
Unpacking
Although your TP-6231A is neither complicated nor difficult to operate, we recommend you take a few minutes
to read this brief manual and familiarize yourself with the important information regarding product features,
setup and operation.
As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely event
the product must be returned for servicing, the original packaging (or reasonable equivalent) is required.
Installation
Environment
Never place this product in an environment which could alter its performance or reduce its service life. Such
environments usually include high levels of heat, dust, moisture, and vibration.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
S3125A

TELEPHONE PAGING
3
TP-6231A
Features
Features
- TELEPHONE PAGING
When connected to a regular telephone line (trunk) or via telephone switching station and a regular telephone
this device can perform paging or broadcasting by using normal telephone, cell phone and public telephone.
- SELECT 2 OR 4 WIRE CONNECTION TYPE
2 wire: same method as general telephone
4 wire: Exchange interface type (2W E&M)
- OFF HOOK SIGNAL DETECT (CALL END)
- AUTO RESPONSE SERVICE (ARS)
ARS function is available with voice prompts and broadcasting services for user convenience. Message can
directly be recorded by the user.
- SET PASSWORD
User password can be set.
- BROADCAST MODE SELECTION
Depending on user requirement, broadcasting mode can be selected.
- VOICE RECORD FUNCTION
Broadcasting messages can be recorded by the user.
Up to 20 seconds can be recorded.
Contents and Accessories
Contents and Accessories
1. Power Cord x 1
2. Lan Cable x 1
3. Telephone Cable x 1
4. 24p Cable x 1
5. Operation Manual x 1

TELEPHONE PAGING
4TP-6231A
Equipment Set-up and Check List
Equipment Set-up and Check List
1. Make sure system is turned off before configuring the set-up.
2. PD-6359 REMOTE CONTROL
If remote control of PD-6359 is required, connect the power remote terminal of the TP-6231A (Terminal 5
on rear diagram of TP-6231A) to the remote terminal of PD-6359.
3. Telephone line connection (2 configurations).
- 2 WIRE TELEPHONE INTERFACE
Connect a standard telephone (RJ11) line wire to the TP-6231A(Terminal 13 on rear diagram of TP-6231A)

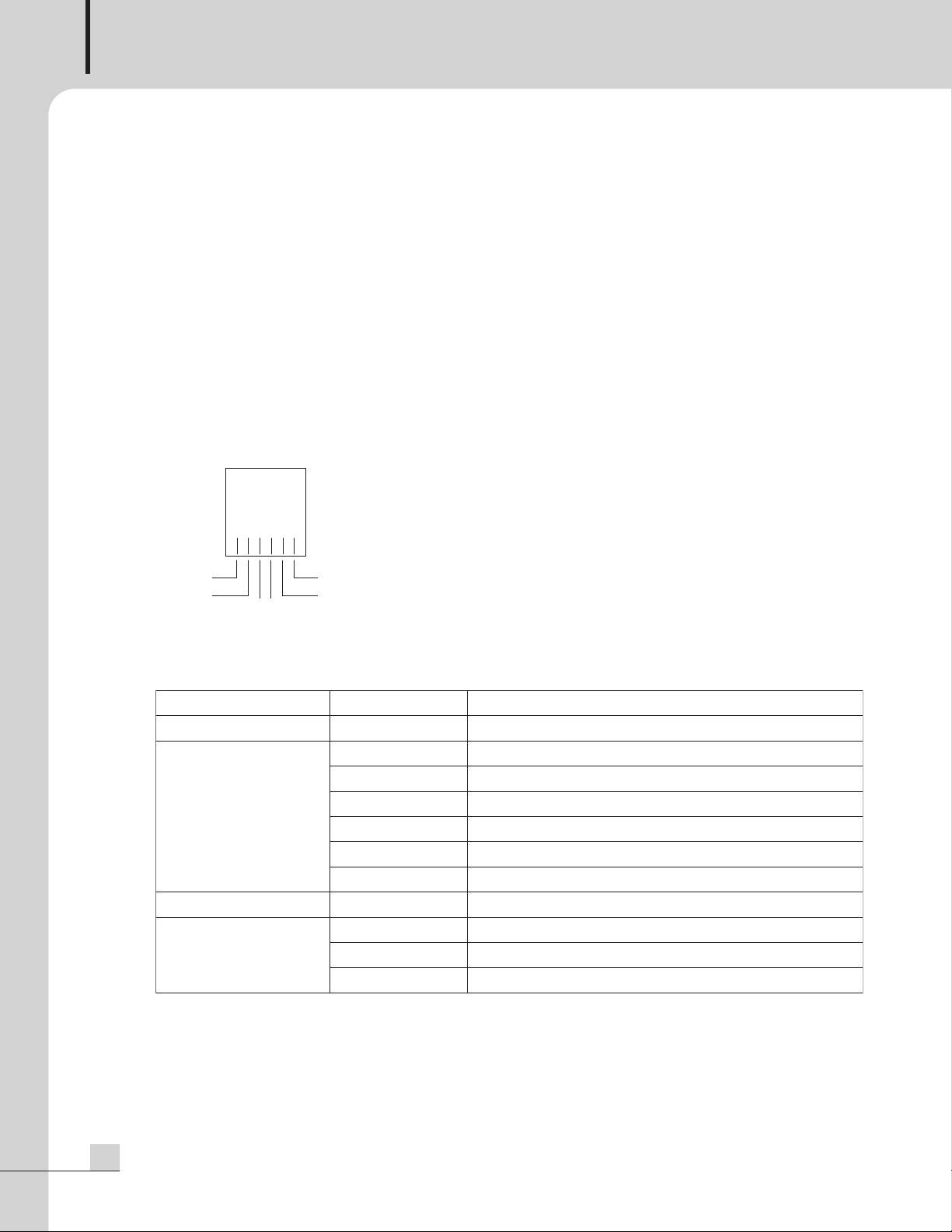

- 4 WIRE (2W E&M)
Refer to figure below for connector pin assignment. Used if you want to install a 2W E&M where private
exchange is installed.
4. Broadcast Management Dial CODE
Telephone broadcasting Dial Codes. (Based on dial buttons)
※Note: When the paging broadcasting must be finish an asterisk (*), please exit by pressing the button. An
asterisk (*) If you do not press the broadcast button and you can not finish properly. In this case, the
power switch OFF then ON if it is restored.
① ⑥
⑤
②
③ ④
TELEPHONE
INTERFACE
①MOUTH
②GND
③RING
④TIP
⑤EAR
⑥-48V
TYPE CODE REMARK
Broadcasting *77# ALL Broadcasting
Group Zone Broadcasting
*70# *70# : 01~08 Local ALL Broadcasting
*71# *71# : 09~16 Local ALL Broadcasting
*72# *72# : 17~24 Local ALL Broadcasting
*73# *73# : 25~32 Local ALL Broadcasting
*74# *74# : 33~40 Local ALL Broadcasting
*75# *75# : 41~48 Local ALL Broadcasting
Normal Broadcasting *??# *??# : Select one from 01 to 48
Additional Functions
*#*# *#*# : Recording function
*88# *88# : Switch to user mode
*99# *99# : Release user mode

TELEPHONE PAGING
5
TP-6231A

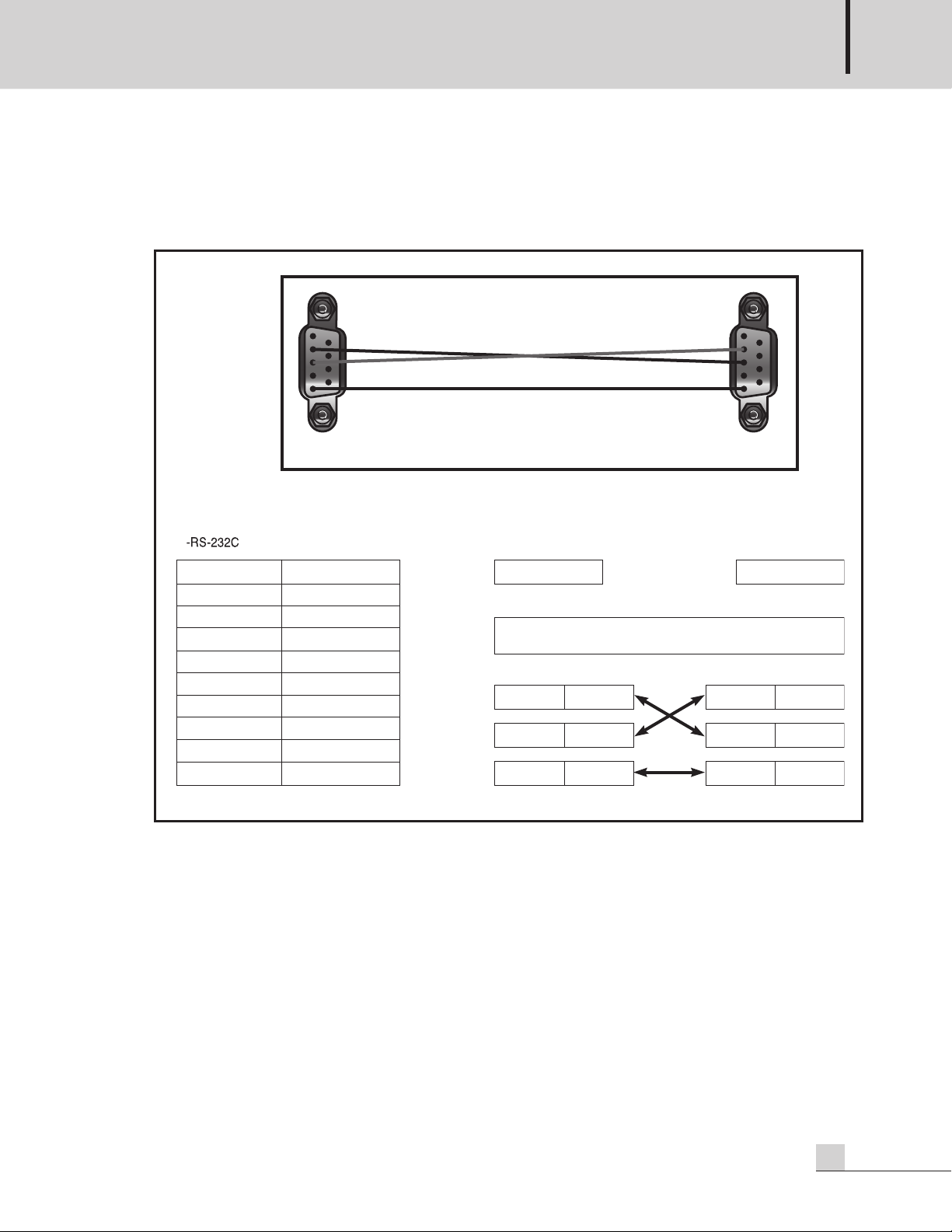

5. SERIAL CONTROL and COMMANDS)
Serial Communication type: 1stop bit, non-parity, 8bits data, 9600 bps.
CONTROL COMMANDS (If serial communication terminal is used)
TP-6231A enables each commends.
6. Address Setting
1) ECS-6216P / RME-6108
If connected with ECS-6216P or RME-6108, set address number for proper connection conditions.
2) When connecting to ECS-6216P directly (Can also be used with RM-6024)
- If Connected to RM1 terminal of ECS-6216P set address number of TP- 6231 to 1.
- If Connected to RM2 terminal of ECS-6216P set address number of TP- 6231 to 9.
CHANNEL
1. START CODE
2. SET
3. Command types
4. Operation commands
5. CHANNEL Number
6. SPACE
CHANNEL 1
54Hex
60Hex + SET Number (Top 4BITS: MSB)
70Hex + SET Number (Sub 4BITS: LSB)
50Hex + Type of Number
23Hex : ON, 26Hex : OFF
30 - 3FHex
FFHex
REMARK
SET number equal to the area code (01 - FFH)
50Hex=ALL, 51Hex=GROUP, 52H=EACH
23Hex : When you choosing broadcast local
26Hex : HOOK-OFF
Select CHANNEL 1-16
END CODE
RM1
INPUT
AUDIO
OUT
AUDIO
OUT
RM2
INPUT
ECS-6216P
RM1 RM2
TP-6231A or RM-6024 TP-6231A or RM-6024
Address No:
select 9
Address No:
select 1

TELEPHONE PAGING
6TP-6231A

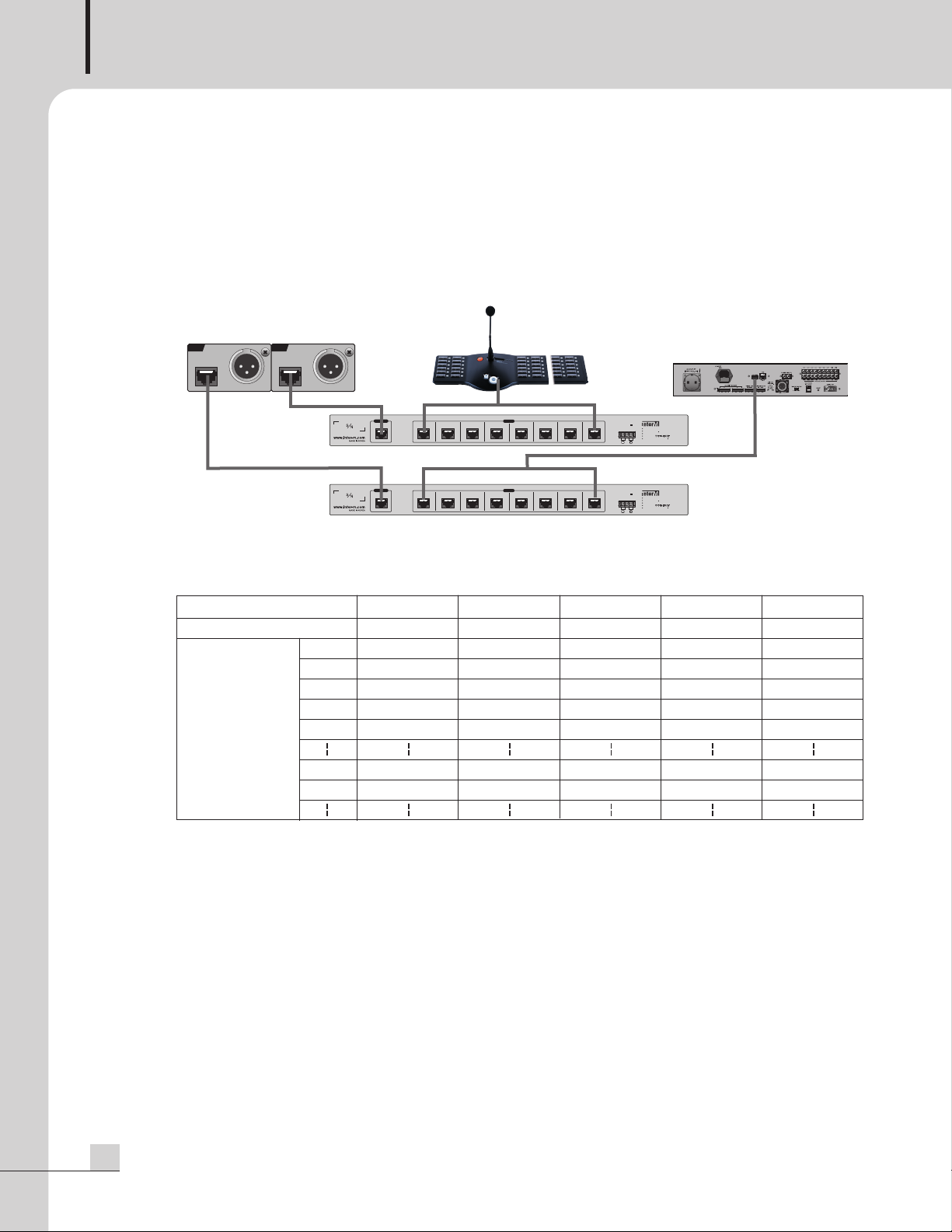

3) When connecting to ECS-6216P through RME-6108 (Can also be used with RM-6024)
- If TP-6231A is connected to RME-6108 connected with RM1 terminal, address number should be selected
among 1~8.
- If TP-6231A is connected to RME-6108 connected with RM2 terminal, address number should be selected
among 9~16.
4) How to set up equipment address number for TP-6231A.
Setting should be as table below:
*Data value when Dip Switch is in ON position
(Ex: when Dip Switch number 1 and 3 are ON, Data value 1 and 4 is added, so equipment address
number will be 5.)
7. Setup the SECURUTY NUMBER, DELAY TIME switch of rear panel.
If setup is wrong, OPERATION LED on the front panel will be ON.
8. Adjust the line output level by using volume on the rear panel.
RM1
INPUT
AUDIO
OUT
AUDIO
OUT
RM2
INPUT
ECS-6216P
RME-6108
RME-6108
RM1 RM2
TP-6231A or RM-6024 TP-6231A or RM-6024
Address No:
select 9~16
Address No:
select 1~8
RM 1 RM 2 RM 3 RM 4 RM 5 RM 6 RM 7 RM 8
INPUT
OUTPUT
ϊۑ@Ţ۩م@ێԟێ@ۘڽ@Ĉڐ@Ê۾@ɜট۩ۉ@کێ@ۘںɩ@
࠭ҿșڽ@ّçǦ@ǷҜθ@ϊݖݖ@ψֲ֫٤N
܆Ͽࠤ@Z@REMOTE MIC EXTENDER
ЂʠϿ@Z RME 6108
܄ÿۖͶ@Z DC 24V, 150mA
܆ܖۜϿ@Z
ďÖݖڜࣶ TEL : [phone]
DC 24V
RM 1 RM 2 RM 3 RM 4 RM 5 RM 6 RM 7 RM 8
INPUT
OUTPUT
ϊۑ@Ţ۩م@ێԟێ@ۘڽ@Ĉڐ@Ê۾@ɜট۩ۉ@کێ@ۘںɩ@
࠭ҿșڽ@ّçǦ@ǷҜθ@ϊݖݖ@ψֲ֫٤N
܆Ͽࠤ@Z@REMOTE MIC EXTENDER
ЂʠϿ@Z RME 6108
܄ÿۖͶ@Z DC 24V, 150mA
܆ܖۜϿ@Z
ďÖݖڜࣶ TEL : [phone]
DC 24V
Pin No. 1 2 3 4 5
Data 1 2 4 8 16
1 ON
2 ON
3 ON ON
4 ON
Address 5 ON ON
15 ON ON ON ON
16 ON

TELEPHONE PAGING
7
TP-6231A

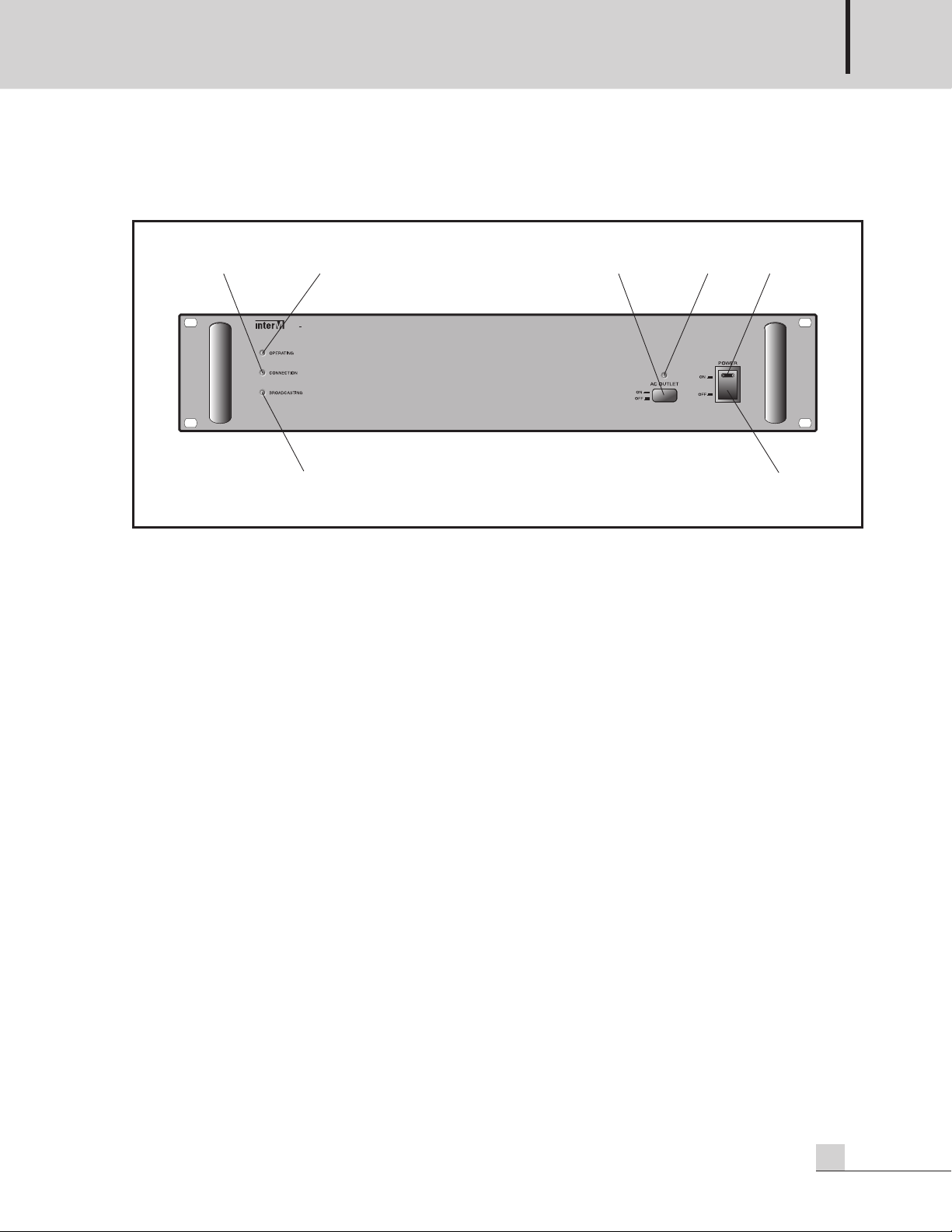

Front Panel
Front Panel
1. CONNECTION LED
LED illuminates when the phone is connected.
2. OPERATING LED
This LED displays the operating status of equipment. When the state is normal, the LED flashes, and when
Off indicates fault.
3. BROADCASTING LED
LED will be ON if broadcasting is connected or being broadcasted.
4. AC OUTLET SWITCH
Turns rear AC OUTLET on or off manually.
5. AC OUTLET LED
It will be on when AC OUTLET switch is pushed ON.
6. POWER LED
Indicated power on/off status.
7. POWER SWITCH
Turns TP-6231A ON/OFF.
612
7
3
54
TP 6231A TELEPHONE PAGING

TELEPHONE PAGING
8TP-6231A

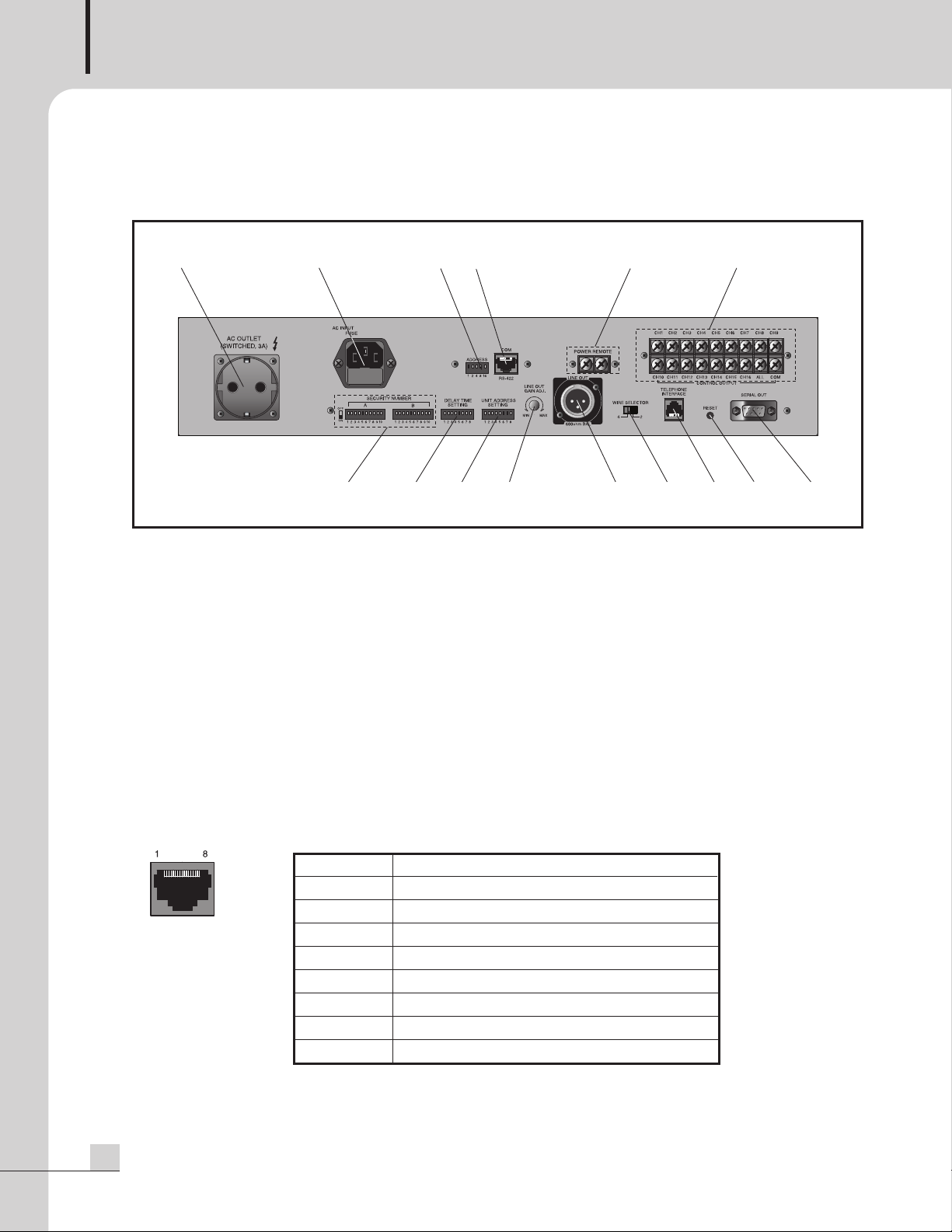

Rear Panel
Rear Panel
1. AC OUTLET (SWITCHED)
AC power output terminal, max 3A can be connected.
Outlet is on if broadcasting or if manually activated by front AC OUTLET.
2. AC INLET
AC power input connecting terminal.
3. ADDRESS Switch
Sets the equipment address number.
Should be set only when it is connected to ECS-6216P or RME-6108.
Refer to page 5 of Equipment Setting for more detailed information
4. DATA & AUDIO Terminal (RJ-45)
Connects to ECS-6216P or RME-6108 and supplies data and audio signal.
12 56
78910 1112131415
3 4
PIN NO. Functions
1 RS-422 Data - TX+
2 RS-422 Data - TX-
3 RS-422 Data - RX-
4 Live Data
5 GND
6 RS-422 Data - RX+
7 Balanced Audio Output - HOT
8 Balanced Audio Output - COLD

TELEPHONE PAGING
9
TP-6231A
5. POWER REMOTE TERMINAL
Connects to PD-6359 and once connected, the output contacts will be broadcast.
6. CONTROL OUTPUT TERMINAL
When broadcasting starts, a user-selected zone outputs contact closure to terminal of the channel. Read
instructions on page 4, 4. Broadcast Management Dial CODE.
※Connect terminal of the zone you selected and COM terminal to the contact closure device.
i.e. Select Zone 1 and contact closure is output from CH1 once broadcasting starts.
7. SECURITY NUMBER SETTING SWITCH
- A TYPE : The tens input value
- B TYPE : The first number input value
8. DELAY TIME SETTING SWITCH
- TEL OFF Signal Time Adjustment (1~4)
A call may not end properly if not ended by pressing *button of telephone. Set the switch in accordance
with the use.
The table on the above shows call End Signal the device
can detect as the switch is set. Once the signal is detected,
the call is rightly ended.
1 2 3 4 5 6 7 8
TEL OFF Signal timing adjustment Determine the number Device operation
of RING method installation
1 2 3 4 5 6 7 8 9 10 S/W SETTING
1 2 3 4 5 6 7 8 9 0 Input Value
1 2 3 4 5 6 7 8 9 10 S/W SETTING
1 2 3 4 5 6 7 8 9 0 Input Value
Mode Switches Ts
(ON TIME, OFF TIME) T
1 2 3 4
0 OFF OFF OFF OFF 300 ms ± 50 ms 600 ms ± 100 ms
1 ON OFF OFF OFF 350 ms ± 50 ms 700 ms ± 100 ms
2 OFF ON OFF OFF 400 ms ± 20 ms 800 ms ± 100 ms
3 OFF OFF ON OFF 500 ms ± 30 ms 1000 ms ± 60 ms
4 OFF OFF OFF ON 500 ms ± 50 ms 1000 ms ± 100 ms
T
ON TIME OFF TIME

TELEPHONE PAGING
10 TP-6231A
- RING COUNT.
Determines the number of RINGs before the TP-6231A will answer when receiving a call.
- Operational Method Setup
Select from 2 possible operation modes as per table below:
※DIP switches during operation, must not operated, press the RESET switch.
9. UNIT ADDRESS SETUP SWITCH
It is the switch which allocates the equipment number. (Input in hex. Value)
MSB LSB
This switch is used when sending the equipment address number or status information via the RS232
communication port terminal (Connector 15 on rear panel).
10. LINE OUT GAIN VOLUME
Adjusts volume output level.
11. LINE OUTPUT TERMINAL
600ΩBALANCED OUTPUT.
12. 4 & 2 WIRE SELECTOR SWITCH
SELECTOR SLIDE switch selects between 4 & 2 WIRE operation mode.
13. TELEPHONE INTERFACE
RJ12 Connector. This terminal connects to the Telephone Line. Used for both 4 wire and 2 wire mode.
Pin 1 Mouth, Pin 2 Ground, Pin 3 Ring, Pin 4 Tip, Pin 5 Ear, Pin 6 -48V
14. RESET SWITCH
Status will be restored if normal operation.
6* 7*
DIP Switch 1 2 3 4 5 6 7 8
Data 8 4 2 1 8 4 2 1
Example OFF OFF ON ON OFF ON OFF ON
Result 63 75
7 8 Operational Method
OFF OFF Normal mode
ON OFF SECURITY No. Skip mode
OFF ON DIRECT ALL ZONE Broadcasting mode
ON ON RESERVED
5 6 RING COUNT
OFF OFF 1
OFF ON 2
ON OFF 3
ON ON 4

TELEPHONE PAGING
11
TP-6231A
15. SERIAL COMMUNICATION TERMINAL
RS-232C SERIAL communication terminal (RX/TX).
Figure below shows pin configuration and proper wiring.
TP-6231(Female) Controller
Pin No.
1
2
3
4
5
6
7
8
9
TP-6231Definition
NC
RxD
TxD
NC
GND
NC
NC
NC
NC
# 2 RxD
# 3 TxD
# 5 GND
# 2RxD
# 3TxD
# 5GND
D-SUB 9Cable(Twisted RS-232C Cable)
Controller
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5

TELEPHONE PAGING
12 TP-6231A
Operation Flow Chart
Operation Flow Chart
*#*#
Direct All Zone Broadcasting Mode
DETECT RING
RING COUNT
PLAY ANNOUNCEMENT 1
USER MODE
PLAY ANNOUNCEMENT 16
OPER. MODE
PLAY ANNOUNCEMENT 2
Enter Securit y No .
Sec u ri ty No .
The n umbe r o f
errors
PLAY ANNOUNCEMENT 12
HANG UP
#2
PLAY ANNOUNCEMENT 7
PLAY ANNOUNCEMENT 4
Enter Broadcasting Code
CODE
Enter Numb er
Number
Enter '2'
#2 PLAY ANNOUNCEMENT 9
PLAY ANNOUNCEMENT 11
HANG UP
#3
#3
PLAY ANNOUNCEMENT 10
HANG UP
#1
PLAY ANNOUNCEMENT 6
SPEAK
Enter ' * '
HANG UP
PLAY ANNOUNCEMENT 16
PLAY ANNOUNCEMENT 3
PLAY ANNOUNCEMENT 8
REC ANNOUNCEMENT 16
NG
OK
USE R MO DE Dis able d
USER MODE Enable d
Normal Mode
Security No. Skip Mode
Security No. OK
Security No. NG
More than 4 times
Less than
4 times
*01#~*48# or *77#
Unused co de
*88#*99#
Higher lev el pr iority device is broadcasting
Ready to broadcast
1
0 *
#
PRIORITY
PLAY ANNOUNCEMENT 5 PLAY ANNOUNCEMENT 13
#1
HANG UP

TELEPHONE PAGING
13
TP-6231A
※ANNOUNCEMENT INFORMATION
NUMBER ENGLISH
1 Now you are connected to telephone paging.
2 Please enter the password.
3 You entered wrong password, please re-enter the password.
4Please press star and extension number then press pound or press 77 and pound
for all paging. If you want to start over, please press pound.
5 Now you are connected, please speak after chime then press star to finish star.
6 FOUR-TONE CHIME
7
You can record your greeting message. Please press number 1 for recording,
number 2 for stop, and number 0 for verify. If you want to go back to the previous
menu, please press pound.
8Now recording is completed. If you want to verify, please press number 0.
If you want to go back to previous menu, please press pound.
9 User mode has been set.
10 Wrong extension number. Please re-enter the extension number.
11 User mode has been cancelled.
12 You exceeded limit of trying password, Please use it next time.
13 Other device is in use . Please use it next time.
14 Limited time is exceeded. Please use it next time.
15 (BEEP)
16 (Recorded sound by the user)

TELEPHONE PAGING
14 TP-6231A
Applications
Applications
SOURCE

TELEPHONE PAGING
15
TP-6231A
Block Diagram
Block Diagram
AC HOT (IN)
AC HOT (OUT)
4 LINE TYPE
RING DETECT
OPERATING
CONNECTION
BROADCASTING
RJ-45 JACK
RS-485
Transceivers
SERIAL DATA COMMUNICATION RS-232 BUFFER
MAIN PROCESSOR
CPU
VOICE
RECORDER/PLAYER
I/O PART
DTMF RECEIVER
END SIGNAL
DETECTOR
CONTROL OUTPUT
17 CIRCUIT
SECURITY NUMBER
SETTING SWITCH
DELAY TIME
SETTING SWITCH
UNIT ADDRESS
SETTING SWITCH
2 & 4 WIRE METHOD
SELECTOR
TX RX
TX RX
TX
RX
D-SUB09P
c.w
+12V
TIP RING
+12V
E -48V GND
M
+12V
AC_IN1
AC_IN2
+5V

TELEPHONE PAGING
16 TP-6231A
Specifications
Specifications
※NOTE: In case of not matched operation temperature, please use the thermostat rack for another installation place.
※Design and specification are subject to be changed for the improvement of product quality without pre notice.
TP-6231A
Frequency Response (0dB , +1/-3dB Decrease) 80Hz - 8kHz
THD (0dB, 1kHz) Less than 1%
Signal to Noise ratio (S/N) Better than 65dB
AC OUTLET Switched : AC 230V/50Hz, 3A
Remote Power control Circuit number 1 Circuit
Speaker control circuit number 48 Circuit
Output control All, Zone(6group), Individual
Indicate Lamp STATUS LED of Four
LINE OUT BALANCED 600Ω, -62dB~12dB
Communication Protocol RS-422(Maximum 1km/3,280 feet)
Operation Temperature -10°C ~ +40°C
Power Source AC 230V, 50Hz
Power Consumption 3A (AC OUTLET + Equipment power consumption)
Weight (SET) 4kg/8.8lb
Dimensions (SET) 482(W)x88(H)x280(D)mm/19(W)x3.5(H)x11(D)in
440
482
280
88
※ DIMENSIONS

TELEPHONE PAGING
17
TP-6231A
Service
Service
Procedures
Take steps to insure the problem is not related to operator error or other products within the system. Information
provided in the troubleshooting portion of this manual may help with this process. Once it is certain that the
problem is related to the product contact your warranty provider as described in the warranty section of this
manual.
Schematic
A Schematic is available by contacting your warranty provider.
Parts List
A Parts List is available by contacting your warranty provider.
Variations and Options
Variations and Options
Variations
Products supplied through legitimate sources are compatible with local AC power requirements.
Options
No optional items are available for this product.
Warranty
Warranty
Warranty terms and conditions vary by country and may not be the same for all products. Terms and conditions
of warranty for a given product may be determined first by locating the appropriate country which the product
was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact Inter-M directly or the
authorized Inter-M Distributor for your specific country or region.

MADE IN KOREA
June 2021 154220
Inter-M, Ltd. (Korea) began operations in 1983.
Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.
Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).
The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in Japan, Europe, and the U.S.A.
With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.
Inter-M Americas, INC.
5666 CORPORATE AVE. CYPRESS, CA 90630
TEL : [phone], FAX : [phone]
Home Page : http://www.inter-m.net, E-mail : [email protected]
Inter-M Corporation
SEOUL OFFICE : 719, DOBONG-RO, DOBONG-GU, SEOUL, KOREA
TEL : [phone]~8, FAX : [phone]
Home Page : http://www.inter-m.com, E-mail : [email protected]
