TELEPHONE PAGING
1
TP-6231
Contents
Contents
Unpacking .......................................................................................................................................2
Installation
Environment....................................................................................................................................2
Important Safety Instructions.............................................................................................................2
Features............................................................................................................................................3
Equipment Set-up and Check List ................................................................................................4
Front Panel ......................................................................................................................................7
Rear Panel .......................................................................................................................................8
Operation Flow Chart..................................................................................................................12
Applications ..................................................................................................................................13
Block Diagram ..............................................................................................................................14
Specifications ................................................................................................................................15
Service
Procedures....................................................................................................................................17
Schematic.....................................................................................................................................17
Parts List .......................................................................................................................................17
Variations and Options ...............................................................................................................17
Warranty .......................................................................................................................................17

TELEPHONE PAGING
2TP-6231
Installation
Unpacking
Unpacking
Although your TP-6231 is neither complicated nor difficult to operate, we recommend you take a few minutes to
read this brief manual and familiarize yourself with the important information regarding product features, setup
and operation.
As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely event
the product must be returned for servicing, the original packaging (or reasonable equivalent) is required.
Installation
Environment
Never place this product in an environment which could alter its performance or reduce its service life. Such
environments usually include high levels of heat, dust, moisture, and vibration.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
3125A

TELEPHONE PAGING
3
TP-6231
Features
Features
- TELEPHONE PAGING
When connected to a regular telephone line (trunk) or via telephone switching station and a regular telephone
this device can perform paging or broadcasting by using normal telephone, cell phone and public telephone.
- SELECT 2 OR WIRE CONNECTION TYPE
2 wire: same method as general telephone
4 wire: Exchange interface type (2W E&M)
- OFF HOOK SIGNAL DETECT (CALL END)
- AUTO RESPONSE SERVICE (ARS)
ARS function is available with voice prompts and broadcasting services for user convenience. Message can
directly be recorded by the user.
- SET PASSWORD
User password can be set.
- BROADCAST MODE SELECTION
Depending on user requirement, broadcasting mode can be selected.
- VOICE RECORD FUNCTION
Broadcasting messages can be recorded by the user.
Up to 20 seconds can be recorded.

TELEPHONE PAGING
TP-6231
Equipment Set-up and Check List
Equipment Set-up and Check List
1. Make sure system is turned off before configuring the set-up.
2. PD-6359 REMOTE CONTROL
If remote control of PD-6359 is required, connect the power remote terminal of the TP-6231 (Terminal 5
on rear diagram of TP-6231) to the remote terminal of PD-6359.
3. Telephone line connection (2 configurations).
- 2 WIRE TELEPHONE INTERFACE
Connect a standard telephone (RJ11) line wire to the TP-6231(Terminal 13 on rear diagram of TP-6231)
- 4 WIRE (2W E&M)
Refer to figure below for connector pin assignment. Used if you want to install a 2W E&M where private
exchange is installed.
4. Broadcast Management Dial CODE
Telephone broadcasting Dial Codes. (Based on dial buttons)
※Note: When the paging broadcasting must be finish an asterisk (*), please exit by pressing the button. An
asterisk (*) If you do not press the broadcast button and you can not finish properly. In this case, the
power switch OFF then ON if it is restored.
①⑥⑤②③④TELEPHONE
INTERFACE ①MOUTH②GND③RING④TIP⑤EAR⑥-48VTYPE
Broadcasting
Group Zone Broadcasting
Normal Broadcasting
Additional Functions
CODE
✽7 7 #
✽7 0 #
✽7 1 #
✽? ? #
✽# ✽#
✽8 8 #
✽9 9 #
REMARK
ALL Broadcasting
✽70# : 01~08 Local ALL Broadcasting
✽71# : 09~16 Local ALL Broadcasting
✽??# : Select one from C01 to 16
✽# # : Recording function
✽88# : Switch to user mode
✽99# : Release user mode

TELEPHONE PAGING
5
TP-6231
5. SERIAL CONTROL and COMMANDS)
Serial Communication type: 1stop bit, non-parity, 8bits data, 9600 bps.
CONTROL COMMANDS (If serial communication terminal is used)
TP-6231 enables each commends.
6. Address Setting
1) ECS-6216P / RME-6108
If connected with ECS-6216P or RME-6108, set address number for proper connection conditions.
2) When connecting to ECS-6216P directly (Can also be used with RM-6024)
- If Connected to RM1 terminal of ECS-6216P set address number of TP- 6231 to 1.
- If Connected to RM2 terminal of ECS-6216P set address number of TP- 6231 to 9.
CHANNEL
1. START CODE
2. SET
3. Command types
4. Operation commands
5. CHANNEL Number
6. SPACE
CHANNEL 1
54Hex
60Hex + SET Number (Top 4BITS: MSB)
70Hex + SET Number (Sub 4BITS: LSB)
50Hex + Type of Number
23Hex : ON, 26Hex : OFF
30 - 3FHex
FFHex
REMARK
SET number equal to the area code (01 - FFH)
50Hex=ALL, 51Hex=GROUP, 52H=EACH
23Hex : When you choosing broadcast local
26Hex : HOOK-OFF
Select CHANNEL 1-16
END CODE
RM1
INPUT
AUDIO
OUT
AUDIO
OUT
RM2
INPUT
ECS-6216PRM1 RM2TP-6231 orRM-6024TP-6231 orRM-6024Address No:select 9Address No:select 1Downloaded from www.Manualslib.com manuals search engine

TELEPHONE PAGING
6TP-6231
3) When connecting to ECS-6216P through RME-6108 (Can also be used with RM-6024)
- If TP-6231 is connected to RME-6108 connected with RM1 terminal, address number should be selected
among 1~8.
- If TP-6231 is connected to RME-6108 connected with RM2 terminal, address number should be selected
among 9~16.

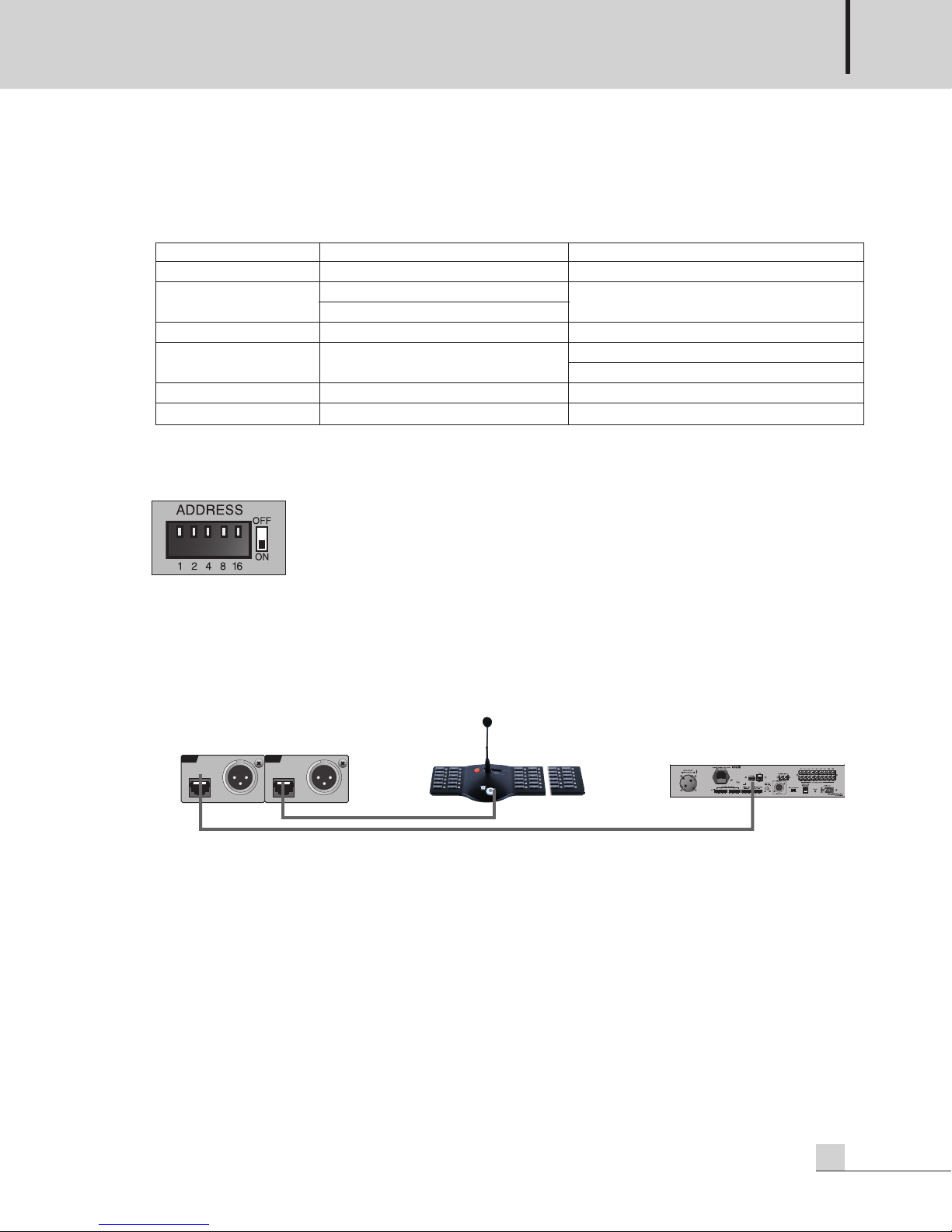

4) How to set up equipment address number for TP-6231.
Setting should be as table below:
*Data value when Dip Switch is in ON position
(Ex: when Dip Switch number 1 and 3 are ON, Data value 1 and 4 is added, so equipment address
number will be 5.)
7. Setup the SECURUTY NUMBER, DELAY TIME switch of rear panel.
If setup is wrong, BROADCASTING LED on the front panel will be ON.
8. Adjust the line output level by using volume on the rear panel.
RM1
INPUT
AUDIO
OUT
AUDIO
OUT
RM2
INPUT
ECS-6216PRME-6108RME-6108RM1 RM2TP-6231 orRM-6024TP-6231 orRM-6024Address No:select 9~16Address No:select 1~8
RM 1 RM 2 RM 3 RM 4 RM 5 RM 6 RM 7 RM 8
INPUT
OUTPUT ϊۑ@Ţ۩م@ێԟێ@ۘڽ@Ĉڐ@Ê۾@ɜট۩ۉ@کێ@ۘںɩ@࠭ҿșڽ@ّçǦ@ǷҜθ@ϊݖݖ@ψֲ֫٤N܆Ͽࠤ@Z@REMOTE MIC EXTENDER
ЂʠϿ@ZRME 6108
܄ÿۖͶ@ZDC 24V, 150mA
܆ܖۜϿ@ZďÖݖڜࣶTEL : [phone]
DC 24V
RM 1 RM 2 RM 3 RM 4 RM 5 RM 6 RM 7 RM 8
INPUT
OUTPUT ϊۑ@Ţ۩م@ێԟێ@ۘڽ@Ĉڐ@Ê۾@ɜট۩ۉ@کێ@ۘںɩ@࠭ҿșڽ@ّçǦ@ǷҜθ@ϊݖݖ@ψֲ֫٤N܆Ͽࠤ@Z@REMOTE MIC EXTENDER
ЂʠϿ@ZRME 6108
܄ÿۖͶ@ZDC 24V, 150mA
܆ܖۜϿ@ZďÖݖڜࣶTEL : [phone]
DC 24V
Pin No. 12 3 45
Data 12 4 816
1 ON
2 ON
3 ON ON
4 ON
Address 5 ON ON
15 ON ON ON ON
16 ON

TELEPHONE PAGING
7
TP-6231
Front Panel
Front Panel
1. CONNECTION LED
LED illuminates when the phone is connected.
2. OPERATING LED
This LED displays the operating status of equipment. When the state is normal, the LED flashes, and when
Off indicates fault.
3. BROADCASTING LED
LED will be ON if broadcasting is connected or being broadcasted.
. AC OUTLET SWITCH
Turns rear AC OUTLET on or off manually.
5. AC OUTLET LED
It will be on when AC OUTLET switch is pushed ON.
6. POWER LED
Indicated power on/off status.
7. POWER SWITCH
Turns TP-6231 ON/OFF.
6
12
7
3
54

TELEPHONE PAGING
8TP-6231

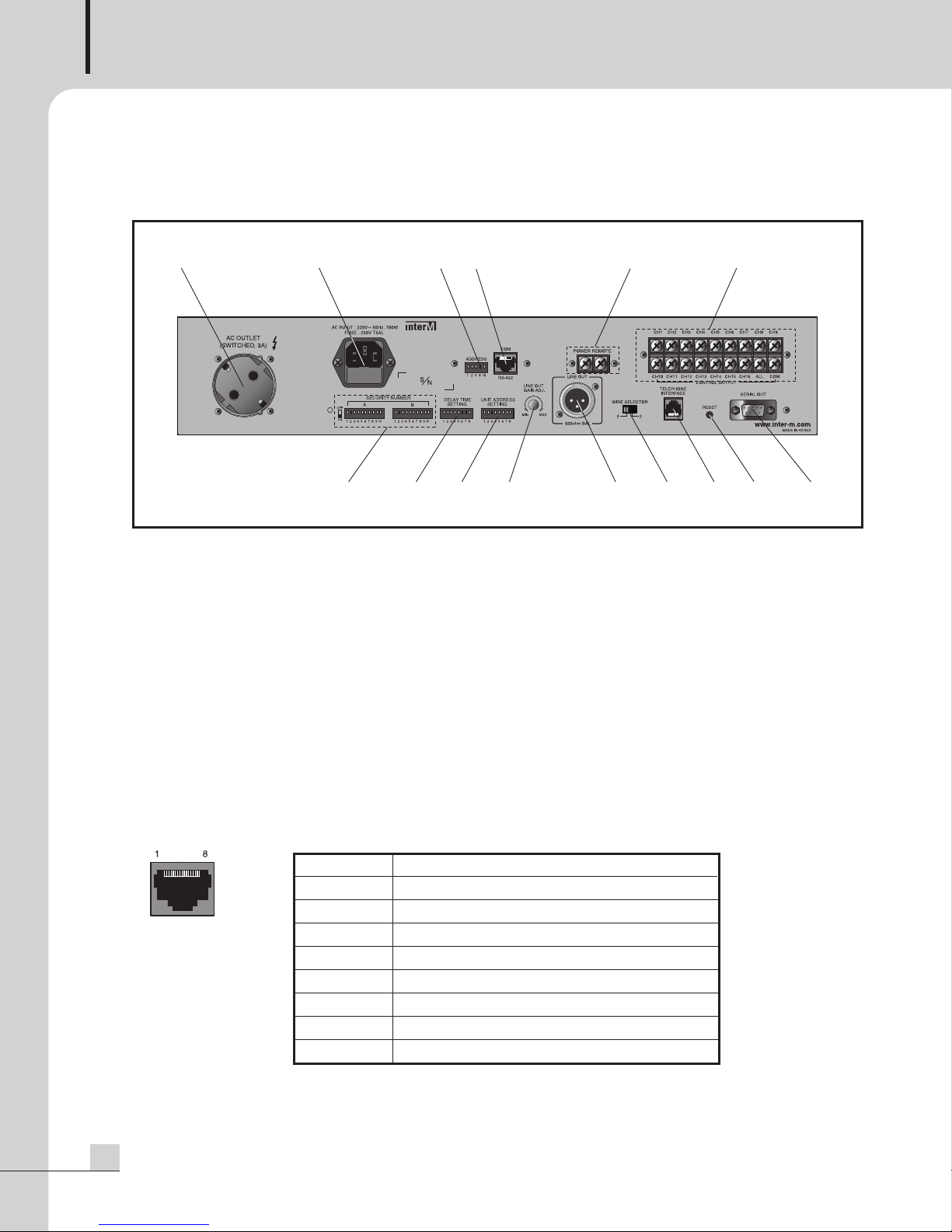

Rear Panel
Rear Panel
1. AC OUTLET (SWITCHED)
AC power output terminal, max 3A can be connected.
Outlet is on if broadcasting or if manually activated by front AC OUTLET.
2. AC INLET
AC power input connecting terminal.
3. ADDRESS Switch
Sets the equipment address number.
Should be set only when it is connected to ECS-6216P or RME-6108.
Refer to page 5 of Equipment Setting for more detailed information
. DATA & AUDIO Terminal (RJ- 5)
Connects to ECS-6216P or RME-6108 and supplies data and audio signal.
1256
7891011 12131415
34
PIN NO. Functions
1 RS-422 Data - TX+
2 RS-422 Data - TX-
3 RS-422 Data - RX-
4 Live Data
5 GND
6 RS-422 Data - RX+
7 Balanced Audio Output - HOT
8 Balanced Audio Output - COLD

TELEPHONE PAGING
9
TP-6231
5. POWER REMOTE TERMINAL
Connects to PD-6359 and once connected, the output contacts will be broadcast.
6. CONTROL OUTPUT TERMINAL
17 OPEN COLLECTOR output triggers with common ground which can be used to connect to remote 1 or 2
of ECS-616.
7. SECURITY NUMBER SETTING SWITCH
- A TYPE : The tens input value
- B TYPE : The first number input value
8. DELAY TIME SETTING SWITCH
- TEL OFF Signal Time Adjustment (1~4)
This switch sets the telephone off time. Set as table below, will HANG-UP or put the phone On-hook if
thetelephone is left Off-hook.
12345678
TEL OFF Signal timing adjustment Determine the number Device operation
of RING method installation
1234MODE
OFF OFF OFF OFF 0
ON OFF OFF OFF 1
OFF ON OFF OFF 2
OFF OFF ON OFF 3
OFF OFF OFF ON 4
MODE SETTING CONNECT LINE
0500±10 m/s Extension
250±60 m/s Outside wire
1500±20 m/s Extension
250±60 m/s Outside wire
2500±40 m/s Extension
250±60 m/s Outside wire
3500±60 m/s Extension
250±60 m/s Outside wire
4500±80 m/s Extension
250±60 m/s Outside wire
1 2 3 4 5 6 7 8 9 10 S/W SETTING
1 2 3 4 5 6 7 8 9 0 Input Value
1 2 3 4 5 6 7 8 9 10 S/W SETTING
1 2 3 4 5 6 7 8 9 0 Input Value

TELEPHONE PAGING
10 TP-6231
- RING Number.
Determines the number of RINGs before the TP-6231 will answer when receiving a call.
- Operational Method Setup
Select from 2 possible operation modes as per table below:
※DIP switches during operation, must not operated, press the RESET switch.
9. UNIT ADDRESS SETUP SWITCH
It is the switch which allocates the equipment number. (Input in hex. Value)
MSB LSB
This switch is used when sending the equipment address number or status information via the RS232
communication port terminal (Connector 15 on rear panel).
※[Reference SERIAL OUT terminal. If used, remove the top cover and set the slide switch on the PCB board
(S7) to the RS-232 position.
10. LINE OUT GAIN VOLUME
Adjusts volume output level.
11. LINE OUTPUT TERMINAL
600ΩBALANCED OUTPUT.
12. & 2 WIRE SELECTOR SWITCH
SELECTOR SLIDE switch selects between 4 & 2 WIRE operation mode.
13. TELEPHONE INTERFACE
RJ12 Connector. This terminal connects to the Telephone Line. Used for both 4 wire and 2 wire mode.
Pin 1 Mouth, Pin 2 Ground, Pin 3 Ring, Pin 4 Tip, Pin 5 Ear, Pin 6 -48V
1 . RESET SWITCH
Status will be restored if normal operation.
56RING횟수OFFOFF0OFFON1ONOFF2ONON378운용 방법OFFOFFALL기능ONOFFSECURITY입력 생략6*7*DIP스위치12345678실제 값84218421예OFFOFFONONOFFONOFFON결과6375Downloaded from www.Manualslib.com manuals search engine

TELEPHONE PAGING
11
TP-6231
15. SERIAL COMMUNICATION TERMINAL
RS-232C SERIAL communication terminal (RX/TX).
Figure below shows pin configuration and proper wiring.
TP-6231(Female)Controller
Pin No.
1
2
3
4
5
6
7
8
9
TP-6231Definition
NC
RxD
TxD
NC
GND
NC
NC
NC
NC
# 2 RxD
# 3 TxD
# 5 GND
# 2RxD
# 3TxD
# 5GND
D-SUB 9Cable(Twisted RS-232C Cable)
Controller
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5

TELEPHONE PAGING
12 TP-6231
Operation Flow Chart
Operation Flow Chart
Telephone bell number
of times O.K.=?
CH1. Thank you. Connected to
Tele-Paging Broadcasting.
Operator Mode
CH2. Insert Password
Password Input O.K.=?
Code Input O.K.=?
Recorded voice announce
in case of operator mode
CH3. Wrong P/W and input again
P/W input error
4 times O.K.=?
CH12. Sorry and please try again
Telephone Off
Telephone Off
CH4. Press * star and push zone
selection 01~16 and press #.
For all zone broadcasting, press 77.
CH10. Wrong zone
No. press again
Broadcasting
Mode
CH9. Operator
mode On
CH11. Operator
mode Off
Busy
Checking
CH5. Broadcasting connected and
make announce after the chime.
Press * after finishing broadcasting
CH7. To recorded message press 1.
To stop press 2.
To listen to the message press 3.
To finish press “star”.
CH8. Recorded and press 0
for confirmation,
confirmation action.
CH6. Chime sound
Broadcasting
Telephone Hook
Off signal confirmation
OK -
CH16.
End Message
※Note: When the paging broadcasting
must be finish an asterisk (*),
please exit by pressing the
button. An asterisk (*) If you do
not press the broadcast button
and you can not finish properly.
In this case, the power switch
OFF then ON if it is restored.

TELEPHONE PAGING
13
TP-6231
Applications
Applications
SOURCE

TELEPHONE PAGING
1 TP-6231

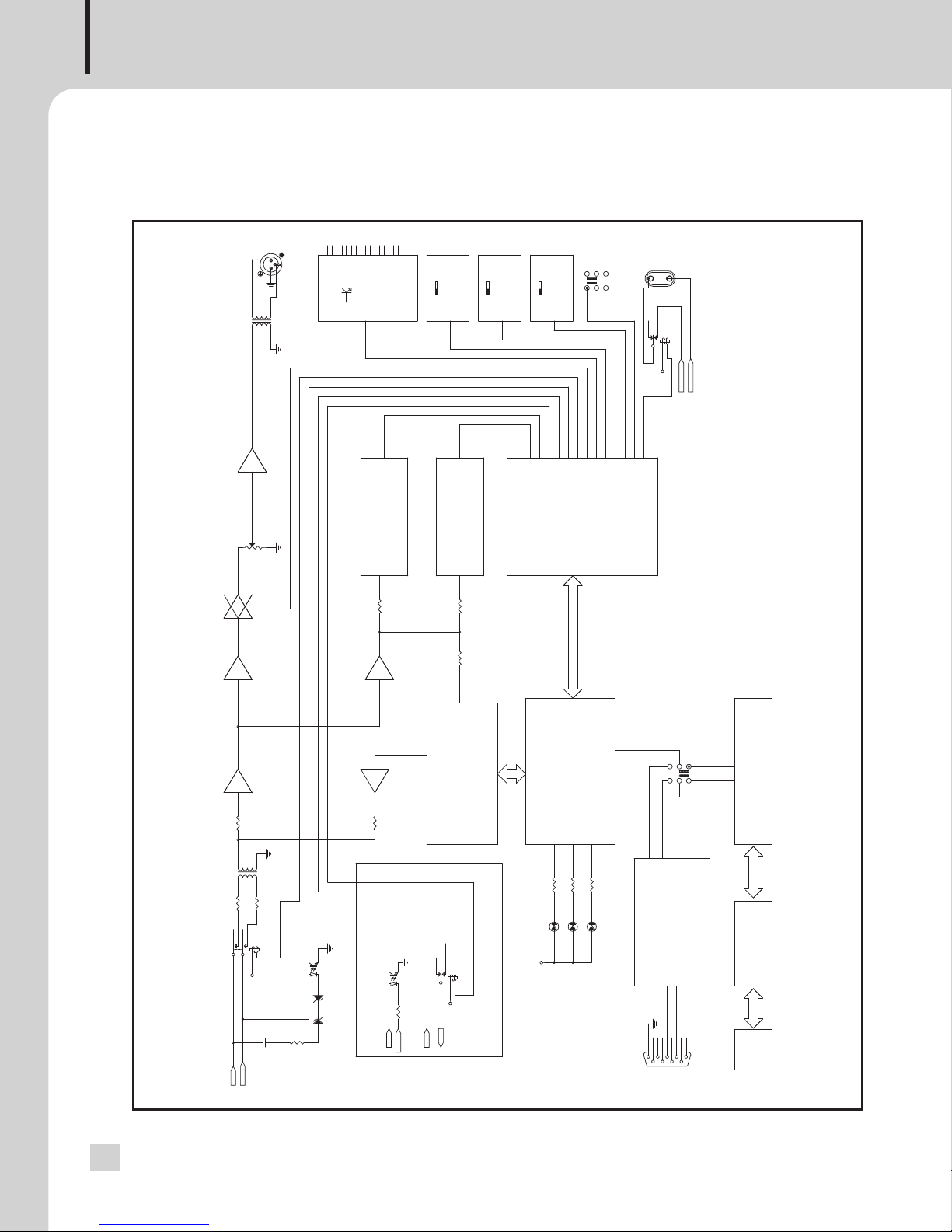

Block Diagram
Block Diagram
TIP RING
1 24
5
12V
CONTROLOUTPUT
17CIRCUITS
ENDSIGNAL
E1
24
5
RING DETECT
-48V
M
GND
12V
RECORDER/PLAYER
VOICE
DTMFRECEIVER
DETECTOR
SECURITYNUMBER SETTING SWITCH SETTING SWITCH DELAYTIME
SETTING SWITCH UNIT ADDRESS
MAINPROCESSOR
5V
OPERATING
4LINETYPE
BROADCASTING
5 9 4 8 3 7 2 6 1
P1 RDED 9P
CONNECTION
CPUI/OPART
2&4WIREMETHOD
SELECTOR
12V
ACOUTLET
ACIN2
ACIN1
SERIALDATA COMMUNICATION
SUBPROCESSOR
CPU
RS-232CBUFFER
RX TX
TXRX
RJ-485
Transceivers
RJ-45
JACK

TELEPHONE PAGING
15
TP-6231
Specifications
Specifications
※NOTE: In case of not matched operation temperature, please use the thermostat rack for another installation
place.
※Specifications and design are subject to change without notice.
TP-6231
Frequency Response (0dB , +1/-3dB Decrease) 80Hz - 8kHz
THD (0dB, 1kHz) Less than 1%
Signal to Noise ratio (S/N) Better than 65dB
AC OUTLET Switched : AC 230V/50Hz, 3A
Remote Power control Circuit number 1 Circuit
Speaker control circuit number 16 Circuit
Output control All, Zone(2group), Individual
Indicate Lamp STATUS LED of Four
LINE OUT BALANCED 600Ω, -∞dB~12dB
Communication Protocol RS-422(Maximum 1km/3,280 feet)
Operation Temperature -10°C ~ +40°C
Power Source AC 230V, 50Hz
Power Consumption 700W (AC OUTLET + Equipment power consumption)
Weight (SET) 4.2kg/9.3lb
Dimensions (SET) 482(W)x88(H)x280(D)mm/19(W)x3.5(H)x11(D)in

TELEPHONE PAGING
16 TP-6231
440
482
280
88
※ DIMENSIONS

TELEPHONE PAGING
17
TP-6231
Service
Service
Procedures
Take steps to insure the problem is not related to operator error or other products within the system. Information
provided in the troubleshooting portion of this manual may help with this process. Once it is certain that the
problem is related to the product contact your warranty provider as described in the warranty section of this
manual.
Schematic
A Schematic is available by contacting your warranty provider.
Parts List
A Parts List is available by contacting your warranty provider.
Variations and Options
Variations and Options
Variations
Products supplied through legitimate sources are compatible with local AC power requirements.
Options
No optional items are available for this product.
Warranty
Warranty
Warranty terms and conditions vary by country and may not be the same for all products. Terms and conditions
of warranty for a given product may be determined first by locating the appropriate country which the product
was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact Inter-M directly or the
authorized Inter-M Distributor for your specific country or region.

MaDE in KoREa
July 2014 131254
Inter-M, Ltd. (Korea) began operations in 1983.
Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.
Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).
The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in Japan, Europe, and the U.S.A.
With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.
Inter-M Americas, INC.
13875 ARTESIA BLVD. CERRITOS, CA 90703 USA
TEL : [phone], FAX : [phone]
Home Page : http://www.inter-m.net, E-mail : [email protected]
Inter-M Corporation
SEOUL OFFICE:653-5 BANGHAK-DONG, DOBONG-KU, SEOUL, KOREA
TEL : [phone]~8, FAX : [phone]
Home Page : http://www.inter-m.com, E-mail : [email protected]
