Inter-m PD-6359 User manual

Operation Manual
Power Distributor
PD-6359
* Rack mount products in the Western Hemisphere(North America South America and the Caribbean)
do not have handles installed due to customer preference.

POWER DISTRIBUTOR
Welcome
Welcome
A personal welcome to you from the mana ement and employees of Inter-M
All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value
and we are delighted you have purchased one of our products.
We sincerely trust this product will provide years of satisfactory service but if anything is not to your complete
satisfaction we will endeavor to make things right.
Welcome to Inter-M and thank you for becoming part of our worldwide extended family!
ISK OF ELECT IC SHOCK
DO NOT OPEN
Caution
CAUTION: TO EDUCE THE ISK OF ELECT IC SHOCK.
DO NOT EMOVE COVE (O BACK).
NO USE -SE VICEABLE PA TS INSIDE.
EFE SE VICING TO QUALIFIED SE VICE PE SONNEL.
WaRninG
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
*WA NING FO YOU P OTECTION PLEASE EAD THE FOLLOWING-WATE AND MOISTU E: Unit should not be used near water(e.g.
near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken so than objects do
not fall and liquids are not spilled into the enclosure through openings.
*Do not install this equipment in a confined space such as a book case or similar unit.
*This apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such vases, shall be placed on the apparatus.
*This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
*
It has heed to be easy to disconnect the device. To disconnect the device from power, separate AC input cable from inlet or unplug the AC Cord.
* The socket-outlet shall be installed near the equipment and shall be easily accessible.
Caution
*These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing
other than that contained in the operating instructions unless you are qualified to do so.
notE
*This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC ules. These limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to the
presence of important operation and maintenance
(servicing) instructions in the literature accompanying
the appliance.
Caution: To prevent electric shock do not use this (polarized) plug with
an extension cord, receptacle or other outlet unless the
blades can be fully inserted to prevent blade exposure.
Attentions: Pour prévenir les chocs électriques ne pas utiliser cette
fiche polarisée avec un prolongateur, une prise de courant
on une autre sortie de courant, sauf si les lames peuvent
étre insérées à fond sans en laisser aucune partie à
découvert.

POWER DISTRIBUTOR
1
PD-6359
Contents
Contents
Unpackin .......................................................................................................................................2
Installation
Environment....................................................................................................................................2
Important Safety Instructions.............................................................................................................2
Features ...........................................................................................................................................3
Caution when Assemblin Racks ................................................................................................3
Equipment Settin and Checkin .................................................................................................4
Front Panel ......................................................................................................................................6
Rear Panel .......................................................................................................................................7
Applications ..................................................................................................................................10
Block Dia ram ..............................................................................................................................11
Specifications ................................................................................................................................12
Service
Procedures....................................................................................................................................13
Schematic.....................................................................................................................................13
Parts List .......................................................................................................................................13
Variations and Options ...............................................................................................................13
Warranty .......................................................................................................................................13

POWER DISTRIBUTOR
Unpackin
2PD-6359
Unpackin
Although your PD-6359 is neither complicated nor difficult to operate we recommend you take a few minutes
to read this brief manual and familiarize yourself with the important information regarding product features
setup and operation.
As with most electronic devices we strongly recommend you to retain the original packaging. In the unlikely
event the product must be returned for servicing the original packaging (or reasonable equivalent) is required.
Installation
Installation
Environment
Never place this product in an environment which could alter its performance or reduce its service life. Such
environments usually include high levels of heat dust moisture and vibration.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators heat registers stoves or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs convenience receptacles and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart stand tripod bracket or table specified by the manufacturer or sold with the apparatus.
When a cart is used use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way such as power-supply cord or plug is
damaged liquid has been spilled or objects have fallen into the apparatus the
apparatus has been exposed to rain or moisture does not operate normally or has
been dropped.
S3125A
S3125A

POWER DISTRIBUTOR
3
PD-6359
Features
Features
- RACK SYSTEM POWER CONTROL
It controls the power of the rack system.
- AC OUTLET TERMINAL
It consists of UNSWITCHED 1 group and SWITCHED 3 group and in case of SWITCHED 3 it will be on/off for
every 2 seconds with sequential power.
- SUPPLY EMERGENCY POWER
It can supply the battery power to the unswitched power output terminal so it will be switched to emergency
power in case of black out to supply the DC power to the system.
- MONITORING OF VOLTAGE SUPPLYING STATUS
The status of service voltage can be monitored through Windows program.
- REMOTE CONTROL
Power can be on/off from Windows program and it can be controlled through the contact of remote terminal
without PC.
- AC/DC VOLT METER
The status of service voltage can be monitored through front LED display consisting.
Caution when assemblin the RACKs
Caution when assemblin the RACKs
- When using this device exclusive model for our rack should be installed.
- If you decide to use the components made of other company rated capacity should be verified and confirm it
with an authorized dealer near by.
- Rated capacity should be verified.
- Connecting it while power is off.
- Connect AC and DC powers based on the power of the device to be connected.
- When supplying the rack power interlock AC OUTLET(Switched: 3 Group/Unswitched: 1 Group) and DC
power output (DC 24V 5A) should be less than rated outputs.

POWER DISTRIBUTOR
4PD-6359
Equipment Settin and Checkin
Equipment Settin and Checkin

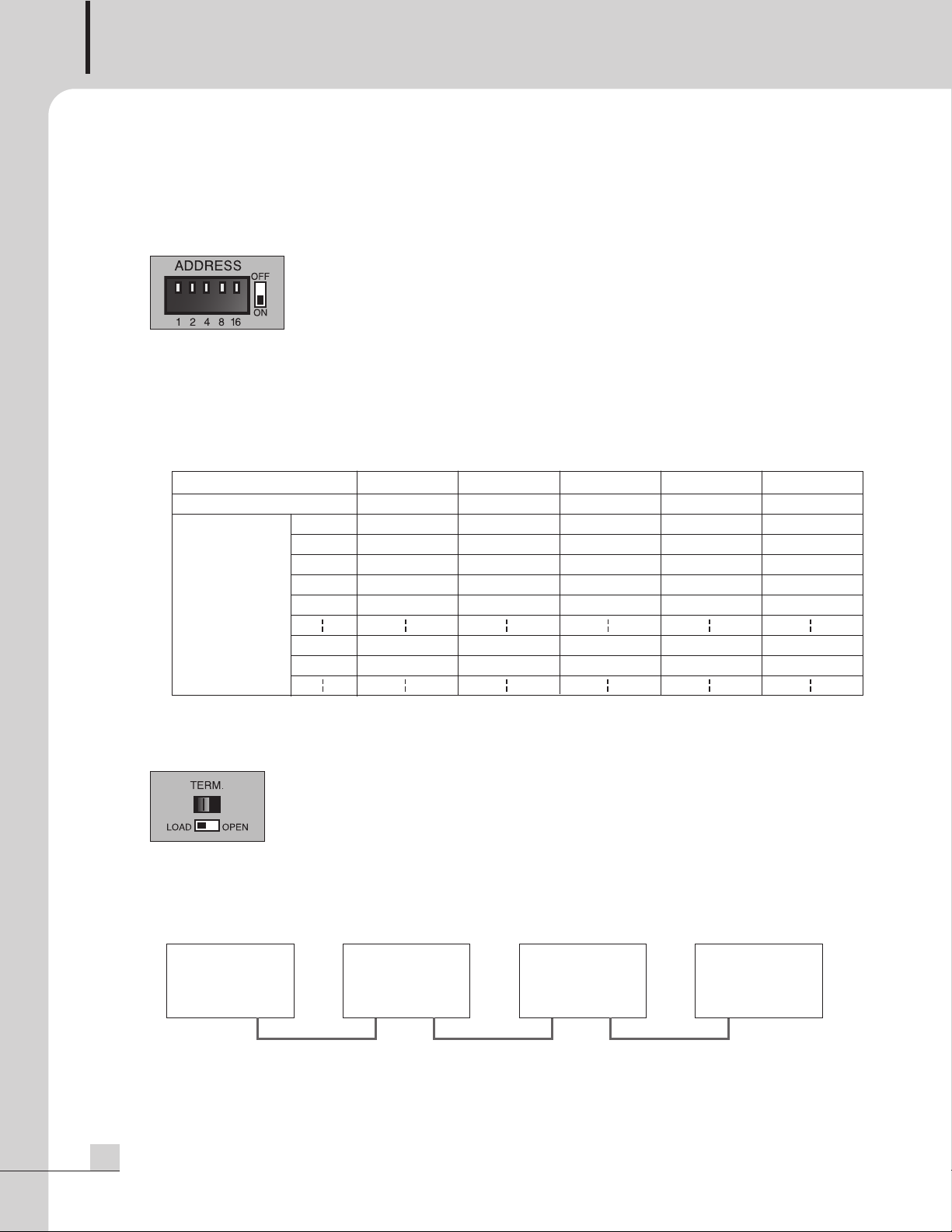

1. Address Settin
1) Setup the equipment number in accordance with connecting condition by using rear panel DIP switch. If
equipment number is not set the LED on the front panel will blink. When this happens please check the
equipment number setting. (Max. 20 can be connected)
2) The Setting should be as below table and if data number is added to switch which is On it will be the
equipment number.
(Ex: when number 1 and 3 is ON 1 and 4 is added so equipment number will be 5.)
2. TERMINATION Switch (LOAD/OPEN) Settin
1) For the system linked by using RS-485 communication interface it is necessary to set the termination
switch (LOAD/OPEN) on the rear panel to stabilize data transfer.
2) Set the termination switch to LOAD only for the first and last-numbered equipment units.
All others must be set to OPEN.
※Caution: Communication error may occur if setting is performed incorrectly.
Equipment 1
S/W: LoaD
OUT
Equipment 2
S/W: oPEn
IN OUT
Equipment 3
S/W: oPEn
IN OUT
Equipment N
S/W: LoaD
IN
Pin No. 1 2 3 4 5
Data 1 2 4 8 16
1 ON
2 ON
3 ON ON
4 ON
Address 5 ON ON
15 ON ON ON ON
16 ON

3. System Check
1) After supplying the power check the power status of devices connected to this device.
2) Remove the AC power cord then check the operation status with battery power in case of black out.
※To prepare the black out the battery and battery charger (PB-6207) is required
3) Check on/off controls through remote terminal and monitoring status for communication.
POWER DISTRIBUTOR
5
PD-6359

POWER DISTRIBUTOR
6PD-6359
Front Panel
Front Panel
1. AC VOLT METER
It displays the AC power voltage.
2. DC VOLT METER
It displays the internal DC power voltage.
3. AC LED
When it is on means that the device operation and power supplying status is AC power.
4. DC LED
When it is on means that operation power is switched to DC power (Battery) due to AC power black out.
5. SWITCHED LED
It is the LED displaying the status of switched power. when it is on The power is being supplied.
6. POWER LED
It will be on when power switch is pushed and device is operated remotely.
7. POWER SWITCH
It is the switch which controls AC/DC power output of rear panel and the power is supplied when it is ON.
123456
7

POWER DISTRIBUTOR
7
PD-6359
Rear Panel
Rear Panel
1. AC OUTLET (SWITCHED 1, 2, 3)
It is AC power supplying terminal. AC power will be output when front power switch is on or device is
operated remotely.
When POWER ON it will be on by orders of AC SWITCHED 3 →AC SWITCHED 2 →AC SWITCHED 1 for
2 seconds interval and if power is off it will be off in reverse orders.
2. AC OUTLET (UNSWITCHED)
It is the terminal which AC power is supplied all the times and it connects the devices which power should
not be off.
1 642
7
53
1312 11 10 89
-A TYPE
-B TYPE
-C TYPE

POWER DISTRIBUTOR
8PD-6359
3. ADDRESS SWITCH
It is the switch setting up the device number.
For the details of Equipment Setting please refer to page 4.
4. LINK IN/OUT TERMINAL
It is the communication terminal for monitoring the status of service voltage. Link In terminal is connected to
the previous device and Link Out terminal will be connected to the next device.
※IN/OUT Terminals are all same.
5. TERMINATION SWITCH (LOAD/OPEN)
It is the switch which is set for stable data receiving/transmitting of link in/out.
For the details of Equipment Setting please refer to page 4.
※Caution: communication error may occur if it is not set correctly.
6. AC FUSE
It is the fuse for AC power and if error occurs in the device it shuts off the AC power to protect the device. If
you want to replace the fuse please use the one which rated capacity is same.
7. DC FUSE
It is the fuse for DC power and if error occurs in the device it shuts off the DC power to protect the device. If
you want to replace the fuse please use the one which rated capacity is same.
8. DC POWER OUTPUT TERMINAL (UNSWITCHED)
It is the terminal which supplies the power to the device operated by DC 24V.
9. AC POWER CORD
10. REMOTE TERMINAL
This is the input terminal for remote-controller
When the contact signal sent to this terminal (HOT COM) it operates automatically.
But only works when the power switch is off.

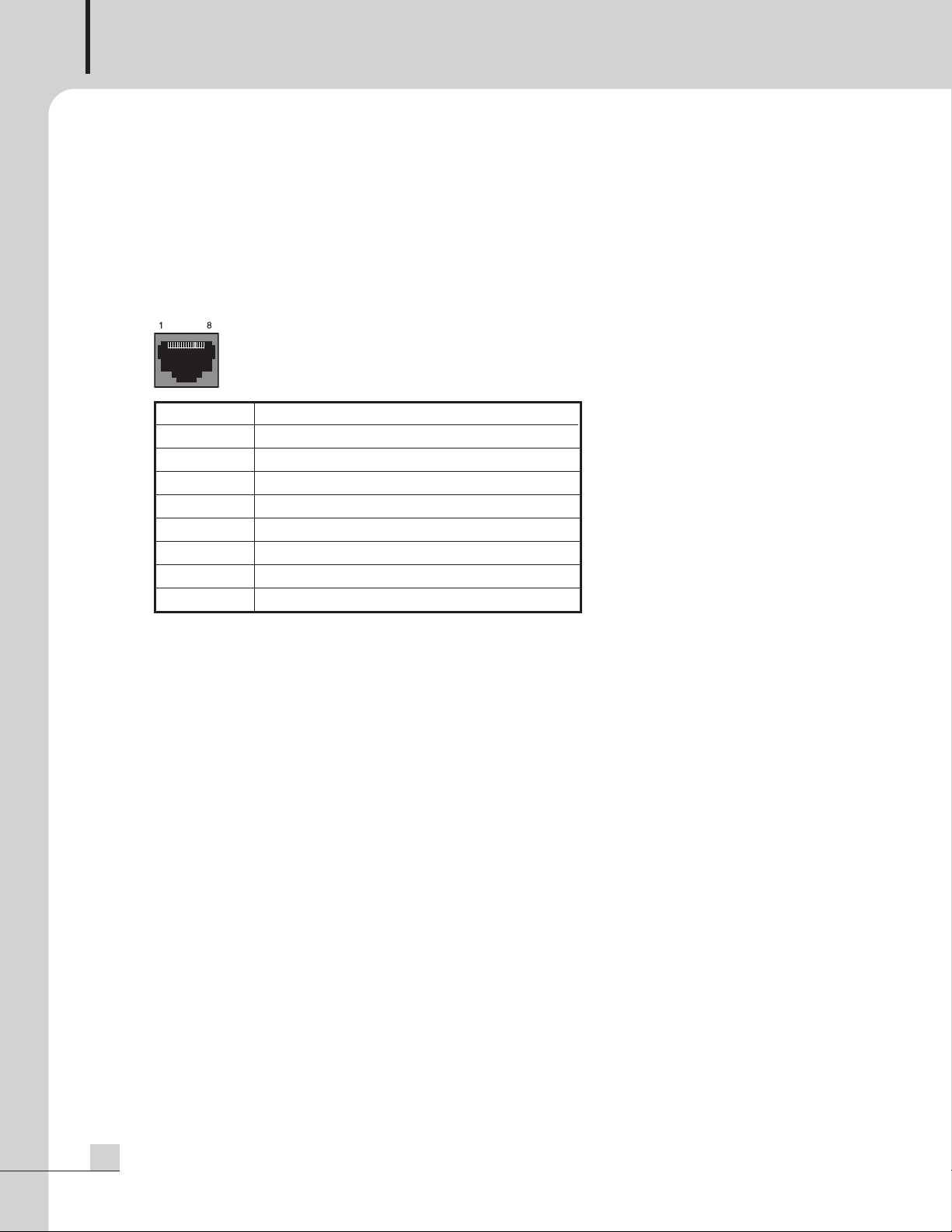

PIN NO. Functions
1 RS-485 Data - A
2 RS-485 Data - B
3 RS-485 Data - Z
4 NA
5 GND
6 RS-485 Data - Y
7 NA
8 NA

POWER DISTRIBUTOR
9
PD-6359
11. DC POWER OUTPUT TERMINAL (FOR AMP)
It is the terminal which outputs the emergency DC power (Battery) in case of AC black out. Connect it to AMP
DC INPUT.
12. BATTERY POWER INPUT TERMINAL
It is the terminal which connects the emergency power to use the system in case of black out and It normally
connects to the battery. Caution to polarities when it connects.
13. DC POWER OUTPUT TERMINAL (FOR RACK)
It is the terminal supplying DC power to the rack system as rated 24V power output. It can be controlled with
front power switch ON/OFF or remotely.

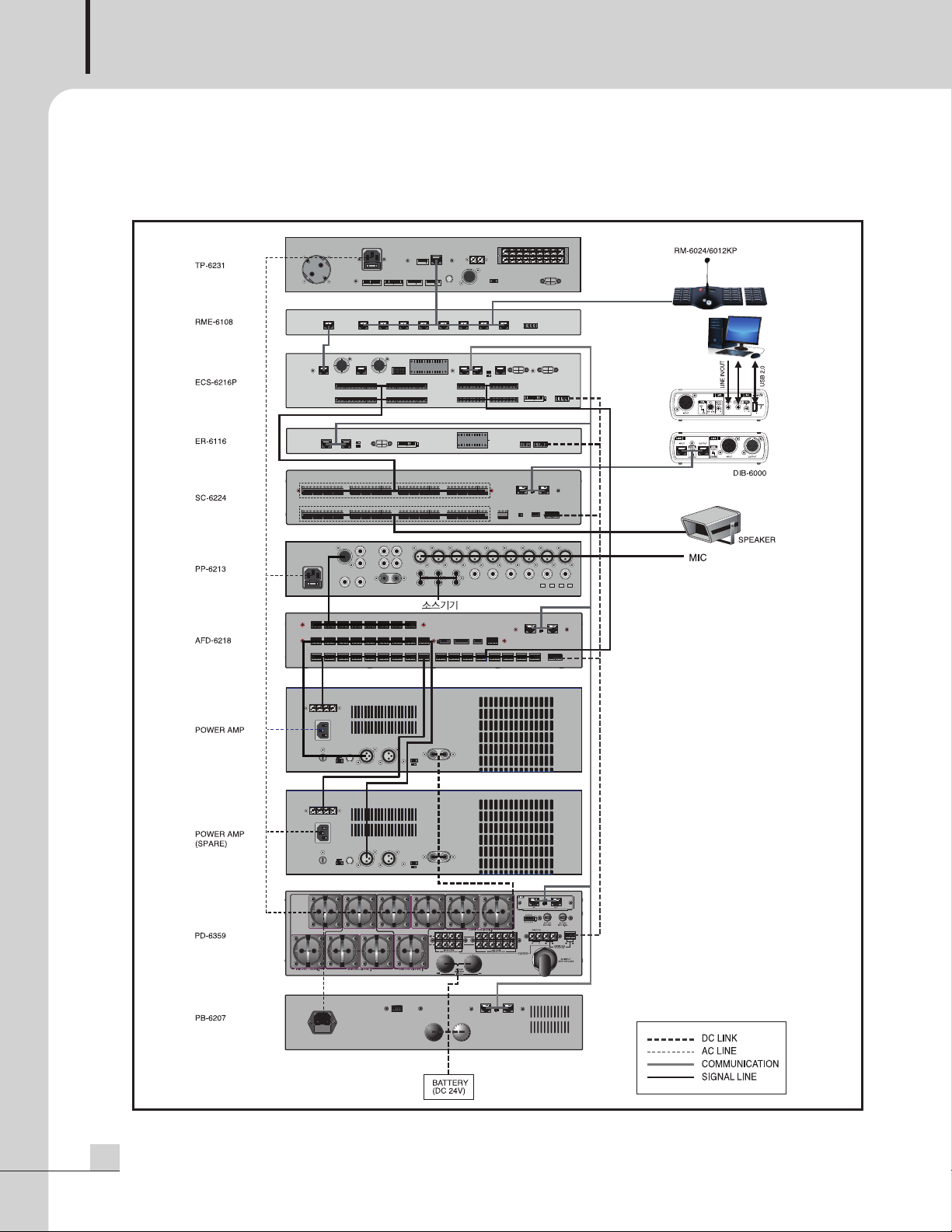

POWER DISTRIBUTOR
Applications
Applications
10 PD-6359

POWER DISTRIBUTOR
11
PD-6359

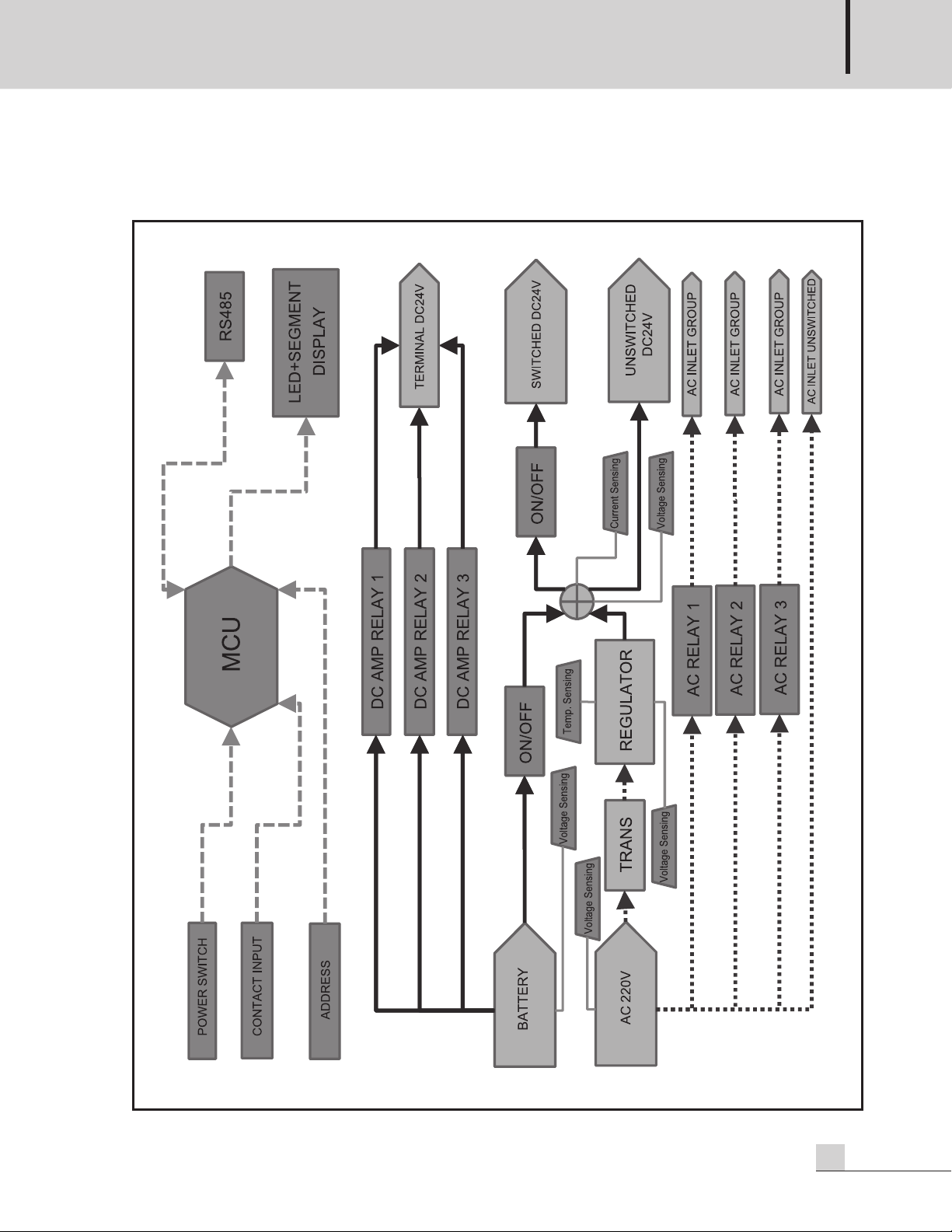

Block Dia ram
Block Dia ram

POWER DISTRIBUTOR
12 PD-6359
PD-6359
AC Outlet Europe SaudiArabia SWITCHED : 2000W x 3 UNSWITCHED : 700W x 1
U.S.A SWITCHED : 1000W x 3 UNSWITCHED : 350W x 1
Remote Control 1
DC Power Output DC 24V 3.5A
Operation Temperature -10°C ~ +40°C
Power Source 100–120VAC or 220–240VAC; 50/60Hz
(Supplied AC mains transformer depends on country requirements)
Power Consumption 220W
Weight (SET) Europe U.S.A 10.5kg/23.1lb
Saudi Arabia 10.98kg/24.2lb
Dimensions (SET) 482(W)x132(H)x280(D)mm/19(W)x5.2(H)x11(D)in
※Specifications and design are subject to change without notice.
Specifications
Specifications

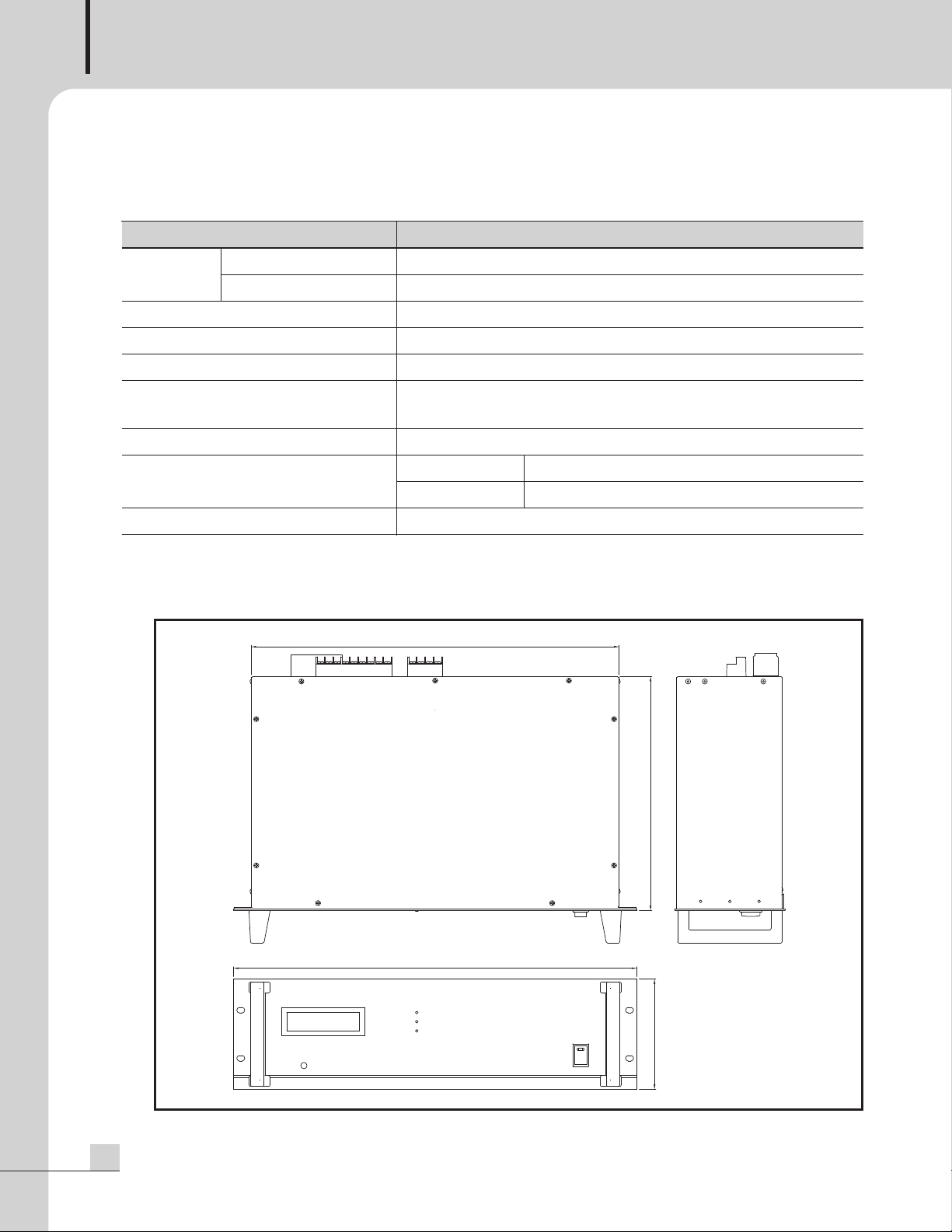

※ DIMENSIONS
440
482
280
132

POWER DISTRIBUTOR
13
PD-6359
Service
Service
Procedures
Take steps to insure the problem is not related to operator error or other products within the system. Information
provided in the troubleshooting portion of this manual may help with this process. Once it is certain that the
problem is related to the product contact your warranty provider as described in the warranty section of this
manual.
Schematic
A Schematic is available by contacting your warranty provider.
Parts List
A Parts List is available by contacting your warranty provider.
Variations and Options
Variations and Options
Variations
Products supplied through legitimate sources are compatible with local AC power requirements.
Options
No optional items are available for this product.
Warranty
Warranty
Warranty terms and conditions vary by country and may not be the same for all products. Terms and conditions
of warranty for a given product may be determined first by locating the appropriate country which the product
was purchased in then by locating the product type.
To obtain specific warranty information and available service locations contact Inter-M directly or the
authorized Inter-M Distributor for your specific country or region.

MaDE in KoREa
July 2013 133347
Inter-M Ltd. (Korea) began operations in 1983.
Since then Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.
Inter-M has gained worldwide recognition for its own branded products
as well as private label manufacturing of electronics sold under other names (OEM).
The company is no longer just a Korean company but rather a global company
that is truly international in scope with factories and offices in Korea and China
and sales and marketing operations located in Japan Europe and the U.S.A.
With more than 850 employees around the globe
Inter-M is well-poised for further growth and expansion.
Inter-M Americas, Inc.
13875 Artesia Blvd. Cerritos CA 90703 USA
TEL : [phone] FAX : [phone]
Home Page : http://www.inter-m.net E-mail : [email protected]
Inter-M Corporation
Seoul OFFICE:653-5 BANGHAK-DONG DOBONG-KU SEOUL KOREA
TEL : [phone]~8 FAX : [phone]
Home Page : http://www.inter-m.com E-mail : [email protected]
