Introduction
Product overview
This is the installation guide for TruVision 11/31 Series IP
camera models:
IP mini bullet camera:
TVB-1101 (1.3MPX Bullet, 6 mm lens, PAL)
TVB-3101 (1.3MPX Bullet, 6 mm lens, NTSC)
TVB-1102 (3MPX Bullet, 6 mm lens, PAL)
TVB-3102 (3MPX Bullet, 6 mm lens, NTSC)
TVB-1103 (1.3MPX Bullet, 4 mm lens, PAL)
TVB-3103 (1.3MPX Bullet, 4 mm lens, NTSC)
IP VF bullet camera:
TVB-1104 (1.3MPXBullet, 2.8 to 12 mm VF Lens, PAL)
TVB-3104 (1.3MPXBullet, 2.8 to 12 mm VF Lens, NTSC)
TVB-1105 (3MPXBullet, 2.8 to 12 mm VF Lens, PAL)
TVB-3105 (3MPXBullet, 2.8 to 12 mm VF Lens, NTSC)
IP mini dome camera:
TVD-1101 (1.3MPX Plastic Mini Dome, PoE, PAL)
TVD-3101 (1.3MPX Plastic Mini Dome, PoE, NTSC)
TVD-1102 (3MPX Plastic Mini Dome, PoE, PAL)
TVD-3102 (3MPX Plastic Mini Dome, PoE, NTSC)

Installation Guide 3
TVD-1105 (1.3MPX IP IR Outdoor Mini Dome,
PoE/12 VDC, PAL)
TVD-3105 (1.3MPX IP IR Outdoor Mini Dome,
PoE/12 VDC, NTSC)
TVD-1106 (3MPX IP IR Outdoor Mini Dome,
PoE/12 VDC, PAL)
TVD-3106 (3MPX IP IR Outdoor Mini Dome,
PoE/12 VDC, NTSC)
IP VF mini dome camera:
TVD-1103 (1.3MPX VF Mini Dome, PAL)
TVD-3103 (1.3MPX VF Mini Dome, NTSC)
TVD-1104 (3MPX VF Mini Dome, PAL)
TVD-3104 (3MPX VF Mini Dome, NTSC)
IP wedge camera:
TVW-1101 (1.3MPX Wedge, 2.8 mm lens, Grey, PAL)
TVW-3101 (1.3MPX Wedge, 2.8 mm lens, Grey, NTSC)
TVW-1102 (3MPX Wedge, 2.8 mm lens, Grey, PAL)
TVW-3102 (3MPX Wedge, 2.8 mm lens, Grey, NTSC)
TVW-1117 (1.3MPX Wedge, 2 mm lens, Grey, PAL)
TVW-3117 (1.3MPX Wedge, 2 mm lens, Grey, NTSC)
TVW-1118 (1.3MPX Wedge, 2.8 mm lens, White, PAL)
TVW-3118 (1.3MPX Wedge, 2.8 mm lens, White, NTSC)
TVW-1119 (1.3MPX Wedge, 2.8 mm lens, Black, PAL)
TVW-3119 (1.3MPX Wedge, 2.8 mm lens, Black, NTSC)

4 Installation Guide
Installation
This section provides information on how to install the
cameras.
Installation environment
When installing your product, consider these factors:
•Electrical: Install electrical wiring carefully. It should be
done by qualified service personnel. Always use a proper
PoE switch or a 12 VDC UL listed Class 2 or CE certified
power supply to power the camera. Do not overload the
power cord or adapter.
•Ventilation: Ensure that the location planned for the
installation of the camera is well ventilated.
•Temperature: Do not operate the camera beyond the
specified temperature, humidity or power source ratings.
The operating temperature of the camera is between -30
to +60°C (-22 to 140°F). Humidity is below 90%.
•Moisture: Do not expose the camera to rain or moisture,
or try to operate it in wet areas. Turn the power off
immediately if the camera is wet and ask a qualified
service person for servicing. Moisture can damage the
camera and also create the danger of electric shock.
•Servicing: Do not attempt to service this camera
yourself. Any attempt to dismantle or remove the covers
from this product will invalidate the warranty and may
also result in serious injury. Refer all servicing to qualified
service personnel.

Installation Guide 5
•Cleaning: Do not touch the sensor modules with fingers.
If cleaning is necessary, use a clean cloth with some
ethanol and wipe the camera gently. If the camera will not
be used for an extended period of time, put on the lens
cap to protect the sensors from dirt.
Package contents
Check the package and contents for visible damage. If any
components are damaged or missing, do not attempt to use
the unit; contact the supplier immediately. If the unit is
returned, it must be shipped back in its original packaging.
IP mini bullet camera
Camera
Installation manual CD with Configuration
manual and TruVision
Device Finder

6 Installation Guide
Template
Screws
Drywall anchor
Ø7.5 × 24.5 mm (3 pcs)
Screw M4
(4 × 25 mm (3 pcs)
Water joint: provides water
resistance to network
connection.
12 VDC connector: DC
jack socket to
terminal connectors
with positive and
negative indicators.

Installation Guide 7
IP VF bullet camera
Camera
Installation manual CD with Configuration
manual and TruVision
Device Finder
Template Screws
Drywall anchor
Ø7.5 × 24.5 mm (4 pcs)
Screw M4
(4 × 25 mm (4 pcs)

8 Installation Guide
Water joint: provides water
resistance to network
connection.
12 VDC Connector: DC
jack socket to
terminal connectors
with positive and
negative indicators.
Video test cable Back box
Screws C: M4.8 × 8, 4pcs
IP mini dome camera
Camera

Installation Guide 9
Installation manual
CD with Configuration
manual and TruVision
Device Finder
Template Screws
Drywall anchor
Φ7.5 × 24.5 mm (3 pcs)
Screw M4
(4 × 25 mm (3 pcs)
Water joint: provides water
resistance to network
connection.
12 VDC Connector: DC
jack socket to
terminal connectors
with positive and
negative indicators
(TVD-1105 / 3105 / 1106
/ 3106 only).

10 Installation Guide
Screws B
(4 × 75 mm, 3 pcs)
Hex wrench

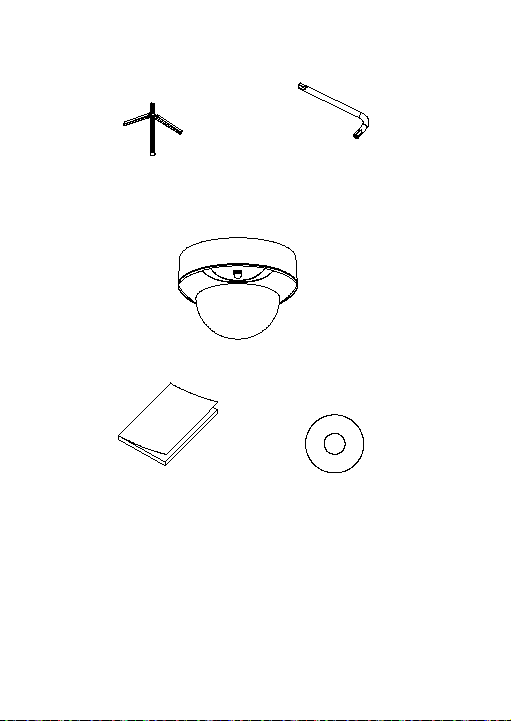

IP VF dome camera
Camera
Installation manual CD with Configuration
manual and TruVision
Device Finder

Installation Guide 11
Template
Screws
Drywall anchor
Φ7.5 × 24.5 mm (4 pcs)
Screw M4
(4 × 25 mm (4 pcs)
Water joint: provides water
resistance to network
connection.
12 VDC connector: DC
jack socket to
terminal connectors
with positive and
negative indicators.
Video test cable Hex wrench
Screws C: M4×19, 3pcs Adaptor

12 Installation Guide
IP wedge camera
Camera
Installation manual CD with Configuration
manual and TruVision
Device Finder
Template Screws
Drywall anchor
Φ7.5 × 24.5 mm (3 pcs)
Screw M4
(4 × 25 mm (3 pcs)

Installation Guide 13
Water joint: provides water
resistance to network
connection.
12 VDC connector: DC
jack socket to
terminal connectors
with positive and
negative indicators.
Screws C: M4 × 8, 2 pcs Hex wrench
Lens adjustment Converter pan
CAUTION: Use direct plug-in UL listed power supplies
marked Class 2/CE certified or LPS (limited power source) of
the required output rating as listed on the unit.
Cable requirements
For proper operation, adhere to the following cable and power
requirements for the cameras. Category 5 cabling or better is
recommended. All network cabling must be installed according
to applicable codes and regulations.

14 Installation Guide
Camera description
Figure 1: IP mini bullet camera
Adjustable
bracket
Housing
Sun
shield
Grounding
screws
Reset button

Installation Guide 15
Figure 2: IP VF bullet camera
1. Sunshield
2. Front cover
3. Lens adjustment
4. IR LED
5. Lens
6. Waterproof film
7. Base
8. SD card slot
9. Reset button
10. Audio I/O
11. Alarm I/O
12. Power supply
13. Ethernet RJ45 PoE port
14. Back box

16 Installation Guide
Figure 3: IP wedge camera
1. Cover
2. Lens
3. SD card
4. Ethernet RJ45 PoE port
5. Power supply
6. Base
7. Serial port
8. Reset button
9. Converter pan
9
2
1
6
8
7
3
5
4
