TruVision HD-TVI 5MPX Camera Installation and Configuration Manual 1
Content
Important information 2
Limitation of liability 2
Advisory messages 2
Introduction 3
Product overview 3
Installation 4
Installation environment 4
Package contents 5
Camera description 9
Mounting the HD-TVI fixed lens bullet camera 11
Mounting the HD-TVI VF motorized lens bullet camera 14
Mounting the HD-TVI fixed lens turret camera 16
Mounting the HD-TVI VF motorized lens turret camera 19
Mounting the HD-TVI VF motorized lens dome camera 23
Programming 25
Call up the camera OSD menu 25
Menu trees 26
TVB-2409/4409 and TVT-2403/4403 cameras 26
TVB-2410/4410, TVT-2404/4404, and TVD-2406/4406 cameras 27
Configuration 28
Output Mode 28
Focus 28
Language 29
Main Menu 29
Specifications 33

2 TruVision HD-TVI 5MPX Camera Installation and Configuration Manual
Important information
Limitation of liability
To the maximum extent permitted by applicable law, in no event will UTCFS be liable
for any lost profits or business opportunities, loss of use, business interruption, loss of
data, or any other indirect, special, incidental, or consequential damages under any
theory of liability, whether based in contract, tort, negligence, product liability, or
otherwise. Because some jurisdictions do not allow the exclusion or limitation of liability
for consequential or incidental damages the preceding limitation may not apply to you.
In any event the total liability of UTCFS shall not exceed the purchase price of the
product. The foregoing limitation will apply to the maximum extent permitted by
applicable law, regardless of whether UTCFS has been advised of the possibility of
such damages and regardless of whether any remedy fails of its essential purpose.
Installation in accordance with this manual, applicable codes, and the instructions of the
authority having jurisdiction is mandatory.
While every precaution has been taken during the preparation of this manual to ensure
the accuracy of its contents, UTCFS assumes no responsibility for errors or omissions.
Advisory messages
Advisory messages alert you to conditions or practices that can cause unwanted
results. The advisory messages used in this document are shown and described below.
WARNING: Warning messages advise you of hazards that could result in injury or loss
of life. They tell you which actions to take or to avoid in order to prevent the injury or
loss of life.
Caution: Caution messages advise you of possible equipment damage. They tell you
which actions to take or to avoid in order to prevent the damage.
Note: Note messages advise you of the possible loss of time or effort. They describe
how to avoid the loss. Notes are also used to point out important information that you
should read.

TruVision HD-TVI 5MPX Camera Installation and Configuration Manual 3
Introduction
Product overview
This is the installation guide for TruVision 5MPX HD-TVI camera models:
HD-TVI fixed lens bullet camera:
TVB-2409 (5MPX Bullet, 3.6 mm lens, PAL)
TVB-4409 (5MPX Bullet, 3.6 mm lens, NTSC)
HD-TVI VF motorized lens bullet camera:
TVB-2410 (5MPX Bullet, 2.8 to 12 mm lens, PAL)
TVB-4410 (5MPX Bullet, 2.8 to 12 mm lens, NTSC)
HD-TVI fixed lens turret camera:
TVT-2403 (5MPX Turret, 2.8 mm lens, PAL)
TVT-4403 (5MPX Turret, 2.8 mm lens, NTSC)
HD-TVI VF motorized lens turret camera:
TVT-2404 (5MPX Turret, 2.8 to 12 mm lens, PAL)
TVT-4404 (5MPX Turret, 2.8 to 12 mm lens, NTSC)
HD-TVI VF motorized lens dome camera:
TVD-2406 (5MPX Dome, 2.8 to 12 mm lens, PAL)
TVD-4406 (5MPX Dome, 2.8 to 12 mm lens, NTSC)

4 Installation and Configuration Manual
Installation
This section provides information on how to install the cameras.
Installation environment
Please keep in mind that there are restrictions/rules when using the HD-TVI 5MPX
cameras with TruVision TVI recorders:
The TVI 5MPX cameras only work with the higher resolution TVI recorders
(TVR 15HD or TVR 45HD, or higher), firmware version 1.1 (or higher)
A maximum number of TVI 5MPX cameras can be supported per TVI recorder
The TVI 5MPX cameras are only supported on specific ports of the TruVision TVI
recorders
Guidelines:
TVR 15HD four-channel recorder, v1.1: Supports a maximum of one TVI 5MPX
camera on BNC port 1
TVR 15HD/TVR 45HD eight-channel recorder, v1.1: Supports up to two TVI 5MPX
cameras on BNC ports 1 and 2
TVR 15HD/TVR 45HD 16-channel recorder, v1.1: Supports up to four TVI 5MPX
cameras on BNC ports 1, 2, 3 and 4
When installing your product, consider these factors:
• Electrical: Install electrical wiring carefully. It should be done by qualified service
personnel. Always use a proper 12 VDC or 24 VAC UL listed Class 2 or CE certified
power supply to power the camera. Do not overload the power cord or adapter.
• Ventilation: Ensure that the location planned for the installation of the camera is
well ventilated.
• Temperature: Do not operate the camera beyond the specified temperature,
humidity or power source ratings. The operating temperature of the camera is
between -40 to +60°C (-40 to +140°F). Humidity is below 90% (non-condensing).
• Moisture: Do not expose the camera to rain or moisture, or try to operate it in wet
areas. Turn the power off immediately if the camera is wet and ask a qualified
service person for servicing. Moisture can damage the camera and also create the
danger of electric shock.
• Servicing: Do not attempt to service this camera yourself. Any attempt to dismantle
this product will invalidate the warranty and may also result in serious injury. Refer
all servicing to qualified service personnel.
• Cleaning: Do not touch the sensor modules with fingers. If cleaning is necessary,
use a clean cloth with some ethanol and wipe the camera gently. If the camera will
not be used for an extended period of time, put on the lens cap to protect the
sensors from dirt.

TruVision HD-TVI 5MPX Camera Installation and Configuration Manual 5
Package contents
Check the package and contents for visible damage. If any components are damaged
or missing, do not attempt to use the unit; contact the supplier immediately. If the unit is
returned, it must be shipped back in its original packaging.
HD-TVI fixed lens bullet camera
Camera with power and video output
cable harness (cables not shown)
3 screws (4 × 25 mm) and 3 anchors
(7.5 × 24.5 mm)
Mounting template Installation guide
•12 VDC connector: Two terminal
connector with positive and negative
indicators
•Torx wrench
•CD •Equipment disposal sheet (WEEE
directive)
HD-TVI VF motorized lens bullet camera
Camera with power and video output
cable harness (cables not shown)
4 screws (4 × 25 mm) and 4 (7.5 ×
24.5 mm) anchors
•Torx wrench •Back box

6 Installation and Configuration Manual
•Video test cable •4 screws (M4.8 × 18). Used with the
back box
Mounting template
Ceiling Mounting
11
11
2
22
2
1:Screw Hole for
Bracket 2:Screw Hole for
Mounting Base
•Plastic G3/4 cable adapter
(mm)
Installation guide •CD
•Equipment disposal sheet (WEEE
directive)
HD-TVI fixed lens turret camera
Camera with power and video output
cable harness (cables not shown)
•3 screws (4 ×25 mm) and 3 anchors
(7.5 ×24.5 mm)
•12 VDC connector: Two terminal
connector with positive and negative
indicators
Mounting template
•Adapter plate 4 screws (PM6-32 × 10). Used to
attach the turret camera to a 2 gang
electrical box

TruVision HD-TVI 5MPX Camera Installation and Configuration Manual 7
•4 screws (KM4 × 8). Used to attach
the turret camera to the bracket
•3 screws (PM4 × 8). Used to attach
the turret camera to the adapter)
•CD •Installation guide
•Equipment disposal sheet (WEEE
directive)
HD-TVI VF motorized lens turret camera
Camera with power and video output
cable harness
3 screws (4 ×25 mm) and 3 anchors
(7.5 ×24.5 mm)
4 screws (KM4 x 8). Used to attach
turret camera to bracket
4 screws (PM6-32 × 10). Used to
attach the turret camera to a 2 gang
electrical box
•12 VDC connector: Two-terminal
connector with positive and negative
indicators
3 screws (PM4 x 8). Used to attach
the turret camera to the adapter)
Template Installation guide

8 Installation and Configuration Manual
•CD Adapter plate
•Equipment disposal sheet (WEEE
directive)

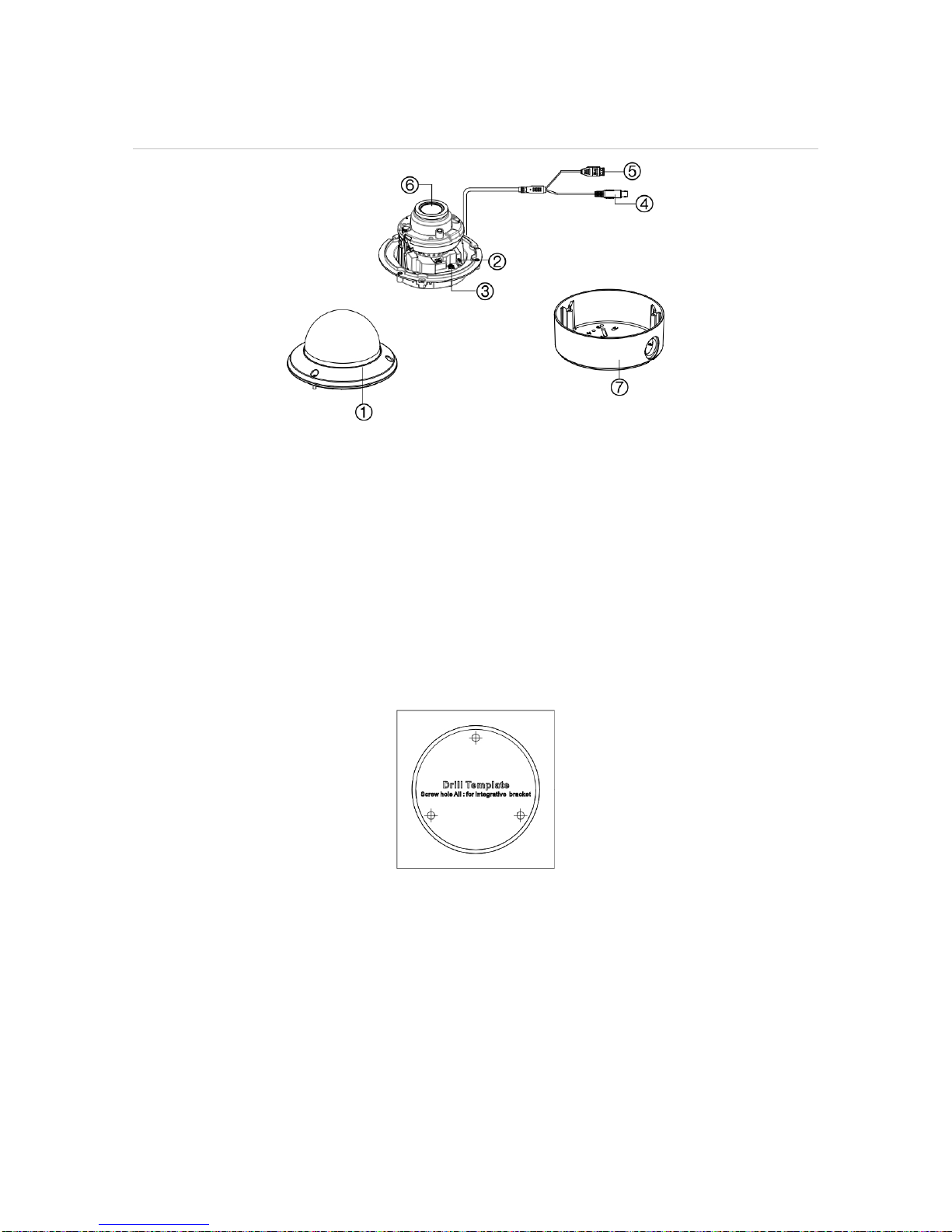

HD-TVI VF motorized lens dome camera
Camera with power and video output
cable harness
3 screws (4 ×25 mm) and 3 anchors
(7.5 ×24.5 mm)
Template •Video test cable
•CD Installation guide
•3 screws (PM4 × 16). Used to install
the camera body on to the dome back
box
•Plastic G3/4 cable adapter
(mm)
•Torx wrench •Spare rubber insert

TruVision HD-TVI 5MPX Camera Installation and Configuration Manual 9
•Equipment disposal sheet (WEEE
directive)
Camera description

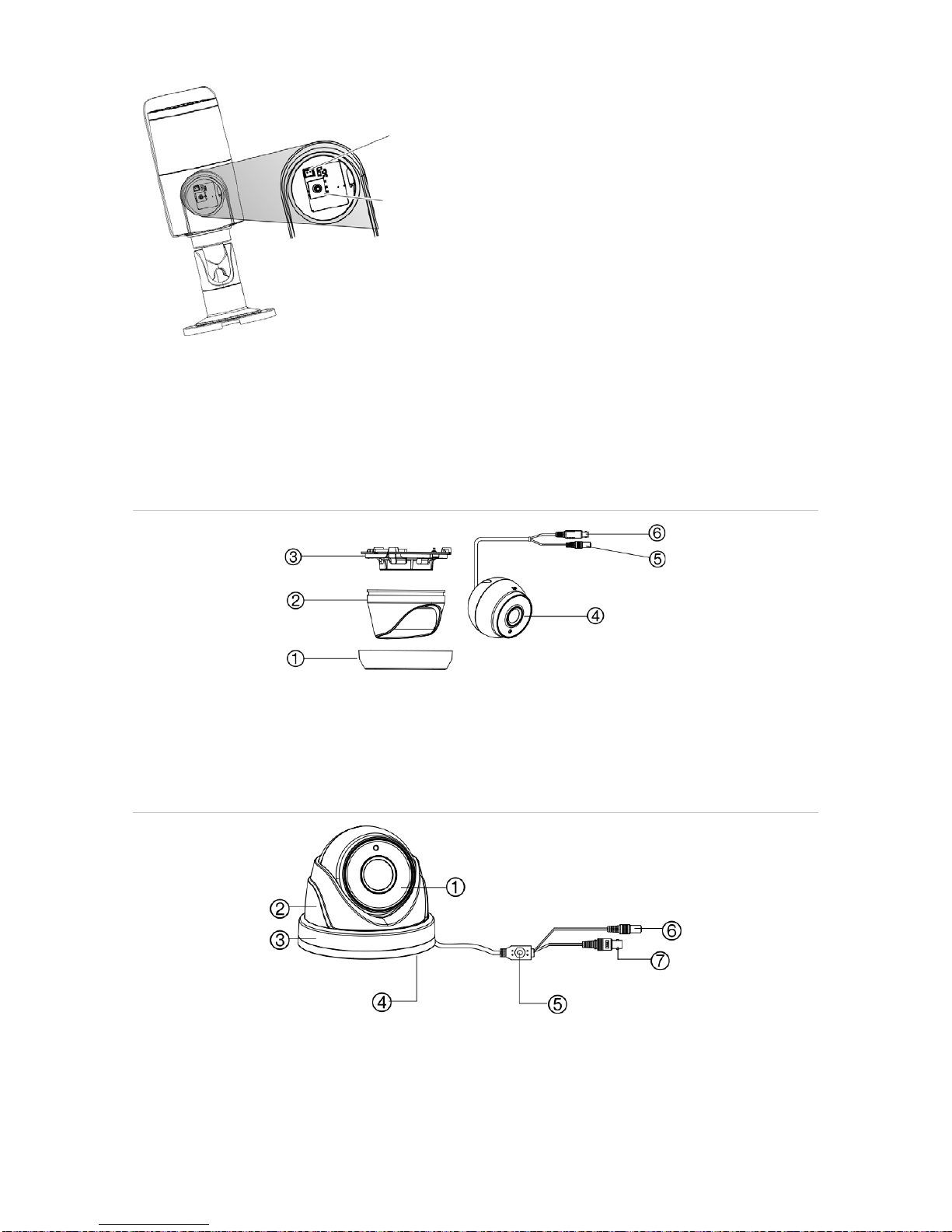

Figure 1: HD-TVI fixed lens bullet camera
Figure 2: HD-TVI VF motorized lens bullet camera
1. TVI output
2. 12 VDC power
3. Mounting base
4. Camera body
5. Lens
6. IR LEDs
1. Lens
2. TVI output
3. 12 VDC/24 VAC power
4. Camera body
5. Sunshield
6. Mounting base
7. Access to OSD menu button and TVI output

10 Installation and Configuration Manual
TVI output
OSD menu button
Note: When making adjustments to the motorized lens bullet camera, it is important to
tighten the access cover (7) for the area that contains the video test cable connector
and OSD menu button. The access cover should be rotated until it is tight up against
the camera body.
Figure 3: HD-TVI fixed lens turret camera
Figure 4: HD-TVI VF motorized lens turret camera
1. Trim ring
2. Housing
3. Base
4. Lens assembly
5. 12 VDC power
6. TVI output
1. Lens assembly
2. Housing
3. Trim ring
5. OSD (5-direction) button
6. 12 VDC power
7. TVI output

TruVision HD-TVI 5MPX Camera Installation and Configuration Manual 11
Figure 5: HD-TVI VF motorized lens dome camera
Mounting the HD-TVI fixed lens bullet camera
Surface mount
1. Place the provided template level against the mounting surface and mark the
position of the mounting holes.
2. Following all local safety regulations, drill and prepare the mounting and cable
access (if required) holes.
3. Route the cables through the cable access slot.
4. Secure the camera to the surface with the mounting hardware that was provided.
4. Base
1. Bubble
2. Video test cable
3. OSD (5-direction) button
4. TVI output
5. 12 VDC/24 VAC power
6. Lens assembly
7. Base

12 Installation and Configuration Manual
5. Connect the corresponding cables.
6. Adjust the camera to get the best viewing angle. See the figure below.
Pan position range: 0-360°
P (pan) adjustment
T (tilt) adjustment
R (rotation) adjustment
Rotation position range: 360° Tilt position range: 0-180°
a) Loosen the P adjustment disk to adjust the pan direction [0-360°]. Tighten the disk
after completing the adjustment.
b) Loosen the T screw to adjust the tilt direction [0-180°]. Tighten the screw after
completing the adjustment.
c) Loosen the R screw and rotate the camera [0-360°] to adjust the lens to the
desired surveillance angle. Tighten the screw after completing the adjustment.
Surface mount when using the optional back box
Note: The fixed lens bullet back box or two gang adapter plate are supplied separately.
1. Remove the cover from the back box and align the screw holes of the bullet camera
with the holes in the back box cover.
2. Route the cables through the cable access hole of the back box. Mount the camera
to the back box cover using the screws provided.

TruVision HD-TVI 5MPX Camera Installation and Configuration Manual 13
3. Place the mounting template level against the mounting surface and mark the
position of the mounting holes. Use the ‘UP’ marking on the back box and camera
mounting base as a reference.
4. Following all local safety regulations, drill and prepare the mounting holes.
5. Install the back box to the mounting surface using the hardware provided.
6. Connect the corresponding cables, and install the back box cover and camera to the
back box.
7. Refer to step 6 of “Surface mount” on page 11 to adjust the camera viewing angle.

14 Installation and Configuration Manual
Mounting the HD-TVI VF motorized lens bullet camera
Surface mount when not using the supplied back box
1. Use the supplied template to mark out the mounting area.
2. Following all local safety regulations, drill and prepare the mounting and cable
access (if required) holes.
3. Route the cables through the cable access hole.
4. Secure the camera to the mounting surface with the provided hardware.
5. Connect the corresponding cables.
6. Adjust the camera to get the best viewing angle. See the figure below.
P (pan) adjustment
T (tilt) adjustment
R (rotation) adjustment
a) Loosen the P screw to adjust the pan direction [0-360°]. Tighten the screw after
completing the adjustment.
b) Loosen the T screw to adjust the tilt direction [0-180°]. Tighten the screw after
completing the adjustment.

TruVision HD-TVI 5MPX Camera Installation and Configuration Manual 15
c) Loosen the R screw and rotate the camera [0-360°] to adjust the lens to the
desired surveillance angle. Tighten the screw after completing the adjustment.
Surface mount when using the back box
1. Remove the cover from the back box and align the screw holes of the bullet camera
with the holes in the back box cover.
2. Route the cables through the cable access hole of the back box. Install the camera
to the back box cover using the screws provided. See figure below.
3. Place the provided template level against the mounting surface and mark the
position of the mounting holes.
4. Following all local safety regulations, drill and prepare the mounting holes.
5. Install the back box to the mounting surface using the hardware provided.
6. Connect the corresponding cables and install the camera to the back box.

16 Installation and Configuration Manual
7. Refer to step 6 of “Surface mount when not using the supplied back box” on page
14 to adjust the camera to the desired viewing angle.
Mounting the HD-TVI fixed lens turret camera
Surface mount
1. Disassemble the turret camera by rotating the trim ring, as shown below.
2. Place the provided template level against the mounting surface and mark the
position of the mounting holes.
3. Following all local safety regulations, drill and prepare the mounting and cable
holes.
4. Route the cables through the cable access hole (if required).
5. Secure the mounting base to the mounting surface with the hardware provided.
6. Route the cables. Connect the power cord and TVI cables.
7. Reassemble the turret camera by rotating the trim ring back in place.

TruVision HD-TVI 5MPX Camera Installation and Configuration Manual 17
If installing the turret camera to a wall mount or other accessory, an adapter plate is
provided. Install the adapter plate to the accessory with three PM4 x 8 screws,
referencing number "2".
8. Adjust the camera to get the best viewing angle. See figure below.
Pan position range: 0-360°
Tilt position range: 0-75° Rotation position range: 0-360°
a) Hold the camera body and rotate the enclosure to adjust the pan angle [0- 360°].
b) Move the camera body up and down to adjust the tilt angle [0-75°].
c) Rotate the camera body to adjust the azimuth angle [0-360°].
Surface mount when using the optional back box
1. Disassemble the turret camera by rotating the trim ring, as shown below.

18 Installation and Configuration Manual
2. Remove the cover from the back box.
3. Place the provided template level against the mounting surface and mark the
position of the mounting holes.
4. Following all local safety regulations, drill and prepare the mounting holes.
5. Route the cables through the cable access hole of the back box. Mount the camera
to the cover of the back box.
6. Mount the back box to the mounting surface.
7. Connect the corresponding cables and install the back box cover, with the camera,
to the back box.
8. Rotate the trim ring back on to the camera, as shown below.
