TruVision 6MP and 12MP
360° Camera
Configuration Manual
P/N 1073657-EN • REV A • ISS 11OCT19

Copyright
©
2019 United Technologies Corporation.
Interlogix is part of UTC
Climate, Controls & Security
, a unit of United
Technologies Corporation.
All rights reserved.
Trademarks and
patents
Trade names used in this document may be trademarks or
registered trademarks of the manufacturers or vendors of the
respective products.
Disclaimer
Information in this document is subject to change without notice. No
part of this document may be reproduced or transmitted in any form
or by any means, electronic or mechanical, for any purpose, without
the express written permission of UTC Fire & Securit
y Americas
Corporation, Inc.
Certification
Product warnings and
disclaimers
THESE PRODUCTS ARE INTENDED FOR SALE TO AND
INSTALLATION BY QUALIFIED PROFESSIONALS. UTC FIRE &
SECURITY CANNOT PROVIDE ANY ASSURANCE THAT ANY
PERSON OR ENTITY BUYING
ITS PRODUCTS, INCLUDING ANY
“AUTHORIZED DEALER” OR “AUTHORIZED RESELLER”, IS
PROPERLY TRAINED OR EXPERIENCED TO CORRECTLY
INSTALL FIRE AND SECURITY RELATED PRODUCTS.
For more information on warranty disclaimers and product safety
information, please check
www.firesecurityproducts.com/policy/product
-warning or scan the
following code:
Contact information
For contact information and to download the latest manuals, tools,
and firmware, go to the web site of your region.
Americas: www.interlogix.com
EMEA:
www.firesecurityproducts.com
Manuals are available in several languages.
Australia/New Zealand: www.utcfs.com.au

TruVision 6MP and 12MP 360° Camera Configuration Manual i
Content
Introduction 3
Network access 4
Checking your web browser security level 4
Activating the camera 5
Overview of the camera web browser 7
Camera configuration 12
Local configuration 12
Configuration 13
Defining the system time 15
Defining RS-485 settings 16
Maintenance 16
Configuring the network settings 18
Recording parameters 25
Video image 28
OSD (On Screen Display) 32
Privacy masks 33
Picture overlay 34
Motion detection alarms 35
Video tampering 40
Alarm inputs and outputs 41
Exception alarms 42
Audio exception detection 43
Intrusion detection 45
Cross line detection 47
Region entrance detection 49
Region exiting detection 51
Unattended baggage detection 52
Object removal detection 53
Recording schedule 55
Snapshot parameters 57
Formatting the storage devices 59
Configuring NAS settings 60
People counting 61
Heat map 64
Intersection analysis 66
Application 68
People counting statistics 68
Heat map statistics 70
Intersection analysis statistics 72
Camera management 74
User management 74

ii TruVision 6MP and 12MP 360° Camera Configuration Manual
RTSP authentication 77
IP address filter 77
Defining the security service 78
Restore default settings 79
Import/export a configuration file 79
Upgrade firmware 79
Reboot camera 81
Camera operation 82
Log on and off 82
Live view mode 82
Play back recorded video 82
Snapshots 85
Search event logs 85
Operating PTZ control 87
Index 90

TruVision 6MP and 12MP 360° Camera Configuration Manual 3
Introduction
This is the configuration manual for the following TruVision IP camera models:
TVF-5201 (TruVision 6MPx 360° IP Dome, indoor, 1.29 mm)
TVF-5202 (TruVision 12MPx 360° IP Dome, indoor, 1.29 mm)
TVF-5203 (TruVision 6MPx 360° IP Dome, outdoor, 1.29 mm)
TVF-5204 (TruVision 12MPx 360° IP Dome, outdoor 1.29 mm)

4 TruVision 6MP and 12MP 360° Camera Configuration Manual
Network access
This manual explains how to configure the camera over the network with a web
browser.
TruVision IP cameras can be configured and controlled using Microsoft Internet
Explorer (IE) and other browsers. The procedures described use Microsoft Internet
Explorer (IE) web browser.
Checking your web browser security level
When using the web browser interface, you can install ActiveX controls to connect and
view video using Internet Explorer (the camera is not compatible with Microsoft Edge).
However, you cannot download data, such as video and images due to the increased
security measure. Consequently you should check the security level of your PC so that
you are able to interact with the cameras over the web and, if necessary, modify the
Active X settings.
Configuring IE ActiveX controls
You should confirm the ActiveX settings of your web browser.
To change the web browser’s security level:
1. In Internet Explorer click Internet Options on the Tools menu.
2. On the Security tab, click the zone to which you want to assign a web site under
“Select a web content zone to specify its security settings”.
3. Click Custom Level.
4. Change the ActiveX controls and plug-ins options that are signed or marked as
safe to enable. Change the ActiveX controls and plug-ins options that are
unsigned to Prompt or Disable. Click OK.
- Or -
Under Reset Custom Settings, click the security level for the whole zone in the
Reset To box, and select Medium. Click Reset.
Then click OK to the Internet Options Security tab window.
5. Click Apply in the Internet Options Security tab window.
Windows users
Internet Explorer operating systems have increased security measures to protect your
PC from any malicious software being installed.
To have complete functionality of the web browser interface with Windows 7, 8 and 10,
do the following:
• Run the Browser interface as an administrator in your workstation
• Add the camera’s IP address to your browser’s list of trusted sites

TruVision 6MP and 12MP 360° Camera Configuration Manual 5
To add the camera’s IP address to Internet Explorer’s list of trusted sites:
1. Open Internet Explorer.
2. Click Tools, and then Internet Options.
3. Click the Security tab and then select the trusted sites icon.
4. Click the Sites button.
5. Clear the “Require server verification (https :) for all sites in this zone” check box.
6. Enter the IP address in the “Add this website to the zone” field.
7. Click Add, and then click Close.
8. Click OK in the Internet Options dialog window.
9. Connect to the camera for full browser functionality.
Activating the camera
When you first start up the camera, the Activation window appears. You must define a
high-security admin password before you can access the camera. There is no default
password provided.
You can activate a password via a web browser and via TruVision Device Manager.
Warning: When the 360° camera is operating, the surface of the housing will be hot to
the touch. The heat buildup is due to the processing power that is required to operate
the camera
Activation via the web browser:
1. Power on the camera and connect the camera to the network.
2. Input the IP address into the address bar of the web browser, and click Enter to
enter the activation interface.
Note:
The default IP address of the camera is 192.168.1.70.

6 TruVision 6MP and 12MP 360° Camera Configuration Manual
For the camera to enable DHCP by default, you must activate the camera via
TruVision Device Manager. Please refer to the following section, “Activation via
TruVision Device Manager”.
3. Enter the password in the password field.
Note: A valid password range must be between 8 and 16 characters. You can use a
combination of numbers, lower and upper case letters, and special characters: _ - , *
& @ / $? Space. The password must contain characters from at least two of these
groups. We also recommend that you reset your password regularly. For high
security systems, it is particularly recommended to reset the password monthly or
weekly for better protection.
4. Confirm the password.
5. Click OK to save the password and enter the live view interface.

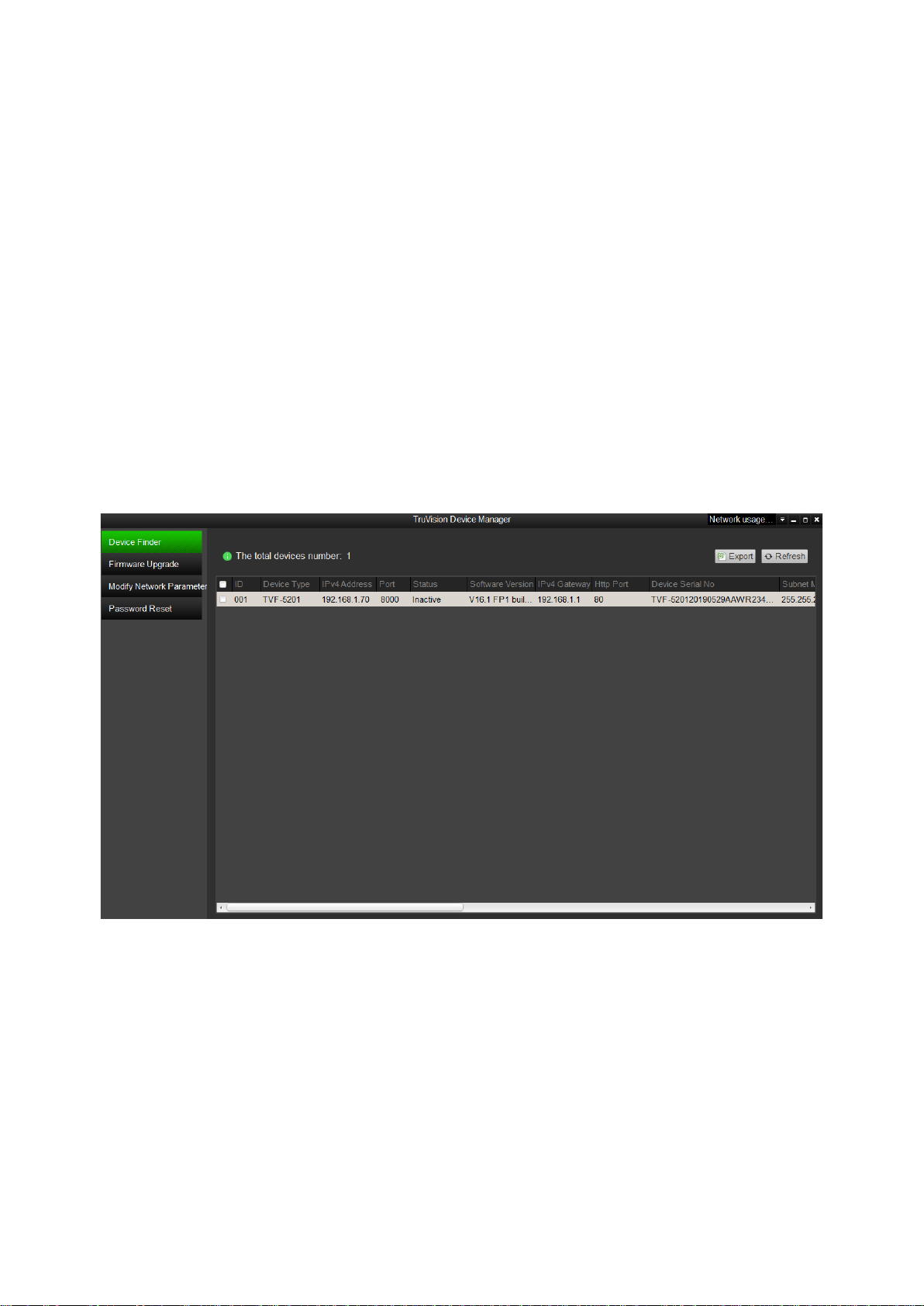

Activation via TruVision Device Manager:
1. Run the TruVision Device Manager to search for online devices.
2. Check the device status from the device list, and select the inactive device.
3. Enter the password in the password field, and confirm it.
Note: A valid password range must be between 8 and 16 characters. You can use a
combination of numbers, lower and upper case letters, and special characters: _ - , *
& @ / $? Space. The password must contain characters from at least two of these
groups. We also recommend that you reset your password regularly. For high
security systems, it is particularly recommended to reset the password monthly or
weekly for better protection.
4. Click OK to save the password.
A pop-up window appears to confirm activation. If activation fails, confirm that the
password meets the requirements and try again.

TruVision 6MP and 12MP 360° Camera Configuration Manual 7
5. Change the device IP address to the same subnet with your computer by either
modifying the IP address manually or checking the check box of Enable DHCP.
6. Input the password and click the Save button to activate your IP address
modification.
Overview of the camera web browser
Use the camera web browser to view, record, and play back recorded videos as well as
manage the camera from any PC with access to the same network as the camera. The
browser’s easy-to-use controls provide quick access to all camera functions.
If there is more than one camera connected over the network, open a separate web
browser window for each individual camera.
Note: For accurate analysis Ceiling Mount should be selected when setting up the
camera. See “Display control” on page 9. If Ceiling Mount is not selected, the
Application tab will not be visible during setup.

8 TruVision 6MP and 12MP 360° Camera Configuration Manual

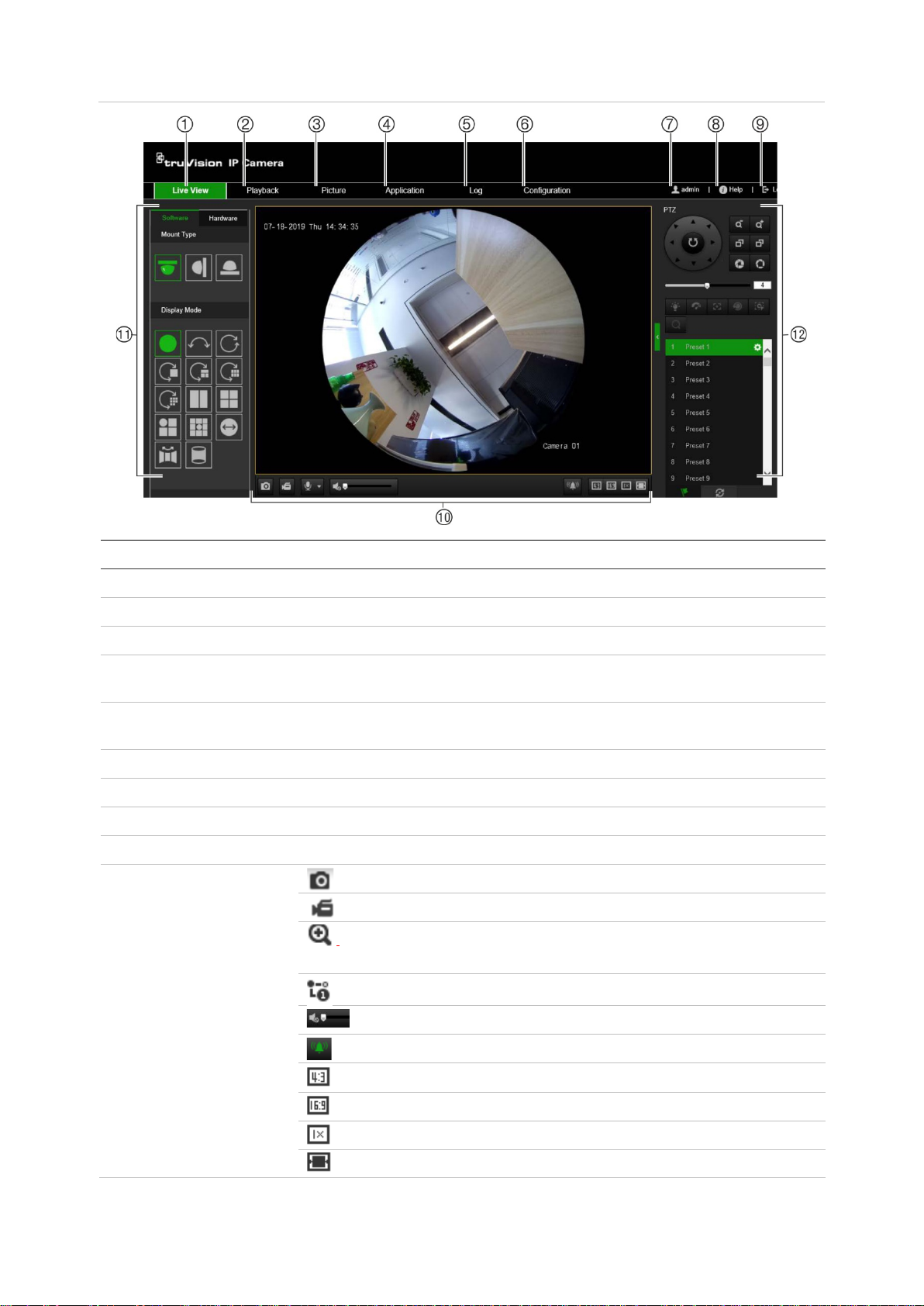

Figure 1: Browser interface (Live view shown)
Name
Description
1. Live view Click to view live video.
2. Playback Click to play back video.
3. Picture Click to search snapshots.
4. Application Click to enter the heat map statistics interface and search, view, download
the counting data stored in the local storage or network storage.
5. Log Click to search for event logs. There are three main types: Alarm,
Exception and Operation.
6. Configuration Click to display the configuration window for setting up the camera.
7. Admin Displays current user logged on.
8. Help Click to find function.
9. Logout Click to log out from the system. This can be done at any time.
10. Live view toolbar Click to manually capture the snapshot.
Click to manually start/stop recording.
Click to start/stop digital zoom function.
Note: Appears when using the hardware display mode only.
Click to select live view with main stream or substream.
Audio on and adjust Volume/Mute.
Manual alarm.
The window size is 4:3.
The window size is 16:9.
The original window size.
Self-adaptive window size.

TruVision 6MP and 12MP 360° Camera Configuration Manual 9
Name Description
11. Display control. See Table 1 below for further information.
12. PTZ control. See “Operating PTZ control” on page 87 for further
information.
Display control
You can select a display mode for the layout of the live view window. The description of
each display mode is shown in the table below.
360° View: In 360° View mode, the entire wide-angle view of the 360° camera is
displayed.
Panoramic View: In Panoramic View mode, the round 360° image is transformed into
a rectangular 180° image.
PTZ View: The PTZ View is the close-up view of a defined area within the 360° View or
Panoramic View.
Table 1: Description of display control panel
Name Description
Mount Type Ceiling mount.
Wall mount.
Table mount.
Software display mode 360° view.
180° panoramic view.
360° panoramic view.
Live view with a 360° panoramic view and a PTZ view.
Live view with a 360° panoramic view and eight PTZ views.
Live view with a 360° panoramic view and six PTZ views.
Live view with a 360° panoramic view and eight PTZ views.
Live view with two PTZ views.
Live view with four PTZ views.
Live view with one 360° view and three PTZ views.
Live view with one 360° view and eight PTZ views.
Live view with sphere view.
Live view with AR half sphere view.
Live view with a cylinder view.
Hardware display mode 360° view.
180° panoramic view

10 TruVision 6MP and 12MP 360° Camera Configuration Manual
Name Description
Panoramic view.
Live view with four PTZ views.
Live view with one 360° view and three PTZ views.
Live view with a four-PTZ-fusion view.
In display mode, Software display means that the obtained live view video is decoded
using the CPU of your PC that is running the web browser. The live view performance
depends on the decoding ability of your PC. Hardware display means that the
obtained live view video is decoded by the camera itself.
Note: When the selected mount type is Table and the hardware display mode is Live
view with four PTZ views or Live view with one 360° view and three PTZ views, the
pan operation is opposite from what is expected. When the pan moves left, the real
direction is right. When the pan moves right, the real direction is left.
Some examples of the different software display modes:
180° panoramic view 360° panoramic view
Live view with one 360° view and eight PTZ views Live view with AR half sphere view.

TruVision 6MP and 12MP 360° Camera Configuration Manual 11
Live view with a cylinder view Live view with one 360° view and three PTZ views

12 TruVision 6MP and 12MP 360° Camera Configuration Manual
Camera configuration
This chapter explains how to configure the cameras through a web browser.
Once the camera hardware has been installed, configure the camera’s settings through
the web browser. You must have administrator rights in order to configure the cameras
over the internet.
The camera web browser lets you configure the camera remotely using your PC. Web
browser options may vary depending on camera model.
There are two main folders in the configuration panel:
Local configuration
Configuration
Local configuration
Use the Local Configuration menu to manage the protocol type, live view performance
and local storage paths. In the Configuration panel, click Local Configuration to
display the local configuration window. See Figure 2 below for descriptions of the
different menu parameters.
Figure 2: Local Configuration window
Parameters Description
1.
Live View Parameters
Protocol
Specifies the network protocol used.

TruVision 6MP and 12MP 360° Camera Configuration Manual 13
Parameters Description
Options include: TCP, UDP, MULTICAST and HTTP.
TCP: Ensures complete delivery of streaming data and better
video quality, yet the real-time transmission will be affected.
UDP: Provides real-time audio and video streams.
HTTP: Allows the same quality as of TCP without setting
specific ports for streaming under some network environments.
MULTICAST: It’s recommended to select MCAST type when
using the Multicast function.
La
tency Set the live view performance to Shortest Delay, Auto, Fluent
or Custom. For Custom, you can set the frame rate for live
view.
Enable Meta Data Overlay
Enable this option to detect real-time alarm such as motion
detection. The area which detected the alarm will be
highlighted as green.
Display POS
Information Enable the function, feature information of the detected target
is dynamically displayed near the target in the live image.
The feature information of different functions are different. For
example, ID and waiting time for Queue Management, height
for People Counting, etc.
Snapshot
Image Format Specifies the snapshot format as JPEG or BMP.
2.
Record File Settings
Video
File Size Specifies the maximum file size.
Options include: 256 MB, 512 MB, and 1G.
Save
Video Files to Specifies the directory for recorded files.
Save
Downloaded Files to Specifies the directory for downloaded files.
3.
Snapshot
and Clip Settings
Save
Video In Live
View
To Specifies the directory for saving snapshots in live view mode.
Save
Clips During Playback To Specifies the directory for saving snapshots in playback mode
.
Save Clips To
Specifies the directory for saving video clips in playback mode.
Configuration
Use the Configuration window to configure the camera system, network, video audio,
alarms, users, transactions and other parameters such as upgrading the firmware. See
Figure 3 on page 14 for descriptions of the configuration folders available.

14 TruVision 6MP and 12MP 360° Camera Configuration Manual
Figure 3: Configuration window (Device Information window selected)
Parameters Description
1.
System
Displays the basic device information including serial number and the current
firmware version, time settings, RS-485 serial port parameters, maintenance,
and about the system. See pages 15 and 16 for further information.
2
Security
Defines who can use the camera, their passwords and access privileges,
RTSP authentication, IP address filter, and telnet access.
3
Network
Defines the network parameters required to access the camera over the
internet. See page 18 for further information.
4
Video/Audio
Defines recording parameters. See page 20 for further information.
5.
Defines the image parameters, OSD settings, overlay text, and privacy
masking. See page 25 for further information.
2.
Alarm/Event
Defines motion detection, tamper-proof, alarm input/output, exception and
snapshot configuration. See pages 35 to 53 for further information.
3.
Storage
Defines recording schedule, storage management and NAS configuration.
See pages 55 to 60 for further information.
8
People Counting
Defines the rule of people counting, upload data and advanced setting. See
page “People counting” on page 61 for further information.
9.
Heat Map
Con
figuration Defines the parameters and generates reports for the heat map function
. See
page “Heat map” on page 64 for further information.

TruVision 6MP and 12MP 360° Camera Configuration Manual 15
Parameters Description
10
Inter
section Analysis Intersection Analysis is used to monitor the human flow in an intersection-like
scene. See “Intersection analysis” on page 66 for further information.

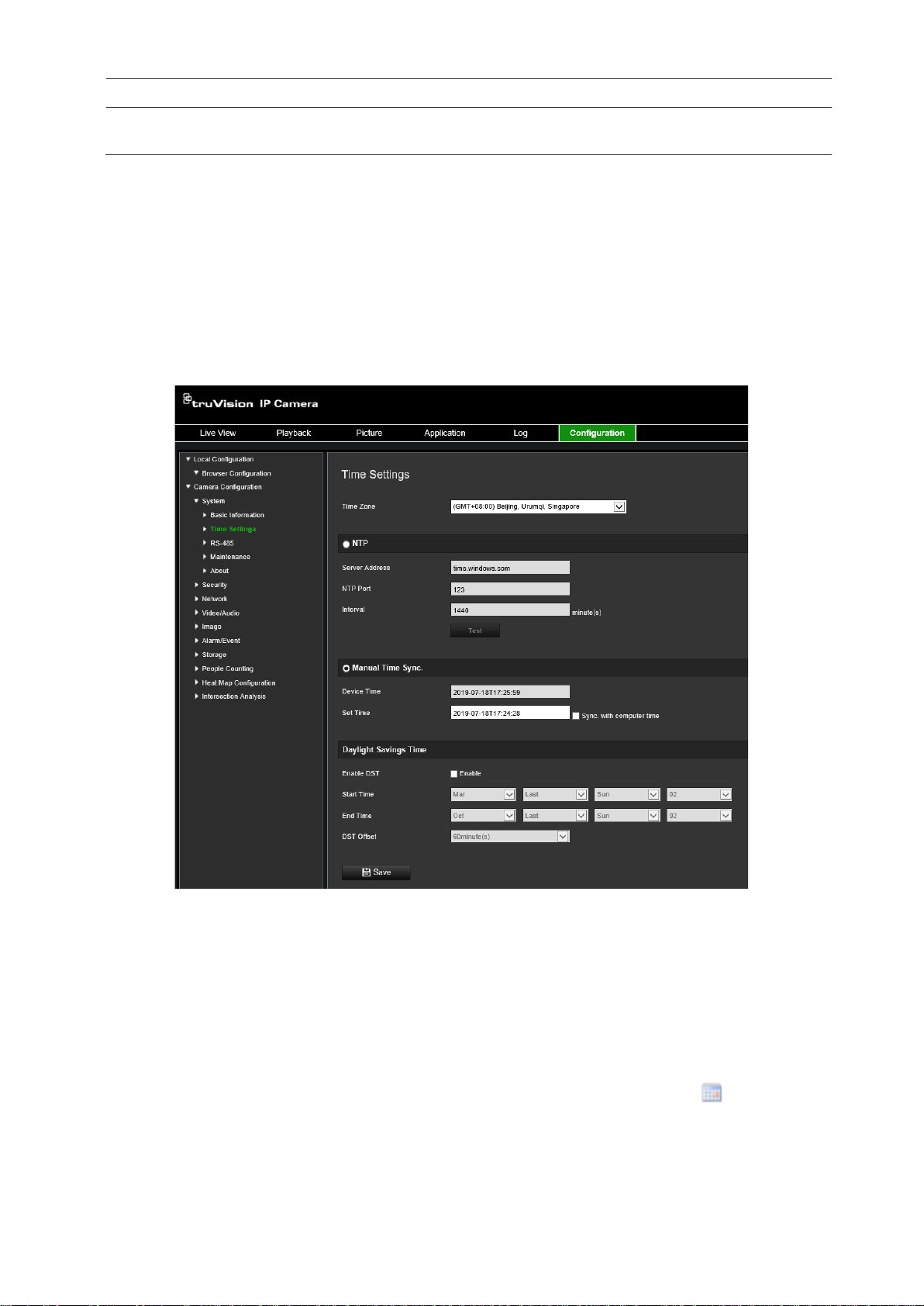

Defining the system time
NTP (Network Time Protocol) is a protocol for synchronizing the clocks of network
devices, such as IP cameras and computers. Connecting network devices to a
dedicated NTP time server ensures that they are all synchronized.
To define the system time and date:
1. Click Configuration > System > Time Settings.
2. From the Time Zone drop-down menu, select the time zone that is the closest to the
camera’s location.
3. Under Time Sync, select one of the options for setting the time and date:
Synchronize with an NTP server: Select NTP and enter the server NTP address.
The time interval can be set from 1 to 10080 minutes.
- Or -
Set manually: Enable the Manual Time Sync function and then click to set the
system time from the pop-up calendar.
Note: You can also select the Sync with computer time check box to synchronize
the time of the camera with the time of your computer.

16 TruVision 6MP and 12MP 360° Camera Configuration Manual
4. Select Enable DST to enable the DST function, and set the start and end dates of
the DST period.
5. Click Save to save changes.
Defining RS-485 settings
The RS-485 serial port is used to control extra devices that support the 485 protocol
(Pelco D or Pelco P), such as PTZ devices, lighting devices or other devices. You can
also connect it to an analog PTZ camera, using a 360° camera to control PTZ
movement.
You need to configure these parameters before connecting the camera to any devices.
To set up RS-485 settings:
1. Click Configuration > System > RS485.
2. Select the RS-485 port parameters.
Note: The Baud Rate, PTZ Protocol, and PTZ Address parameters should be
exactly the same as the PTZ camera parameters.
3. Click Save to save changes.
Maintenance
The upgrade and maintenance interface allows you to process the operations, including
reboot, partly restore, restore to default, export/import the configuration files, and
upgrade the device.

TruVision 6MP and 12MP 360° Camera Configuration Manual 17
Figure 4: Maintenance window
Parameters Description
1. Reboot Reboot the device
2. Default Restore Reset all the parameters, except the IP
parameters and user information, to the default
settings.
Default Restore all the parameters to the factory
default.
Notes:
•After restoring the default settings, the IP
address is also restored to the default IP
address, please be careful for this action.
•For camera that supports Wi-Fi, wireless
dial, or WLAN function, Restore action does not
restore the related settings of mentioned
functions to default.
3 Information Export Device Parameters Click to export the current configuration file of
the camera. This operation requires admin
password to proceed
Diagnose Information Click to download log and system information.
4 Import Config File Configuration file is used for the batch configuration of the cameras
Note: You need to reboot the camera after importing configuration file
5 Upgrade Upgrade the device.
Note: The upgrading process will take between 1 and 10 minutes. Please
do not disconnect power of the camera during the process. The camera
reboots automatically after upgrade.

18 TruVision 6MP and 12MP 360° Camera Configuration Manual
Configuring the network settings
Accessing the camera through a network requires that you define certain network
settings. Use the “Network” folder to define the network settings. See Figure 5 below for
further information.

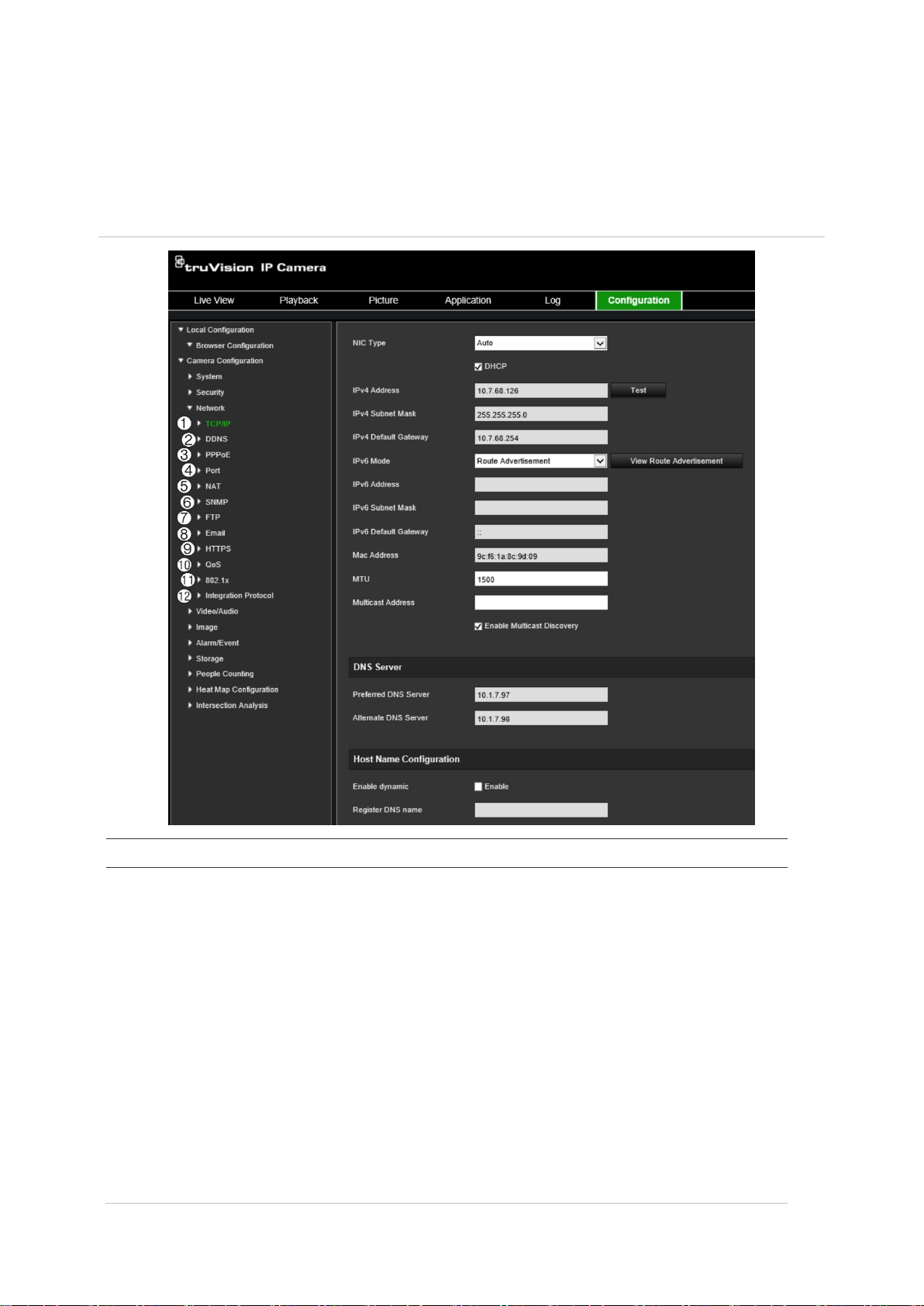

Figure 5: Network window (TCP/IP window shown)
Menu tabs Description
1.
TCP/IP
NIC Type: Enter the NIC type. Default is Auto. Other options include: 10M
Half-dup, 10M Full-dup, 100M Half-dup and 100M Full-dup.
DHCP: Enable to automatically obtain an IP address and other network
settings from that server.
IPv4 Address: Enter the IPv4 address of the camera.
IPv4 Subnet Mask: Enter the IPv4 subnet mask.
IPv4 Default Gateway: Enter the IPv4 gateway IP address.
IPv6 Mode: Enter the IPv6 mode: Manual, DHCP or Router
Advertisement.
IPv6 Address: Enter the IPv6 address of the camera.
IPv6 Subnet Prefix Length: Enter the IPv6 prefix length.
IPv6 Default Gateway: Enter the IPv6 gateway IP address.
Mac Address: Enter the MAC address of the devices.
MTU: Enter the valid value range of MTU. Default is 1500.
Multicast Address: Enter a D-class IP address between 224.0.0.0 to
